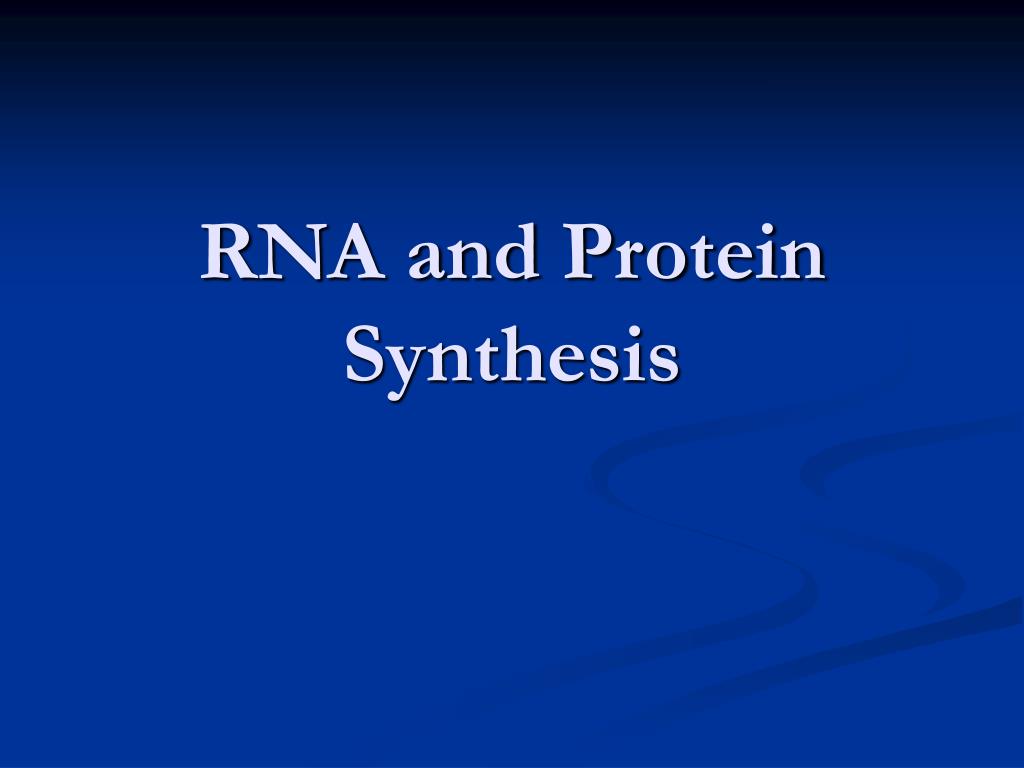

  1. RNA and Protein Synthesis

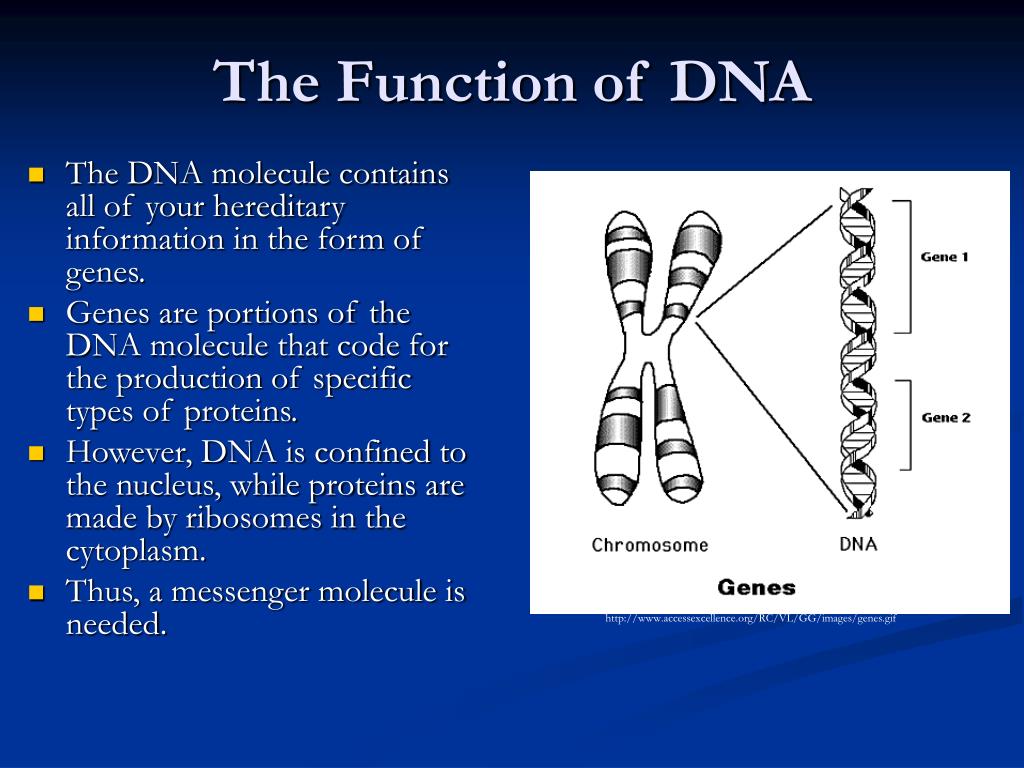

  2. The Function of DNA • The DNA molecule contains all of your hereditary information in the form of genes. • Genes are portions of the DNA molecule that code for the production of specific types of proteins. • However, DNA is confined to the nucleus, while proteins are made by ribosomes in the cytoplasm. • Thus, a messenger molecule is needed. http://www.accessexcellence.org/RC/VL/GG/images/genes.gif

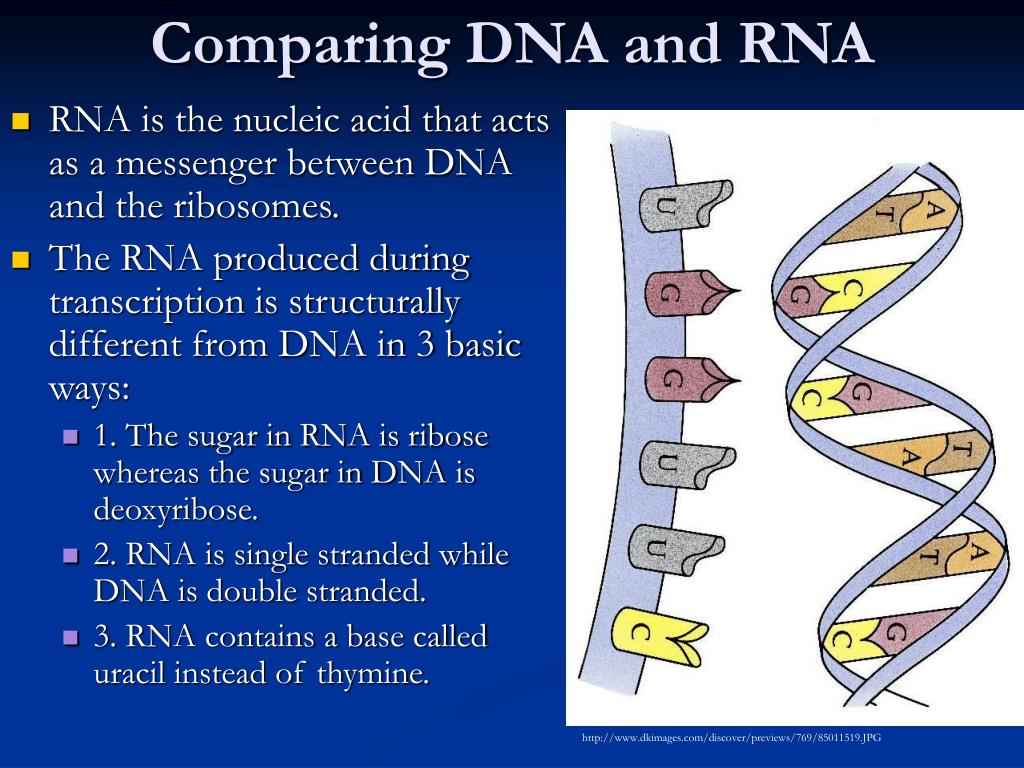

  3. Comparing DNA and RNA • RNA is the nucleic acid that acts as a messenger between DNA and the ribosomes. • The RNA produced during transcription is structurally different from DNA in 3 basic ways: • 1. The sugar in RNA is ribose whereas the sugar in DNA is deoxyribose. • 2. RNA is single stranded while DNA is double stranded. • 3. RNA contains a base called uracil instead of thymine. http://www.dkimages.com/discover/previews/769/85011519.JPG

  4. The Role of RNA • RNA molecules have many functions, but in the majority of cells, most RNA molecules are involved in protein synthesis. • Protein synthesis is the assembly of amino acids into proteins.

  5. Types of RNA • The RNA produced during transcription is modified into 3 basic types: • 1. messenger RNA (mRNA) is responsible for copying one strand of DNA in the nucleus and carrying that information to the ribosomes in the cytoplasm. • 2. ribosomal RNA (rRNA) makes up a large part of the ribosome and is responsible for reading and decoding mRNA. • 3. transfer RNA (tRNA) carries amino acids to the ribosome where they are joined to form proteins. http://images.encarta.msn.com/xrefmedia/zencmed/targets/illus/ilt/T068340A.gif

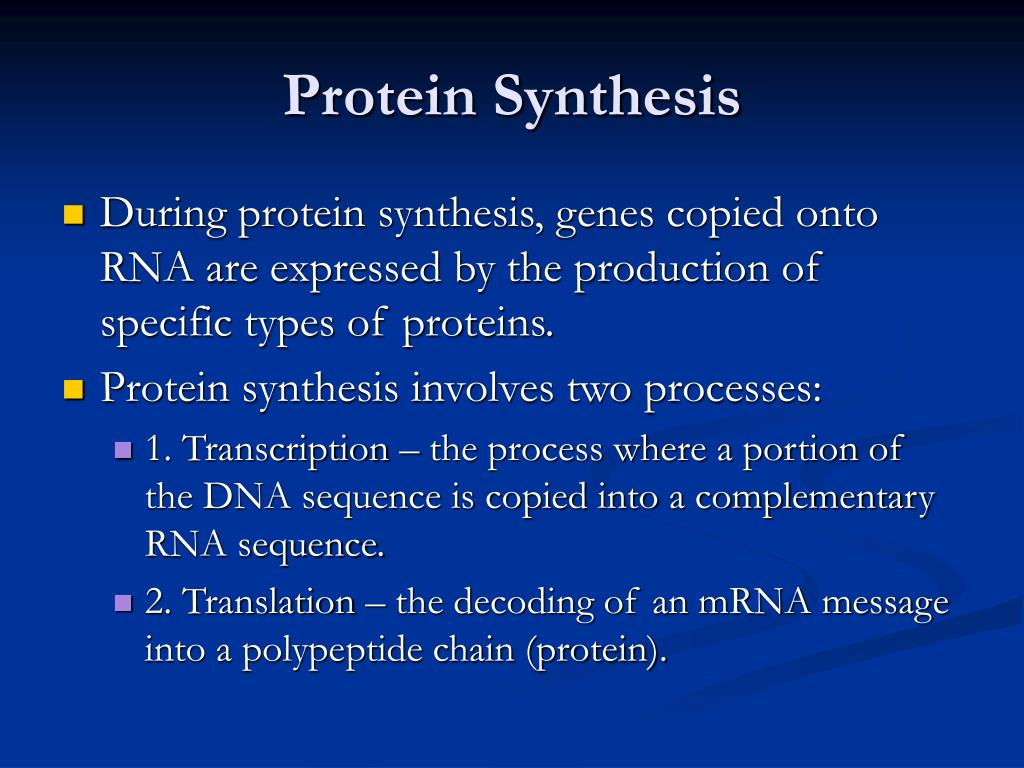

  6. Protein Synthesis • During protein synthesis, genes copied onto RNA are expressed by the production of specific types of proteins. • Protein synthesis involves two processes: • 1. Transcription – the process where a portion of the DNA sequence is copied into a complementary RNA sequence. • 2. Translation – the decoding of an mRNA message into a polypeptide chain (protein).

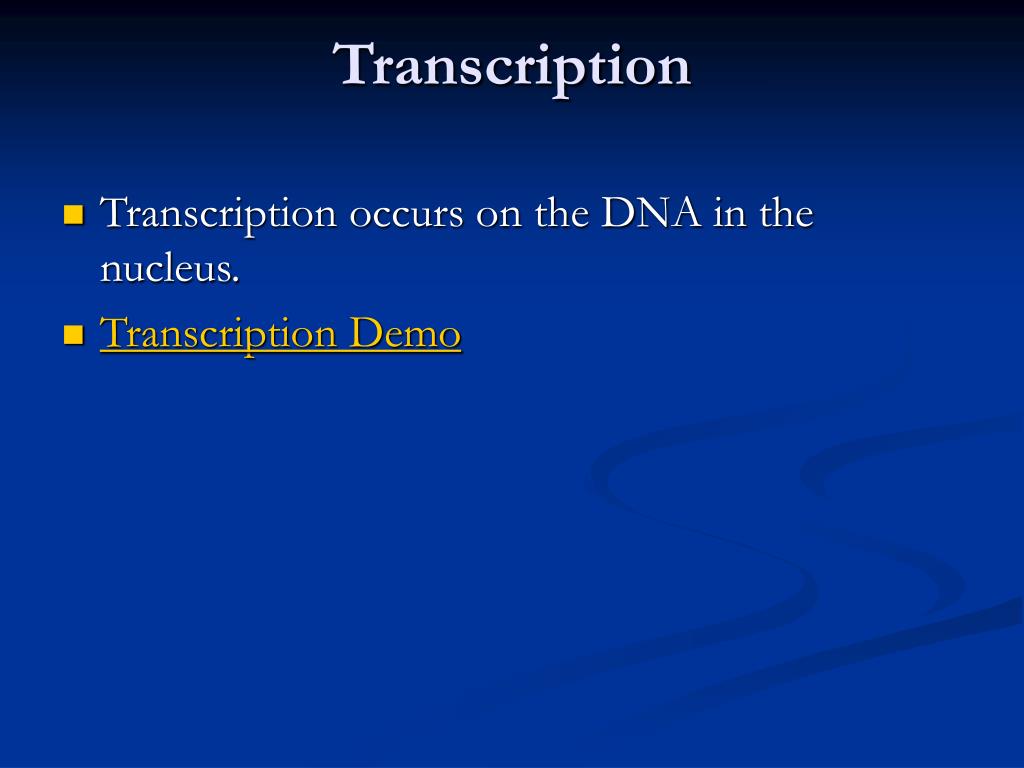

  7. Transcription • Transcription occurs on the DNA in the nucleus. • Transcription Demo

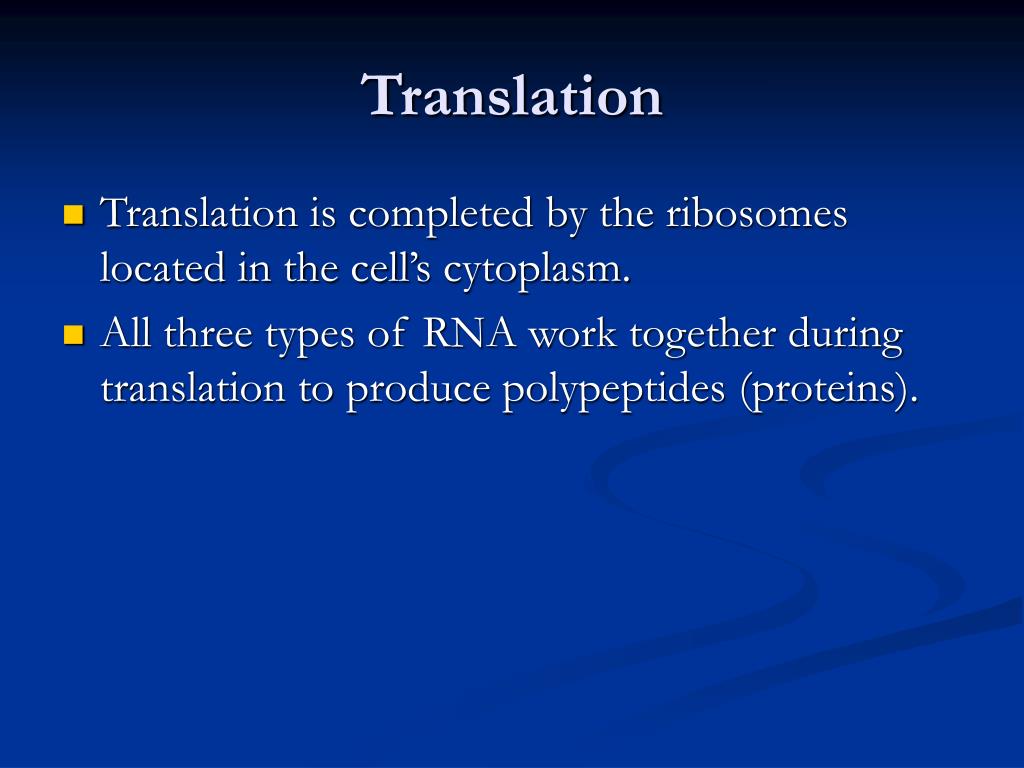

  8. Translation • Translation is completed by the ribosomes located in the cell’s cytoplasm. • All three types of RNA work together during translation to produce polypeptides (proteins).

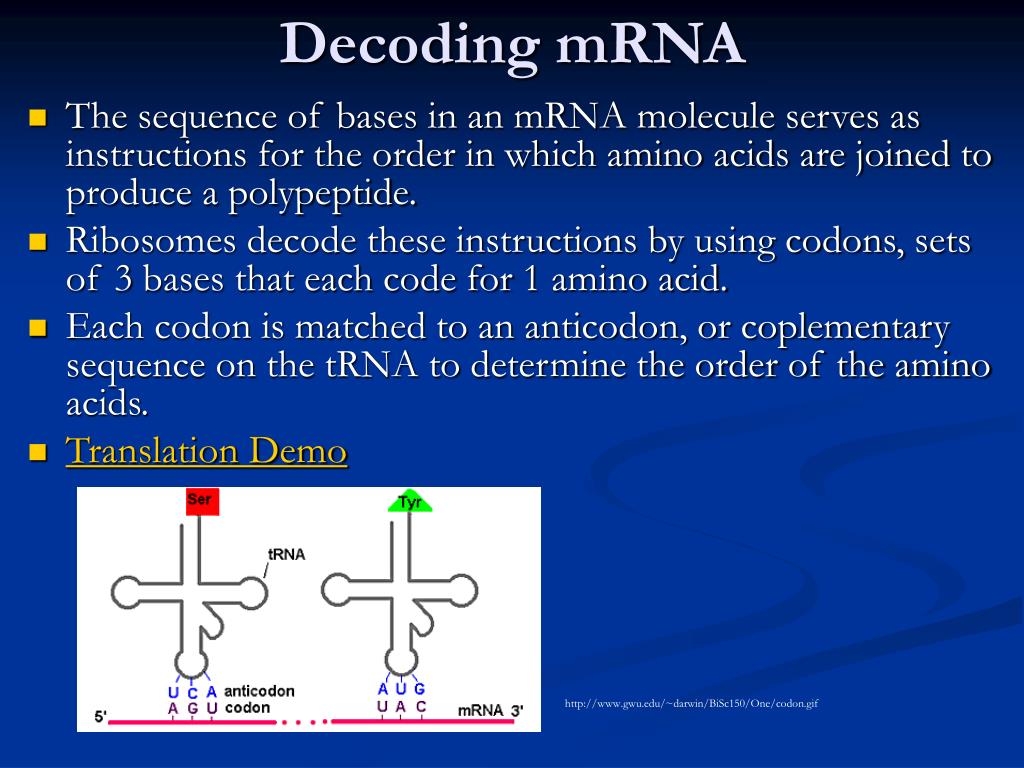

  9. Decoding mRNA • The sequence of bases in an mRNA molecule serves as instructions for the order in which amino acids are joined to produce a polypeptide. • Ribosomes decode these instructions by using codons, sets of 3 bases that each code for 1 amino acid. • Each codon is matched to an anticodon, or coplementary sequence on the tRNA to determine the order of the amino acids. • Translation Demo http://www.gwu.edu/~darwin/BiSc150/One/codon.gif

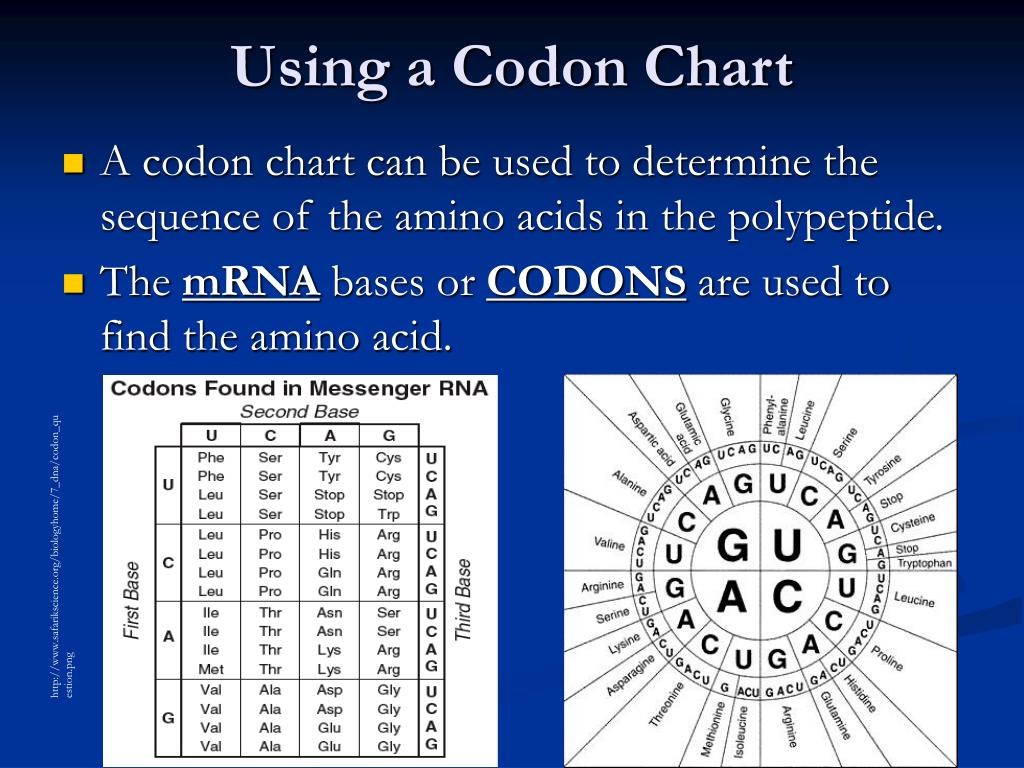

  10. Using a Codon Chart • A codon chart can be used to determine the sequence of the amino acids in the polypeptide. • The mRNA bases or CODONS are used to find the amino acid. http://www.safarikscience.org/biologyhome/7_dna/codon_question.png

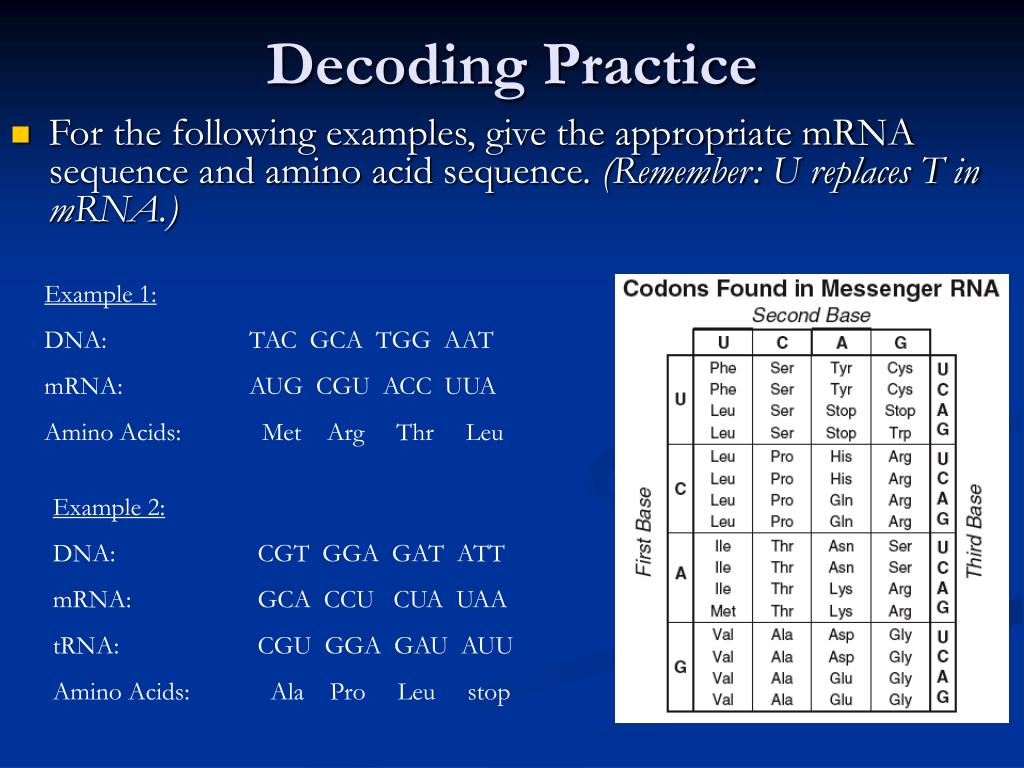

  11. Decoding Practice • For the following examples, give the appropriate mRNA sequence and amino acid sequence. (Remember: U replaces T in mRNA.) Example 1: DNA: TAC GCA TGG AAT mRNA: AUG CGU ACC UUA Amino Acids: Met Arg Thr Leu Example 2: DNA: CGT GGA GAT ATT mRNA: GCA CCU CUA UAA tRNA: CGU GGA GAU AUU Amino Acids: Ala Pro Leu stop

  12. What is a gene mutation? • Sometimes during replication, an error is made that causes subsequent changes in the mRNA and proteins that are made using that DNA. • These errors or changes are called mutations.

  13. Types of Gene Mutations • Pointmutation: • changes in only 1 or a few nucleotides of DNA. • Substitutions, in which one base is changes to another, are a type of point mutation. • Frameshift mutation: • When one base is deleted (deletion) or added (insertion) into a DNA sequence. • This causes the entire sequence of codons to shift over by one base.

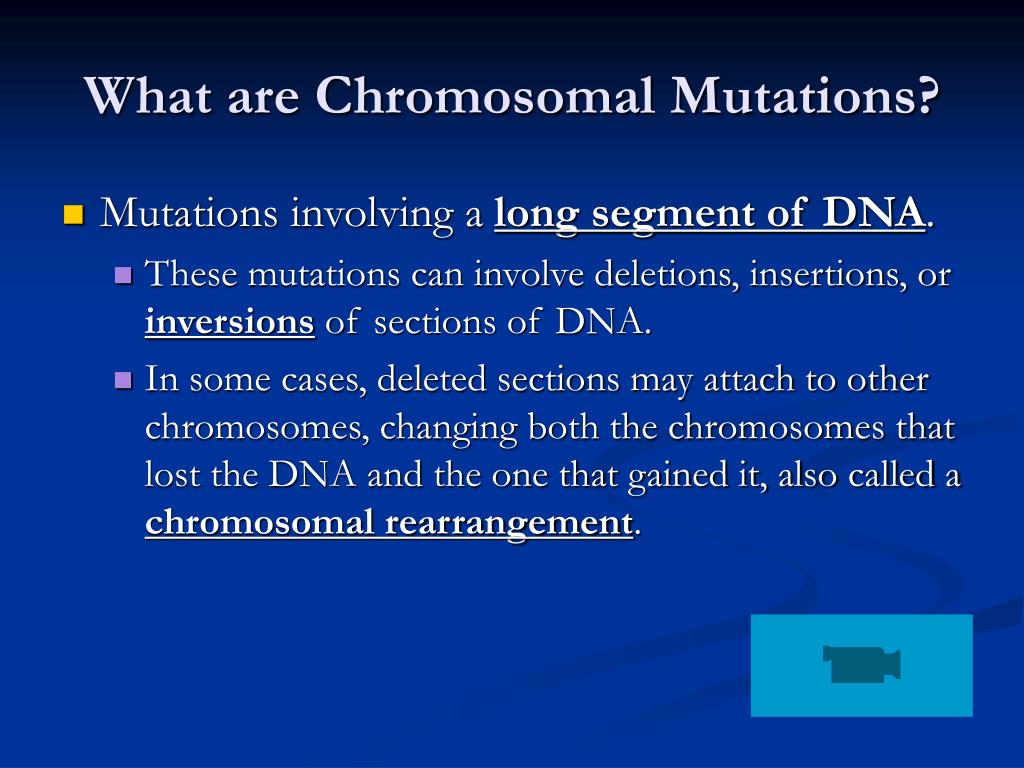

  14. What are Chromosomal Mutations? • Mutations involving a long segment of DNA. • These mutations can involve deletions, insertions, or inversions of sections of DNA. • In some cases, deleted sections may attach to other chromosomes, changing both the chromosomes that lost the DNA and the one that gained it, also called a chromosomal rearrangement.

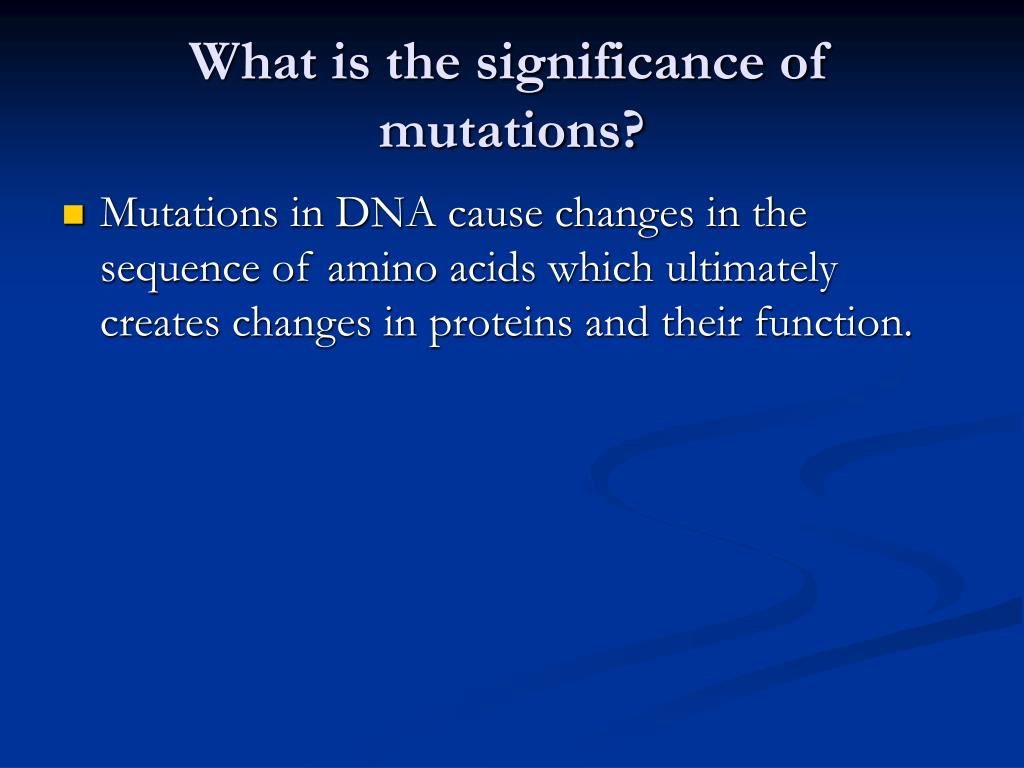

  15. What is the significance of mutations? • Mutations in DNA cause changes in the sequence of amino acids which ultimately creates changes in proteins and their function.
