on the interaction between commercial workloads and memory systems in high performance servers

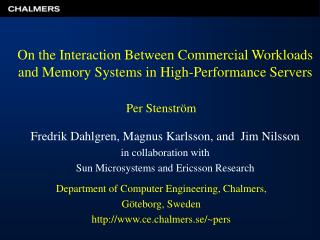

On the Interaction Between Commercial Workloads and Memory Systems in High-Performance Servers

Per Stenström

Department of Computer Engineering, Chalmers,

Göteborg, Sweden

http://www.ce.chalmers.se/~pers

Fredrik Dahlgren, Magnus Karlsson, and Jim Nilsson

in collaboration with

Sun Microsystems and Ericsson Research

motivation
Motivation
  • Database applications dominate (32%)
  • Yet, major focus is on scientific/eng. apps (16%)
project objective
Project Objective
  • Design principles for high-performance memory systems for emerging applications
  • Systems considered:
    • high-performance compute nodes
    • SMP and DSM systems built out of them
  • Applications considered:
    • Decision support and on-line transaction processing
    • Emerging applications
      • Computer graphics
      • video/sound coding/decoding
      • handwriting recognition
      • ...
outline
Outline
  • Experimental platform
  • Memory system issues studied
    • Working set size in DSS workloads
    • Prefetch approaches for pointer-intensive workloads (such as in OLTP)
    • Coherence issues in OLTP workloads
  • Concluding remarks
experimental platform

Application

Operating system (Linux)

Devices

CPU

Sparc V8

Memory

Interrupt

Ethernet

TTY

SCSI

$

M

Single and

multiprocessor

system models

Experimental Platform
  • Platform enables
  • Analysis of comm. workloads
  • Analysis of OS effects
  • Tracking architectural events to OS or appl. level
outline1
Outline
  • Experimental platform
  • Memory system issues studied
    • Working set size in DSS workloads
    • Prefetch approaches for pointer-intensive workloads (such as in OLTP)
    • Coherence issues in OLTP workloads
  • Concluding remarks
decision support systems dss

Level

i

i-1

2

1

Join

Scan

Join

Scan

Join

Scan

Scan

Decision-Support Systems (DSS)

Compile a list of matching entries in several database relations

Will moderately sized caches suffice for huge databases?

our findings

Cache Miss

Rate

MWS

DWS 1

DWS 2

DWS i

Cache size

Our Findings
  • MWS: footprint of instructions and private data to access a single tuple
    • typically small (< 1 Mbyte) and not affected by database size
  • DWS: footprint of database data (tuples) accessed across consecutive invocations of same scan node
    • typically small impact (~0.1%) on overall miss rate
methodological approach
Methodological Approach

Challenges:

  • Not feasible to simulate huge databases
  • Need source code: we used PostgreSQL and MySQL

Approach:

  • Analytical model using
    • parameters that describe the query
    • parameters measured on downscaled query executions
    • system parameters
footprints and reuse characteristics in dss

Level

i

i-1

2

1

Footprints per tuple access

Join

Scan

MWS and DWSi

Join

Scan

MWS and DWSi-1

Join

Scan

MWS and DWS2

MWS and DWS1

Scan

Footprints and Reuse Characteristics in DSS
  • MWS: instructions, private, and metadata
    • can be measured on downscaled simulation
  • DWS: all tuples accessed at lower levels
    • can be computed based on query composition and prob. of match
analytical model an overview
Analytical model-an overview
  • Goal: Predicts miss rate versus cache size for fully-assoc. caches with a LRU replacement policy for single-proc. systems
  • Number of cold misses:
  • size of footprint/block size
    • |MWS| is measured
    • |DWSi| computed based on parameters describing the query (size of relations probability of matching a search criterion, index versus sequential scan, etc)
  • Number of capacity misses for tuple access at level i:
  • CM0(1- C - C0) if C0 < Cache size < |MWS|
  • |MWS| - C0
  • size of tuple/block size if |MWS| <= Cache size < |MWS| + |DWSi|
  • Number of accesses per tuple: measured
  • Total number of misses and accesses: computed
model validation

Q3 on PostgreSQL

    • - 3 levels
    • - 1 seq. scan
    • - 2 index scan
    • - 2 nest. loop
    • joins

Miss ratio

Cache size (Kbyte)

Model Validation

Goal:

  • Prediction accuracy for queries with different compositions
    • Q3, Q6, and Q10 from TPC-D
  • Prediction accuracy when scaling up the database
    • parameters at 5Mbyte used to predict at 200 Mbytes databases
  • Robustness across database engines
    • Two engines: PostgreSQL and MySQL
model predictions miss rates for huge databases
Model Predictions: Miss rates for Huge Databases
  • Miss rate by instr., priv. and meta data rapidly decay (128 Kbytes)
  • Miss rate component for database data small

What’s in the tail?

outline2
Outline
  • Experimental platform
  • Memory system issues studied
    • Working set size in DSS workloads
    • Prefetch approaches for pointer-intensiveworkloads (such as in OLTP)
    • Coherence issues in OLTP workloads
  • Concluding remarks
cache issues for linked data structures
Cache Issues for Linked Data Structures
  • Pointer-chasing show up in many interesting applications:
    • 35% of the misses in OLTP (TPC-B)
    • 32% of the misses in an expert system
    • 21% of the misses in Raytrace
  • Traversal of lists may exhibit poor temporal locality
  • Results in chains of data dependent loads,
  • called pointer-chasing
sw prefetch techniques to attack pointer chasing
SW Prefetch Techniques to Attack Pointer-Chasing
  • Greedy Prefetching (G). - computation per node < latency
  • Jump Pointer Prefetching (J) - short list or traversal not known a priori
  • Prefetch Arrays (P.(S/H))

Generalization of G and J that addresses above shortcomings.

- Trade memory space and bandwidth for more latency tolerance

results hash tables and lists in olden

HEALTH

MST

B G J P.S P.H B G J P.S P.H

Results: Hash Tables and Lists in Olden

Prefetch Arrays do better because:

  • MST has short lists and little computation per node
  • They prefetch data for the first nodesin HEALTH unlike Jump prefetching
results tree traversals in oltp and olden

DB.tree

Tree.add

B G J P.S P.H B G J P.S P.H

Results: Tree Traversals in OLTP and Olden

Hardware-based prefetch Arrays do better because:

  • Traversal path not known in DB.tree (depth first search)
  • Data for the first nodes prefetched in Tree.add
other results in brief
Other Results in Brief
  • Impact of longer memory latencies:
    • Robust for lists
    • For trees, prefetch arrays may cause severe cache pollution
  • Impact of memory bandwidth
    • Performance improvements sustained for bandwidths of typical high-end servers (2.4 Gbytes/s)
    • Prefetch arrays may suffer for trees. Severe contention on low-bandwidth systems (640 Mbytes/s) were observed
  • Node insertion and deletion for jump pointers and prefetch arrays
    • Results in instruction overhead (-). However,
    • insertion/deletion is sped up by prefetching (+)
outline3
Outline
  • Experimental platform
  • Memory system issues studied
    • Working set size in DSS workloads
    • Prefetch approaches for pointer-intensive workloads (such as in OLTP)
    • Coherence issues in OLTP workloads
  • Concluding remarks
coherence issues in oltp

DSM node

SMP node

M

M

M

M

M

M

M

M

M

M

M

M

$

$

$

$

$

$

$

$

$

$

$

$

P

P

P

P

P

P

P

P

P

P

P

P

Coherence Issues in OLTP
  • Favorite protocol: write-invalidate
  • Ownership overhead: invalidations cause write stall and inval. traffic
ownership overhead in oltp
Ownership Overhead in OLTP

Simulation setup:

  • CC-NUMA with 4 nodes
  • MySQL, TPC-B, 600 MB database
  • 40% of all ownership transactions stem from load/store sequences
techniques to attack ownership overhead
Techniques to Attack Ownership Overhead
  • Dynamic detection of migratory sharing
    • detects two load/store sequences by different processors
    • only a sub-set of all load/store sequences (~40% in OLTP)
  • Static detection of load/store sequences
    • compiler algorithms that tags a load followed by a store and brings exclusive block in cache
    • poses problems in TPC-B
new protocol extension
New Protocol Extension

Criterion:

load miss from processor i followed by global store from i, tag block as Load/Store

concluding remarks
Concluding Remarks
  • Focus on DSS and OLTP has revealed challenges not exposed by traditional appl.
    • Pointer-chasing
    • Load/store optimizations
  • Application scaling not fully understood
    • Our work on combining simulation with analytical modeling shows some promise
