1. DNH Secheron What is Butt Weld Joint? Types, Advantages and its uses Enhance Your Skills with Expert Tips

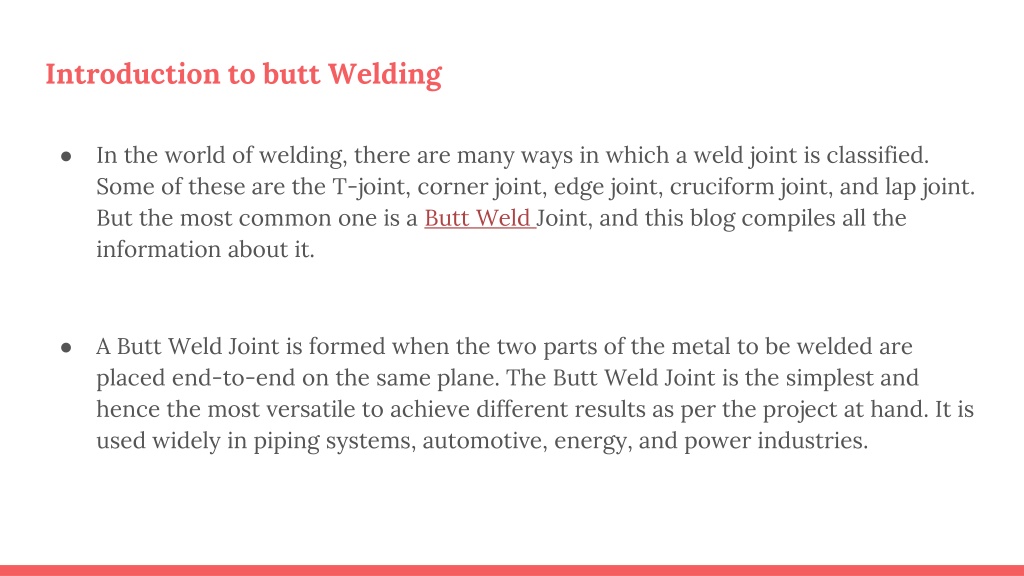

2. Introduction to butt Welding • In the world of welding, there are many ways in which a weld joint is classified. Some of these are the T-joint, corner joint, edge joint, cruciform joint, and lap joint. But the most common one is a Butt Weld Joint, and this blog compiles all the information about it. • A Butt Weld Joint is formed when the two parts of the metal to be welded are placed end-to-end on the same plane. The Butt Weld Joint is the simplest and hence the most versatile to achieve different results as per the project at hand. It is used widely in piping systems, automotive, energy, and power industries.

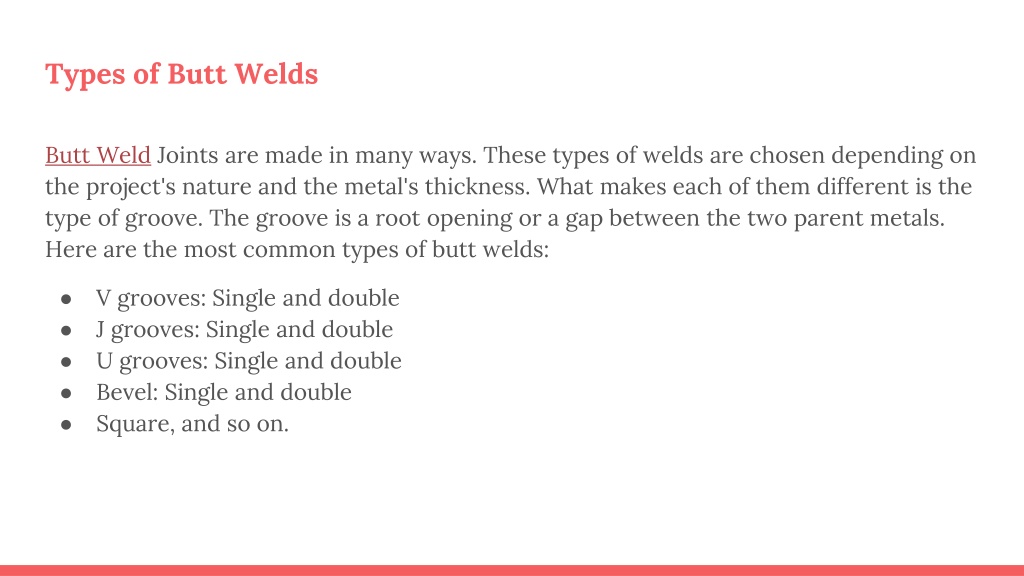

3. Types of Butt Welds Butt Weld Joints are made in many ways. These types of welds are chosen depending on the project's nature and the metal's thickness. What makes each of them different is the type of groove. The groove is a root opening or a gap between the two parent metals. Here are the most common types of butt welds: • V grooves: Single and double • J grooves: Single and double • U grooves: Single and double • Bevel: Single and double • Square, and so on.

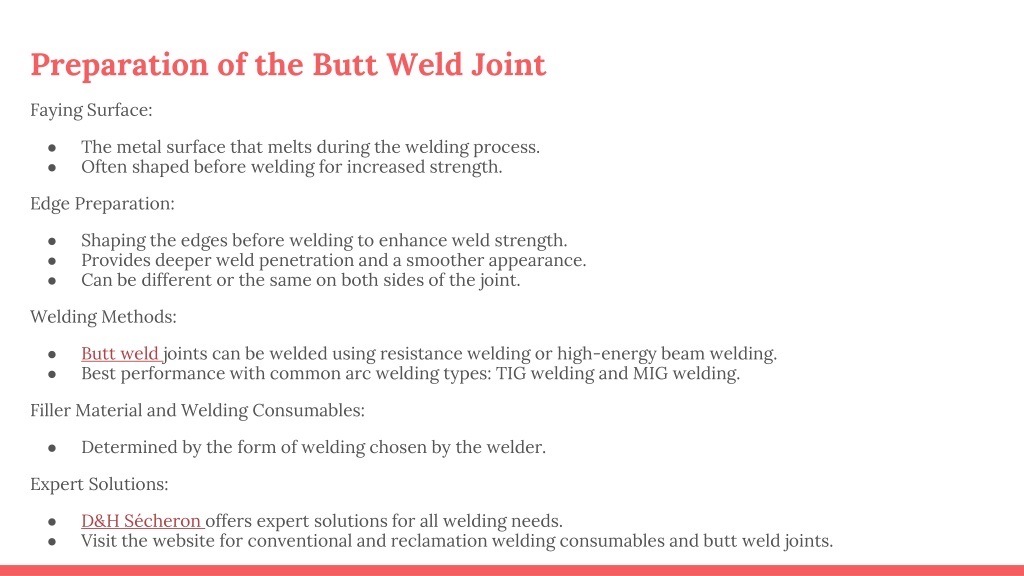

4. Preparation of the Butt Weld Joint Faying Surface: • The metal surface that melts during the welding process. • Often shaped before welding for increased strength. Edge Preparation: • Shaping the edges before welding to enhance weld strength. • Provides deeper weld penetration and a smoother appearance. • Can be different or the same on both sides of the joint. Welding Methods: • Butt weld joints can be welded using resistance welding or high-energy beam welding. • Best performance with common arc welding types: TIG welding and MIG welding. Filler Material and Welding Consumables: • Determined by the form of welding chosen by the welder. Expert Solutions: • D&H Sécheron offers expert solutions for all welding needs. • Visit the website for conventional and reclamation welding consumables and butt weld joints.

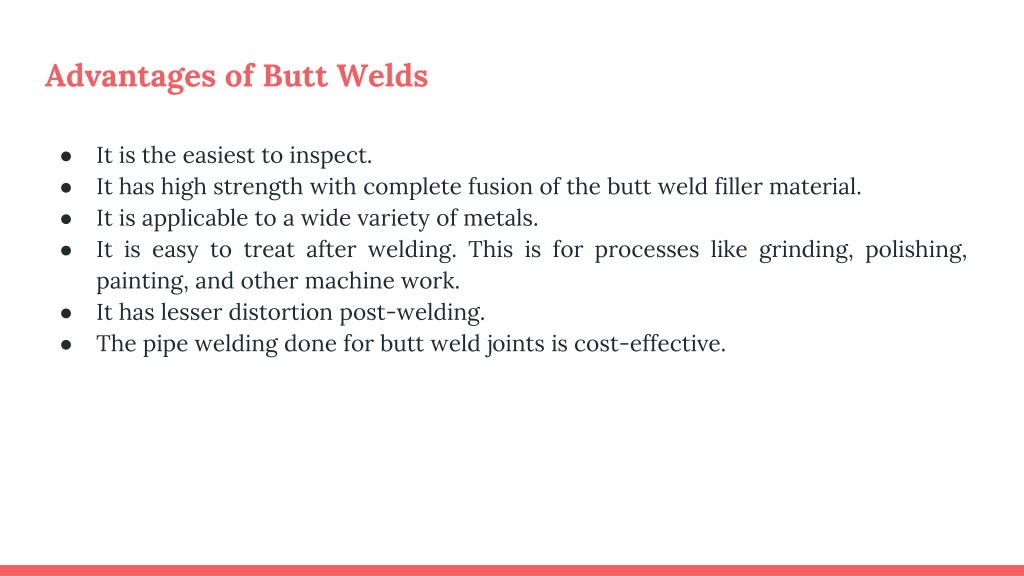

5. Advantages of Butt Welds • It is the easiest to inspect. • It has high strength with complete fusion of the butt weld filler material. • It is applicable to a wide variety of metals. • It is easy to treat after welding. This is for processes like grinding, polishing, painting, and other machine work. • It has lesser distortion post-welding. • The pipe welding done for butt weld joints is cost-effective.

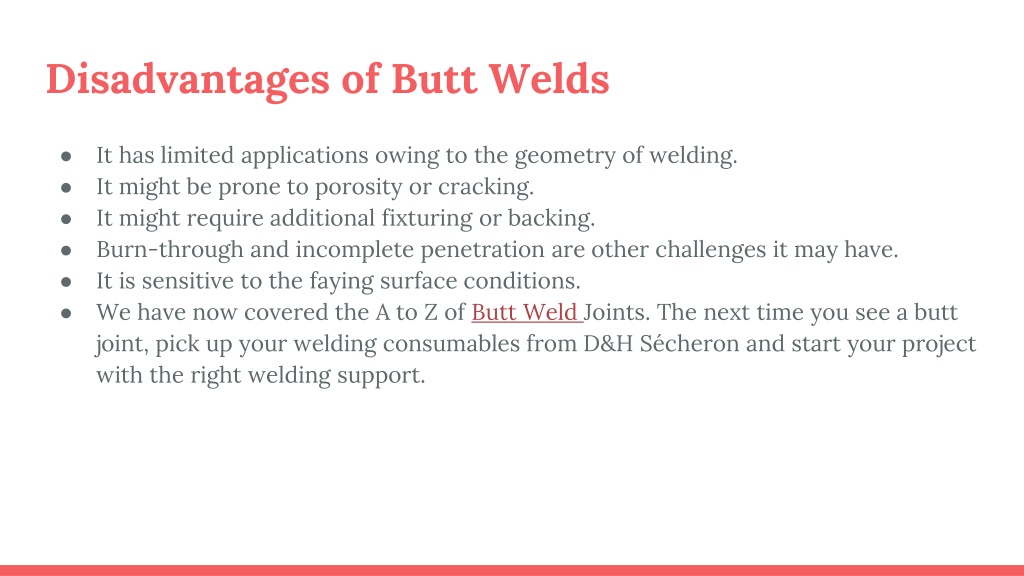

6. Disadvantages of Butt Welds • It has limited applications owing to the geometry of welding. • It might be prone to porosity or cracking. • It might require additional fixturing or backing. • Burn-through and incomplete penetration are other challenges it may have. • It is sensitive to the faying surface conditions. • We have now covered the A to Z of Butt Weld Joints. The next time you see a butt joint, pick up your welding consumables from D&H Sécheron and start your project with the right welding support.
