Sound level meter - Gaxce Sensors

<br>Sound level meter price, Sound level meter - Gaxce Sensors<br>A Sound Level Meter (SLM) is an instrument designed to measure directly sound-pressure levels while incorporating frequency weighting networks which approximate the inverse of equal loudness contours at various levels.<br> . For more details visit https://gaxcesensors.com/sound-level-meter/

dmgaxcesensors
Download Presentation

Sound level meter - Gaxce Sensors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

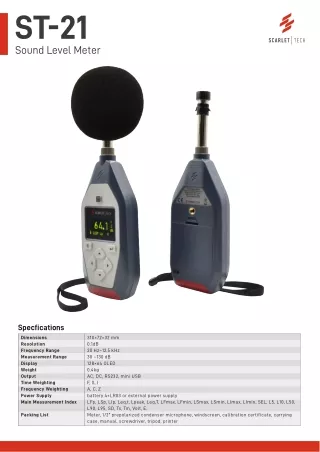

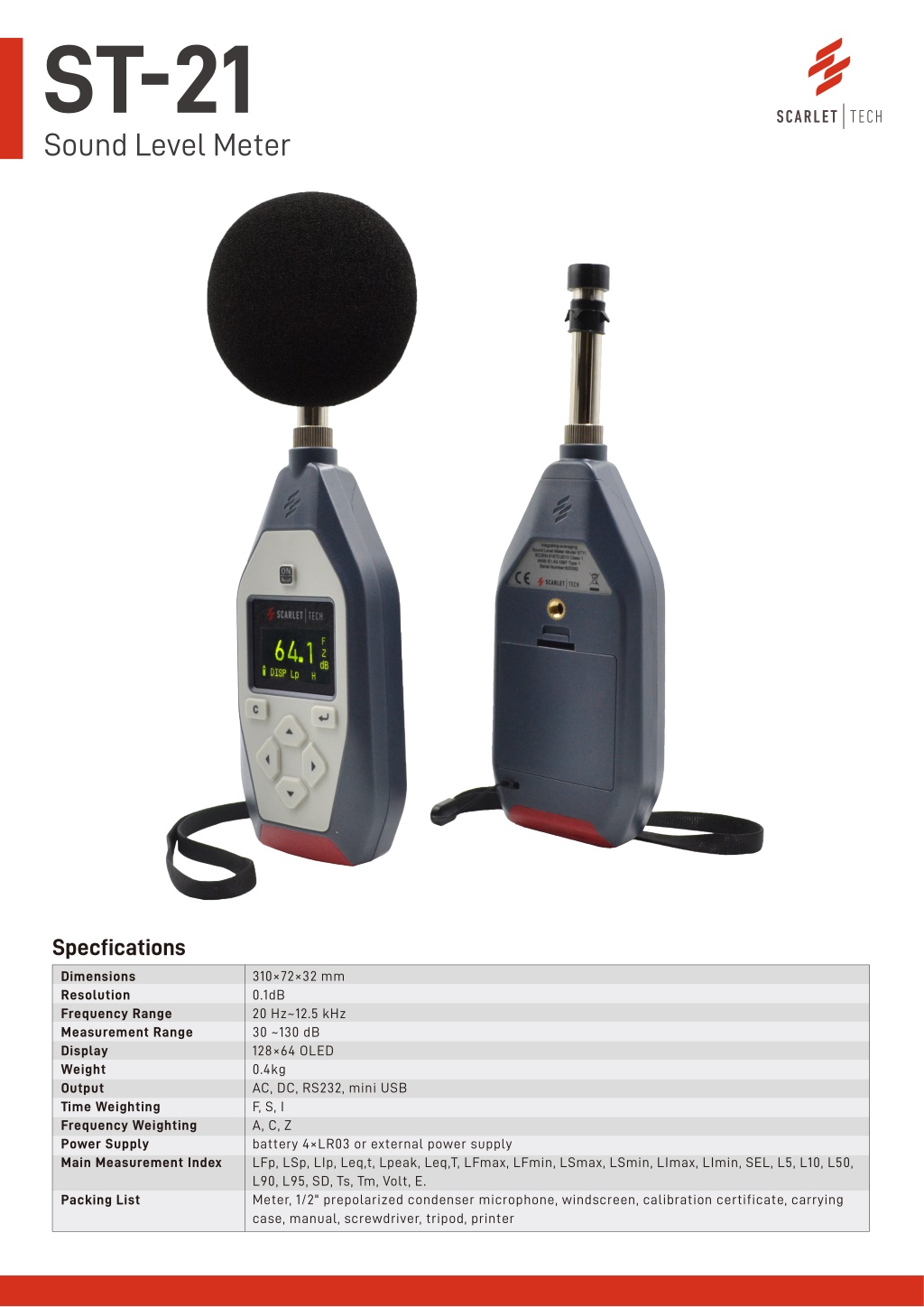

  1. ST-21 Sound Level Meter Specfications Dimensions Resolution Frequency Range Measurement Range Display Weight Output Time Weighting Frequency Weighting Power Supply Main Measurement Index 310×72×32 mm 0.1dB 20 Hz~12.5 kHz 30 ~130 dB 128×64 OLED 0.4kg AC, DC, RS232, mini USB F, S, I A, C, Z battery 4×LR03 or external power supply LFp, LSp, LIp, Leq,t, Lpeak, Leq,T, LFmax, LFmin, LSmax, LSmin, LImax, LImin, SEL, L5, L10, L50, L90, L95, SD, Ts, Tm, Volt, E. Meter, 1/2" prepolarized condenser microphone, windscreen, calibration certificate, carrying case, manual, screwdriver, tripod, printer Packing List
