  1. Using GIS to Understand Retail Customers Subir Bandyopadhyay Joe Ferrandino Professor of Marketing Assistant Professor of Criminal Justice Indiana University Northwest Indiana GIS Conference Indianapolis May 7-8, 2014

  2. Introduction GIS maps have been used in marketing for several applications • Retail site location • Coupon optimization • Sentiment analysis • Billboard advertising • Real estate appraisal

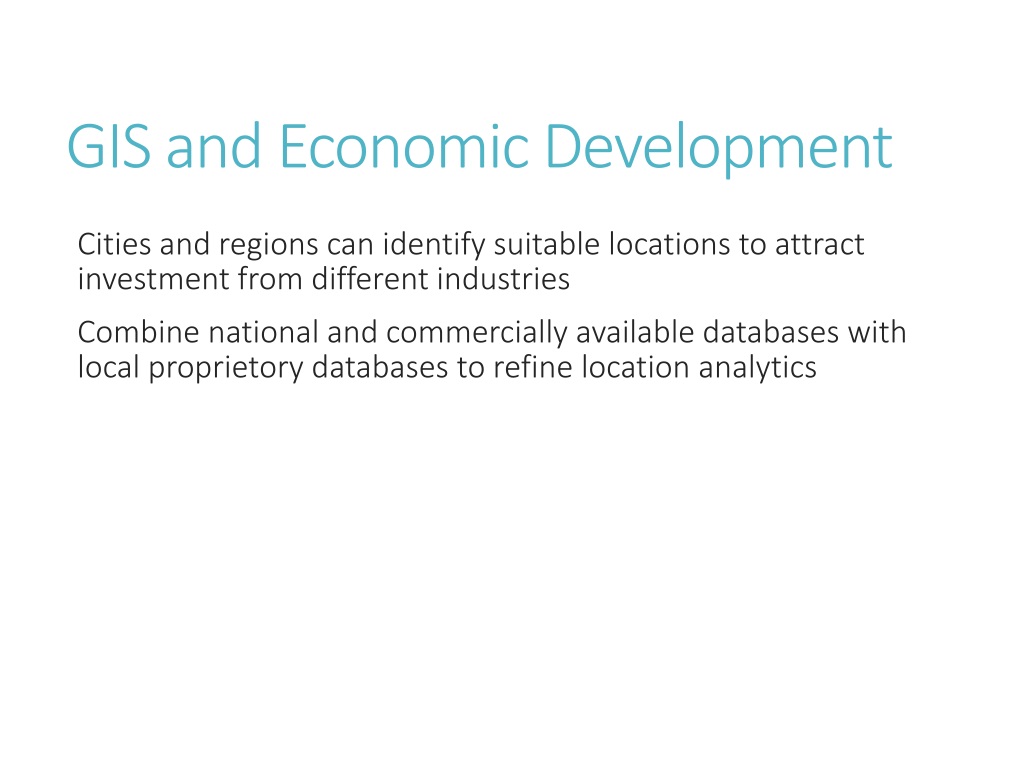

  3. GIS and Economic Development • Cities and regions can identify suitable locations to attract investment from different industries • Combine national and commercially available databases with local proprietory databases to refine location analytics

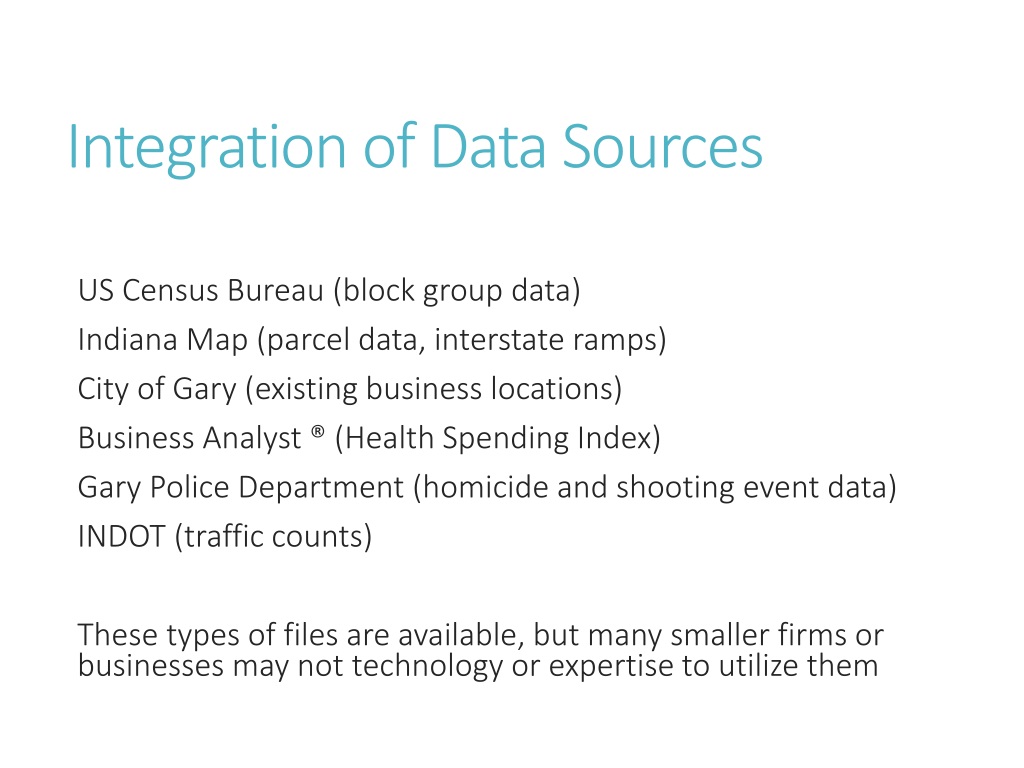

  4. Integration of Data Sources • US Census Bureau (block group data) • Indiana Map (parcel data, interstate ramps) • City of Gary (existing business locations) • Business Analyst ® (Health Spending Index) • Gary Police Department (homicide and shooting event data) • INDOT (traffic counts) • These types of files are available, but many smaller firms or businesses may not technology or expertise to utilize them

  5. Supermarket Location Parameters A mid-sized supermarket chain would like to open a new outlet in Gary, Indiana. The chain typically uses the following location criteria: • It should be within 1 mile of an exit from an Interstate. • The site must sit on a road with an average 500/car per hour traffic volume • There should be no other competition within 0.5 miles from the proposed location • The average income should be $30 K or more in the area within 1 mile radius of the proposed location, • The population should be 5,000 or more in the area within 1 mile radius of the proposed location. • The annual shooting incidents should be 10 or less in the area within 1 mile radius of the proposed location.

  6. Step 1: All city parcels, streets and existing grocery store locations

  7. Step 2: Identification of all parcels within 1 mile of interstate ramps

  8. Step 2: Parcels within 1 mile of interstate

  9. Step 3: Identify roads with an average traffic volume of at least 500 cars/hour

  10. Step 3: Identify remaining parcels on roads with desired traffic volume

  11. Step 4: Create 0.5 Mile Competition Buffers

  12. Step 4: Identify remaining parcels that meet competition criteria

  13. Step 5: Exclude parcels with existing businesses

  14. Step 6: Remaining parcels after public safety and demographic criteria included

  15. Pharmacy Location Parameters A national drug store chain would like to open a new store in Gary, IN. The chain selects a new location if it satisfies the following criteria: • It should be on a state high road with traffic movement rate of 500 cars or more in a hour from 9am to 9 pm. • There should not be more than 1 drugstore within 1 mile radius area around the proposed location. • The annual shooting incidents should be 5 or less in the area within 1 mile radius of the proposed location. • The population should be 1,000 or more in the area within 1 mile radius of the proposed location. • The area should have a high senior population • The area should have a high health spending index score

  16. Step 1: All parcels, streets and existing pharmacies

  17. Step 2: Identification of roads with an average daily traffic volume of 500 cars/hour

  18. Step 2: Identify remaining parcels on roads/streets meeting traffic criteria

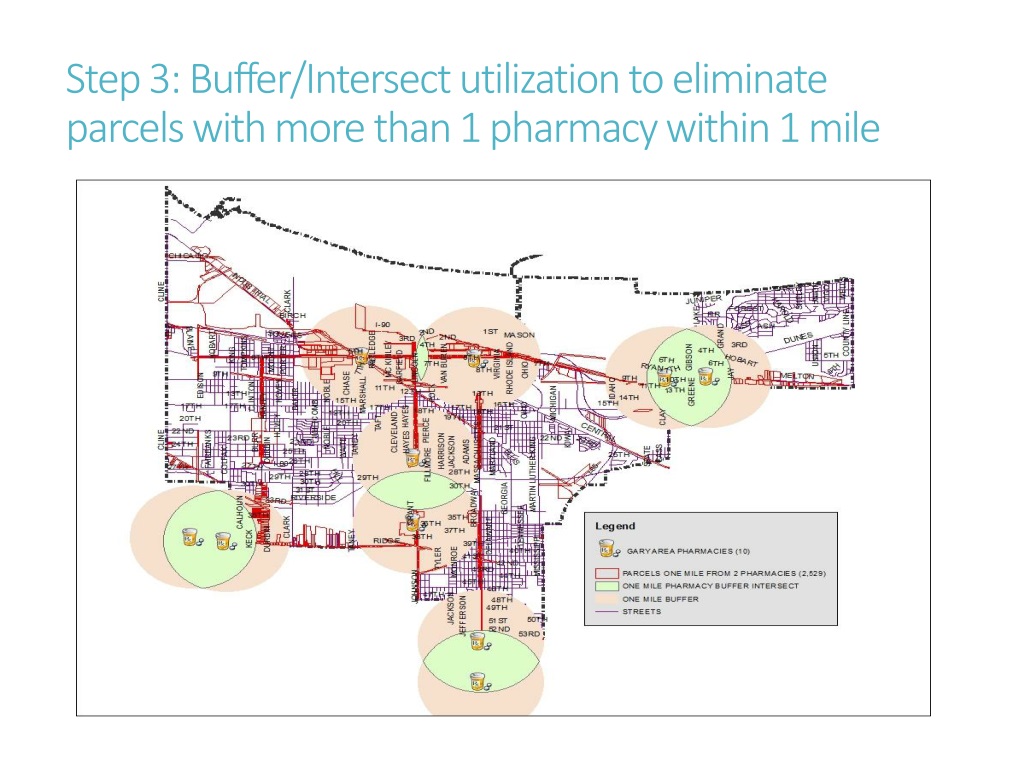

  19. Step 3: Buffer/Intersect utilization to eliminate parcels with more than 1 pharmacy within 1 mile

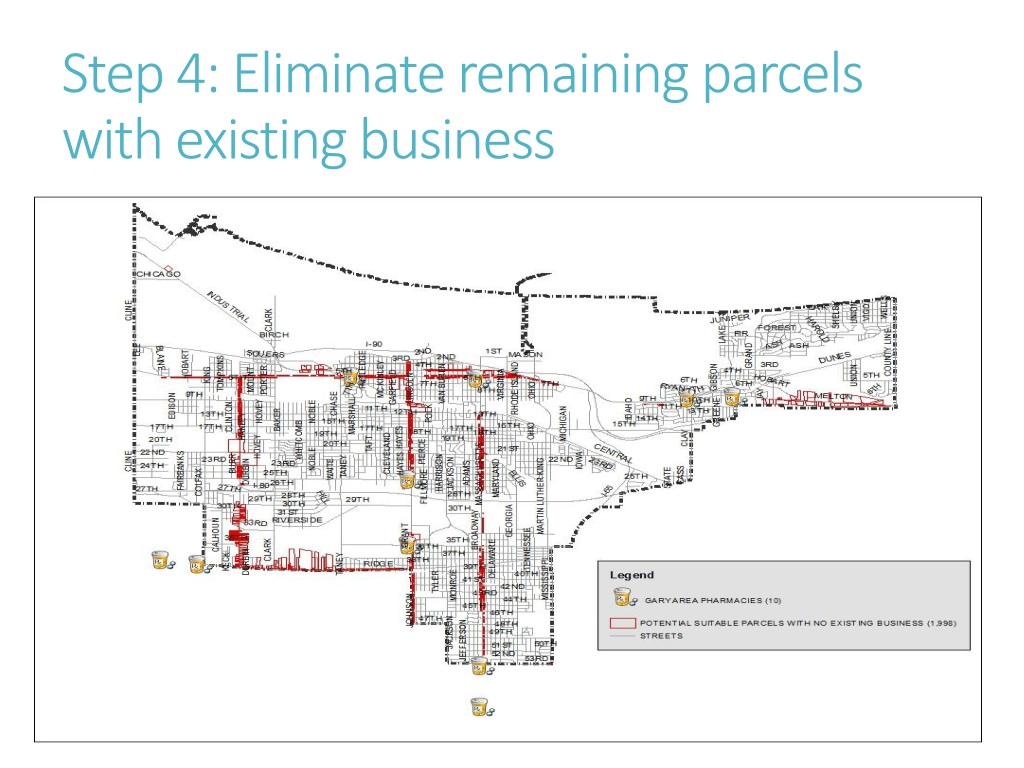

  20. Step 4: Eliminate remaining parcels with existing business

  21. Step 5: Remaining parcels after safety data (homicides and shootings) taken into account

  22. Step 6: Identification of potential location areas for market demographic analysis (senior population) within 1 mile

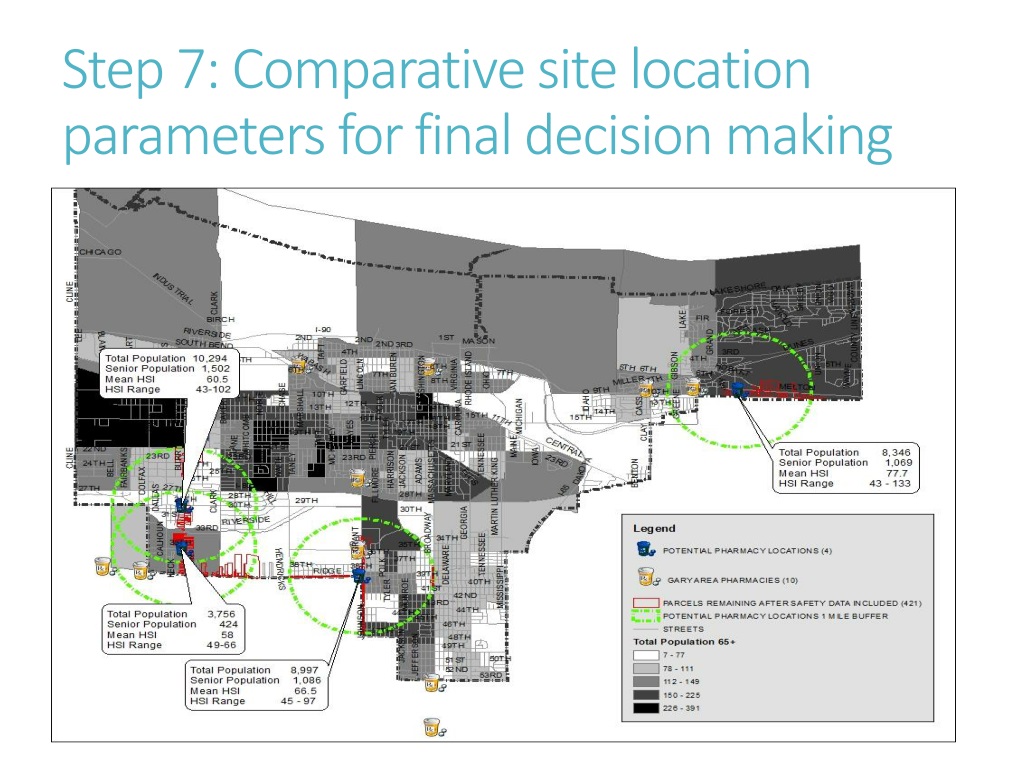

  23. Step 7: Comparative site location parameters for final decision making

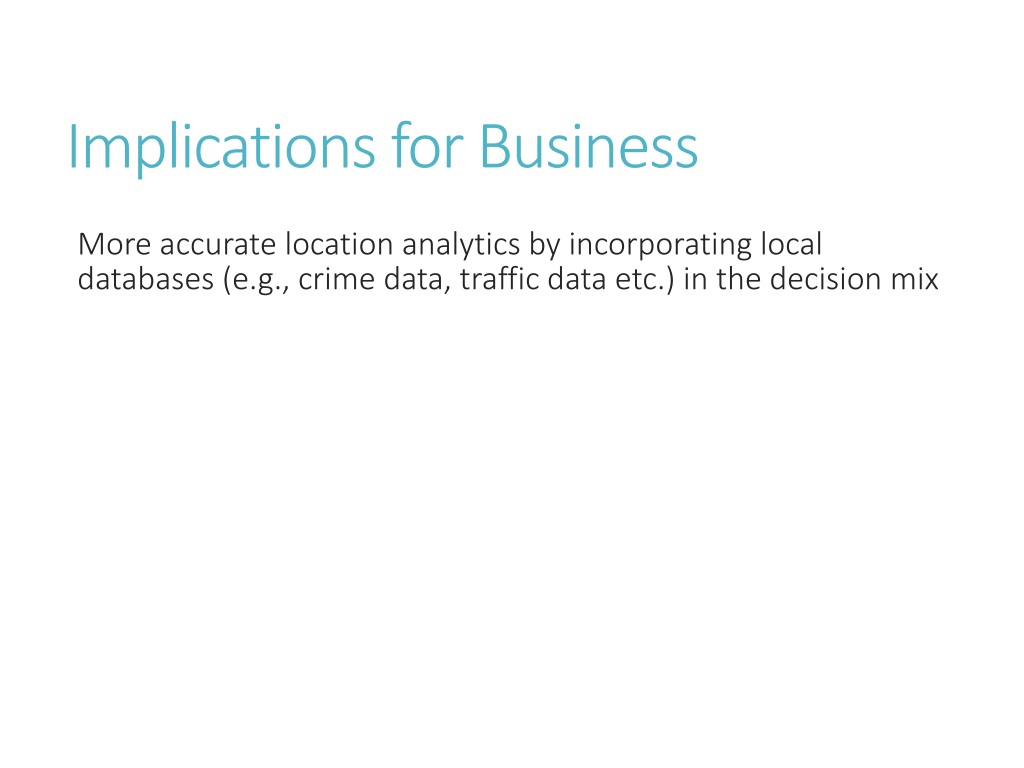

  24. Implications for Business • More accurate location analytics by incorporating local databases (e.g., crime data, traffic data etc.) in the decision mix

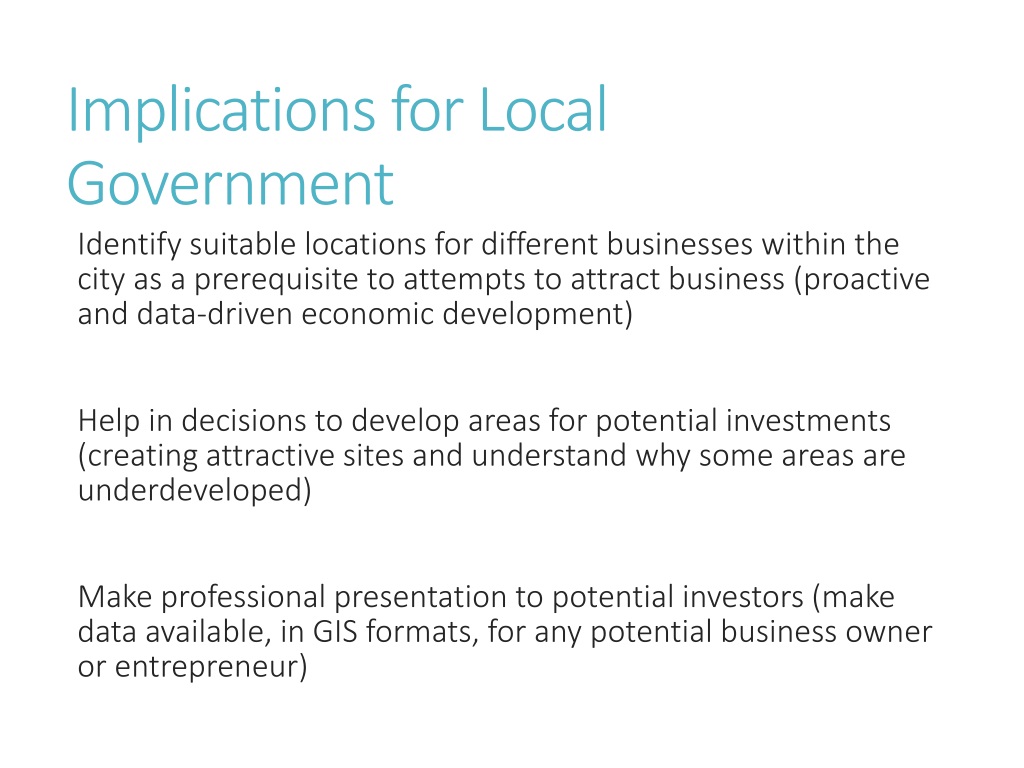

  25. Implications for Local Government • Identify suitable locations for different businesses within the city as a prerequisite to attempts to attract business (proactive and data-driven economic development) • Help in decisions to develop areas for potential investments (creating attractive sites and understand why some areas are underdeveloped) • Make professional presentation to potential investors (make data available, in GIS formats, for any potential business owner or entrepreneur)

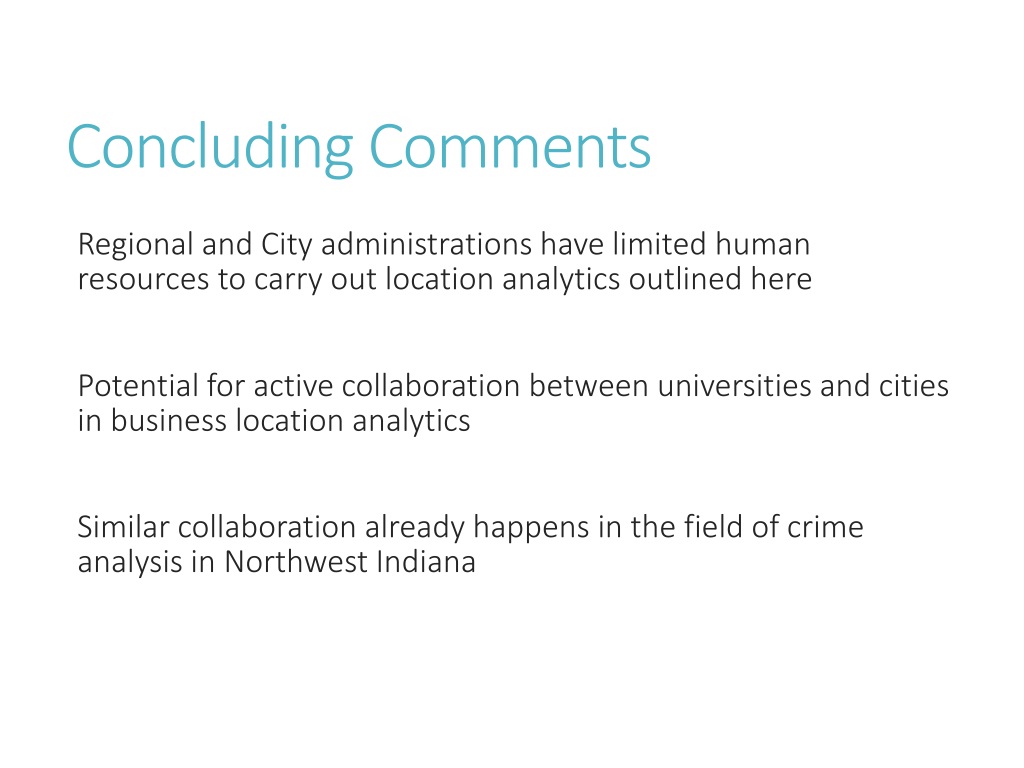

  26. Concluding Comments • Regional and City administrations have limited human resources to carry out location analytics outlined here • Potential for active collaboration between universities and cities in business location analytics • Similar collaboration already happens in the field of crime analysis in Northwest Indiana
