  1. Flood Econ Computer Program By Roger G. Cronshey John E. Long

  2. What is Flood Econ ? • Watershed scale economic flood damage evaluation model system. • Addresses both agricultural and urban damages • Replaces current NRCS URB1 and ECON 2 computer programs

  3. Why Develop FloodEcon? • Make compatible with update TR-20 which feeds peak flow and flow duration data to current ECON2 program • Shift from WSP2 to HEC-RAS to supply cross section information to ECON2 asWSP2 is no longer supported by NRCS • Expect renewed interest in flood economics with pending Dam rehabilitation legislation

  4. FloodEcon System Features • Multiple programs make up the system • Windows based Controller/Editor is part that user interacts • Replaces capabilities of URB1 and ECON2 • Core model written in ANSI standard language (Fortran90) for portability • Interface w/ HEC-RAS for cross section information to be added

  5. Crop Damage Data Building Damage Data • Data Displays and Plots TR-20 Input Data Old ECON2 Input Data ECON2 Input Converter Old ECON2 File Name TR-20 Model HEC-RASOutput File Name Old URB1 Input Data HEC-RAS Output URB 1 Input Converter Printed Page Error Debug Flood Econ Input File Name Flood Econ Model Flood Econ Input Data HEC-RAS Section Retriever Flood Econ SystemController / Editor LegendData Flow Program Flow Old URB1 File Name Flood Econ System Partial Outside Project Scope

  6. Controller/Editor Features • New User guidance (Help windows) • Input/Output in either English or metric units • Ten data entry windows - use only those needed for current job • No fixed order for data entry • Entry window and variable help displayed as needed

  7. Building Data • Damages at a point • Flood Damage data by stage for building, its contents, and associated business loss • Generic buildings can be reused as many times as needed • Each building in the watershed must be located in relation to stream and valley station • Can use published COE depth damage factors directly as input

  8. Building Flood Stage Terminology Cross Section A Stage 8 Cross Section B Interpolated flood elevation 6 First floor elevation 4 2 0 -2 -4 Elevation damage begins -6 -8 Elevation of zero damage Depth of water in building

  9. Cropland Damage • Damages over an area • Monthly crop damages may be due to depth of flooding and/or duration of flooding • Generic crops may be reused as often as needed in the watershed • Subdivide field to represent crop rotations • Each cropland field in the watershed must be located in relation to stream and valley station

  10. Cropland Duration Flooding HighestElevation Peak Dur 1 El Dur 2 El Dur 3 El Lowest Elevation Incremental Area 1 Incremental Area 2 Incremental Area 3 IncrementalArea 4 Incremental Area = cropland area * (Δ incremental Elevation) / (Hi El - Low El)

  11. Cross Section • Elevation and discharge data (generally from HEC-RAS) at selected locations along each stream in watershed • Section may represent a head loss through bridge or culvert by also specifying a downstream elevation for each flow • Used to translate peak flow and flow duration data from TR-20 into elevation • No stationing or elevation extrapolation

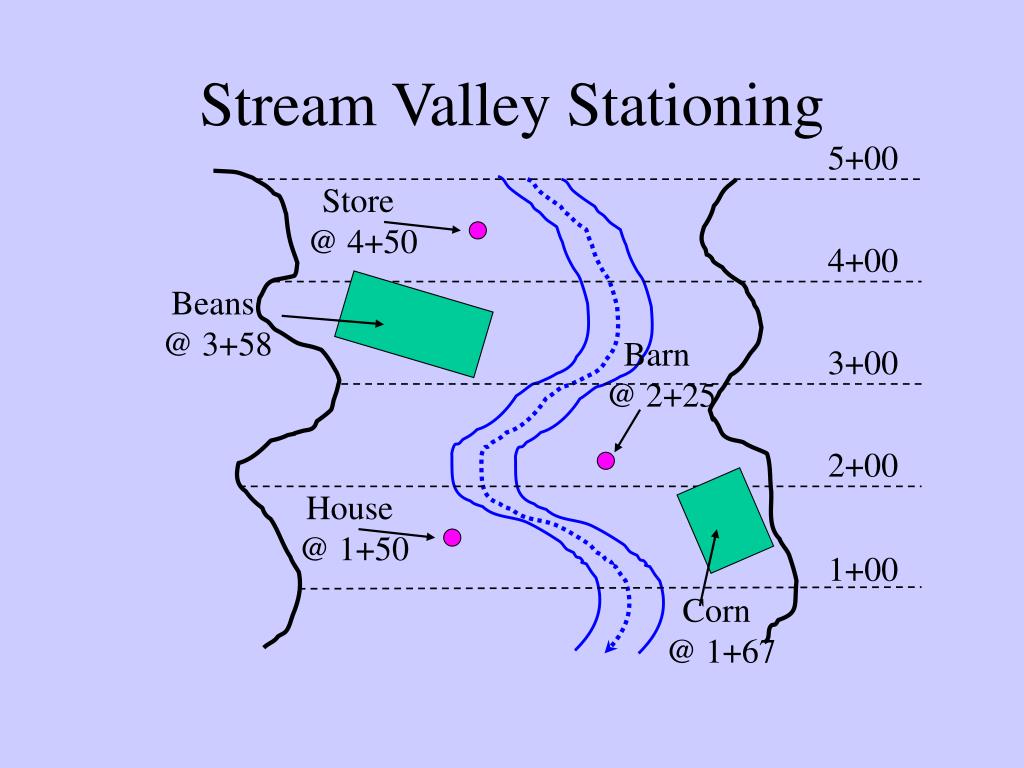

  12. Stream Valley Stationing 5+00 Store @ 4+50 4+00 Beans @ 3+58 Barn @ 2+25 3+00 2+00 House @ 1+50 1+00 Corn @ 1+67

  13. Damage Reach • Portion of a stream for which economic damages are to be accumulated • Reaches are identified by stream name and upstream valley station • Multiple reaches on a stream run consecutively • All buildings and cropland within the reach station range are part of the reach

  14. Damage Reaches Build X Xsect D Xsect A Xsect C Xsect B Crop 3 Crop 2 Build Y Crop 1 Reach 3 Reach 2 Reach 1 Crop 1 and Build X are invalid as extrapolation would be required

  15. Flow Frequency • Up to 10 frequencies (probabilities) per run • Peak flows at each cross section locations for all streams in watershed • Flow frequency data (up to 3 durations) if cross section is needed for cropland flow duration interpolation

  16. Monthly Flood Distribution • Distribution by month of year for potential for flooding • Used as weighting factors for cropland damages which are entered by month • Only needed if there are cropland damages in the watershed

  17. Verification • Provides intermediate output to debug (*.dbg) file • All output in model internal units (English) • Echo of input data (reflecting defaults), pre-processing functions (mostly ordering data by stream and station), processing functions (check calculations for individual buildings or croplands)

  18. Testers Role • Experience the softwareLearn to useIdentify and document problems encountered • Evaluate the systemTechnical adequacy and accuracyDocumentation (needed additions/modifications) • Thoughts of Technology TransferTraining materials and deliveryHow should provide??
