Presentation Transcript
what is organic chemistry
What is organic chemistry
  • The scientific study of carbon based compounds, hydrocarbons, and their derivatives.
organic chemistry con t
Organic Chemistry con’t
  • Including the study of structure, properties, composition, reactions and preparation of these carbon based compounds
  • these carbon based compounds can include other elements such as: Hydrogen, Nitrogen, oxygen
compounds are
Compounds are?
  • The chemical union of two or more elements
general themes in organic chemistry
General themes in Organic chemistry
  • Organic chemistry=Ochem
  • “ R”groups represent attached groups of atoms, such as Hydrocarbon side chains.
  • Hydrocarbon: compounds containing only Carbon and Hydrogen.

Remember Carbon always have “4 bonding e-”

homologous series
Homologous series
  • Organic compounds are members of homologous series similar to a family
  • To be part of a homologous series the members differ by a –CH2 group
  • For example Alkanes:
homologous series con t
Homologous series con’t
  • Homologous series:
    • Show similar chemical reactivity.
    • Can be represented by same general formula
    • Show similar chemical properties
    • Show gradual changes in physical properties.
types of hydrocarbons
Types of hydrocarbons
  • Hydrocarbons are classified into two main groups
    • Aliphatics (alkanes, alkenes, alkynes) which contain branches but do not contain a benzene ring.
    • Aromatic hydrocarbons are a unique type of cyclic hydrocarbon that is derived from a benzene ring
slide9

Hydrocarbons have two types of carbon-carbon (C-C) bonding

  • Single bonds only=Saturated Hydrocarbons
    • contain only C-C single bonds throughout.
    • Every available electron sharing site is occupied (saturated) by hydrogen atoms
  • Double/triple bonds= Unsaturated hydrocarbons
    • contain at least one C-C double bond or triple bond.
    • This means that some electron sharing sites on the carbon atoms are occupied by other carbon atoms (not saturated with hydrogen atoms).

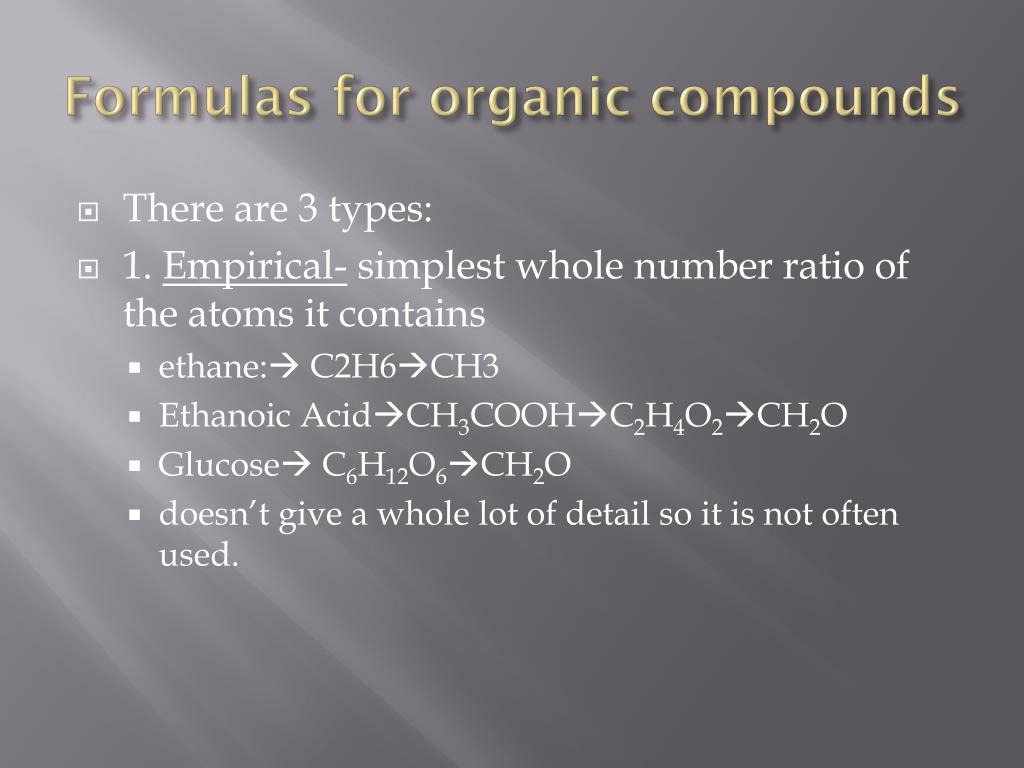

formulas for organic compounds
Formulas for organic compounds
  • There are 3 types:
  • 1. Empirical- simplest whole number ratio of the atoms it contains
    • ethane: C2H6CH3
    • Ethanoic AcidCH3COOHC2H4O2CH2O
    • Glucose C6H12O6CH2O
    • doesn’t give a whole lot of detail so it is not often used.
formulas for organic compounds1
Formulas for organic compounds
  • 2. Molecular Formulas
    • The actual number of atoms of each element present.
    • Ethane C2H6
    • Ethanoic AcidC2H4O2
    • GlucoseC6H12O6
molecular formula
Molecular Formula
  • It is a multiple of the empirical formula
  • (empirical formula)*n=molecular formula
  • Mr= relative molecular mass
  • Mr= (molecular mass of empirical formula )
    • For ethane:
    • Empirical formula is CH3 and Mr=30
    • Mr=(molecular mass )n
    • 30=(12+(3*1.01))n
    • 30=(15.03)n
    • n=2
    • Therefore the molecular formula is (CH3)2 or C2H6
structural formula
Structural formula
  • Structural Formula
    • There are three types of structural:
      • Full structural
        • Shows the bonds of every atom
        • As well as the angle
        • A 2D image
      • Condensed structural formula
        • Does not show bonds, but groups atoms together
        • The minimum amount of information
        • CH3CH3
structural formula con t
Structural formula con’t
  • Structural Formula
    • Stereochemical
      • Attempts to show 3D image
      • By convention: a solid enlarging wedge the bond is coming out of the page
        • A dotted line is going into the page
which type am i
Which type am i?

Full structural

Condensed

Stereochemical

Stereochemical

Full structural

what is a hydrocarbon
What is a hydrocarbon
  • A compound that contains only C and H
    • When naming it is important to find the longest unbranched carbon chain
      • First understand what the picture means

3

2

4

6

5

2

1

1

4

3

5

6

Carbons?

3

2

H

2

3

H

H

5

H

H

H

H

H

H

H

H

2

1

H

H

4

3

6

2

H

2

Hydrogen?

practice
PRACTICE
  • Find the longest UNBRANCHED Hydrocarbon chain
slide19

Name that Hydrocarbon!

Hexane

Butane

propane

ethane

side chains
Side chains
  • Side chains are elements or groups of elements attached to the hydrocarbon chain
  • Also called substituent groups.
  • Important when it comes to naming.
slide23

Functional Groups

  • Are specific groups of atoms within molecules that are responsible for characteristic chemical reactions.
  • For example:
  • Alcohols are characterized by their functional group—OH
functional group 1 alkanes
Functional group 1- Alkanes
  • ALKANES (CnH2n+2)
  • Alkanes are aliphatic hydrocarbons
    • They have only carbon-carbon single bonds
      • this means they are saturated hydrocarbons)

Carbon

Hydrogen

alkanes
Alkanes
  • Properties of Alkanes:
  • Boiling point are dependent on:
    • intermolecular forces primarily, like London dispersion forces.
    • molecular size and surface area of the structure
  • They do not conduct electricity [because they are molecular compounds]
  • Are nonpolar so they are not miscible in water
  • React with oxygen in combustion reactions
naming nomenclature for sidechains
Naming (Nomenclature) for sidechains
  • 1. Find longest unbranched chain of Carbons and number the carbon atoms this is the “root”
  • 2. Based of the number of carbons find the IUPAC name=the suffix
  • 3. Located and identify any sidechains= the prefix
  • 4. Use the attached Carbon
    • To identity where the side group is located.
slide27

5. If there is more than 1 of the same kind of branch, use prefixes di, tri, tetra etc. to indicate this.

  • Place branches in (alphabetical order) in the name
  • Use commas to separate #s, and "–" to separate letters from #s.
  • written as:
    • C# sidechain attached too-sidechainprefixrootofcarbonchain
example
Example

Comma to separate the #s

# of the alkyl group

  • 2,5-dimethylhexane

Suffix

Root

# to identify position of branches

Alkyl prefix

for example
For example
  • 3-ethyloctane

octane

C 3

Ethyl

alkenes c n h 2n
Alkenes- CnH2n
  • Are unsaturated hydrocarbons [i.e. Have at least one double bond]
  • – end with suffix “ene”
  • A # must be used to indicate the position of the double bond. Such as but-2-ene
  • The longest chain must contain the double bond
  • Physical properties very similar to the alkane
alkenes c n h 2n con t
Alkenes- CnH2n- Con’t
  • tend to have fewer dispersion forces than alkanes, which allows them to be liquids at room temp, rather than solids
  • If there are two double bonds, then use the prefix “di” before the “ene”and indicate the placement of the double bonds with #’s, Three double bonds requires the prefix “tri” before the “ene”
alkenes c n h 2n con t1
Alkenes- CnH2n- Con’t
  • Chemical properties of Alkenes
  • Because of the strain at the location of the double bond, it is the reactive site of the molecule.
  • Undergo addition reactions to produce alkanes
  • H atoms tend to add on to the C atoms involved in the C-C double bond
alkynes c n h 2n 2
ALKYNES( CnH2n-2)
  • Alkynes are also examples of unsaturated hydrocarbons.
  • They have at least one triple bond
  • Triple bonds are more reactive than double bonds
  • Alkyne names end with “yne”. Use a number to indicate the position of the triple bond.
  • Ethyne is the most common alkyne (also called acetylene)
naming and drawing alkenes and alkynes
Naming and drawing Alkenes and Alkynes
  • Identify the longest continuous chain which includes the double or triple bonds.
  • Identify the suffix which for alkenes is ``ene`` and for alkynes is ``yne.``
  • The suffix must also include the location of the double or triple bonds. -2-yne
  • Number from the end that will give the location of the double or triple bond the lowest value.
naming and drawing alkenes and alkynes1
Naming and drawing Alkenes and Alkynes
  • The location of the double or triple bond is indicated by the number of the carbon atom that precedes the bond.
  • Use a hyphen, a number, a hyphen and then the suffix “ene” or “yne”
  • Name the side or substituent groups same as done with alkanes.
example1
EXAMPLE
  • 1. find the root- the longest chain of unbranched carbons that contains the double bond
    • 6 Carbon long
  • 2. identify the suffix- remember if it has a double bond the suffix ends with–ene
    • Hexene
slide38

3. Number the carbons, so the double bond has the lowest number possible

    • Hex-1-ene
  • 4. identify the prefix-
    • One methyl on C-4,
    • One ethyl on C-4
    • One methyl on C-5
      • 4,ethyl-4,5-dimethyl
4 ethyl 4 5 dimethylhex 1 ene
4-ETHYL-4,5-DIMETHYLHEX-1-ENE

The C# that the ethyl is attached too

Indicates the number of the particular side chain

C# that the double bond is attached too

The C#s that the methyl is attached too

#C in the longest chain on Cs

Indicates double bond

In alphabetical order the type of side chain or substituent groups attached

slide40
Think about a review game for the stuff we have gone overhave a few practice questions for the board ready as well
cyclic hydrocarbons
Cyclic Hydrocarbons
  • Alkanes, Alkenes and alkynes that are in rings
    • They have no beginning and no end

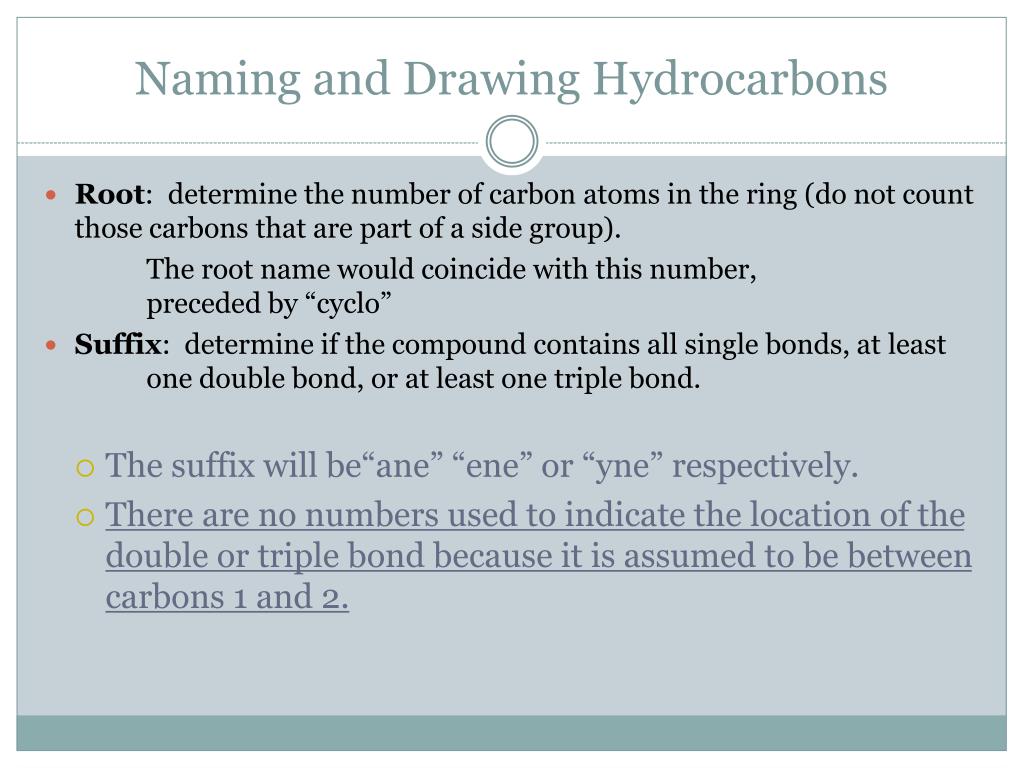

naming and drawing hydrocarbons
Naming and Drawing Hydrocarbons
  • Root: determine the number of carbon atoms in the ring (do not count those carbons that are part of a side group).

The root name would coincide with this number, preceded by “cyclo”

  • Suffix: determine if the compound contains all single bonds, at least one double bond, or at least one triple bond.
    • The suffix will be“ane” “ene” or “yne” respectively.
    • There are no numbers used to indicate the location of the double or triple bond because it is assumed to be between carbons 1 and 2.
slide43

Prefix: Similar to naming the aliphatic hydrocarbons with a few extra things to consider:

    • atoms are not numbered:
      • if there are no side groups or only one side group
    • If more than one side group, number the C atoms to give you the lowest number in the name.
    • If double or triple bonds present in cyclic structure, ALWAYS number so C closest to these bonds is number one.
slide44

6

1.Identify the root: 6 carbons=cyclohex

2.Idenitfy the suffix: double bond present

=ene

3. Assign position numbers of C, so they go in the direction of the side group

4. Name the side group based off of the number of C atoms present

2=ethyl

Name

4-ethylcyclohexene

1

5

4

2

3

slide45

1.Identify the root: 6 carbons=cyclohex

2.Idenitfy the suffix: double bond present

=ene

3.Assign position numbers

4. Name side groups

one carbon=methyl

3 methyl sidegroups=trimethyl

5. Locations of side groups: 1,2,4

Name:

1,2,4-trimethylcyclohexene

6

1 5

2 4

3

more practice
More practice

1.Identify the root: 4 carbons=cyclobut

2.Idenitfy the suffix: triple bond present

=yne

3.Assign position numbers

4. Name side groups

one florine=floro

5. Locations of side groups: 1

Name:

1-florocyclobutyne

32

4 1

F

organic chemistry in oil sands
Organic Chemistry in Oil Sands
  • http://www.oilsands.alberta.ca/
oil sands fun
Oil Sands fun!
  • In general to remember,
  • Oil sands are transported in hydrotransport pipelines to prevent sands from drying
  • Bitumen is separated out based on density, then is skimmed out
    • Bitumen is composed of 20% alkanes and 80% aromatic=OCHEM
  • Bitumen is separated into petroleum and other useful products
    • Through coking(removing C) and hydrocraking (adding H) petroleum is produced
refining petroleum
Refining petroleum
  • The process of fractional distillation
    • 1. heat the petroleum
    • 2. the vapor rises up the fractional distillation tower and then gradually cools
    • 3. each Hydrocarbon component has a unique boiling point, so it condenses at different times
      • So different components can be removed at different times
structural isomers
Structural Isomers
  • Structural isomers: have the same molecular formula but different structures.
    • Because of different structures, different physical properties exist as well
    • As the number of carbon atoms increase the number of possible isomers also increases
      • Pentane (C5H10)= 3 Isomers
      • Hexanes (C6H14)= 5 Isomers
      • Heptane (C7H16)= 9 Isomers
      • Nonane (C9H20)=35 Isomers
homologous series1
Homologous Series
  • REMEMBER**
    • Members in a Homologous series differ by a mthylene group (CH2)
    • Homologous series can be thought of as families
  • The mp. and bp. increase as the number of C atoms increase because there is an difference in strength of the LD forces (or van der Waal’s forces)
  • The mp. and bp. also differ in some cases depending on polarity or hydrogen bonding.
organics in general
Organics in General

Most organic compounds are non-polar and therefore insoluable in water(polar)

** Like dissolves like**

Solubility decreases as chain length increases

If an organic compound contains a functional group, it may allow it to hydrogen bond with water, and relatively water soluble
