Machine learning and data mining clustering


Machine Learning and Data MiningClustering

(adapted from) Prof. Alexander Ihler

TexPoint fonts used in EMF.

Read the TexPoint manual before you delete this box.: AAA

Unsupervised learning

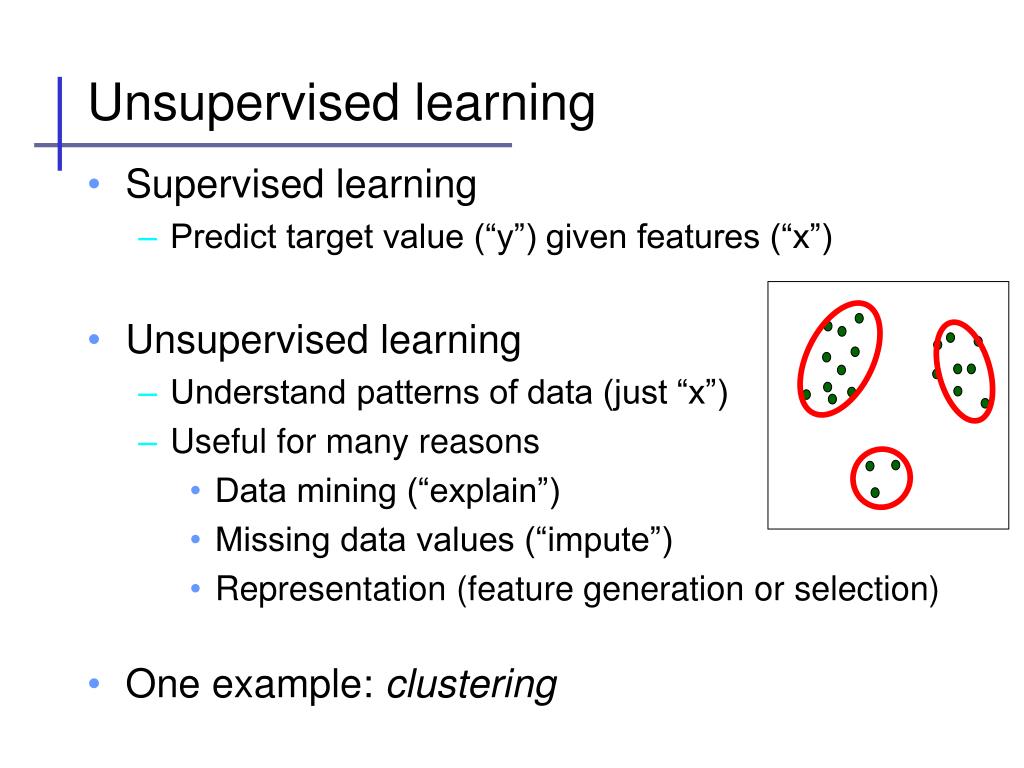

Unsupervised learning

  • Supervised learning

    • Predict target value (“y”) given features (“x”)

  • Unsupervised learning

    • Understand patterns of data (just “x”)

    • Useful for many reasons

      • Data mining (“explain”)

      • Missing data values (“impute”)

      • Representation (feature generation or selection)

  • One example: clustering

Clustering and data compression

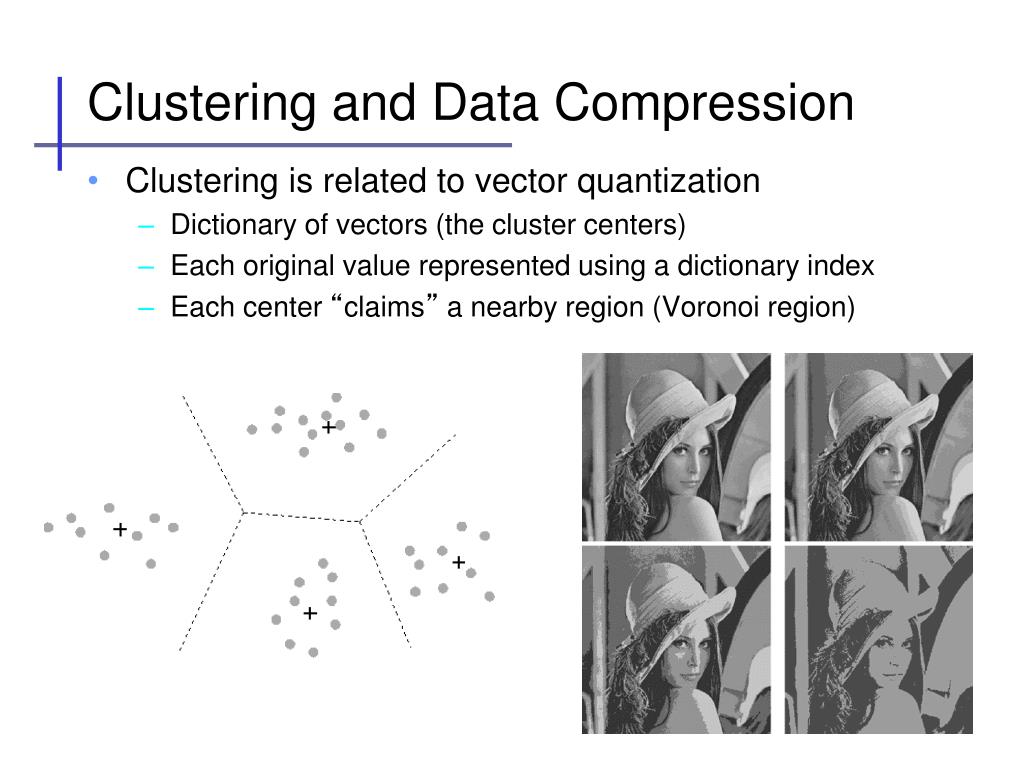

Clustering and Data Compression

  • Clustering is related to vector quantization

    • Dictionary of vectors (the cluster centers)

    • Each original value represented using a dictionary index

    • Each center “claims” a nearby region (Voronoi region)

Hierarchical agglomerative clustering

Another simple clustering algorithm

Define a distance between clusters (return to this)

Initialize: every example is a cluster


Compute distances between all clusters (store for efficiency)

Merge two closest clusters

Save both clustering and sequence of cluster operations

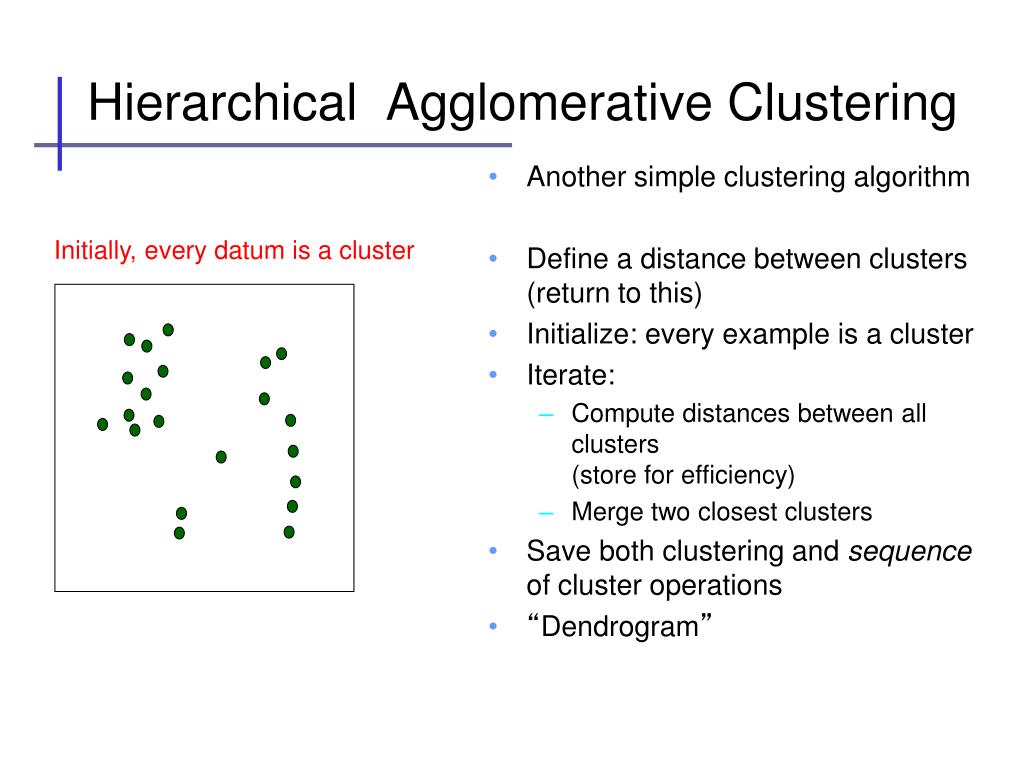

Hierarchical Agglomerative Clustering

Initially, every datum is a cluster

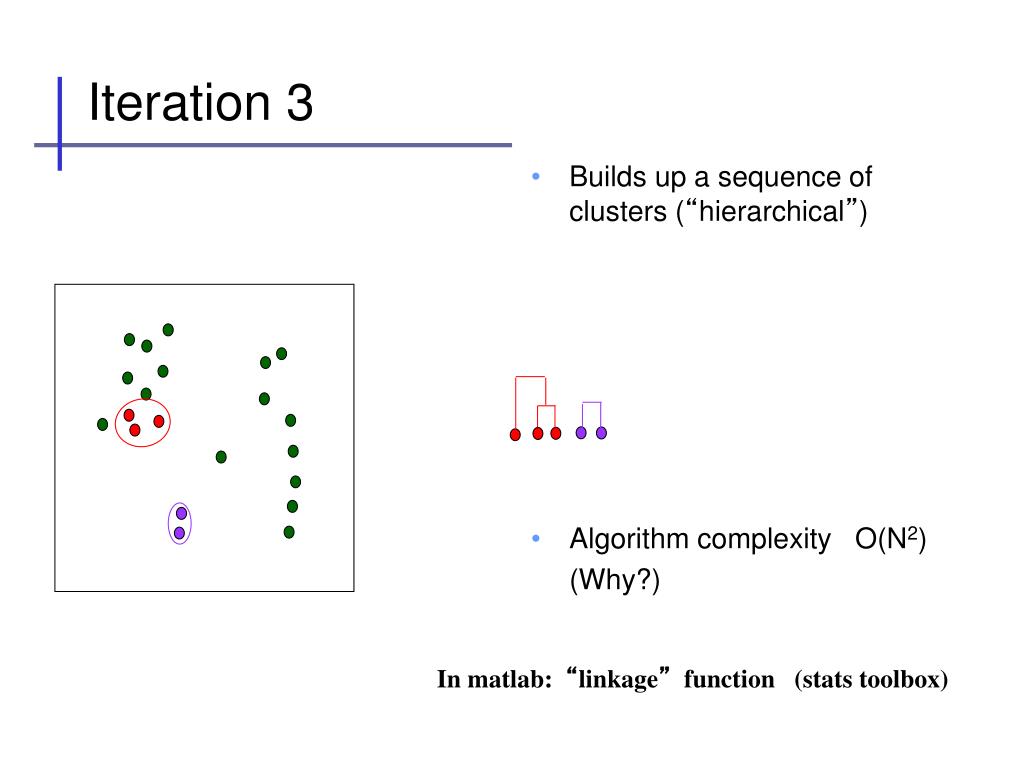

Iteration 3
Iteration 3

  • Builds up a sequence of clusters (“hierarchical”)

  • Algorithm complexity O(N2)

  • (Why?)

In matlab: “linkage” function (stats toolbox)

Cluster distances

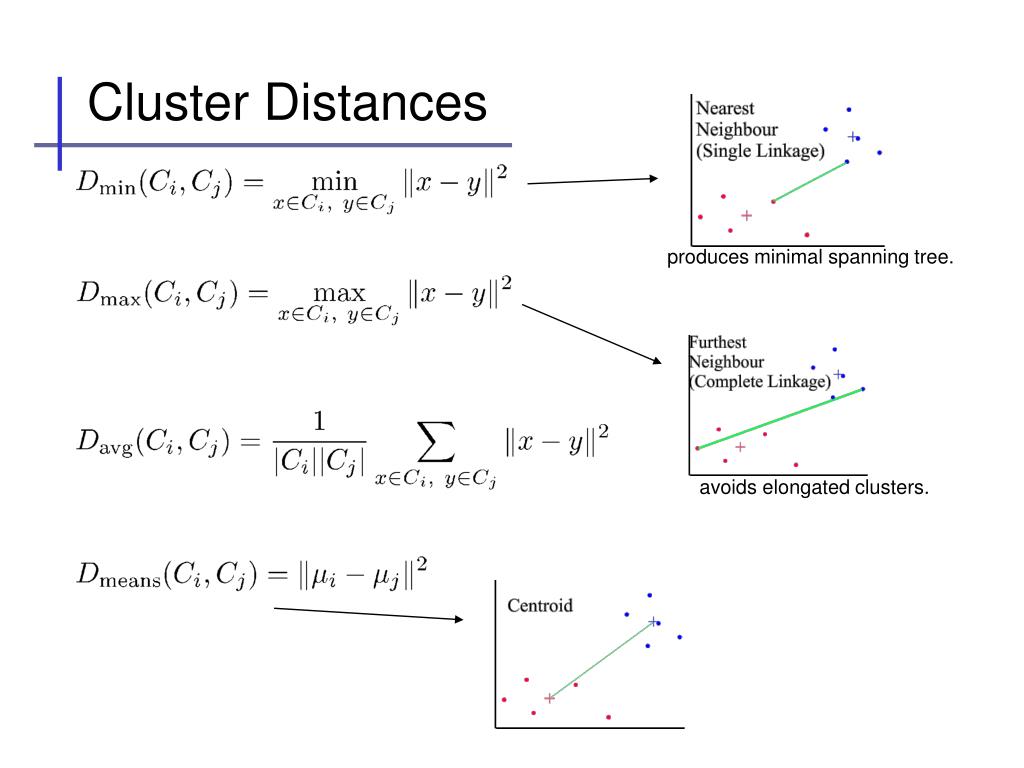

Cluster Distances

produces minimal spanning tree.

avoids elongated clusters.

Example microarray expression

Measure gene expression

Various experimental conditions

Cancer, normal



Explore similarities

What genes change together?

What conditions are similar?

Cluster on both genes and conditions

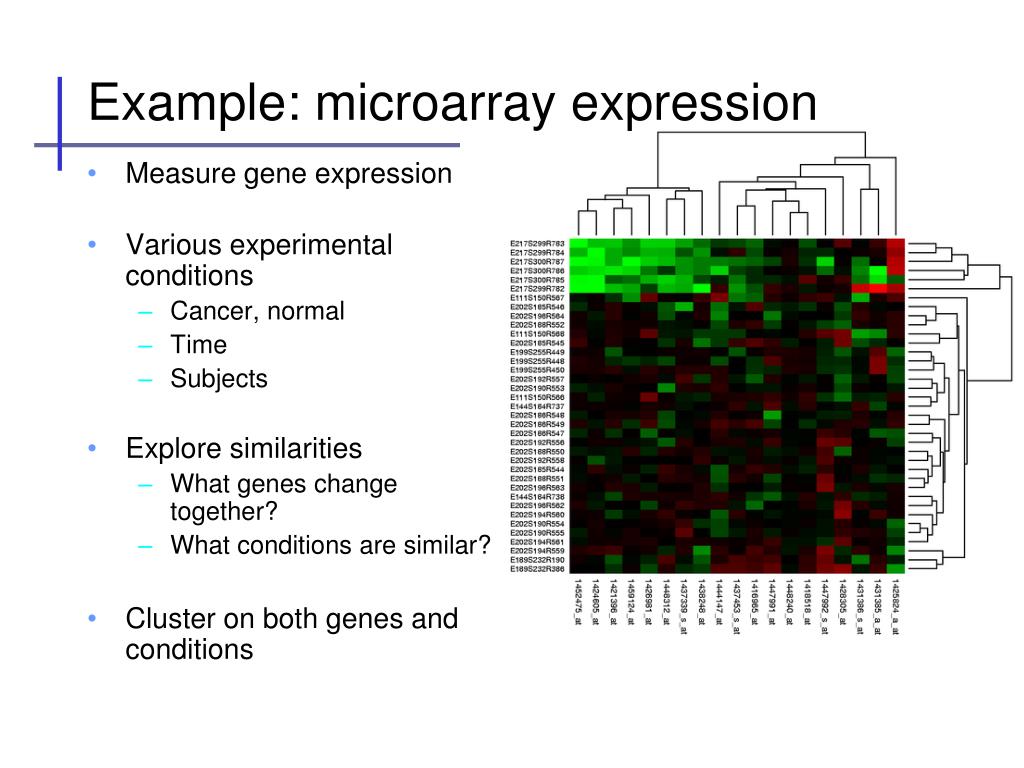

Example: microarray expression

K means clustering

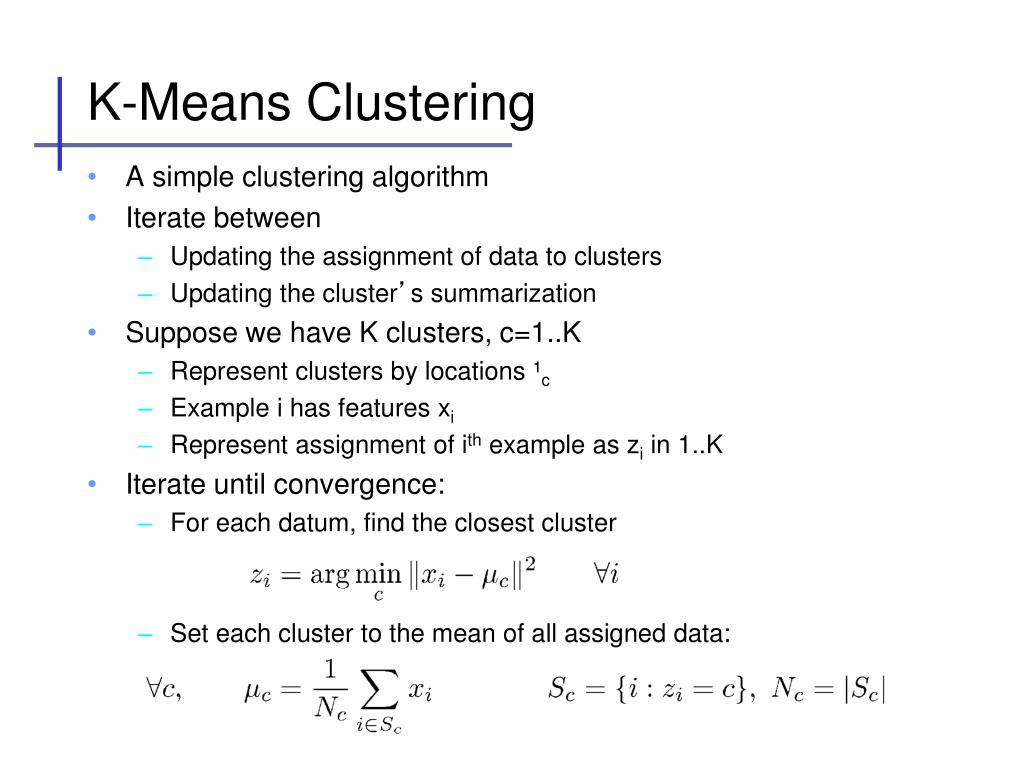

K-Means Clustering

  • A simple clustering algorithm

  • Iterate between

    • Updating the assignment of data to clusters

    • Updating the cluster’s summarization

  • Suppose we have K clusters, c=1..K

    • Represent clusters by locations ¹c

    • Example i has features xi

    • Represent assignment of ith example as ziin 1..K

  • Iterate until convergence:

    • For each datum, find the closest cluster

    • Set each cluster to the mean of all assigned data:

Choosing the number of clusters

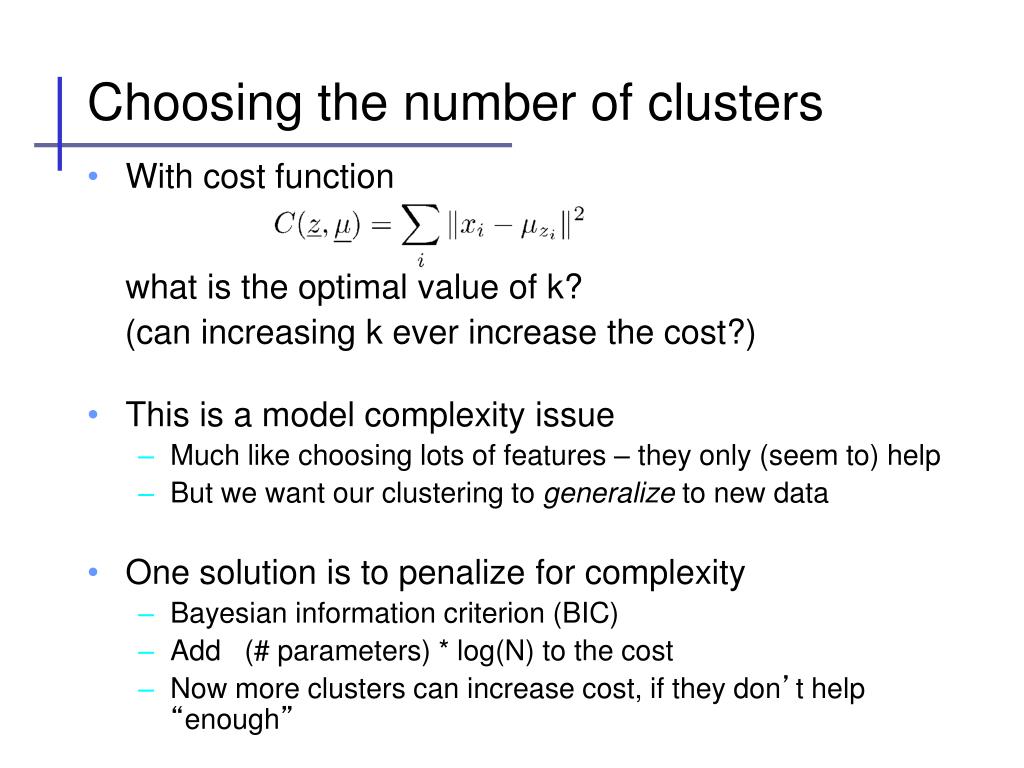

Choosing the number of clusters

  • With cost functionwhat is the optimal value of k?

    (can increasing k ever increase the cost?)

  • This is a model complexity issue

    • Much like choosing lots of features – they only (seem to) help

    • But we want our clustering to generalize to new data

  • One solution is to penalize for complexity

    • Bayesian information criterion (BIC)

    • Add (# parameters) * log(N) to the cost

    • Now more clusters can increase cost, if they don’t help “enough”

Choosing the number of clusters 2
Choosing the number of clusters (2)

  • The Cattell scree test:









Number of Clusters

Scree is a loose accumulation of broken rock at the base of a cliff or mountain.

Mixtures of gaussians
Mixtures of Gaussians

  • K-means algorithm

    • Assigned each example to exactly one cluster

    • What if clusters are overlapping?

      • Hard to tell which cluster is right

      • Maybe we should try to remain uncertain

    • Used Euclidean distance

    • What if cluster has a non-circular shape?

  • Gaussian mixture models

    • Clusters modeled as Gaussians

      • Not just by their mean

    • EM algorithm: assign data to cluster with some probability

Multivariate gaussian models

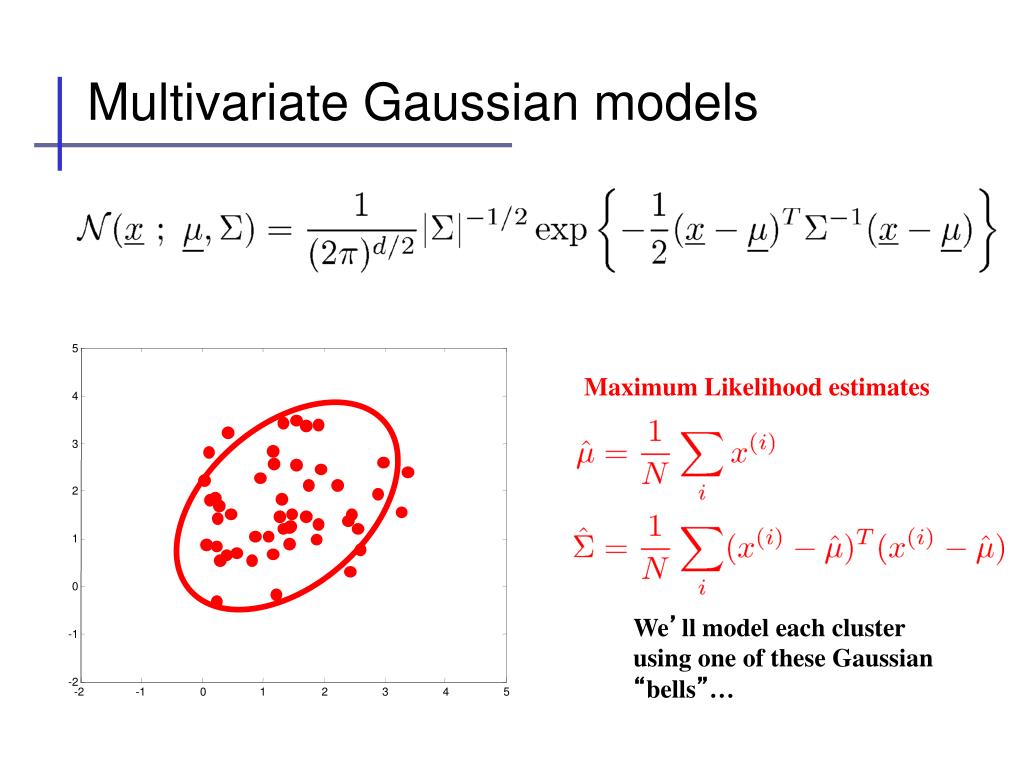

Multivariate Gaussian models


Maximum Likelihood estimates






We’ll model each cluster using one of these Gaussian “bells”…











Em algorithm e step
EM Algorithm: E-step

  • Start with parameters describing each cluster

  • Mean μc, Covariance Σc, “size”πc

  • E-step (“Expectation”)

    • For each datum (example) x_i,

    • Compute “r_{ic}”, the probability that it belongs to cluster c

      • Compute its probability under model c

      • Normalize to sum to one (over clusters c)

    • If x_i is very likely under the cth Gaussian, it gets high weight

    • Denominator just makes r’s sum to one

Em algorithm m step

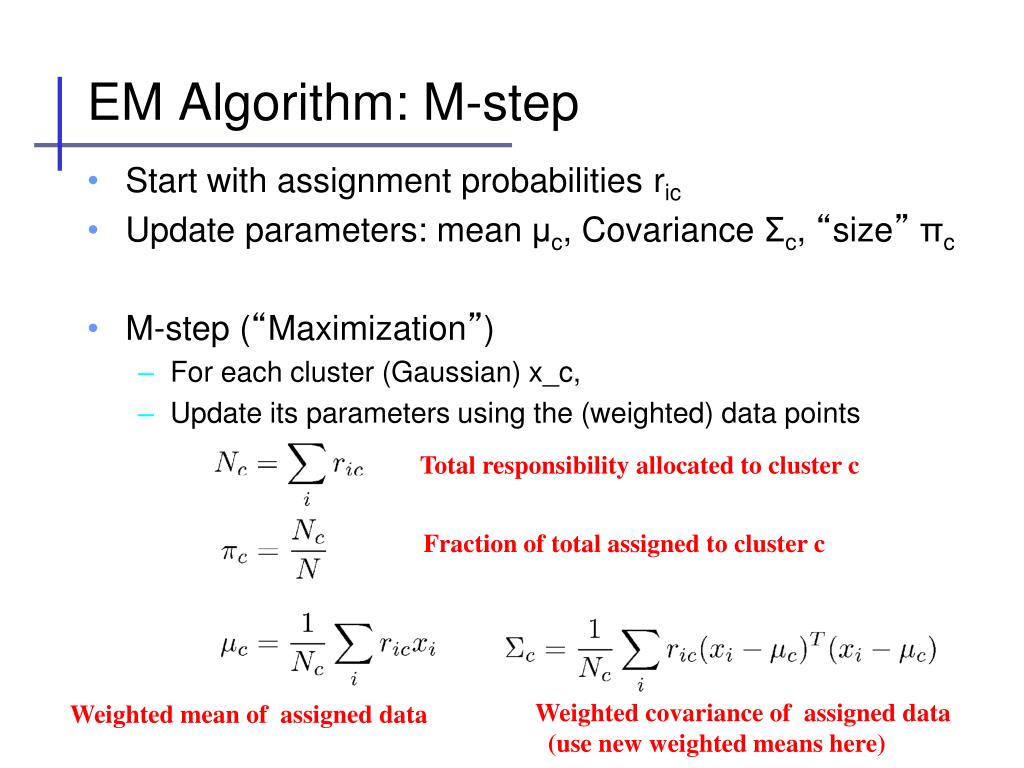

EM Algorithm: M-step

  • Start with assignment probabilities ric

  • Update parameters: mean μc, Covariance Σc, “size”πc

  • M-step (“Maximization”)

    • For each cluster (Gaussian) x_c,

    • Update its parameters using the (weighted) data points

Total responsibility allocated to cluster c

Fraction of total assigned to cluster c

Weighted covariance of assigned data

(use new weighted means here)

Weighted mean of assigned data

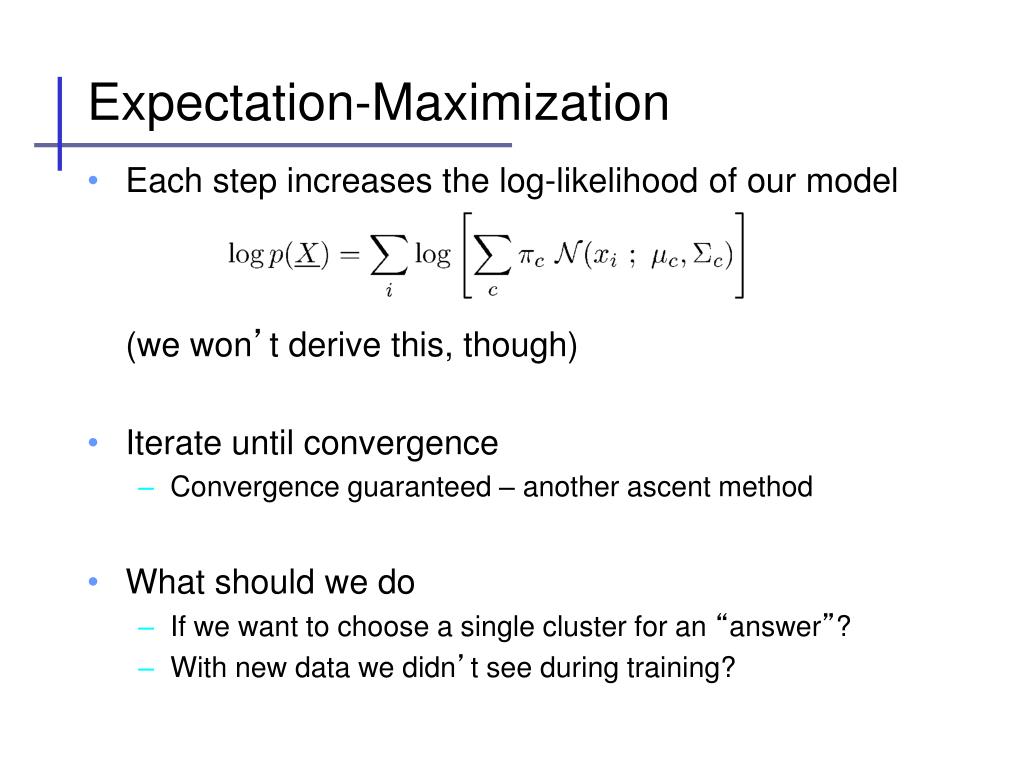

Expectation maximization

  • Each step increases the log-likelihood of our model(we won’t derive this, though)

  • Iterate until convergence

    • Convergence guaranteed – another ascent method

  • What should we do

    • If we want to choose a single cluster for an “answer”?

    • With new data we didn’t see during training?

From P. Smyth

ICML 2001

From P. Smyth

ICML 2001

From P. Smyth

ICML 2001

From P. Smyth

ICML 2001

From P. Smyth

ICML 2001

From P. Smyth

ICML 2001

From P. Smyth

ICML 2001

From P. Smyth

ICML 2001


  • Clustering algorithms

    • Agglomerative clustering

    • K-means

    • Expectation-Maximization

  • Open questions for each application

  • What does it mean to be “close” or “similar”?

    • Depends on your particular problem…

  • “Local” versus “global” notions of similarity

    • Former is easy, but we usually want the latter…

  • Is it better to “understand” the data itself (unsupervised learning), to focus just on the final task (supervised learning), or both?
