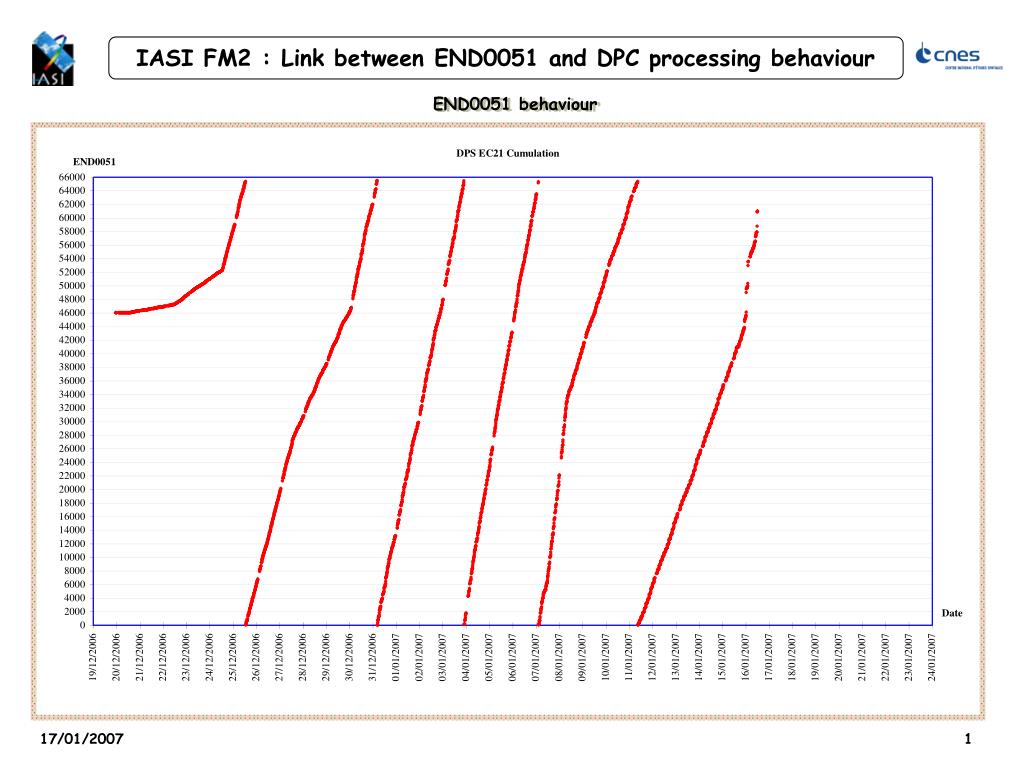

  1. END0051 behaviour

  2. DPS error detection Cf. IA-MU-1000-6870-AER v4.1 §1.2.2.2.7 & §1.2.2.7 • IMS errors management • EC32 (END0024 • EC21 (END0023) • DPS_EC21_Sum (END0051) • DPS_ELT21_Status • ELT entries in Report format IMS OD Complementary status DPS I/F Checks Image • DMC errors management : • ELT entries • EC32/EC21 counters IIS I/F Checks MAS I/F Checks Interferograms Spectra Processing Algorithms checks The goal of this presentation is not describe all the causes of the END0051 incrementation ; it’s to explain the major contributors in the current behaviour of this HKTM point

  3. Assumptions • END0051 = Accumulation of END0023 (0  END0051  65 535) • END0023 = DPS medium B & minor “error” – elementary counter (0  END0023  255) • Multi-topics counter (Cf. IA-MU-1000-6870-AER v4.1 §1.2.2.7) • END0051 current contain : • The present END0051 behaviour is NOT an abnormal situation of the DPC processing; it represents a synthesis of the flags raised by the scientific algorithms END0051 ZPD quality flag Spike quality flag Flow-chart of the major contributors to incrementation of the END0051 counter Index > Threshold Unsuccessful Research Index > Threshold Cold scenes Invalid Reduced spectra Cold scenes Invalid Reduced spectra Spikes in Calibration interferogram Spikes in Calibration interferogram

  4. History of the DPC processing status 1 : Computed in Norm-Op / processing enable 2 : Calibration interferogram corrupted by a spike and not rejected because no threshold No direct link
