slide1

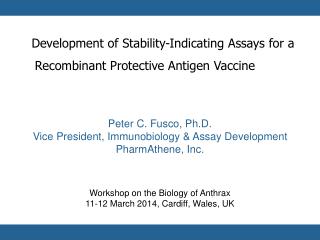

Development of Stability-Indicating Assays for a Recombinant Protective Antigen Vaccine

Peter C. Fusco, Ph.D.

Vice President, Immunobiology & Assay Development

PharmAthene, Inc.

Workshop on the Biology of Anthrax

11-12 March 2014, Cardiff, Wales, UK

bulk drug substance and final drug product
Bulk Drug Substance and Final Drug Product
  • rPA Bulk Drug Substance (BDS)
  • 82.8 kDa protein
  • Codon-optimized
  • Purified from E. coli inclusion bodies
  • 1.4 mg/mL protein, 0.5 mMPhosphate, pH 7.1, 137 mMNaCl, 3 mMKCl, 0.04% v/v Polysorbate 20
  • rPA Final Drug Product (FDP)
  • 0.1 mg/mL rPA in 0.5 mL(50 mg/dose)
  • 1.3 mg Alhydrogel®, *4 mM NaPO4, pH 7.2, 154 NaCl, 0.02% v/v Polysorbate 20
  • * Watkinson et al., Clin. Vaccine Immunol. 2013, 20(11):1659.
  • Increasing phosphate yields increased thermal stability of rPA on alhydrogel.
stability function structure
Stability: Function & Structure
  • Stability
  • Potency
  • Structure
  • Pathways of Degradation
  • Deamidation
  • Fragmentation
  • Oxidation
  • Aggregation
  • Loss of Function (immune protection)
  • Bio-availability
  • (e.g., tighter binding to Alhydrogel)
  • Epitope structure
  • (e.g., loss of secondary structure/conformation)
fdp stability by previous mouse c hallenge assay
FDP Stability by Previous Mouse Challenge Assay

Watkinson et al., Clin. Vaccine Immunol. 2013, 20(11):1659.

new potency assay ipa
New Potency Assay: IPA
  • There is a requirement for a more practical and sensitive alternative to lethal challenge animal models for potency testing of anthrax vaccines
  • We propose a mouse immunopotency assay (IPA) as a stability indicating parallel line relative potency (RP) assay for recombinant protective antigen anthrax vaccine final drug product
  • IPA has two components
    • The in vivo phase: mice vaccinated on Day 1 and bled on Day 28
    • The in vitro phase: sera tested in antibody detection assay
  • Three initial studies resulted in selection of
    • Mouse strain (A/J, CD-1, C57BL/6)
    • Antibody detection assay (toxin neutralization assay [TNA] vs. ELISA)
    • Dose preparation diluent (Saline vs. Alhydrogel)
    • Dose dilution series
in vitro assays for antibody detection
In vitro Assays for Antibody Detection

Mouse TNA

TMB

ColorReaction

TMB

ColorReaction

HRP

HRP

Rabbit anti-mouse IgG HRP

Rabbit anti-mouse IgG HRP

Mouse anti-rPA

Mouse anti-rPA

Indirect ELISACapture ELISA

ColorReaction

MTT

rPA

rPA

Taken up by active mitochondria

Lethal Toxin

LF

PA

Goat anti-PA PAb

Mouse anti-rPA

J774A.1 – Mouse macrophage cell line

potency study 1 feasibility
Potency Study 1: Feasibility
  • Study 1 investigated
    • Three mouse strains: A/J, CD-1, C57BL/6
    • Three antibody detection assays: Indirect ELISA, Capture ELISA, mouse Toxin Neutralization Assay (mTNA)
    • Two test materials: native vaccine, heat degraded vaccine (24 hours at 50⁰C)
  • Dose volume and route: 0.1mL i.p.
  • Dose preparation diluent: PBS containing Alhydrogel™
potency study 1 conclusions
Potency Study 1: Conclusions
  • All strains of mice (A/J, CD-1, C57BL/6) and all assays (TNA and ELISAs) were capable of discriminating between native and degraded vaccine
  • Indirect and Capture ELISA generated similar results – neither superior in terms of performance
  • Further optimization of dose range was required
potency study 2 mouse strain in vitro assay
Potency Study 2: Mouse Strain & in vitro Assay
  • Study 2 investigated
    • Two mouse strains: CD-1, A/J
    • Two antibody detection assays: Capture ELISA, mTNA
    • Three test materials:
      • Native vaccine
      • Heat degraded vaccine 1 (4 hours at 50⁰C)
      • Heat degraded vaccine 2 (3 minutes at 100⁰C)
    • Dose volume and route: 0.1mL i.p.
    • Dose preparation diluent: PBS containing Alhydrogel™
potency study 2 conclusions
Potency Study 2: Conclusions
  • TNA selected as the in vitro assay
    • TNA is more sensitive in detecting degradation
    • ELISA showed no powering advantage over TNA in detecting vaccine concentration differences
  • CD-1 selected as the mouse strain
    • Mouse strains respond differently by TNA, but not by ELISA
    • A/J TNA response maximum too low for adequate dose range
potency study 3 diluent dose selection
Potency Study 3: Diluent & Dose Selection
  • Study 3 investigated
    • mTNA dose response in CD-1 mice
    • Two native vaccines lots
    • Two dose preparation diluents
      • PBS containing Alhydrogel™
      • Saline
    • Dose volume and route: 0.1mL i.p.
potency study 3 conclusions
Potency Study 3: Conclusions
  • Saline improved capability of IPA to detect 2-fold differences in vaccine concentration, minimizing animal numbers
    • With precision factors around 2, the IPA is much less variable than the mouse challenge assay which had precision factors ranging from 9 to 16(precision factor is the ratio of the upper 95% confidence limit to the lower 95% confidence limit for the RP)
principal pathways of rpa degradation
Principal Pathways of rPA degradation

Deamidation

pI

BDS

Powell et al., 1997

imaging capillary electrophoresis ice
Imaging Capillary Electrophoresis (iCE)

www.proteinsimple.com/ice_technology.html

PharmAthene Confidential

PharmAthene Confidential

rpa fdp forced degradation study
rPA FDP Forced Degradation Study
  • Stress Treatment
  • 37 oC
  • 25 oC
  • Structural Analysis
  • iCE
  • LDS-PAGE
  • Functional Analysis
  • IPA
  • DPIA

FDP

summary
Summary
  • Stability-indicating assays showed strong correlations between functional and structural measurements for FDP under mild heat stress (25⁰C & 37⁰C)
  • Specifically, potency measured by IPA or DPIA is inversely correlated with deamidation measured by iCEand fragmentation measured by LDS-PAGE
acknowledgments
Acknowledgments

PharmAthene, Inc.

Robin Sun

Karie Hirst

Samuel Moore

Sherry Crowe

Howard Seligsohn

James Bourdage

Bradford Powell

Funding Agency

Biomedical Advanced Research and Development Authority (BARDA)

(Contract No. HHSO100200900103C)

The views expressed are those of the authors and do not reflect

the official policy or position of the U.S. Government

Commercial Partners

Baxter BioPharma Solutions (BPS)

Pharmaceutical Product Development, Inc. (PPD)
