towards efficient query processing on massive evolving graphs c big2012

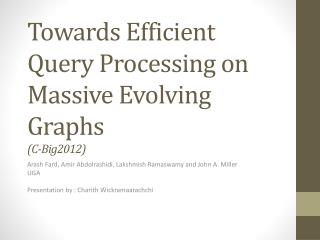

Towards Efficient Query Processing on Massive Evolving Graphs(C-Big2012)

ArashFard, Amir Abdolrashidi, LakshmishRamaswamyand John A. Miller

UGA

Presentation by : CharithWickramaarachchi

time evolving graph
Time Evolving Graph
  • Paradigm for molding dynamic relationships in networks.
  • TEG : Series of snapshots of a graph which evolves over time.
    • Web graph
    • Relationship structure of social networks
    • Communication flow networks
    • Evolution History of genome families
teg and scalability
TEG and Scalability
  • Additional Dimension – Time
    • New queries
      • Historical
      • Inverse temporal
      • Continuous
  • Data volume
  • Indexing
overview
Overview
  • Data distribution strategies for TEGs
  • Answering reachability queries
  • Sub graph queries in large TEGs
teg distribution
TEG distribution
  • Objectives
    • Improve node utilization
    • Minimize the communication cost
  • Strategies
    • Random distribution
      • Improves node utilization
      • High communication
    • connected sub-graph distribution
      • Low communication
      • Low node utilization
slide6

Type of Algorithm

    • High communication low computation
      • Page rank, HCC - Min-cut
    • Low communication
      • SSSP - Radom distribution
  • Dynamic Nature of Graph
    • Additions and deletions of nodes.
    • Repartitioning cost
      • Data transfer cost.
      • Re-wiring cost
  • Data node configuration
    • More partitions than compute nodes (Partition : CC )
      • Smaller sized partitions
        • Small stragglers
reachability queries in tegs
Reachability queries in TEGs
  • {G1,G2,…… Gq, …..Gr} – Snapshots of TEG : G
  • Diff(Gq,Gq-1) – Changes between snapshots Gqand Gq-1
    • Vertex addition
    • Edge addtion
  • Reach(v,w,q) – TRUE/FALSE
reachability queries in static graphs
Reachability Queries in Static Graphs
  • Pre Indexing
  • O(1) – Pre computed spanning tree
  • High indexing time
  • Index table
  • On demand Traversal
  • O(M+N)
  • Limitations for TEGs
  • High indexing cost – Need to index per each snapshot
  • High storage overhead
  • Low cost benefit ratio
approach
Approach
  • Interval – based indexing
approach1
Approach
  • Steps (Assume Reach (u,v,q) where q > p and Gp is indexed)
    • Reach(u,v,p) ?
    • Does Diff(Gp,Gq) change that
  • Naïve approach : process Diff(Gp,Gq) in Chronological order
  • A Better approach : Does the changes impact the reachability ?
approach2
Approach
  • Reach (A,H,3)
    • Add(E,F) ? Related ?
    • Add(B,E) & Add(F,G) & Add(E,F)
observations
Observations
  • If Reach(u,v,q) = true
    • Need to process diffs if diff stack contains at least one delete(p,q) where p,q is a edge on a path from u,v in Gp
  • If Reach(u,v,q) = false
    • Contains at least one Add(p,q)
      • p is reachable from u
      • q is reachable from v
graph pattern matching
Graph Pattern Matching
  • Subgraph Isomorphism
    • Bijective mapping between query (Q(Vq,Eq))graph and subgraph(G’(V’,E’)) of target graph G.
    • There exist f : V’--> Vq
    • For all v’,w’ in V’ there is vq,wqin Vqs.t. (v’,w’) in E’ ↔ (vq,wq) in Eq
  • Simulation
    • G(V,E) matches Q(Vq,Eq) if there exist R subset of Vq X V s.t.(u,u’) in R -> u and u’ have same label
    • For all u in Vq there is u’ in V
    • For all (u,v) in Eq there is a (u’,v’) in E
vertex centric approach
Vertex Centric approach
  • Graph (V,E,l)
  • Query Q(Vq,Eq,lq)
  • Output M : a Maxmmatch in G for Q
  • Use GPS features
    • Master for global operations
vertex centric approach1
Vertex Centric approach
  • 1ST - Master broadcasts the query
  • 2nd – Each vertex whose label is same as in Q will get flagged
    • S : set of matched nodes (Note v in G can be matched to two vertices in Q)
    • Each vertex keeps set of lists of labels for possible children.
    • # of outgoing edges < any list of children : remove.
    • Send id to children.
  • 3rd Children reply with id, label
  • 4th : If received child label is superset of matched children labels in Q keep, else remove. Pass the removal report to parents
  • 5th : Remove the child list , Check for validity in S . If not remove your self from S, Report to parents .
  • Next : Goto 5th.
conclusion
Conclusion
  • TEG processing : an emerging research area with lot of applications
  • Need for new partitioning techniques and graph query techniques
  • Does TEG processing applications benefits more from an EDA based model than traditional query processing model ?
