  1. GLUT 程式開發 Ming-Te Chi Department of Computer Science  National Chengchi University

  2. Outline • Code blocks下載及安裝 • Glut bin file下載及配置 • 創立一個glut範例程式

  3. Code::Blocks下載 • 下載網址 • http://www.codeblocks.org/

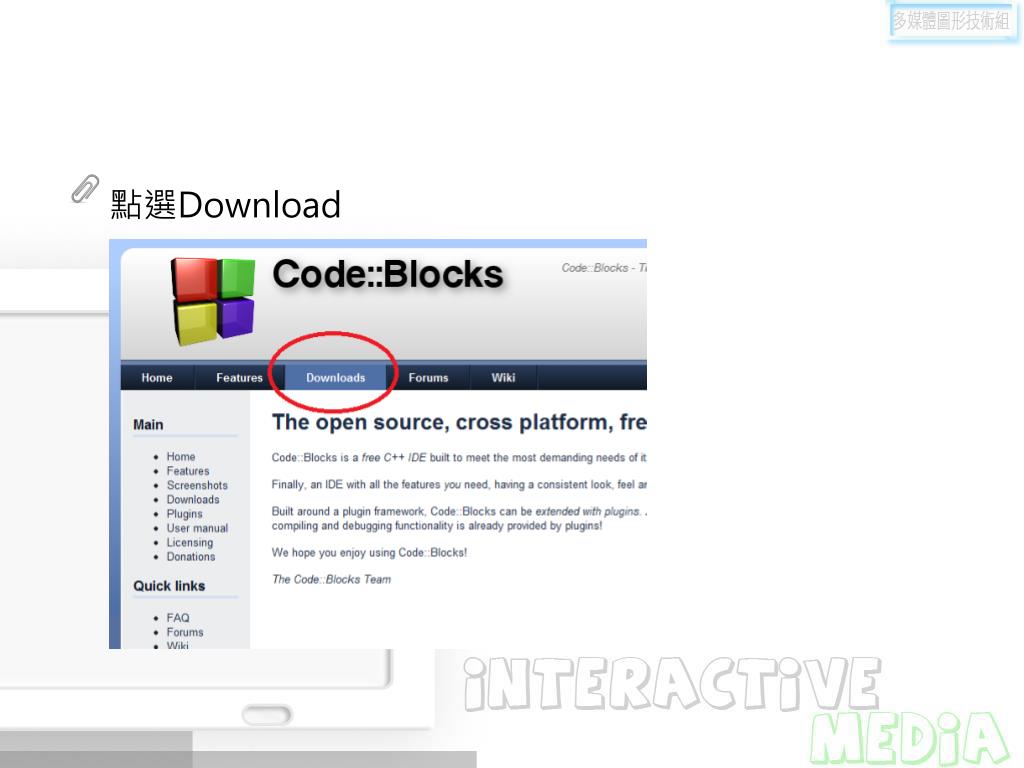

  4. 點選Download

  5. 點選 ”Download the binary release”

  6. 請依照所適用之OS作下載(在此僅以windows 系統做示範教學) 兩者選一點擊下載

  7. 安裝Code Blocks

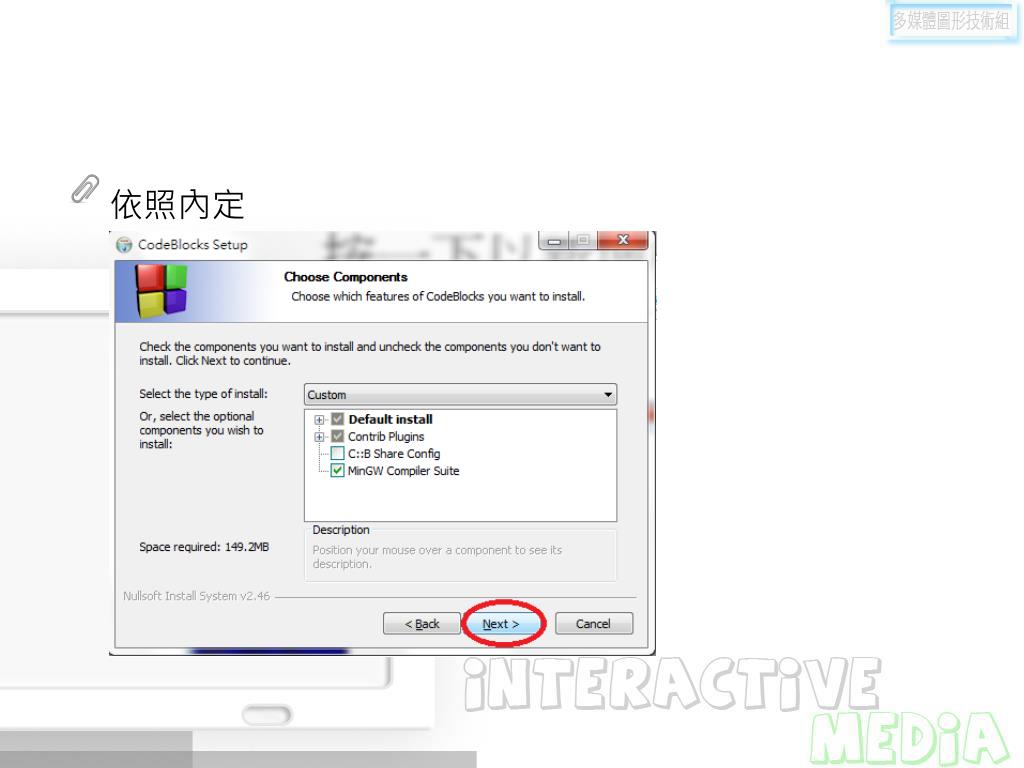

  8. 依照內定

  9. 選擇安裝位置

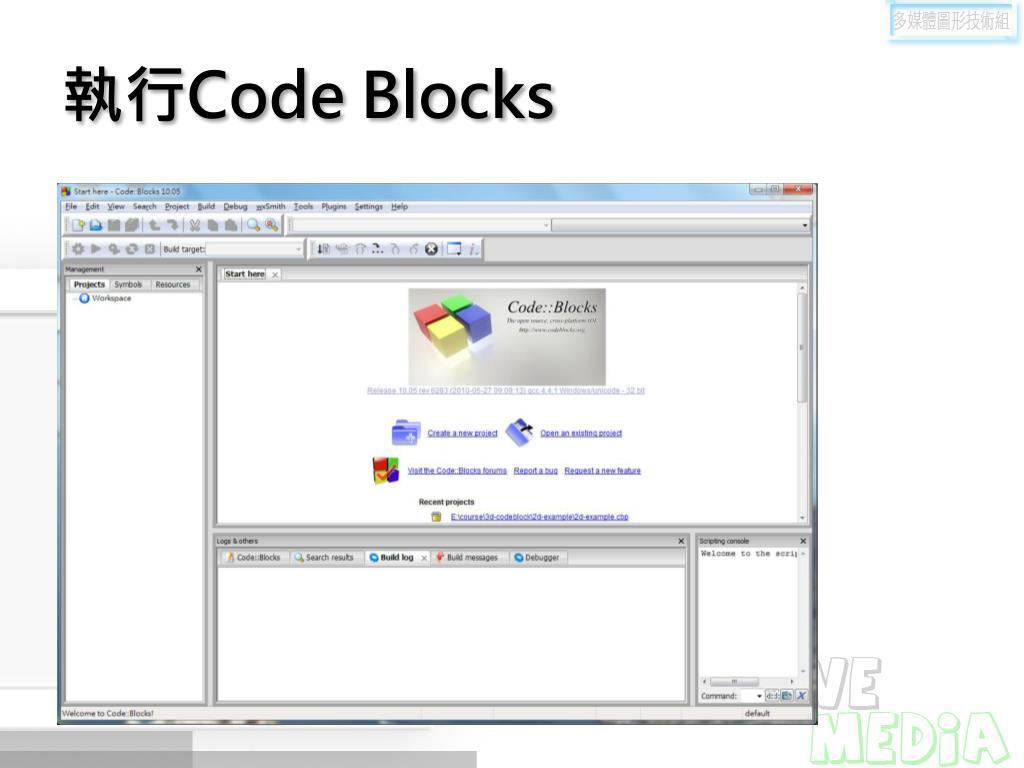

  10. 執行Code Blocks

  11. Glut bin file下載及配置 • 下載網址 • http://www.xmission.com/~nate/glut.html

  12. Install glut • After you download and open the GLUT bin zip file Do the following! Copy glut32.dll to  c:\windows\system32 or c:\windows\SysWOW64 (win 64) Copy glut32.lib to  c:\program files\CodeBlocks\mingw\lib Copy glut.h to c:\program files\CodeBlocks\mingw\include\GL

  13. Freeglut( 另一個glut選擇 ) • http://files.transmissionzero.co.uk/software/development/GLUT/freeglut-MinGW.zip Copy freeglut.dll to  c:\windows\system32 or c:\windows\SysWOW64 (win 64) Copy libfreeglut.a to  c:\program files\CodeBlocks\mingw\lib Copy freeglut.h, freeglut_std.h, and freeglut_ext.h to c:\program files\CodeBlocks\mingw\include\GL

  14. 建立一個gluttemplate • File -> New -> Project

  15. 選擇GLUT • 為project命名

  16. 指定路徑至MinGW • 直接按下Finish

  17. Troubleshooting in windows • add at line 18: #include <windows.h>

  18. 按下 (F9) to Build and run 則會出現以下執行畫面

  19. static void key(unsigned char key, int x, int y) { case '+': slices++; stacks++; case '-': if (slices>3 && stacks>3) { slices--; stacks--; } } //The number of geometry stacks and slices can be adjusted using the ‘+’ and ‘-’ keys.

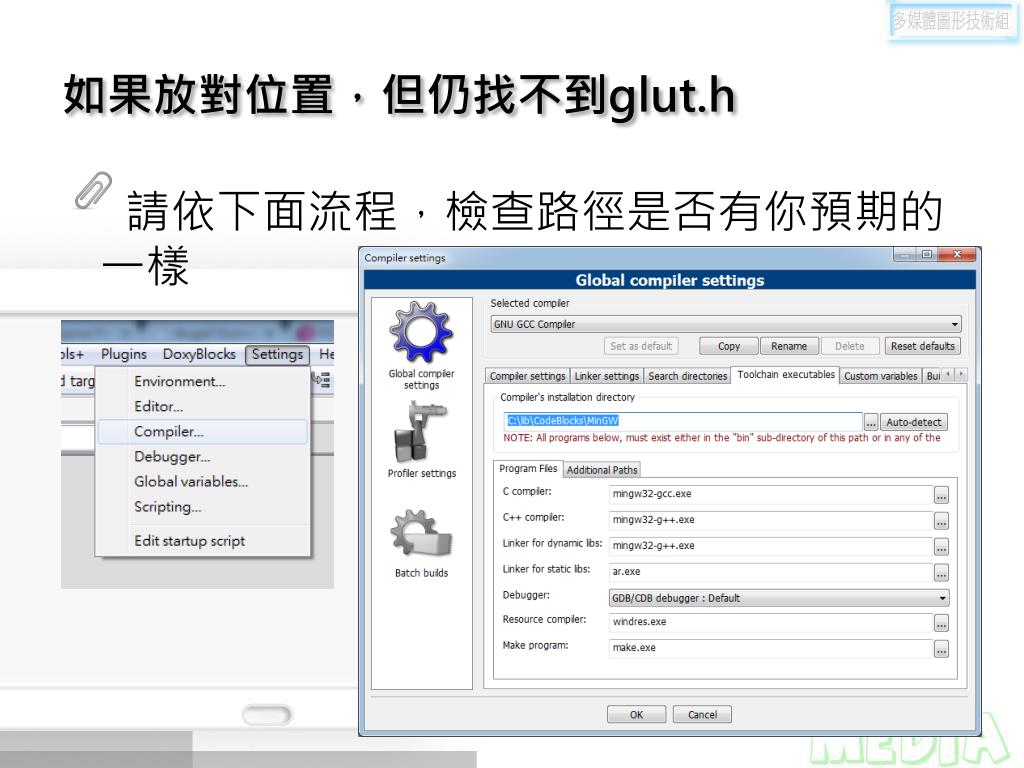

  20. 如果放對位置,但仍找不到glut.h • 請依下面流程,檢查路徑是否有你預期的一樣

  21. 參考教學網址: • http://www.sci.brooklyn.cuny.edu/~goetz/codeblocks/glut/
