第三节 斜轴测投影

第三节 斜轴测投影 用平行斜角投影法得到的轴测投影称为斜轴测投影，特点： 1 ）轴测投影面 P 平行于 XOZ 坐标面。 2 ）投影方向不应平行于任何坐标面。 3 ）凡是平行于 XOZ 坐标面的平面形，其斜轴测投影均反映实形. 斜轴测投影分类： 1 ）斜等轴测投影：ｐ＝ｑ＝ｒ； 2 ）斜二等轴测投影：ｐ＝ｒ≠ｑ； 3 ）斜三轴测投影：ｐ≠ｑ≠ｒ。. 3.1 斜轴测投影的位置和轴向变形系数 斜二等轴测投影的变形系数为：ｐ＝ｒ＝１，ｑ＝０ . ５ 轴间角为： ∠ＸＯＺ＝９０ ° ∠ ＸＯＹ＝∠ＹＯＺ＝１３５ °

dima
Download Presentation

第三节 斜轴测投影

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

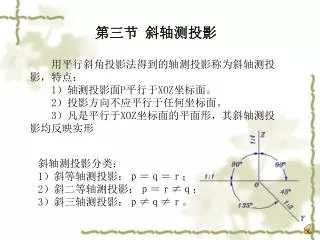

  1. 第三节 斜轴测投影 用平行斜角投影法得到的轴测投影称为斜轴测投影，特点：1）轴测投影面P平行于XOZ坐标面。2）投影方向不应平行于任何坐标面。3）凡是平行于XOZ坐标面的平面形，其斜轴测投影均反映实形 斜轴测投影分类： 1）斜等轴测投影：ｐ＝ｑ＝ｒ；2）斜二等轴测投影：ｐ＝ｒ≠ｑ；3）斜三轴测投影：ｐ≠ｑ≠ｒ。

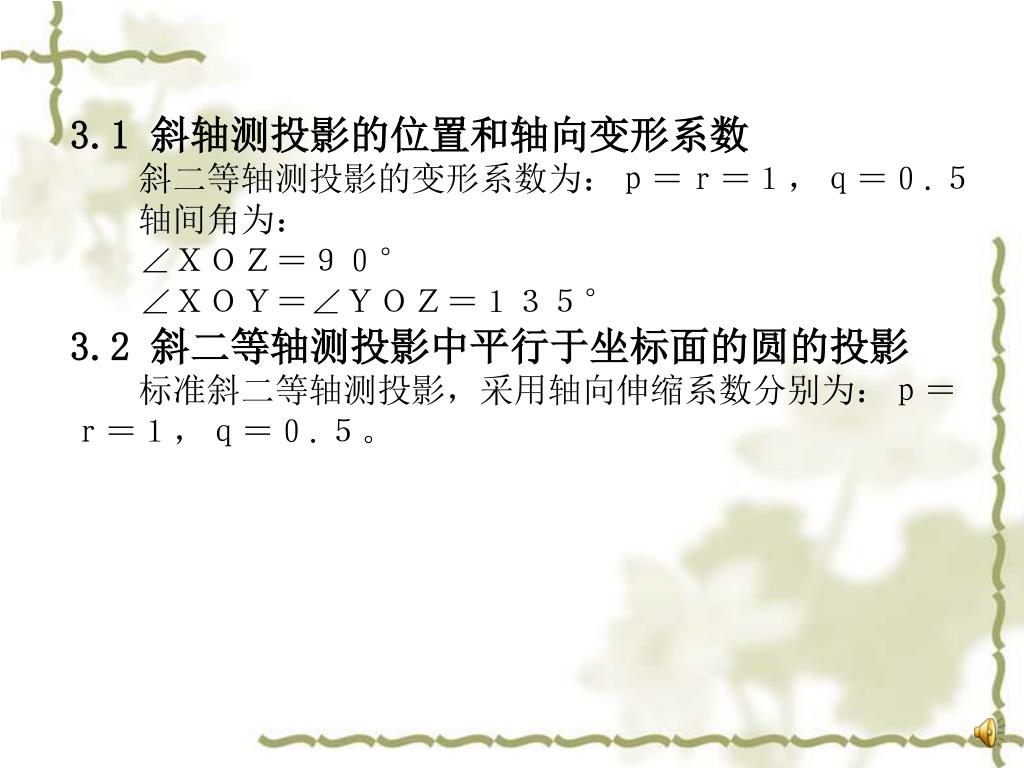

  2. 3.1 斜轴测投影的位置和轴向变形系数 斜二等轴测投影的变形系数为：ｐ＝ｒ＝１，ｑ＝０.５ 轴间角为： ∠ＸＯＺ＝９０° ∠ＸＯＹ＝∠ＹＯＺ＝１３５° 3.2 斜二等轴测投影中平行于坐标面的圆的投影 标准斜二等轴测投影，采用轴向伸缩系数分别为：ｐ＝ｒ＝１，ｑ＝０.５。
