Presentation Transcript

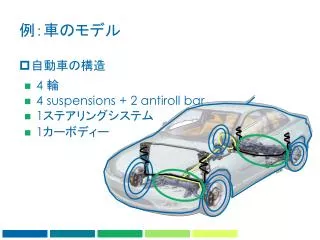

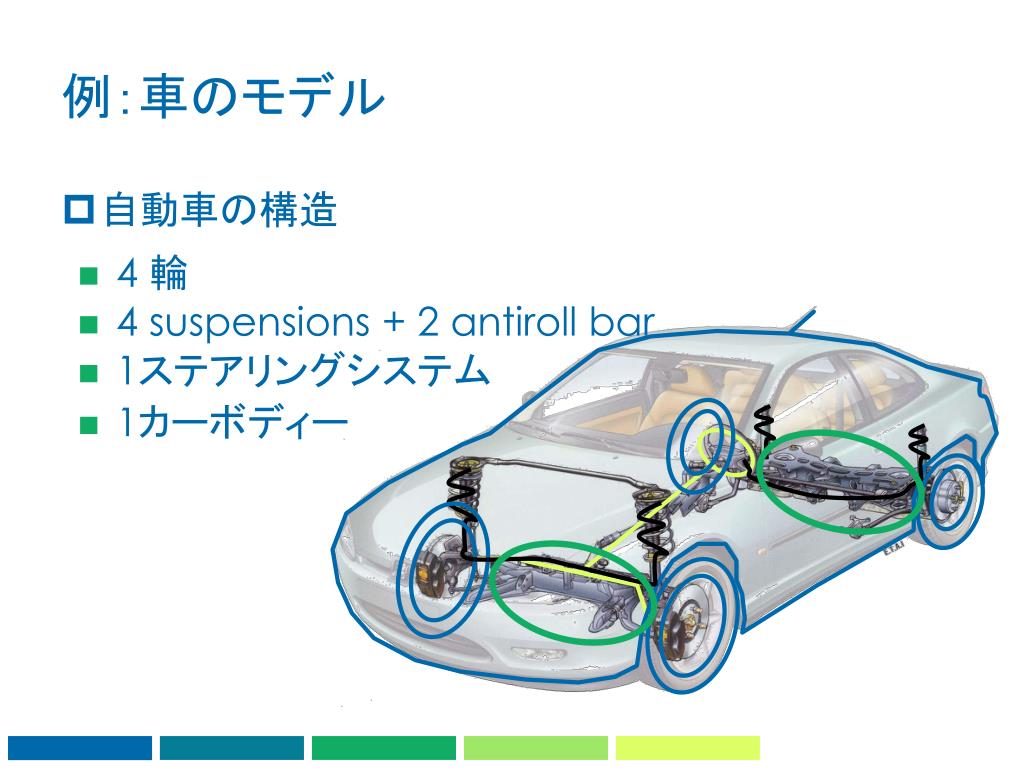

  1. 例：車のモデル • 自動車の構造 • 4 輪 • 4 suspensions + 2 antiroll bar • 1ステアリングシステム • 1カーボディー

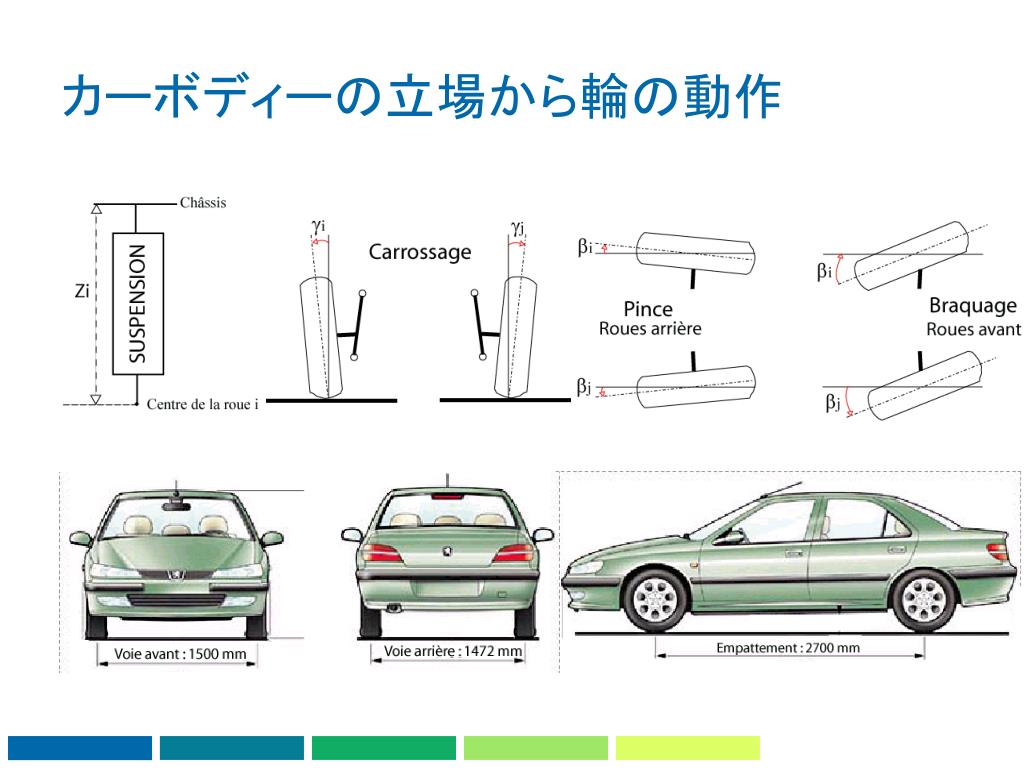

  2. カーボディーの立場から輪の動作

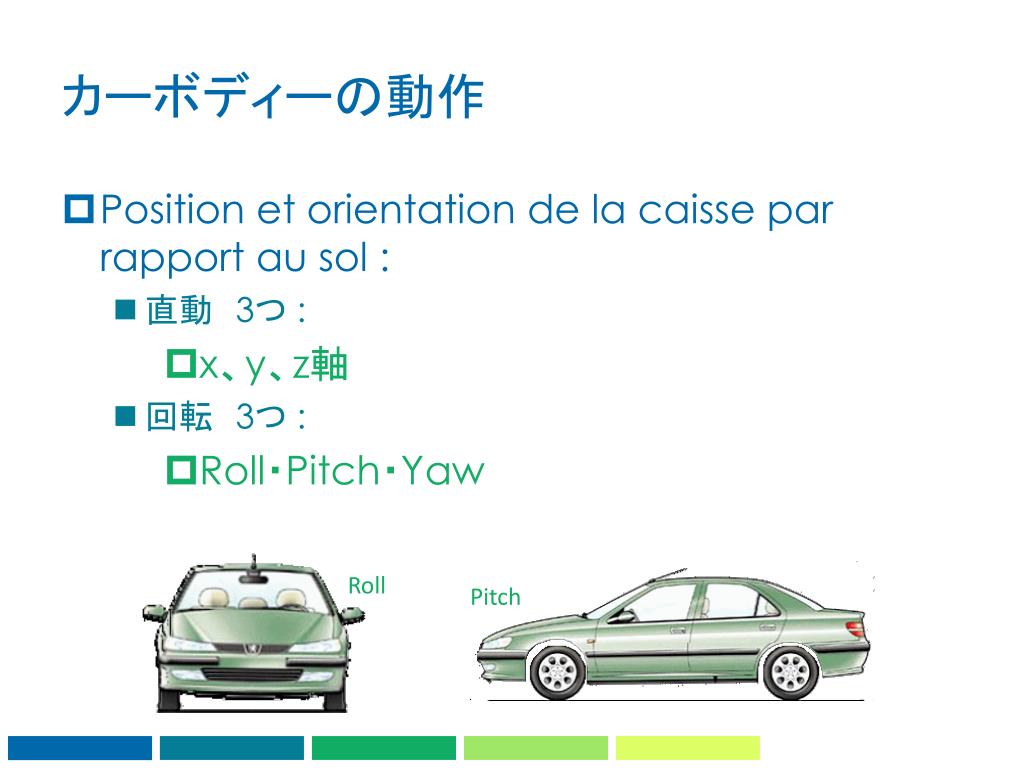

  3. Roll Pitch カーボディーの動作 • Position et orientation de la caisse par rapport au sol : • 直動　3つ : • x、y、z軸 • 回転　3つ : • Roll・Pitch・Yaw

  4. 外力 • コンタクト＝タイヤ • 空気力学的な外力 Fzi = kpi.ei + offi

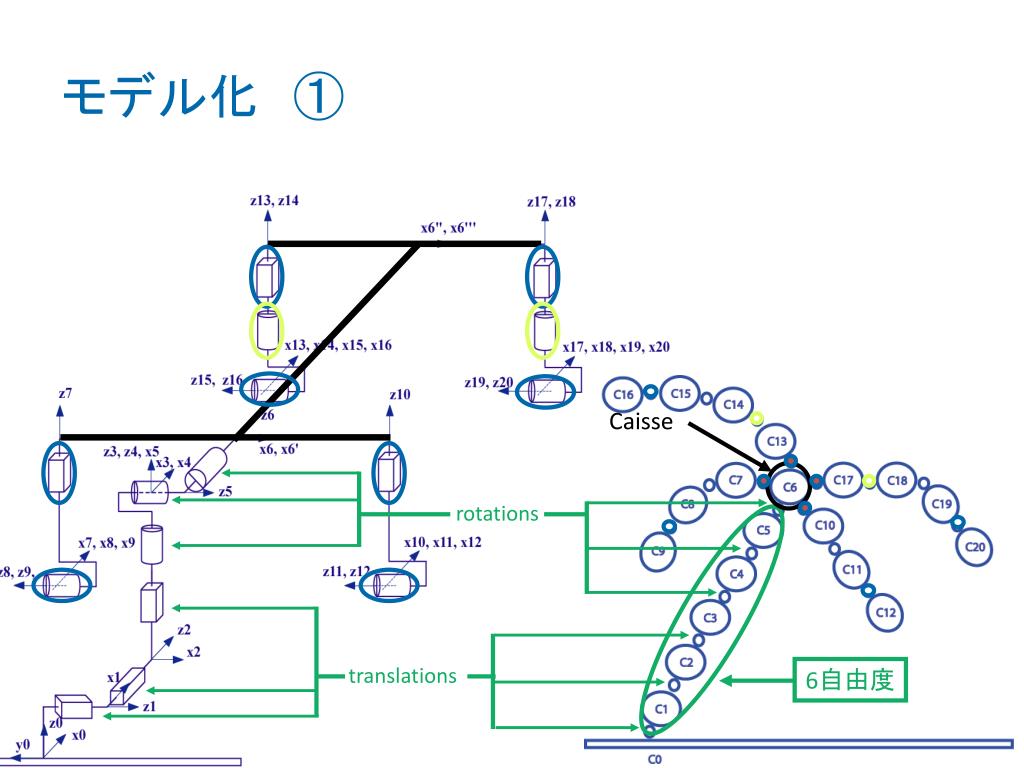

  5. Caisse rotations translations 6自由度 モデル化　①

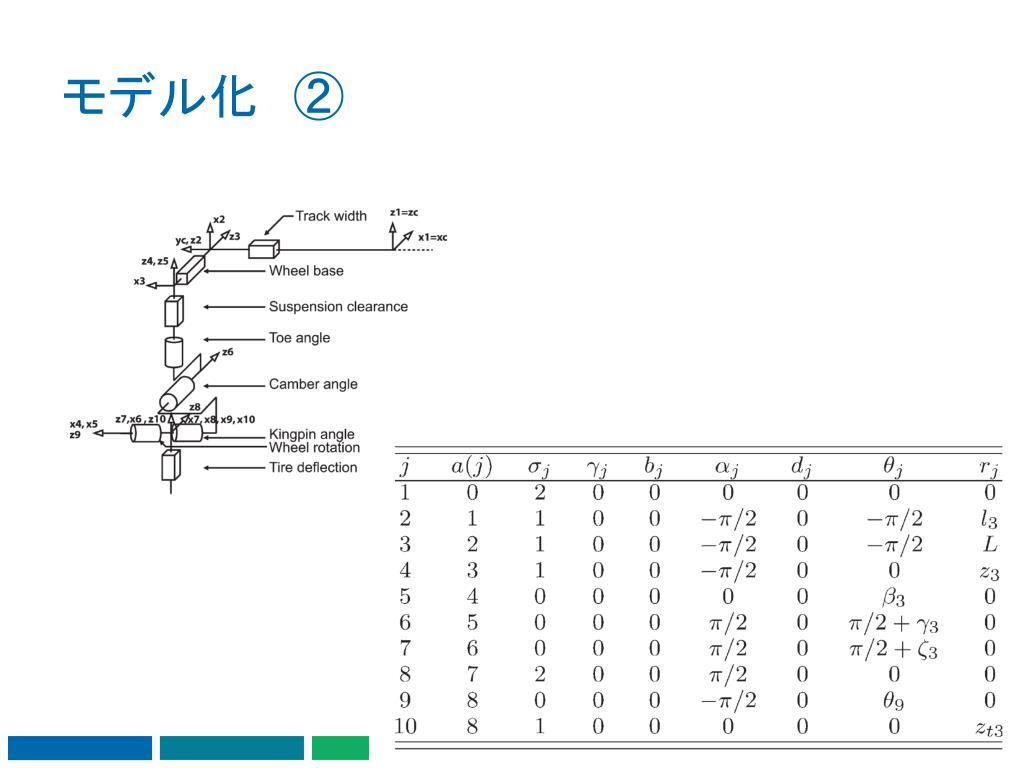

  6. モデル化　②

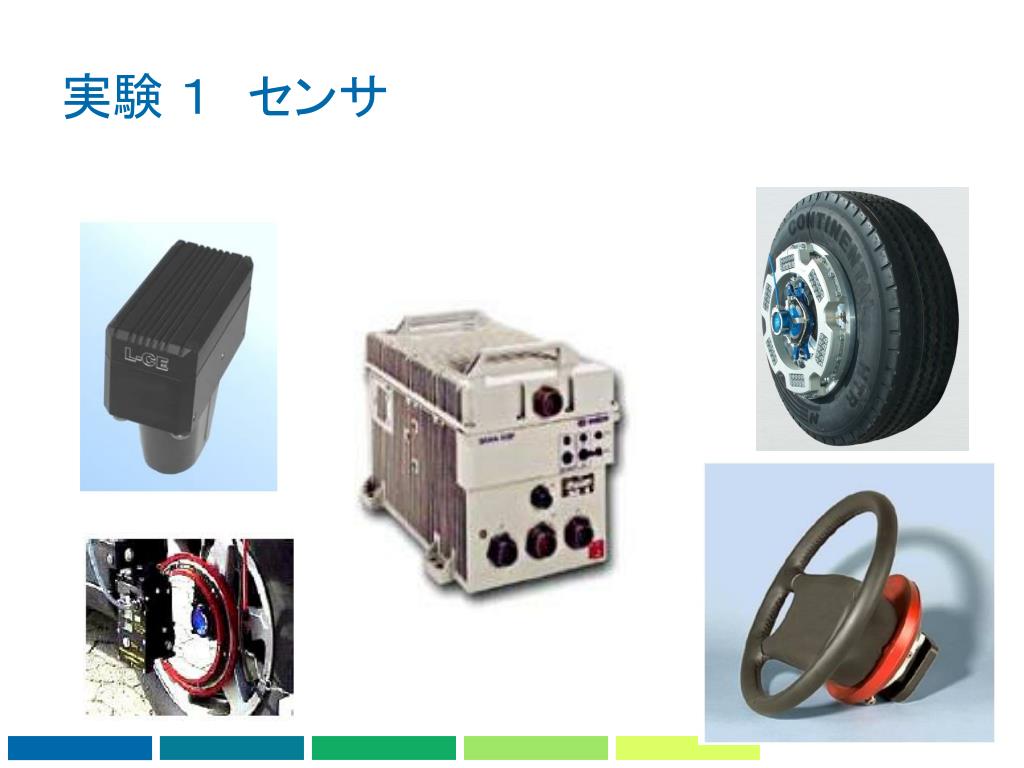

  7. 実験 １　センサ

  8. 実験 ２　測定

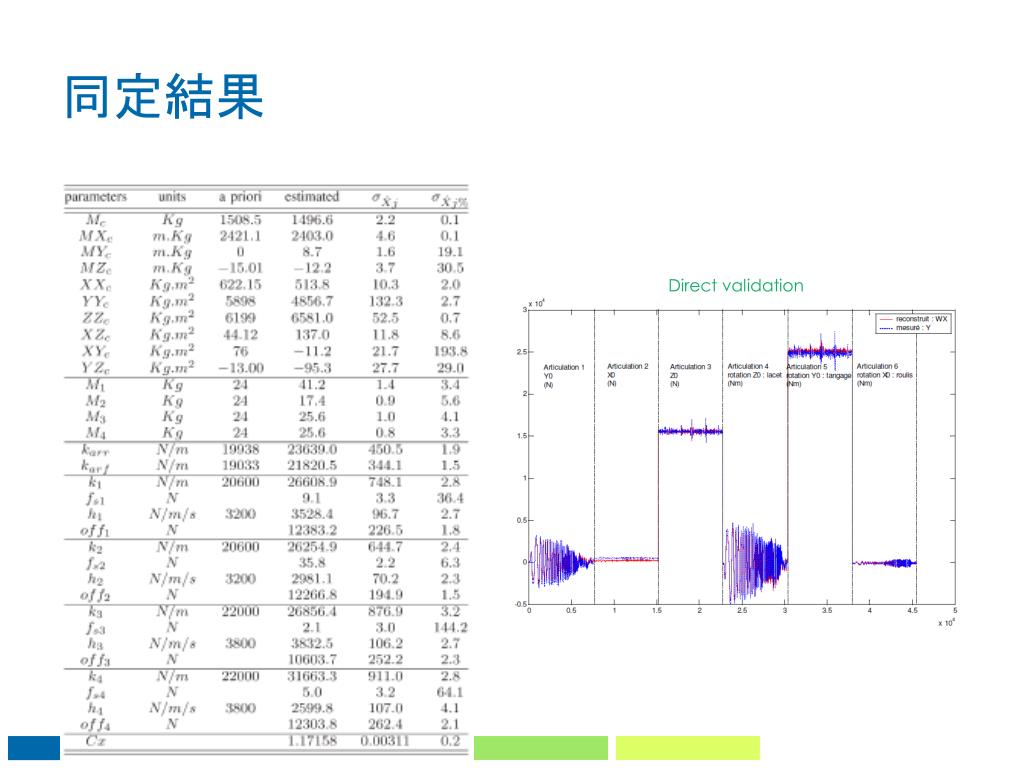

  9. 同定結果 Direct validation

  10. 検討・Cross Validation
