1. TECHExpert Engineering Pvt. Ltd. Powder Coating Systems The Perfect Design & Technology Expertise Paint Finishing Systems Powder Coating Plants Shot Blasting Systems Material Handling Systems • • • www.techexpertindia.com

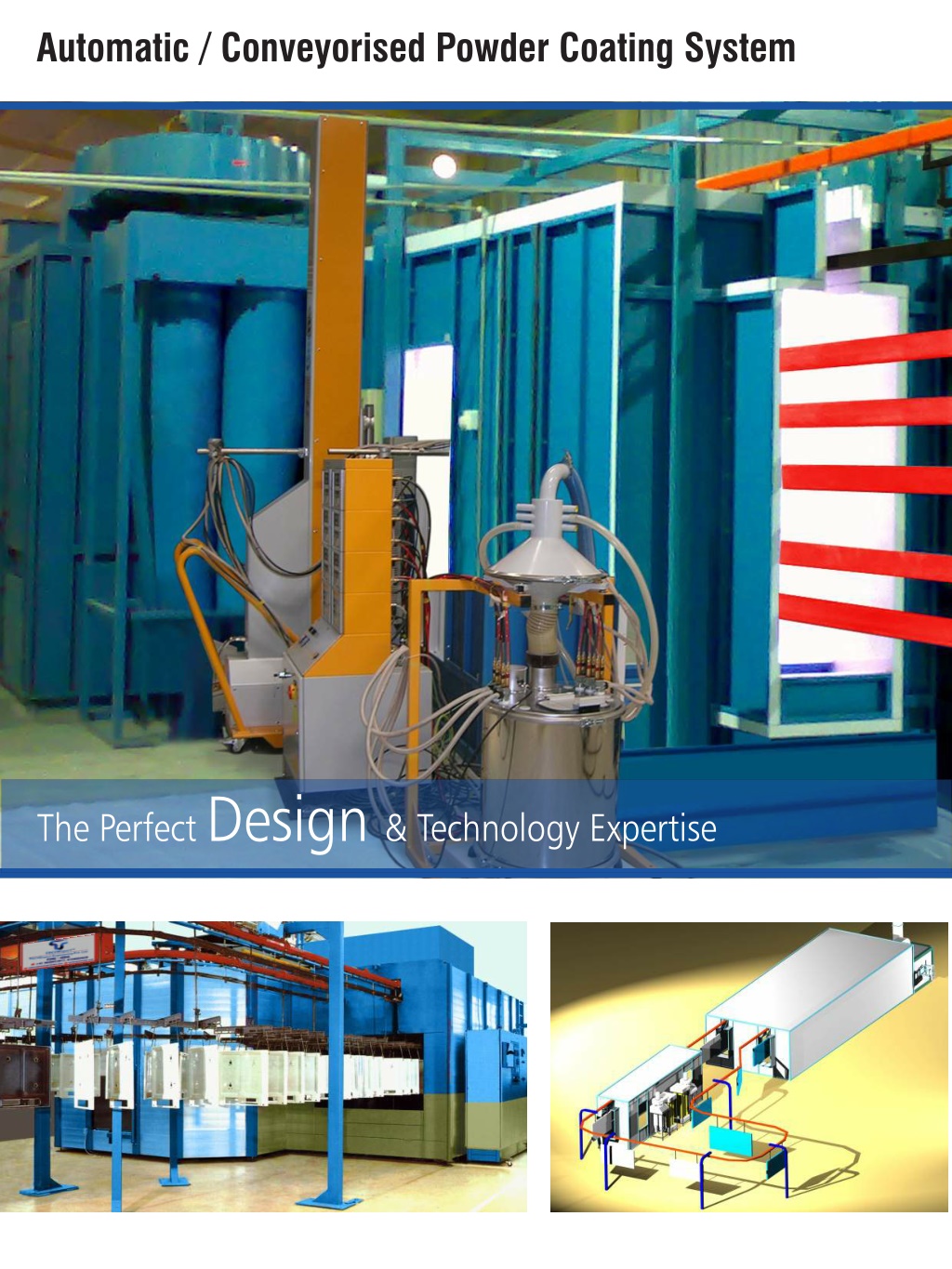

2. Automatic / Conveyorised Powder Coating System The Perfect Design & Technology Expertise

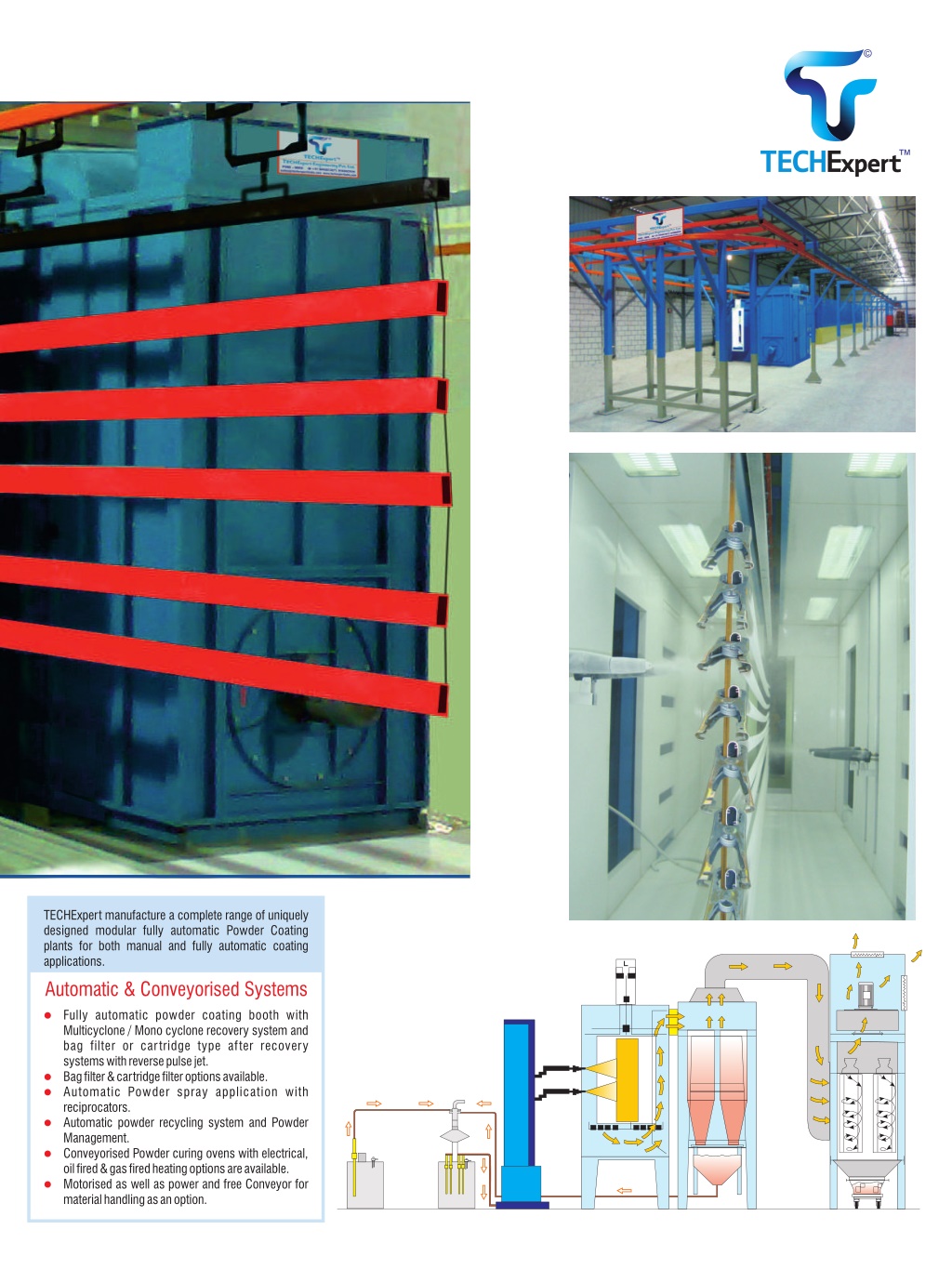

3. TECHExpert manufacture a complete range of uniquely designed modular fully automatic Powder Coating plants for both manual and fully automatic coating applications. Automatic & Conveyorised Systems l Fully automatic powder coating booth with Multicyclone / Mono cyclone recovery system and bag filter or cartridge type after recovery systems with reverse pulse jet. l Bag filter & cartridge filter options available. l Automatic Powder spray application with reciprocators. l Automatic powder recycling system and Powder Management. l Conveyorised Powder curing ovens with electrical, oil fired & gas fired heating options are available. l Motorised as well as power and free Conveyor for material handling as an option.

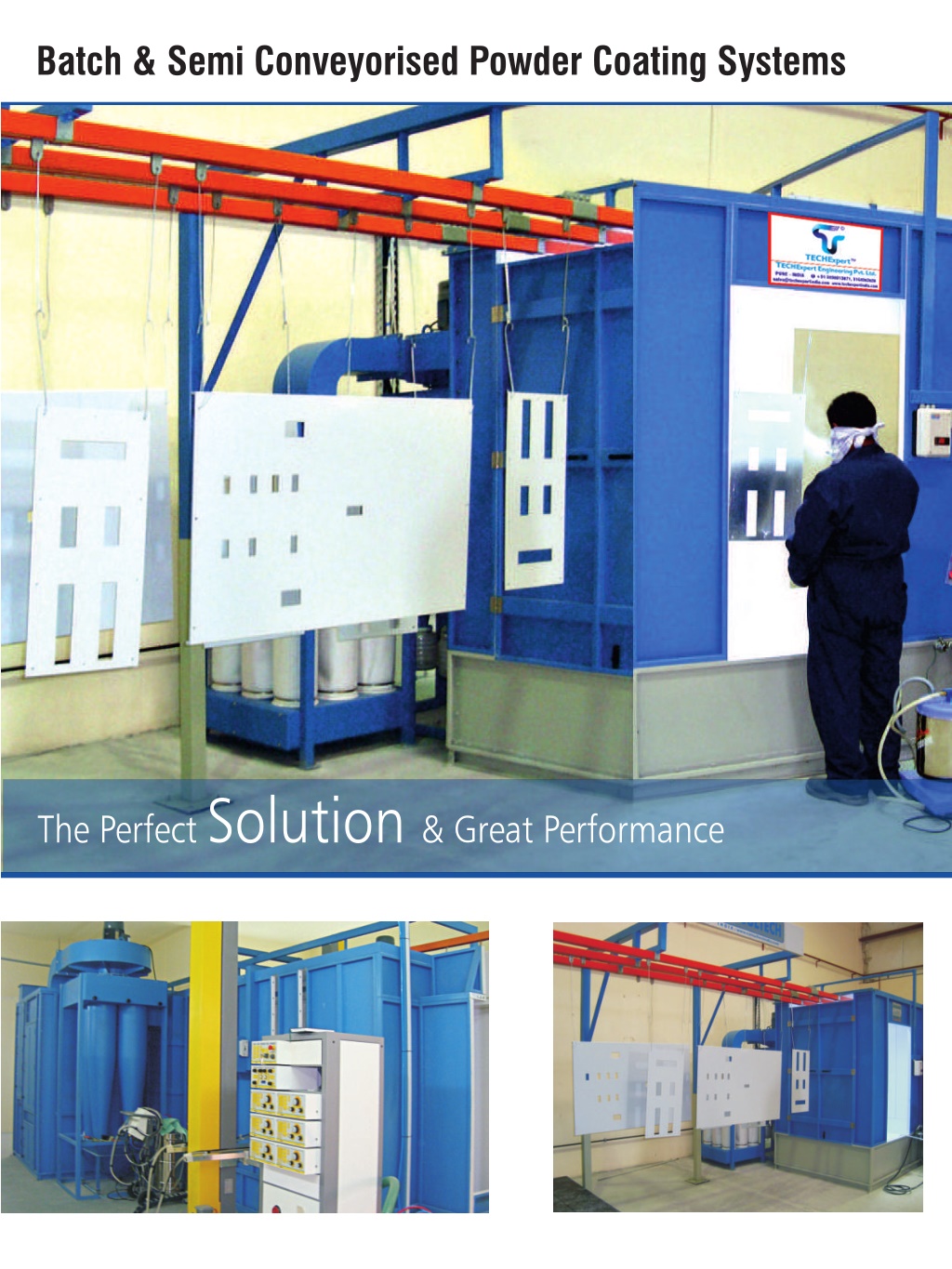

4. Batch & Semi Conveyorised Powder Coating Systems The Perfect Solution & Great Performance

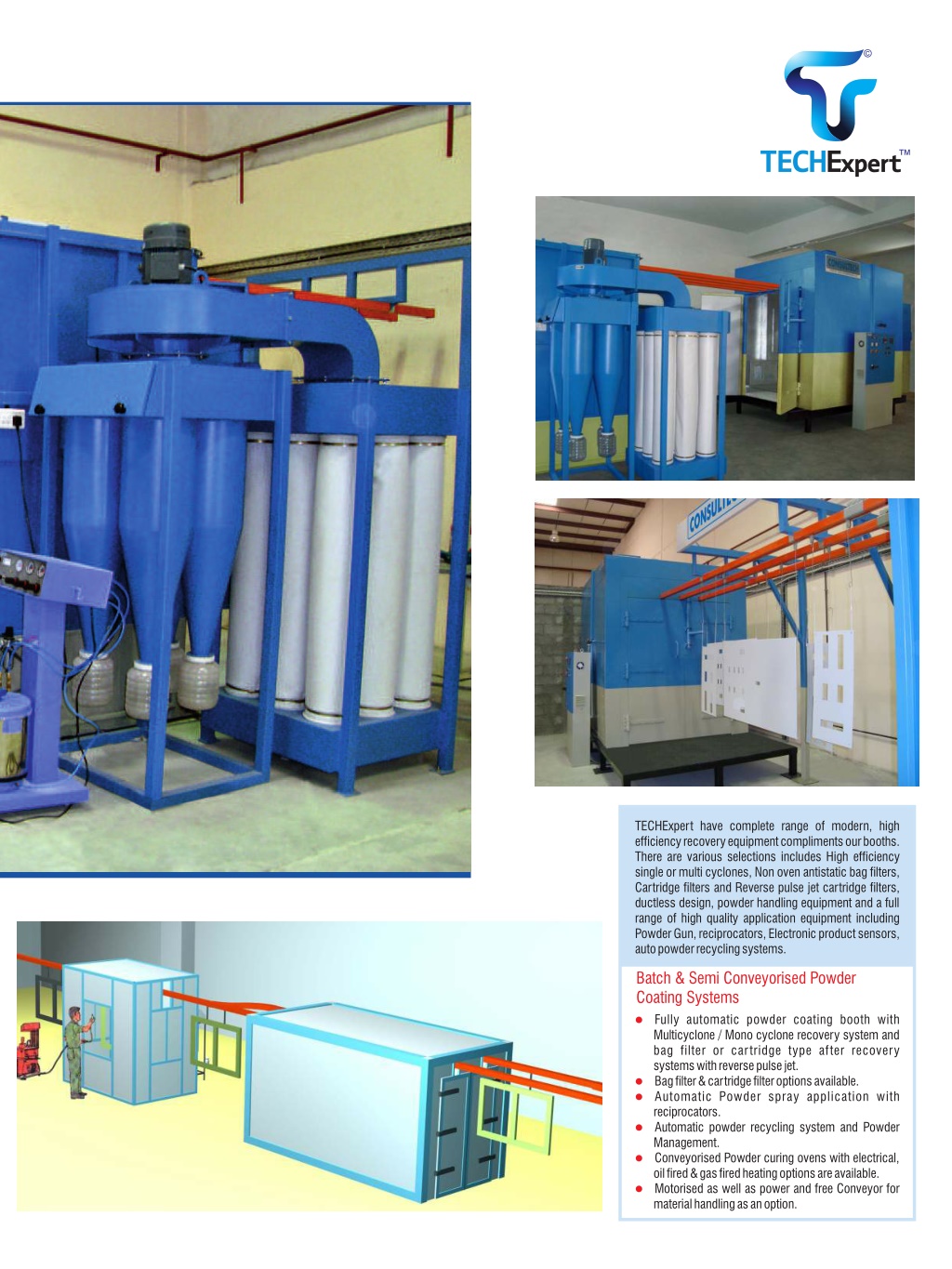

5. TECHExpert have complete range of modern, high efficiency recovery equipment compliments our booths. There are various selections includes High efficiency single or multi cyclones, Non oven antistatic bag filters, Cartridge filters and Reverse pulse jet cartridge filters, ductless design, powder handling equipment and a full range of high quality application equipment including Powder Gun, reciprocators, Electronic product sensors, auto powder recycling systems. Batch & Semi Conveyorised Powder Coating Systems l Fully automatic powder coating booth with Multicyclone / Mono cyclone recovery system and bag filter or cartridge type after recovery systems with reverse pulse jet. l Bag filter & cartridge filter options available. l Automatic Powder spray application with reciprocators. l Automatic powder recycling system and Powder Management. l Conveyorised Powder curing ovens with electrical, oil fired & gas fired heating options are available. l Motorised as well as power and free Conveyor for material handling as an option.

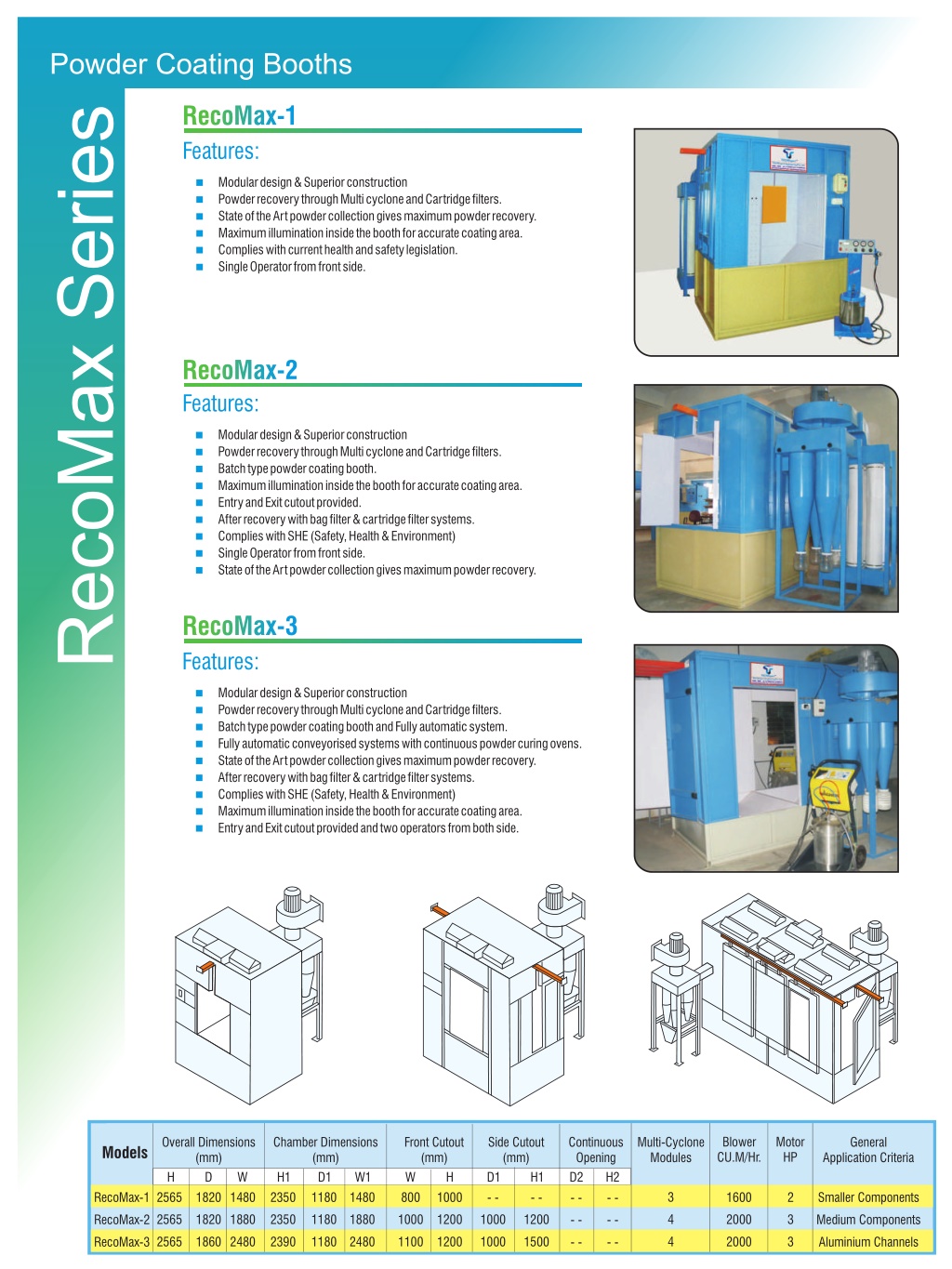

6. Powder Coating Booths RecoMax-1 RecoMax Series Features: n Modular design & Superior construction n Powder recovery through Multi cyclone and Cartridge filters. n State of the Art powder collection gives maximum powder recovery. n Maximum illumination inside the booth for accurate coating area. n Complies with current health and safety legislation. n Single Operator from front side. RecoMax-2 Features: n Modular design & Superior construction n Powder recovery through Multi cyclone and Cartridge filters. n Batch type powder coating booth. n Maximum illumination inside the booth for accurate coating area. n Entry and Exit cutout provided. n After recovery with bag filter & cartridge filter systems. n Complies with SHE (Safety, Health & Environment) n Single Operator from front side. n State of the Art powder collection gives maximum powder recovery. RecoMax-3 Features: n Modular design & Superior construction n Powder recovery through Multi cyclone and Cartridge filters. n Batch type powder coating booth and Fully automatic system. n Fully automatic conveyorised systems with continuous powder curing ovens. n State of the Art powder collection gives maximum powder recovery. n After recovery with bag filter & cartridge filter systems. n Complies with SHE (Safety, Health & Environment) n Maximum illumination inside the booth for accurate coating area. n Entry and Exit cutout provided and two operators from both side. Blower CU.M/Hr. Motor HP Overall Dimensions (mm) H D 2565 1820 Chamber Dimensions (mm) H1 D1 2350 1180 Front Cutout (mm) W 800 Side Cutout (mm) D1 - - Continuous Opening D2 - - Multi-Cyclone Modules General Models Application Criteria W W1 1480 H H1 - - H2 - - 3 1480 1000 1600 2 RecoMax-1 Smaller Components 4 2565 1820 1880 2350 1180 1880 1000 1200 1000 1200 2000 3 RecoMax-2 Medium Components - - - - 4 2480 1180 2480 1100 1200 1000 1500 2000 2565 1860 2390 3 RecoMax-3 Aluminium Channels - - - -

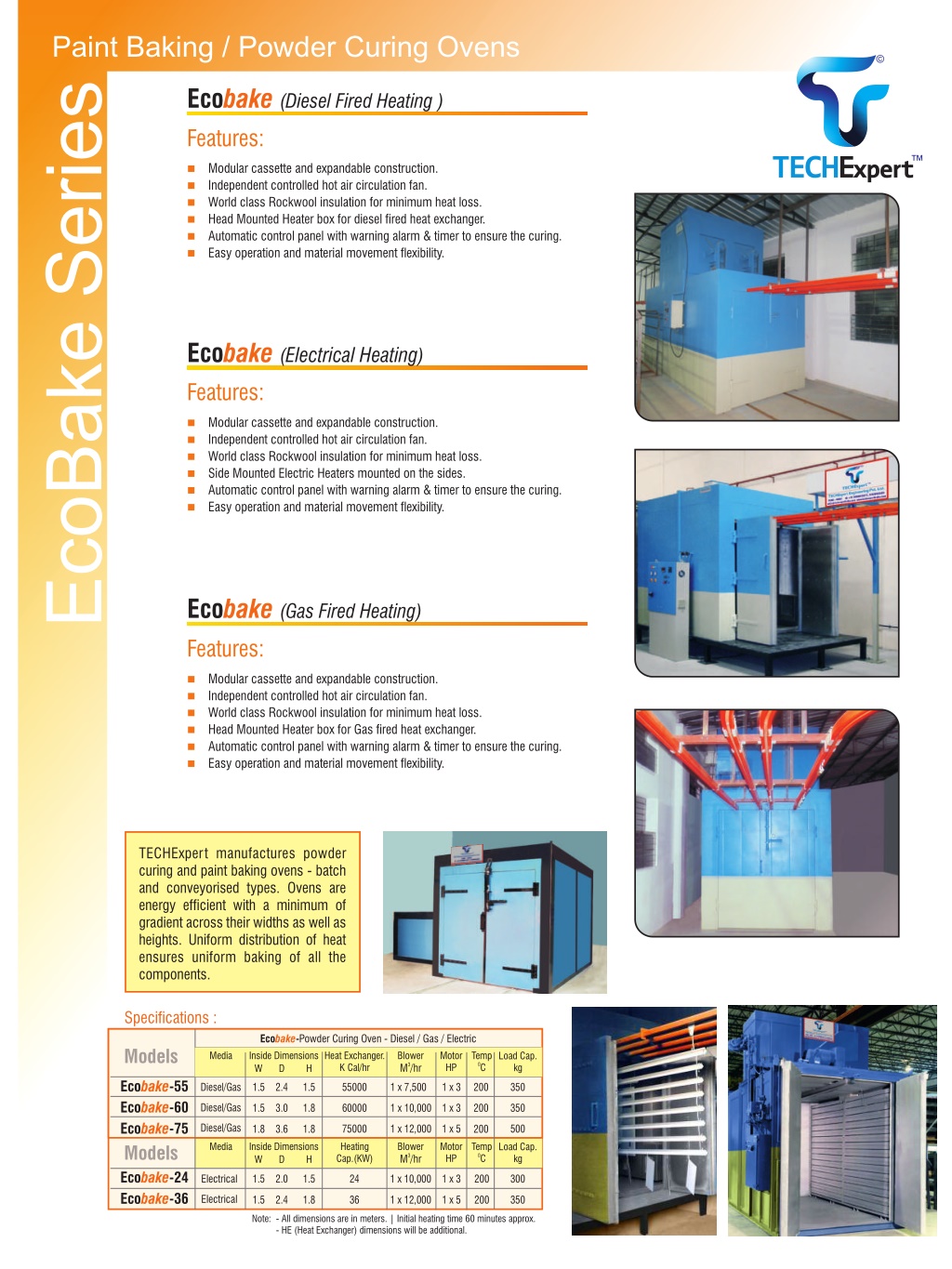

7. Paint Baking / Powder Curing Ovens EcoBake Series Eco bake Features: Eco (Diesel Fired Heating ) bake Features: nModular cassette and expandable construction. n Independent controlled hot air circulation fan. n World class Rockwool insulation for minimum heat loss. n Head Mounted Heater box for diesel fired heat exchanger. n Automatic control panel with warning alarm & timer to ensure the curing. n Easy operation and material movement flexibility. Eco Features: (Electrical Heating) bake nModular cassette and expandable construction. n Independent controlled hot air circulation fan. n World class Rockwool insulation for minimum heat loss. n Side Mounted Electric Heaters mounted on the sides. n Automatic control panel with warning alarm & timer to ensure the curing. n Easy operation and material movement flexibility. (Gas Fired Heating) nModular cassette and expandable construction. n Independent controlled hot air circulation fan. n World class Rockwool insulation for minimum heat loss. n Head Mounted Heater box for Gas fired heat exchanger. n Automatic control panel with warning alarm & timer to ensure the curing. n Easy operation and material movement flexibility. TECHExpert manufactures powder curing and paint baking ovens - batch and conveyorised types. Ovens are energy efficient with a minimum of gradient across their widths as well as heights. Uniform distribution of heat ensures uniform baking of all the components. Specifications : -Powder Curing Oven - Diesel / Gas / Electric bake Heat Exchanger. K Cal/hr D H W Eco Models Media Inside Dimensions Blower 3 M /hr Motor HP Temp 0C Load Cap. kg Eco Eco Eco Models bake bake bake -55 -60 -75 55000 350 1 x 7,500 1 x 3 1.5 2.4 1.5 200 Diesel/Gas Diesel/Gas 60000 350 1 x 10,000 1 x 3 1.5 3.0 1.8 200 Diesel/Gas 75000 500 1 x 12,000 1 x 5 1.8 3.6 1.8 200 Media Inside Dimensions D H W Heating Cap.(KW) Blower 3 M /hr Motor HP Temp 0C Load Cap. kg Eco Eco bake bake -24 -36 Electrical 300 1.5 2.0 1.5 1 x 10,000 1 x 3 24 200 Electrical 350 1.5 2.4 1.8 1 x 12,000 1 x 5 36 200 Note: - All dimensions are in meters. | Initial heating time 60 minutes approx. - HE (Heat Exchanger) dimensions will be additional.

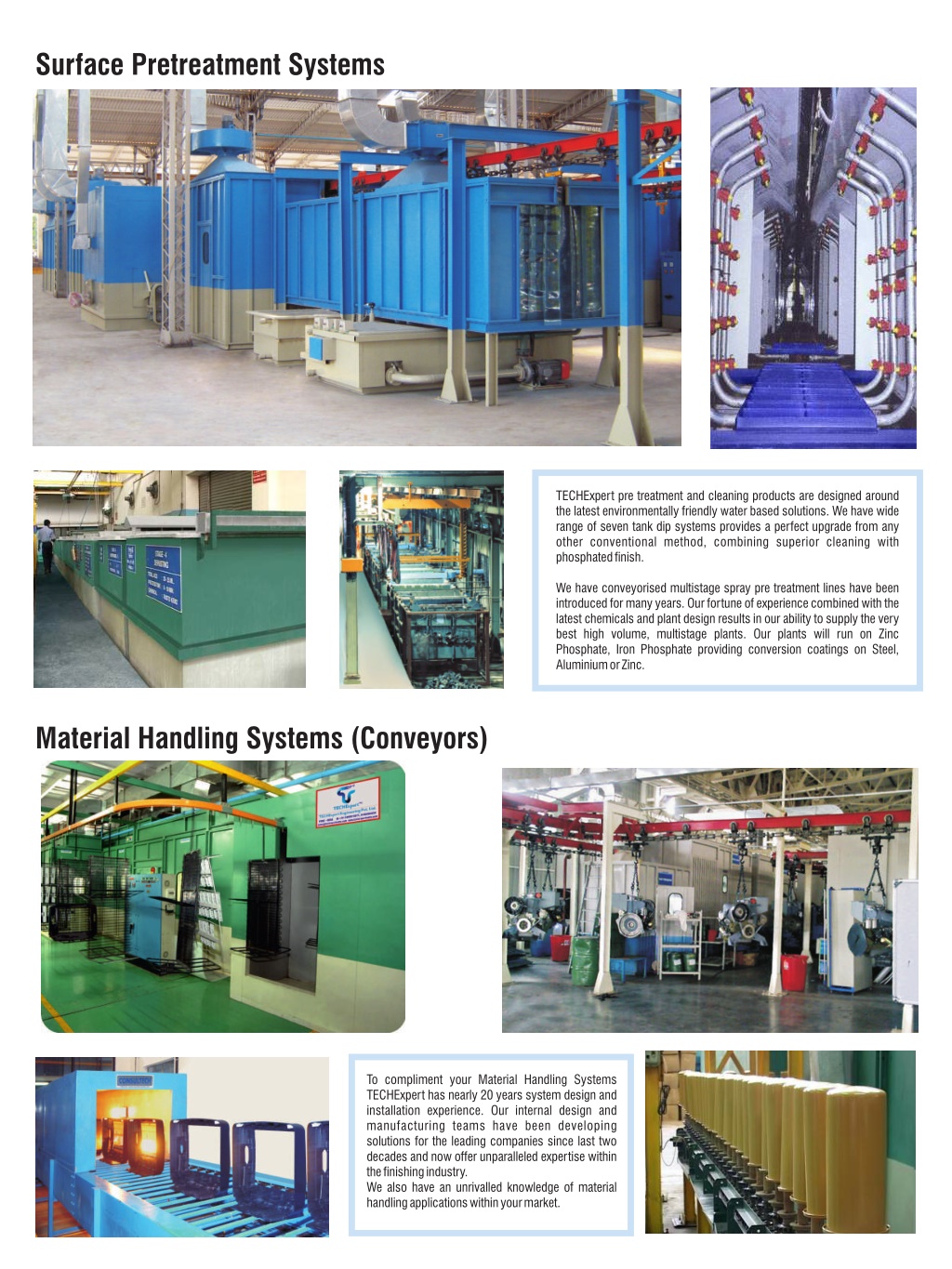

8. Surface Pretreatment Systems TECHExpert pre treatment and cleaning products are designed around the latest environmentally friendly water based solutions. We have wide range of seven tank dip systems provides a perfect upgrade from any other conventional method, combining superior cleaning with phosphated finish. We have conveyorised multistage spray pre treatment lines have been introduced for many years. Our fortune of experience combined with the latest chemicals and plant design results in our ability to supply the very best high volume, multistage plants. Our plants will run on Zinc Phosphate, Iron Phosphate providing conversion coatings on Steel, Aluminium or Zinc. Material Handling Systems (Conveyors) To compliment your Material Handling Systems TECHExpert has nearly 20 years system design and installation experience. Our internal design and manufacturing teams have been developing solutions for the leading companies since last two decades and now offer unparalleled expertise within the finishing industry. We also have an unrivalled knowledge of material handling applications within your market.

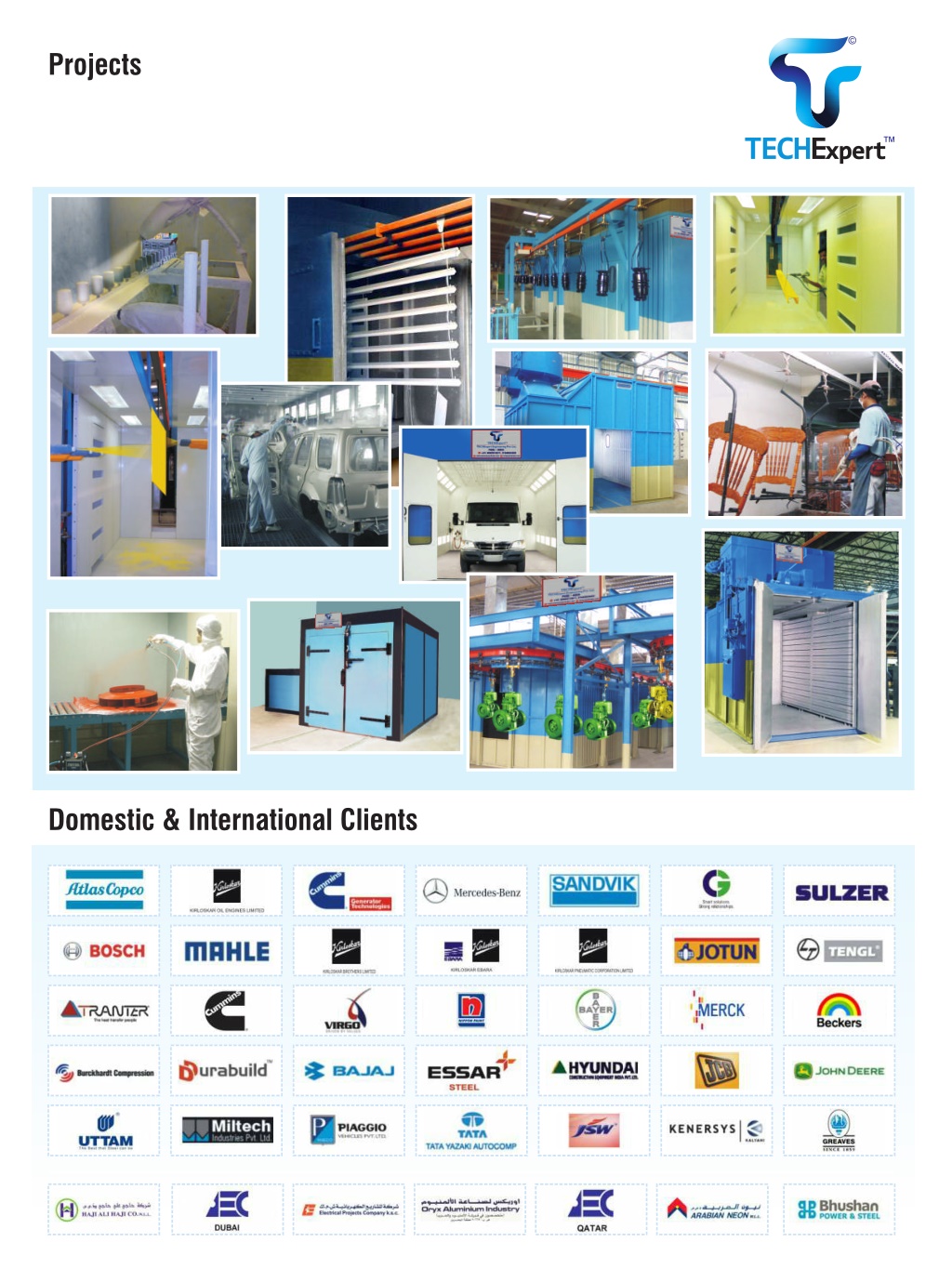

9. Projects Domestic & International Clients

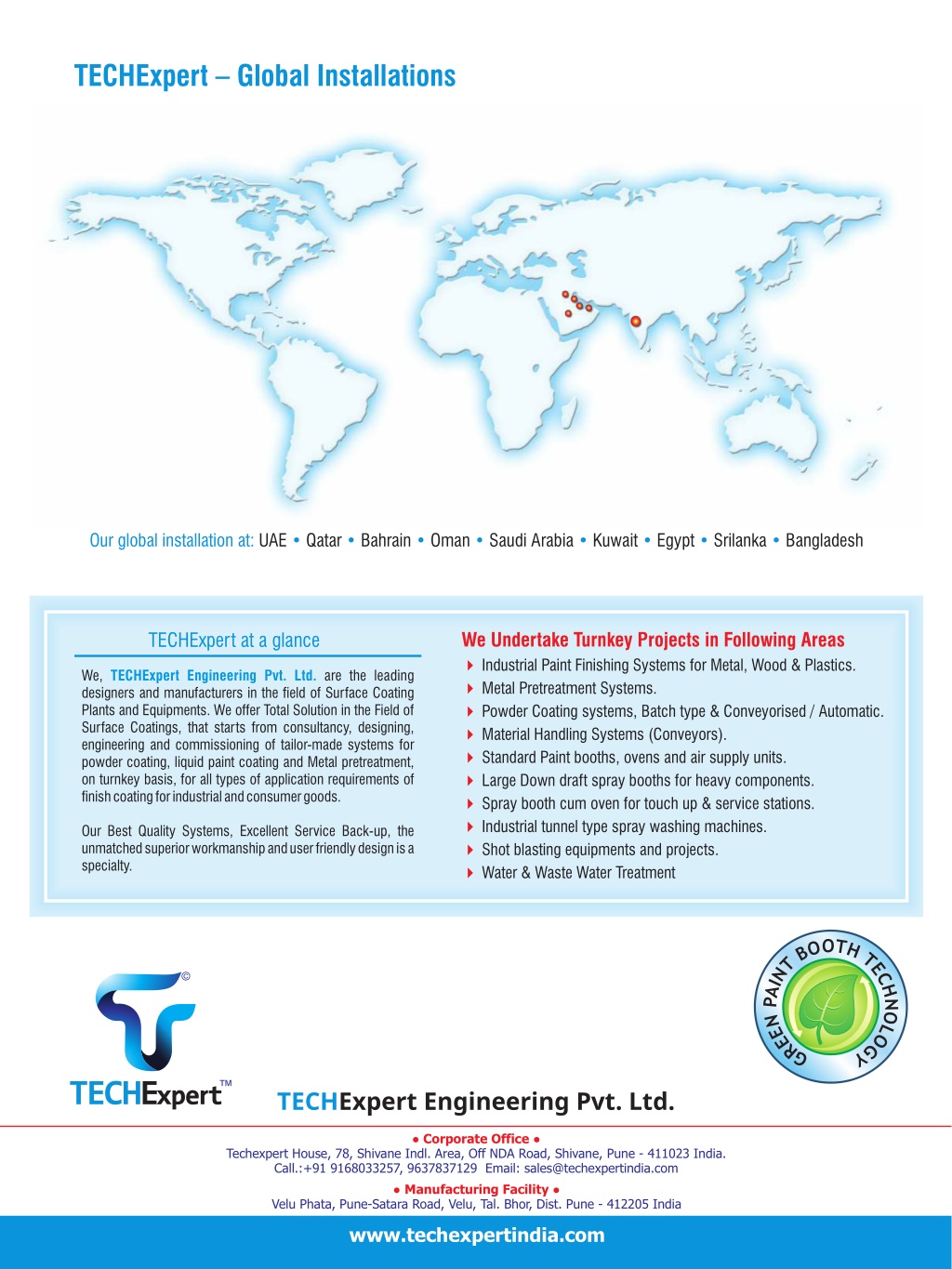

10. TECHExpert – Global Installations Our global installation at: UAE • Qatar • Bahrain Oman • • Saudi Arabia • Kuwait • Egypt • Srilanka • Bangladesh We Undertake Turnkey Projects in Following Areas 4 Industrial Paint Finishing Systems for Metal, Wood & Plastics. 4 Metal Pretreatment Systems. TECHExpert at a glance We, designers and manufacturers in the field of Surface Coating Plants and Equipments. We offer Total Solution in the Field of Surface Coatings, that starts from consultancy, designing, engineering and commissioning of tailor-made systems for powder coating, liquid paint coating and Metal pretreatment, on turnkey basis, for all types of application requirements of finish coating for industrial and consumer goods. TECHExpert Engineering Pvt. Ltd. are the leading 4 Powder Coating systems, Batch type & Conveyorised / Automatic. 4 Material Handling Systems (Conveyors). 4 Standard Paint booths, ovens and air supply units. 4 Large Down draft spray booths for heavy components. 4 Spray booth cum oven for touch up & service stations. 4 Industrial tunnel type spray washing machines. 4 Shot blasting equipments and projects. 4 Water & Waste Water Treatment Our Best Quality Systems, Excellent Service Back-up, the unmatched superior workmanship and user friendly design is a specialty. OTH O B T N I A P N E E R T E C H N O L O G Y G TECHExpert Engineering Pvt. Ltd. ● Corporate Office ● Techexpert House, 78, Shivane Indl. Area, Off NDA Road, Shivane, Pune - 411023 India. Call.:+91 9168033257, 9637837129 Email: sales@techexpertindia.com ● Manufacturing Facility ● Velu Phata, Pune-Satara Road, Velu, Tal. Bhor, Dist. Pune - 412205 India www.techexpertindia.com
