Transmitter & Receiver (TR) Module ATE From Digilogic Systems

1. Transmitter & Receiver (TR) Module ATE Introduction The Transmitter & Receiver (TR) Module ATE, developed using the latest test and measurement technologies, is designed to automate the validation, calibration, and functional testing of TR modules. It performs complex testing tasks with high precision and repeatability, helping engineers verify that every module meets its design specifications before deployment in radar, communication, or electronic warfare systems. Digilogic Systems’ TR Module ATE is a versatile and scalable testing platform that integrates RF instrumentation, digital control systems, and automated software for complete end-to-end verification. It reduces manual testing efforts, accelerates production, and ensures that each TR module performs optimally in demanding real- world conditions.

2. What is a Transmitter & Receiver (TR) Module? Transmitter & Receiver (TR) module is an electronic unit used in radar and communication systems. It consists of circuits that transmit and receive RF signals. Each TR module typically contains components like amplifiers, phase shifters, attenuators, switches, and control electronics. These modules are often integrated into phased array antennas to control beam direction and power levels dynamically. Why is testing TR modules so important? Testing TR modules is essential because even minor deviations in performance can lead to signal distortion, reduced range, or inaccurate targeting in radar systems. Automated testing ensures that each unit meets specifications for power output, gain, phase, linearity, and noise figure. Comprehensive testing also detects faults early in the production cycle, preventing costly field failures. What is a TR Module ATE? TR Module Automated Test Equipment (ATE) is a system designed to perform automated, high-precision testing of transmitter and receiver modules. It uses a combination of RF instruments, signal analyzers, network analyzers, and control software to execute predefined test sequences. The ATE can measure parameters like RF power, frequency response, insertion loss, and return loss under controlled conditions.

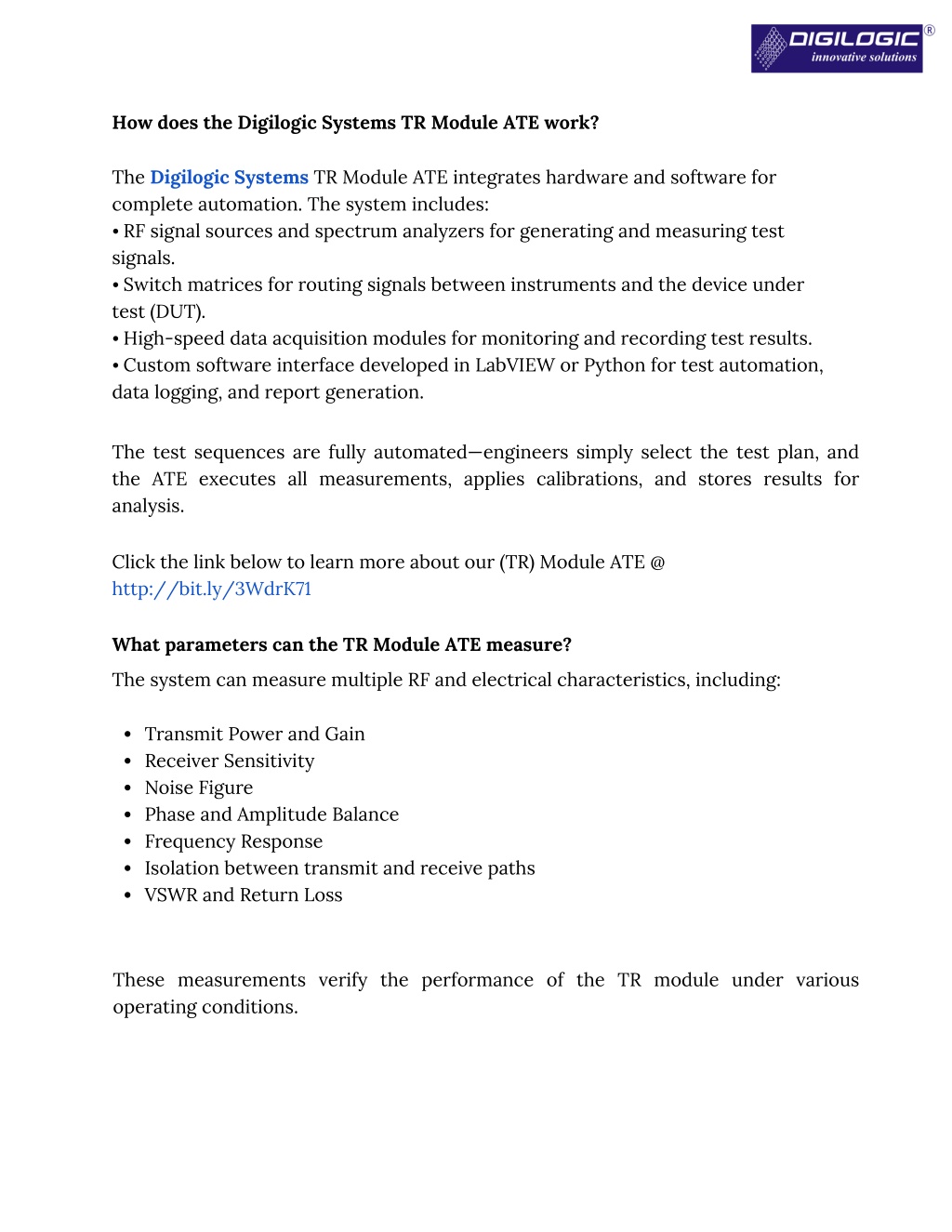

3. How does the Digilogic Systems TR Module ATE work? The Digilogic Systems TR Module ATE integrates hardware and software for complete automation. The system includes: ⦁ RF signal sources and spectrum analyzers for generating and measuring test signals. ⦁ Switch matrices for routing signals between instruments and the device under test (DUT). ⦁ High-speed data acquisition modules for monitoring and recording test results. ⦁ Custom software interface developed in LabVIEW or Python for test automation, data logging, and report generation. The test sequences are fully automated—engineers simply select the test plan, and the ATE executes all measurements, applies calibrations, and stores results for analysis. Click the link below to learn more about our (TR) Module ATE @ http://bit.ly/3WdrK71 What parameters can the TR Module ATE measure? The system can measure multiple RF and electrical characteristics, including: Transmit Power and Gain Receiver Sensitivity Noise Figure Phase and Amplitude Balance Frequency Response Isolation between transmit and receive paths VSWR and Return Loss These measurements verify the performance of the TR module under various operating conditions.

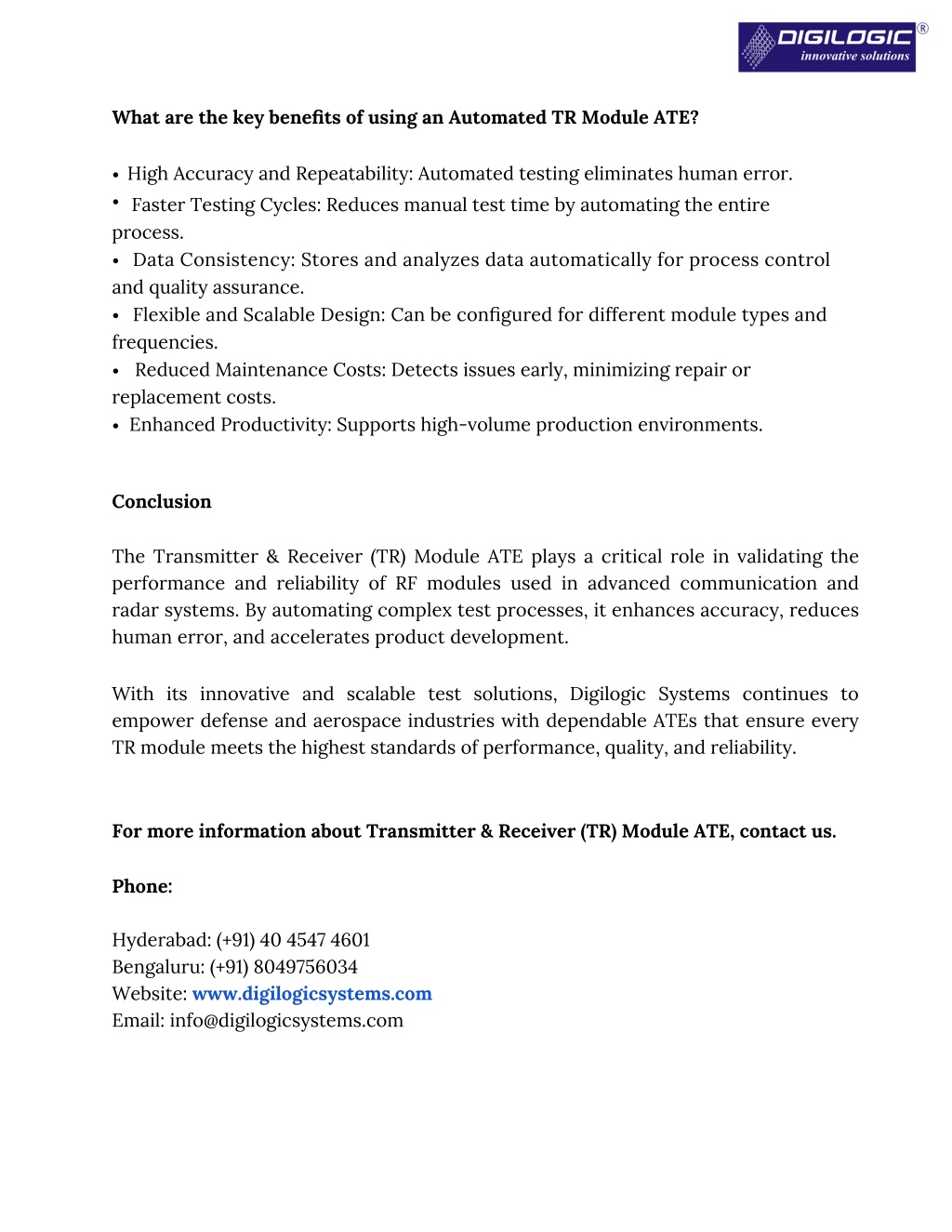

4. What are the key benefits of using an Automated TR Module ATE? High Accuracy and Repeatability: Automated testing eliminates human error. Faster Testing Cycles: Reduces manual test time by automating the entire process. Data Consistency: Stores and analyzes data automatically for process control and quality assurance. Flexible and Scalable Design: Can be configured for different module types and frequencies. Reduced Maintenance Costs: Detects issues early, minimizing repair or replacement costs. Enhanced Productivity: Supports high-volume production environments. ⦁ ⦁ ⦁ ⦁ ⦁ ⦁ Conclusion The Transmitter & Receiver (TR) Module ATE plays a critical role in validating the performance and reliability of RF modules used in advanced communication and radar systems. By automating complex test processes, it enhances accuracy, reduces human error, and accelerates product development. With its innovative and scalable test solutions, Digilogic Systems continues to empower defense and aerospace industries with dependable ATEs that ensure every TR module meets the highest standards of performance, quality, and reliability. For more information about Transmitter & Receiver (TR) Module ATE, contact us. Phone: Hyderabad: (+91) 40 4547 4601 Bengaluru: (+91) 8049756034 Website: www.digilogicsystems.com Email: info@digilogicsystems.com
