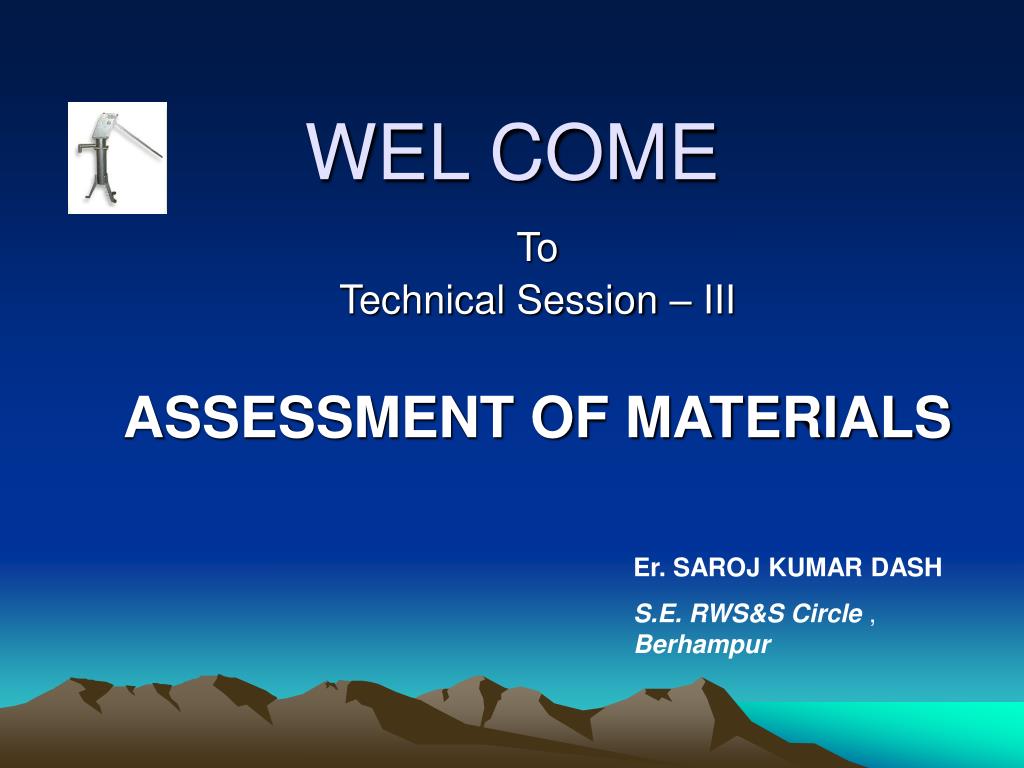

  1. WEL COME To Technical Session – III ASSESSMENT OF MATERIALS Er. SAROJ KUMAR DASH S.E. RWS&S Circle , Berhampur

  2. RESPONSIBILITY OF REPAIR TW PWS Minor Major Minor Major (Above G.L.) (Below G.L.) Normal Improvement SEMMobile TeamJE – IIJE – I

  3. PURCHASE OF MATERIALS PURCHASE COMMITTEE B.D.O. - CHAIRMAN AE (RWS&S) - MEMBER JE-II - MEMBER CONVENOR

  4. ASSESSMENT OF MATERIALS INFORMATION OF ASSETS IN A BLOCK • No of SPOT SOURCES • No of PWS( GRAVITY BASED, PUMPING BASED) TW (SHALLOW, TARA, IM-II, IM- III ) SW

  5. T & P SPARES ASSESSMENT OF MATERIALS SLOW MOVING (PEDESTAL,WATER CHAMBER, Etc.) FAST MOVING (RUBBER BUCKET, CHAIN, BEARINGS,HANDLE Etc.) STANDARD TOOLS (WRENCH, HAMMER, SCREW DRIVER, Etc.) SPECIAL TOOLS (ROD ,VICE,PIPE LIFTER,PIPE VICE, Etc.) CONSUMABLES ( GREASE, HACKSAW BLADE, M.OIL,PAINT,Etc.)

  6. SKELETON OF IM-II HAND PUMP

  7. ASSESSMENT OF SPAREPARTS FOR IM – II HAND PUMPFOR NORMAL OPERATION & MAINTENANCE(AS RECOMMONDED BY UNICEF FOR 2 YEARS)

  8. ASSESSMENT OF SPAREPARTS FOR DIRECT ACTION TARA HANDPUMP (AS RECOMMONDED BY UNICEF FOR 2 YEARS) • PUMP ROD – 2 nos • CUP SEAL ( VEG. TANNED) – 4 nos • FLAP VALVES - 2 nos • ‘O’ RINGS - 2 nos • GUIDE BUSH - 1 no • RUBBER GROMMET - 1 no • SPLIT PIN - 1 no • CENTRALISER - 2 nos

  9. ASSESSMENT OF CONSUMABLE • GREASE – 10 Gm /TW / MONTH • HACKSAW BLADE – 20 / SEM / YEAR 20 / MOBILE UNIT/ MONTH • 32MM / 65MM DIA PIPE DIE BIT – 2 SETS / MOBILE UNIT / YEAR • 12MM DIA ROD DIE BIT – 1 BIT / SEM / YEAR 10 BITS / MOBILE UNIT / YEAR • M.OIL FOR THREAD CUTTING – 2 LTRS / MOBILE UNIT / YEAR • PAINT(BUS GREEN) – 200 ML / HAND PUMP / YEAR ( YELLOW Color for numbering) - 20ML / HAND PUMP / YEAR

  10. ASSESSMENT OF T&P • 1 SET OF STANDARD TOOL & SPECIAL TOOL / MOBILE TEAM • 1 SET SEM TOOL KIT / SEM

  11. STANDARD TOOLS

  12. SPECIAL TOOLS

  13. SPARE PARTS FOR WATER SUPPLY MAINTENANCE • 1/2” TAP • 1/2” G.I. SOCKET • 1/2” G.I. PLUG • 1/2” G.I. ELBOW • 1/2” G.I. NIPPLE • 1/2” G.I. /PVC PIPE • 90/110/160 mm COUPLER • SOLVENT CEMENT • FUSE WIRE • TESTER • GLAND PACKING

  14. Successful people don’t plan results, They plan beginnings. Right result always follow right beginnings’ Let us have a right beginning………
