三木比迪婴儿床分解说明

Oct 24, 2014

380 likes | 638 Views

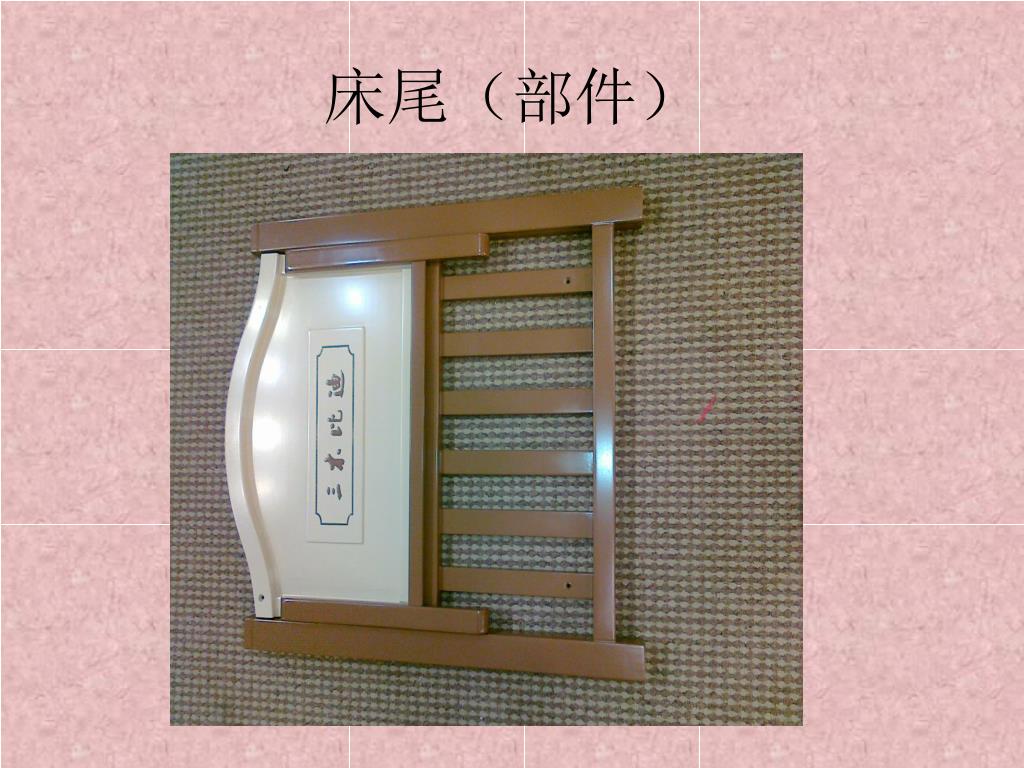

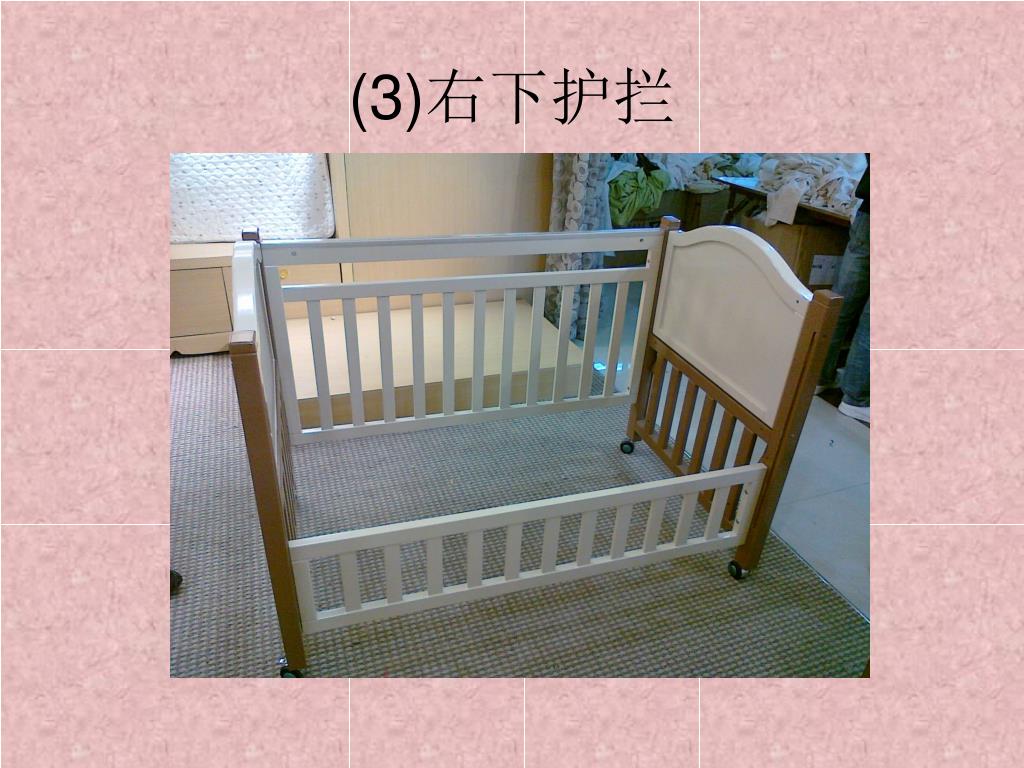

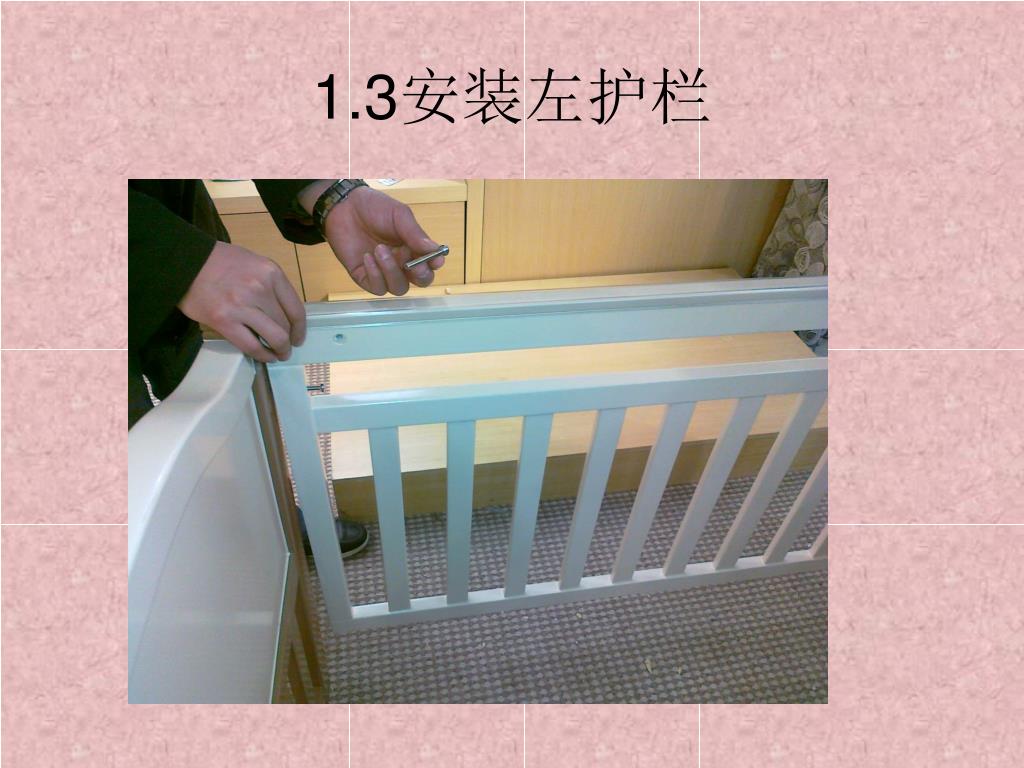

三木比迪婴儿床分解说明. 车轮子 ,4 个， 2 个带刹车（部件）. 长螺丝 8 条（部件）. 右上护拦（部件）. 右下护拦（部件）. 左护栏（部件）. 床板（部件）. 床头（部件）. 床尾（部件）. 带帽螺丝钉 4 条（部件）. 工具（部件）. 安装车轮. 2 个刹车轮，装在床头板. 1.2 组合床头 , 尾. 1.3 安装左护栏. 2. (3) 右下护拦. 3.1, 注意那螺丝. 3.2) 两边螺丝拧出来. 3.3. 4.2) 四个角都安上带帽螺丝. 4.3 螺丝在内突出. 4.4 床尾放回上去 ,. 4.5 螺丝固定.
