Presentation Transcript
slide3

“Doxygen is the de facto standard tool for generating documentation from annotated C++ sources, but it also supports other popular programming languages such as C, Objective-C, C#, PHP, Java, Python, IDL (Corba and Microsoft flavors), Fortran, VHDL, Tcl, and to some extent D.”

-http://www.stack.nl/~dimitri/doxygen/

getting started with doxygen
Getting started with doxygen
  • Download from doxygen.org
    • Also on scott in /home/ggrevera/doxygen/bin
  • Do this only once in directory (folder) containing your source code:

doxygen –g

      • This creates a doxygen configuration file called Doxyfile which you may edit to change default options.
      • Edit Doxyfile and make sure all EXTRACTs are YES
      • For C (not C++) development, also set OPTIMIZE_OUTPUT_FOR_C = YES
  • Then whenever you change your code and wish to update the documentation:

doxygen

      • which updates all documentation in HTML subdirectory
using doxygen document every source code file
Usingdoxygen: document every (source code) file

/**

* \file ImageData.java

* \brief contains ImageData class definition (note that this

* class is abstract)

*

* <more verbose description here>

* \author George J. Grevera, Ph.D.

*/

.

.

.

using doxygen document every class
Using doxygen: document every class

//----------------------------------------------------------------------

/** \brief JImageViewer class.

*

* Longer description goes here.

*/

public class JImageViewer extends JFrame implements ActionListener {

.

.

.

using doxygen document every function
Using doxygen: document every function

//----------------------------------------------------------------------

/** \brief Main application entry point.

*

* \param args Each image file name in args will cause that image

* to be displayed in a window.

* \returns nothing

*/

public static void main ( String[] args ) {

if (args.length==0) {

new JImageViewer();

} else {

for (int i = 0; i < args.length; i++)

new JImageViewer( args[i] );

}

}

using doxygen document every class member and global and static variable in c c

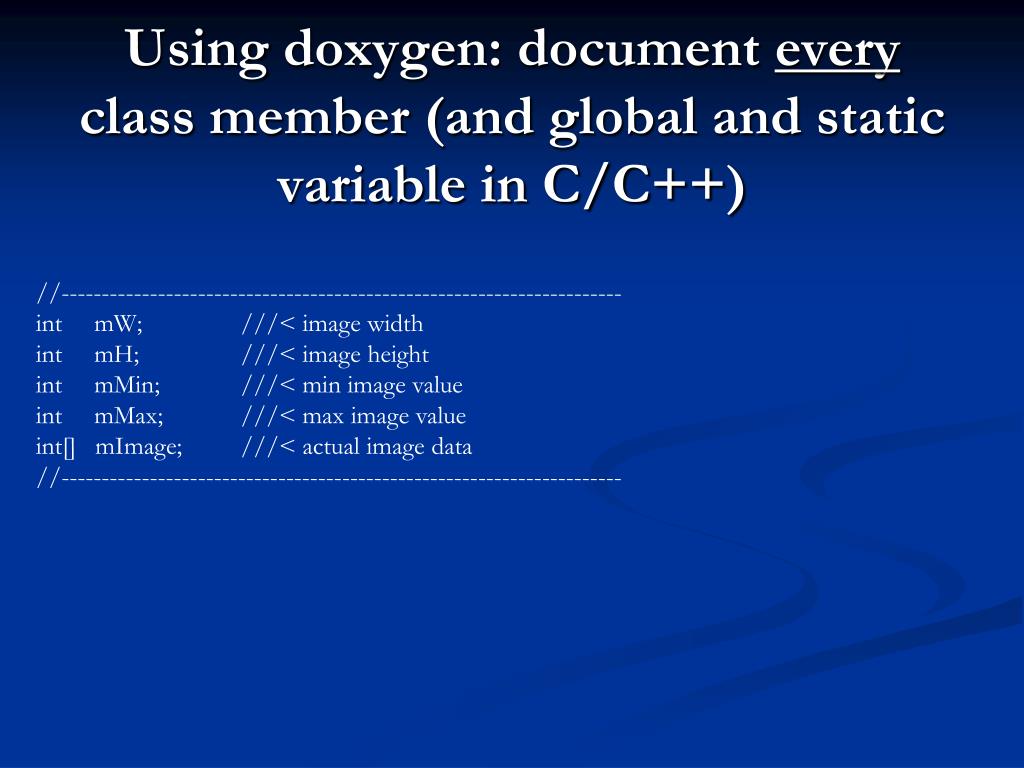

Using doxygen: document every class member (and global and static variable in C/C++)

//----------------------------------------------------------------------

int mW; ///< image width

int mH; ///< image height

int mMin; ///< min image value

int mMax; ///< max image value

int[] mImage; ///< actual image data

//----------------------------------------------------------------------

not every comment should be a doxygen comment

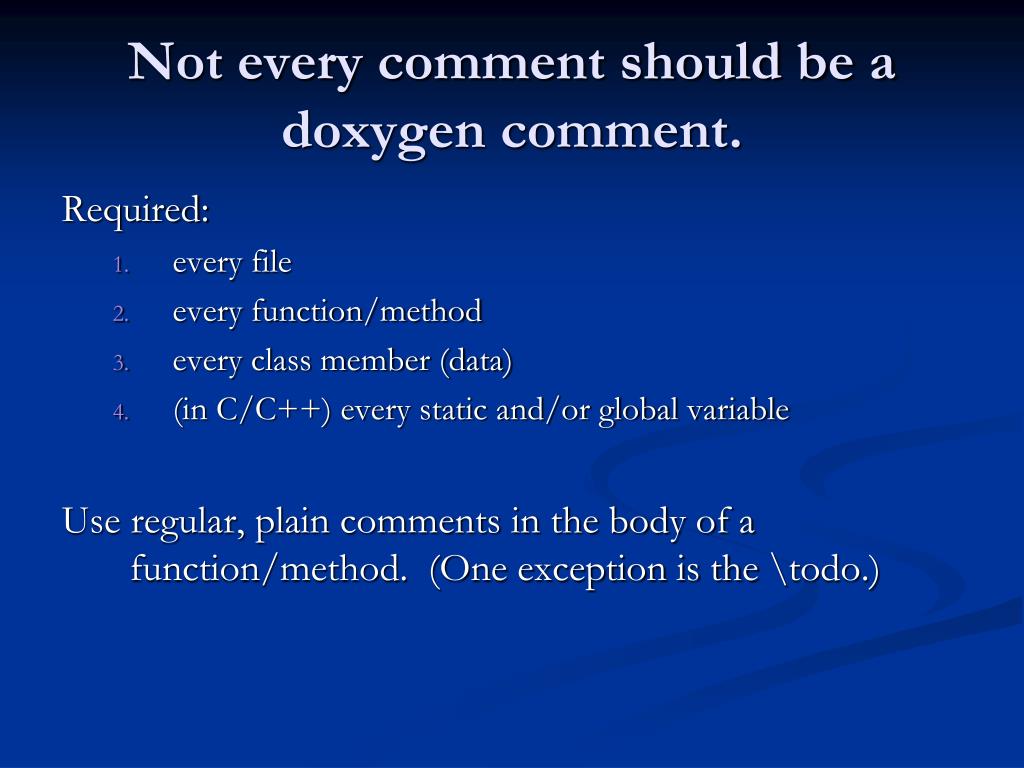

Not every comment should be a doxygen comment.

Required:

  • every file
  • every function/method
  • every class member (data)
  • (in C/C++) every static and/or global variable

Use regular, plain comments in the body of a function/method. (One exception is the \todo.)

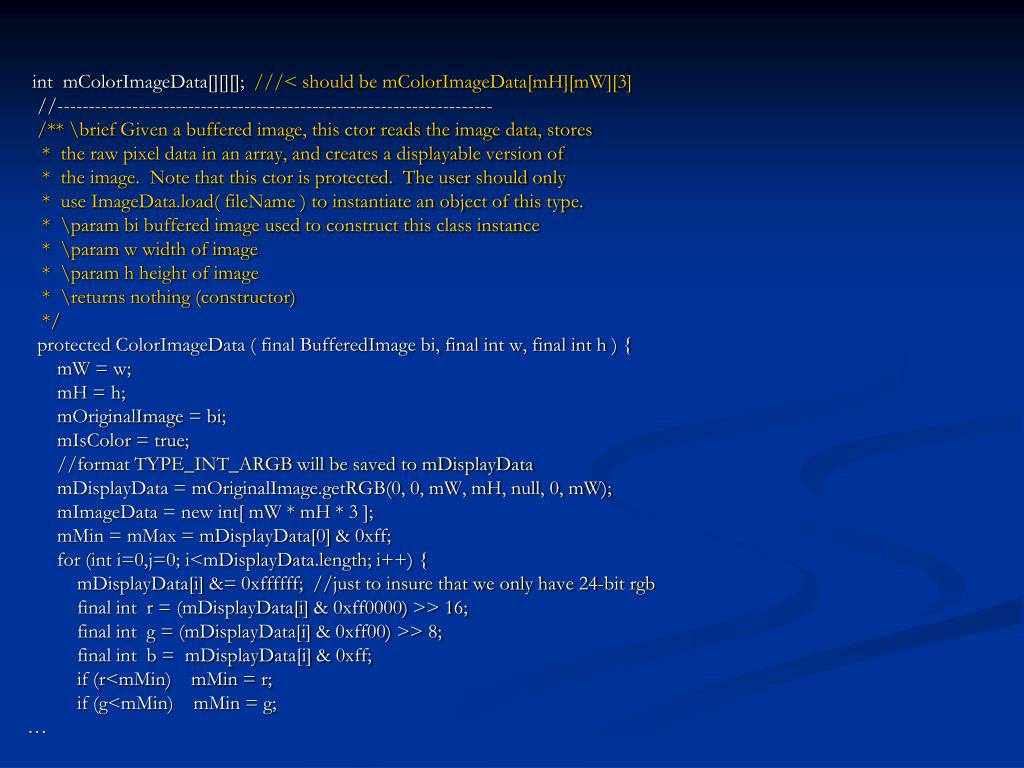

slide10
int mColorImageData[][][]; ///< should be mColorImageData[mH][mW][3]

//----------------------------------------------------------------------

/** \brief Given a buffered image, this ctor reads the image data, stores

* the raw pixel data in an array, and creates a displayable version of

* the image. Note that this ctor is protected. The user should only

* use ImageData.load( fileName ) to instantiate an object of this type.

* \param bi buffered image used to construct this class instance

* \param w width of image

* \param h height of image

* \returns nothing (constructor)

*/

protected ColorImageData ( final BufferedImage bi, final int w, final int h ) {

mW = w;

mH = h;

mOriginalImage = bi;

mIsColor = true;

//format TYPE_INT_ARGB will be saved to mDisplayData

mDisplayData = mOriginalImage.getRGB(0, 0, mW, mH, null, 0, mW);

mImageData = new int[ mW * mH * 3 ];

mMin = mMax = mDisplayData[0] & 0xff;

for (int i=0,j=0; i<mDisplayData.length; i++) {

mDisplayData[i] &= 0xffffff; //just to insure that we only have 24-bit rgb

final int r = (mDisplayData[i] & 0xff0000) >> 16;

final int g = (mDisplayData[i] & 0xff00) >> 8;

final int b = mDisplayData[i] & 0xff;

if (r<mMin) mMin = r;

if (g<mMin) mMin = g;

summary of most useful tags commands

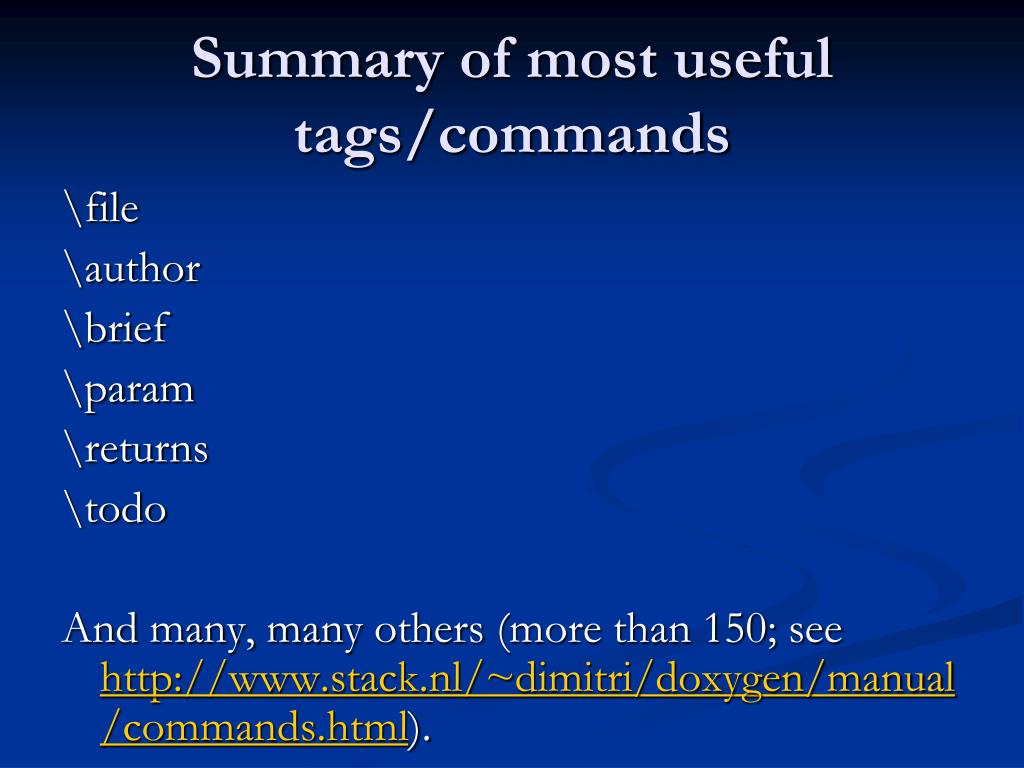

Summary of most useful tags/commands

\file

\author

\brief

\param

\returns

\todo

And many, many others (more than 150; see http://www.stack.nl/~dimitri/doxygen/manual/commands.html).

language specific notes
Language specific notes

Tags may start with either \ or @ (important for PHP as it uses \ as part of the language so you must use @ for PHP).

See http://search.cpan.org/~jordan/Doxygen-Filter-Perl-1.50/lib/Doxygen/Filter/Perl.pm for Perl and doxygen.

inheritance and collaboration diagrams

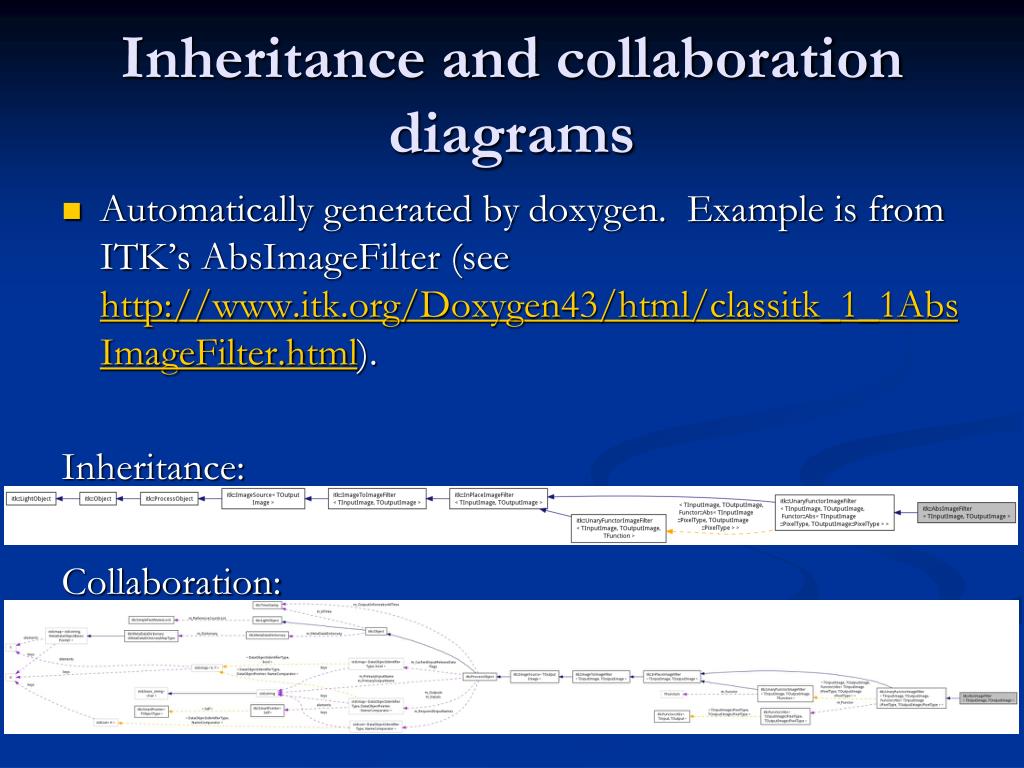

Inheritance and collaboration diagrams

Automatically generated by doxygen. Example is from ITK’s AbsImageFilter (see http://www.itk.org/Doxygen43/html/classitk_1_1AbsImageFilter.html).

Inheritance:

Collaboration:
