תכנון ובעיות "קשות"

1. תכנון ובעיות "קשות" בינה מלאכותית אבי רוזנפלד

2. יש בעיות שכנראה המחשב לא יכול לפתור NP-Complete P NP

5. איך פותרים את הבעיה??? • אין פתרון פולינומיאלי! • צריכים לבדוק כל אפשרות! • BRUTE FORCE = n! • תכנות דינאמי– "רק" n22n • כנראה שאין פתרון "סביר" - פולינומיאלי

6. NP-Complete דוגמאות • To prove a problem is NP-Complete show a polynomial time reduction from 3-SAT • Other NP-Complete Problems: • PARTITION • SUBSET-SUM • CLIQUE • HAMILTONIAN PATH (TSP) • GRAPH COLORING • MINESWEEPER (and many more)

7. רוב בעיות של תכנון ואופטימיזציה הם פה!

8. רק הבעיות המעניות הם NP • Deterministic Polynomial Time: The TM takes at most O(nc) steps to accept a string of length n • Non-deterministic Polynomial Time: The TM takes at most O(nc) steps on each computation path to accept a string of length n

9. אז מה עושים? • Branch and Bound (כעין PRUNING) • HILLCLIMING • HEURISTICS • Mixed Integer Programming

10. דוגמאות CSP וCOP • Constraint Satisfaction Problems (CSP) • Constraint Optimization Problems (COP) • Backtracking search for CSP and COPs • Problem Structure and Problem Decomposition • Local search for COPs

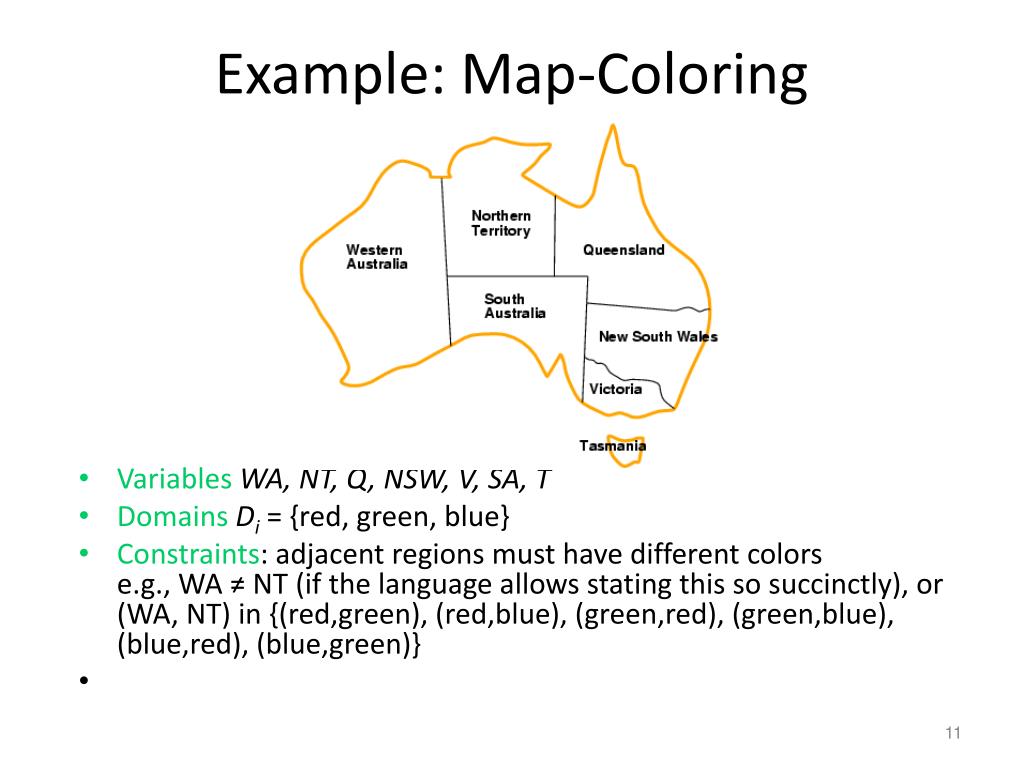

11. Example: Map-Coloring • Variables WA, NT, Q, NSW, V, SA, T • Domains Di = {red, green, blue} • Constraints: adjacent regions must have different colorse.g., WA ≠ NT (if the language allows stating this so succinctly), or(WA, NT) in {(red,green), (red,blue), (green,red), (green,blue), (blue,red), (blue,green)}

12. Example: Map-Coloring • This is a solution: complete and consistent assignments (i.e., all variables assigned, all constraints satisfied):e.g., WA = red, NT = green, Q = red, NSW = green, V = red, SA = blue, T = green

13. Constraint graph • Binary CSP: each constraint relates two variables • Constraint graph: nodes are variables, arcs show constraints General-purpose CSP algorithms use the graph structure to speed up search, e.g., Tasmania is an independent subproblem

14. Varieties of CSPs • Discrete variables • finite domains: • n variables, domain size d impliesO(dn) complete assignments • e.g., Boolean CSPs, including Boolean satisfiability (NP-complete) • infinite domains: • integers, strings, etc. • e.g., job scheduling, variables are start/end days for each job • need a constraint language, e.g., StartJob1 + 5 ≤ StartJob3 • Continuous variables • e.g., start/end times for Hubble Space Telescope observations • linear constraints solvable in polynomial time by linear programming methods

15. Real-world CSPs • Assignment problems • e.g., who teaches what class? • Timetabling problems • e.g., which class (or exam) is offered when and where? • Hardware Configuration • Spreadsheets • Transportation scheduling • Factory scheduling • Floorplanning • Notice that many real-world problems involve real-valued variables

16. Standard search formulation (incremental) Let’s start with the straightforward (dumb) approach, then fix it. States are defined by the values assigned so far. • Initial state: the empty assignment { } • Successor function: assign a value to an unassigned variable that does not conflict with current assignment  fail if no legal assignments • Goal test: the current assignment is complete • This is the same for all CSPs (good) • Every solution appears at depth n with n variables use depth-first search • Path is irrelevant, so can also use complete-state formulation • b = (n - l )d at depth l, hence n! · dn leaves (bad) b is branching factor, d is size of domain, n is number of variables

17. What This Naïve Search Would Look Like • Let’s say we had 4 variables, each of which could take one of 4 integer values At start, all unassigned ???? 4??? 3??? 2??? 1??? ?1?? ?2?? ?3?? ?4?? ??1? ??2? ??3? ??4? ???1 ???2 ???3 ???4 11?? 12?? 13?? 14?? 1?1? 1?2? 1?3? 1?4? 1??1 1??2 1??3 1??43 Etc.…terrible branching factor

18. Backtracking example

19. Backtracking example

20. Backtracking example

21. Backtracking example

22. שיפורים • יש כמה דרכים איך לשפר את התהליך... • איזה ענף בודקים ראשון • איזה בודקים בפעם השנייה, וכו' • האם אפשר לעצור את התהליך באמצע? • האם אפשר לנצל מידע על הבעיה? • האם אפשר לגזום העץ?

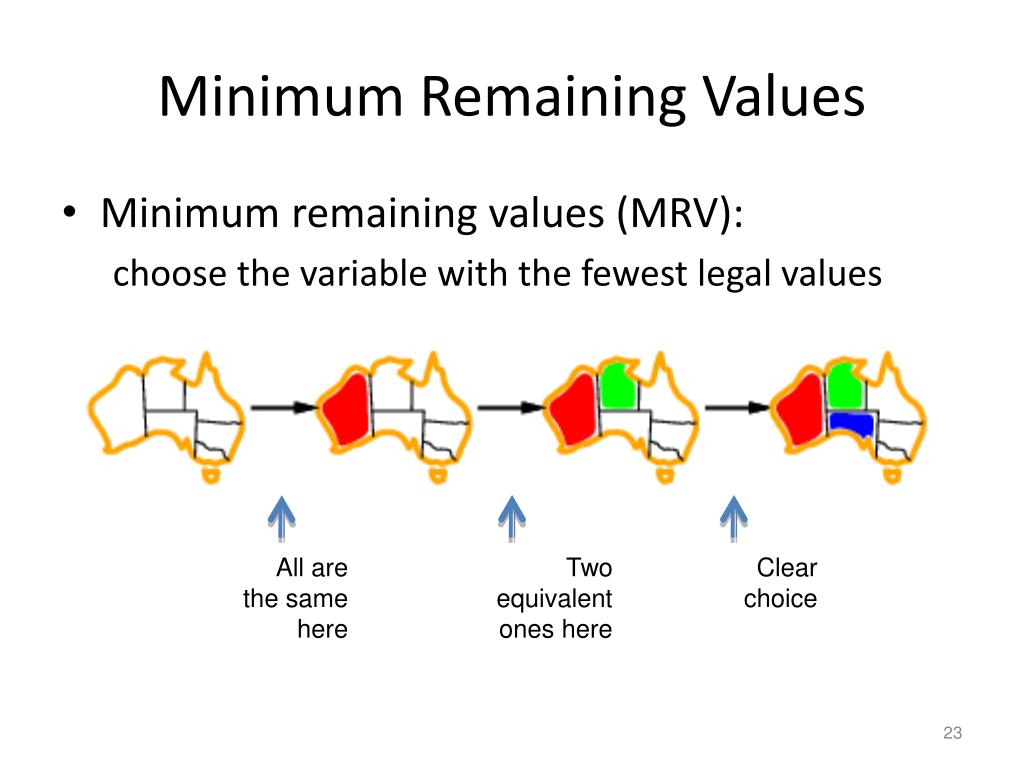

23. Minimum Remaining Values • Minimum remaining values (MRV): choose the variable with the fewest legal values All are the same here Two equivalent ones here Clear choice

24. Degree Heuristic • Tie-breaker among MRV variables • Degree heuristic: choose the variable with the most constraints on remaining variables

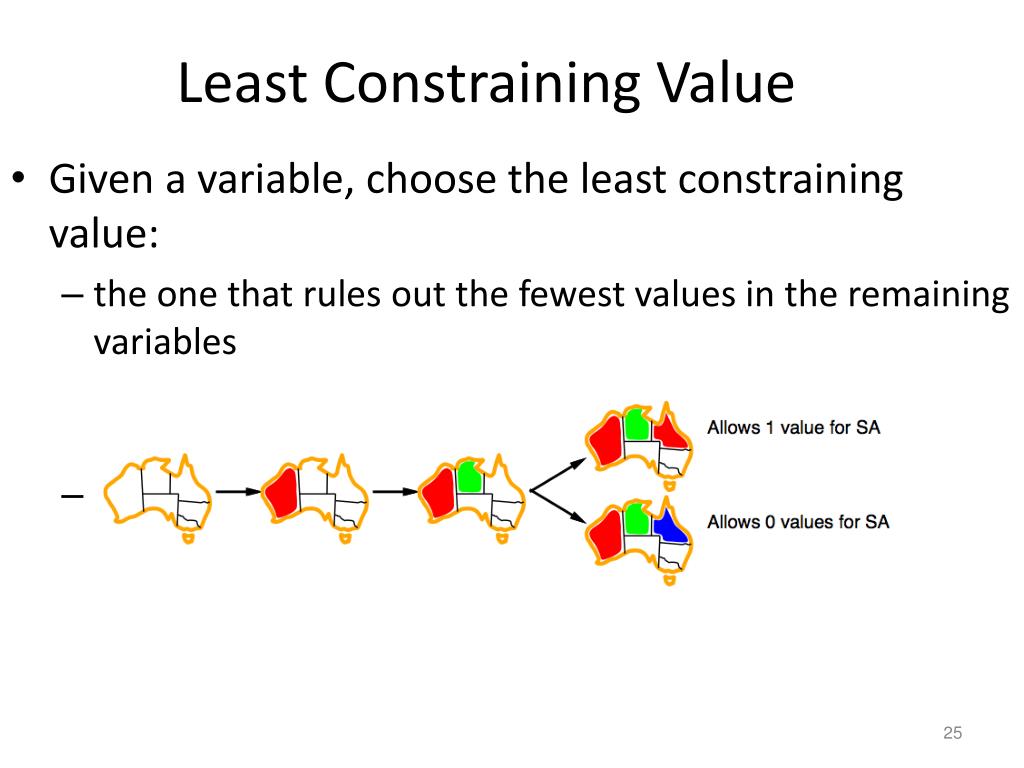

25. Least Constraining Value • Given a variable, choose the least constraining value: • the one that rules out the fewest values in the remaining variables

26. Most Constraining Value • Given a variable, choose the most constraining value: • This is VERY constrained, so let’s do it first…

27. Forward checking • Idea: • Keep track of remaining legal values for unassigned variables • Terminate search when any variable has no legal values

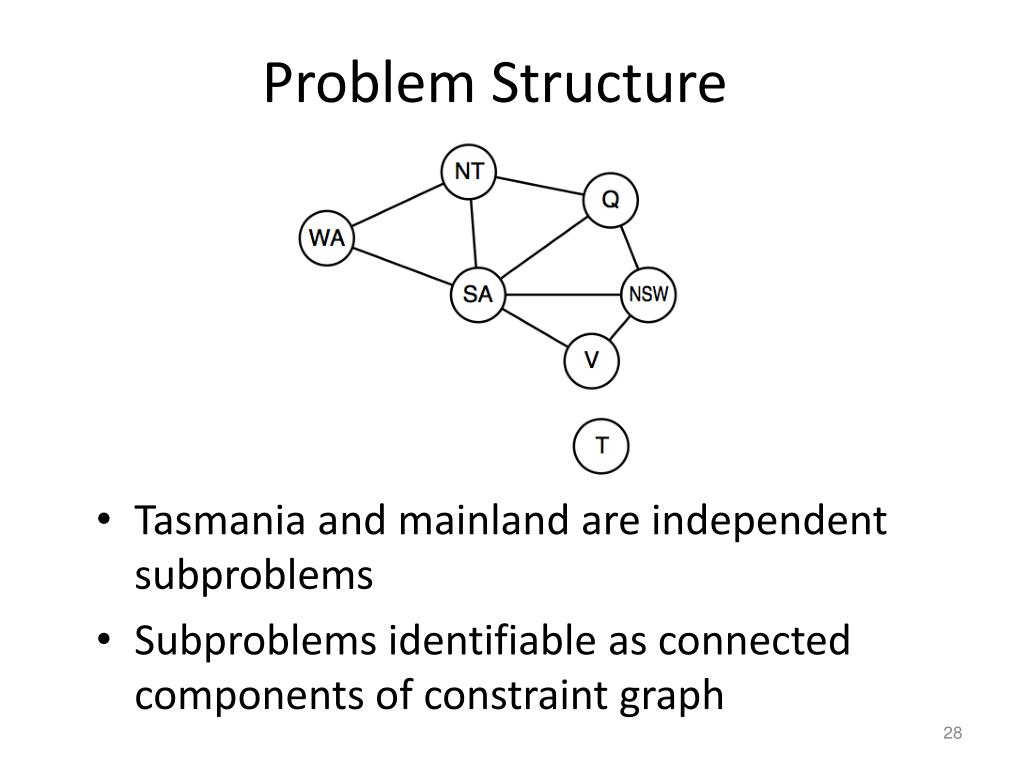

28. Problem Structure • Tasmania and mainland are independent subproblems • Subproblems identifiable as connected components of constraint graph

29. Iterative Algorithms for CSPs • Hill-climbing, simulated annealing typically work with “complete” states, i.e., all variables assigned • To apply to CSPs: • use complete states, but with unsatisfied constraints • operators reassign variable values • Variable selection: randomly select any conflicted variable • Value selection by min-conflicts heuristic: • choose value that violates the fewest constraints • i.e., hill-climb with h(n) = total number of violated constraints

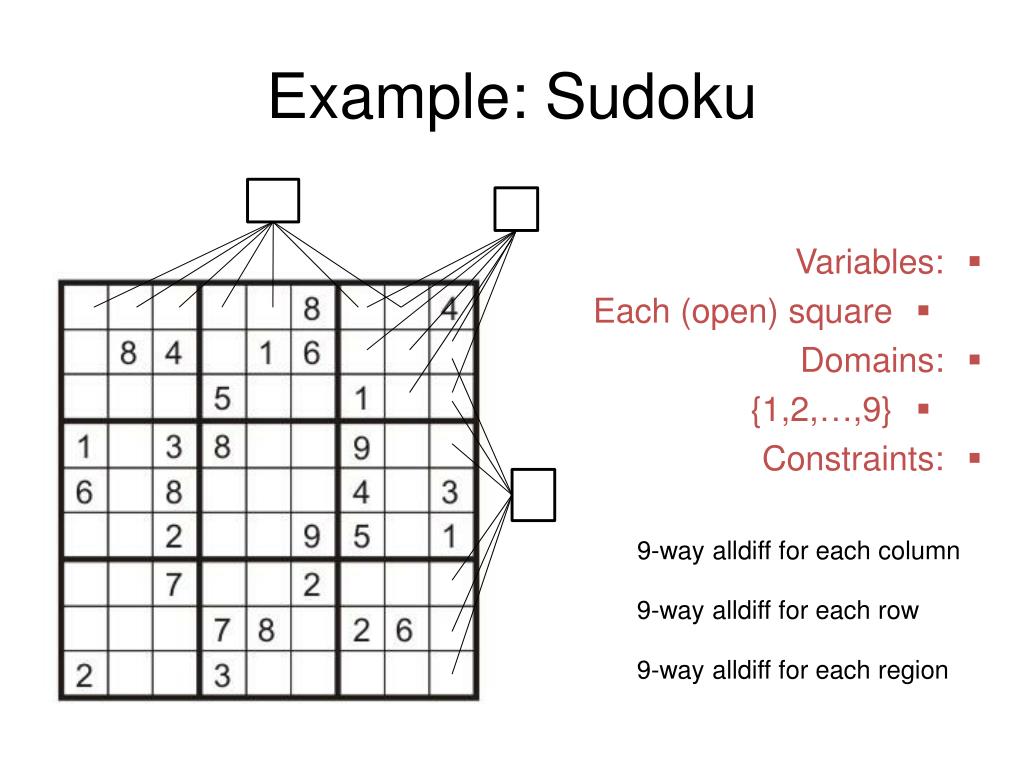

30. Example: Sudoku • Variables: • Each (open) square • Domains: • {1,2,…,9} • Constraints: 9-way alldiff for each column 9-way alldiff for each row 9-way alldiff for each region

31. Very Important CSPs: Scheduling • Many industries. Many multi-million $decisions. Used extensively for space mission planning. Military uses. • People really care about improving scheduling algorithms! Problems with phenomenally huge state spaces. But for which solutions are needed very quickly • Many kinds of scheduling problems e.g.: • Job shop: Discrete time; weird ordering of operations possible; set of separate jobs. • Batch shop: Discrete or continuous time; restricted operation of ordering; grouping is important.

32. Scheduling • A set of N jobs, J1,…, Jn. • Each job j is composed of a sequence of operations Oj1,..., OjLj • Each operation may use resource R, and has a specific duration in time. • A resource must be used by a single operation at a time. • All jobs must be completed by a due time. • Problem: assign a start time to each job.

33. יש "מעבר פאזה"Cheeseman 1993

34. Summary • CSPs are a special kind of search problem: • states defined by values of a fixed set of variables • goal test defined by constraints on variable values • Backtracking = depth-first search with one variable assigned per node • Variable ordering (MRV, degree heuristic) and value selection (least constraining value) heuristics help significantly • Forward checking prevents assignments that guarantee later failure • Constraint propagation (e.g., arc consistency) does additional work to constrain values and detect inconsistencies • The CSP representation allows analysis of problem structure • Tree-structured CSPs can be solved in linear time • Iterative min-conflicts is usually effective in practice
