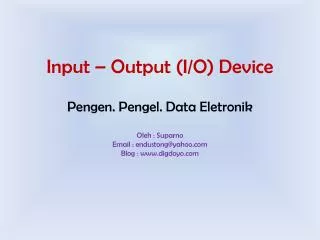

  1. Input – Output (I/O) Device Pengen. Pengel. Data Eletronik

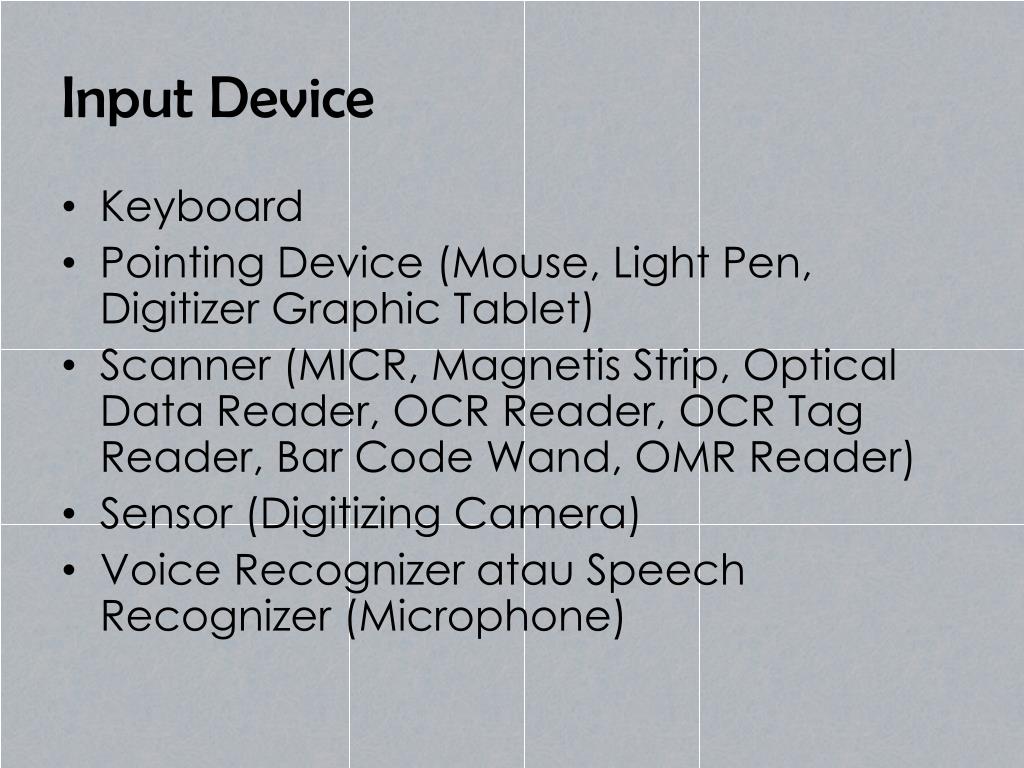

  2. Input Device • Keyboard • Pointing Device (Mouse, Light Pen, Digitizer Graphic Tablet) • Scanner (MICR, Magnetis Strip, Optical Data Reader, OCR Reader, OCR Tag Reader, Bar Code Wand, OMR Reader) • Sensor (Digitizing Camera) • Voice Recognizer atau Speech Recognizer (Microphone)

  3. Output Device • Hard Copy Device : Alat yang digunakanuntukmencetaktulisansertaimgepada media kerassepertikertas, plastikatau film (Printer, Ploter, Computer Output to Microfilm (COM)) • Soft Copy Device : Alat yang digunakanuntukmenampilkantulisanserta image pada media lunak yang berupa signal elektronik (Video Display/CRT, Flat Panel Display/LCD, Speaker) • Drive Device : Alat yang digunakanuntukmerekamsimboldalambentuk yang hanyadapatdibacaolehmesindanberfungsisebagaialat input maupun output (Disk Drive, Tape Drive, Optical Drive)

  4. Bus Input/Output • Merupakanlintasankomunikasi yang menghubungkanduaataulebihperangkatkomputer. • Bus merupakan media transmisi yang dapatdigunakanbersama. • Sejumlahperangkat yang terhubungke bus dansuatusinyal yang ditransmisikanolehsalahsatuperangkatinidapatditermiaolehsalahsatuperangkat yang terhubungke bus.

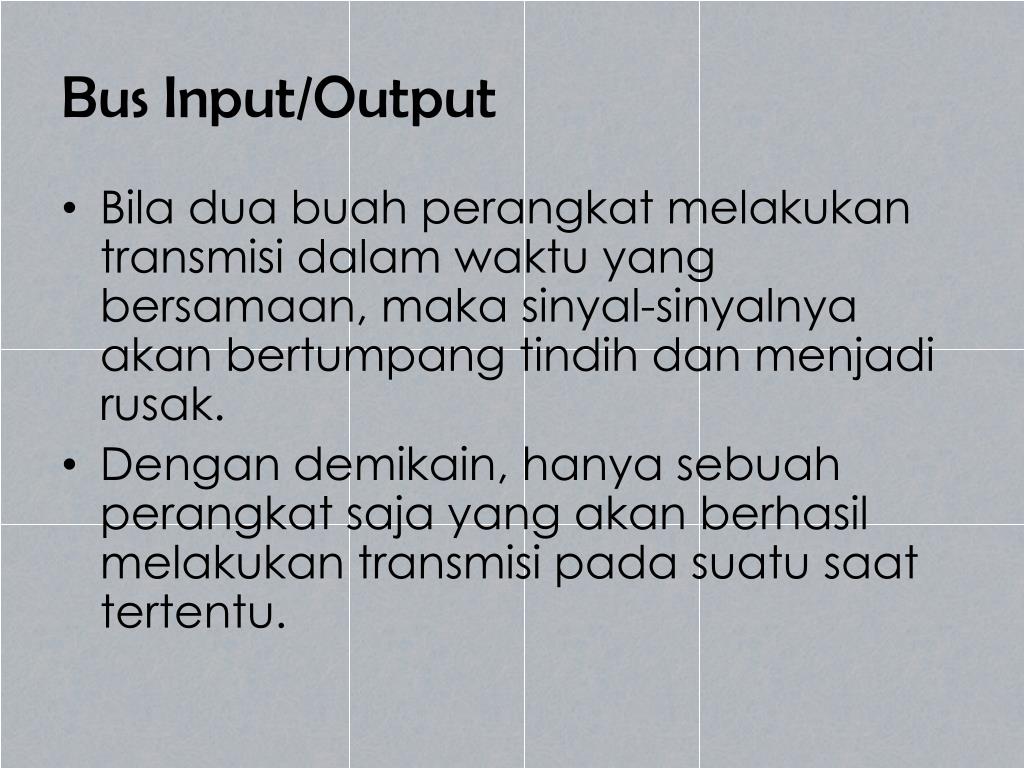

  5. Bus Input/Output • Biladuabuahperangkatmelakukantransmisidalamwaktu yang bersamaan, makasinyal-sinyalnyaakanbertumpangtindihdanmenjadirusak. • Dengandemikain, hanyasebuahperangkatsaja yang akanberhasilmelakukantransmisipadasuatusaattertentu.

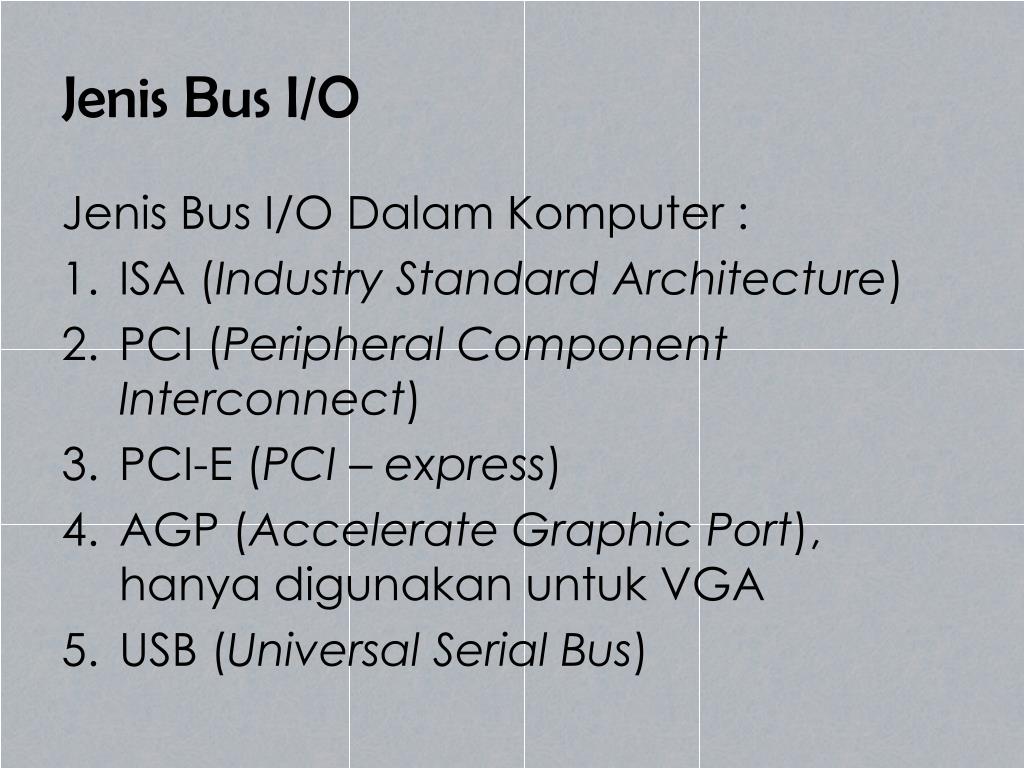

  6. Jenis Bus I/O Jenis Bus I/O DalamKomputer : • ISA (Industry Standard Architecture) • PCI (Peripheral Component Interconnect) • PCI-E (PCI – express) • AGP (Accelerate Graphic Port), hanyadigunakanuntuk VGA • USB (Universal Serial Bus)

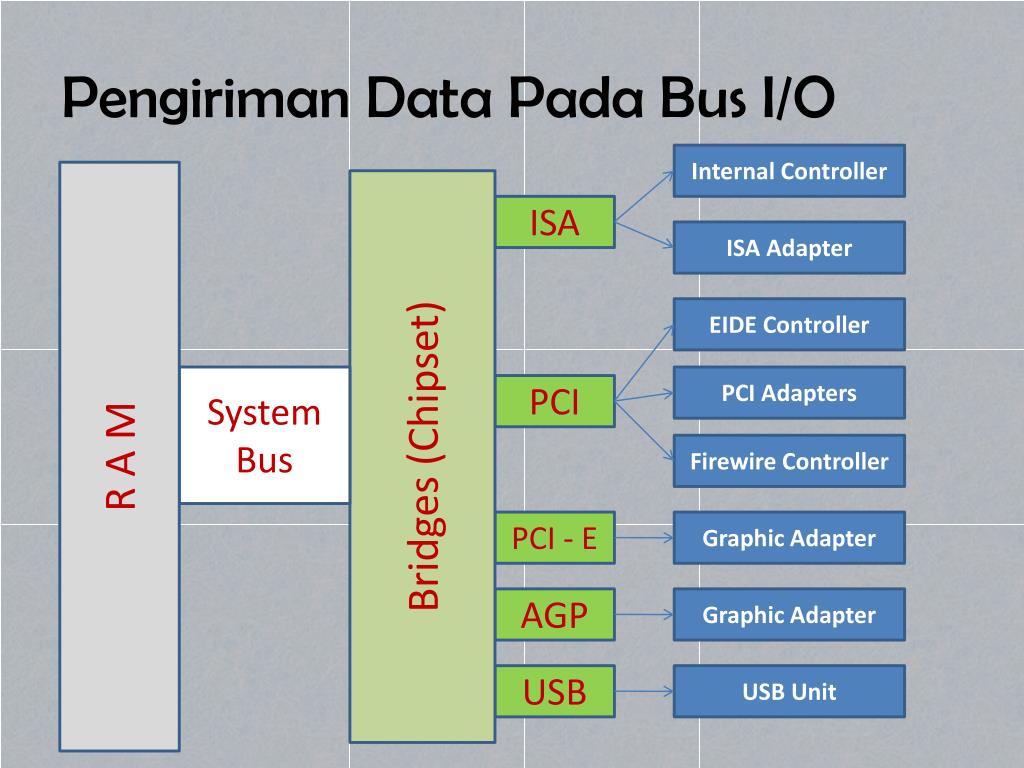

  7. Pengiriman Data Pada Bus I/O Internal Controller R A M Bridges (Chipset) ISA ISA Adapter EIDE Controller System Bus PCI Adapters PCI Firewire Controller PCI - E Graphic Adapter AGP Graphic Adapter USB USB Unit

  8. Pengiriman Data Pada Bus I/O Mouse, Modem, Serial Device Lain ISA Internal Controller LPT1 COM1 COM2 FLOPPY KBD Printer, Port Scanner, Drive, dll Keyboard ISA Adapter Sound Blaster, Sound Board 16 Bit Adapter Lainnya Ultra DMA Harddisk, ZIP Device, dll CDROM Drive, Perekam Lain PCI EIDE Controller Graphic Adapter Network Card 32 Bit Adapter lainnya PCI Adapters SCSI Controller Harddisk, Scanner, dll Firewire Controller High Performance Drive AGP AGP Slot Graphic Adapter USB Keyboard Scanner Digital Camera USB Unit and Hub
