Alloy Solidification

1. Def. Partition coefficient k T1 T2 T3 xs and xL are the mole fraction of solute in the solid and liquid respectively. x0 / k x0 kx0 Alloy Solidification

2. (a) Infinitely slow (equilibrium) solidification (b) Solidification with no diffusion in the solid and perfect mixing in the liquid. (c) Solidification with no diffusion in the solid and only diffusional mixing in the liquid. We will consider 3 limiting cases of the solidification process. :

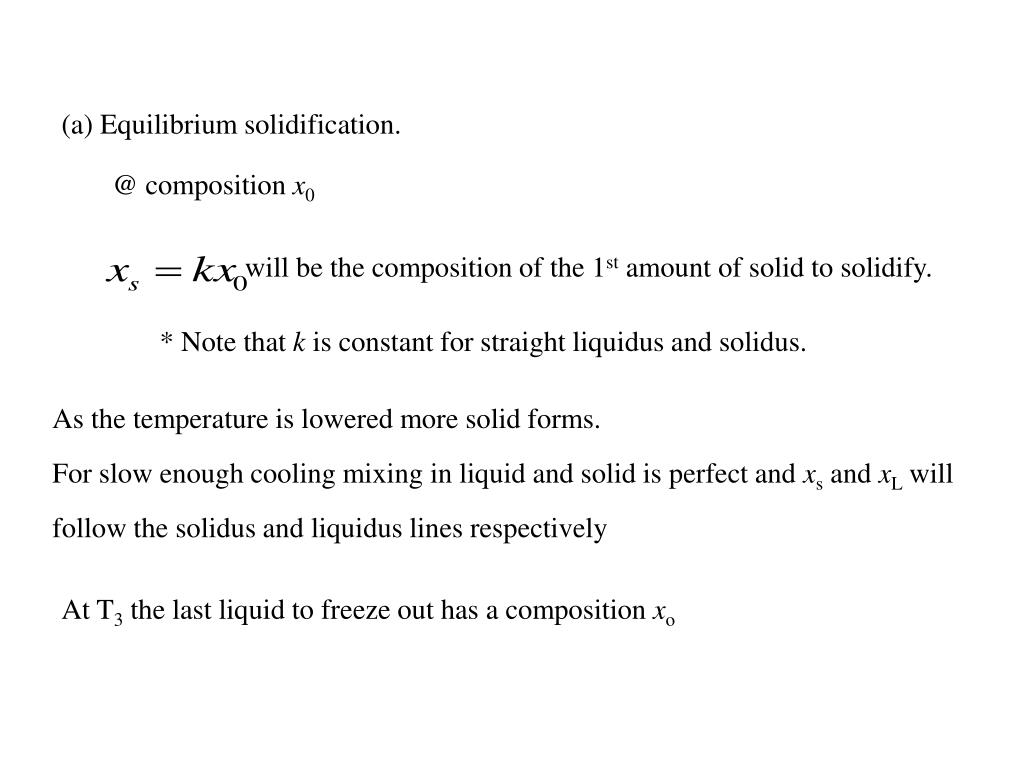

3. will be the composition of the 1st amount of solid to solidify. (a) Equilibrium solidification. @ composition x0 * Note that k is constant for straight liquidus and solidus. As the temperature is lowered more solid forms. For slow enough cooling mixing in liquid and solid is perfect and xs and xL will follow the solidus and liquidus lines respectively At T3 the last liquid to freeze out has a composition xo

4. (b) No diffusion in solid, perfect mixing in liquid (i.e., by stirring). Again the composition of the first quantity of solid solidifying in kx0. Since kxo < xo this solid will not contain as much solute as the liquid and so initially a quantity of solute  x0– kx0is rejected back in to the liquid. The slightly raises the solute content of the liquid, so the temperature of the liquid must be decreased below T1 for further solidification to occur. As this proceeds, the liquid become progressively richer in solute and solidification requires progressively lower temperatures. At any stage of the solidification process local equilibrium is assumed to exist at the liquid / solid interface.  The solid composition will not be homogeneous.

5. xL xS T1 T2 T3 x0 / k x0 kx0 The average composition of the solid during the solidification process is always lower that the equilibrium composition at the solid / liquid interface. Note that the liquid can become much richer in solute than x0 / k and may even reach the eutectic composition.

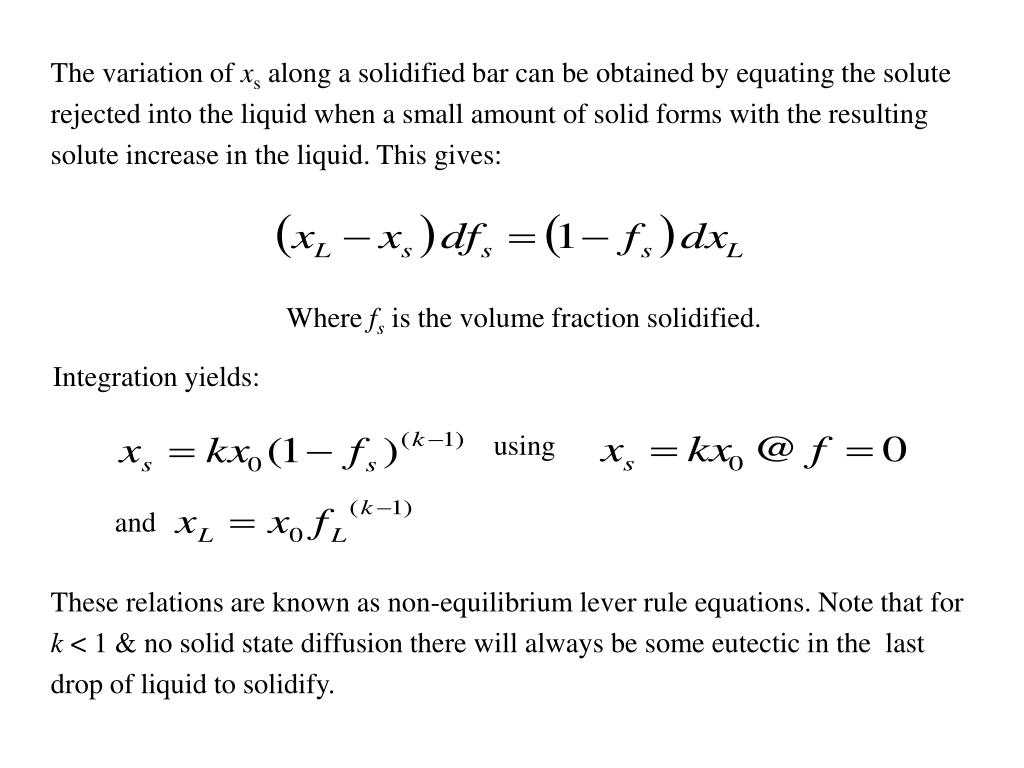

6. using and The variation of xs along a solidified bar can be obtained by equating the solute rejected into the liquid when a small amount of solid forms with the resulting solute increase in the liquid. This gives: Where fs is the volume fraction solidified. Integration yields: These relations are known as non-equilibrium lever rule equations. Note that for k < 1 & no solid state diffusion there will always be some eutectic in the last drop of liquid to solidify.

7. v Solid Liquid x0 D / v kx0 (c) No diffusion in solid, Diffusional mixing in liquid Liquid Solid x0 kx0 Composition profile when temperature is between T2 and T3. xo/k Steady state solidification at T3.

8. xeutectic Steady state xmax x0 Composition profile @ T3 and below showing the final transient. (1) Initial transient develops as first solid to solidify has composition x0k and solute is “rejected” into liquid. (2) Solute concentration in liquid builds up ahead of S / L interface. Eventually a steady – state concentration of liquid at the S / L interface is achieved. This is set by a balance between rejected solute and diffusion of solute away from the S / L interface. i. e,

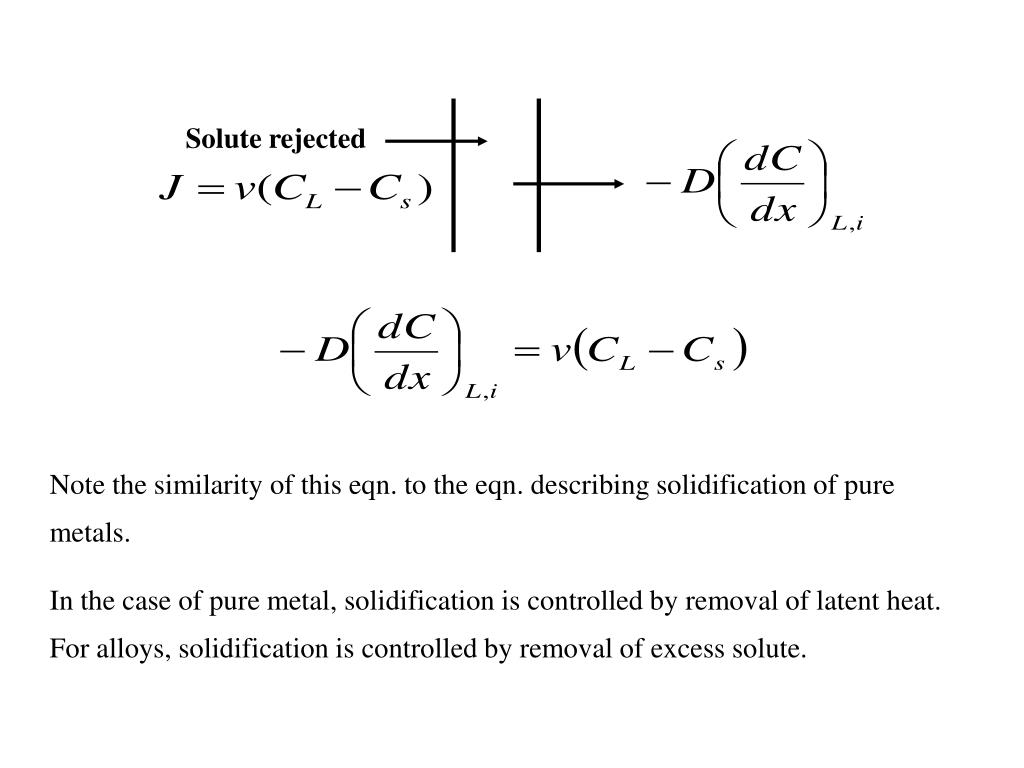

9. Solute rejected Note the similarity of this eqn. to the eqn. describing solidification of pure metals. In the case of pure metal, solidification is controlled by removal of latent heat. For alloys, solidification is controlled by removal of excess solute.

10. The latent heat conduction is 104 times faster than solute diffusion. i.e., solute diffusion is rate limiting. The steady – state concentration gradient is formed by solving the diffusion eqn : (D / v) is the characteristic width of the concentration profile. When the S / L interface ~ (D / v) from the end of the bar, the solute concentration rises rapidly to a final transient and eutectic formation.

11. T1 Solid T2 v Liquid x0 / k T3 xL xo ( D / v) Critical gradient x0 / k x0 kx0 TL T1 T3 compositionally super-cooled liquid Distance, S (composition) Constitutional Supercooling-Dendrite solidification How is a planar front stabilized during solidification ?

12. The interface is in local equilibrium, i.e., the interface temperature is Tliquidus. The rest of the liquid can follow any temperature gradient such as dTL/dS If : The liquid in front of the solidification front exists below its equilibrium freezing temperature, i.e., it is super-cooled .  Compositional or “constitutional” supercooling. From the diagram

13. When T1 and T3 are the liquidus and solidus temperatures for the bulk composition x0. The condition for a stable planar interface is Large interface velocities and large ( T1 – T3 ) will find to de-stabilize the interface. Normally the temperature gradients and growth velocities are not individually controllable in an experiment and both are determined by the rate of heat conduction in the solidifying alloy.
