  1. Field studies for 2 Tesla data Magnetic field meeting, CERN Oct 19, 2006 V. Karimäki Helsinki Institute of Physics

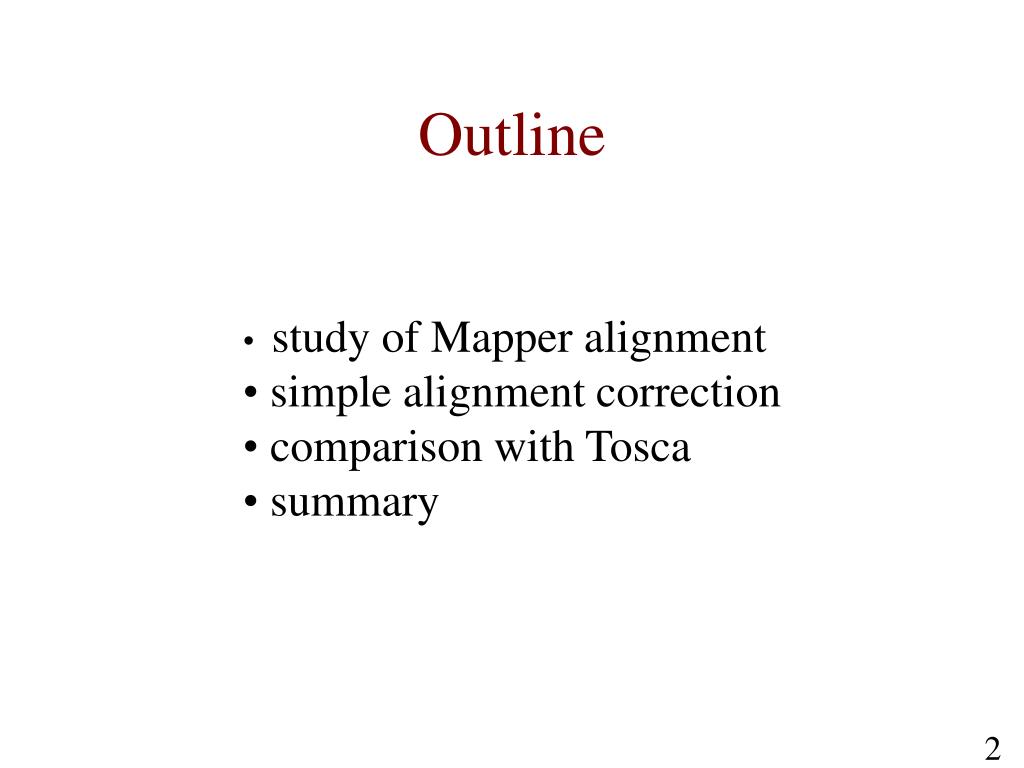

  2. Outline • study of Mapper alignment • simple alignment correction • comparison with Tosca • summary 2

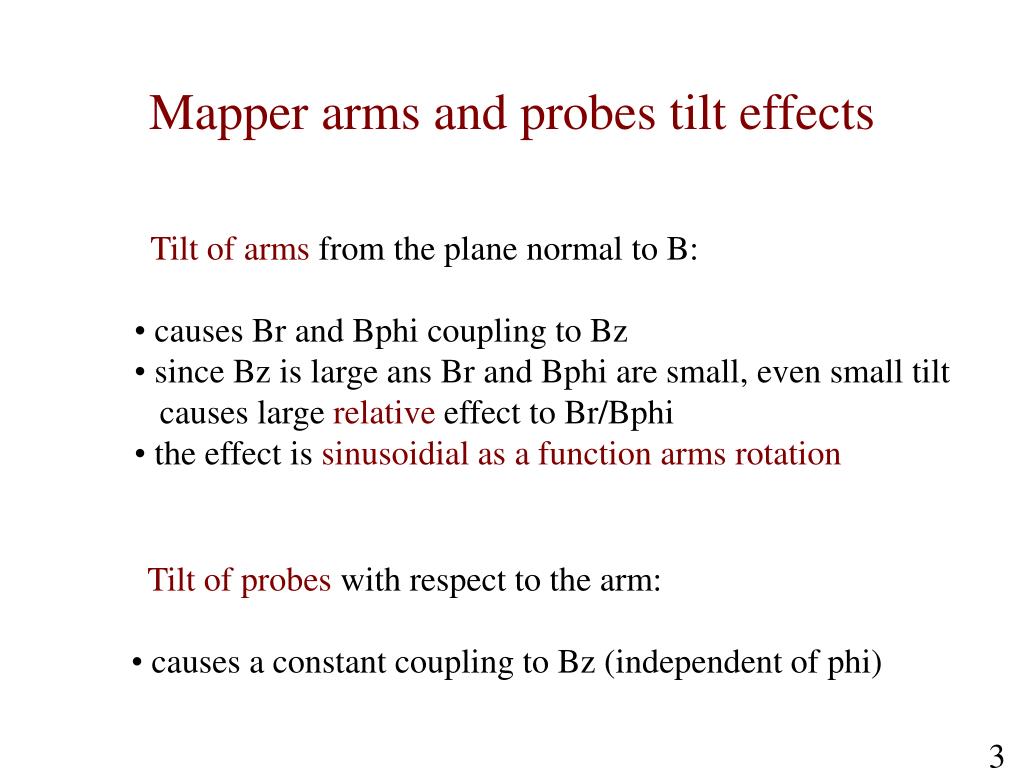

  3. Mapper arms and probes tilt effects Tilt of arms from the plane normal to B: • causes Br and Bphi coupling to Bz • since Bz is large ans Br and Bphi are small, even small tilt causes large relative effect to Br/Bphi • the effect is sinusoidial as a function arms rotation Tilt of probes with respect to the arm: • causes a constant coupling to Bz (independent of phi) 3

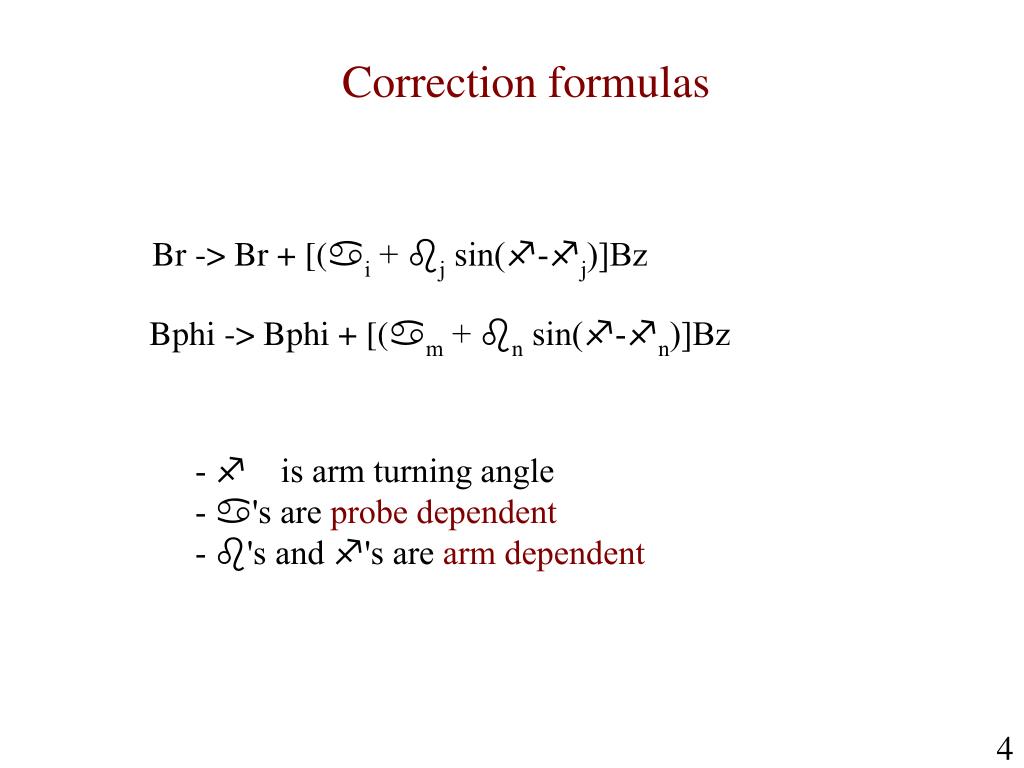

  4. Correction formulas Br -> Br + [(ai + bj sin(f-fj)]Bz Bphi -> Bphi + [(am + bn sin(f-fn)]Bz - f is arm turning angle - a's are probe dependent - b's and f's are arm dependent 4

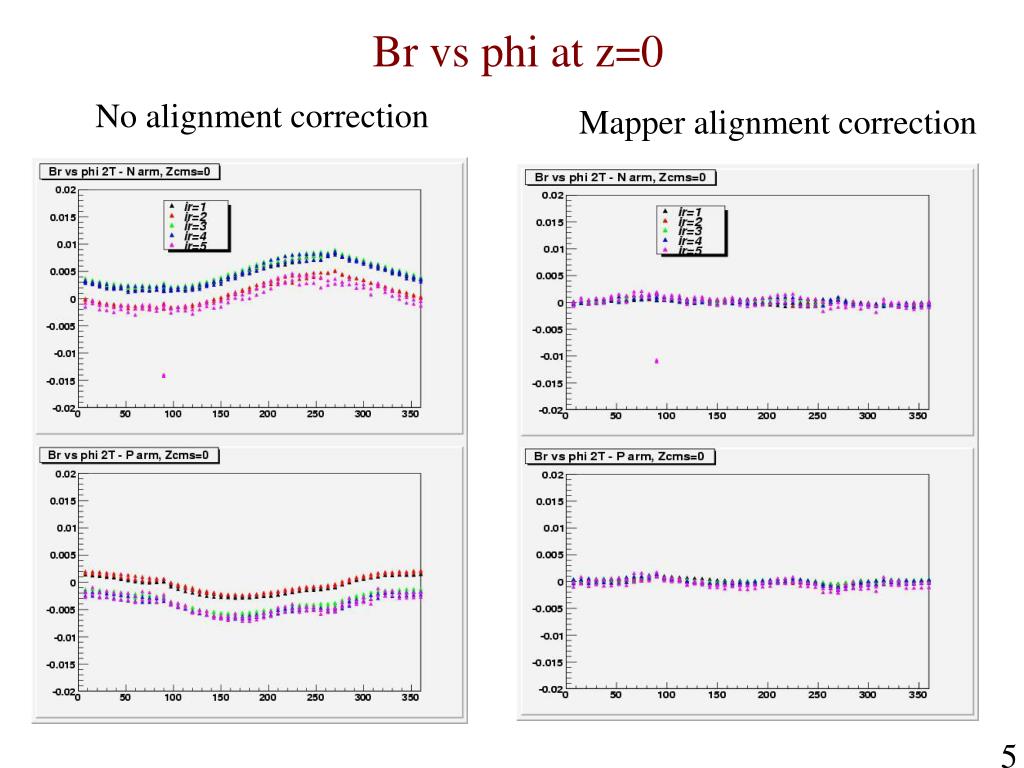

  5. Br vs phi at z=0 No alignment correction Mapper alignment correction 5

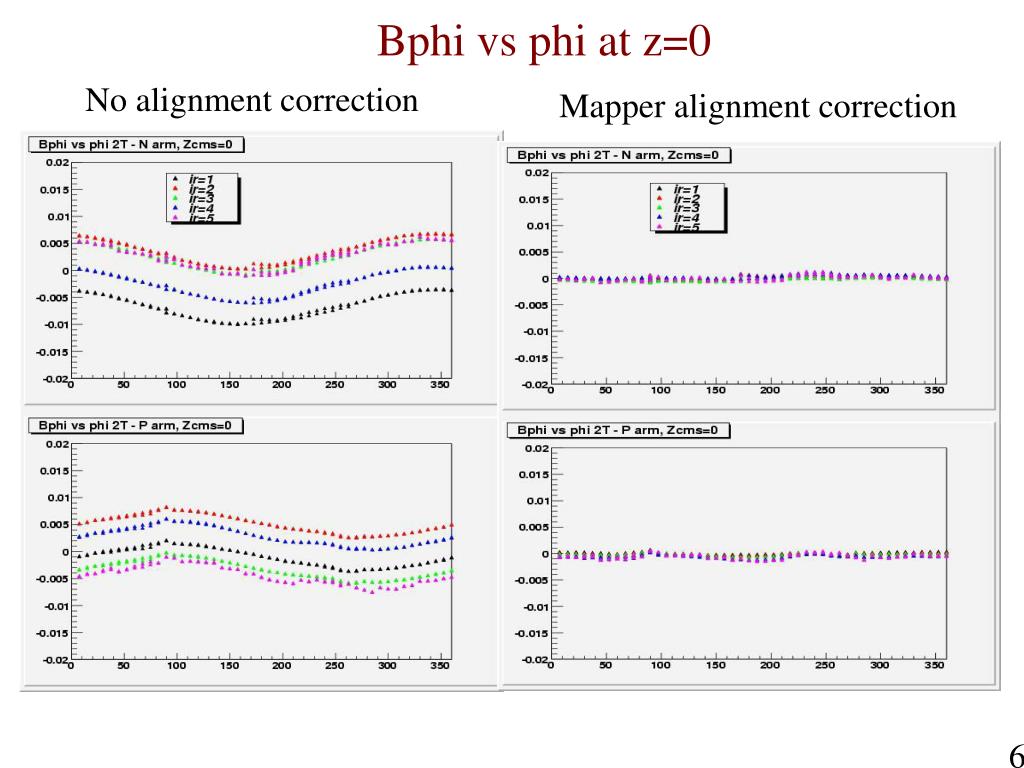

  6. Bphi vs phi at z=0 No alignment correction Mapper alignment correction 6

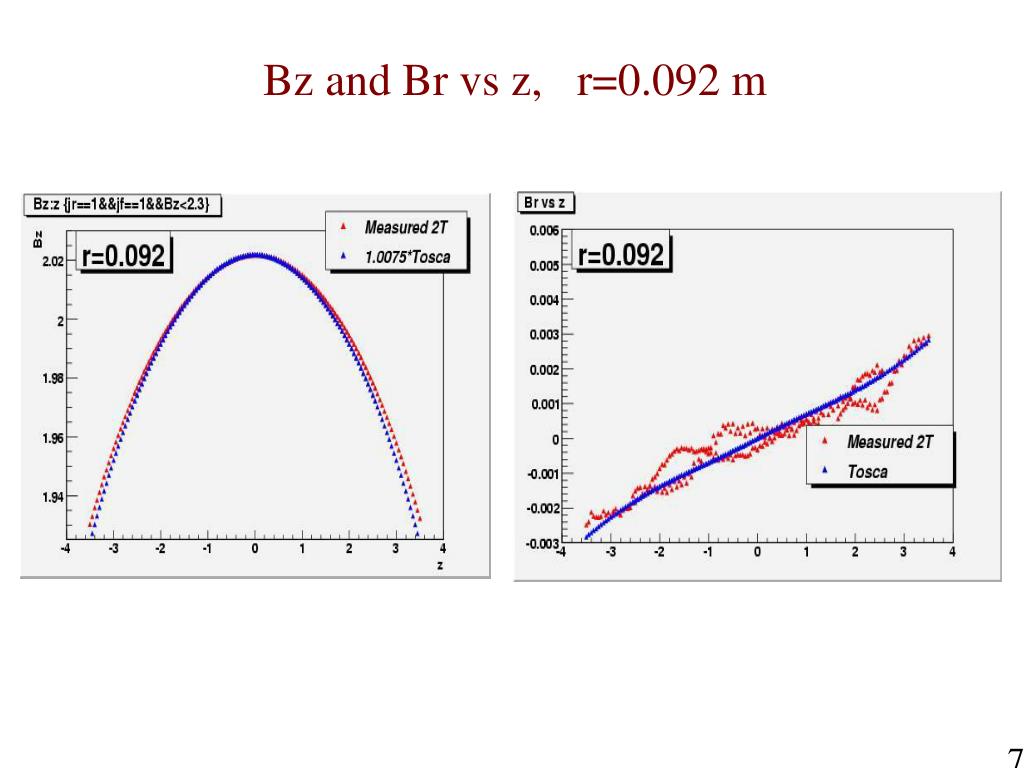

  7. Bz and Br vs z, r=0.092 m 7

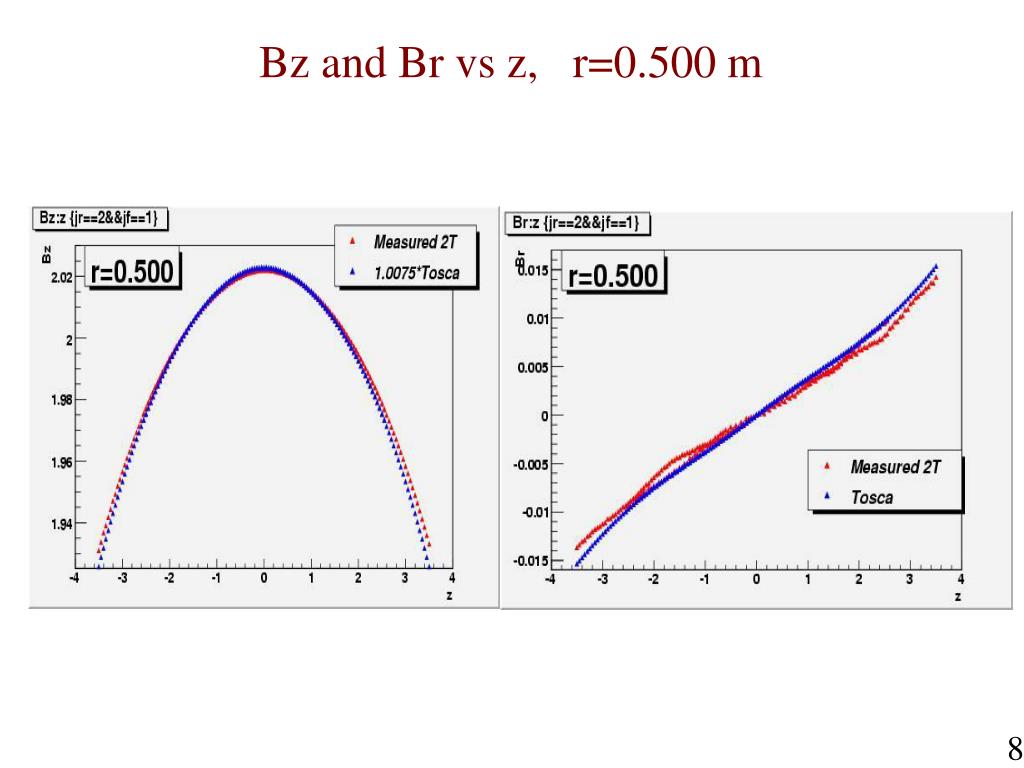

  8. Bz and Br vs z, r=0.500 m 8

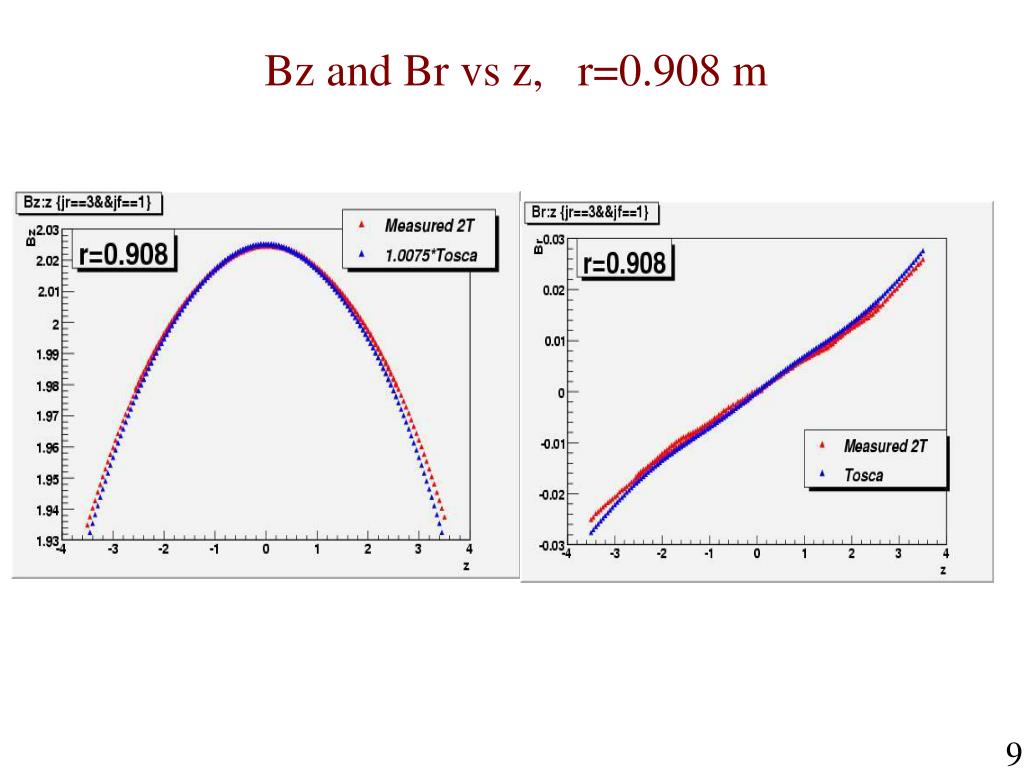

  9. Bz and Br vs z, r=0.908 m 9

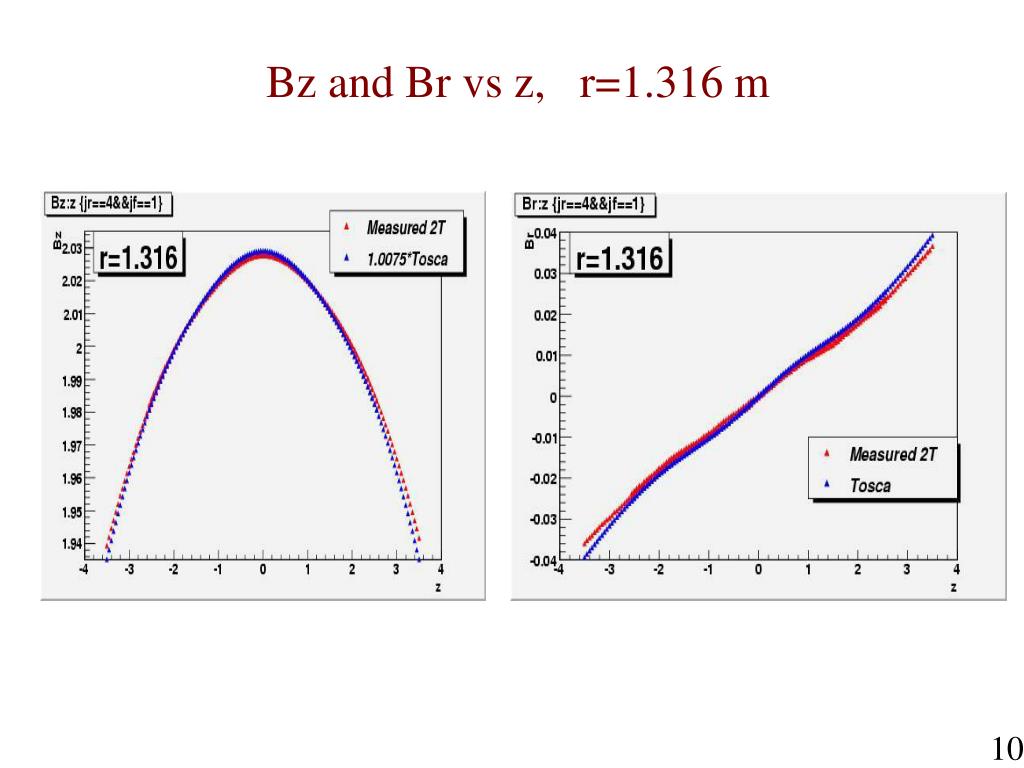

  10. Bz and Br vs z, r=1.316 m 10

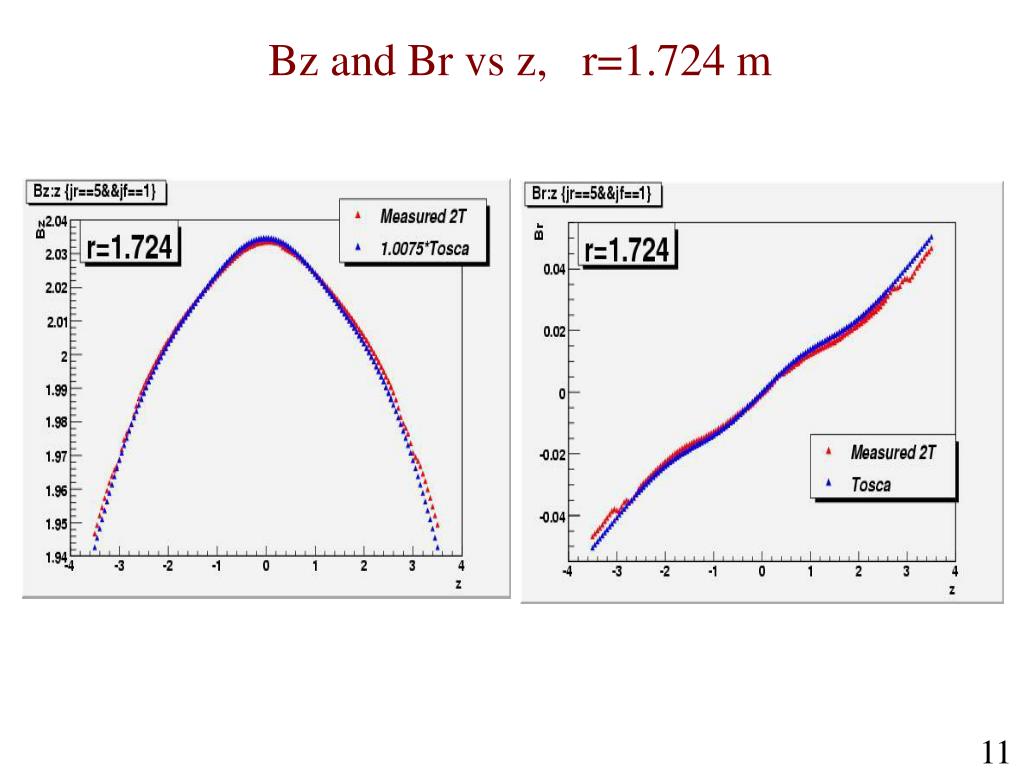

  11. Bz and Br vs z, r=1.724 m 11

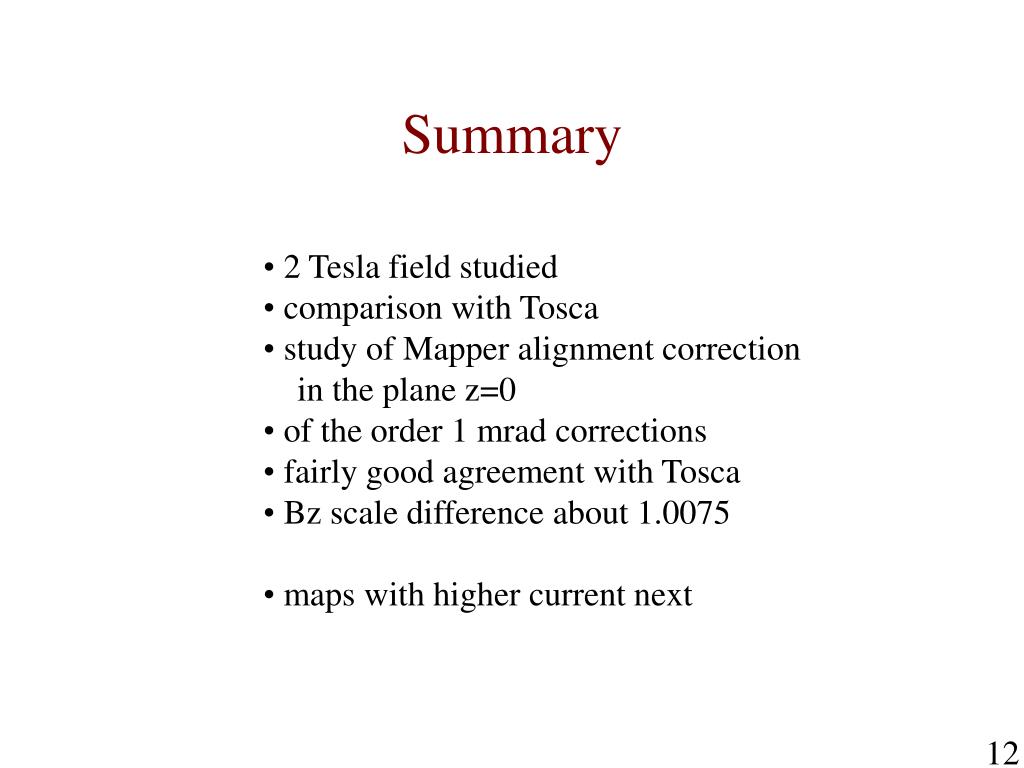

  12. Summary • 2 Tesla field studied • comparison with Tosca • study of Mapper alignment correction in the plane z=0 • of the order 1 mrad corrections • fairly good agreement with Tosca • Bz scale difference about 1.0075 • maps with higher current next 12
