Lecture 26: Thermodynamics II

Lecture 26: Thermodynamics II. Heat Engines Refrigerators Entropy 2 nd Law of Thermodynamics Carnot Engines. HEAT ENGINE. REFRIGERATOR. system. T H. T H. Q H. Q H. W. W. Q C. Q C. T C. T C. Engines and Refrigerators. system goes through a closed cycle  U system = 0

dfalgout
Download Presentation

Lecture 26: Thermodynamics II

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

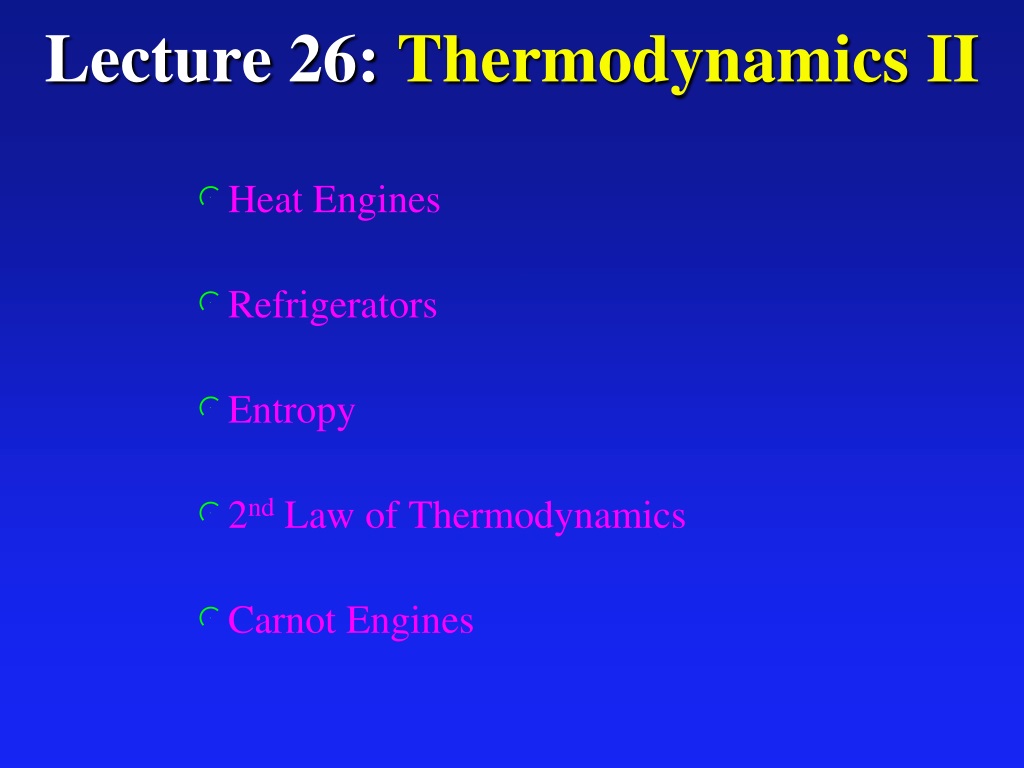

  1. Lecture 26:Thermodynamics II • Heat Engines • Refrigerators • Entropy • 2nd Law of Thermodynamics • Carnot Engines

  2. HEAT ENGINE REFRIGERATOR system TH TH QH QH W W QC QC TC TC Engines and Refrigerators • system goes through a closed cycle  Usystem = 0 • therefore, net heat absorbed = work done QH - QC = W(engine) QC - QH = -W(refrigerator) energy into system = energy leaving system

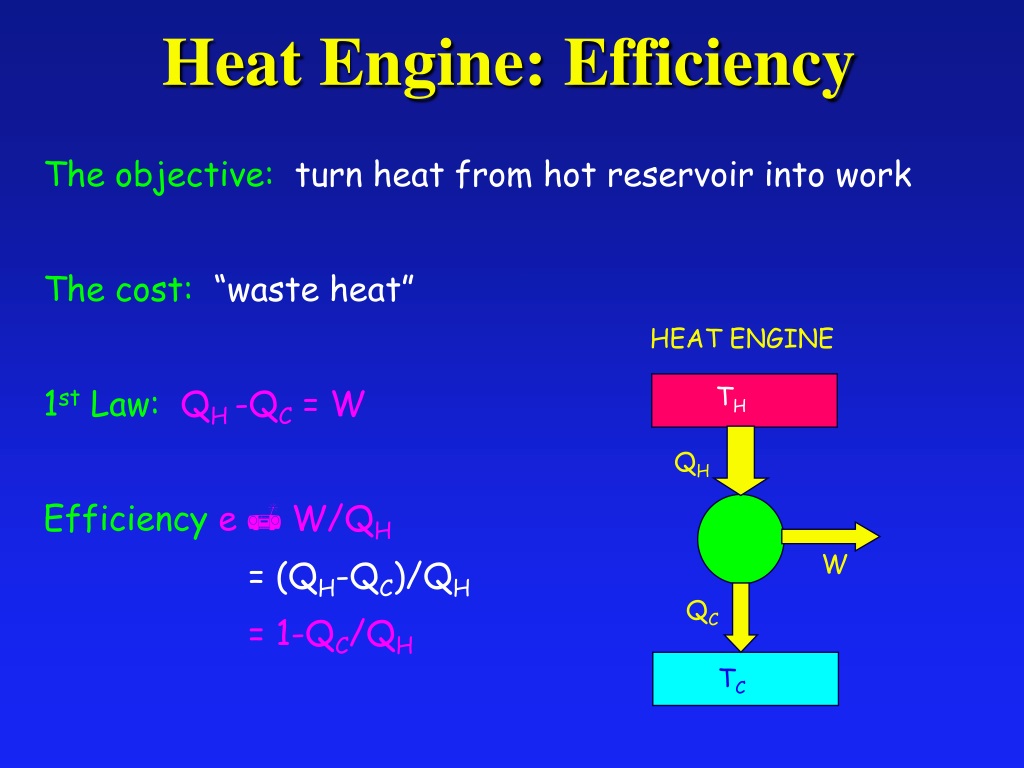

  3. HEAT ENGINE TH QH W QC TC Heat Engine: Efficiency The objective:turn heat from hot reservoir into work The cost:“waste heat” 1st Law:QH -QC = W Efficiencye  W/QH = (QH-QC)/QH = 1-QC/QH

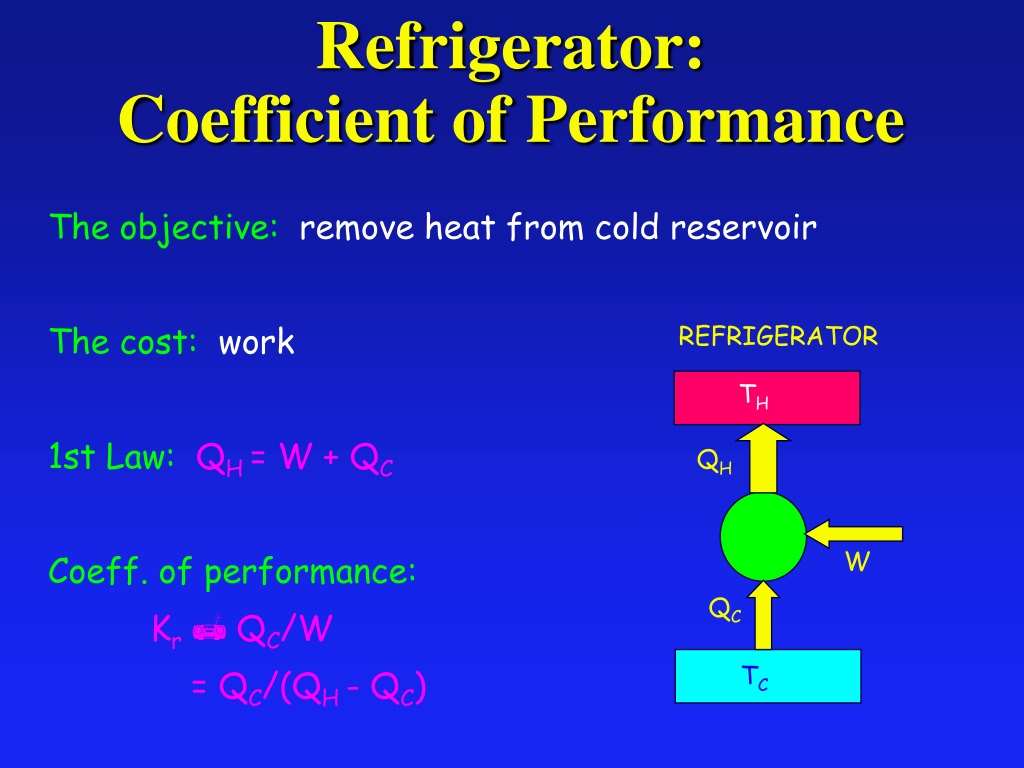

  4. REFRIGERATOR TH QH W QC TC Refrigerator:Coefficient of Performance The objective:remove heat from cold reservoir The cost:work 1st Law:QH = W + QC Coeff. of performance: Kr QC/W = QC/(QH - QC)

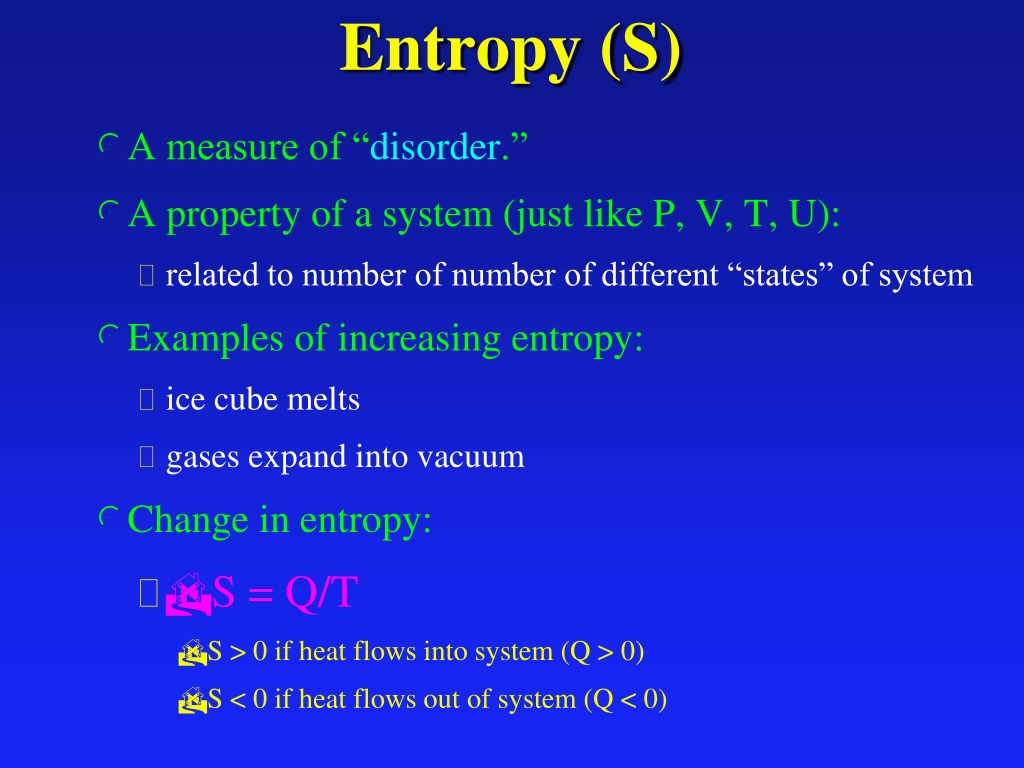

  5. Entropy (S) • A measure of “disorder.” • A property of a system (just like P, V, T, U): • related to number of number of different “states” of system • Examples of increasing entropy: • ice cube melts • gases expand into vacuum • Change in entropy: • S = Q/T S > 0 if heat flows into system (Q > 0) S < 0 if heat flows out of system (Q < 0)

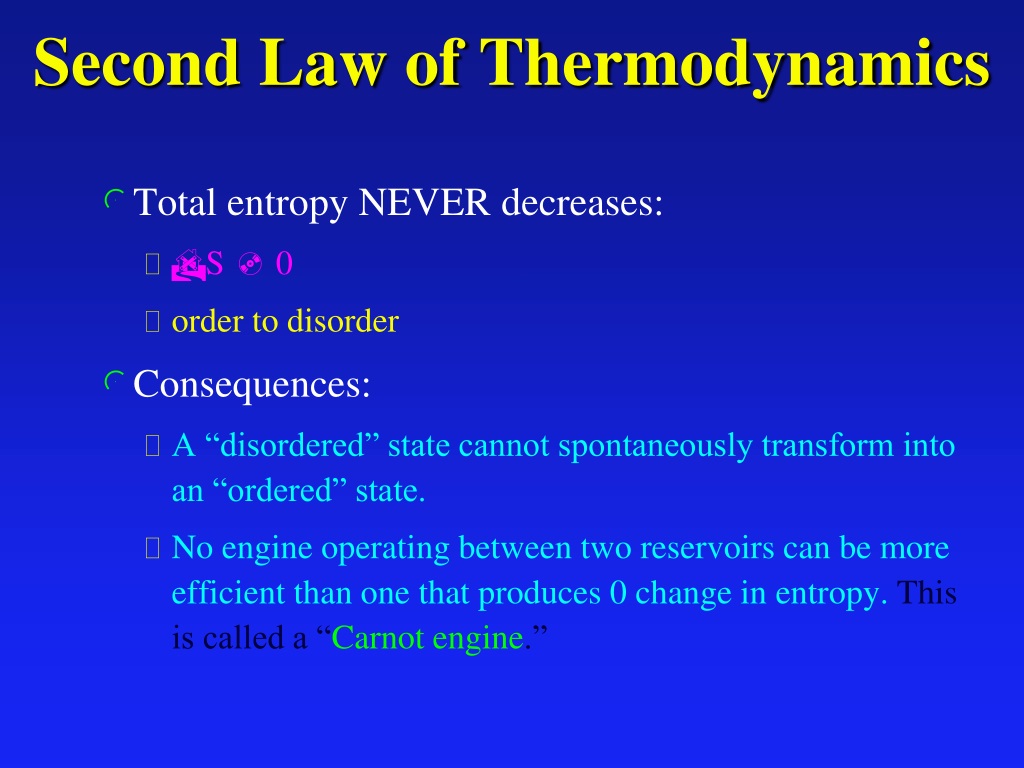

  6. Second Law of Thermodynamics • Total entropy NEVER decreases: • S  0 • order to disorder • Consequences: • A “disordered” state cannot spontaneously transform into an “ordered” state. • No engine operating between two reservoirs can be more efficient than one that produces 0 change in entropy.This is called a “Carnot engine.”

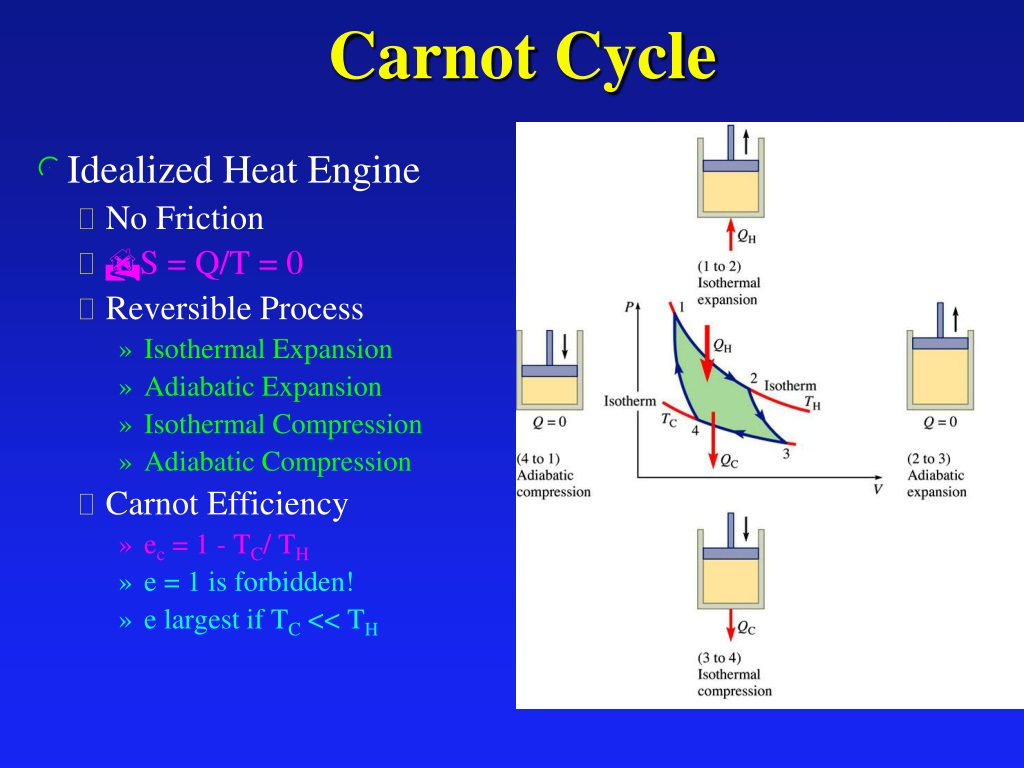

  7. Carnot Cycle • Idealized Heat Engine • No Friction • DS = Q/T = 0 • Reversible Process • Isothermal Expansion • Adiabatic Expansion • Isothermal Compression • Adiabatic Compression • Carnot Efficiency • ec = 1 - TC/ TH • e = 1 is forbidden! • e largest if TC << TH

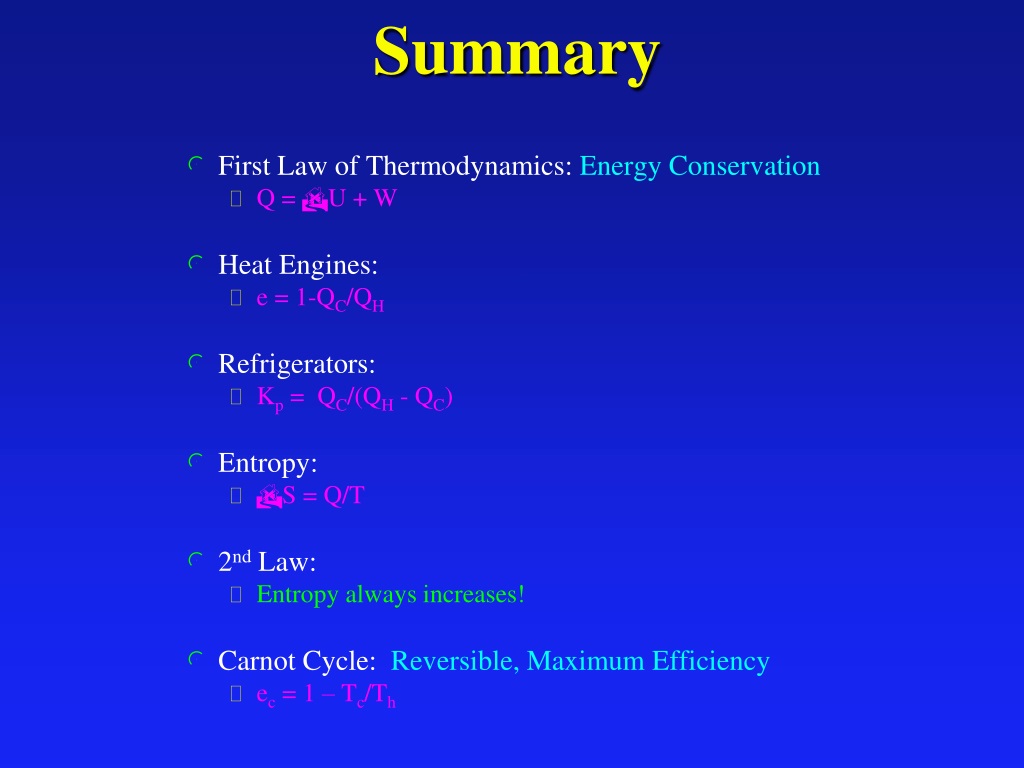

  8. Summary • First Law of Thermodynamics: Energy Conservation • Q = DU + W • Heat Engines: • e = 1-QC/QH • Refrigerators: • Kp = QC/(QH - QC) • Entropy: • DS = Q/T • 2nd Law: • Entropy always increases! • Carnot Cycle: Reversible, Maximum Efficiency • ec = 1 – Tc/Th

  9. Example • An engine operates between Th = 560 K and Tc = 300 K. If the actual efficiency is half its ideal efficiency and the intake heat is Qh = 1285 J every second, at what rate does it do work? First, to find the ideal efficiency we will use: ec = 1 – Tc/Th Second, to find the output work we will use: e = W/Qh

  10. Example • An engine operates between Th = 560 K and Tc = 300 K. If the actual efficiency is half its ideal efficiency and the intake heat is Qh = 1285 J every second, at what rate does it do work? Find the ideal efficiency: ec = 1 – Tc/Th = 1 – (300 K)/(560 K) = 46.4%

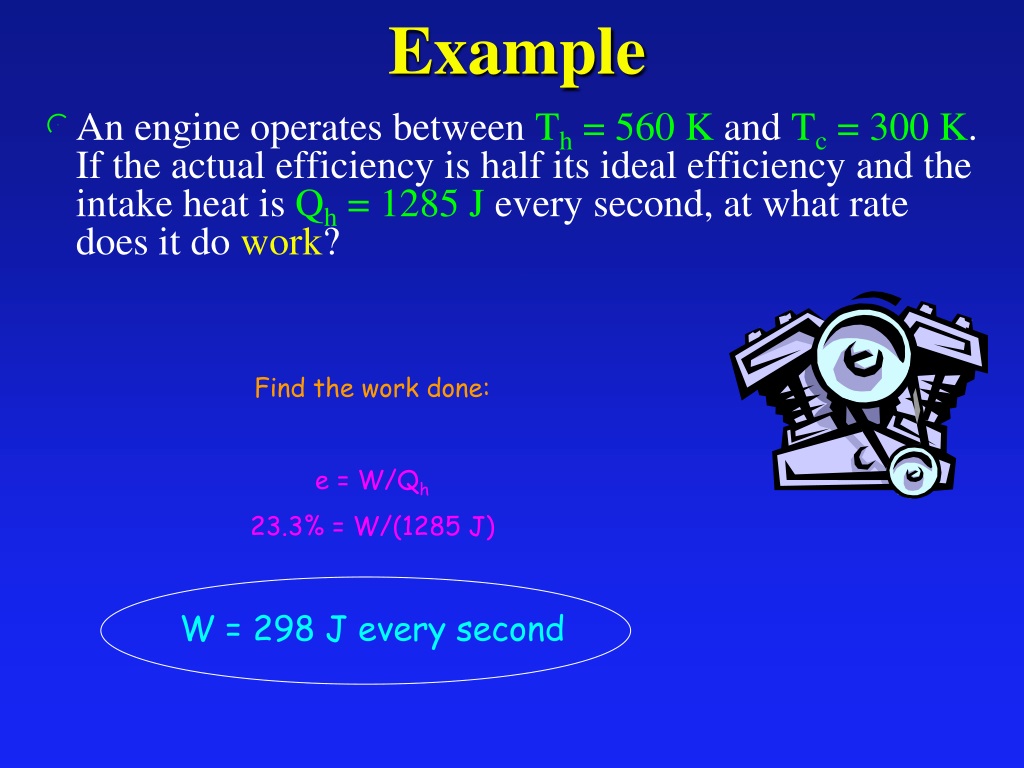

  11. Example • An engine operates between Th = 560 K and Tc = 300 K. If the actual efficiency is half its ideal efficiency and the intake heat is Qh = 1285 J every second, at what rate does it do work? Find the work done: e = W/Qh 23.3% = W/(1285 J) W = 298 J every second
