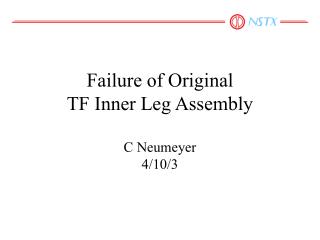

Failure of Original TF Inner Leg Assembly C Neumeyer 4/10/3. February 14, 2003: Following our morning “test shots”, the first plasma attempt of the day resulted in a loud bang (heard on the control room audio monitors) accompanied by a plume of smoke (visible on the control room video monitors).

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Failure of Original TF Inner Leg Assembly C Neumeyer 4/10/3' - dezso


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

February 14, 2003: Following our morning “test shots”, the firstplasma attempt of the day resulted in a loud bang (heard on thecontrol room audio monitors) accompanied by a plume of smoke(visible on the control room video monitors).

Test Shot

Failed Shot

slide3

Target level was 53.4kA which produces Bt=4.5kG

  • Fault occurred just prior to flat top as the current passed 50kA
  • Several protective devices tripped within milliseconds....

- TF power supply fault detector section overcurrent,

    • - TF Analog Coil Protection (ACP) overcurrent,
    • - TF Rochester Instrument System (RIS) overcurrent,
    • - TF ground fault current relay.
slide4

Initial inspection revealed that one of the TF “flags” on the bottom end of the machine was displaced radially by about 1 inch

TF Flags

peak damage area
PEAK DAMAGE AREA

Start & Finish Leads

(DV = 1kV)

Peak Damage

Area

fault scenario
Fault Scenario
  • An open circuit fault (the flag joint opening up) led to multiple turn-to-turn and turn-to-ground faults (to the hub and umbrella assemblies) at or near the high-voltage terminals of the TF circuit.
  • Spike of fault current from the power supply shunted the coil inner/outer leg assembly.
  • Once the power supply tripped, the current spike decayed.
  • This was followed by an L/R decay of the coil current as the coil released its stored energy. The L/R decay can be modeled by fault with V=125V and R=500.
  • The energy dissipated in the arc was of order 1.4MJ.

Spike Current

Coil Current

current decay waveshapes
Current Decay Waveshapes

Normal vs. Fault L/R Decay

Curve Fit to Fault Model

Varc=125V

Rfault=500

Other “glitches” in current decay are explainableby mutual coupling to

OH power supply circuit along power cable run

mechanical electrical failure of joint
MECHANICAL/ELECTRICAL FAILURE OF JOINT

Hub Assembly

TF

Bundle

TF Flag

Preload

(bolts)

Hub Assembly

Shim

EM

Load

“Keensert[tm]”

history of tf operations
HISTORY OF TF OPERATIONS
  • Approx. 7200 Shots mainly at 3kG, 4.5kG
  • Limited number at 6kG

6.0kG

4.5kG

3kG

FAULT

tf pulse spectrum
TF Pulse Spectrum

3kG

4.5kG

6.0kG

Max I2T = 5.46x109 A2-sec, T = 65oC

Rated I2T = 6.5 x109 A2-sec, T = 80oC

precursors
PRECURSORS

Evidence of a problem surfaced after ‘02 run period

Also, loose bolts and broken inserts were discovered

response to precursors
RESPONSE TO PRECURSORS
  • Corrected Various Defects
    • Resurfaced non-planar flag faces and chamfered bolt holes (bottom)
    • Improved bolt washers and bolt retention (top and bottom),
    • Retorqued bolts (top and bottom) and replaced 4 “keenserts” with “tap-lok” inserts (bottom),
    • Replaced G-10 flag shims with inflatable epoxy shim design (top and bottom)
  • Initiated more detailed FEA
  • Returned to 4.5kG limit
  • Initiated more regular inspections

Shim

Too Little, Too Late

factors leading to failure
FACTORS LEADING TO FAILURE
  • Design Factors
    • hub stiffness not adequate to react moment
    • communication of load from flag to hub uncertain with G10 shims
    • bolt thread and shoulder engagement too small
    • bolts necked down too far at threads, not enough on shaft
    • dual shear/preload function of bolts
    • lack of feature to facilitate joint resistance measurement w/o disassembly
  • Quality Factors
    • frequent manual reworking of contact surfaces
    • non-planar flag surfaces
    • shoulder bolt concentricity
  • Operational Factors
    • monitoring of joint integrity too infrequent, too imprecise

ALL OF THESE FACTORS HAVE BEENADDRESSED IN THE NEW DESIGN
