  1. Introduction to Lego Mindstrom Education EV3

  2. General Information • 1 Kelompok (9-11 Orang) • 1 Set Kit Praktikum PRD2 • 1 Unit Lego Mindstrom EV3 Core Set • 1 Unit Lego Mindstrom EV3 Expansion Set • 1 Unit Battery Charger • http://praktikumprd2.wordpress.com • praktikumprd2@gmail.com

  3. General Hardware

  4. Overview

  5. EV3 BrickServe as control centre and power station for your robot

  6. EV3 Motors • Large Motor The Large Motor runs at 160–170 rpm, with a running torque20 Ncm and a stall torque of 40 Ncm (slower, butstronger) • Medium Motor The Medium Motor runs at 240–250 rpm, with a running torque of 8 Ncm and a stall torque of 12 Ncm (faster, but less powerful) .

  7. Colour Sensor Digital sensor that can detect the colour orintensity of light that enters the small window on the face of the sensor. Colour Mode Recognizing seven colours—black, blue, green, yellow, red, white, and brown—plus No Colour . Reflected Light Intensity Mode Measuring the intensity of light reflected back from a red light–emitting lamp Ambient Light Intensity Mode Measuring the strength of light that enters the window from its environment, such as sunlight or the beam of a torch .

  8. Gyroscope 1-axis The Gyro Sensor is a digital sensor that detects rotational motion on a single axis . If you rotate the Gyro Sensor in the direction of the arrows on the case of the sensor, the sensor can detect the rate of rotation in degrees per second . (The sensor can measure a maximum rate of spin of 440 degrees per second .)

  9. Touch Sensors The Touch Sensor is an analogue sensor that can detect when thesensor’s red button has been pressed and when it is released .

  10. Ultrasonic Sensor The Ultrasonic Sensor is a digital sensor that can measure the distance to an object in front of it . It does this by sending out high-frequency sound waves and measuring how long it takes the sound to reflect back to the sensor.

  11. Infrared Sensors The Infrared Sensor is a digital sensor that can detect infrared light reflected from solid objects . Beacon Mode The sensor can estimate the general direction (heading) of and the distance (proximity) to the beacon . Proximity Mode The Infrared Sensor uses the light waves reflected back from an object to estimate the distance between the sensor and that object.

  12. EV3 Software and Programming

  13. Link untuk mengunduh software akan di umumkan di website

  14. EV3 Software

  15. Robot Educator

  16. Programming

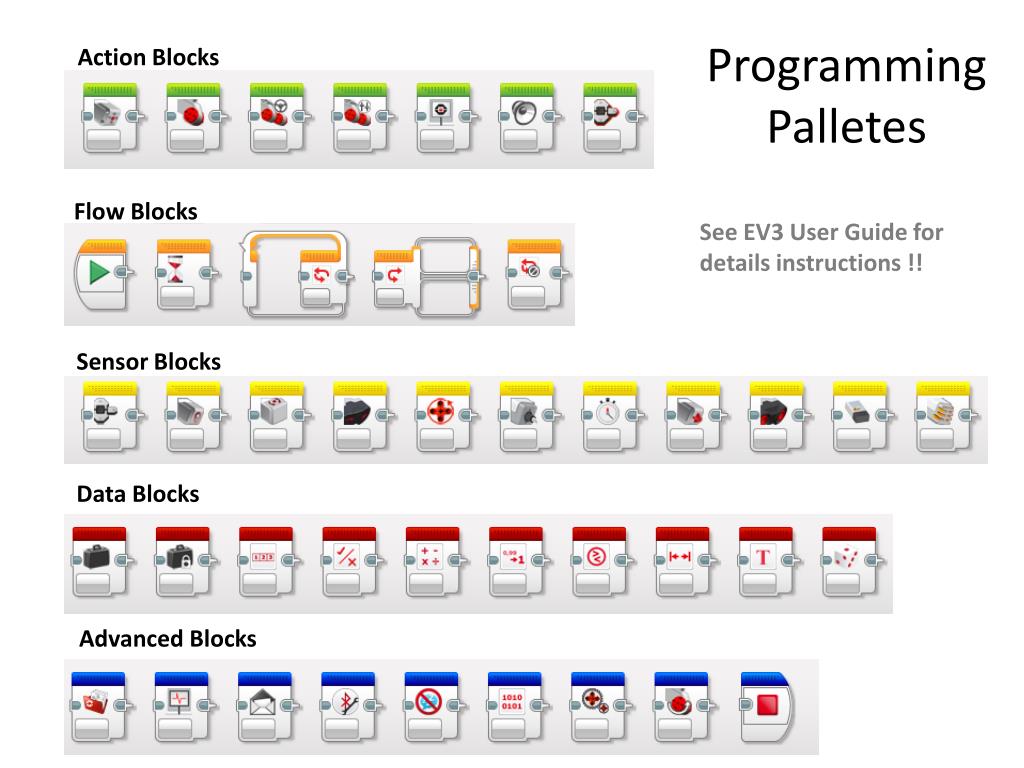

  17. Programming Palletes Action Blocks Flow Blocks See EV3 User Guide for details instructions !! Sensor Blocks Data Blocks Advanced Blocks

  18. Demo

  19. Tugas • Bawa kotak plastik untuk penyimpanan lego. • Ukuran 30x30x30 cm • Jenis kotak untuk setiap kelas harus sama. • Warna kotak setiap kelompok dalam masing-masing kelas sama. • Kotak diberi label dan identitas ketua kelompok (format lihat di website prd2) • Plastik vakum berukuran panjang 10 cm(20 buah) , panjang 30 cm(20 buah) untuk setiap kelompok. • Pengumpulan dilakukan secara kolektif oleh ketua kelas PRD masing-masing • Deadline : Senin, 24-2-2014. Pukul 15.00 di Lab. AVRG Labtek VIII lt.4

  20. Tips : • Gunakan fitur yang tersedia di website Lego untuk membuat dokumentasi rancangan dari proyek akhir
