Notes
• Dijstra’sAlgorithm
• Corrected syllabus
Tree Search Implementation Strategies
• Require data structure to model search tree
• Tree Node:
• State (e.g. Sibiu)
• Action (e.g. GoTo(Sibiu))
• Path cost or depth (e.g. 140)
Queue
• Methods:
• Empty(queue)
• Returns true if there are no more elements
• Pop(queue)
• Remove and return the first element
• Insert(queue, element)
• Inserts element into the queue
• InsertFIFO(queue, element) – inserts at the end
• InsertLIFO(queue, element) – inserts at the front
• InsertPriority(queue, element, value) – inserts sorted by value

### informed Search

Search

start

goal

Uninformed search

Informed search

Informed Search
• What if we had an evaluation function h(n) that gave us an estimate of the cost associated with getting from n to the goal
• h(n) is called a heuristic
Greedy best-first search
• Evaluation function f(n) = h(n) (heuristic)
• e.g., f(n) = hSLD(n) = straight-line distance from n to Bucharest
• Greedy best-first search expands the node that is estimated to be closest to goal
Performance of greedy best-first search
• Complete?
• No – can get stuck in loops, e.g., Iasi Neamt Iasi Neamt
• Optimal?
• No
Complexity of greedy best first search
• Time?
• O(bm), but a good heuristic can give dramatic improvement
• Space?
• O(bm) -- keeps all nodes in memory
A* search
• Ideas:
• Avoid expanding paths that are already expensive
• Consider
• Cost to get here (known) – g(n)
• Cost to get to goal (estimate from the heuristic) – h(n)

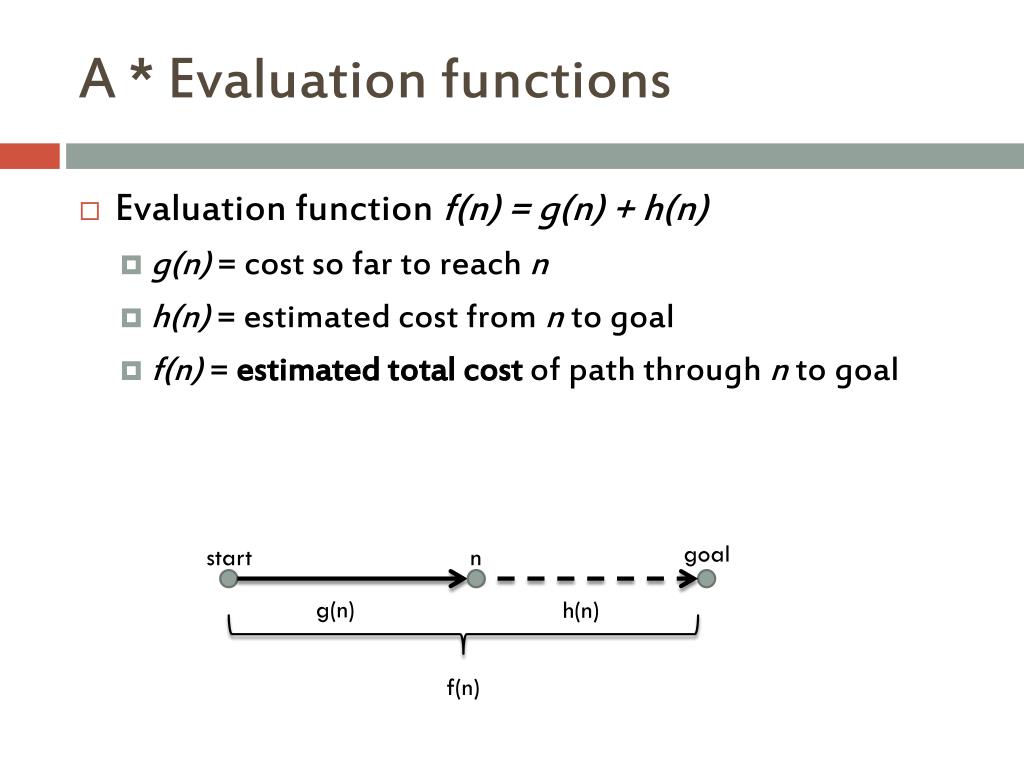

A * Evaluation functions
• Evaluation function f(n) = g(n) + h(n)
• g(n) = cost so far to reach n
• h(n) = estimated cost from n to goal
• f(n) = estimated total cost of path through n to goal

goal

n

start

g(n)

h(n)

f(n)

A* Heuristics
• A heuristic h(n) is admissible if for every node n,

h(n) ≤ h*(n), where h*(n) is the true cost to reach the goal state from n.

• An admissible heuristic never overestimates the cost to reach the goal, i.e., it is optimistic
• Example: hSLD(n) (never overestimates the actual road distance)
What happens if heuristic is not admissible?
• Will still find solution (complete)
• But might not find best solution (not optimal)
Properties of A* (w/ admissible heuristic)
• Complete?
• Yes (unless there are infinitely many nodes with f ≤ f(G) )
• Optimal?
• Yes
• Time?
• Exponential, approximately O(bd)in the worst case
• Space?
• O(bm) Keeps all nodes in memory
The heuristic h(x) guides the performance of A*
• Let d(x) be the actual distance between S and G
• h(x) = 0 :
• A* is equivalent to Uniform-Cost Search
• h(x) <= d (x) :
• guarantee to compute the shortest path; the lower the value h(x), the more node A* expands
• h(x) = d (x) :
• follow the best path; never expand anything else; difficult to compute h(x) in this way!
• h(x) > d(x) :
• not guarantee to compute a best path; but very fast
• h(x) >> g(x) :
• h(n) dominates -> A* becomes the best first search

E.g., for the 8-puzzle:

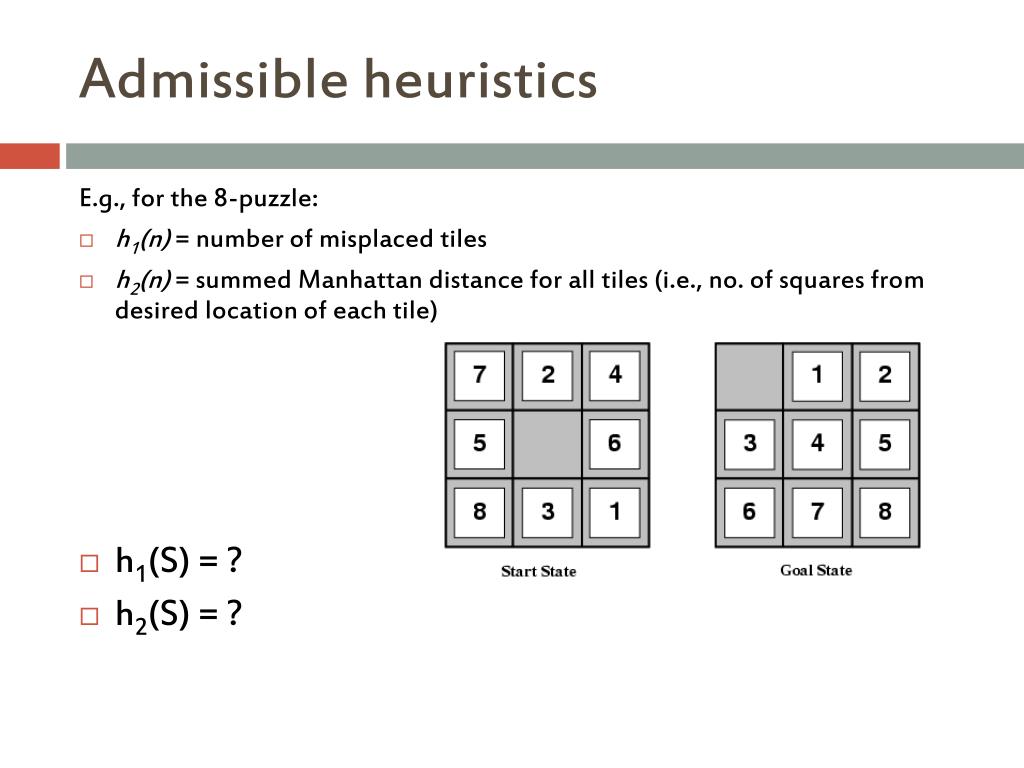

E.g., for the 8-puzzle:

• h1(n) = number of misplaced tiles
• h2(n) = summed Manhattan distance for all tiles (i.e., no. of squares from desired location of each tile)
• h1(S) = ?
• h2(S) = ?

E.g., for the 8-puzzle:

• h1(n) = number of misplaced tiles
• h2(n) = total Manhattan distance (i.e., no. of squares from desired location of each tile)
• h1(S) = ? 8
• h2(S) = ? 3+1+2+2+2+3+3+2 = 18

Which is better?

Dominance
• If h2(n) ≥ h1(n) for all n (both admissible)
• then h2dominatesh1
•  h2is better for search
• What does better mean?
• All searches we’ve discussed are exponential in time
Where do heuristics come from?
• From people
• Knowledge of the problem
• From computers
• By considering a simpler version of the problem
• Called a relaxation
Relaxed problems
• 8-puzzle
• If the rules of the 8-puzzle are relaxed so that a tile can move anywhere, then h1(n) gives the shortest solution
• If the rules are relaxed so that a tile can move to any adjacent square, then h2(n) gives the shortest solution
• Consider the example of straight line distance (Romania navigation)
• Is that a relaxation?
Iterative-Deepening A* (IDA*)
• Further reduce memory requirements of A*
• Regular Iterative-Deepening: regulated by depth
• IDA*: regulated by f(n)=g(n)+h(n)
