  1. Transactional Memory Student Presentation: Stuart Montgomery CS5204 – Operating Systems

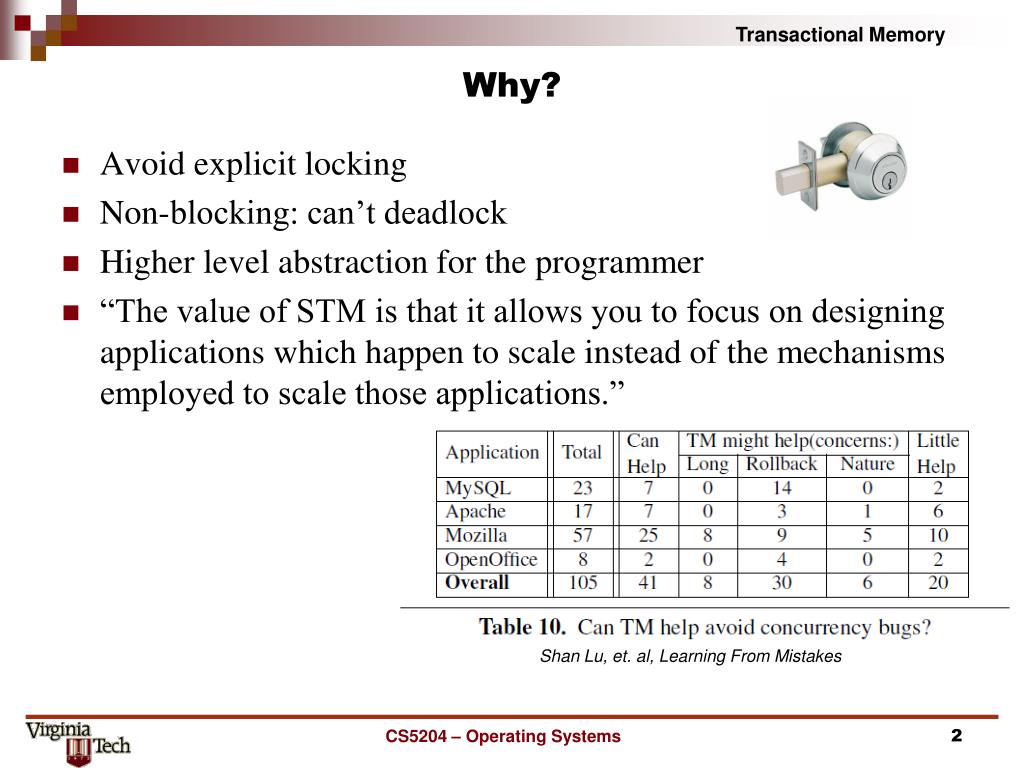

  2. Why? Shan Lu, et. al, Learning From Mistakes • Avoid explicit locking • Non-blocking: can’t deadlock • Higher level abstraction for the programmer • “The value of STM is that it allows you to focus on designing applications which happen to scale instead of the mechanisms employed to scale those applications.” CS5204 – Operating Systems

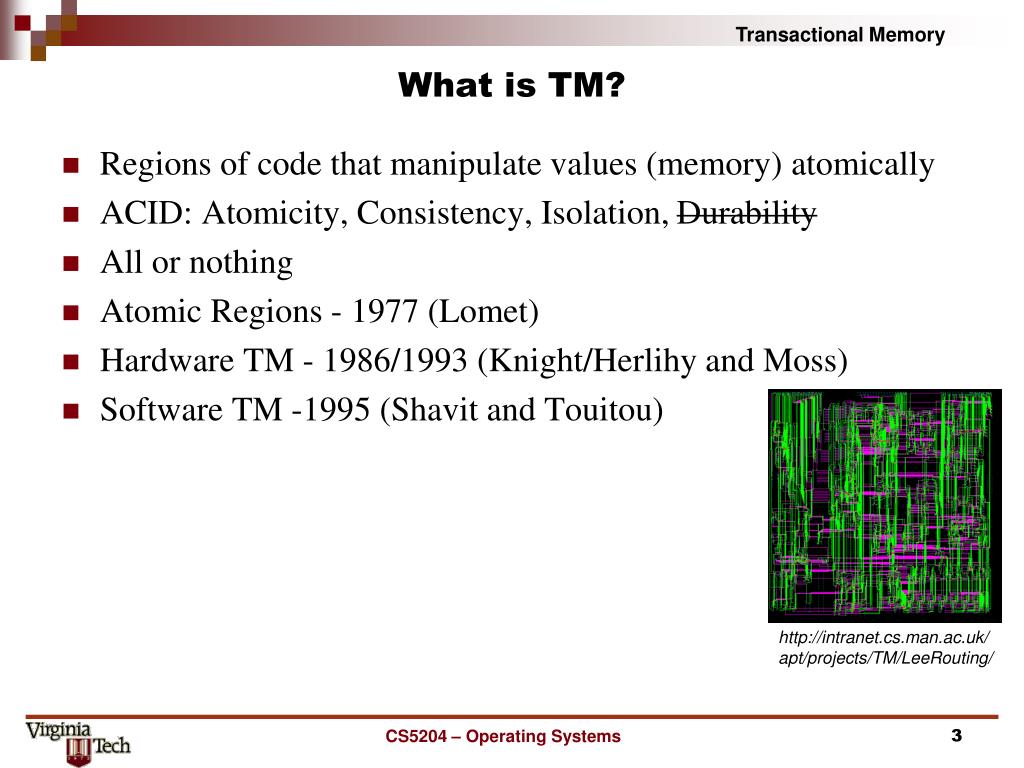

  3. What is TM? http://intranet.cs.man.ac.uk/apt/projects/TM/LeeRouting/ • Regions of code that manipulate values (memory) atomically • ACID: Atomicity, Consistency, Isolation, Durability • All or nothing • Atomic Regions - 1977 (Lomet) • Hardware TM - 1986/1993 (Knight/Herlihy and Moss) • Software TM -1995 (Shavit and Touitou) CS5204 – Operating Systems

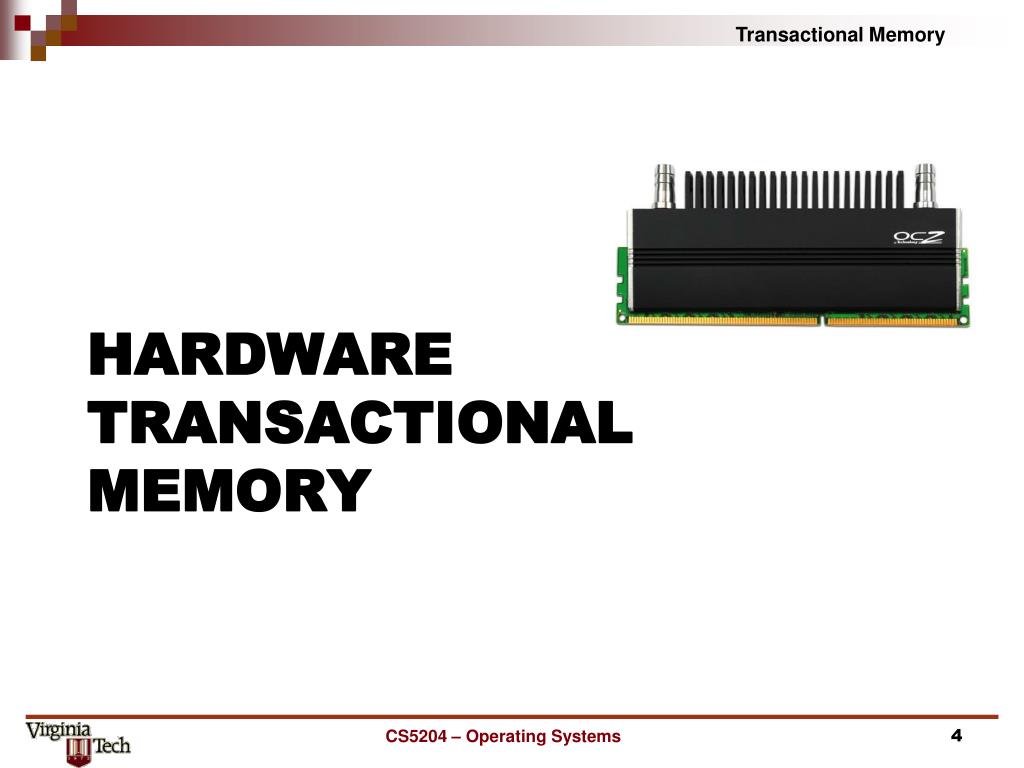

  4. Hardware Transactional Memory CS5204 – Operating Systems

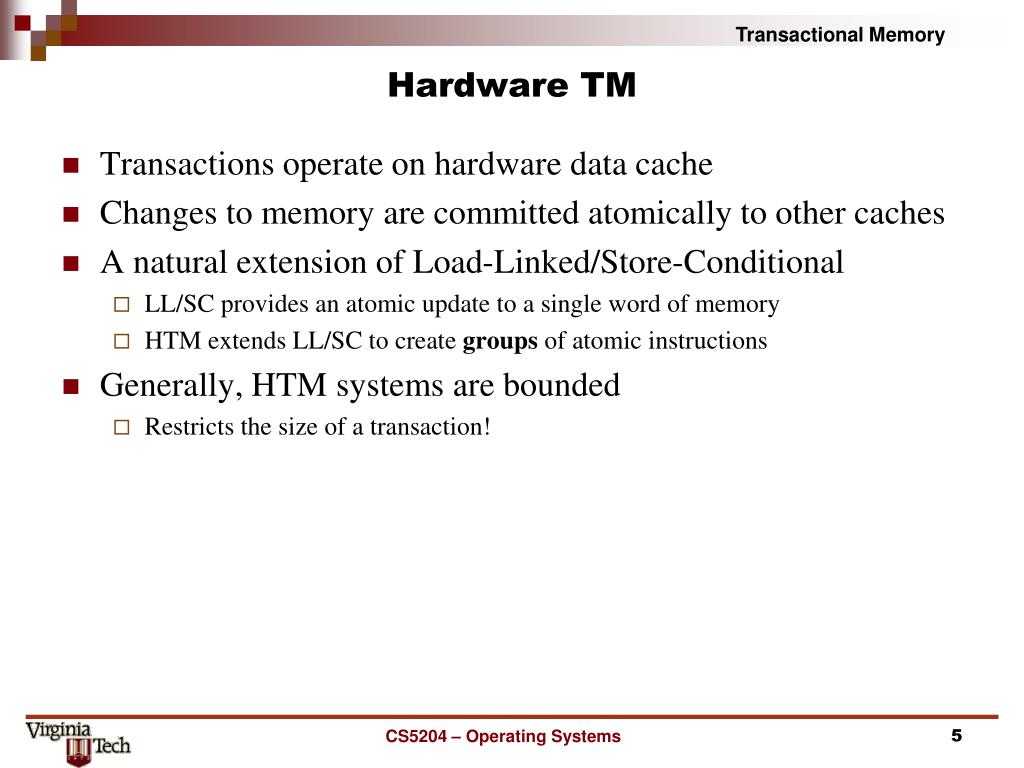

  5. Hardware TM • Transactions operate on hardware data cache • Changes to memory are committed atomically to other caches • A natural extension of Load-Linked/Store-Conditional • LL/SC provides an atomic update to a single word of memory • HTM extends LL/SC to create groups of atomic instructions • Generally, HTM systems are bounded • Restricts the size of a transaction! CS5204 – Operating Systems

  6. . . . cache address value state tag Bus Shared Memory Hardware TM Concepts CPU CPU • Snoopy Cache Coherence – Goodman 1983 • Caches listen to the bus to detect changes to their copy of the same cached address CS5204 – Operating Systems

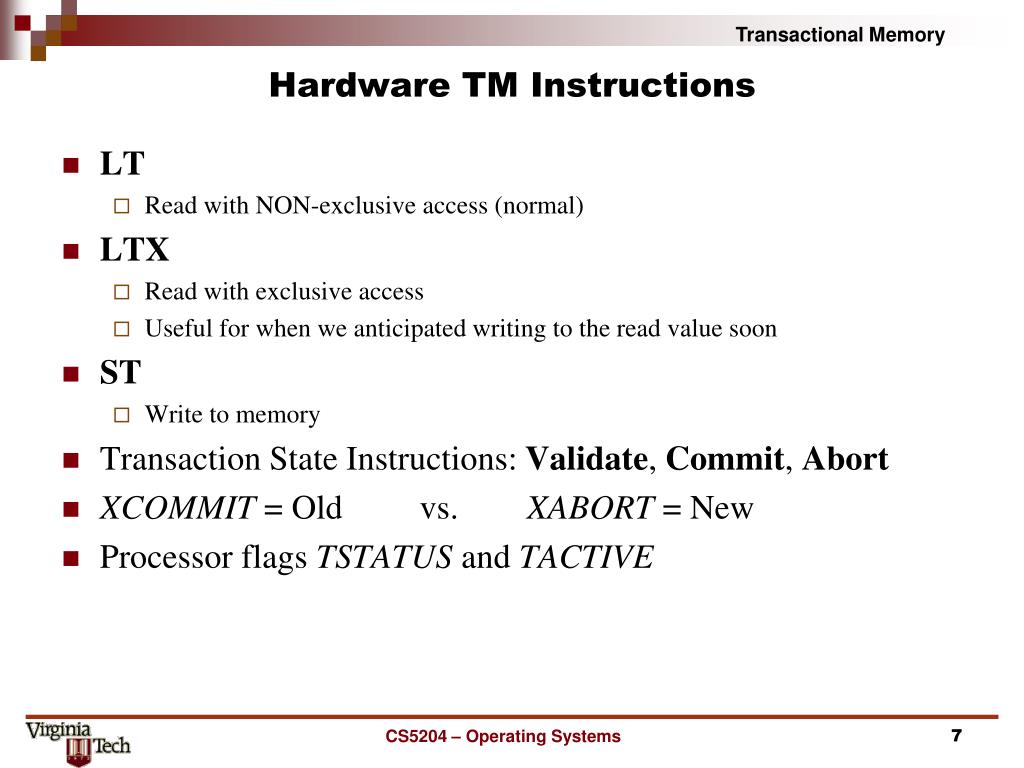

  7. Hardware TM Instructions • LT • Read with NON-exclusive access (normal) • LTX • Read with exclusive access • Useful for when we anticipated writing to the read value soon • ST • Write to memory • Transaction State Instructions: Validate, Commit, Abort • XCOMMIT = Old vs. XABORT = New • Processor flags TSTATUS and TACTIVE CS5204 – Operating Systems

  8. Quick Example Herlihy and Moss, Transactional Memory: Architectural Support for Lock-Free Data Structures shared int counter; void process(int work){ int success = 0, backoff = BACKOFF_MIN; unsigned wait; while (success < work) { ST(&counter, LTX(&counter) + 1); if (COMMIT()) { success++; backoff = BACKOFF_MIN; } else { wait = random() % (1 << backoff); while (wait--); if (backoff < BACKOFF_MAX) backoff++; } } } CS5204 – Operating Systems

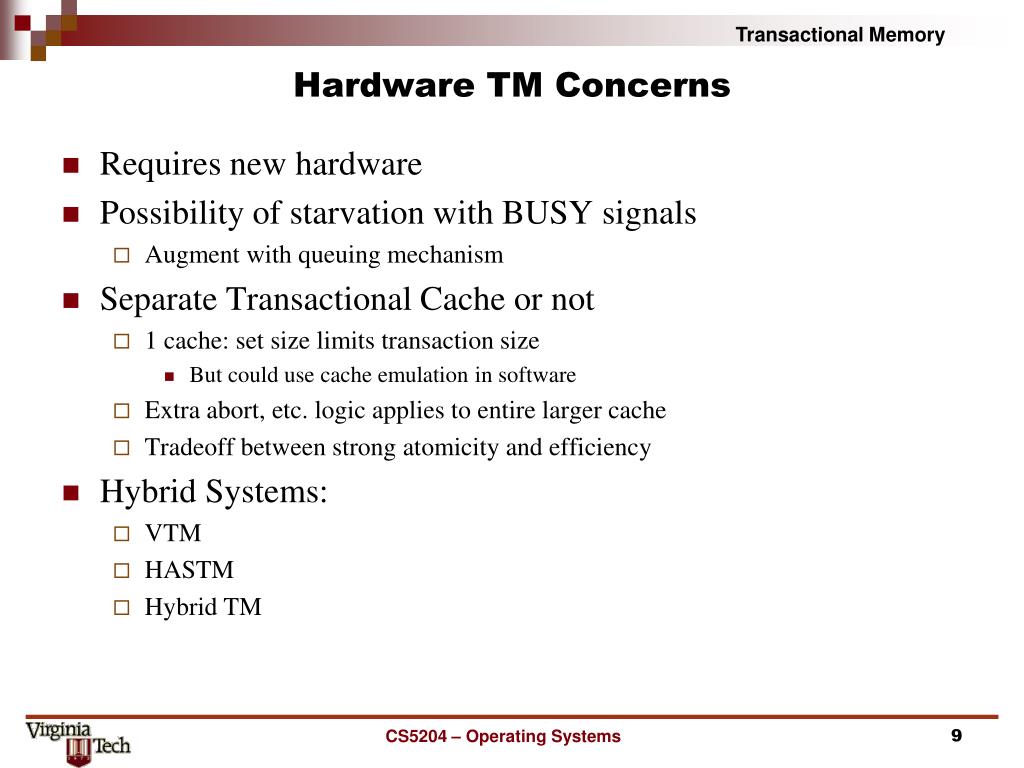

  9. Hardware TM Concerns • Requires new hardware • Possibility of starvation with BUSY signals • Augment with queuing mechanism • Separate Transactional Cache or not • 1 cache: set size limits transaction size • But could use cache emulation in software • Extra abort, etc. logic applies to entire larger cache • Tradeoff between strong atomicity and efficiency • Hybrid Systems: • VTM • HASTM • Hybrid TM CS5204 – Operating Systems

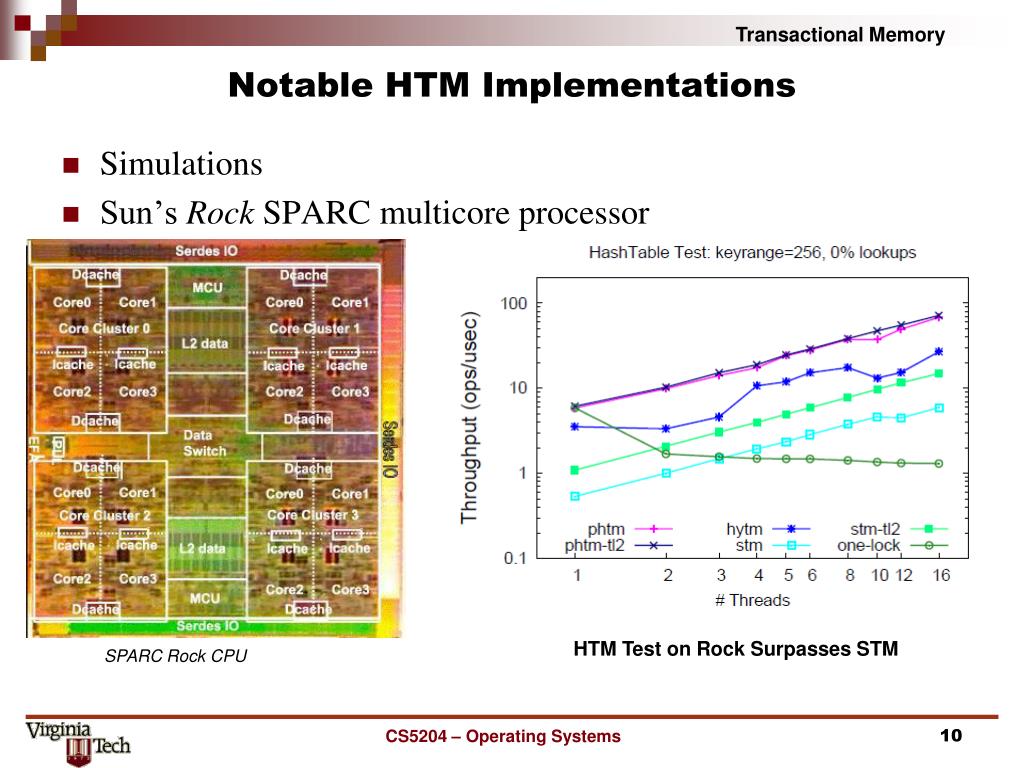

  10. Notable HTM Implementations HTM Test on Rock Surpasses STM SPARC Rock CPU • Simulations • Sun’s Rock SPARC multicore processor CS5204 – Operating Systems

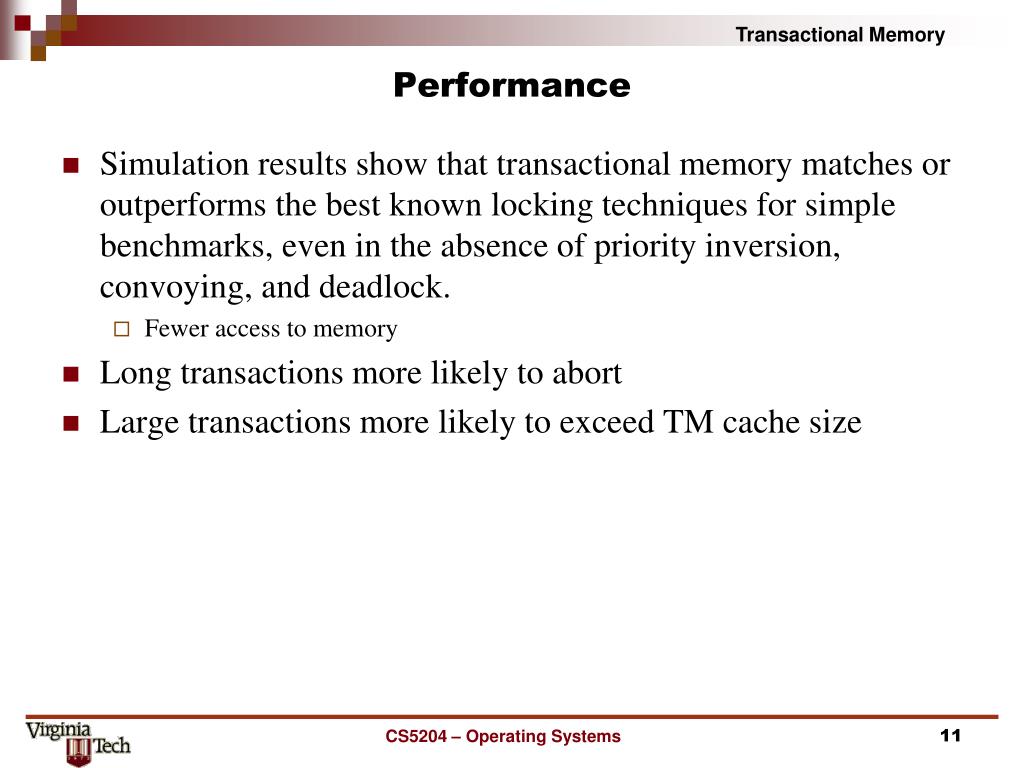

  11. Performance • Simulation results show that transactional memory matches or outperforms the best known locking techniques for simple benchmarks, even in the absence of priority inversion, convoying, and deadlock. • Fewer access to memory • Long transactions more likely to abort • Large transactions more likely to exceed TM cache size CS5204 – Operating Systems

  12. Software Transactional Memory CS5204 – Operating Systems

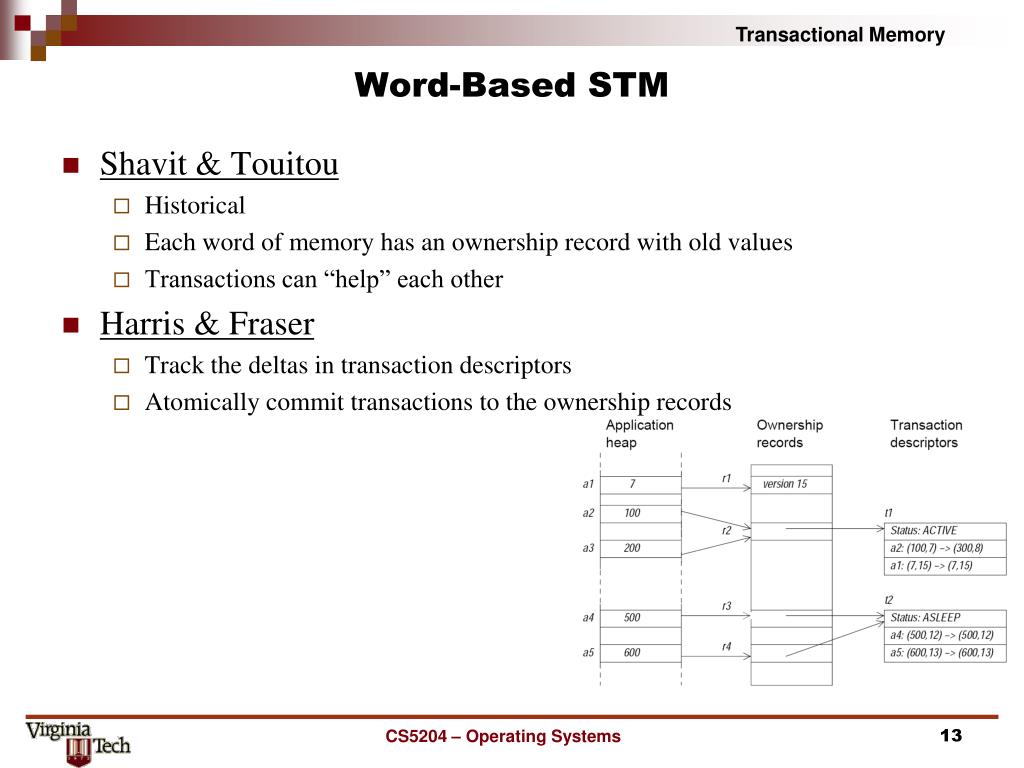

  13. Word-Based STM CS5204 – Operating Systems • Shavit & Touitou • Historical • Each word of memory has an ownership record with old values • Transactions can “help” each other • Harris & Fraser • Track the deltas in transaction descriptors • Atomically commit transactions to the ownership records

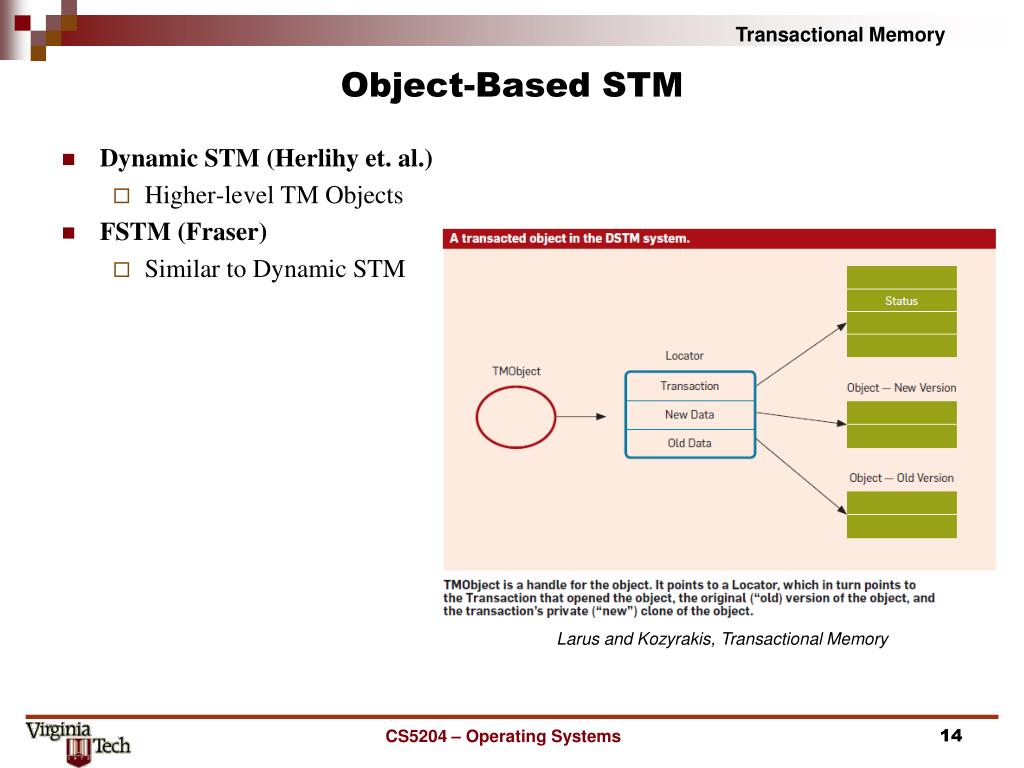

  14. Object-Based STM Larus and Kozyrakis, Transactional Memory CS5204 – Operating Systems • Dynamic STM (Herlihy et. al.) • Higher-level TM Objects • FSTM (Fraser) • Similar to Dynamic STM

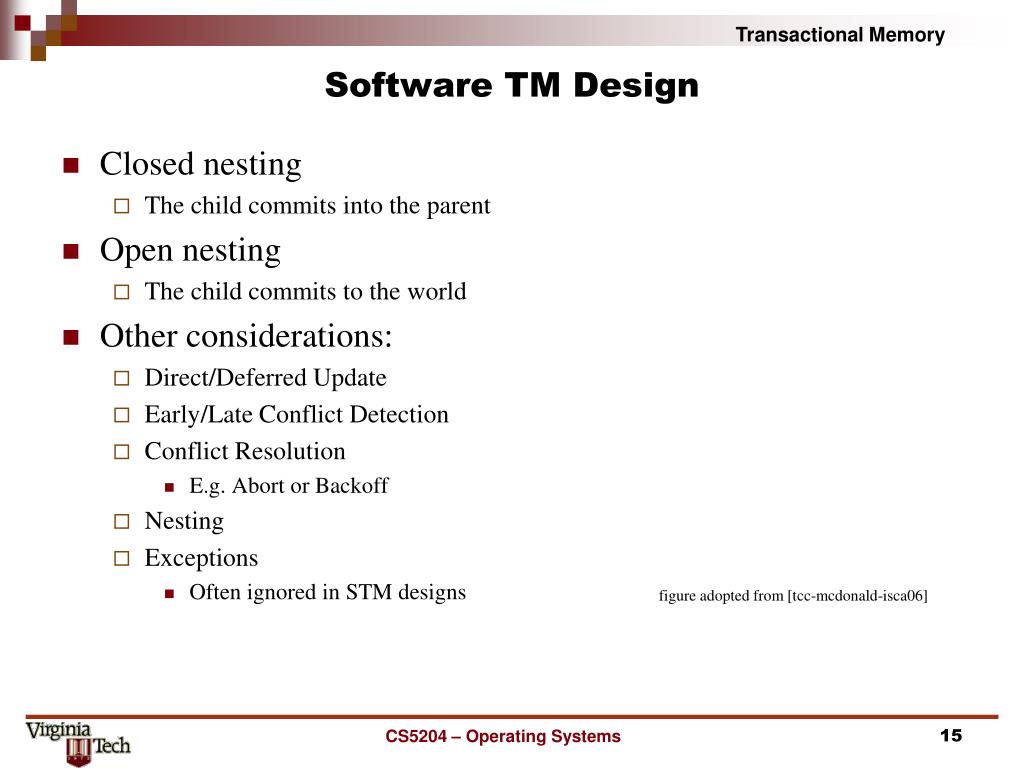

  15. Software TM Design • Closed nesting • The child commits into the parent • Open nesting • The child commits to the world • Other considerations: • Direct/Deferred Update • Early/Late Conflict Detection • Conflict Resolution • E.g. Abort or Backoff • Nesting • Exceptions • Often ignored in STM designs figure adopted from [tcc-mcdonald-isca06] CS5204 – Operating Systems

  16. Case Study: STM.NET “But with the wisdom of age and hindsight, I do believe limited forms of TM could be wildly successful at particular tasks and yet would have avoided many of the biggest challenges with unbounded TM.” • Microsoft’s experiment 2008-2010, then dropped • Hook the C# JIT compiler, also investigated C++ • Separate Haskell development • Joe Duffy’s retrospective on unbounded STM: • Applying transactions to intrinsically non-transactional operations (I/O) • Reading a block or file from the FS, output to the console, entry in the Event Log, web service calls, etc. • Weak vs. Strong Atomicity • Weak: Non-TM regions seeing the results of TM regions • Privatization • “Where is the killer App?”… most applications naturally parallel? CS5204 – Operating Systems

  17. Other Notable STM Implementations Intel STM Compiler Prototype (C/C++) Sun DSTM2 (Java factories) Several libraries from Harris & Fraser Other languages: Haskell, LISP, Clojure, C#, OCaml, Perl CS5204 – Operating Systems

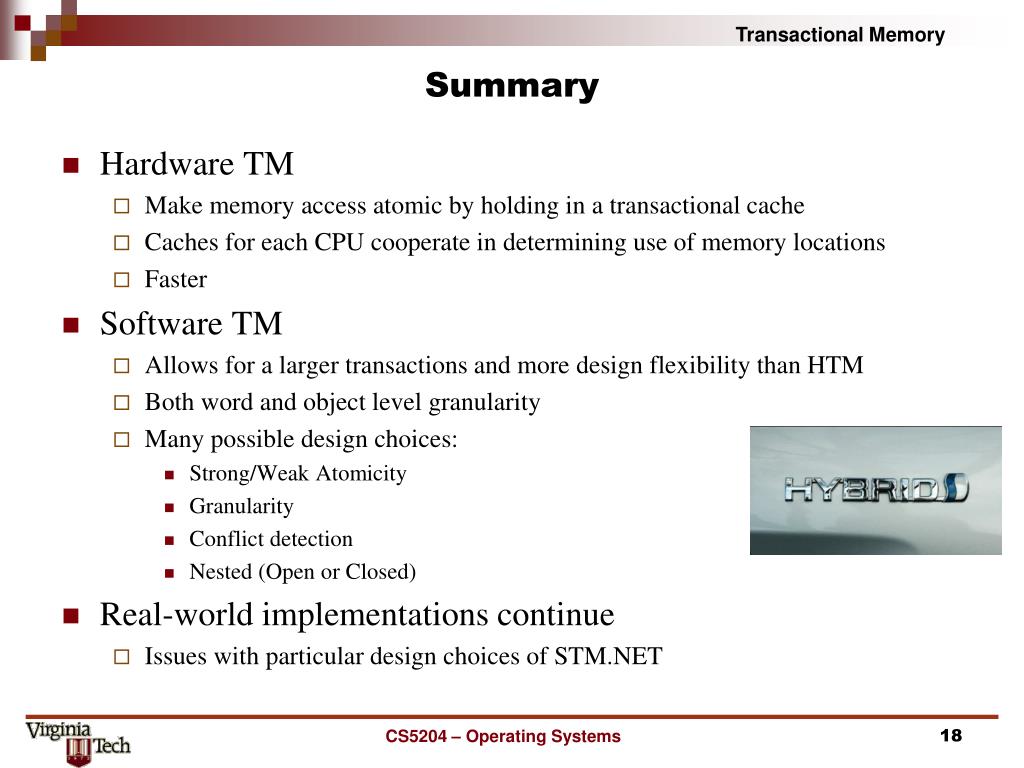

  18. Summary • Hardware TM • Make memory access atomic by holding in a transactional cache • Caches for each CPU cooperate in determining use of memory locations • Faster • Software TM • Allows for a larger transactions and more design flexibility than HTM • Both word and object level granularity • Many possible design choices: • Strong/Weak Atomicity • Granularity • Conflict detection • Nested (Open or Closed) • Real-world implementations continue • Issues with particular design choices of STM.NET CS5204 – Operating Systems

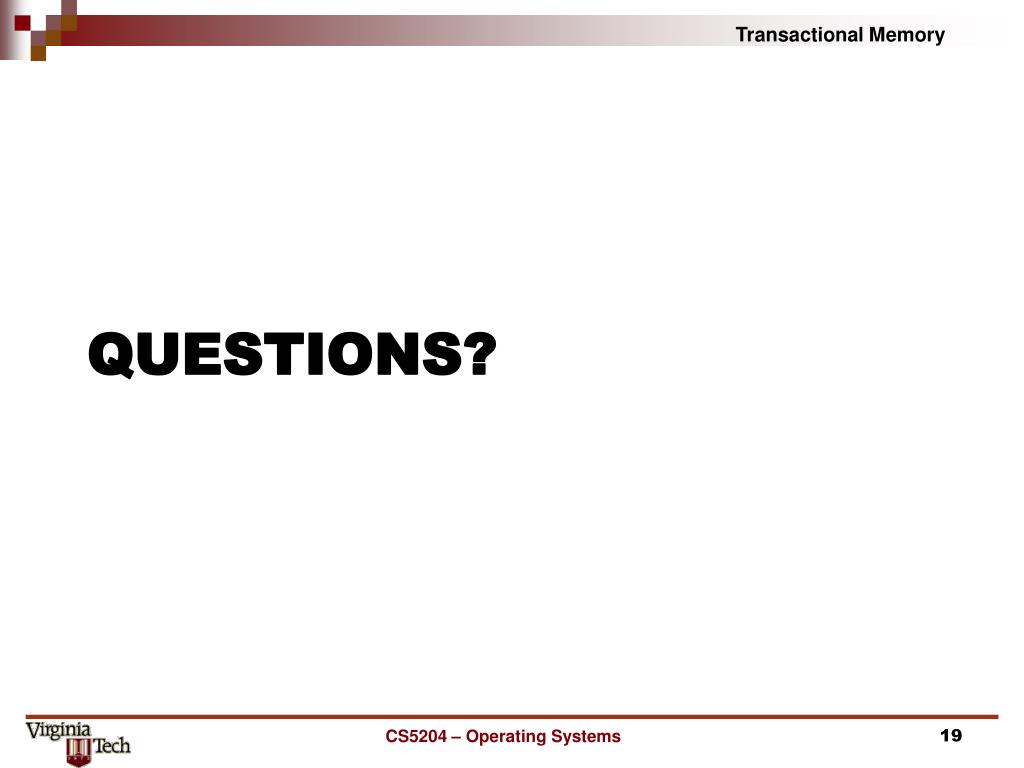

  19. Questions? CS5204 – Operating Systems

  20. Backups CS5204 – Operating Systems

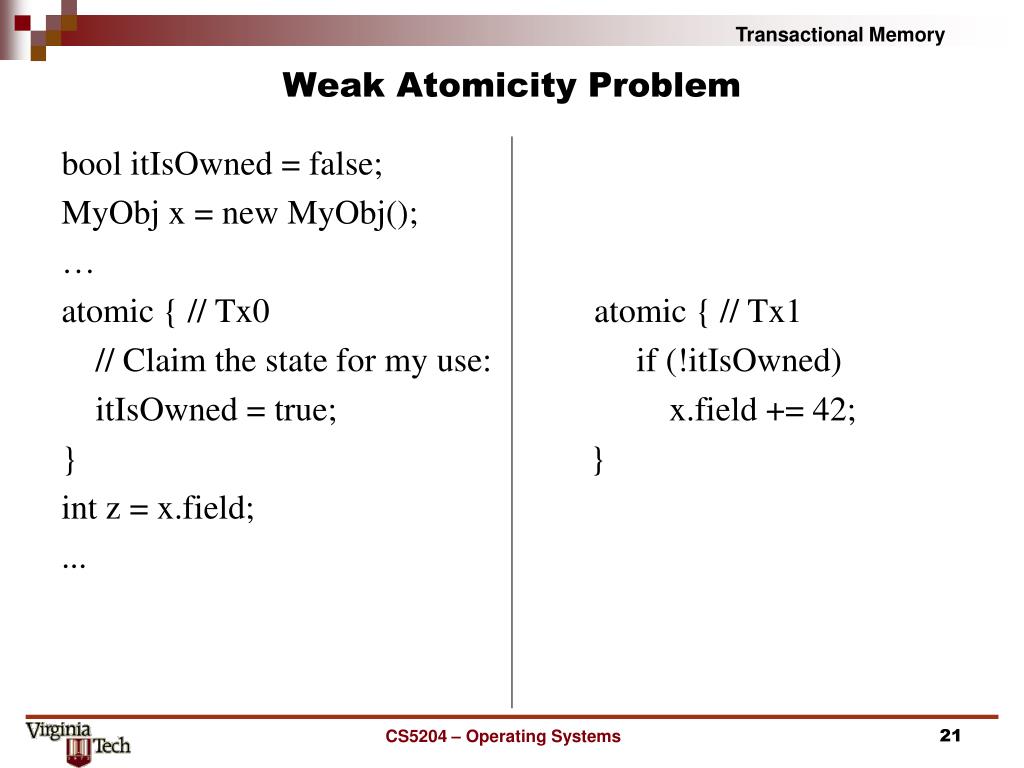

  21. Weak Atomicity Problem bool itIsOwned = false; MyObj x = new MyObj(); … atomic { // Tx0                          atomic { // Tx1     // Claim the state for my use:           if (!itIsOwned)     itIsOwned = true;                             x.field += 42; }                                        } int z = x.field; ... CS5204 – Operating Systems
