  1. TWINcleaner BUTTERFLY VALVE BUTTERFLY VALVE Until now: STRAINER FIXING MATERIAL FIXING MATERIAL

  2. TWINcleaner TWINcleaner TWINcleaner FIXING MATERIAL FIXING MATERIAL

  3. FUNCTION CLOSED OPEN TWINcleaner

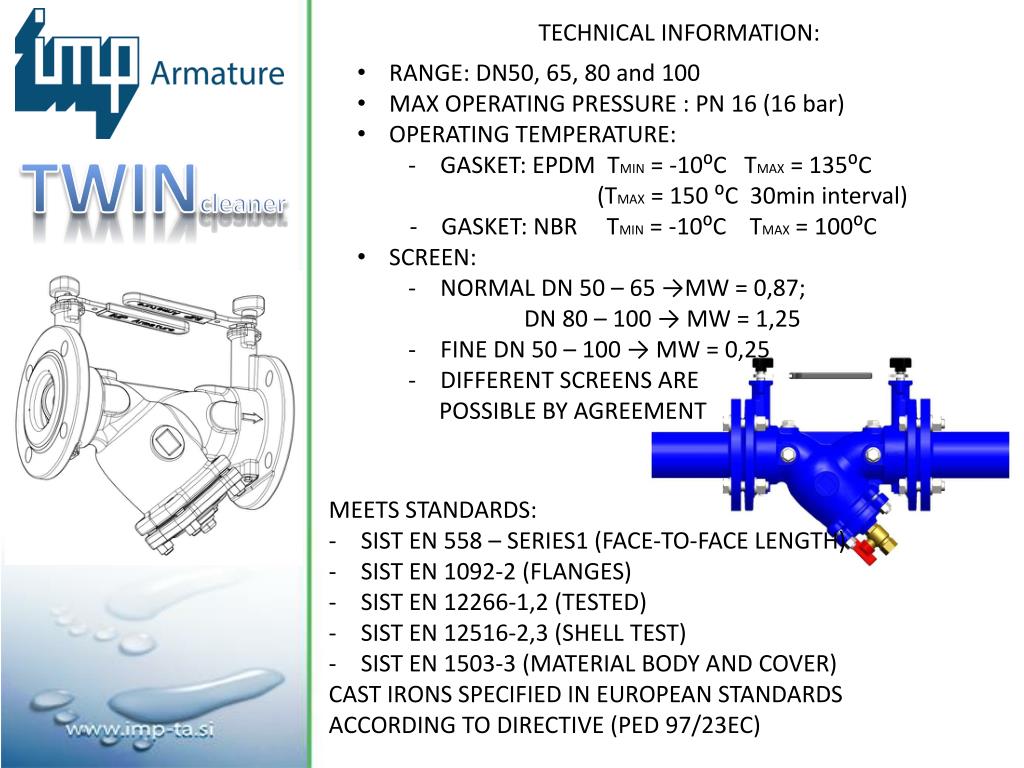

  4. TECHNICAL INFORMATION: • RANGE: DN50, 65, 80 and 100 • MAX OPERATING PRESSURE : PN 16 (16 bar) • OPERATING TEMPERATURE: • GASKET: EPDM TMIN = -10⁰C TMAX = 135⁰C • (TMAX = 150 ⁰C 30min interval) • - GASKET: NBR TMIN = -10⁰C TMAX = 100⁰C • SCREEN: • NORMAL DN 50 – 65 →MW = 0,87; • DN 80 – 100 → MW = 1,25 • FINE DN 50 – 100 → MW = 0,25 • DIFFERENT SCREENS ARE • POSSIBLE BY AGREEMENT TWINcleaner • MEETS STANDARDS: • SIST EN 558 – SERIES1 (FACE-TO-FACE LENGTH) • SIST EN 1092-2 (FLANGES) • SIST EN 12266-1,2 (TESTED) • SIST EN 12516-2,3 (SHELL TEST) • SIST EN 1503-3 (MATERIAL BODY AND COVER) • CAST IRONS SPECIFIED IN EUROPEAN STANDARDS • ACCORDING TO DIRECTIVE (PED 97/23EC)

  5. THREE PRODUCTS IN ONE REDUCED NUMBER OF SEALING JOINTS STANDARD INSTALLATION ADVANTAGES: TWINcleaner • THREE PRODUCTS IN ONE • ½ REDUCED NUMBER OF • SEALING JOINTS • SHORTER FACE-TO-FACE LENGTH • UP TO 4x SHORTER TIME FOR • INSTALLATION • LOWER COST OF FIXING MATERIAL • INTEGRATED FLANGE GASKETS TWIN cleanerINSTALLATION

  6. SHORTER FACE-TO-FACE LENGTH STANDARD INSTALLATION ADVANTAGES: TWINcleaner • THREE PRODUCTS IN ONE • ½ REDUCED NUMBER OF • SEALING JOINTS • SHORTER FACE-TO-FACE LENGTH • UP TO 4x SHORTER TIME FOR • INSTALLATION • LOWER COST OF FIXING MATERIAL • INTEGRATED FLANGE GASKETS L – FACE-TO-FACE LENGTH OF STRAINER ACC. TO SIST EN 558 – SERIES1 Lv– TOTAL FACE-TO-FACE LENGTH OF STRAINER + 2× BUTTERFLY VALVES TWINcleanerINSTALLATION ΔL = Lv – L (SHORTER FACE-TO-FACE LENGHT)

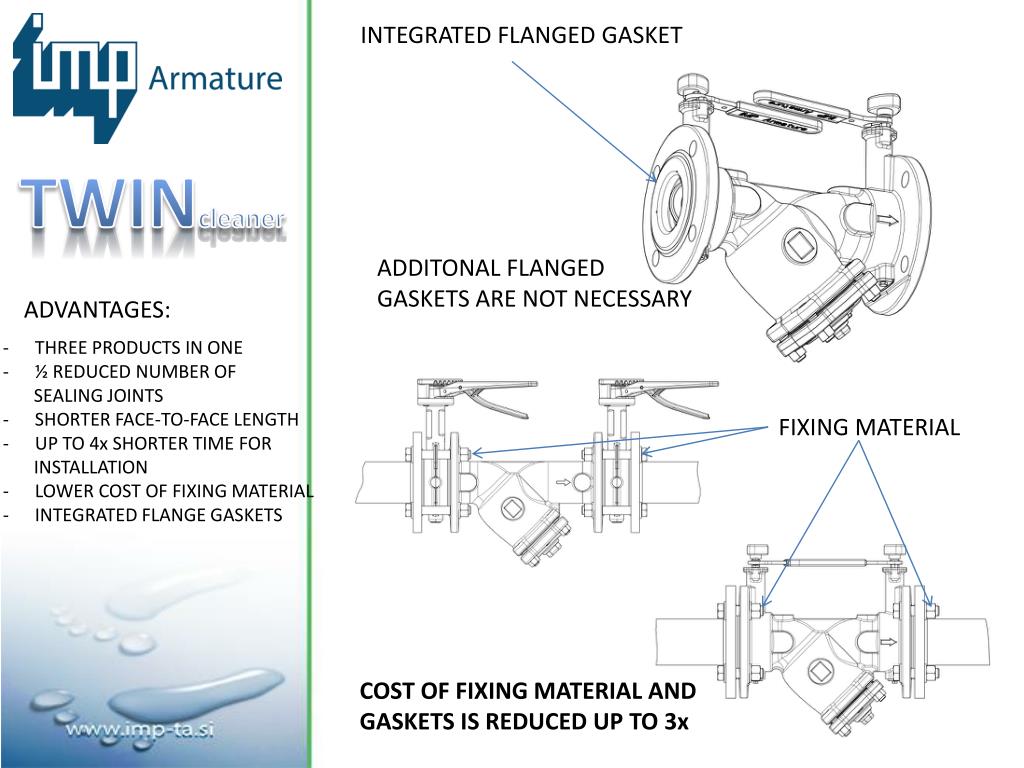

  7. INTEGRATED FLANGED GASKET ADVANTAGES: TWINcleaner • THREE PRODUCTS IN ONE • ½ REDUCED NUMBER OF • SEALING JOINTS • SHORTER FACE-TO-FACE LENGTH • UP TO 4x SHORTER TIME FOR • INSTALLATION • LOWER COST OF FIXING MATERIAL • INTEGRATED FLANGE GASKETS ADDITONAL FLANGED GASKETS ARE NOT NECESSARY FIXING MATERIAL COST OF FIXING MATERIAL AND GASKETS IS REDUCED UP TO 3x

  8. AIR VALVE TWINcleaner ACCESSORIES: • AIR RELEASE VALVE USED • AFTER CLEANING THESCREEN • MANOMETER HOLES (CONNECTIONS) • POSSIBLE OUTLETS FOR CLEANING: • DRAIN PLUG • BALL VALVE • MAGNETIC INSERT DRAIN PLUG BALL VALVE MAGNETIC INSERT MANOMETER CONNECTIONS

  9. FLANGES FOR ACTUATOR F05 TWINcleaner ACCESSORIES : • POSSIBLE TO UPGRADE WITH ELECTRIC OR PNEUMATIC ACTUATOR FOR AUTOMATIC CLOSING OR REDUCING OF FLOW

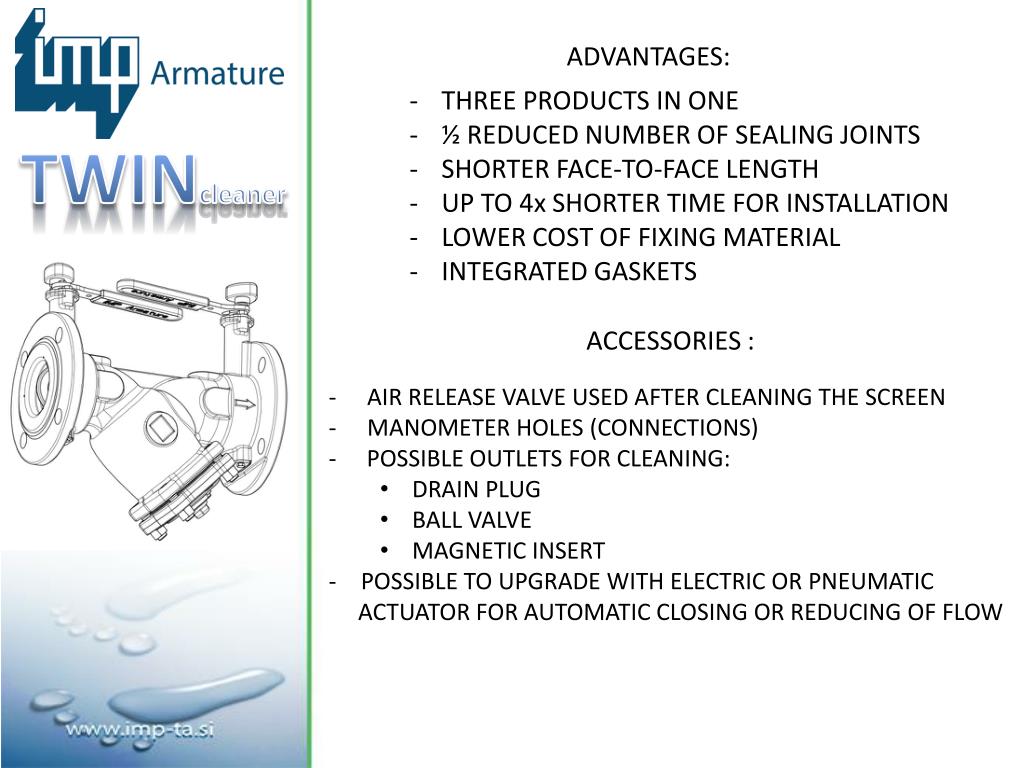

  10. ADVANTAGES: TWINcleaner • THREE PRODUCTS IN ONE • ½ REDUCED NUMBER OF SEALING JOINTS • SHORTER FACE-TO-FACE LENGTH • UP TO 4x SHORTER TIME FOR INSTALLATION • LOWER COST OF FIXING MATERIAL • INTEGRATED GASKETS ACCESSORIES : • AIR RELEASE VALVE USED AFTER CLEANING THE SCREEN • MANOMETER HOLES (CONNECTIONS) • POSSIBLE OUTLETS FOR CLEANING: • DRAIN PLUG • BALL VALVE • MAGNETIC INSERT • POSSIBLE TO UPGRADE WITH ELECTRIC OR PNEUMATIC • ACTUATOR FOR AUTOMATIC CLOSING OR REDUCING OF FLOW

  11. TWIN cleaner– PLUG + AIR VALVE TWIN cleaner– PLUG + AIR VALVE + MANOMETR HOLES + 2 x ACTUATOR TWIN cleaner– PLUG + AIR VALVE + 2 x ACTUATOR TWIN cleaner– PLUG + 2 x ACTUATOR TWIN cleaner– PLUG + AIR VALVE + MANOMETR HOLES + 1 x ACTUATOR TWIN cleaner– PLUG + AIR VALVE + 1 x ACTUATOR TWIN cleaner– PLUG + AIR VALVE + MANOMETR HOLES TWIN cleaner– PLUG + 1 x ACTUATOR TWIN cleaner– PLUG TWINcleaner TWIN cleaner– BALL VALVE + 2 x ACTUATOR TWIN cleaner– BALL VALVE + AIR VALVE + 2 x ACTUATOR TWIN cleaner– BALL VALVE + AIR VALVE + MANOMETR HOLES + 2 x ACTUATOR TWIN cleaner– PLUG + AIR VALVE + MANOMETR HOLES + 1 x ACTUATOR TWIN cleaner– BALL VALVE + AIR VALVE + 1 x ACTUATOR TWIN cleaner– BALL VALVE + 1 x ACTUATOR TWIN cleaner– BALL VALVE + AIR VALVE TWIN cleaner– BALL VALVE TWIN cleaner– BALL VALVE + AIR VALVE + MANOMETR HOLES
