Exploring a KMDF Storage Driver

2. Exploring a KMDF Storage Driver • Grigory Lyakhovitskiy • SDE II • Device and Storage Technologies • grigly@microsoft.com • David Burg • Senior SDE Lead • Device and Storage Technologies • daviburg@microsoft.com • Praveen Rao • Senior SDE • Device and Storage Technologies • psrao@microsoft.com

3. Agenda • Motivation for a KMDF storage driver • Storage driver design with KMDF • Debugging the new storage driver (demo) • Writing high performance drivers in KMDF • Resources

4. Motivation for using KMDF • Advantages make Storage Drivers easier than with WDM • I/O cancellation, PnP and power management • Reduced lines Of code (LOC) maintained by our team • Support for side-by-side major versions • Support for Windows 2000 onwards

5. Readiness for ‘re-implementing’ • Know your driver well – how documented is it? • Interfaces (MSDN), code (WDK sample), device and applications workaround • Test & Partners • How good is your coverage? (functionality, performance, …) • Do you have a plan with your partners?

6. So, which Storage Driver? File System drivers CDFS.SYS UDFS.SYS FASTFAT.SYS Class drivers CDROM.SYS DISK.SYS TAPE.SYS Port drivers USBSTOR.SYS ATAPORT.SYS STORPORT.SYS

7. Design and implement CDROM.SYS with KMDF • David Burg • Senior SDE Lead • Device and Storage Technologies • daviburg@microsoft.com

8. Driver stack in Vista and Windows 7 WDM WDF Vista Windows 7

9. IRP Process in Vista and in Windows 7 Vista & XP – do it all yourself Windows 7 – focus on value-add

10. Asynchronous I/Os – watch out for performance • By KMDF when queues are not empty • De-queuing occurs in a worker thread, at Dispatch level • Storage driver updated to perform most requests at Dispatch level, avoiding another context-switch • By storage driver when queues are empty • Do as much as possible processing now, and create own completion routine

11. The KMDF CDROM.SYS ‘adventure’ • Planning in late 2006, implementing in 2007 • Progressive introduction • Large variety of hardware to test (90 vendors, 1614 models …) • Variety of legacy applications to satisfy (burning, A/V playback, game copy protection, drive emulation, …) • The first release vehicle is Windows 7 • Make sure you have adequate ‘Bake Time’

12. Resulting Reduction of LOC

13. A developer’s dream: Less code, more features • 23k LOC in Vista cdrom.sys & classpnp.sys • No I/O cancellation • No DVD streaming • Primitive timers • 16k LOC in Windows 7 cdrom.sys • Leverage KMDF’s EvtIoCanceledOnQueue callback for both queues, before queuing, and before retrying • DVD streaming added • Use WDF coalesce-able timers with 500 ms delay tolerance for power saving

14. KMDF & storage drivers tricky parts • IRPs without FileObject • If you have IRPs without FileObject, set WdfFileObjectCanBeOptional to avoid KMDF assertion • DeviceEvtFileClose • KMDF will call DeviceEvtFileClose with NULL file object handle when you set WdfFileObjectCanBeOptional • WdfRequestMarkCancelableEx • For large I/Os broken into smaller I/O requests, use WdfRequestMarkCancelableEx to retrieve possible immediate STATUS_CANCELLED • Moving to WDM, plan also to update KD extension • !scsikd was updated for KMDF cdrom.sys

15. Demo: Debugging KMDF CDROM.SYS with WDK KD extension • Grigory Lyakhovitskiy • SDE II • Device and Storage Technologies • grigly@microsoft.com

16. Debugging of KMDF drivers • Instrumentation is crucial to problem diagnosability • KMDF has provisions for easy debugging • WDFKD debugger extension is the most powerful tool • Explore driver internals, object states, etc. • Find out the underlying WDM objects • Dump log from the most recent driver events

17. Summary • KMDF works well for storage drivers • Migration to KMDF is not free • Plan well ahead, analyze dependencies

18. Resources

19. Material to use back at the office • KMDF cdrom.sys is in Windows 7 WDK! • KMDF homepage on Windows Hardware Developer Central http://www.microsoft.com/whdc/driver/wdf/KMDF.mspx Call for action • Ask yourself! • Would my driver benefit from KMDF? • Is my driver ready for KMDF?

20. Best Practices for a High-performance KMDF Driver • Praveen Rao • Senior SDE • Device and Storage Technologies • psrao@microsoft.com

21. Outline • Plan for performance • Use appropriate configurations for performance • Minimize object creation • Be cognizant of cost of operations • Use framework-provided mechanisms

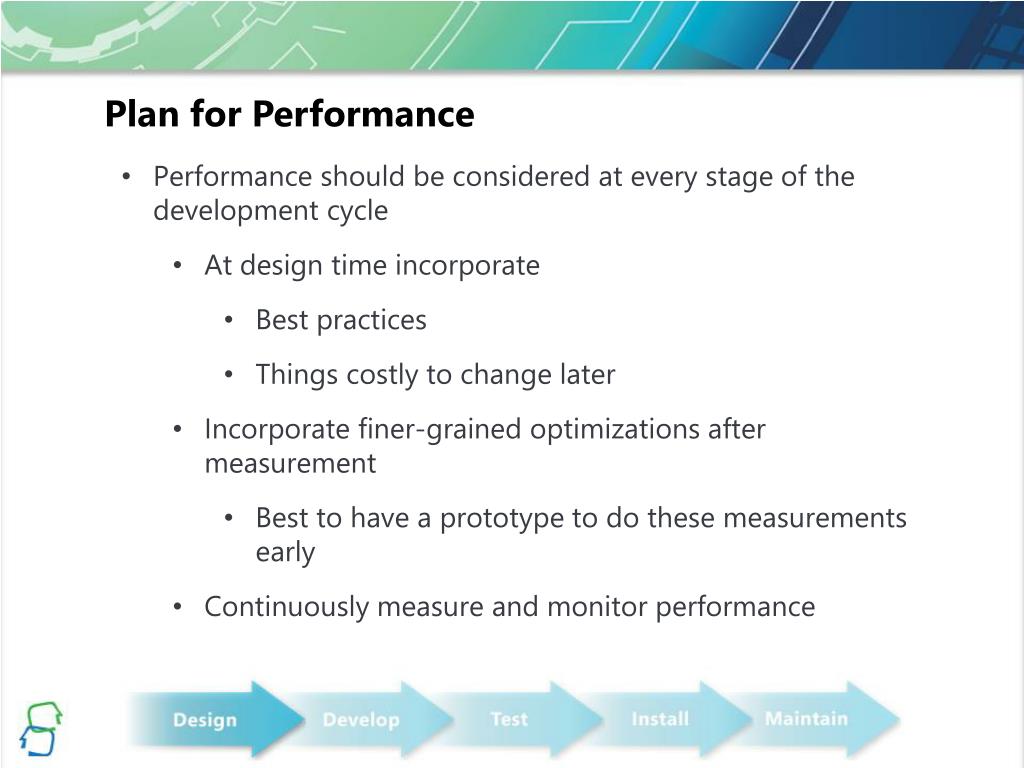

22. Plan for Performance • Performance should be considered at every stage of the development cycle • At design time incorporate • Best practices • Things costly to change later • Incorporate finer-grained optimizations after measurement • Best to have a prototype to do these measurements early • Continuously measure and monitor performance

23. Plan for Performance (contd.) • Things discussed in this talk are: • Provided as guidelines • Intended to make you aware of the performance consequences of various choices • Not meant to be applied indiscriminately • If optimizations incur complexity, measure performance before optimizing it

24. Use Appropriate Configurations

25. Object - SynchronizationScope • Specified as part of WDF_OBJECT_ATTRIBUTES during object creation • Use WdfSynchronizationScopeNone if object’s callbacks don’t need serialization or if you use your own lock • Use narrowest scope possible. For example: • Use WdfSynchronizationScopeQueue (new in KMDF 1.9) instead of WdfSynchronizationScopeDevice if synchronization is needed only in the queue scope

26. Object - ExecutionLevel • Specified as part of WDF_OBJECT_ATTRIBUTES during object creation • Avoid using WdfExecutionLevelPassive for objects that could cause a work item to be queued for every I/O. For example: • I/O Queue • If passive callback is needed for specific types of I/O, create a separate queue and specify WdfExecutionLevelPassive • Objects that are created and disposed for every single I/O, such as objects parented to request

27. Object – ParentObject • Specified as part of WDF_OBJECT_ATTRIBUTES during object creation • Provides convenient way to manage object lifetime • Use the narrowest scope for parent object • For example, a memory object created for a request should be parented to request and not to device

28. Object – ParentObject (Contd.) • Not using a narrow scope for ParentObject makes objects unnecessarily accumulate in memory • Eventually they get freed so leak detection mechanisms do not catch this situation • You can use !wdfhandle to dump object hierarchy and see any accumulated objects • Use flag 0x00000010 to dump the hierarchy recursively

29. FileObjectClass • Specified in WDF_FILEOBJECT_CONFIG parameter in WdfDeviceInitSetFileObjectConfig • Specify FileObjectNotRequired if device stack doesn’t require or use file objects • Else specify WdfFileObjectWdfCanUseFsContext or WdfFileObjectWdfCanUseFsContext2 if these are not already used by your device stack • Specifying WdfFileObjectWdfCannotUseFsContexts makes framework perform a linear search to find the framework file that corresponds to the WDM file • Use only as the last resort

30. I/O Queues • Create different queues for different request types to avoid queue lock contention if several such I/Os are handled concurrently • Create different I/O queues for read, write, IOCTL, and internal IOCTL requests by using WdfIoQueueCreate

31. Coalescable Timer • Provide a reasonable tolerance for coalescable timers (new in Windows 7) • Set reasonable TolerableDelayin WDF_TIMER_CONFIG structure

32. Minimize Object Creation

33. Object Creation/Deletion • WDF objects provide good programming model and lifetime management • They also have a performance cost • Object creation/deletion is the primary overhead of WDF over WDM • Hence minimize object creation where possible

34. Object Reuse • Minimize object creation/deletion overhead by reusing objects • Reuse request objects across I/Os • Children and any associated resources (such as timer used to support timeout) get reused too • Reuse DMA transaction objects across I/Os • Store objects for reuse—although be mindful of memory vs. performance trade-off

35. Be Cognizant of Cost of Operations

36. Object Hierarchies • Be careful about creating object hierarchies  • Adding/removing siblings will contend on the same lock • If any object in the object tree requires Passive cleanup and the tree is deleted at Dispatch level, framework needs to use a work item for tree cleanup • As a corollary, avoid disposing objects at Dispatch level wherever possible

37. Object Contexts • Avoid using too many object contexts in hot paths • Leads to framework performing a linear search in context list • Consolidate contexts, if possible, instead

38. Object Reference • Avoid redundant WdfObjectReference/Dereference • Have a good reason to extend the lifetime of an object

39. Property Get • Avoid calling property Get DDIs repeatedly in hot I/O path • Examples: WdfRequestGetParameters, WdfRequestGetFileObject • Incurs overhead such as: • Going through DDI layer • Handle validation • Store the property in a local variable • If property is needed across threads or functions store in context • Memory vs. performance trade-off, so do this after measurement and do not go overboard

40. Request Formatting • WdfIoTargetFormatRequest* DDIs provide convenient ways to format a request before sending to next layer • Formatting may incur overhead of preparing common buffer, MDLs, etc. • Reusing requests avoids such overhead in IOCTL case • If performance measurement shows this to be an issue: • Use WdfRequestFormatRequestUsingCurrentType • Modify stack location directly by escaping to WDM • Framework may optimize this in future releases, so please check back 

41. Sending Request with Timeout • One can use WdfRequestSend and specify Timeout in WDF_REQUEST_SEND_OPTIONS to send request with timeout • This option incurs overhead of timer creation if request is sent asynchronously • That is, if WDF_REQUEST_SEND_OPTION_SYNCHRONOUS is not specified • Timer will be reused if request is reused • Try your best to reuse requests if you need to use timeout

42. Work items • Do not use work items for every single I/O • For example, do not queue a work item from every DpcForIsr • Be careful with blockingwaits in work item callbacks • Don’t wait on something that might never be signaled, such as an interrupt or a user-mode application • Work items are a limited resource. Blocking them affects system adversely, in such cases use your own thread • Avoid dependencies on other work items that run before yours (may lead to deadlock)

43. Use Framework-Provided Mechanisms

44. Counted Queues • Use counted queues for I/O throttling (new in KMDF 1.9) • Instead of forwarding I/O requests that the driver can’t handle at a given point to a manual queue

45. Sending Request with Timeout • To send requests with timeout, avoid creating your own timers • Use WdfRequestSend and specify timeout in WDF_REQUEST_SEND_OPTIONS • Avoids DDI overhead for the timer creation • Timer gets reused if request is reused

46. Call To Action • Plan for performance early • Use best practices • Measure! Measure! Measure! • Look out for signs of inefficient choices

47. Additional Resources • Web resources • White papers: http://go.microsoft.com/fwlink/?LinkID=79335 • Channel 9 talk:http://channel9.msdn.com/ShowPost.aspx?PostID=226116 • Blogs • http://blogs.msdn.com/doronh/default.aspx (A Hole In My Head) • http://blogs.msdn.com/peterwie/default.aspx (Pointless Blathering) • http://blogs.msdn.com/iliast/default.aspx (driver writing != bus driving) • Newsgroups and Lists • Microsoft.public.device.development.drivers • OSR NTDev Mailing List • Book: Developing Drivers with the Windows Driver Foundationhttp://www.microsoft.com/MSPress/books/10512.aspx
