  1. XINFO The IT Information System Jobnetplans HORIZONT Software for Datacenters Garmischer Str. 8 D- 80339 München Tel ++49(0)89 / 540 162 - 0www.horizont-it.com

  2. PC Client - Job Netplan A Job Netplan displays the Jobs which are defined in the Scheduler (TWS, CA7, TWS...) graphically: • Jobs • Predecessors • Successors • Triggers (CA7) • Conditions (Control-M, ZEKE) • Datasets (CA7, ZEKE, TWS) • Prompts (TWS)

  3. PC Client – Graphic Displays All displays for graphics are at the end of the Display List

  4. PC Client – Graphic Displays Just a hint:XINFO 3.0 merges graphics into the corresponding group, an example:The display for “CA7 Jobnetplan” is also in the CA7 group

  5. PC Client – Selection XXRJJUP Startjob • Important Hint: Selections like “all jobs” are not very usefull! Number of predecessor and successor levels

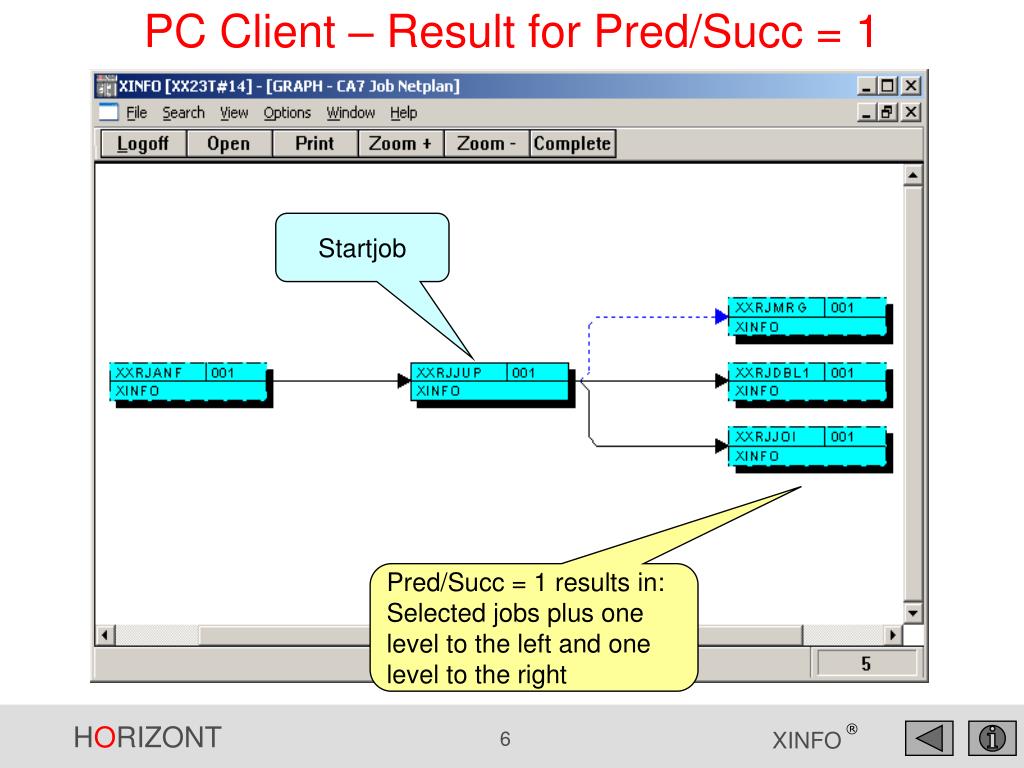

  6. PC Client – Result for Pred/Succ = 1 Startjob Pred/Succ = 1 results in: Selected jobs plus one level to the left and one level to the right

  7. PC Client - Result Pred/Succ = 2 Startjob Predecessor, 1. Level Successor, 1. Level Successor, 2. Level

  8. PC Client – Successors and Predecessors (1/4) XXRJANF An example:New selection

  9. PC Client - Successors and Predecessors (2/4) Question: Which jobs are succeeding XXRJJUP?

  10. PC Client - Successors and Predecessors (3/4) Right mouseclickto XXRJJUP... Specify levels...

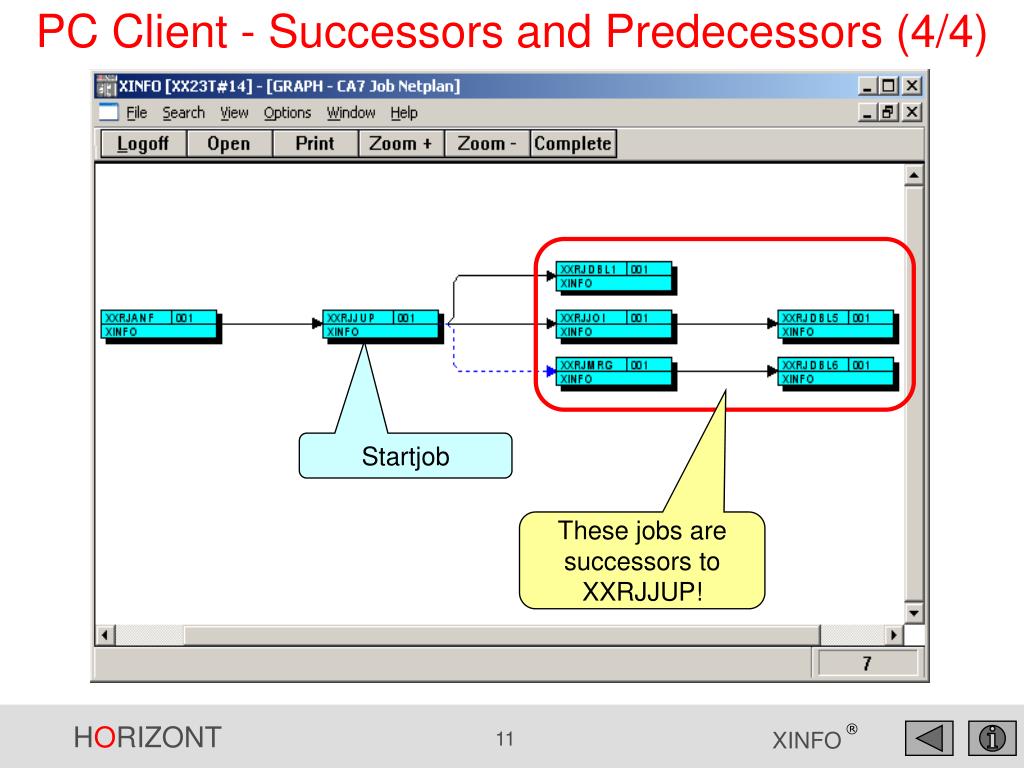

  11. PC Client - Successors and Predecessors (4/4) Startjob These jobs are successors to XXRJJUP!

  12. PC Client – Critical Path Critical job Specify 99 predecessors

  13. PC Client – Critical Path all predecessors Critical job

  14. PC Client - More Commands (1/7) Right mouseclick to XXRJJUP Do you need a list of all direct Predecessors and Successors?

  15. PC Client - More Commands (2/7) Startjob …a left mouseclick in the list highlites the corresponding job

  16. PC Client - More Commands (3/7) Do you want to see the JCL? Right mouseclick to the job...

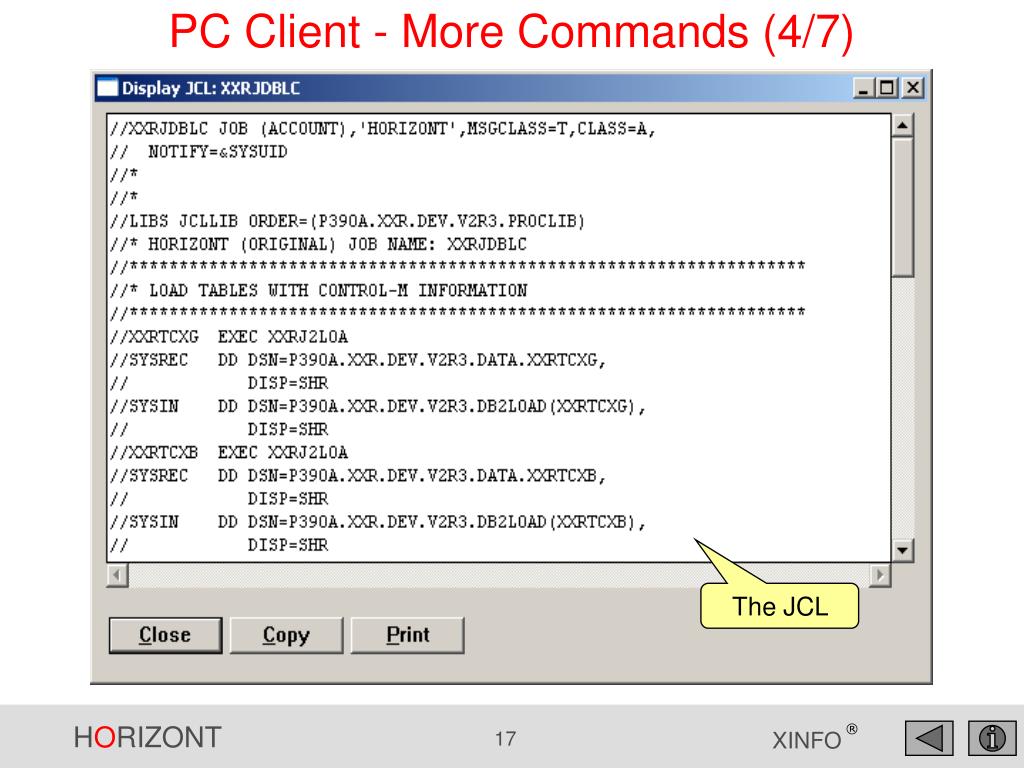

  17. PC Client - More Commands (4/7) The JCL

  18. PC Client - More Commands (5/7) Procedure?

  19. PC Client - More Commands (6/7) JCL with Procedures

  20. PC Client - More Commands (7/7) JCL including resolved procedures...
