The Activity Series

The Activity Series. No, Ni is below Na. Yes, Li is above Zn. Yes, Al is above Cu. Yes, Fe is above Cu. look at the following reactions: Fe + CuSO 4  Cu + Fe 2 (SO 4 ) 3 Li + H 2 O  LiOH + H 2 The activity series ranks the relative reactivity of metals.

dermot
Download Presentation

The Activity Series

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The Activity Series

  2. No, Ni is below Na Yes, Li is above Zn Yes, Al is above Cu Yes, Fe is above Cu look at the following reactions: Fe + CuSO4  Cu + Fe2(SO4)3 Li + H2O  LiOH + H2 The activity series ranks the relative reactivity of metals. It allows us to predict if certain chemicals will undergo single displacement reactions when mixed: metals near the top are most reactive and will displace metals near the bottom. Q: Which of these will react? Fe + CuSO4  Ni + NaCl  Li + ZnCO3  Al + CuCl2  Cu + Fe2(SO4)3 NR (no reaction) Zn + Li2CO3 Cu + AlCl3

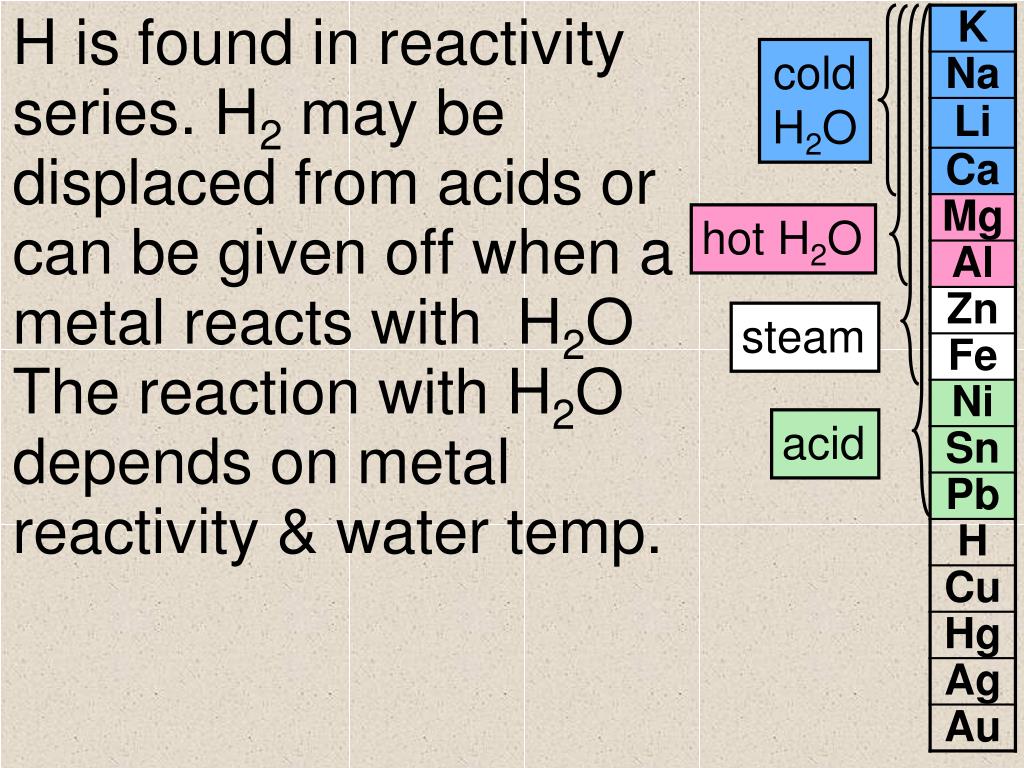

  3. cold H2O hot H2O H is found in reactivity series. H2 may be displaced from acids or can be given off when a metal reacts with H2O The reaction with H2O depends on metal reactivity & water temp. steam acid

  4. Reaction of metals with water • Na ,K and Li react violently with cold water 2Na(s)+2H2O(l) H2(g) +2NaOH(aq) • Ca reacts gently with cold water • Ca (s)+ 2H2O(l) Ca(OH)2(aq) + H2(g)

  5. Reaction of metals with water • Mg, Zn and Fe do not react with cold water but they can react with hot water or steam Mg + H2O MgO + H2

  6. Reaction of metals with water • Metals below hydrogen in the reactivity series will not react with water examples include : Copper , Silver and Gold

  7. Reaction of metals with dilute acids • Metals react with dilute acids forming salt and hydrogen • Metals on top of reactivity series are too active , it is Unsafe to add them to acids , they include Na, K, Li and Ca • Metals from Mg till Fe react vigorously with cold acid producing salt and hydrogen Mg + H2SO4 → Mg SO4 + H2

  8. Reaction of metals with dilute acids • Aluminum is slow to react because it has a layer of aluminum oxide covering it but it reacts vigorously on warming • Zinc and iron react only with hot acids , the reaction is less vigorous than aluminum • Metals below hydrogen in the series will not react with acids

  9.   Mg + AgNO3  Ag+ Mg(NO3)2 Cu + AgNO3  Ag+ Cu(NO3)2 Zn + AgNO3  Ag+ Zn(NO3)2 AgNO3   Mg + H2SO4  H2 + MgSO4 Zn + H2SO4  H2 + ZnSO4 H2SO4 NR   Mg+ Fe(NO3)3  Fe+ Mg(NO3)2 Zn+ Fe(NO3)3  Fe+ Zn(NO3)2 Fe(NO3)3 NR   Mg + CuCl2  Cu + MgCl2 Zn + CuCl2  Cu + ZnCl2 CuCl2 NR
