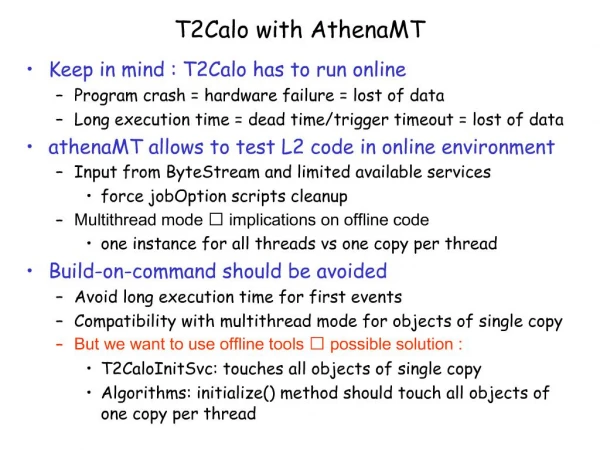

    1. T2Calo with AthenaMT Keep in mind : T2Calo has to run online Program crash = hardware failure = lost of data Long execution time = dead time/trigger timeout = lost of data athenaMT allows to test L2 code in online environment Input from ByteStream and limited available services force jobOption scripts cleanup Multithread mode ? implications on offline code one instance for all threads vs one copy per thread Build-on-command should be avoided Avoid long execution time for first events Compatibility with multithread mode for objects of single copy But we want to use offline tools ? possible solution : T2CaloInitSvc: touches all objects of single copy Algorithms: initialize() method should touch all objects of one copy per thread

    2. Example: athena Common Services One copy per thread ByteStreamCnvSvcBase ByteStreamAddressProviderSvc TriggerROBDataProviderSvc ProxyProviderSvc StoreGateSvc/StoreGateSvc ToolSvc Single copy for all threads DetDescrCnvSvc StoreGateSvc/DetectorStore

    3. Offline Tools Used by T2Calo Single copy for all threads ? can be initialized by T2CaloInitSvc TileDetDescrManager : GeoModelSvc(TileDetectorTool) TileID : TileIDIDDetDescrCnv LArEM/HEC/FCAL_ID : LArEM/HEC/FCAL_IDDetDescrCnv CaloCell_ID : CaloCell_IDDetDescrCnv CaloDetDescrManager : CaloMgrDetDescrCnv CaloIdManager : CaloIdMgrDetDescrCnv LArDetDescrManager : LArDetMgrDetDescrCnv CaloTTDescrManager : CaloTTMgrDetDescrCnv LArOnlineID : LArOnlineIDDetDescrCnv CaloLVL1_ID : CaloLVL1_IDDetDescrCnv … One copy per thread RegionSelector LArCablingService (LArFebRodMap, LArOnOffIdMap) LArRoIMap LArRodDecoder LArCellIDC/TileCellIDC : ByteStreamAddressProviderSvc : LAr/TileCellIDC_ByteStreamCnv : Collection_ByteStreamCnv

    4. Current Status and Next Steps T2Calo works with athenaMT under 10.0.6, with 3 mods TrigT2Calo/T2CaloInitSvc (now only CaloDetDescrManager) LArCalorimeter/LArCnv/LArByteStream/Hid2RESrcID.cxx Gaudi::svcLocator()->service("ToolSvc"+threadGaudi->getThreadID(), toolSvc); Already modified by Hong in main branch (10.5.0) LArCnv/ LArCondCnv/LArCondCnv_IOVDbSvc_jobOptions.py Set IOVDbSvc properties before it is instantiated Will find a permanent solution for 11.0.x Integration of T2Calo on P1 pre-series with 10.0.6 Aim to achieve integration before Mainz TDAQ week (mid-Oct.) as a major mile stone. Finalize initialization scheme Keep and add to T2CaloInitSvc (or make a LArDetectorTool for GeoModel as Tile for all LAr detector description services) Algorithm specific initializations
