  1. Mainconsole Family Intelligent. Flexible. Feature-rich 2014 General Course

  2. Agenda • Mainconsole Family Platform Overview • How to Pick a Right Recorder? • How to View / Manage the Recorders? • Target Segment and Scenarios • Central Management System (CMS) • NVRmini • NVRsolo • Mainconsole • IP+ • Capture Card • Hybrid Appliance • Appendix: Features Highlight www.nuuo.com

  3. MainconsoleFamily Platform Overview

  4. Pick a Suitable Recorder for the ProjectNUUOMainconsole family contains diverse recorders The suitable one maximizes the project win rate www.nuuo.com

  5. View and Manage all the recorders www.nuuo.com

  6. How to Pick a Right Recorder?

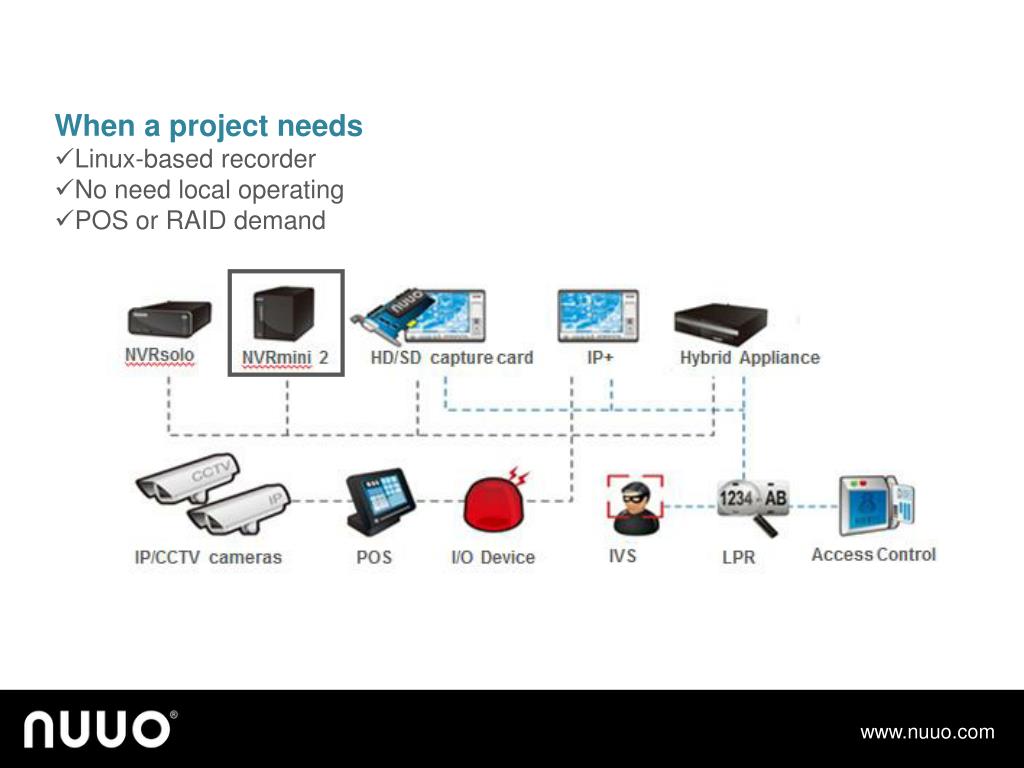

  7. When a project needs • Linux-based recorder • No need local operating • POS or RAID demand www.nuuo.com

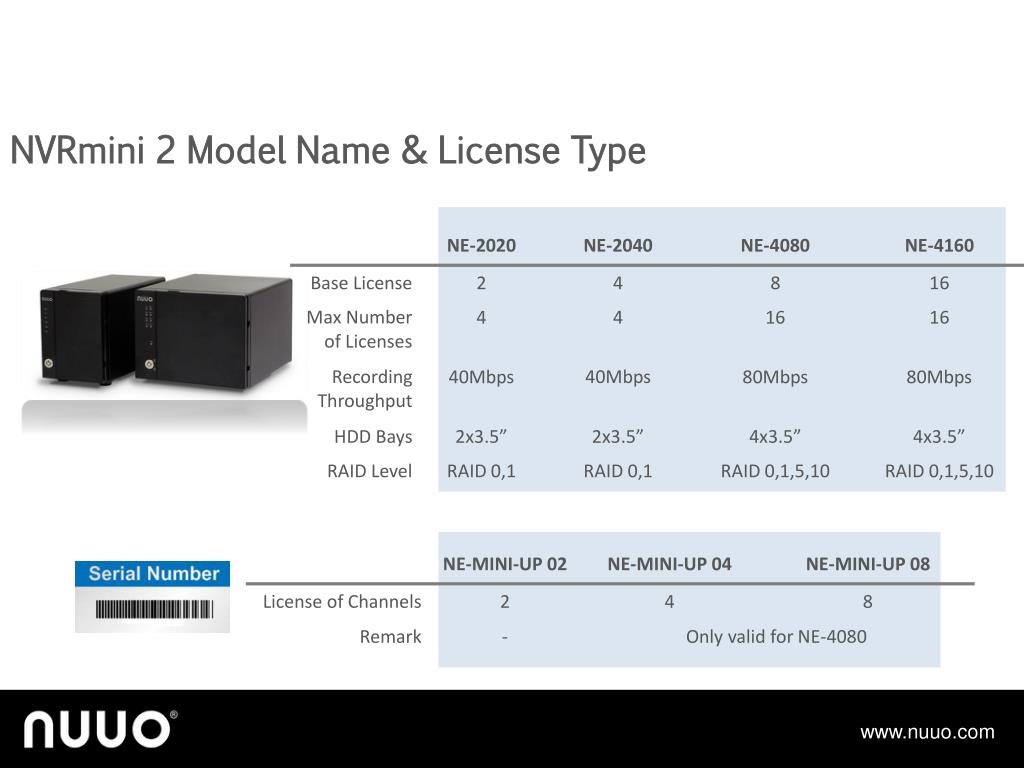

  8. NVRmini 2 Model Name & License Type www.nuuo.com

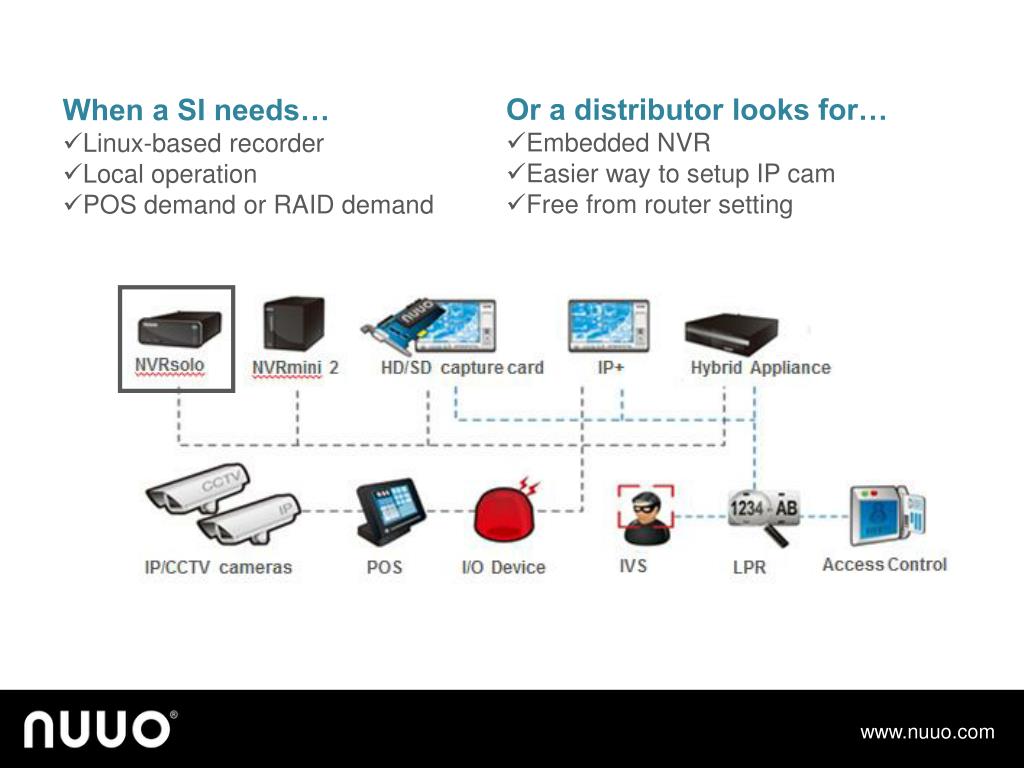

  9. Or a distributor looks for… • Embedded NVR • Easier way to setup IP cam • Free from router setting • When a SI needs… • Linux-based recorder • Local operation • POS demand or RAID demand www.nuuo.com

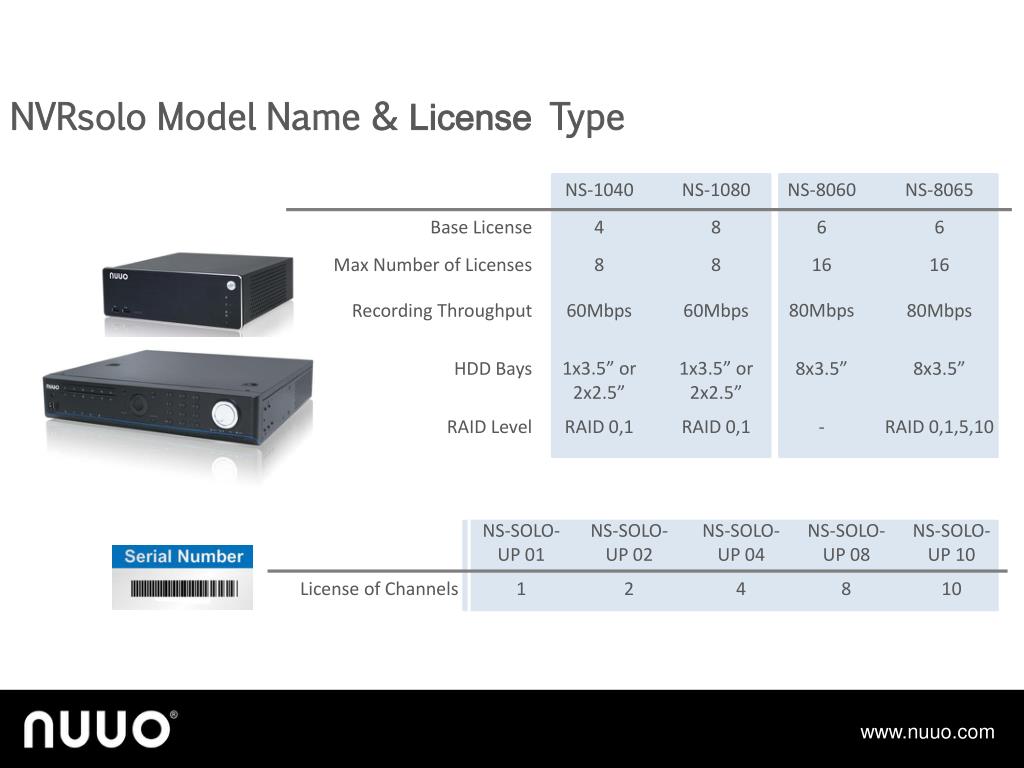

  10. NVRsolo Model Name & License Type www.nuuo.com

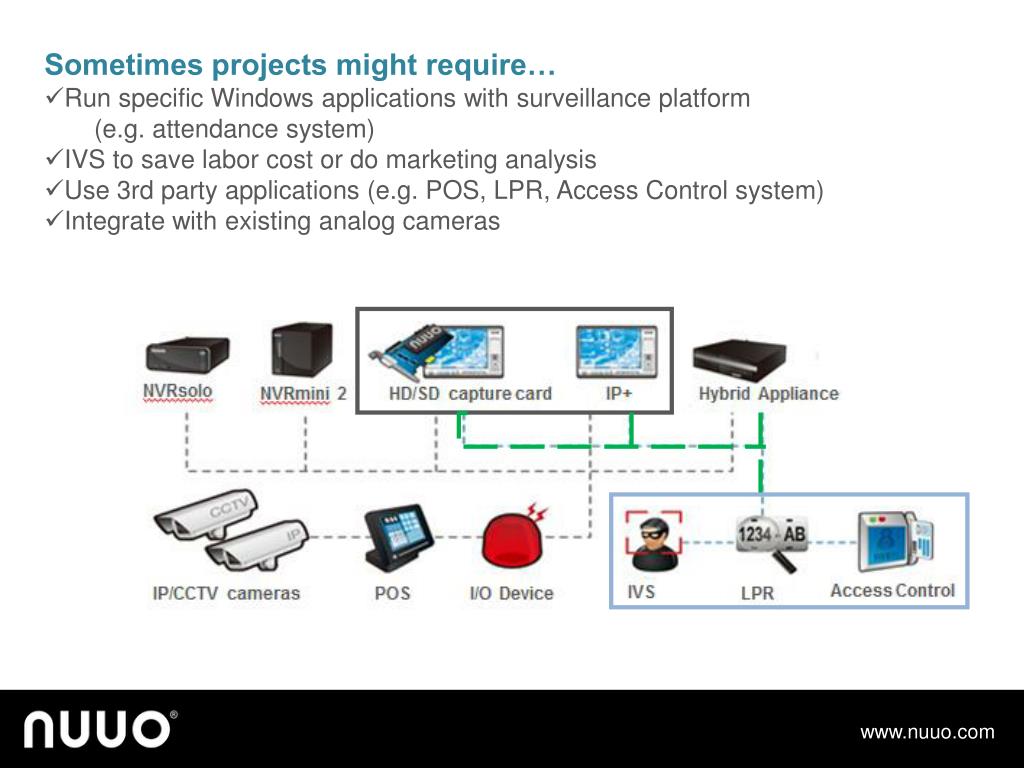

  11. Sometimes projects might require… • Run specific Windows applications with surveillance platform • (e.g. attendance system) • IVS to save labor cost or do marketing analysis • Use 3rd party applications (e.g. POS, LPR, Access Control system) • Integrate with existing analog cameras www.nuuo.com

  12. Mainconsole License Type Mix of 64 channels between IP and Analog www.nuuo.com

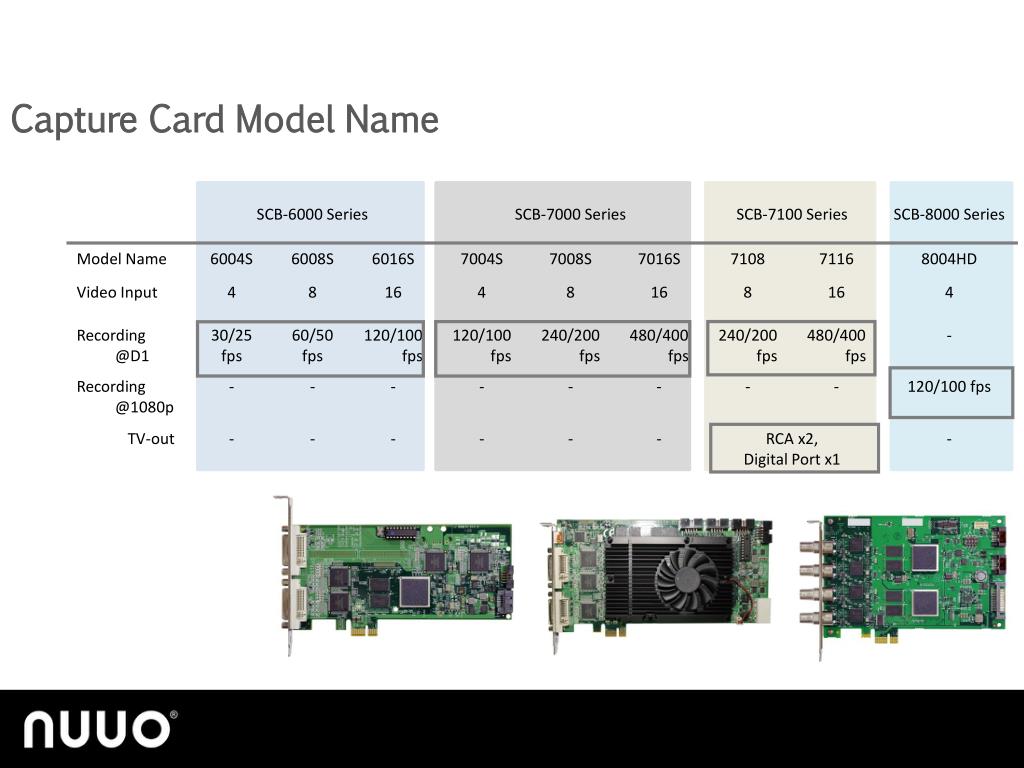

  13. Capture Card Model Name

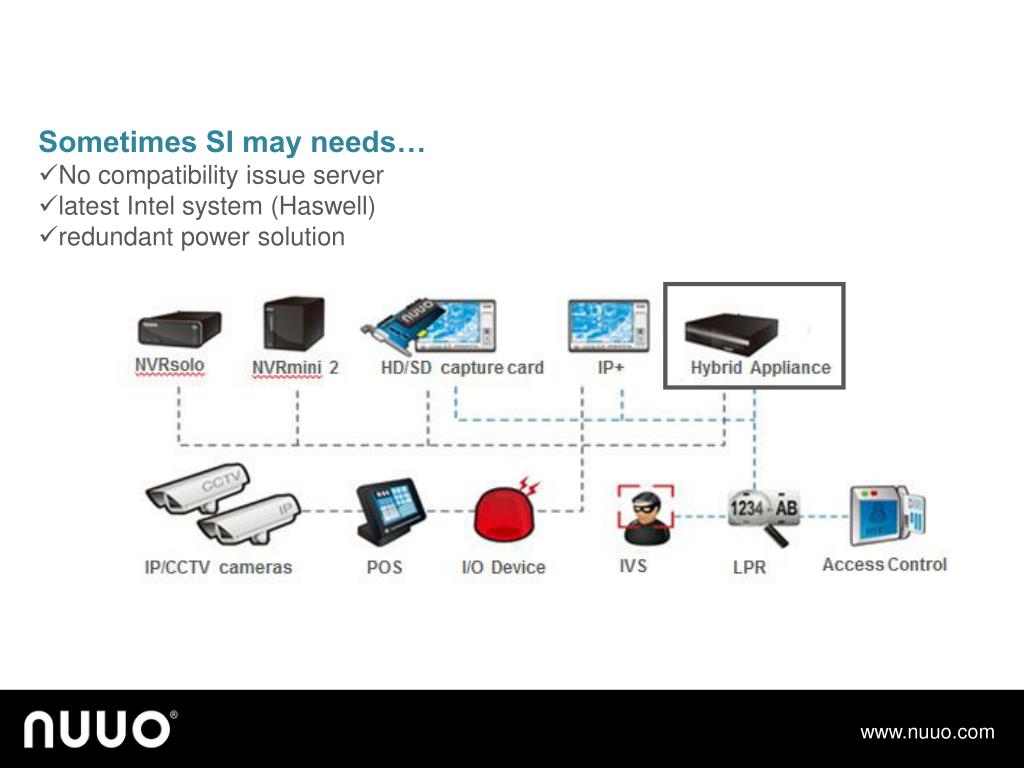

  14. Sometimes SI may needs… • No compatibility issue server • latest Intel system (Haswell) • redundant power solution www.nuuo.com

  15. Appliance Model Name www.nuuo.com

  16. How to View / Manage All Recorders?

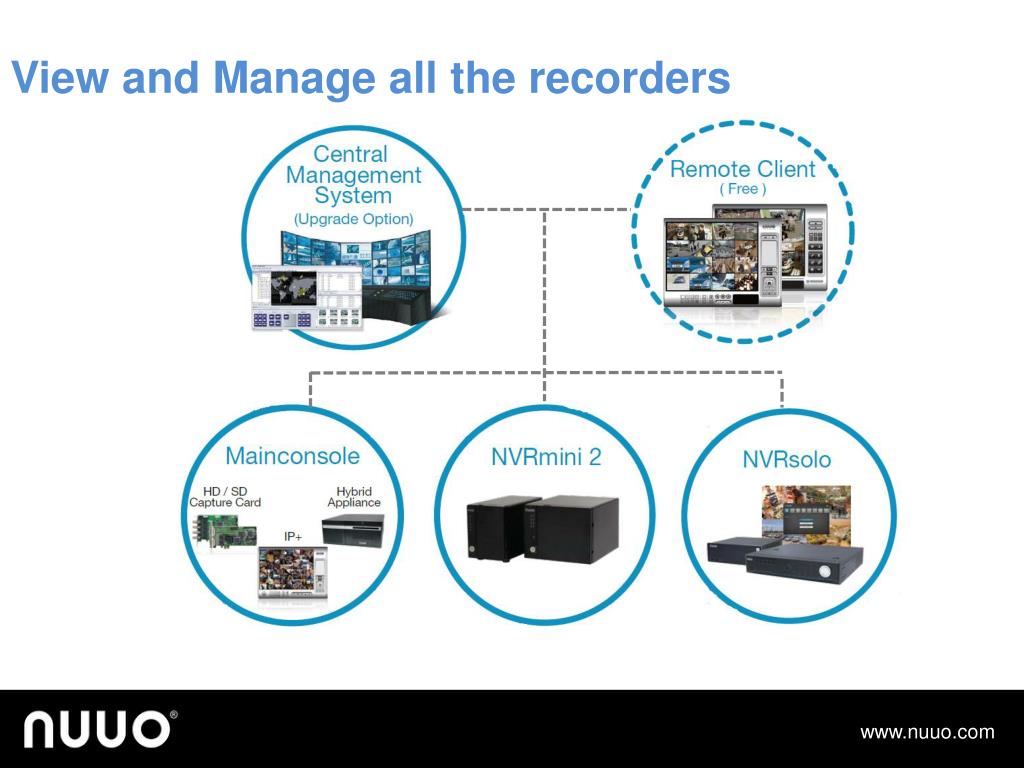

  17. View and Manage all the recorders www.nuuo.com

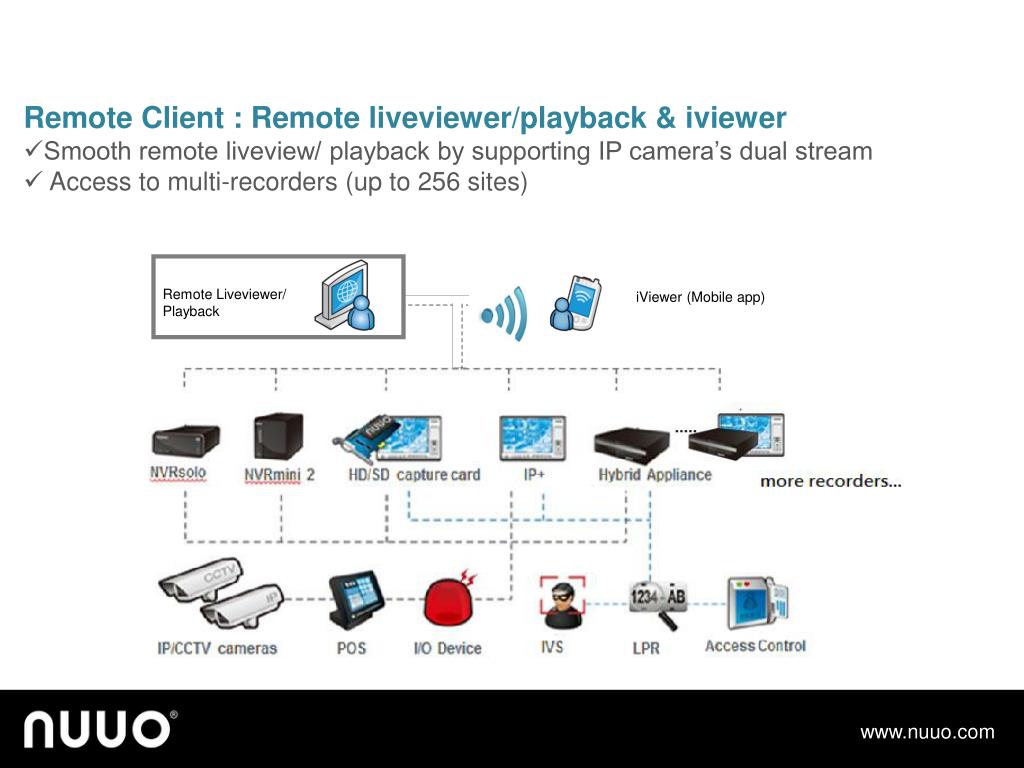

  18. Remote Client : Remote liveviewer/playback & iviewer • Smooth remote liveview/ playback by supporting IP camera’s dual stream • Access to multi-recorders (up to 256 sites) Remote Liveviewer/ Playback iViewer (Mobile app) www.nuuo.com

  19. Advanced Management- CMS • Compatible with all Mainconsole family recorders • Centralized alarm management to know the status of all sites • Centralized matrix wall to see liveview or pop-up event • Centralized E-map to find out event’s site • Centralized backup important video from all branches www.nuuo.com

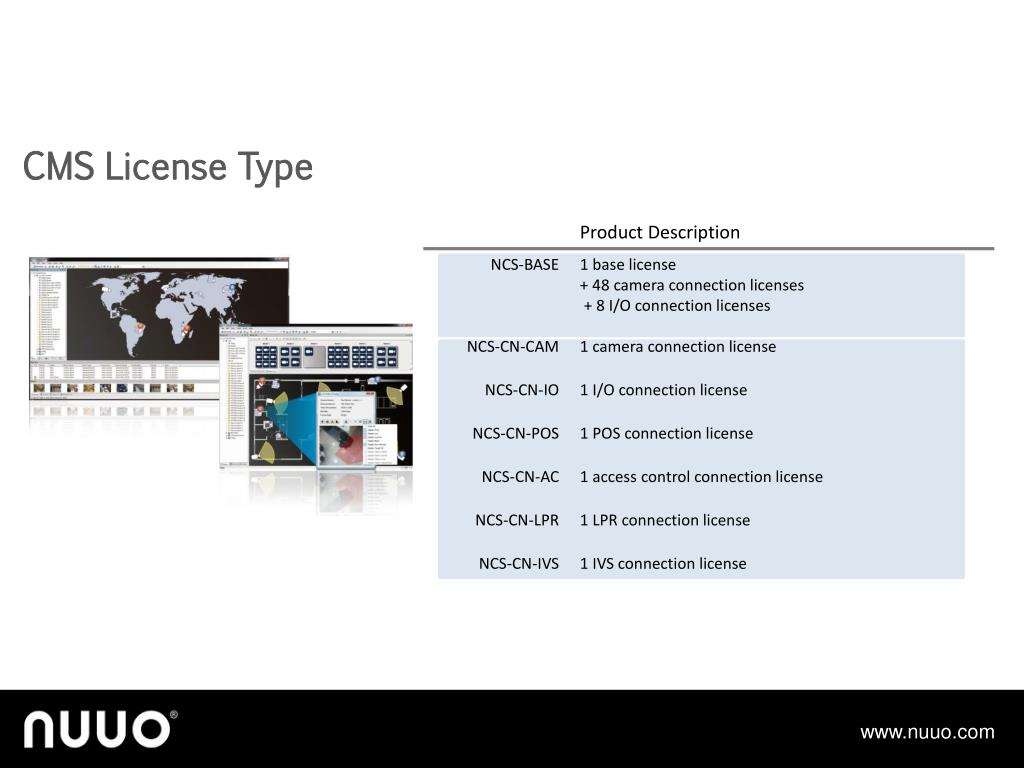

  20. CMS License Type www.nuuo.com

  21. Target Segment & Scenarios

  22. CMS IP+ E A NVRmini 2 IP+ & IVS D Hybrid C NVRsolo B www.nuuo.com Target: Distributed Branches System structure of control center

  23. CMS IP+ E A NVRmini 2 IP+ & IVS D Hybrid C NVRsolo B www.nuuo.com Target: Distributed Branches System structure of control center

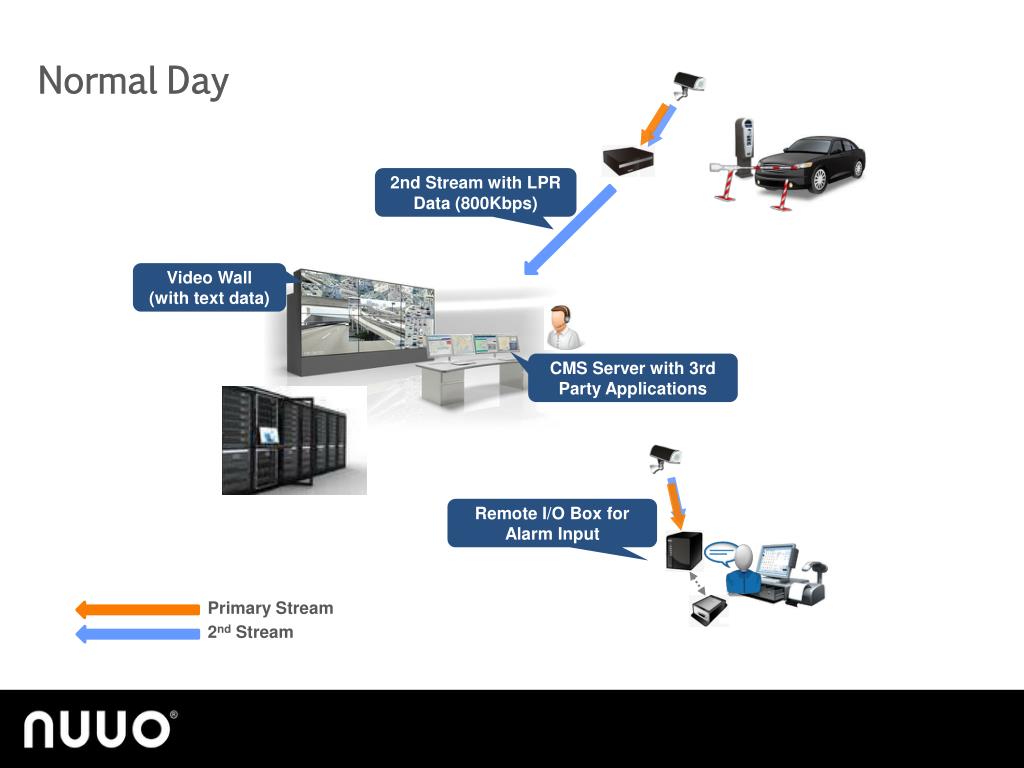

  24. Normal Day 2nd Stream with LPR Data (800Kbps) Video Wall (with text data) CMS Server with 3rd Party Applications Remote I/O Box for Alarm Input Primary Stream 2nd Stream

  25. Event Happened Alarm Management (Call who & action log) Event Pop-up & Instant Liveview/ Playback 2-Way Audio to Warn Criminal (Recording with Video) Central Alarm Video Backup Trigger Alarm Primary Stream 2nd Stream

  26. CMS IP+ E A NVRmini 2 IP+ & IVS D Hybrid C NVRsolo B www.nuuo.com Target: Distributed Branches System structure of control center

  27. Normal Day Central Storage Auto-backup to Avoid Record Damage by Internal Theft Remote Check Store’s Transaction Store Boss Store IT Manager 2nd Stream (300Kbps) for Instant Remote Viewing (Browser or Mobile Phone) Daily System Report from Each Store Store RAID to Protect Recording Data Primary Stream Remote I/O Box 2nd Stream (300/100 Kbps)

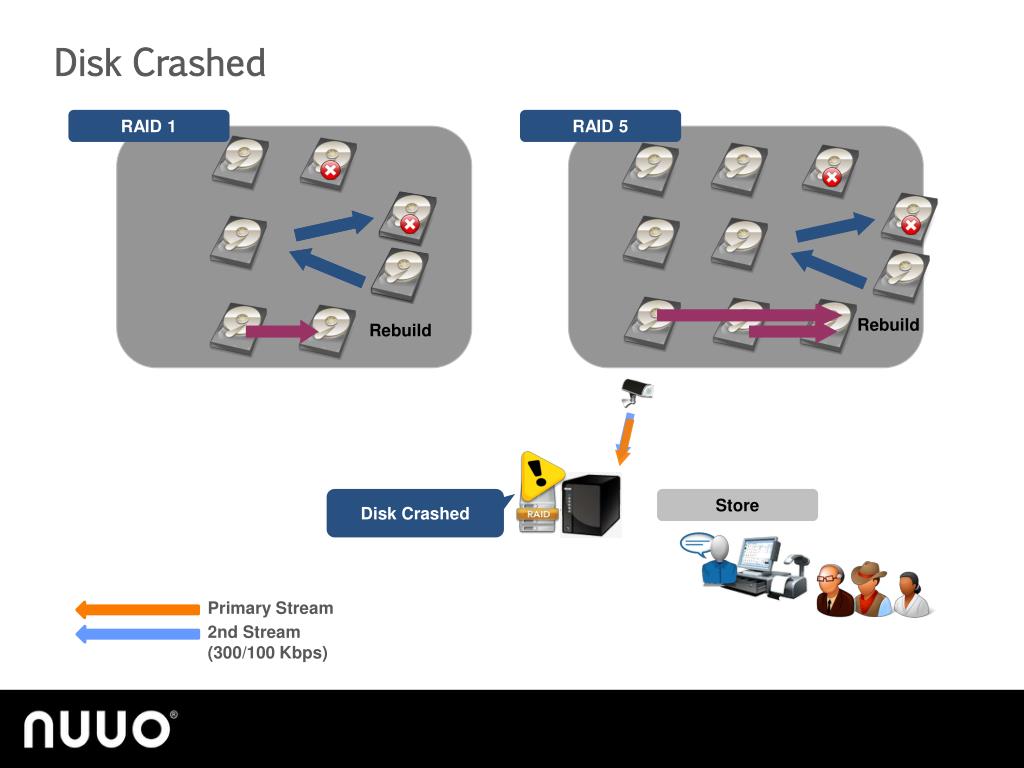

  28. Disk Crashed RAID 1 RAID 5 Rebuild Rebuild Disk Crashed Store Primary Stream 2nd Stream (300/100 Kbps)

  29. CMS IP+ E A NVRmini 2 IP+ & IVS D Hybrid C NVRsolo B www.nuuo.com Target: Distributed Branches System structure of control center

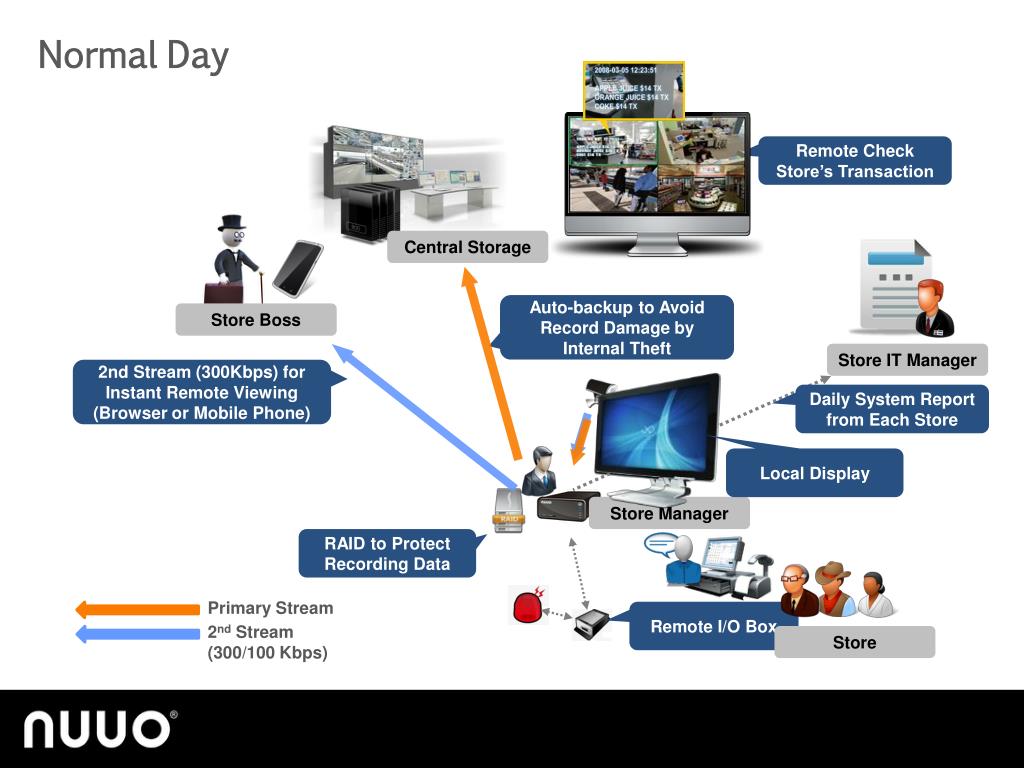

  30. Normal Day Central Storage Auto-backup to Avoid Record Damage by Internal Theft Remote Check Store’s Transaction Store Boss Store IT Manager 2nd Stream (300Kbps) for Instant Remote Viewing (Browser or Mobile Phone) Daily System Report from Each Store Local Display Store Manager RAID to Protect Recording Data Primary Stream Remote I/O Box 2nd Stream (300/100 Kbps) Store

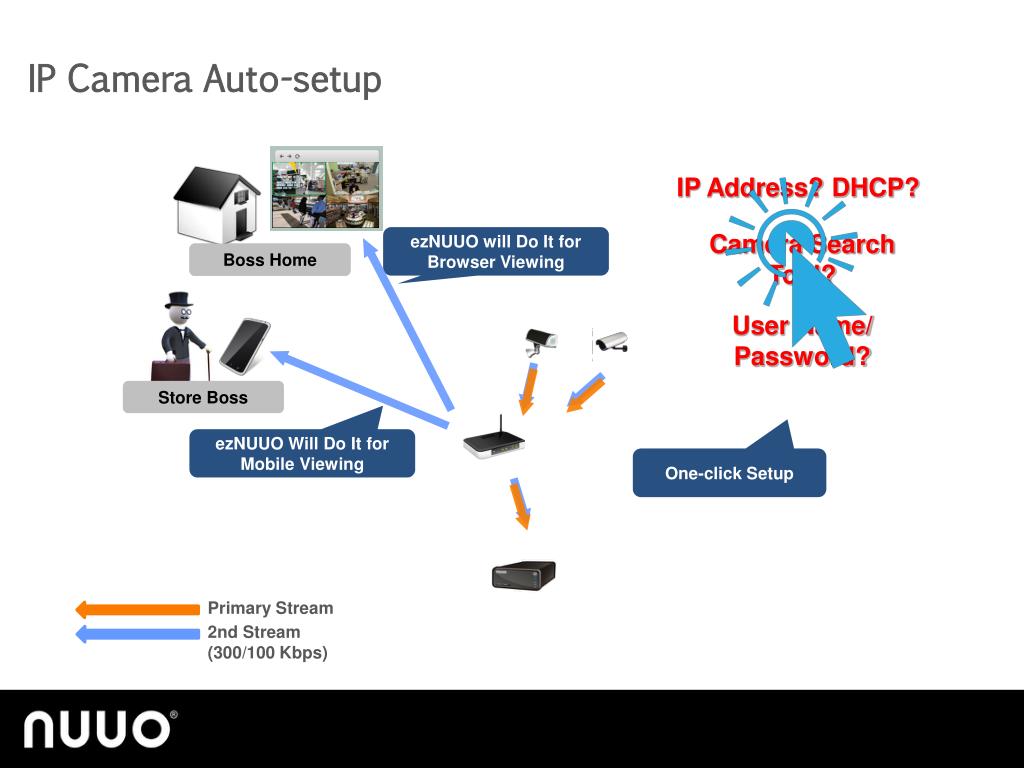

  31. IP Camera Auto-setup ezNUUO will Do It for Browser Viewing Boss Home Boss Home Store Boss ezNUUO Will Do It for Mobile Viewing IP Address? DHCP? Camera Search Tool? User Name/ Password? One-click Setup Primary Stream 2nd Stream (300/100 Kbps)

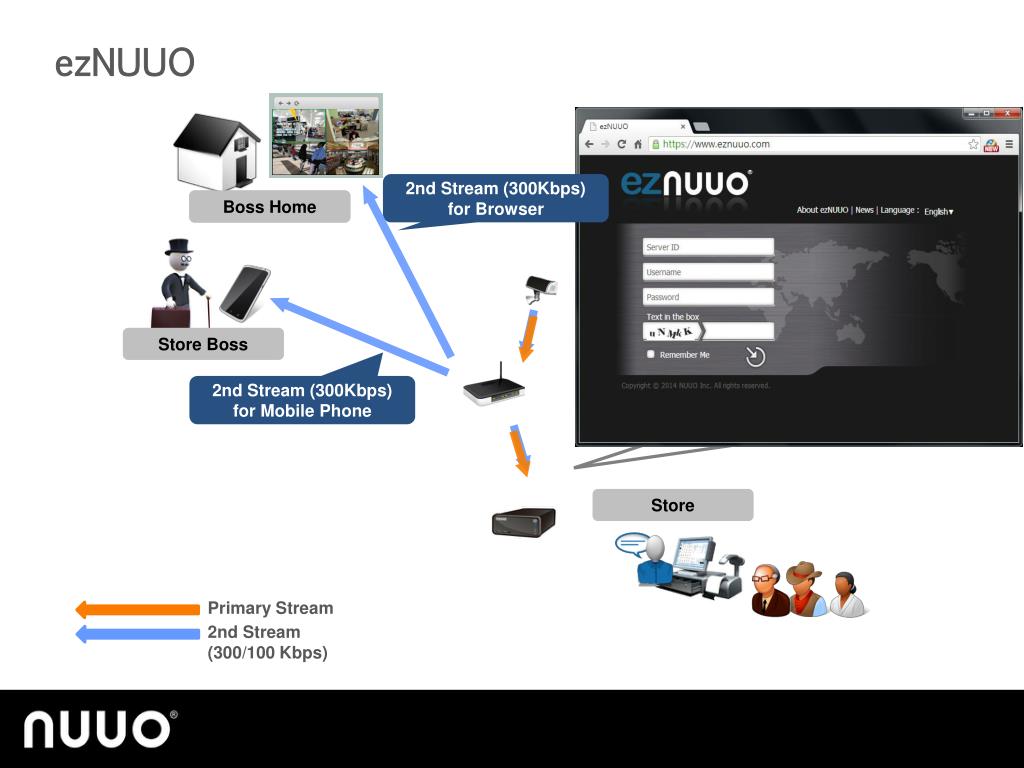

  32. ezNUUO 2nd Stream (300Kbps) for Browser Boss Home Boss Home Store Boss 2nd Stream (300Kbps) for Mobile Phone Store Internal Liveview Port? External Playback Port? Primary Stream 2nd Stream (300/100 Kbps)

  33. CMS IP+ E A NVRmini 2 IP+ & IVS D Hybrid C NVRsolo B www.nuuo.com Target: Distributed Branches System structure of branches

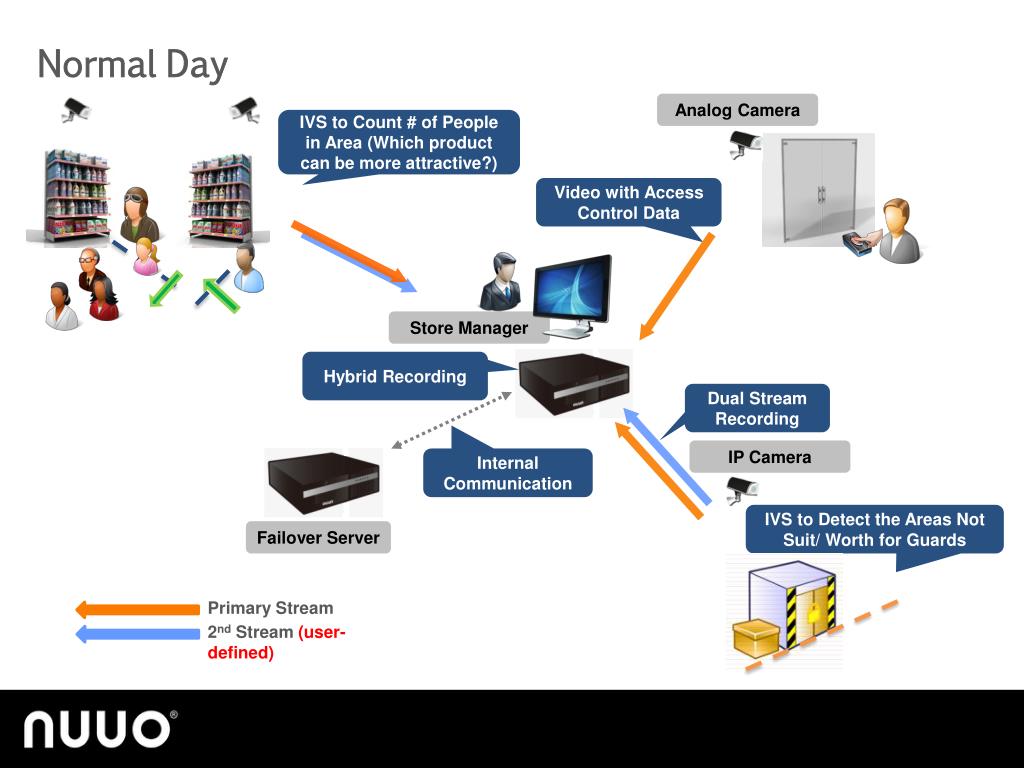

  34. Normal Day Analog Camera IVS to Count # of People in Area (Which product can be more attractive?) Video with Access Control Data Store Manager Hybrid Recording Dual Stream Recording IP Camera Internal Communication IVS to Detect the Areas Not Suit/ Worth for Guards Failover Server Primary Stream 2nd Stream (user-defined)

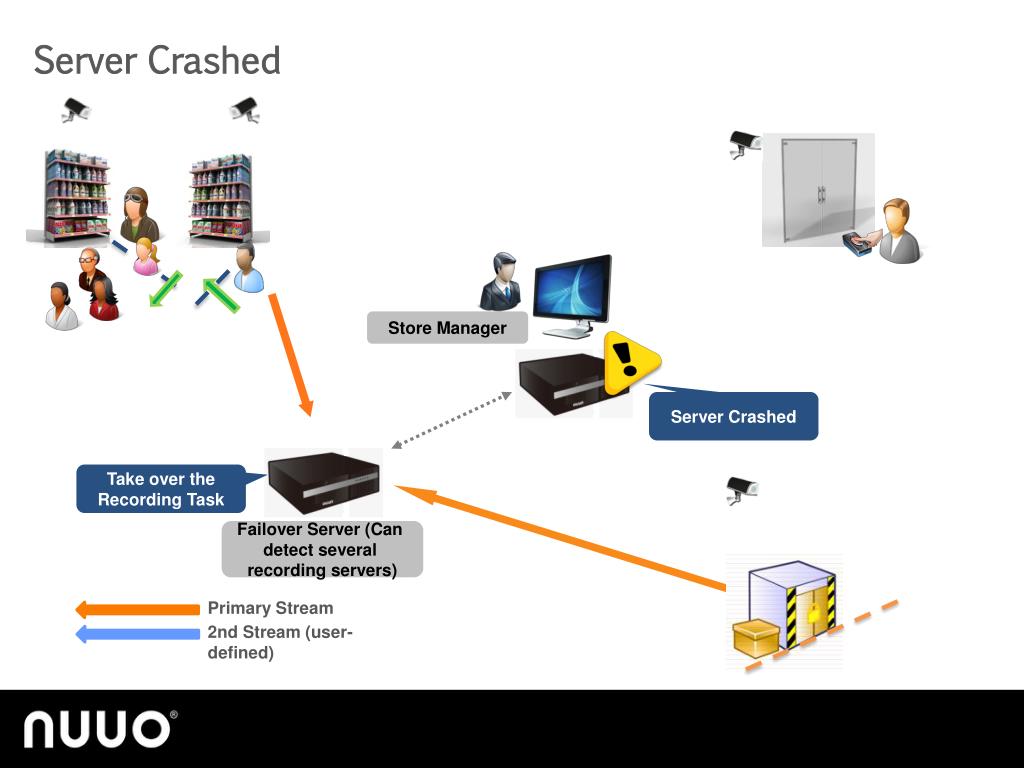

  35. Server Crashed Store Manager Server Crashed Take over the Recording Task Failover Server (Can detect several recording servers) Primary Stream 2nd Stream (user-defined)

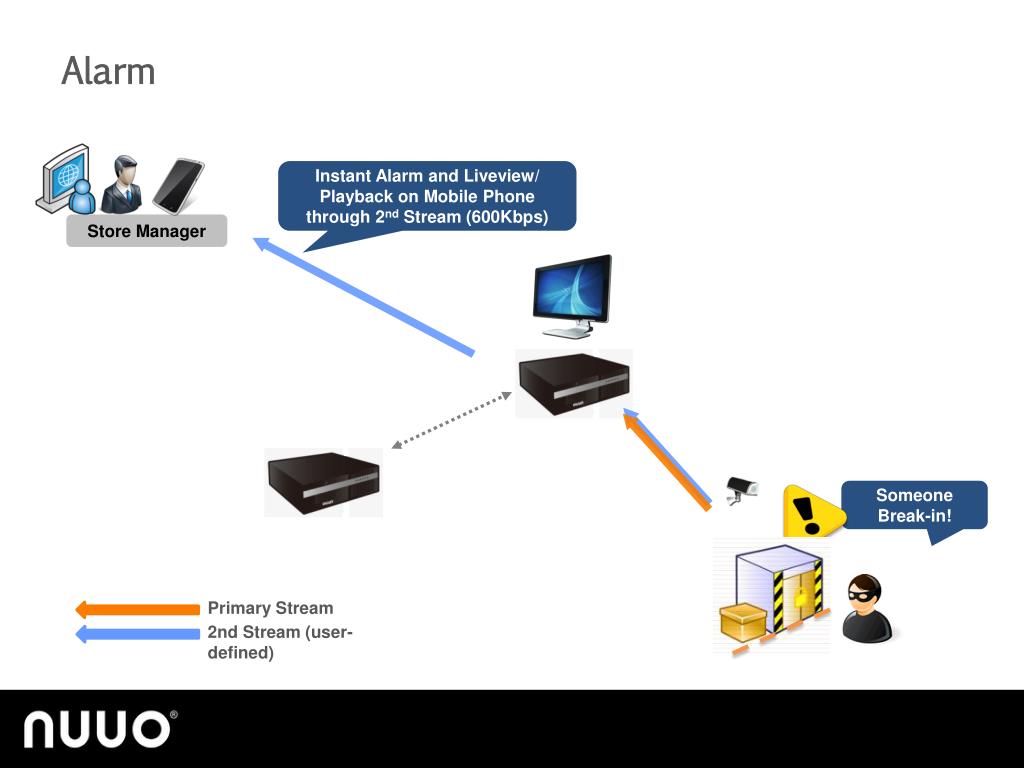

  36. Alarm Instant Alarm and Liveview/ Playback on Mobile Phone through 2nd Stream (600Kbps) Store Manager Someone Break-in! Primary Stream 2nd Stream (user-defined)

  37. Longer Retention Period Camera 1 Dual Stream Recording Camera 2 Store Manager Primary Stream Kept 1 Month & 2nd Stream Kept 3 Months Primary Stream 2nd Stream (user-defined)

  38. After Event Privacy Mask to Protect Unrelated Clients 4-eye Privilege to See Playback IT Manager & Store Manager Primary Stream 2nd Stream (user-defined)

  39. Appendix: Features Highlight

  40. NVRmini2 Secure, Simple , Smart Features Highlight • Embedded Linux platform for more stability • RAID 0,1,5,10 for data security • POS data overlay and storing • Multi stream (Original, 300/500Kbps, 100kbps) for limited-bandwidth remote liveview • Auto-backup to keep data in different sites • Cross browser and mobile phone platforms for remote viewing • Remote full-function setting www.nuuo.com

  41. Features Highlight • Embedded Linux platform for more stability • ezNUUO for no router settings • IP camera auto-setup, simply plug and play • POS data overlay and storing • RAID 0,1,5,10 for data security • Multi stream (Original, 300/500Kbps, 100kbps) for limited-bandwidth remote liveview • Auto-backup to keep data in different sites • Cross browser and mobile phone platforms for remote viewing • Local / remote full-function setting (Local HDMI/VGA display and keyboard/mouse input) NVRSolo Simple, Quick, Efficient www.nuuo.com

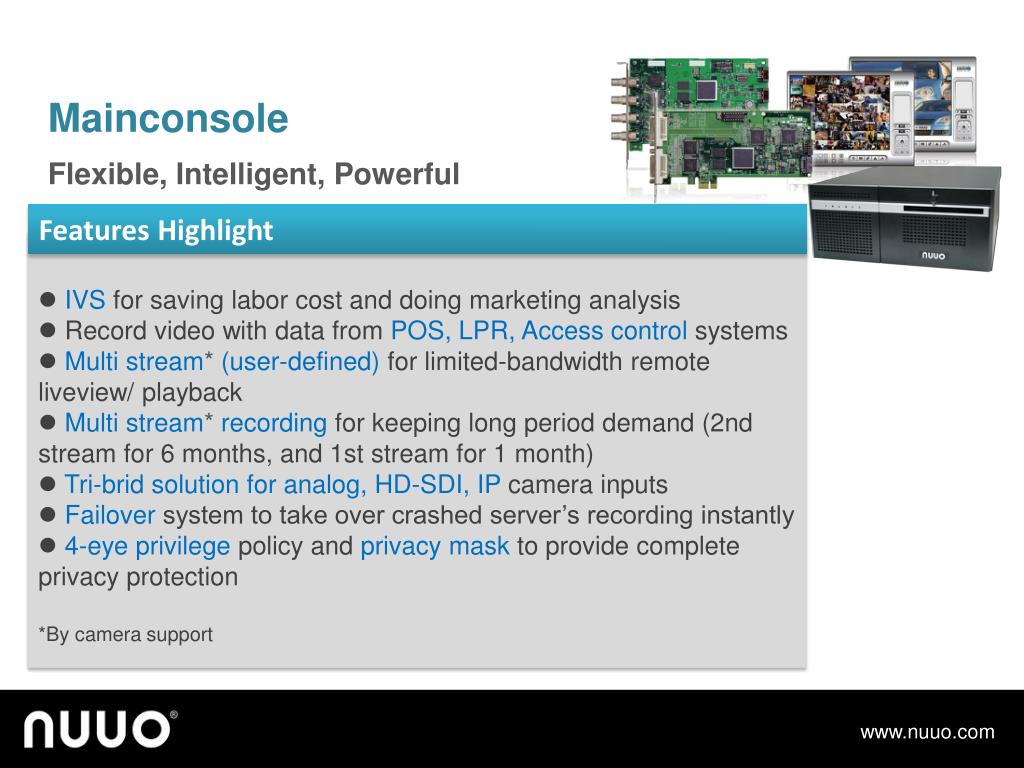

  42. Features Highlight • IVS for saving labor cost and doing marketing analysis • Record video with data from POS, LPR, Access control systems • Multi stream* (user-defined) for limited-bandwidth remote liveview/ playback • Multi stream* recording for keeping long period demand (2nd stream for 6 months, and 1st stream for 1 month) • Tri-brid solution for analog, HD-SDI, IP camera inputs • Failover system to take over crashed server’s recording instantly • 4-eye privilege policy and privacy mask to provide complete privacy protection • *By camera support Mainconsole Flexible, Intelligent, Powerful www.nuuo.com

  43. Features Highlight • Central alarm pop-up and follow-up management • Central video matrix wall from IP+, capture card, NVRmini, and NVRsolo • Central backup alarm recording to secure important data from branches • Multiple layers E-map for instantly find out the branch happening event • Integrate Windows Active Directory for combining security & HR system • 2-way audio to instantly communicate with branches • Record IVS, POS, LPR, Access control data with video from all branches Central Management System (CMS) Sophisticated, Responsive, Unified www.nuuo.com

  44. Thank you www.nuuo.com To apply integration tool, please contact NUUO regional sales or mail to sales@nuuo.com
