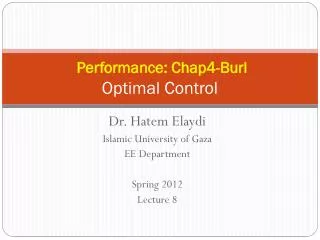

  1. Performance: Chap4-BurlOptimal Control Dr. HatemElaydi Islamic University of Gaza EE Department Spring 2012 Lecture 8

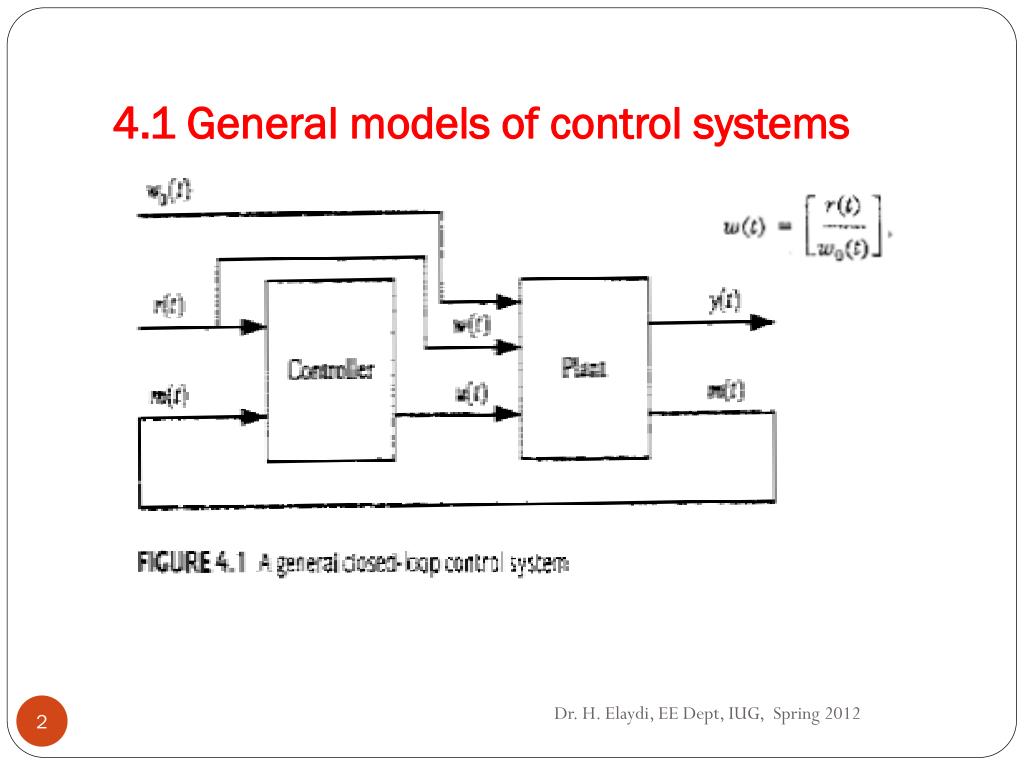

  2. 4.1 General models of control systems Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  3. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  4. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  5. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

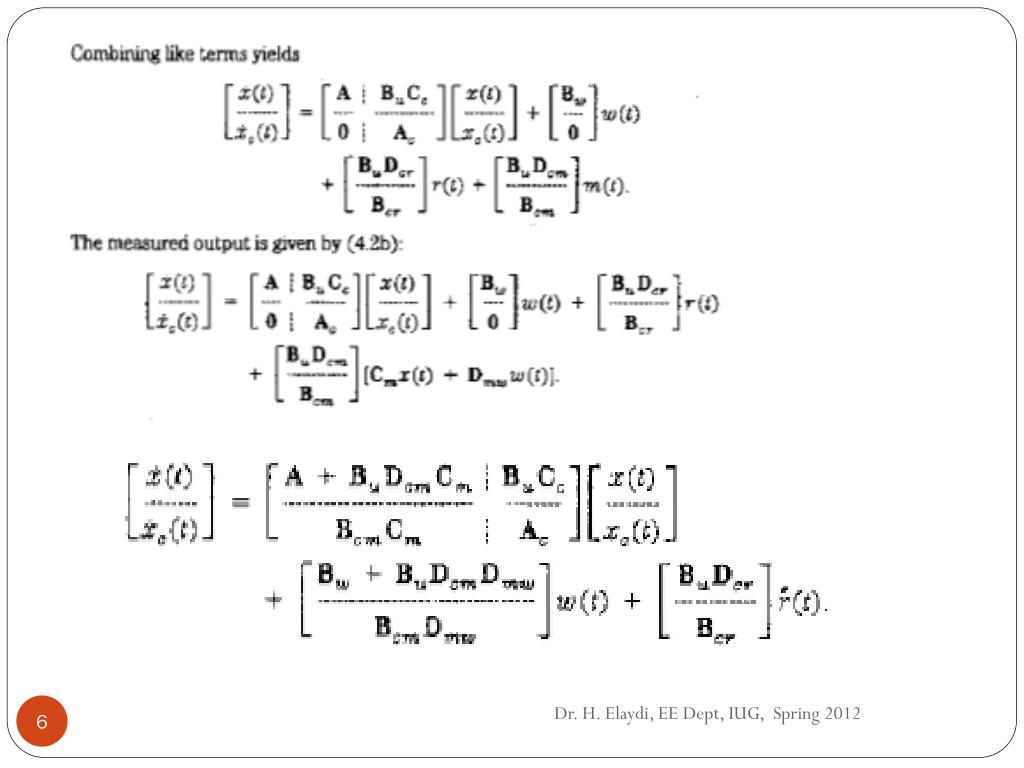

  6. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  7. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  8. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  9. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  10. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

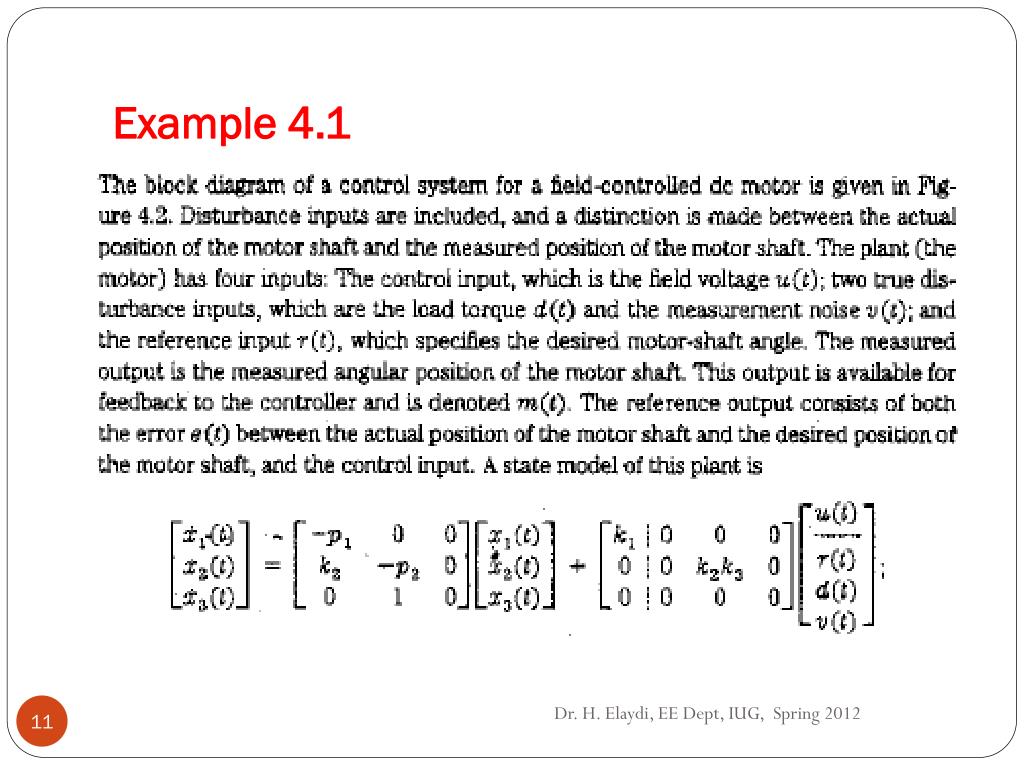

  11. Example 4.1 Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  12. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  13. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  14. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

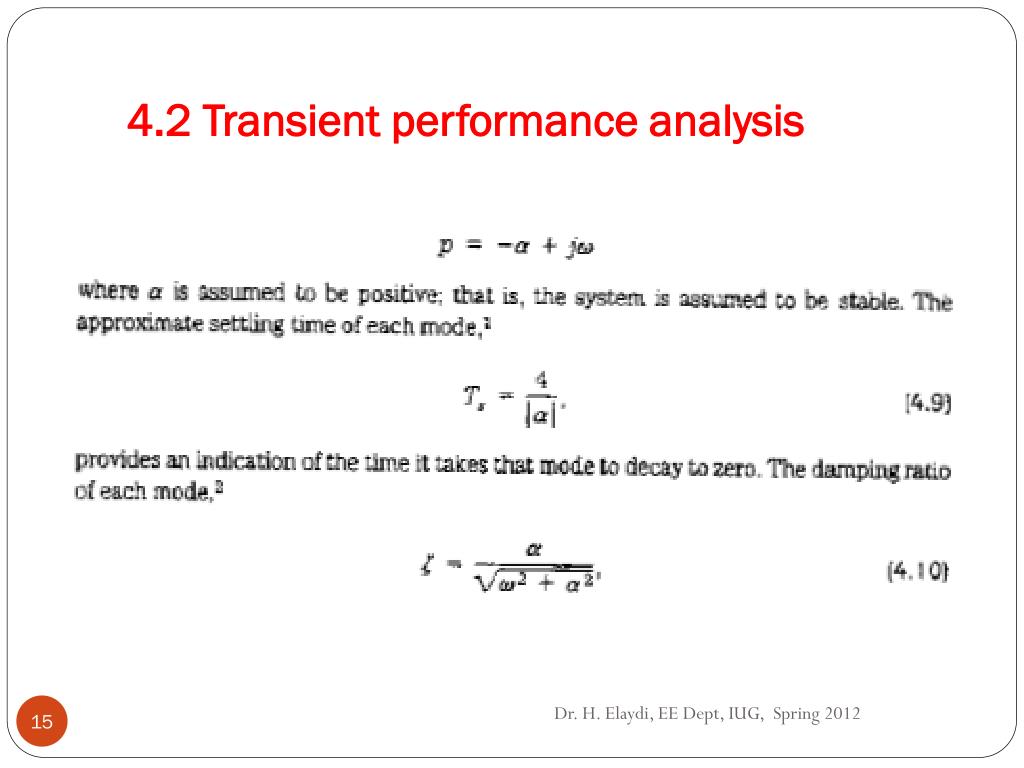

  15. 4.2 Transient performance analysis Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  16. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  17. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

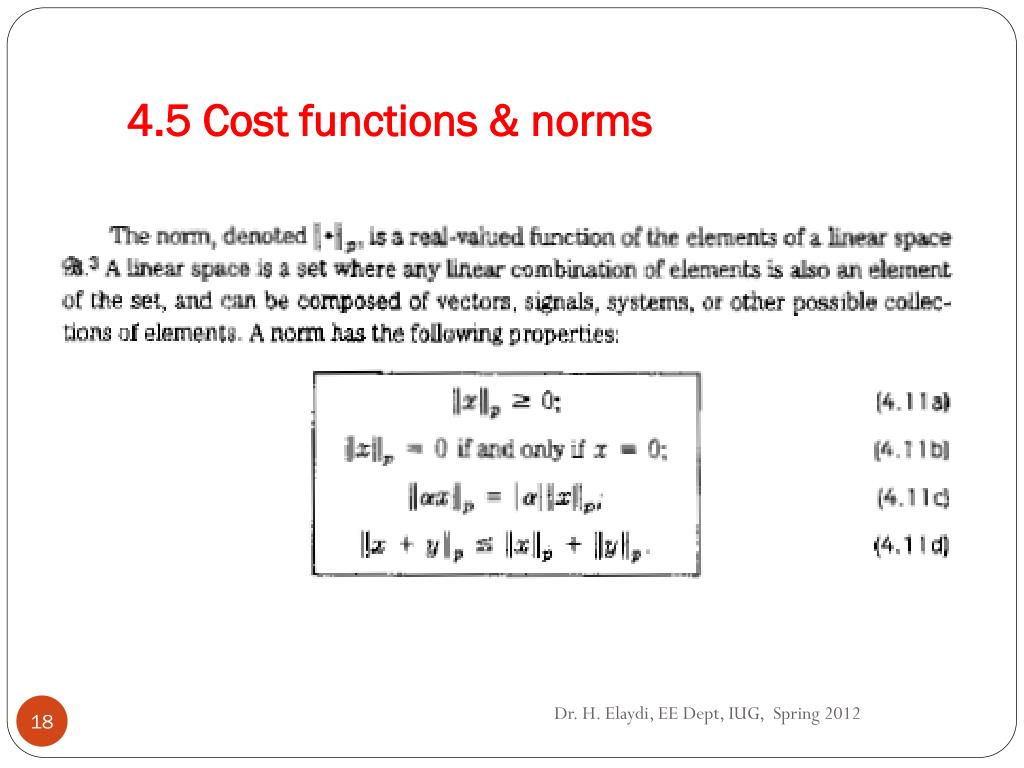

  18. 4.5 Cost functions & norms Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  19. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  20. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  21. Quadratic cost function Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  22. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  23. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  24. Example 4.3 Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  25. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  26. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  27. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

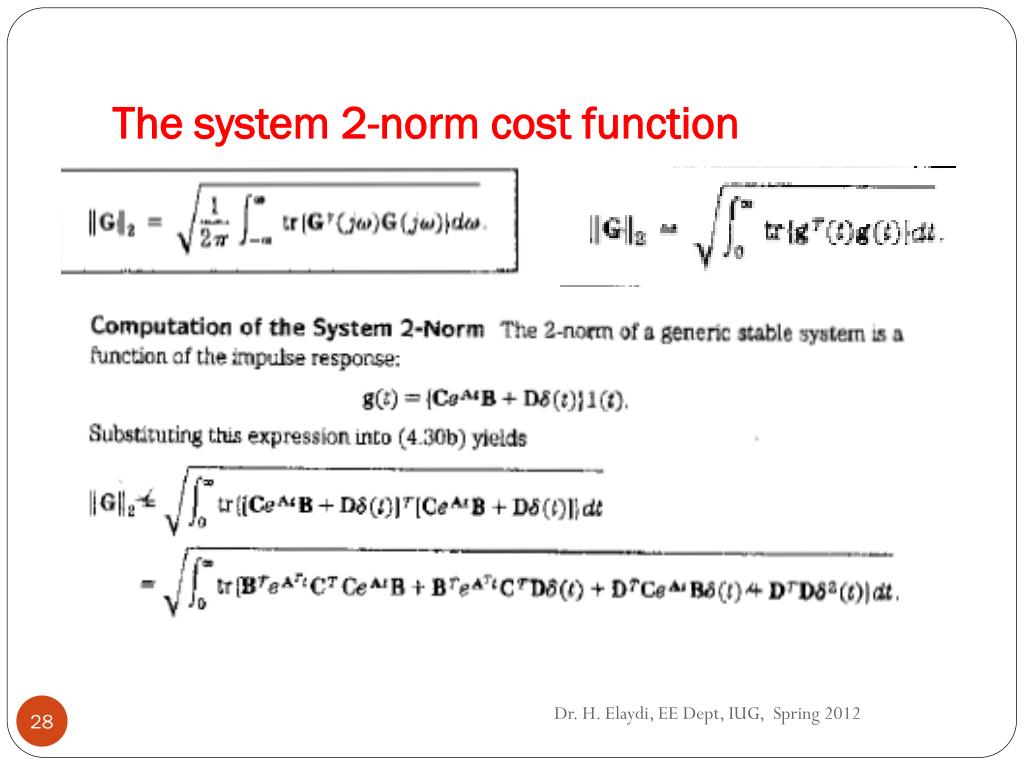

  28. The system 2-norm cost function Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  29. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  30. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  31. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  32. Dr. H. Elaydi, EE Dept, IUG, Spring 2012

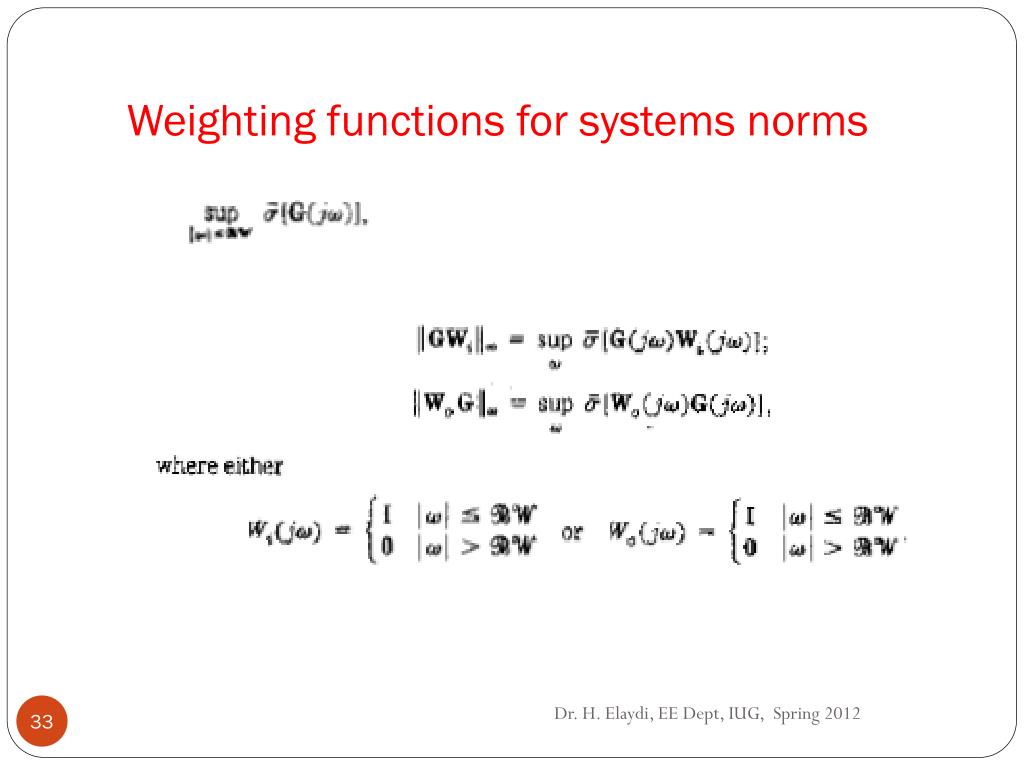

  33. Weighting functions for systems norms Dr. H. Elaydi, EE Dept, IUG, Spring 2012

  34. HW Dr. H. Elaydi, EE Dept, IUG, Spring 2012 4.2 4.4 4.7 Comp Exer. 4.1
