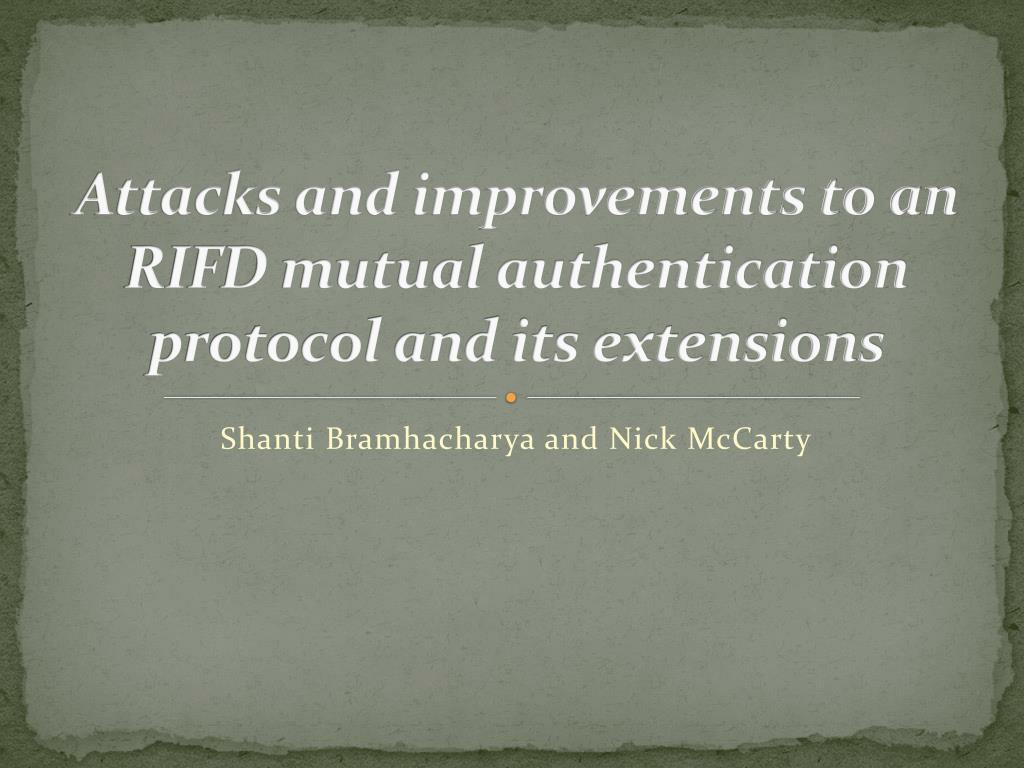

  1. Attacks and improvements to an RIFD mutual authentication protocol and its extensions ShantiBramhacharya and Nick McCarty

  2. Introduction • This paper deals with the vulnerability of RFIDs • A Radio Frequency Identifier or RFID is a small device used to claim ownership and keep track of many things, including livestock, credit cards, luggage tags, and libraries, even your Hiram ID. • The entire system is comprised of the tags themselves, a reader whose type depends on the application of the tag, and a server.

  3. Problem • Since these devices need to operate rapidly and wirelessly they aren't very secure. • Some possible techniques of these attacks include interception, de-synchronization, impersonation, tracking, and replaying. • These techniques can result in a wide variety of issues ranging from denial of service to outright theft.

  4. Previous Attempts • Song and Mitchell’s Mutual Authentication Protocol • Song’s Ownership Transfer Protocol

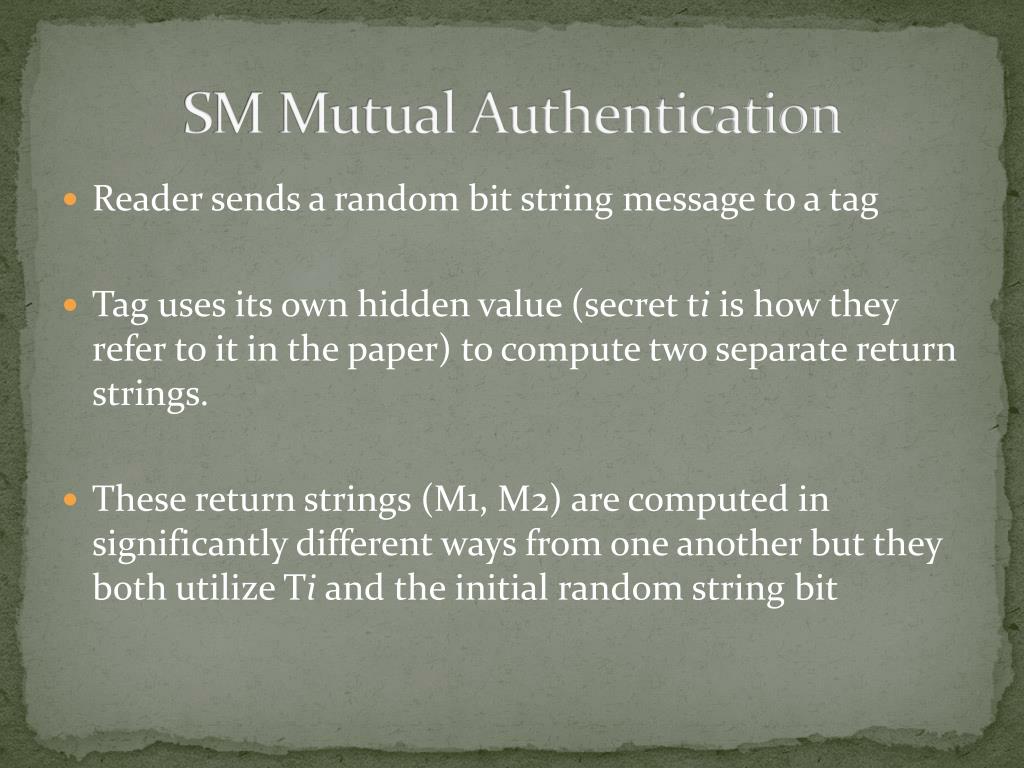

  5. SM Mutual Authentication • Reader sends a random bit string message to a tag • Tag uses its own hidden value (secret ti is how they refer to it in the paper) to compute two separate return strings. • These return strings (M1, M2) are computed in significantly different ways from one another but they both utilize Ti and the initial random string bit

  6. SM Continued • The value (M1, M2) is then sent to the reader • Reader sends along the message (r, M1, M2) to the database server with r being the reader’s randomly created string. • The Server then searches its database for a match and if it is found it tells the reader that yes the current tag is valid and sends all the information it has on it.

  7. SM Continued • In addition, the server also creates a new message(M3) with the random number generator r2 that the tag used to create M1 and M2. • The reader then forwards M3 to the tag which uses the message to create a new secret ti so that each time a tag is identified it will mutate.

  8. Song’s Ownership Transfer • Comprised of two parts • Ownership Sharing Protocol • Works the same as SM except for one thing • When a server finds a match it sends the confirm and new secret ti to two readers (Sj and Sj+1) so that two “owners” are updated.

  9. Song’s Continued • Secret Update Protocol • Sj+1, in order to hide its identify from Sj, then creates a new secret ti that it updates the previously (no longer) shared tag with. • Sj+1 still not anonymous because Sj could derive the new ti by eavesdropping. • Sj+1 needs to successfully identify the tag one more time after this in order to apply a ti that was created solely within its system

  10. Security Proterties SM • Tag information privacy • Tag location privacy • Resistance to tag impersonation attack • Resistant to replay attack • Resistance to denial of service attack • Forward and backward security • Resistance to server impersonation attack Song • Old owner privacy • New owner privacy • Authorization recovery

  11. Specific Problems • Attacks that work against SM and Song as they exist: • Server Impersonation(SM) • User impersonates a server and gains information on both readers and tags • Tag Impersonation(SM) • User impersonates a tag within a system and gains access to the algorithms that generate ti, and a platform from which many other attacks may be launched. • De-Synchronization(Song) • User intercepts the reader to server message of (r1, M1, M2) so that it does not receive the message. • It then impersonates reader and sends a fake (r1, M1, M2) message so that the tags ti is updated to a value that will not be recognized by the server to which it rightfully belongs.

  12. Solution • The authors of this paper claim that the main security weaknesses in these protocols exist in their use of circular bit shifting, and xor gates. • SM Solution • M2 on the tag side utilizes a concatenation of r1 and r2 rather than an xor gate. • M2 on the server side utilizes a concatenation of r1 and M1 rather than an xor gate. • M3 uses an xor gate instead of a circular shift of k bits

  13. Solution Continued • Song Solution • Takes place in the creation of a new ti by Sj+1 • Rather than simply shifting bits to create a new server side M2, it uses a dynamic hash function • Instead of M2 on the tag side using a shift bit it uses an xor gate and the same hash function as prior.

  14. Findings • F denotes a computationally complex function such as hash and key hash • K denotes integer between 1 and 2N • Reducing hash tables to reduce cost increases level of vulnerabilities • Investigation of lower bound remains interesting

  15. Level of Success Proof • Two protocols with desired security properties • Vulnerable to series of active attacks Proposed revised protocols • to eliminate vulnerabilities without violation of any other security properties • Whose storage and computational requirements are comparable to existing solutions Future work • Give formal proof their proposed revised protocol • Finding the lower bounds for tags computational requirements for secure RFID communications
