  1. ASP.NET 網頁製作教本 – 從基本語法學起 第 16 章 線上投票、線上問卷調查

  2. 16-1 線上投票

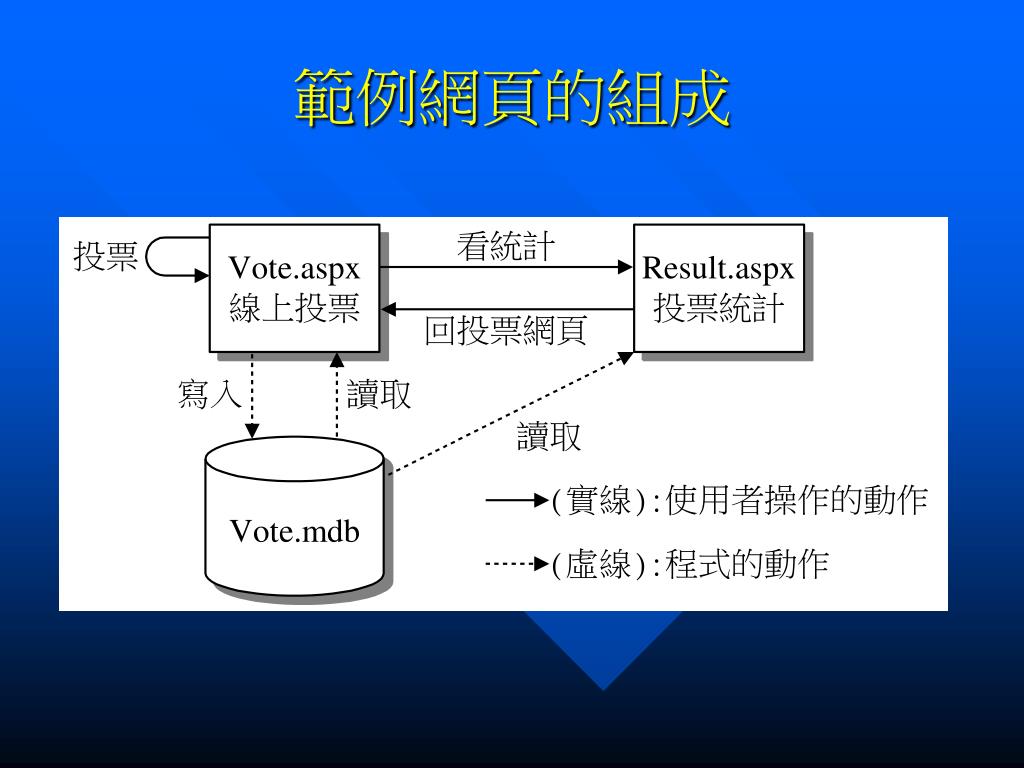

  3. 範例網頁的組成

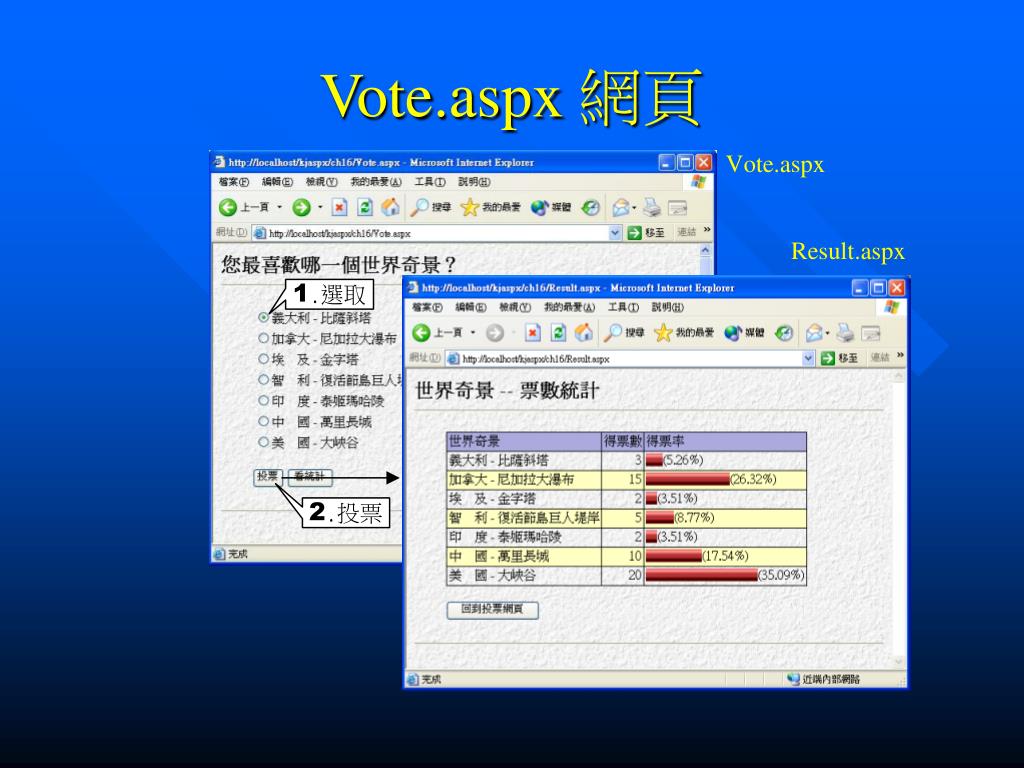

  4. Vote.aspx 網頁

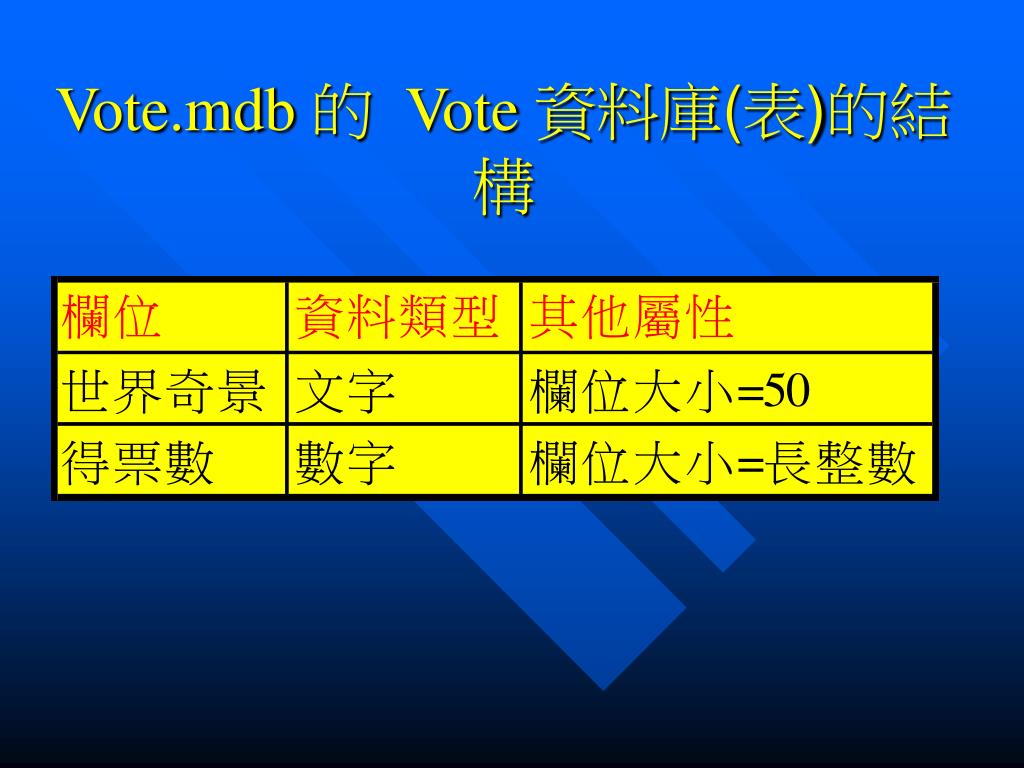

  5. Vote.mdb 的 Vote 資料庫(表)的結構

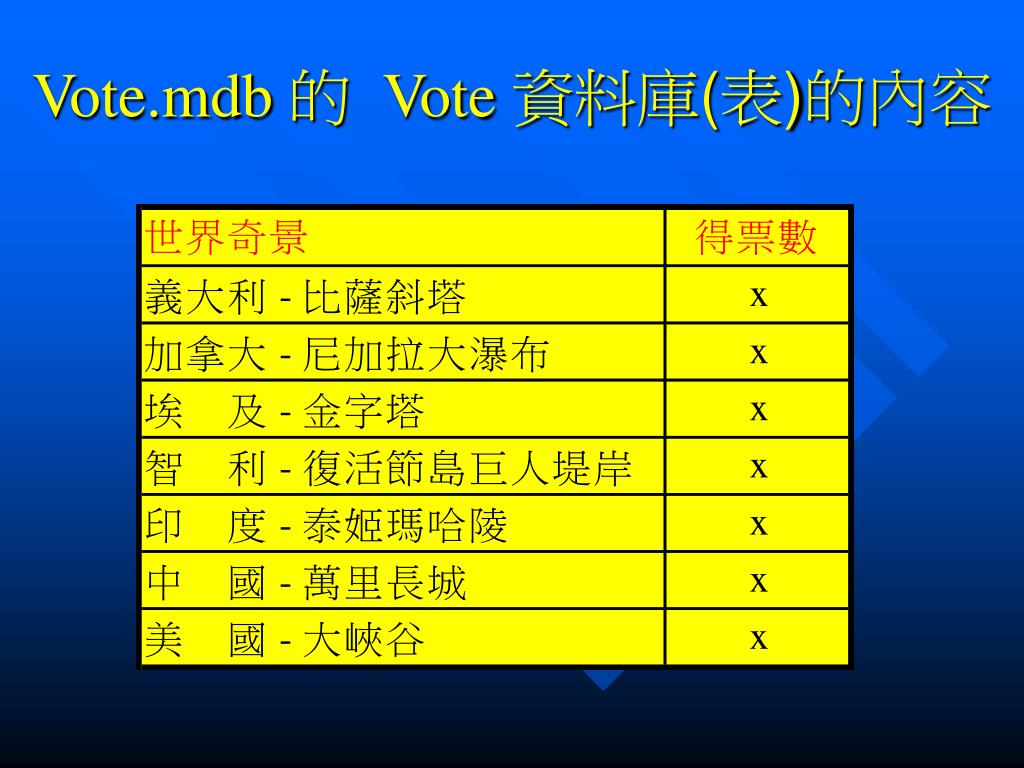

  6. Vote.mdb 的 Vote 資料庫(表)的內容

  7. 比例橫條圖的顯示

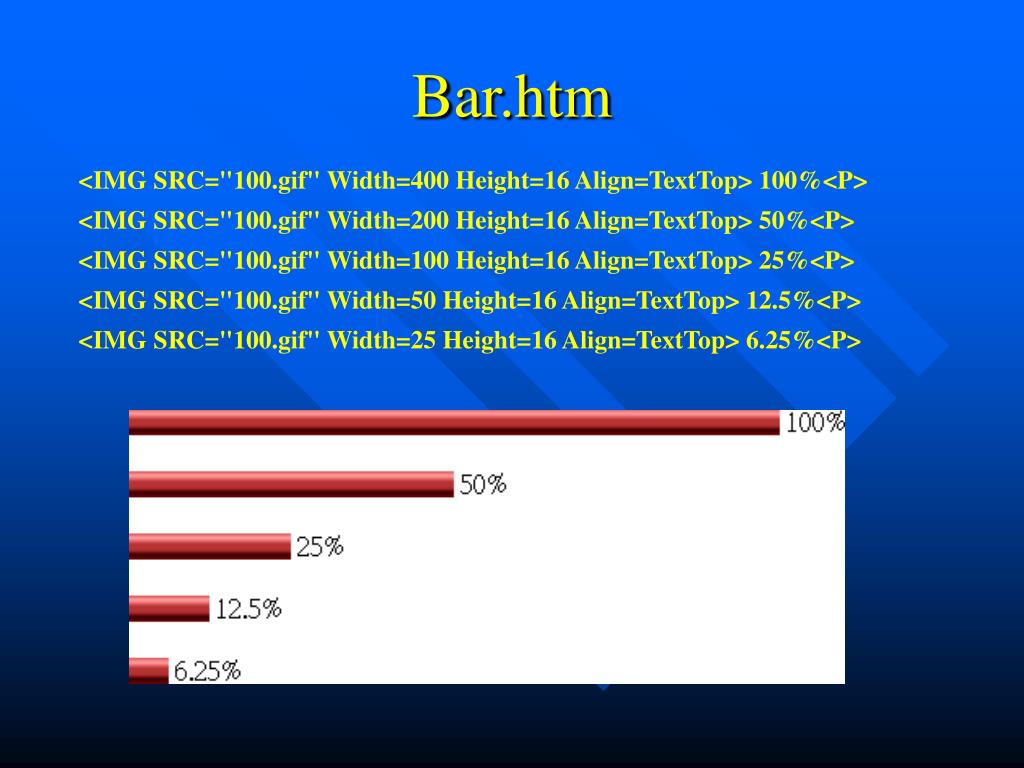

  8. Bar.htm <IMG SRC="100.gif" Width=400 Height=16 Align=TextTop> 100%<P><IMG SRC="100.gif" Width=200 Height=16 Align=TextTop> 50%<P><IMG SRC="100.gif" Width=100 Height=16 Align=TextTop> 25%<P><IMG SRC="100.gif" Width=50 Height=16 Align=TextTop> 12.5%<P><IMG SRC="100.gif" Width=25 Height=16 Align=TextTop> 6.25%<P>

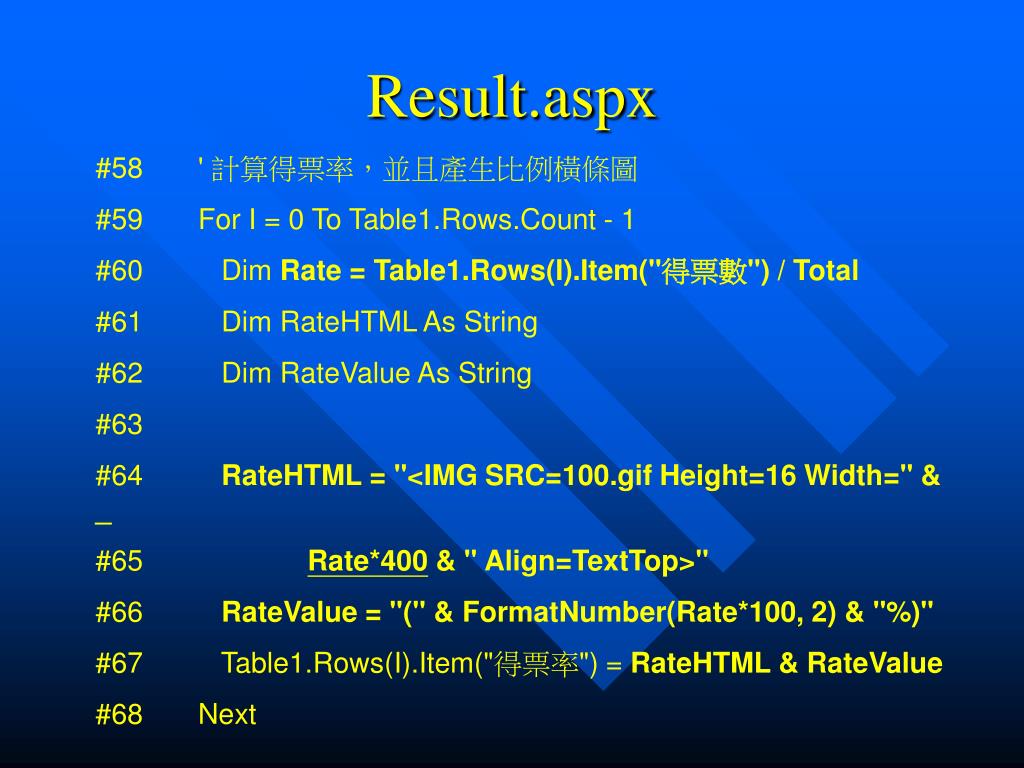

  9. Result.aspx #58 ' 計算得票率，並且產生比例橫條圖 #59 For I = 0 To Table1.Rows.Count - 1 #60 Dim Rate = Table1.Rows(I).Item("得票數") / Total #61 Dim RateHTML As String #62 Dim RateValue As String #63 #64 RateHTML = "<IMG SRC=100.gif Height=16 Width=" & _ #65 Rate*400 & " Align=TextTop>" #66 RateValue = "(" & FormatNumber(Rate*100, 2) & "%)" #67 Table1.Rows(I).Item("得票率") = RateHTML & RateValue #68 Next

  10. 動態產生選項 #29 Dim Conn As OleDbConnection, Cmd As OleDbCommand #30 Dim Rd As OleDbDataReader, SQL As String #31 #32 Conn = New OleDbConnection( Provider & ";" & DataBase ) #33 Conn.Open() #34 SQL = "Select * From Vote" #35 Cmd = New OleDbCommand( SQL, Conn ) #36 Rd = Cmd.ExecuteReader() #37 #38 While Rd.Read() #39 Candidate.Items.Add( Rd.Item(“世界奇景”) ) #40 End While #41 Conn.Close()

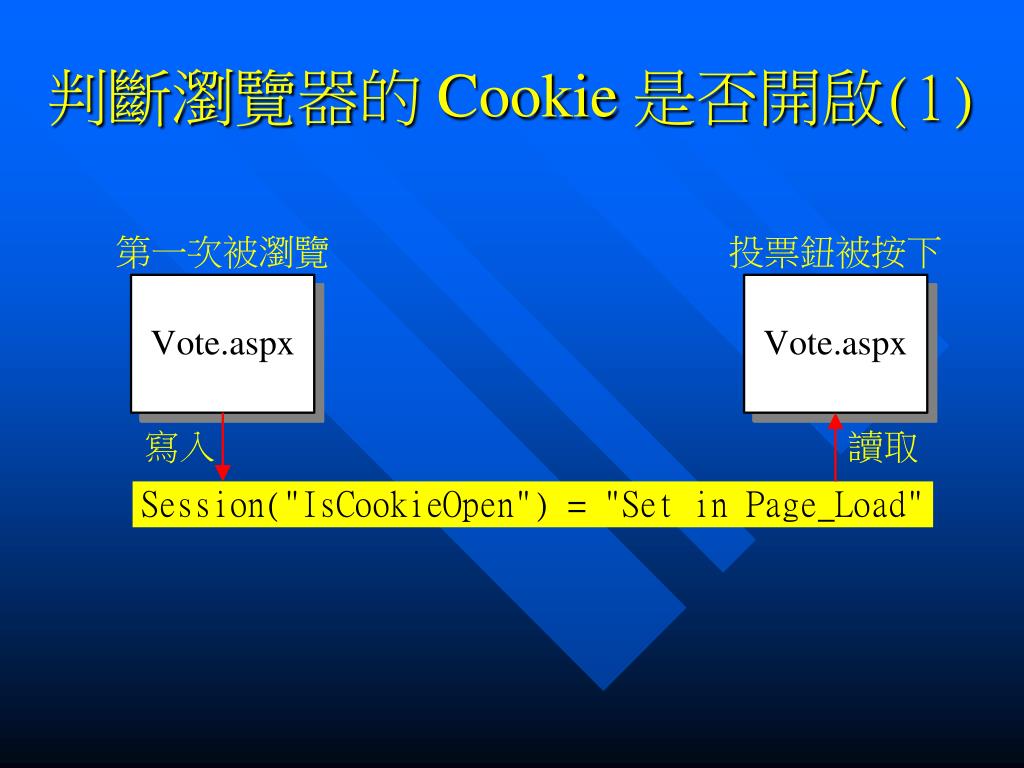

  11. 判斷瀏覽器的Cookie 是否開啟(1)

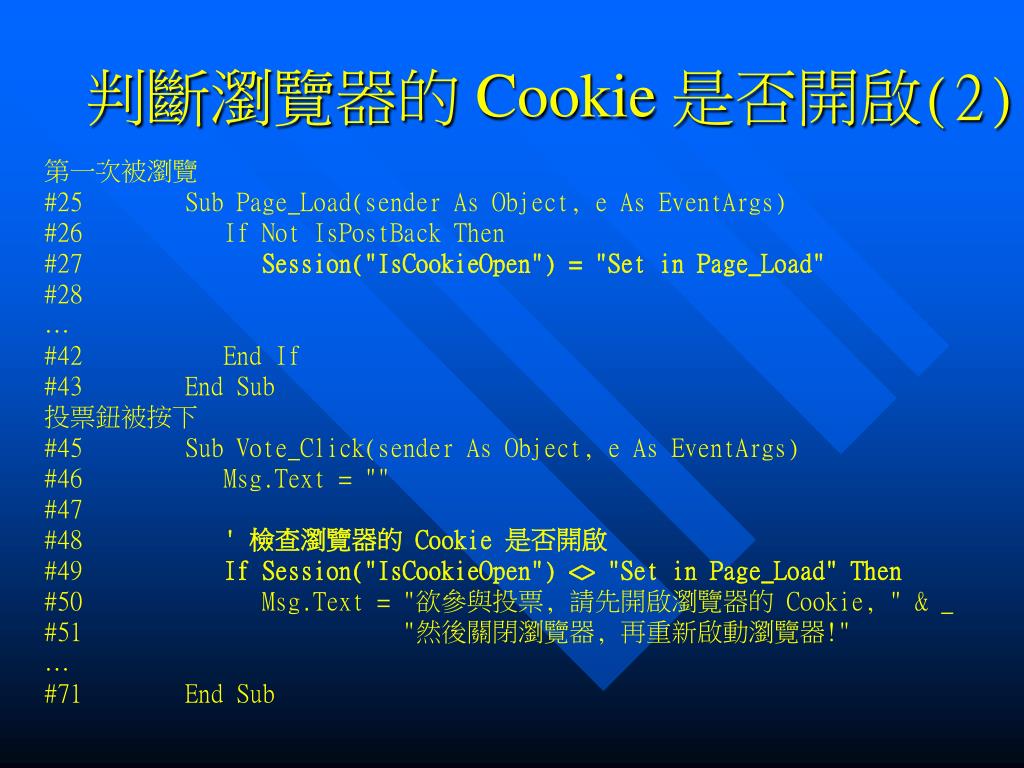

  12. 判斷瀏覽器的Cookie 是否開啟(2) 第一次被瀏覽 #25 Sub Page_Load(sender As Object, e As EventArgs) #26 If Not IsPostBack Then #27 Session("IsCookieOpen") = "Set in Page_Load" #28 … #42 End If #43 End Sub 投票鈕被按下 #45 Sub Vote_Click(sender As Object, e As EventArgs) #46 Msg.Text = "" #47 #48 ' 檢查瀏覽器的 Cookie 是否開啟 #49 If Session("IsCookieOpen") <> "Set in Page_Load" Then #50 Msg.Text = "欲參與投票, 請先開啟瀏覽器的 Cookie, " & _ #51 "然後關閉瀏覽器, 再重新啟動瀏覽器!" … #71 End Sub

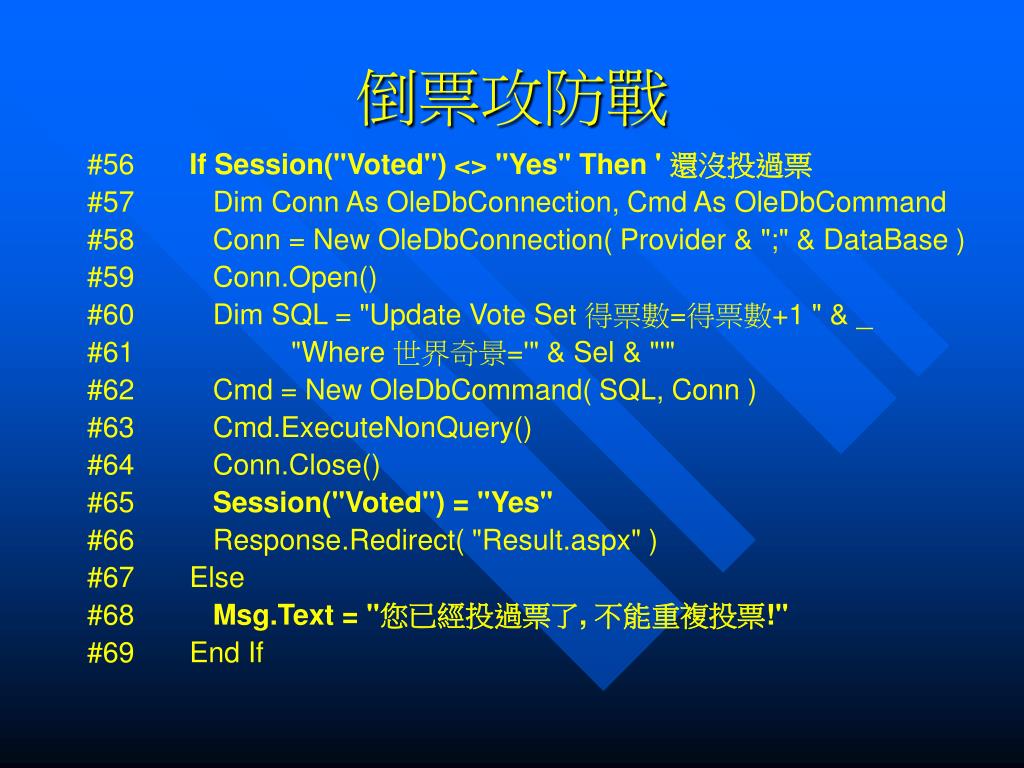

  13. 倒票攻防戰 #56 If Session("Voted") <> "Yes" Then ' 還沒投過票 #57 Dim Conn As OleDbConnection, Cmd As OleDbCommand #58 Conn = New OleDbConnection( Provider & ";" & DataBase ) #59 Conn.Open() #60 Dim SQL = "Update Vote Set 得票數=得票數+1 " & _ #61 "Where 世界奇景='" & Sel & "'" #62 Cmd = New OleDbCommand( SQL, Conn ) #63 Cmd.ExecuteNonQuery() #64 Conn.Close() #65 Session("Voted") = "Yes" #66 Response.Redirect( "Result.aspx" ) #67 Else #68 Msg.Text = "您已經投過票了, 不能重複投票!" #69 End If

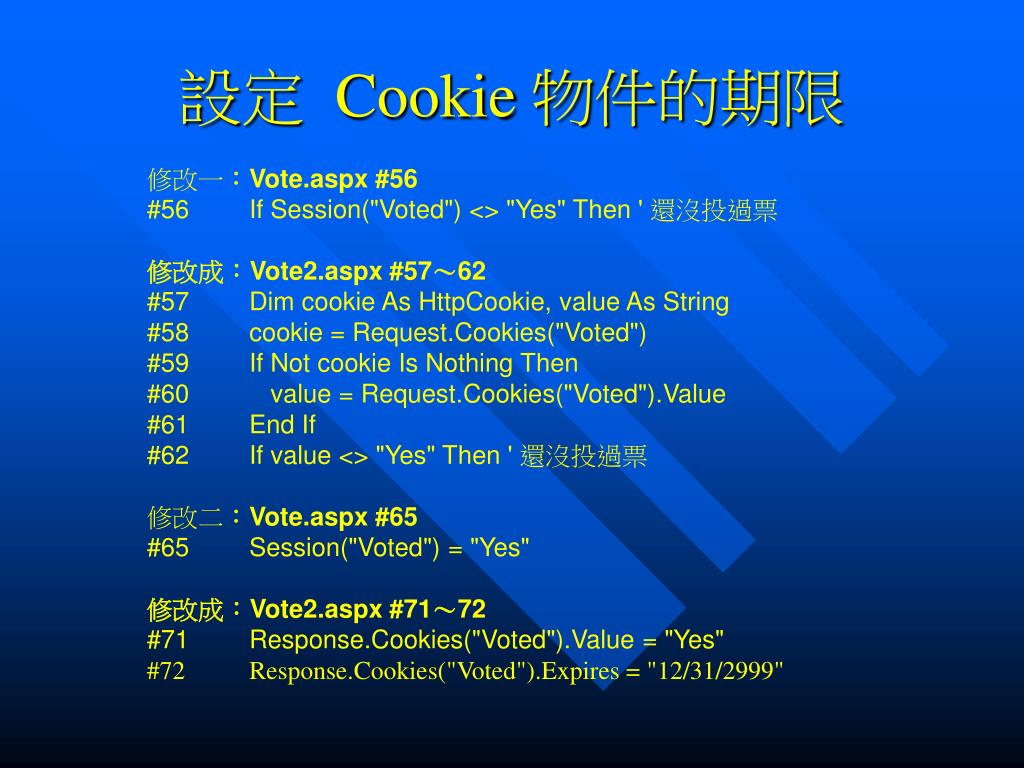

  14. 設定 Cookie 物件的期限 修改一：Vote.aspx #56 #56 If Session("Voted") <> "Yes" Then ' 還沒投過票 修改成：Vote2.aspx #57～62 #57 Dim cookie As HttpCookie, value As String #58 cookie = Request.Cookies("Voted") #59 If Not cookie Is Nothing Then #60 value = Request.Cookies("Voted").Value #61 End If #62 If value <> "Yes" Then ' 還沒投過票 修改二：Vote.aspx #65 #65 Session("Voted") = "Yes" 修改成：Vote2.aspx #71～72 #71 Response.Cookies("Voted").Value = "Yes" #72 Response.Cookies("Voted").Expires = "12/31/2999"

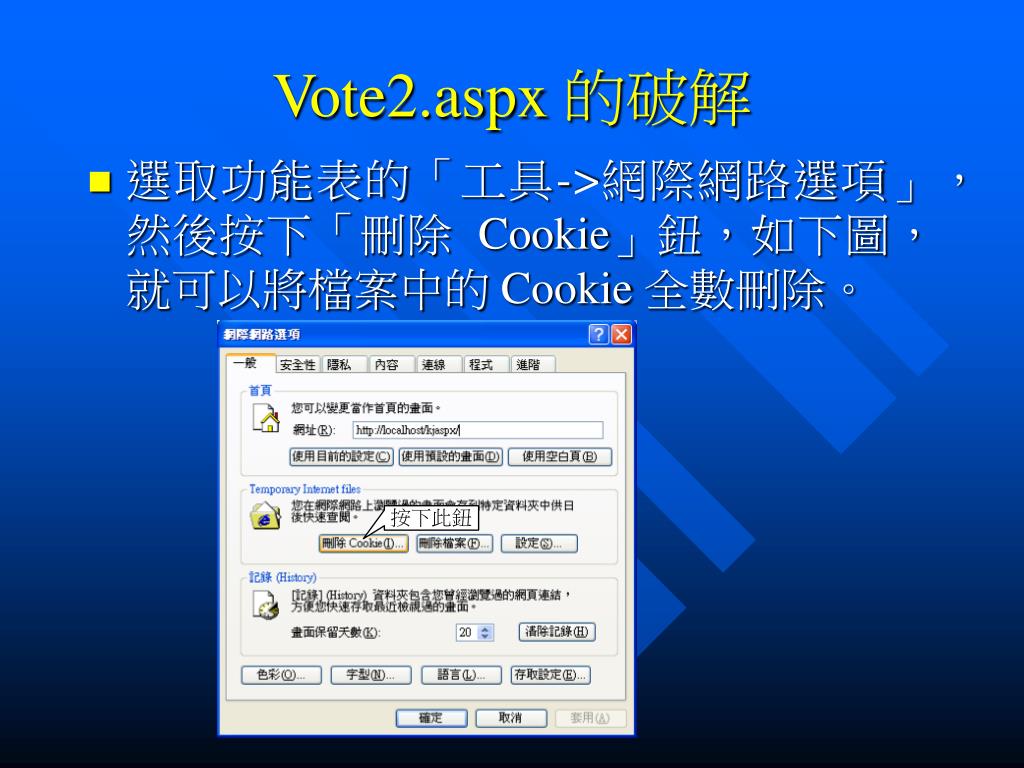

  15. Vote2.aspx 的破解 • 選取功能表的「工具->網際網路選項」，然後按下「刪除 Cookie」鈕，如下圖，就可以將檔案中的 Cookie 全數刪除。

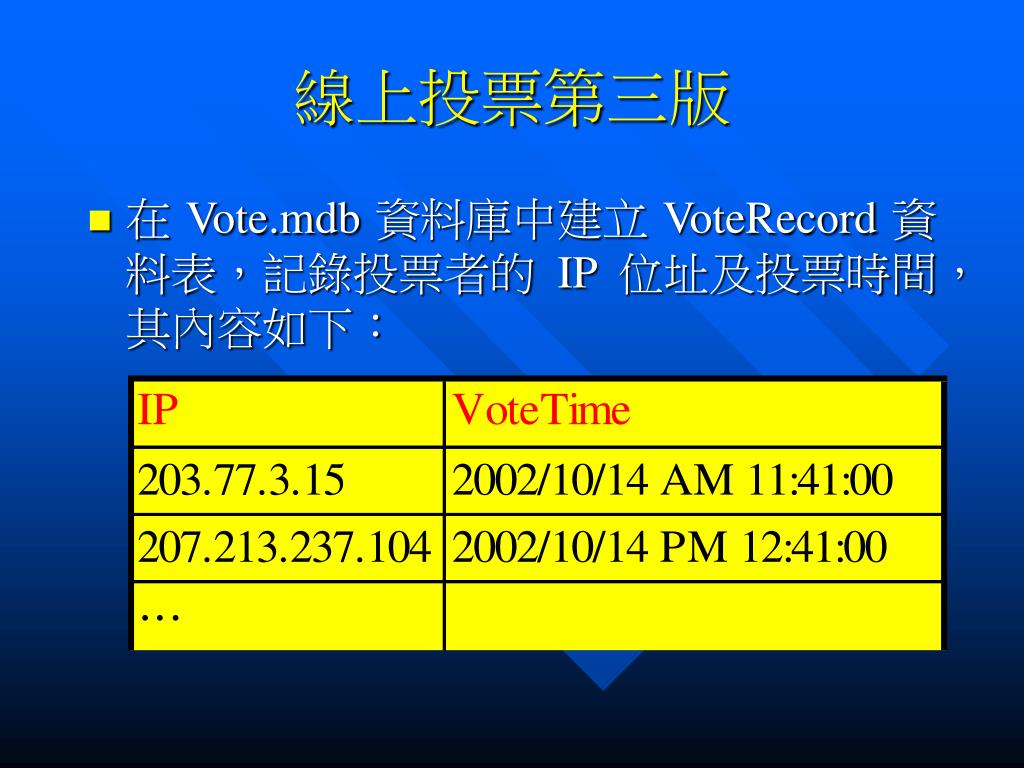

  16. 線上投票第三版 • 在 Vote.mdb 資料庫中建立 VoteRecord 資料表，記錄投票者的 IP 位址及投票時間，其內容如下：

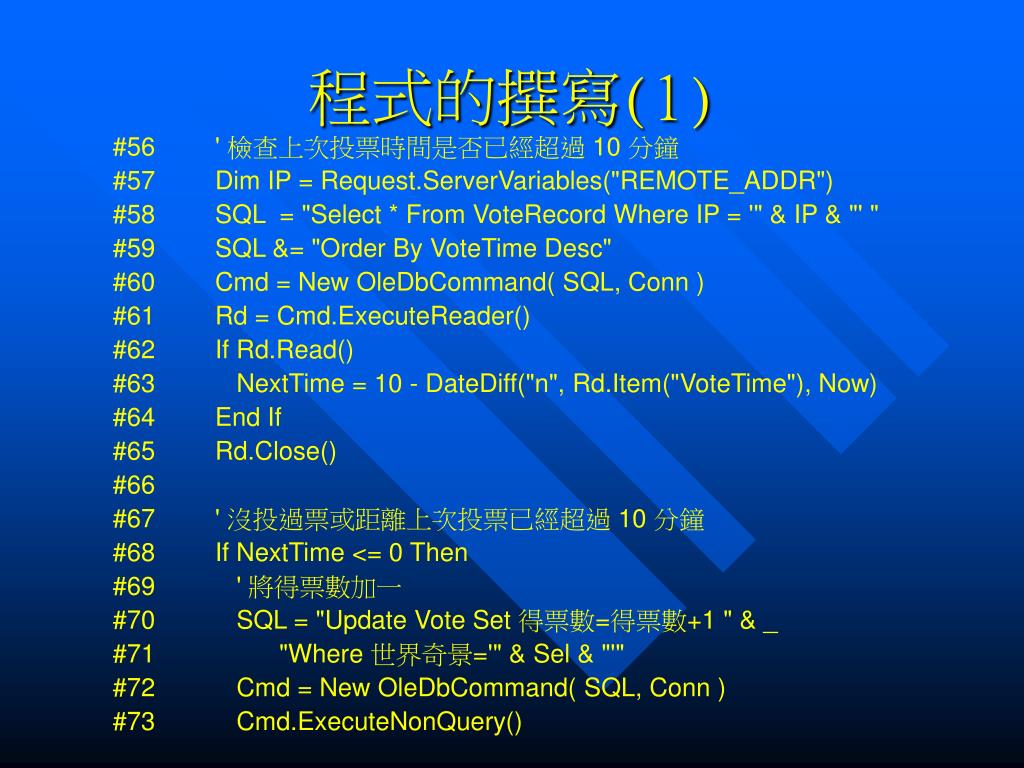

  17. 程式的撰寫(1) #56 ' 檢查上次投票時間是否已經超過 10 分鐘 #57 Dim IP = Request.ServerVariables("REMOTE_ADDR") #58 SQL = "Select * From VoteRecord Where IP = '" & IP & "' " #59 SQL &= "Order By VoteTime Desc" #60 Cmd = New OleDbCommand( SQL, Conn ) #61 Rd = Cmd.ExecuteReader() #62 If Rd.Read() #63 NextTime = 10 - DateDiff("n", Rd.Item("VoteTime"), Now) #64 End If #65 Rd.Close() #66 #67 ' 沒投過票或距離上次投票已經超過 10 分鐘 #68 If NextTime <= 0 Then #69 ' 將得票數加一 #70 SQL = "Update Vote Set 得票數=得票數+1 " & _ #71 "Where 世界奇景='" & Sel & "'" #72 Cmd = New OleDbCommand( SQL, Conn ) #73 Cmd.ExecuteNonQuery()

  18. 程式的撰寫(2) #74 #75 ' 記錄 IP 及 投票時間 #76 Dim Tm = Format(Now(), "MM/dd/yyyy HH:mm:ss") #77 SQL = "Insert Into VoteRecord (IP, VoteTime) " & _ #78 "Values ('" & IP & "', #" & Tm & "#)" #79 Cmd = New OleDbCommand( SQL, Conn ) #80 Cmd.ExecuteNonQuery() #81 #82 Response.Redirect( "Result3.aspx" ) #83 Else #84 Msg.Text = "您已經投過票了, 不能重複投票!" #85 End If

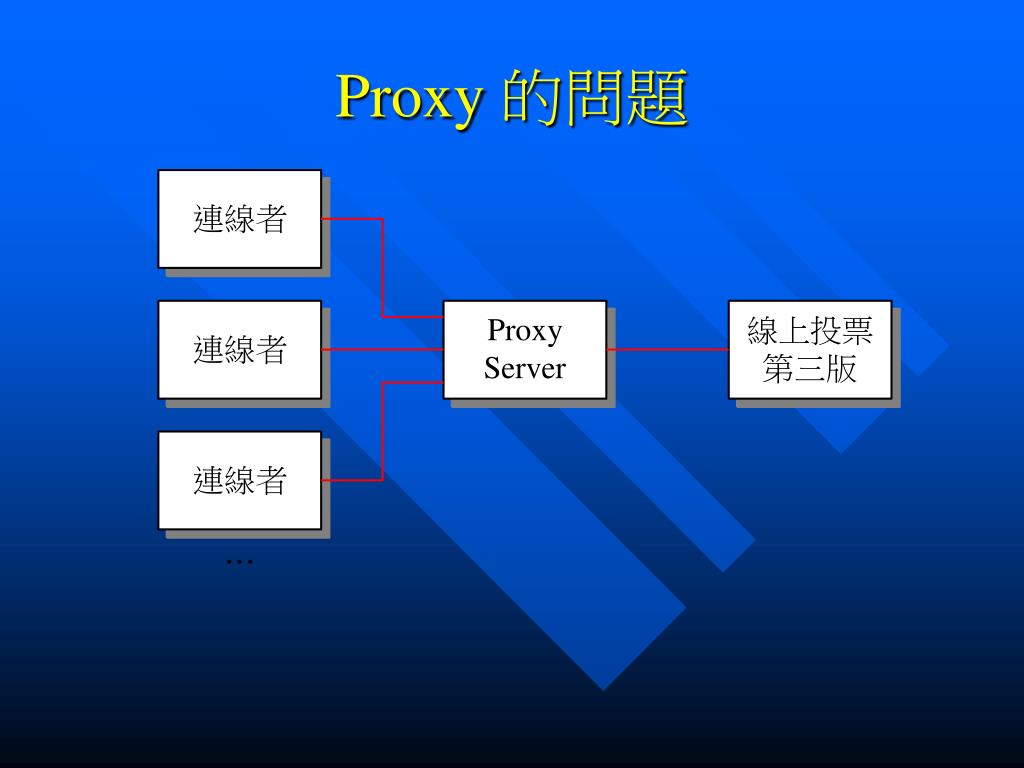

  19. Proxy 的問題

  20. 16-2 線上問卷調查

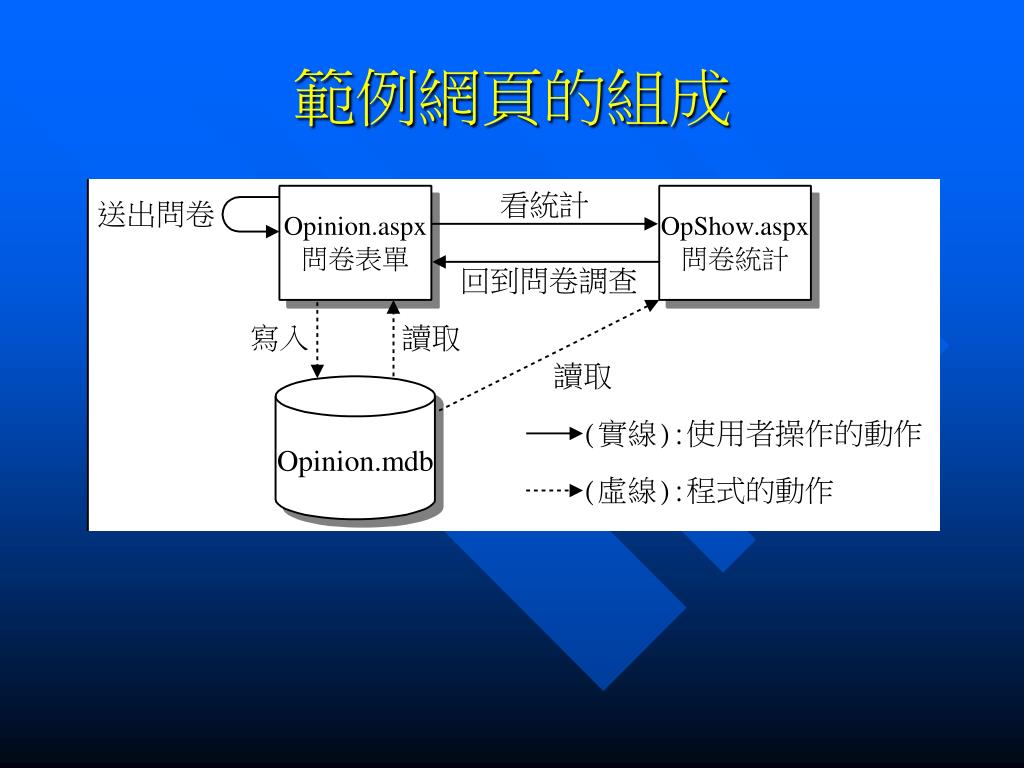

  21. 範例網頁的組成

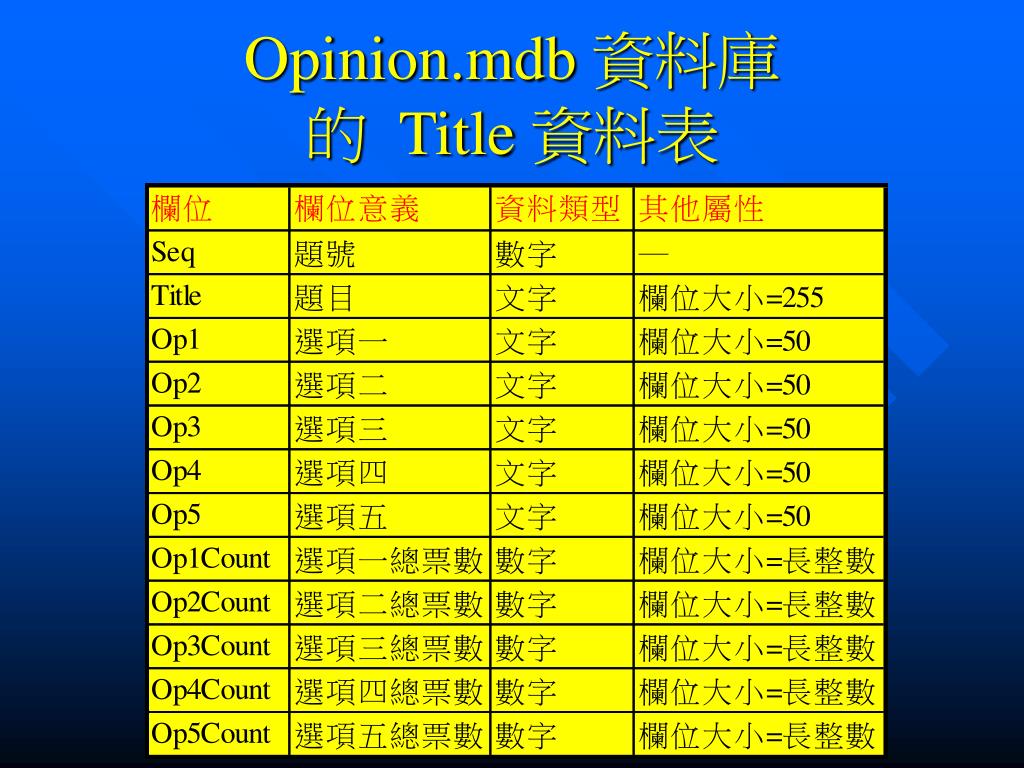

  22. Opinion.mdb 資料庫的 Title 資料表

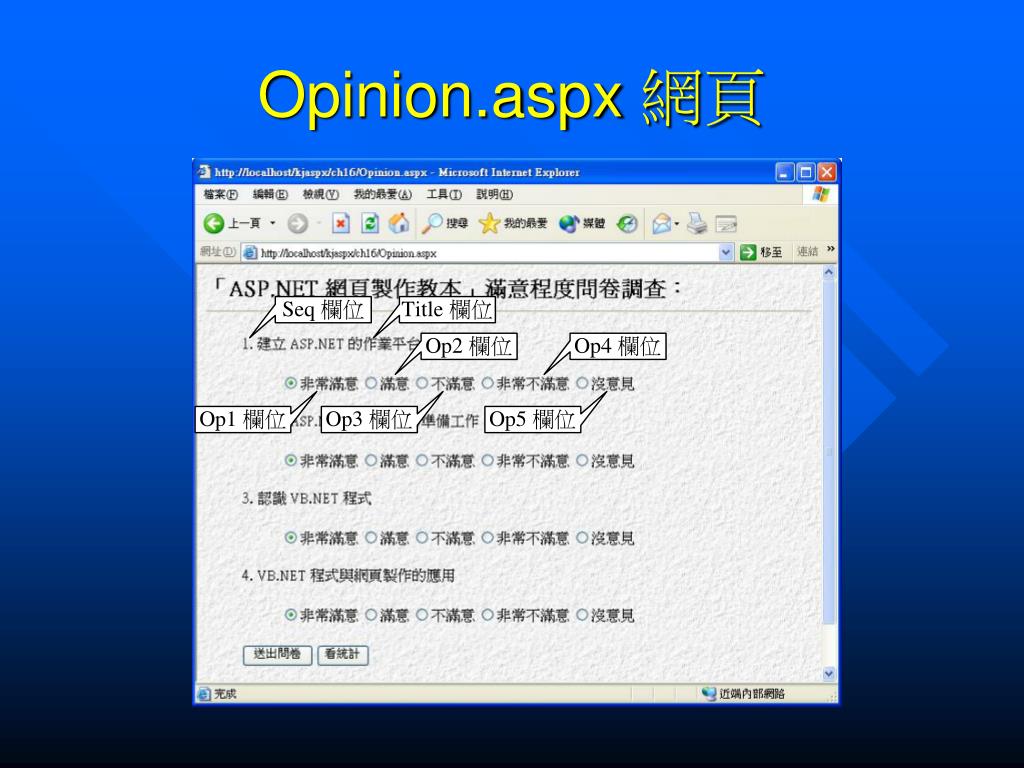

  23. Opinion.aspx 網頁

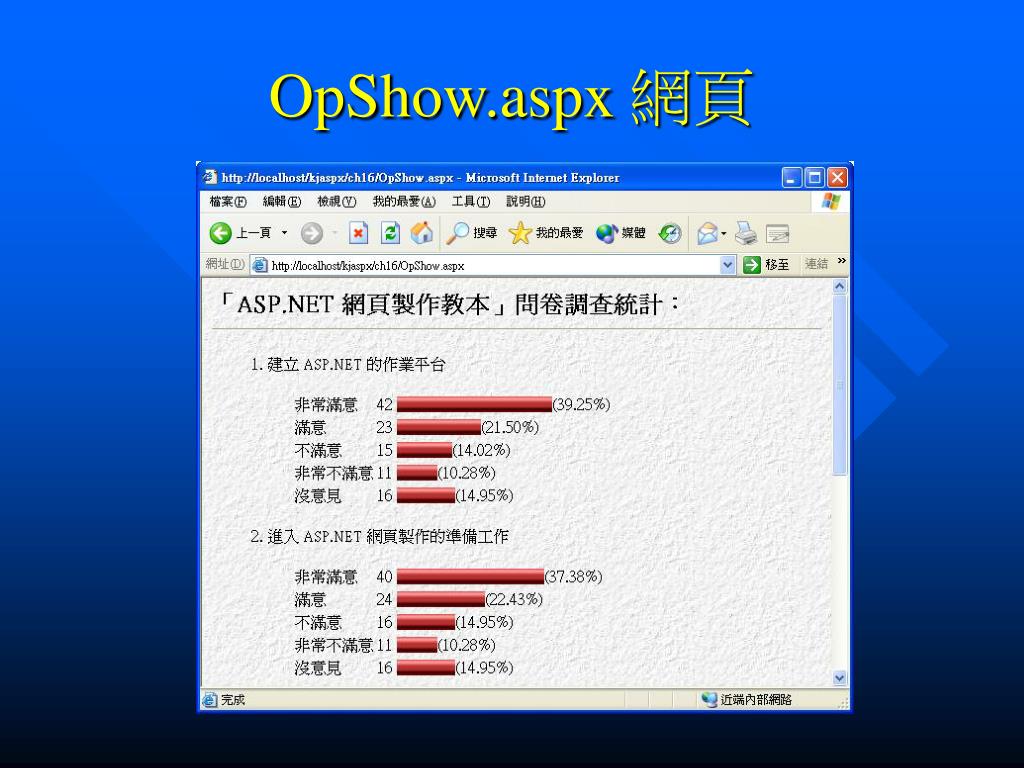

  24. OpShow.aspx 網頁

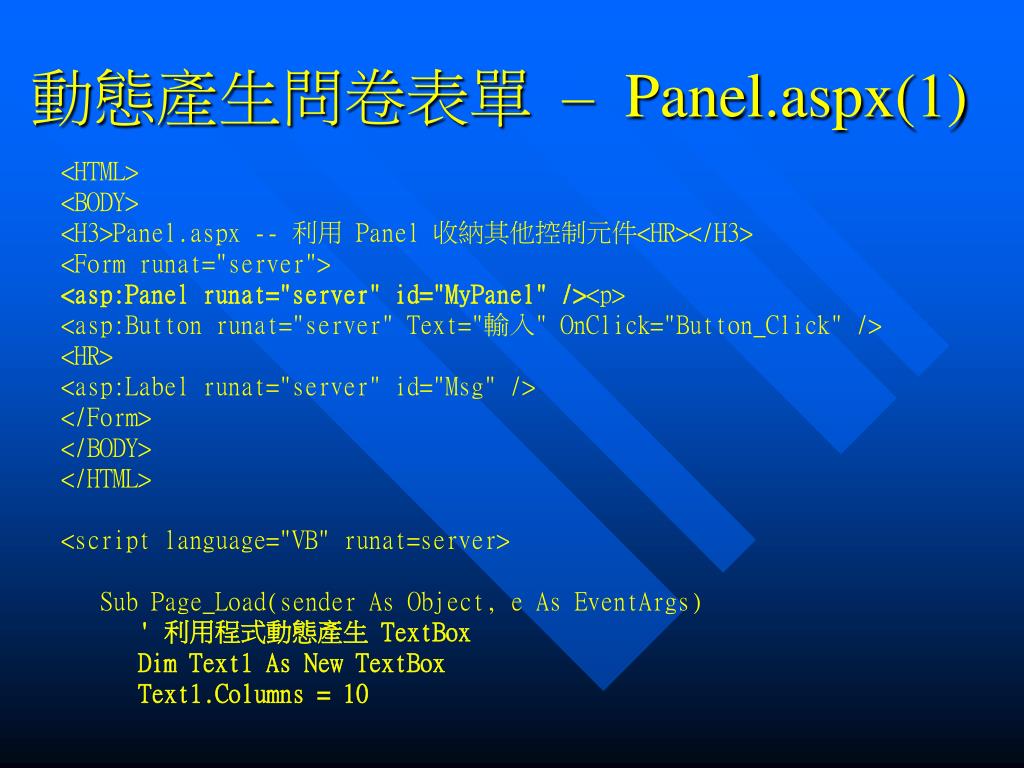

  25. 動態產生問卷表單 –Panel.aspx(1) <HTML> <BODY> <H3>Panel.aspx -- 利用 Panel 收納其他控制元件<HR></H3> <Form runat="server"> <asp:Panel runat="server" id="MyPanel" /><p> <asp:Button runat="server" Text="輸入" OnClick="Button_Click" /> <HR> <asp:Label runat="server" id="Msg" /> </Form> </BODY> </HTML> <script language="VB" runat=server> Sub Page_Load(sender As Object, e As EventArgs) ' 利用程式動態產生 TextBox Dim Text1 As New TextBox Text1.Columns = 10

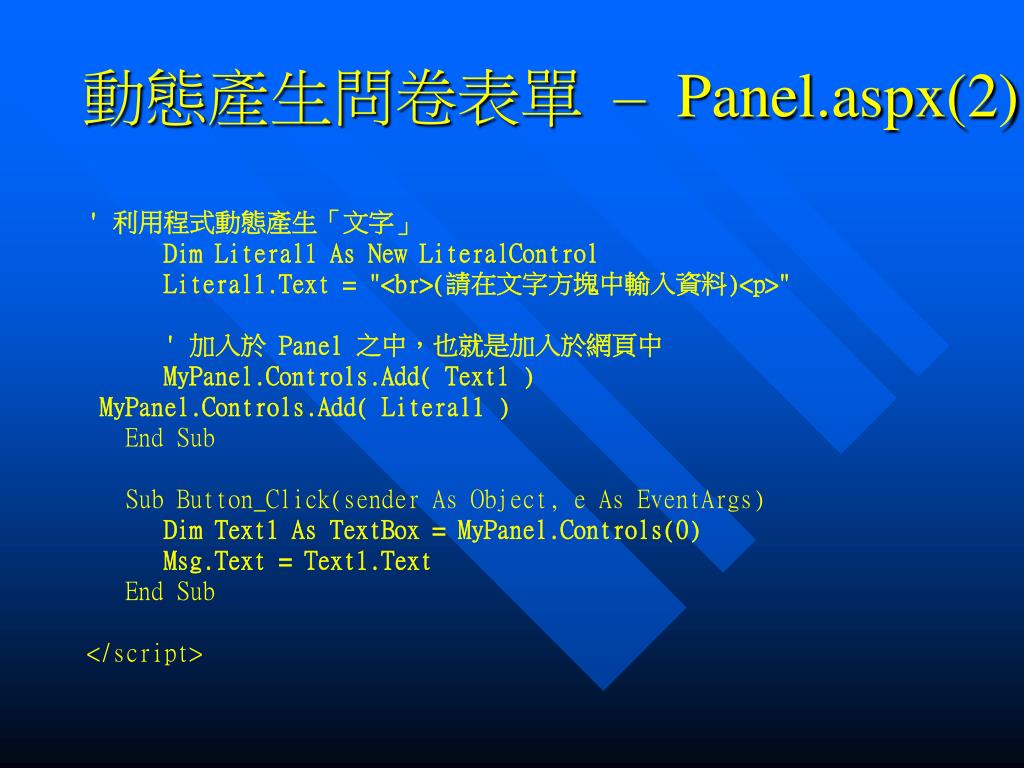

  26. 動態產生問卷表單 –Panel.aspx(2) ' 利用程式動態產生「文字」 Dim Literal1 As New LiteralControl Literal1.Text = "<br>(請在文字方塊中輸入資料)<p>" ' 加入於 Panel 之中，也就是加入於網頁中 MyPanel.Controls.Add( Text1 ) MyPanel.Controls.Add( Literal1 ) End Sub Sub Button_Click(sender As Object, e As EventArgs) Dim Text1 As TextBox = MyPanel.Controls(0) Msg.Text = Text1.Text End Sub </script>

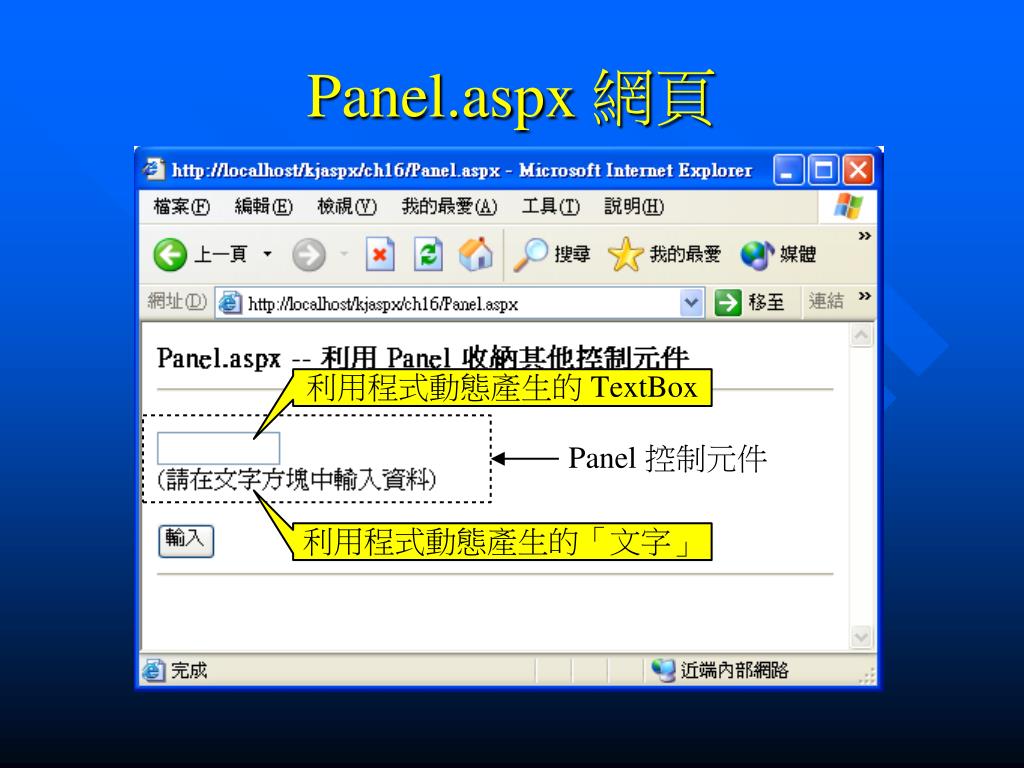

  27. Panel.aspx 網頁

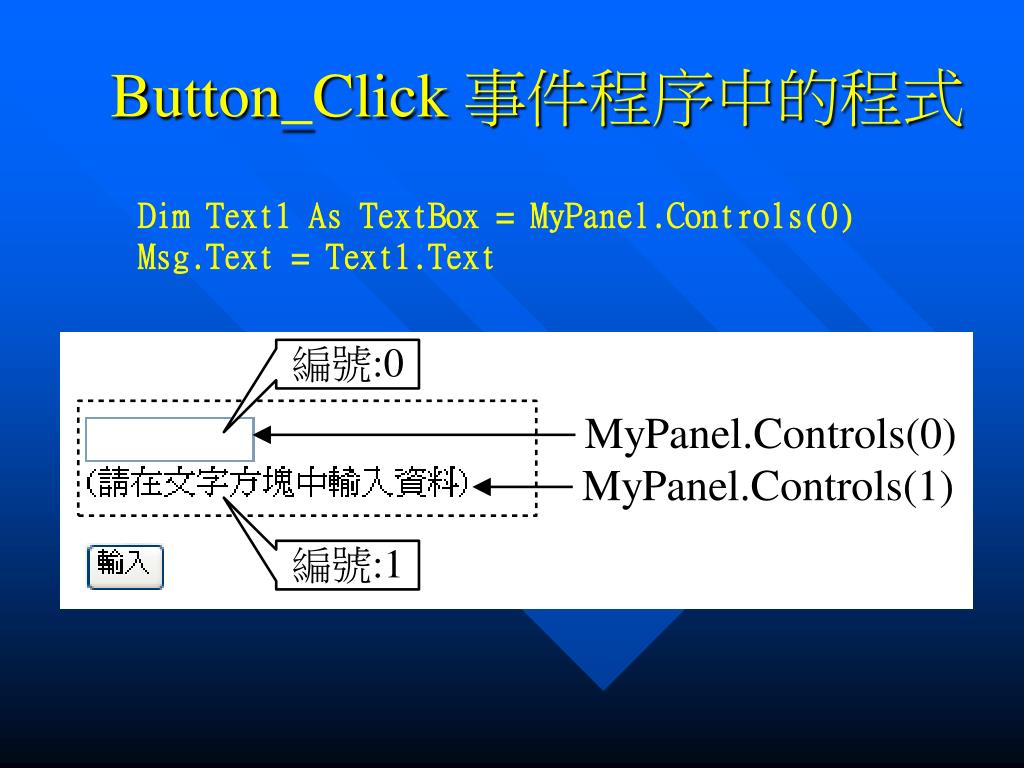

  28. Button_Click 事件程序中的程式 Dim Text1 As TextBox = MyPanel.Controls(0)Msg.Text = Text1.Text

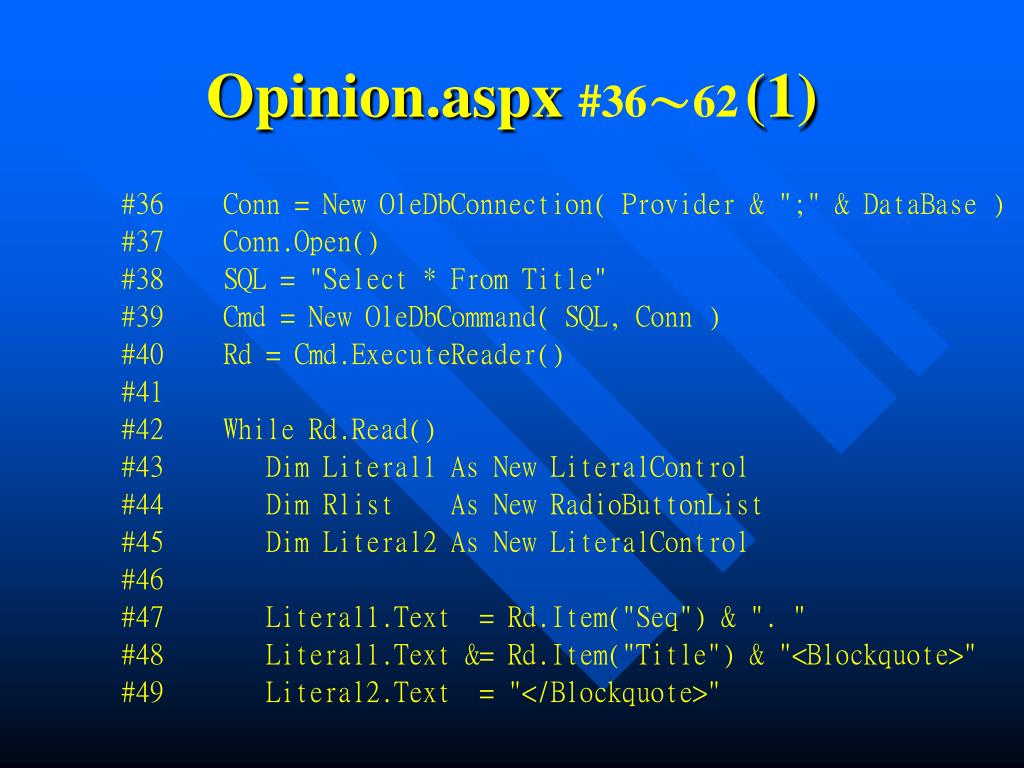

  29. Opinion.aspx #36～62(1) #36 Conn = New OleDbConnection( Provider & ";" & DataBase ) #37 Conn.Open() #38 SQL = "Select * From Title" #39 Cmd = New OleDbCommand( SQL, Conn ) #40 Rd = Cmd.ExecuteReader() #41 #42 While Rd.Read() #43 Dim Literal1 As New LiteralControl #44 Dim Rlist As New RadioButtonList #45 Dim Literal2 As New LiteralControl #46 #47 Literal1.Text = Rd.Item("Seq") & ". " #48 Literal1.Text &= Rd.Item("Title") & "<Blockquote>" #49 Literal2.Text = "</Blockquote>"

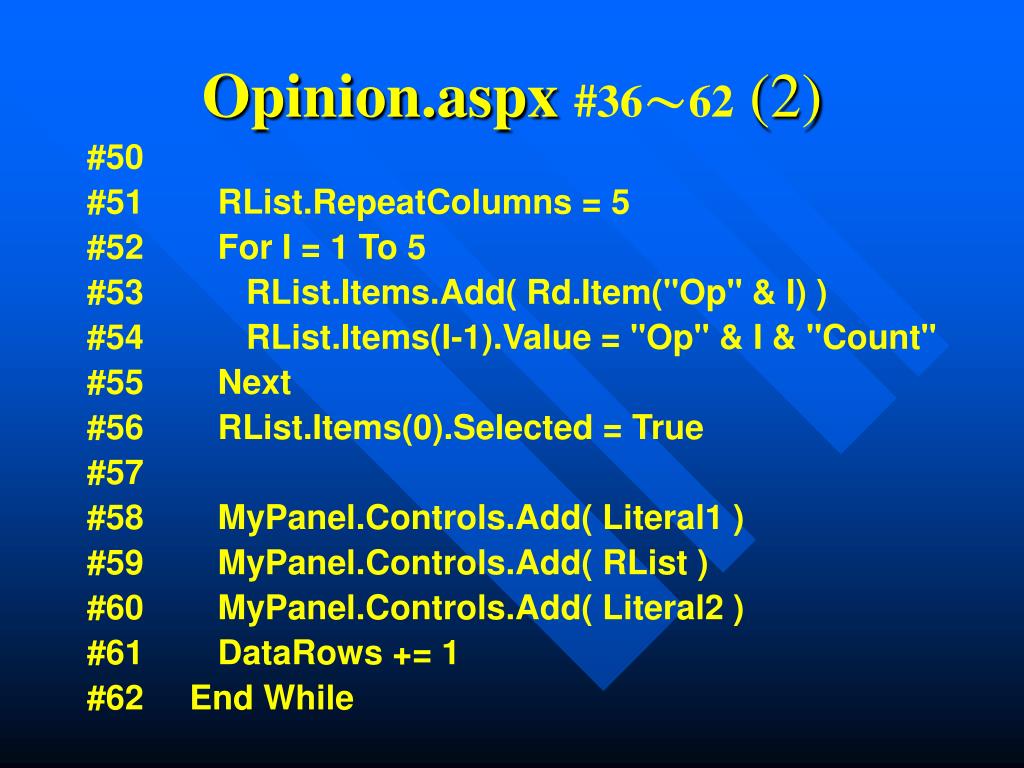

  30. Opinion.aspx #36～62 (2) #50 #51 RList.RepeatColumns = 5 #52 For I = 1 To 5 #53 RList.Items.Add( Rd.Item("Op" & I) ) #54 RList.Items(I-1).Value = "Op" & I & "Count" #55 Next #56 RList.Items(0).Selected = True #57 #58 MyPanel.Controls.Add( Literal1 ) #59 MyPanel.Controls.Add( RList ) #60 MyPanel.Controls.Add( Literal2 ) #61 DataRows += 1 #62 End While

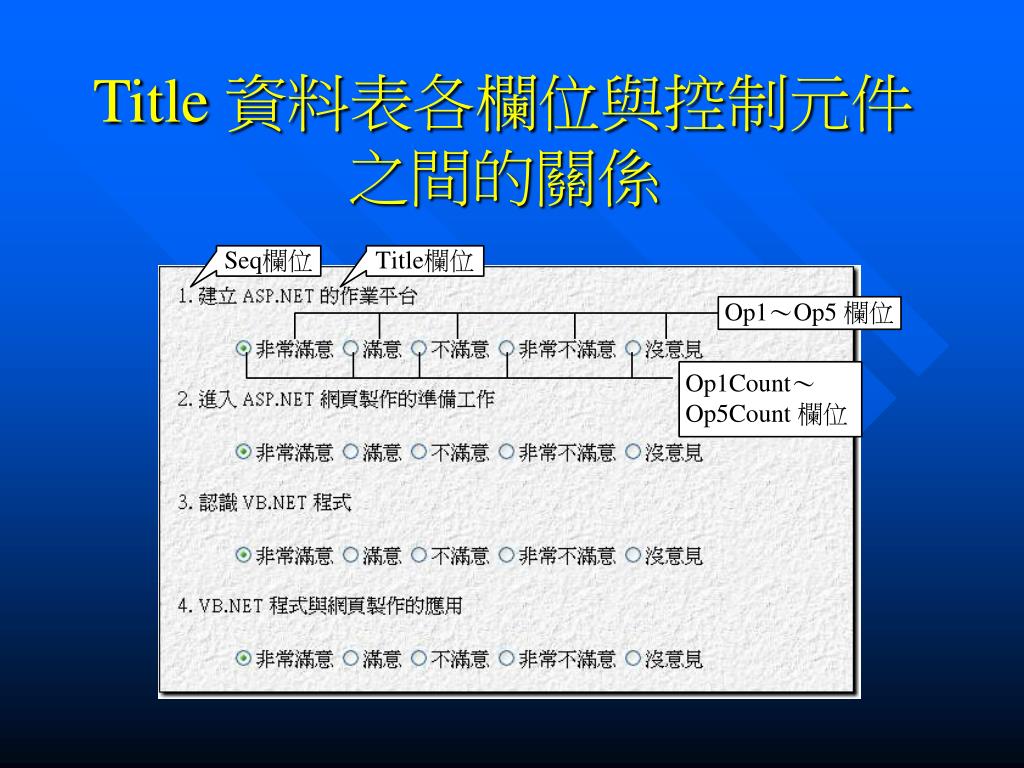

  31. Title 資料表各欄位與控制元件之間的關係

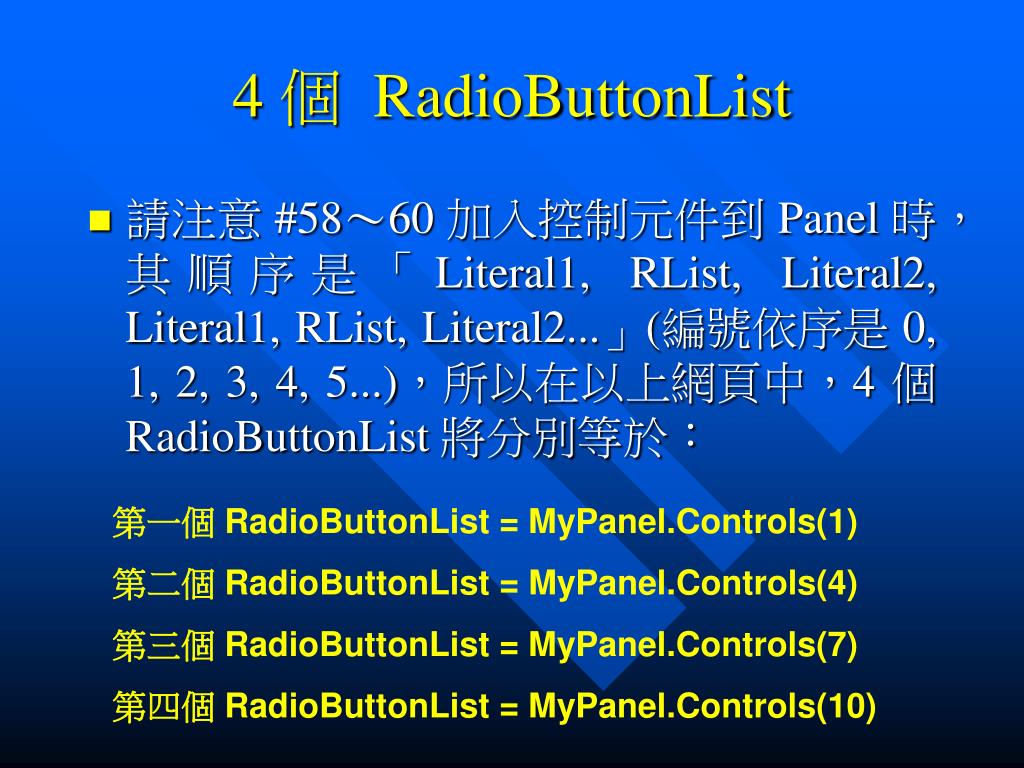

  32. 4 個 RadioButtonList • 請注意 #58～60 加入控制元件到 Panel 時，其順序是「Literal1, RList, Literal2, Literal1, RList, Literal2...」(編號依序是 0, 1, 2, 3, 4, 5...)，所以在以上網頁中，4 個 RadioButtonList 將分別等於： 第一個 RadioButtonList = MyPanel.Controls(1) 第二個 RadioButtonList = MyPanel.Controls(4) 第三個 RadioButtonList = MyPanel.Controls(7) 第四個 RadioButtonList = MyPanel.Controls(10)

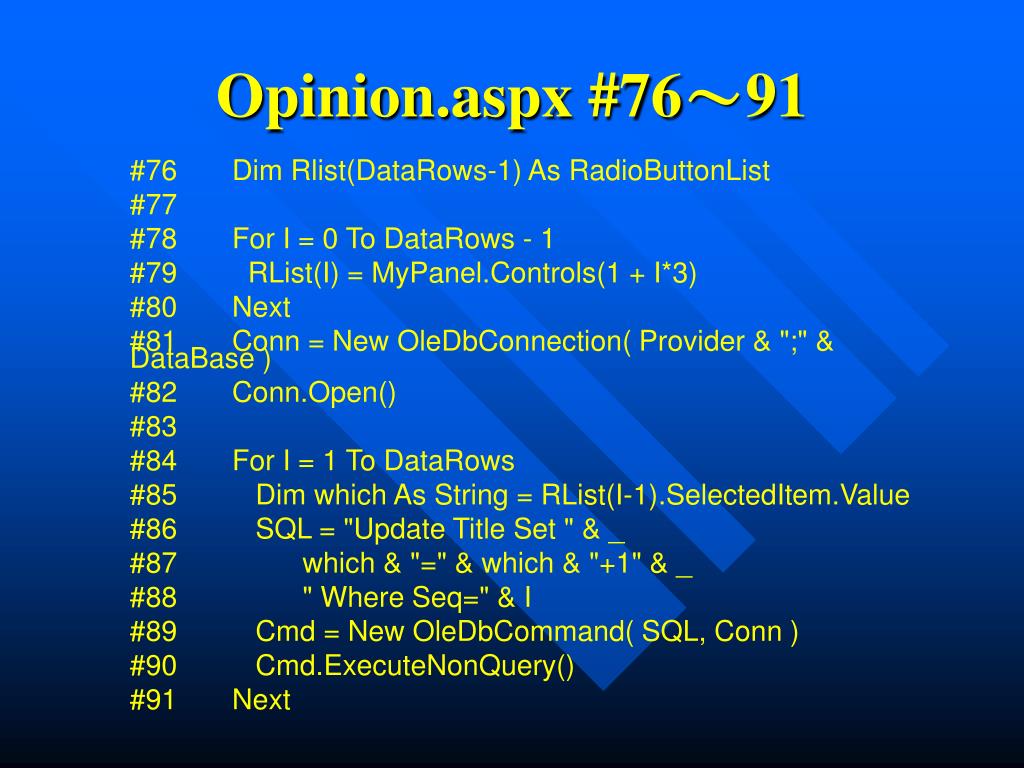

  33. Opinion.aspx #76～91 #76 Dim Rlist(DataRows-1) As RadioButtonList #77 #78 For I = 0 To DataRows - 1 #79 RList(I) = MyPanel.Controls(1 + I*3) #80 Next #81 Conn = New OleDbConnection( Provider & ";" & DataBase ) #82 Conn.Open() #83 #84 For I = 1 To DataRows #85 Dim which As String = RList(I-1).SelectedItem.Value #86 SQL = "Update Title Set " & _ #87 which & "=" & which & "+1" & _ #88 " Where Seq=" & I #89 Cmd = New OleDbCommand( SQL, Conn ) #90 Cmd.ExecuteNonQuery() #91 Next

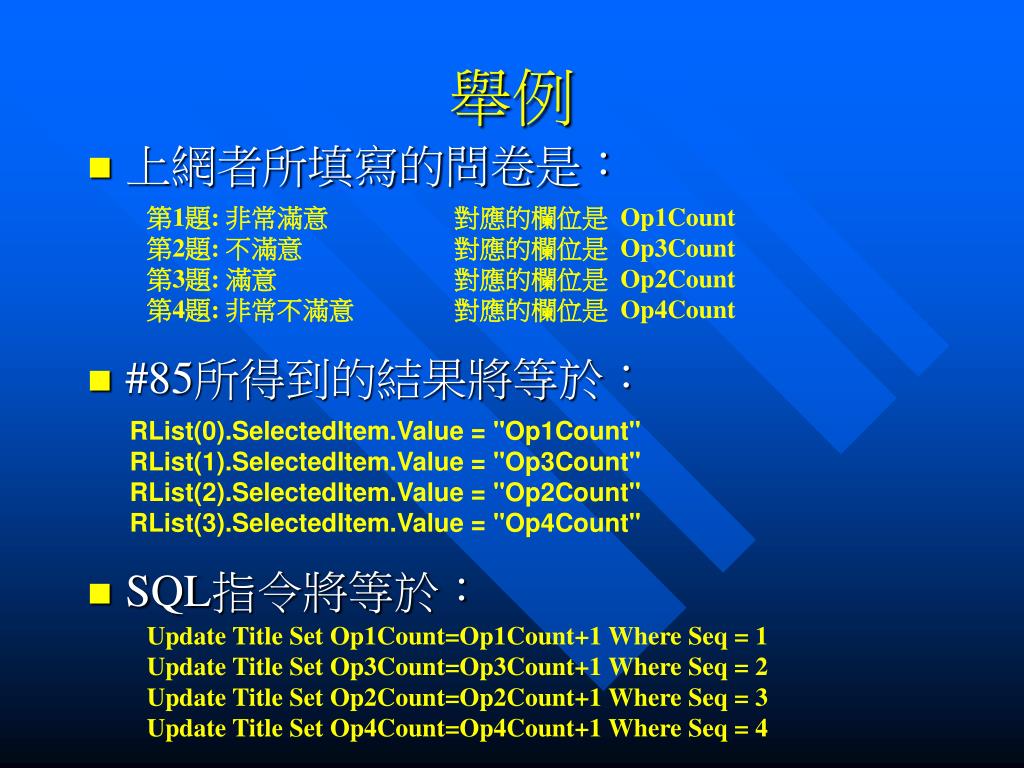

  34. 舉例 • 上網者所填寫的問卷是： • #85所得到的結果將等於： • SQL指令將等於： 第1題: 非常滿意對應的欄位是 Op1Count第2題: 不滿意對應的欄位是 Op3Count第3題: 滿意對應的欄位是 Op2Count第4題: 非常不滿意對應的欄位是 Op4Count RList(0).SelectedItem.Value = "Op1Count"RList(1).SelectedItem.Value = "Op3Count"RList(2).SelectedItem.Value = "Op2Count"RList(3).SelectedItem.Value = "Op4Count" Update Title Set Op1Count=Op1Count+1 Where Seq = 1Update Title Set Op3Count=Op3Count+1 Where Seq = 2Update Title Set Op2Count=Op2Count+1 Where Seq = 3Update Title Set Op4Count=Op4Count+1 Where Seq = 4

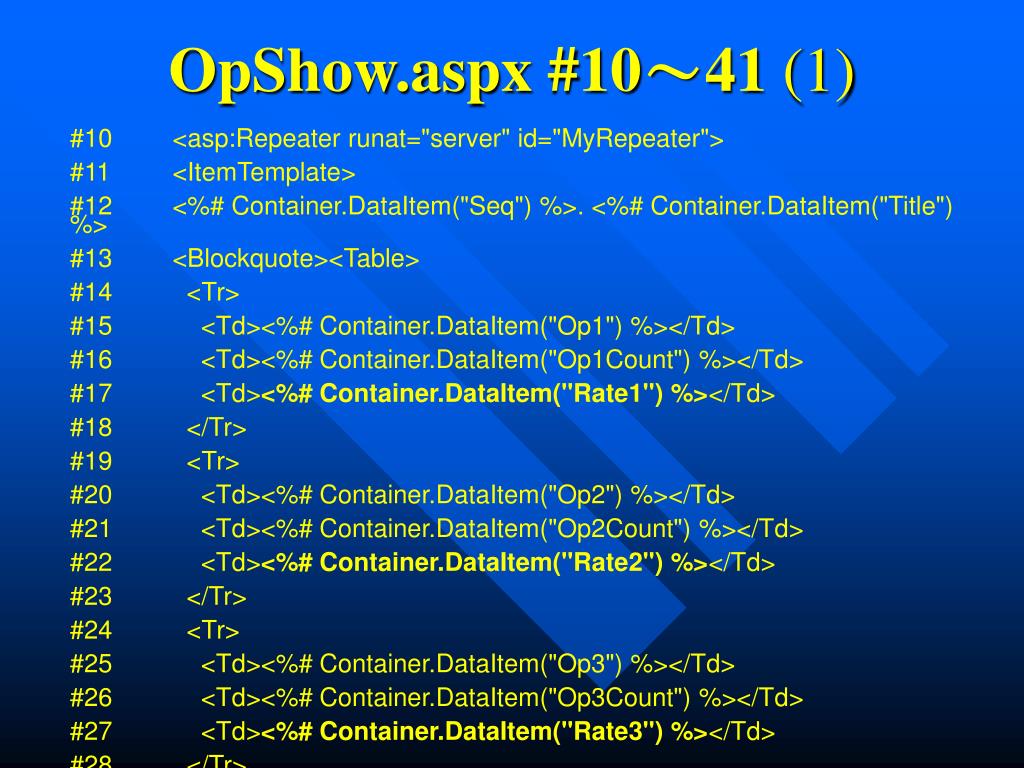

  35. OpShow.aspx #10～41 (1) #10 <asp:Repeater runat="server" id="MyRepeater"> #11 <ItemTemplate> #12 <%# Container.DataItem("Seq") %>. <%# Container.DataItem("Title") %> #13 <Blockquote><Table> #14 <Tr> #15 <Td><%# Container.DataItem("Op1") %></Td> #16 <Td><%# Container.DataItem("Op1Count") %></Td> #17 <Td><%# Container.DataItem("Rate1") %></Td> #18 </Tr> #19 <Tr> #20 <Td><%# Container.DataItem("Op2") %></Td> #21 <Td><%# Container.DataItem("Op2Count") %></Td> #22 <Td><%# Container.DataItem("Rate2") %></Td> #23 </Tr> #24 <Tr> #25 <Td><%# Container.DataItem("Op3") %></Td> #26 <Td><%# Container.DataItem("Op3Count") %></Td> #27 <Td><%# Container.DataItem("Rate3") %></Td> #28 </Tr>

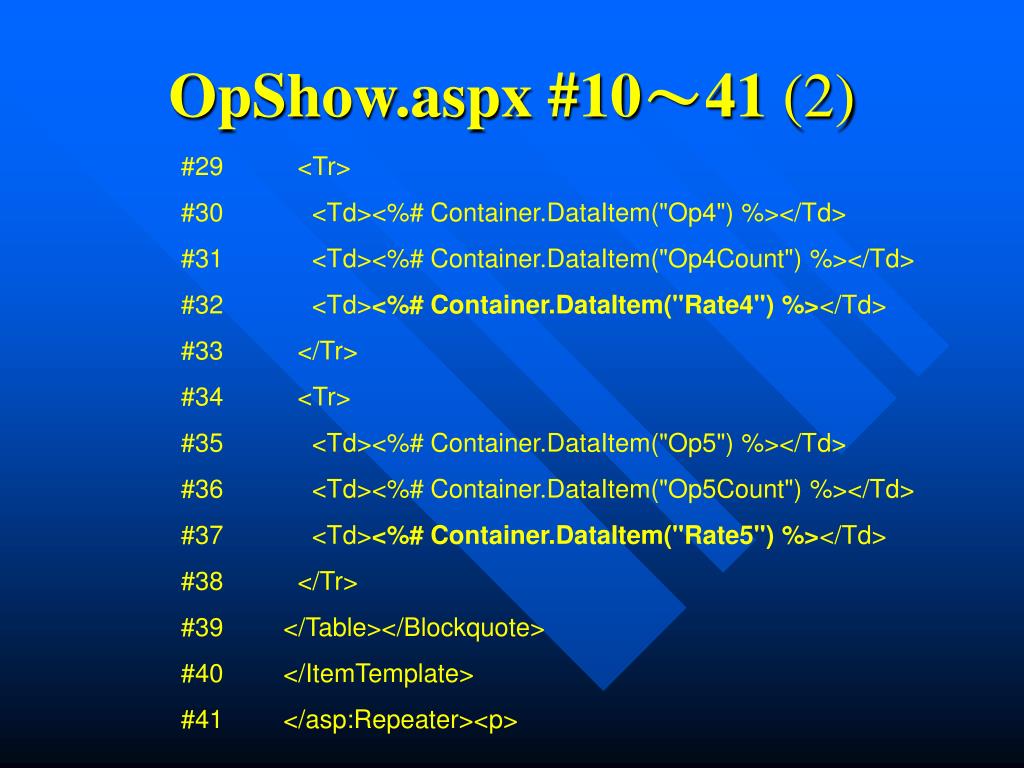

  36. OpShow.aspx #10～41 (2) #29 <Tr> #30 <Td><%# Container.DataItem("Op4") %></Td> #31 <Td><%# Container.DataItem("Op4Count") %></Td> #32 <Td><%# Container.DataItem("Rate4") %></Td> #33 </Tr> #34 <Tr> #35 <Td><%# Container.DataItem("Op5") %></Td> #36 <Td><%# Container.DataItem("Op5Count") %></Td> #37 <Td><%# Container.DataItem("Rate5") %></Td> #38 </Tr> #39 </Table></Blockquote> #40 </ItemTemplate> #41 </asp:Repeater><p>

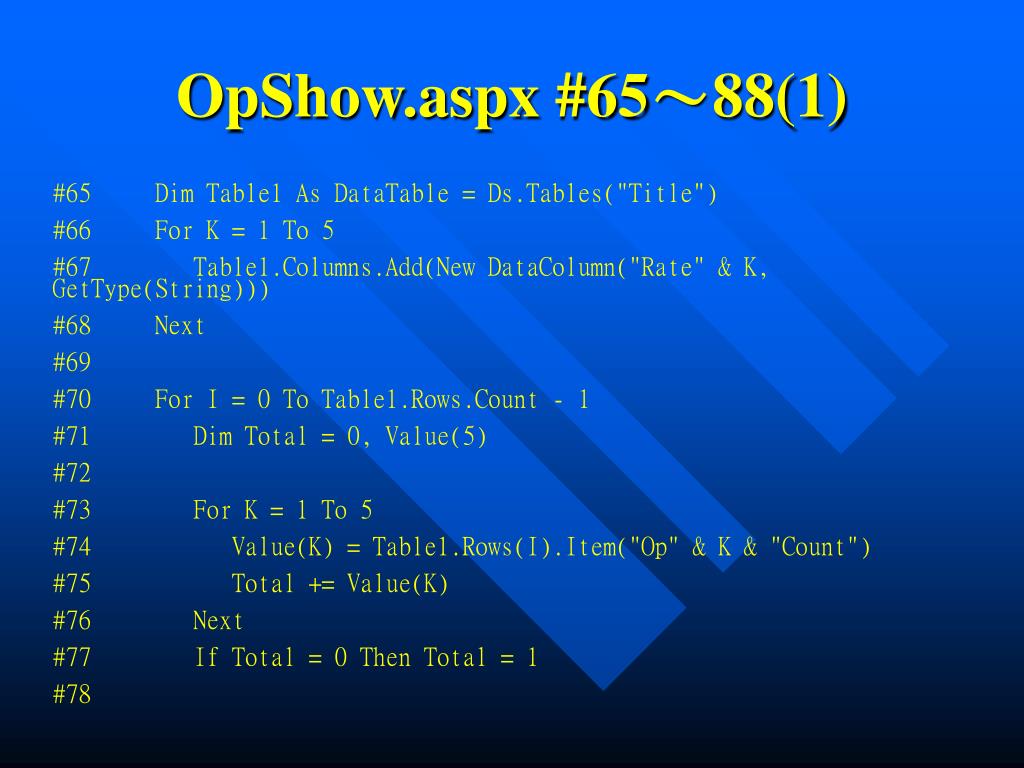

  37. OpShow.aspx #65～88(1) #65 Dim Table1 As DataTable = Ds.Tables("Title") #66 For K = 1 To 5 #67 Table1.Columns.Add(New DataColumn("Rate" & K, GetType(String))) #68 Next #69 #70 For I = 0 To Table1.Rows.Count - 1 #71 Dim Total = 0, Value(5) #72 #73 For K = 1 To 5 #74 Value(K) = Table1.Rows(I).Item("Op" & K & "Count") #75 Total += Value(K) #76 Next #77 If Total = 0 Then Total = 1 #78

  38. OpShow.aspx #65～88 (2) #79 For K = 1 To 5 #80 Dim Rate = Value(K) / Total #81 Dim RateHTML As String #82 Dim RateValue As String #83 RateHTML = "<IMG SRC=100.gif Height=16 Width=" & _ #84 Rate*400 & " Align=TextTop>" #85 RateValue = "(" & FormatNumber(Rate*100, 2) & "%)" #86 Table1.Rows(I).Item("Rate" & K) = RateHTML & RateValue #87 Next #88 Next
