Day 3: Eddy Currents

Day 3: Eddy Currents. Back EMF in Motors Eddy Currents Nature of Eddy Currents. Back EMF in Motors. When a motor turns, the magnetic flux through the coil changes and an EMF is generated

denali
Download Presentation

Day 3: Eddy Currents

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

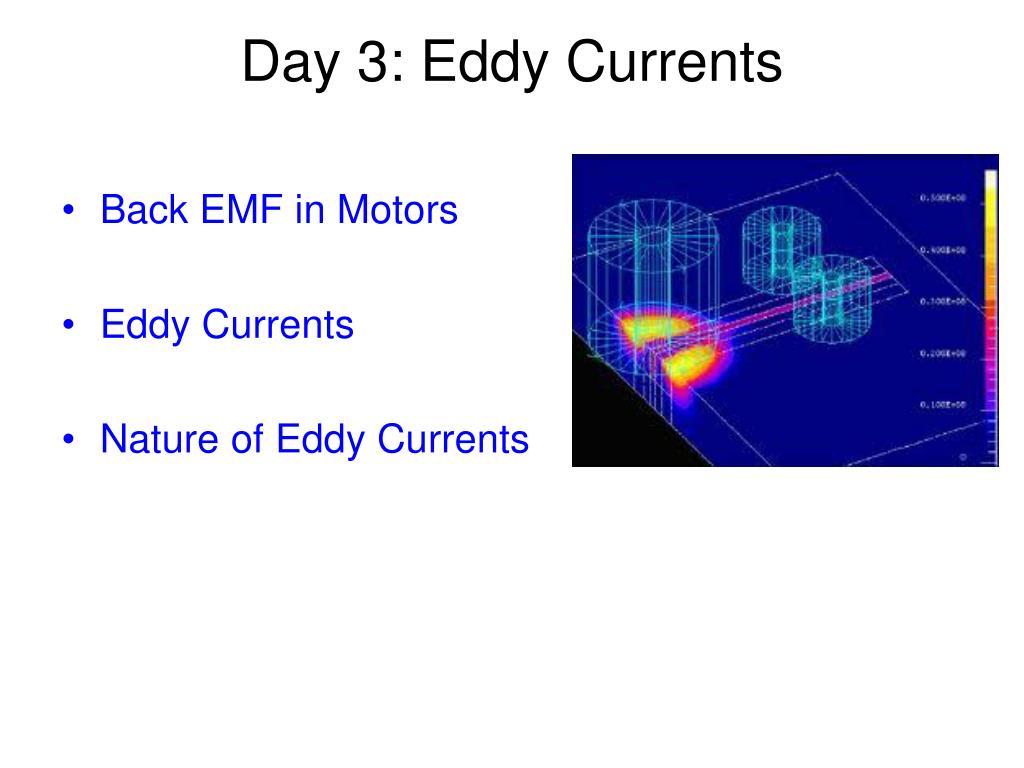

  1. Day 3: Eddy Currents • Back EMF in Motors • Eddy Currents • Nature of Eddy Currents

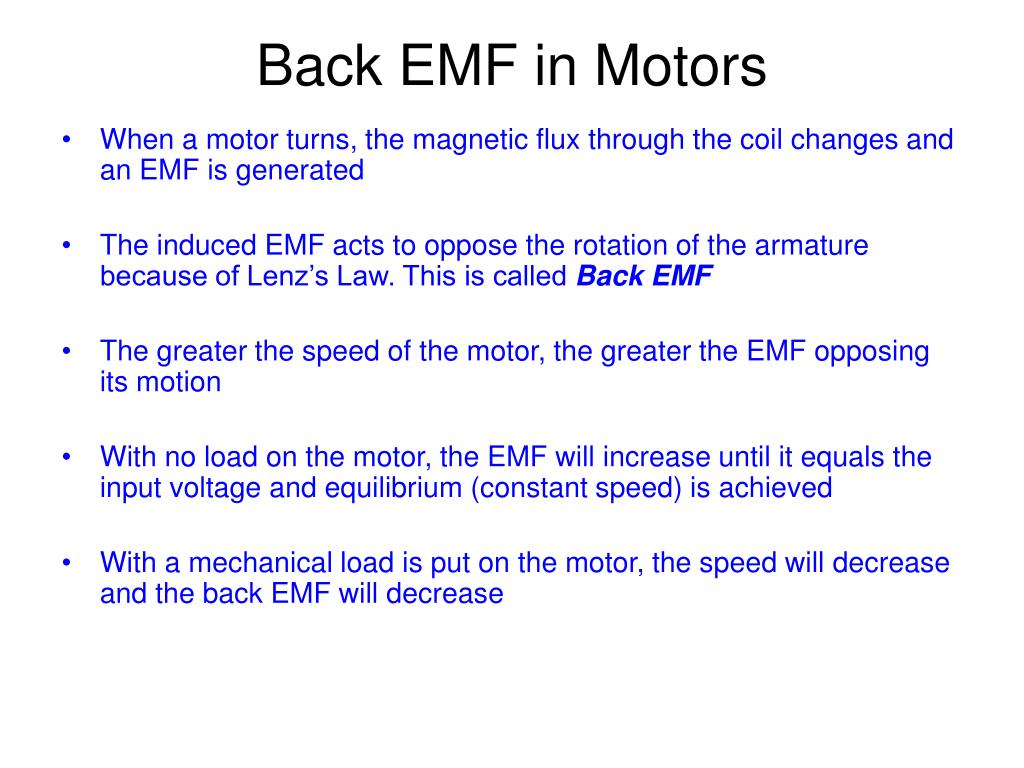

  2. Back EMF in Motors • When a motor turns, the magnetic flux through the coil changes and an EMF is generated • The induced EMF acts to oppose the rotation of the armature because of Lenz’s Law. This is called Back EMF • The greater the speed of the motor, the greater the EMF opposing its motion • With no load on the motor, the EMF will increase until it equals the input voltage and equilibrium (constant speed) is achieved • With a mechanical load is put on the motor, the speed will decrease and the back EMF will decrease

  3. Back EMF in Motors • Example: An armature winding having a resistance of 5.0Ω, and connected to a 120 V source. When the motor reaches full speed under normal load, the back EMF is 108 V. The start-up current is: The running current is (using Kirchhoff’s Law):

  4. Eddy Currents • Currents induced in a conductor as a result of a changing magnetic flux are called Eddy Currents

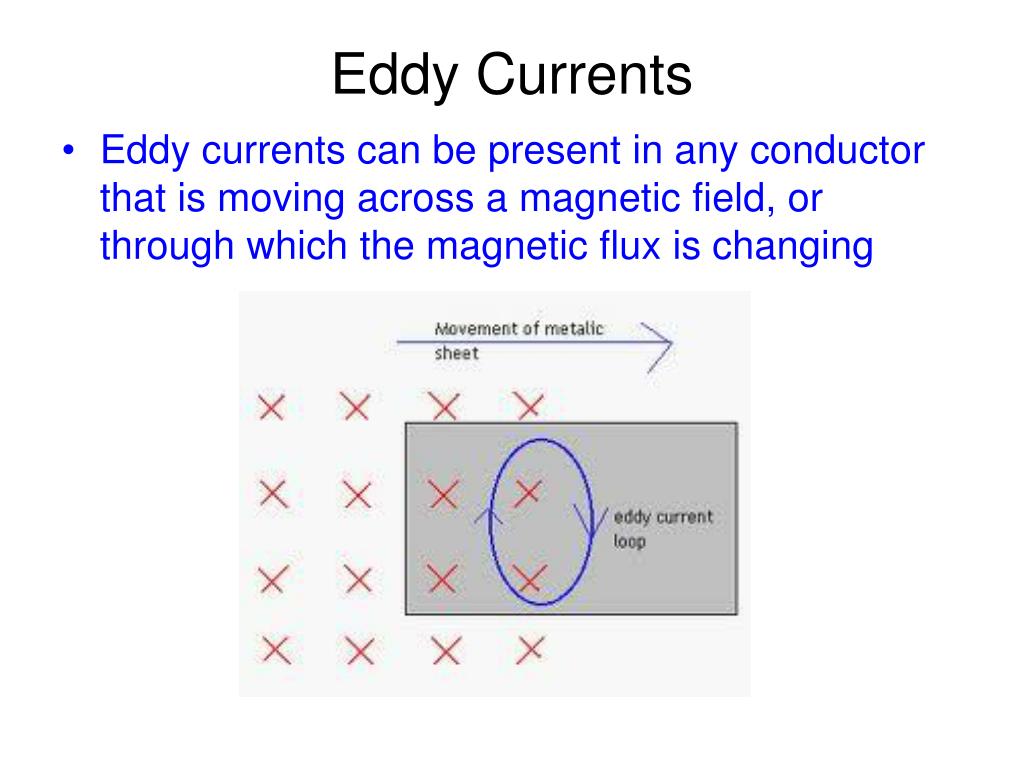

  5. Eddy Currents • Eddy currents can be present in any conductor that is moving across a magnetic field, or through which the magnetic flux is changing

  6. Eddy Currents • Eddy currents are a source of wasted energy which is dissipated as heat. • In motors, windings are laminated (made of thin sheets of iron that are well insulated from one another). The total path length of the eddy currents is confined to each slab, increasing the total resistance, hence reducing the current, wasting less energy

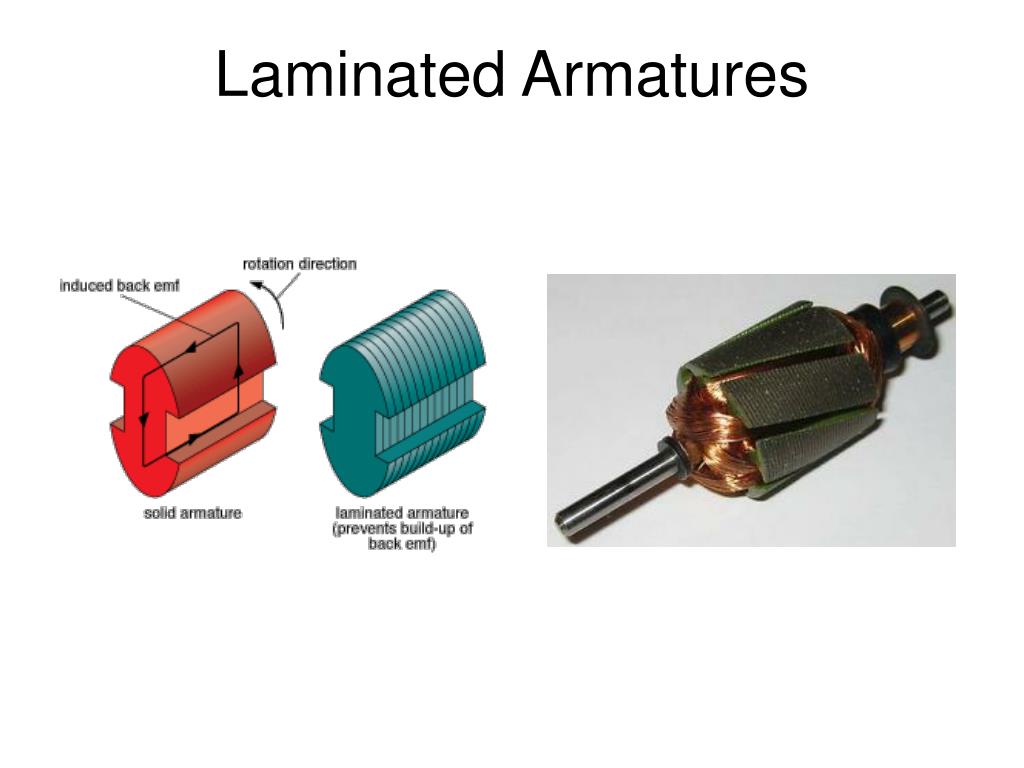

  7. Laminated Armatures
