Presentation Transcript

  1. COEN 250 Security Threats

  2. Network Based Exploits Phases of an Attack • Reconnaissance • Scanning • Gaining Access • Expanding Access • Covering Tracks

  3. Reconnaissance • Social Engineering • “I cannot access my email. What do I do?” • Dumpster Diving (especially useful when people move) • Search the Web • Sam Spade (www.samspade.org/ssw/), CyberKit, NetScanTools, ... • Search Engine • Usenet postings • Whois

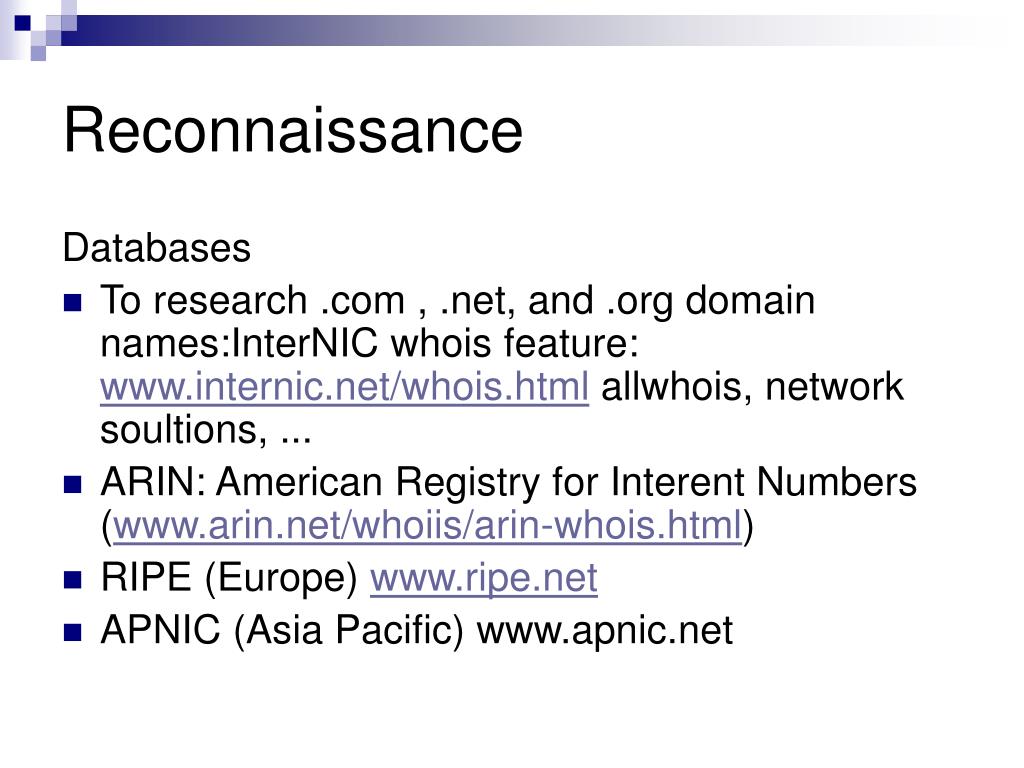

  4. Reconnaissance Databases • To research .com , .net, and .org domain names:InterNIC whois feature: www.internic.net/whois.html allwhois, network soultions, ... • ARIN: American Registry for Interent Numbers (www.arin.net/whoiis/arin-whois.html) • RIPE (Europe) www.ripe.net • APNIC (Asia Pacific) www.apnic.net

  5. Reconnaissance: Scanning Once we have a target, we need to get to know it better. Methods: • War Dialing (to find out modem access) • Network Mapping • Vulnerability Scanning • War Driving

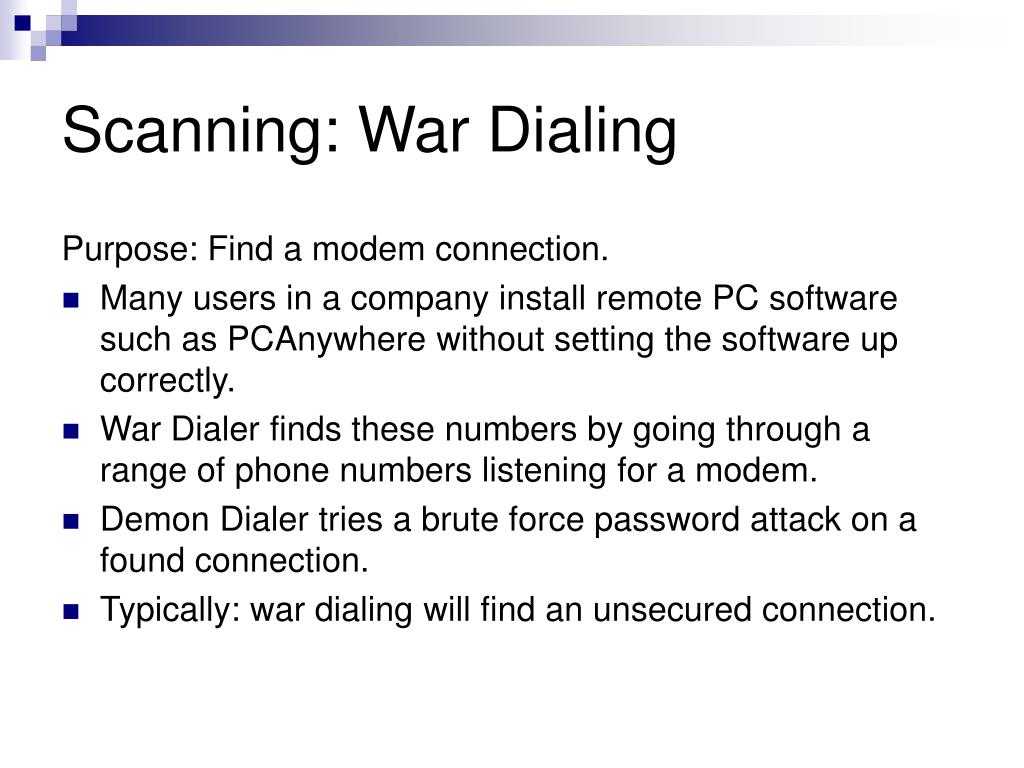

  6. Scanning: War Dialing Purpose: Find a modem connection. • Many users in a company install remote PC software such as PCAnywhere without setting the software up correctly. • War Dialer finds these numbers by going through a range of phone numbers listening for a modem. • Demon Dialer tries a brute force password attack on a found connection. • Typically: war dialing will find an unsecured connection.

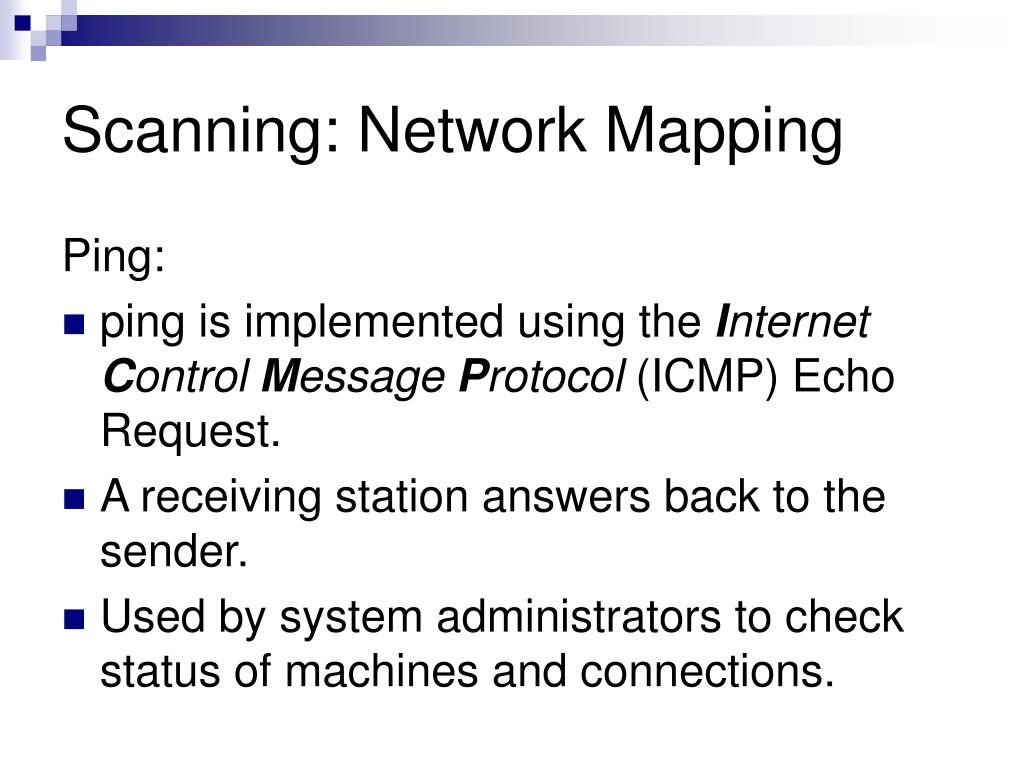

  7. Scanning: Network Mapping Ping: • ping is implemented using the Internet Control Message Protocol (ICMP) Echo Request. • A receiving station answers back to the sender. • Used by system administrators to check status of machines and connections.

  8. Scanning: Network Mapping Traceroute: • Pings a system with ICMP echo requests with varying life spans (= # of hops allowed). • A system that receives a package with expired numbers of hops sends an error message back to sender. • Traceroute uses this to find the route to a given system. • Useful for System Administration

  9. Scanning: Network Mapping Cheops: Network Scanner (UNIX based) (Uses traceroute and other tools to map a network.) Cheops et Co. are the reason that firewalls intercept pings.

  10. Reconnaissance: Port Scans • Applications on a system use ports to listen for network traffic or send it out. • 216 ports available, some for known services such as http (80), ftp, ... • Port scans send various type of IP packages to target on different ports. • Reaction tells them whether the port is open (an application listens).

  11. Reconnaissance: Nmap • Uses different types of packets to check for open ports. • Can tell from the reaction what OS is running, including patch levels. • Can run in stealth mode, in which it is not detected by many firewalls.

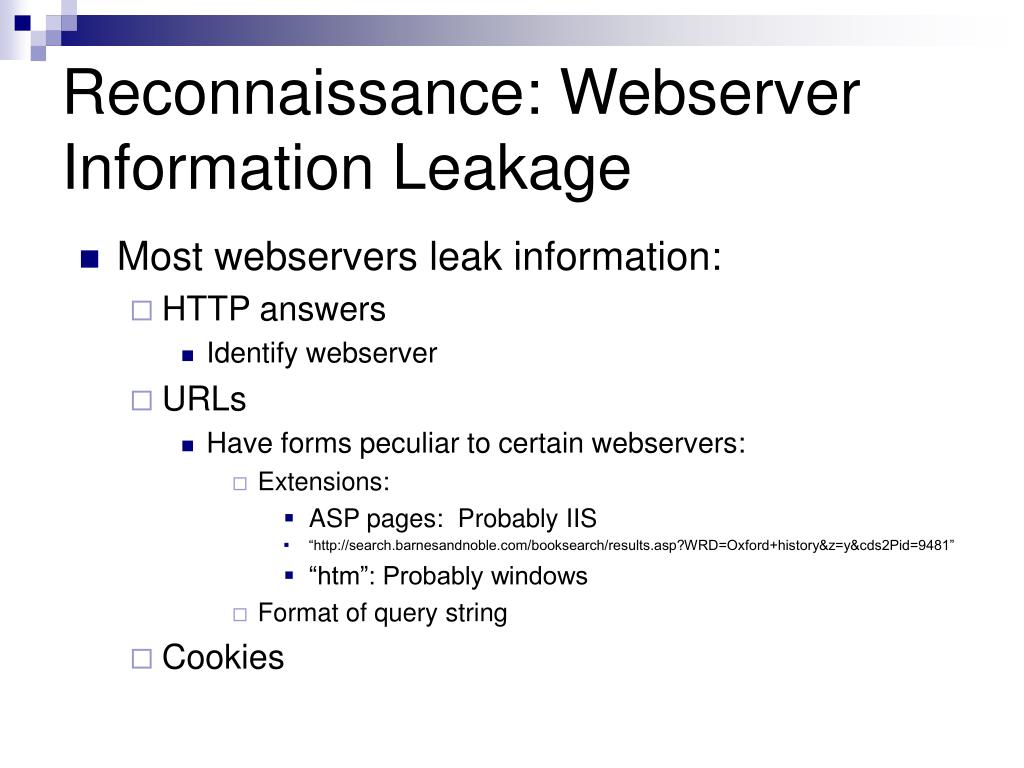

  12. Reconnaissance: Webserver Information Leakage • Most webservers leak information: • HTTP answers • Identify webserver • URLs • Have forms peculiar to certain webservers: • Extensions: • ASP pages: Probably IIS • “http://search.barnesandnoble.com/booksearch/results.asp?WRD=Oxford+history&z=y&cds2Pid=9481” • “htm”: Probably windows • Format of query string • Cookies

  13. Reconnaissance: Webserver Information Leakage • Most webservers leak information: • Error Messages • Identify webserver technology by name and version number. • Sometimes send debug information to browser. • Can be provoked by changing query strings or asking for non-existing resources. • Sometimes, possible to get a message from the database engine.

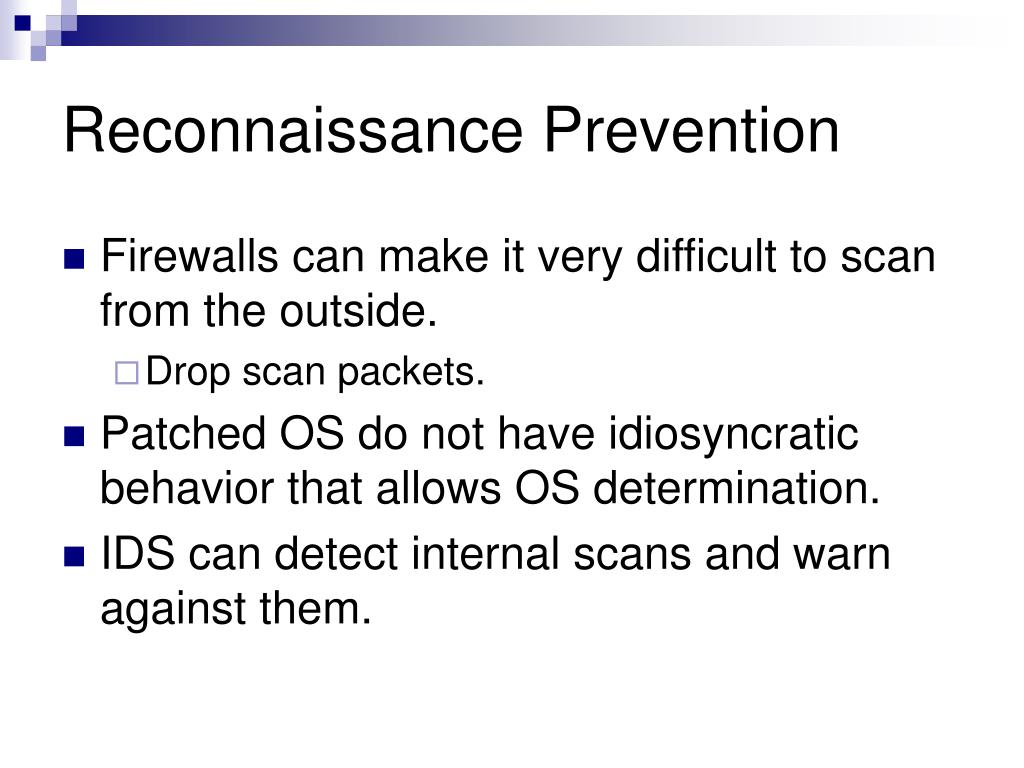

  14. Reconnaissance Prevention • Firewalls can make it very difficult to scan from the outside. • Drop scan packets. • Patched OS do not have idiosyncratic behavior that allows OS determination. • IDS can detect internal scans and warn against them.

  15. Gaining Access • Gain access using application and OS attacks. • Gain access using network attack.

  16. Gaining Access through Apps and OS • Trends: • Modularized super-tools • The Metasploit Project • multiple attacks • multiple payloads • easily updated • Buffer Overflow Attacks • Stack • Heap • Dynamic Memory Attacks • Format Vulnerabilities • Integer Overflow … • Password Attacks • Web Application Attacks

  17. Gaining Access:Web Application Attacks • The URL not only contains the web address of a site, but also input: http://www.google.com/search?hl=en&ie=UTF-8&oe=UTF-8&q=web+application+attack • A poorly written webpage allows the viewer to input data in an uncontrolled fashion. If the webpage contains SQL, the user might execute SQL commands.

  18. Gaining Access through Network Attacks: Sniffing • Sniffer: Gathers traffic from a LAN. • Examples: Snort www.snort.org, Sniffit reptile.rug.ac.be/~coder/sniffit/sniffit.html • To gain access to packages, use spoofed ARP (Address Resolution Protocol) to reroute traffic.

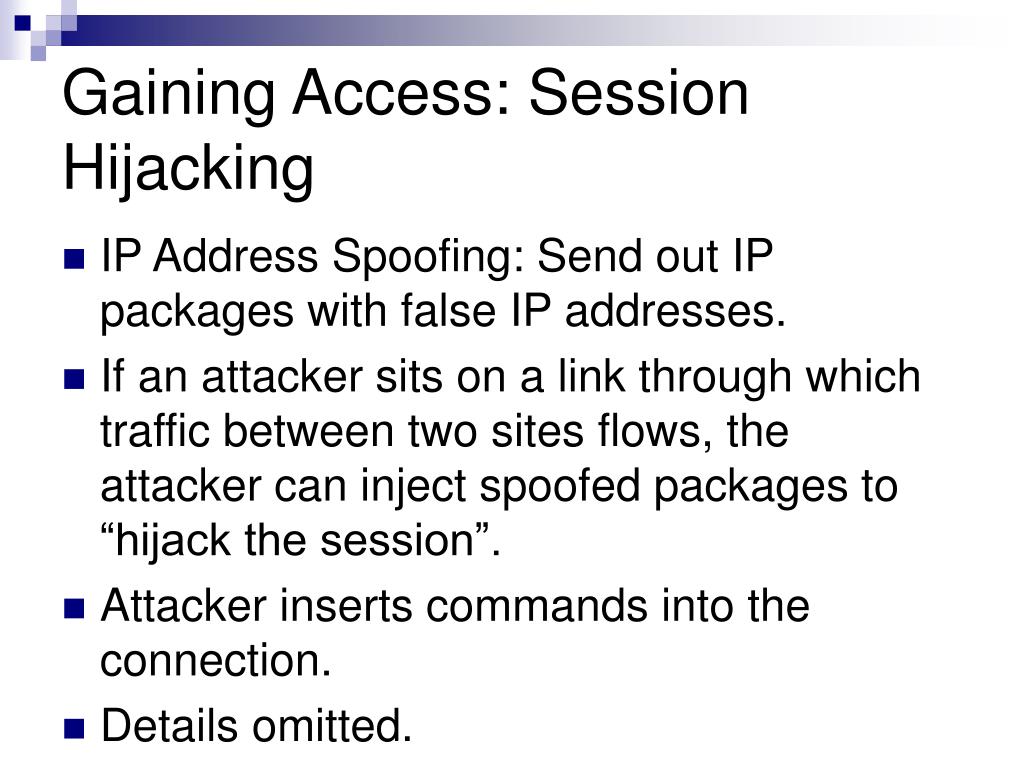

  19. Gaining Access: Session Hijacking • IP Address Spoofing: Send out IP packages with false IP addresses. • If an attacker sits on a link through which traffic between two sites flows, the attacker can inject spoofed packages to “hijack the session”. • Attacker inserts commands into the connection. • Details omitted.

  20. Exploiting and Maintaining Access After successful intrusion, an attacker should: • Use other tools to gain root or administrator privileges. • Erase traces (e.g. change log entries). • Take measures to maintain access. • Erase security holes so that no-one else can gain illicit access and do something stupid to wake up the sys. ad.

  21. Maintaining Access: Trojans • A program with an additional, evil payload. • Running MS Word also reinstalls a backdoor. • ps does not display the installed sniffer.

  22. Maintaining Access: Backdoors • Bypass normal security measures. Example: netcat • Install netcat on victim with the GAPING_SECURITY_HOLE option. C:\ nc -1 –p 12345 –e cmd.sh • In the future: connect to port 12345 and start typing commands.

  23. Maintaining Access: Backdoors • BO2K (Back Orifice 2000) runs in stealth mode (you cannot discover it by looking at the processes tab in the TASK MANAGER. • Otherwise, it is a remote control program like pcAnyWhere, that allows accessing a computer over the net.

  24. Maintaining Access: Backdoors • RootKit: A backdoor built as a Trojan of system executables such as ipconfig. • Kernel-Level RootKit: Changes the OS, not only system executables.

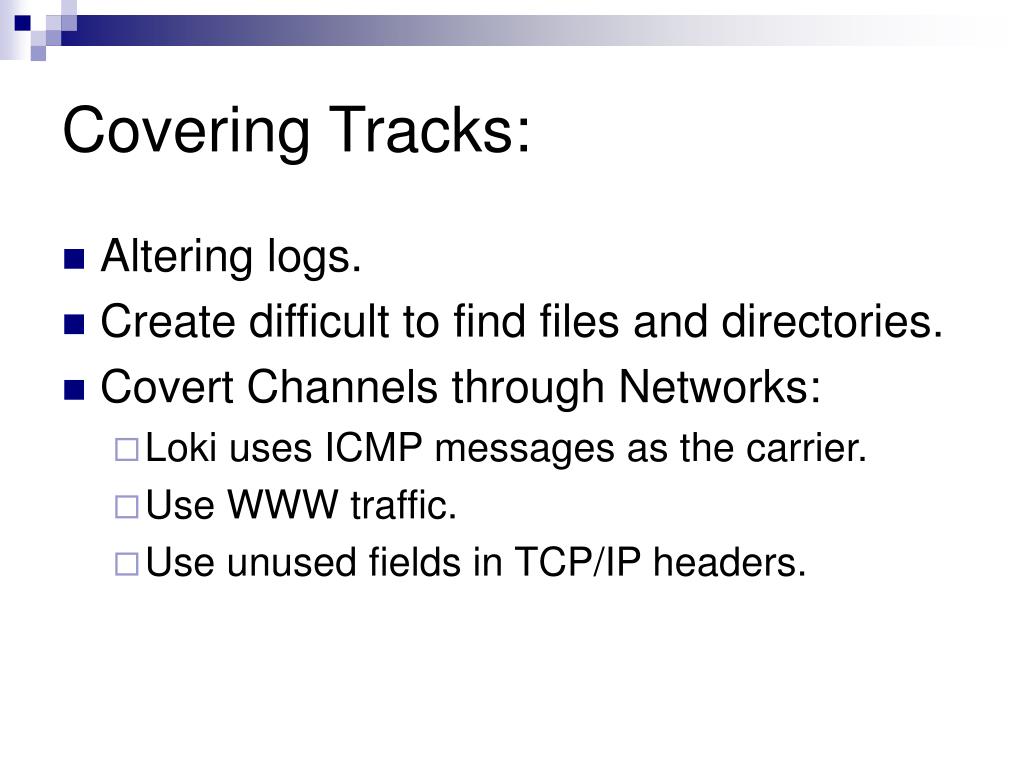

  25. Covering Tracks: • Altering logs. • Create difficult to find files and directories. • Covert Channels through Networks: • Loki uses ICMP messages as the carrier. • Use WWW traffic. • Use unused fields in TCP/IP headers.

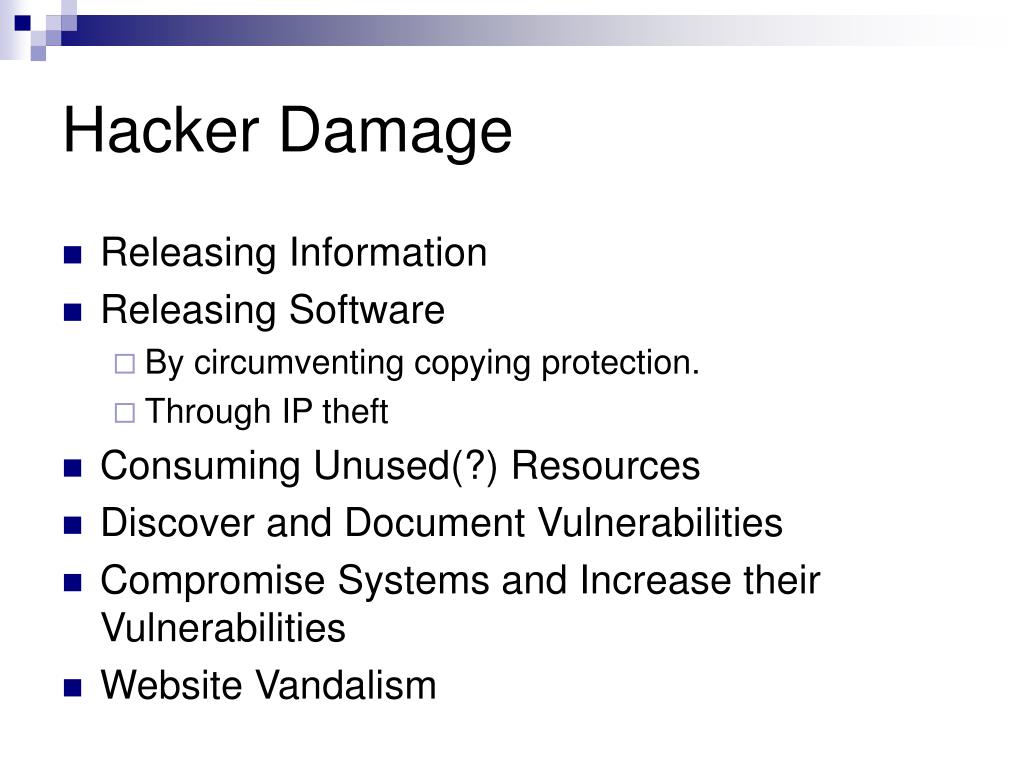

  26. Hacker Damage • Releasing Information • Releasing Software • By circumventing copying protection. • Through IP theft • Consuming Unused(?) Resources • Discover and Document Vulnerabilities • Compromise Systems and Increase their Vulnerabilities • Website Vandalism

  27. Hacking Profile • Shift to for-profit motiv • Shift to underground economy
