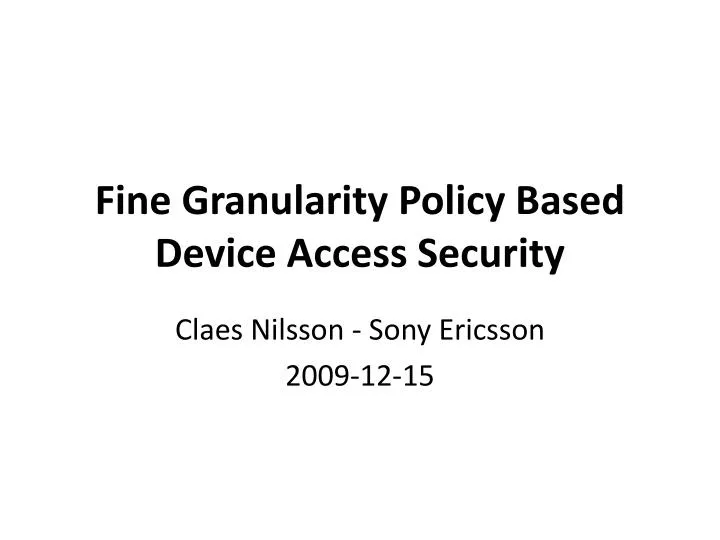

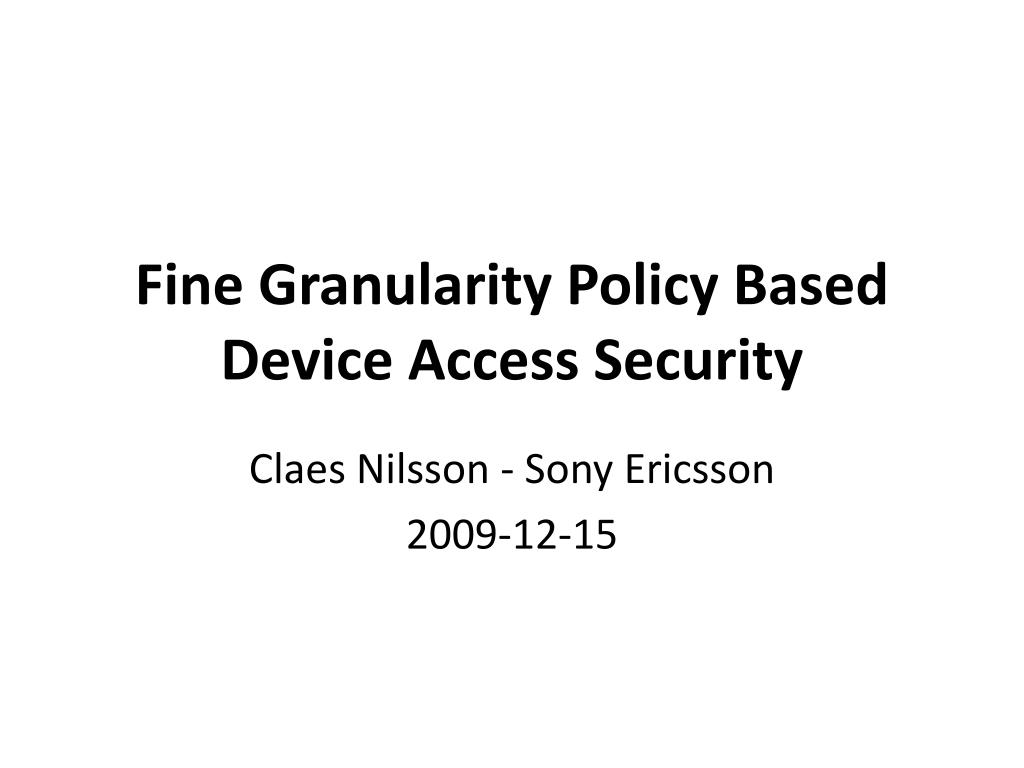

  1. Fine Granularity Policy Based Device Access Security • Claes Nilsson - Sony Ericsson • 2009-12-15

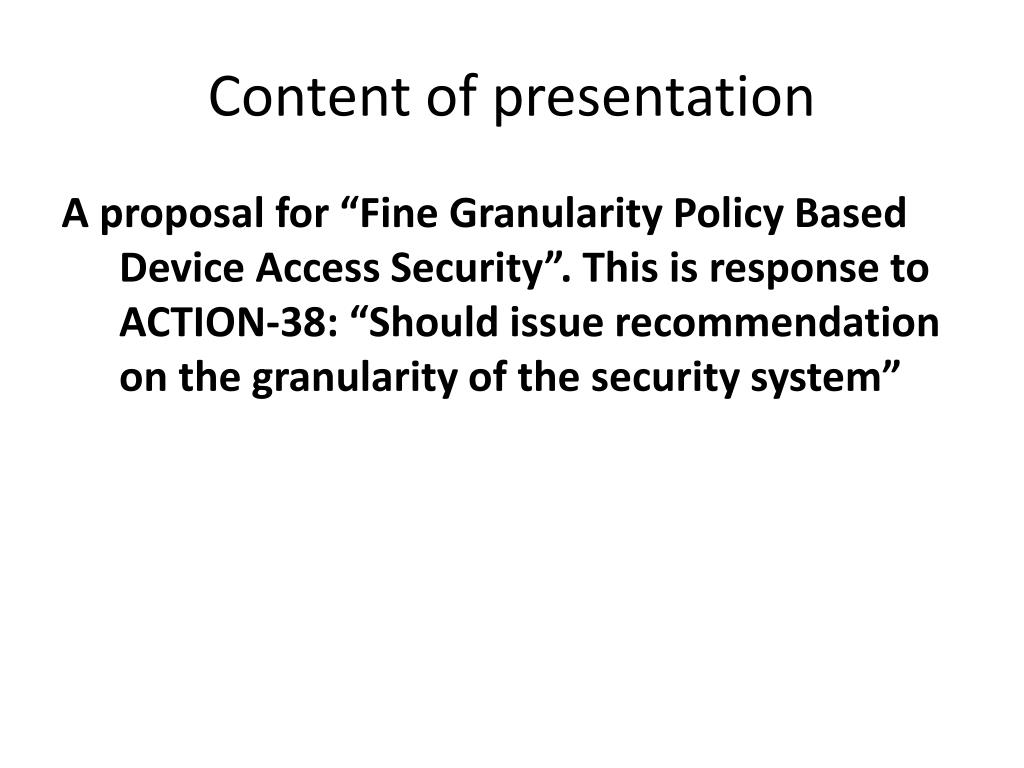

  2. Content of presentation A proposal for “Fine Granularity Policy Based Device Access Security”. This is response to ACTION-38: “Should issue recommendation on the granularity of the security system”

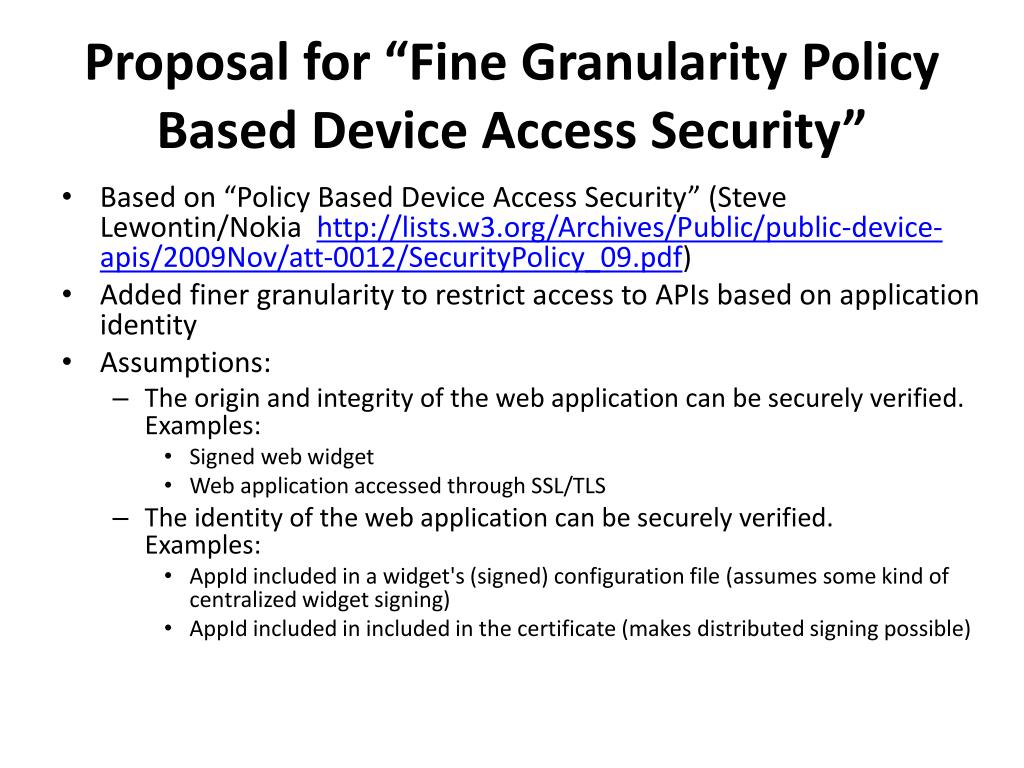

  3. Proposal for “Fine Granularity Policy Based Device Access Security” • Based on “Policy Based Device Access Security” (Steve Lewontin/Nokia http://lists.w3.org/Archives/Public/public-device-apis/2009Nov/att-0012/SecurityPolicy_09.pdf) • Added finer granularity to restrict access to APIs based on application identity • Assumptions: • The origin and integrity of the web application can be securely verified. Examples: • Signed web widget • Web application accessed through SSL/TLS • The identity of the web application can be securely verified. Examples: • AppIdincluded in a widget's (signed) configuration file (assumes some kind of centralized widget signing) • AppId included in included in the certificate (makes distributed signing possible)

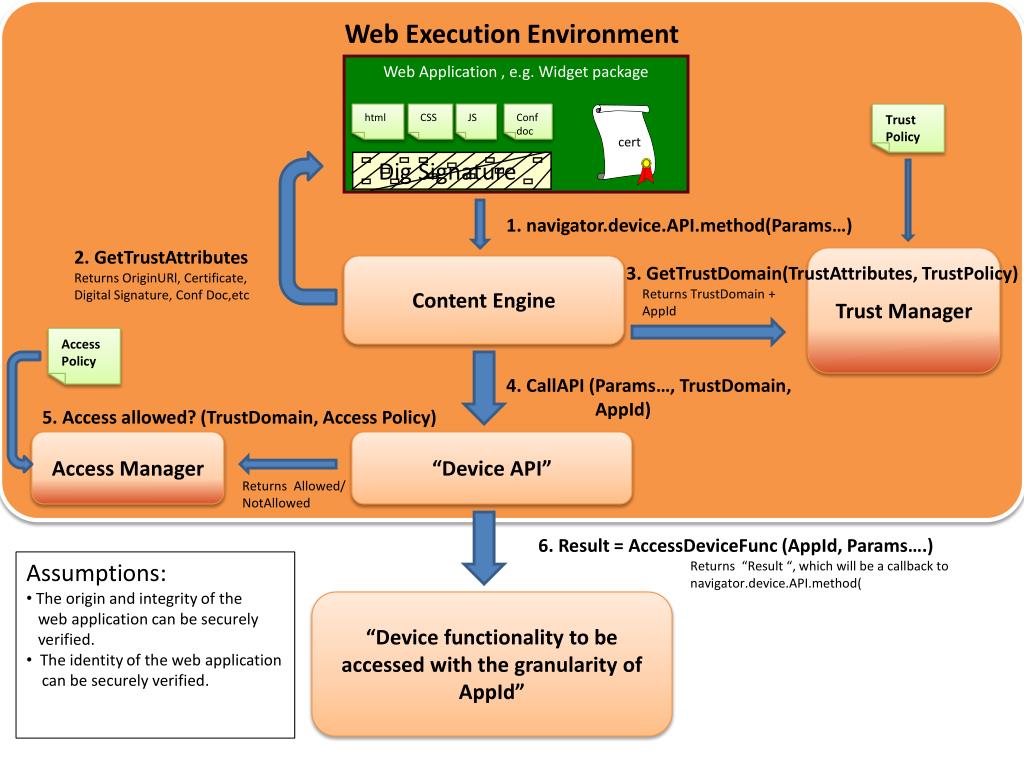

  4. Web Execution Environment Dig Signature Web Application , e.g. Widget package html CSS JS Confdoc Trust Policy cert 1. navigator.device.API.method(Params…) 2. GetTrustAttributes Trust Manager Content Engine 3. GetTrustDomain(TrustAttributes, TrustPolicy) Returns OriginURl, Certificate,Digital Signature, Conf Doc,etc Returns TrustDomain + AppId AccessPolicy 4. CallAPI (Params…, TrustDomain,AppId) 5. Access allowed? (TrustDomain, Access Policy) Access Manager “Device API” Returns Allowed/ NotAllowed 6. Result = AccessDeviceFunc (AppId, Params….) • Assumptions: • The origin and integrity of the web application can be securely verified. • The identity of the web application can be securely verified. Returns “Result “, which will be a callback to navigator.device.API.method( “Device functionality to be accessed with the granularity of AppId”

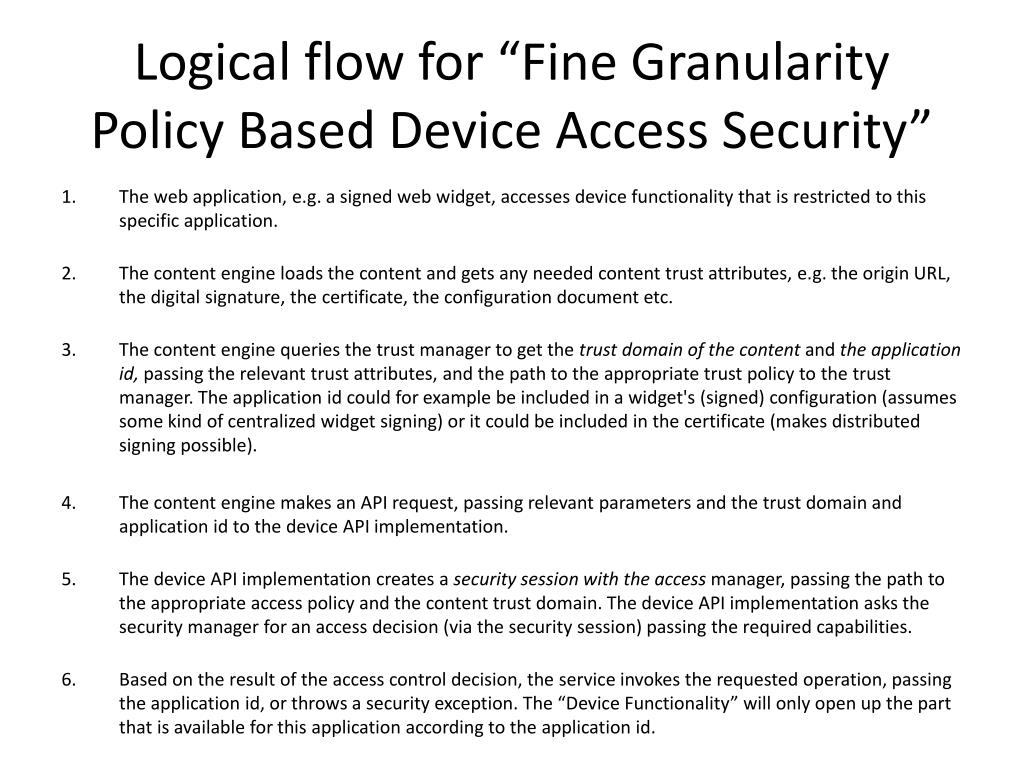

  5. Logical flow for “Fine Granularity Policy Based Device Access Security” • The web application, e.g. a signed web widget, accesses device functionality that is restricted to this specific application. • The content engine loads the content and gets any needed content trust attributes, e.g. the origin URL, the digital signature, the certificate, the configuration document etc. • The content engine queries the trust manager to get the trust domain of the content and the application id, passing the relevant trust attributes, and the path to the appropriate trust policy to the trust manager. The application id could for example be included in a widget's (signed) configuration (assumes some kind of centralized widget signing) or it could be included in the certificate (makes distributed signing possible). • The content engine makes an API request, passing relevant parameters and the trust domain and application id to the device API implementation. • The device API implementation creates a security session with the access manager, passing the path to the appropriate access policy and the content trust domain. The device API implementation asks the security manager for an access decision (via the security session) passing the required capabilities. • Based on the result of the access control decision, the service invokes the requested operation, passing the application id, or throws a security exception. The “Device Functionality” will only open up the part that is available for this application according to the application id.
