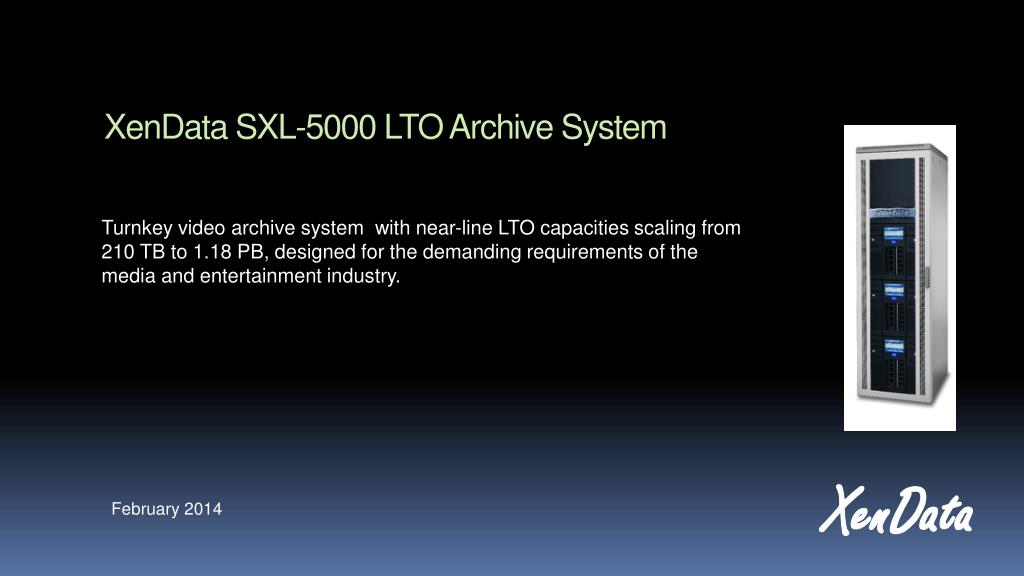

  1. XenDataSXL-5000 LTO Archive System Turnkey video archive system with near-line LTO capacities scaling from 210 TB to 1.18 PB, designed for the demanding requirements of the media and entertainment industry. February 2014

  2. XenDataSXL-5000 Archive SystemNAS Architecture – Easy to deploy 1Gb oor Scalable LTO Library SX-522 archive server runs Windows Server and XenData6 Server software; includes 4-20 TB RAID. Network Share over 1 GbE or 10 GbE

  3. XenData SXL-5000 Archive System • Fast Robot - Excellent Restore Performance • 7.5 s average slot to drive transfer • 7.5 s average drive to slot transfer

  4. XenData SXL-5000 Archive System • Solid Construction - Highly Reliable • Lead screw based robotics • Brushless DC motors and closed-loop servo control systems • Easy-to-use, install, configure and operate

  5. XenData SXL-5000 Archive System • Highly Scalable System - Meets Future Needs • Near-line LTO capacity from 210 TB to 1,180 TB • RAID capacity from 4 TB to 20 TB • LTO-6 drives from 2 to 8

  6. XenData SXL-5000 Physical Capacity Scaling

  7. XenData SXL-5000 On-Demand Capacity Scaling • Base model has 114 physical slots, 84 of which are licensed (210 TB) for XenData. • License additional slots in 30 slot (75 TB) increments.

  8. XenData SXL-5000 Archive System • Onsite Support in most locations worldwide: • USA and Canada • Europe • Asia – Pac • Latin America • First year of NBD onsite support is included.

  9. XenData SXL-5000 Archive SystemStandard Windows File System The XenDatasystem virtualizes the RAID, LTO library and off-line LTO cartridges, presenting them as a single volume: Internal RAID LTO Library Externalized LTO + + = disk

  10. XenData SXL-5000 Archive SystemBroad Application Compatibility • File/folder interface means the solution works with most applications – from MAMs to Windows Explorer to Finder. • No need to load any special software on client computers. • Supports multiple simultaneous applications. Multiple LTO cartridge groups can be configured for each application by mapping folders to specific cartridge groups.

  11. XenData SXL-5000 Archive SystemDesigned for Networks • NAS architecture makes it easy to deploy. • RAID cache delivers high performance in a network. • Interfaces via 1 GigE or 10 GigE. • Supports CIFS/SMB or FTP.

  12. XenData SXL-5000 Archive SystemSupport Windows, Mac and FTP Clients – plus local transfers • Windows, Mac and FTP clients are natively supported. • Locally the archive volume appears as a logical drive letter.

  13. XenData SXL-5000 Archive System • Fast Archiving • At the speed of RAID. • The system does not wait for LTO cartridges to be mounted.

  14. XenData SXL-5000 Archive System • Fast Restoring • The system restores queues of files in the shortest possible time. • Restore requests are processed to tape order to minimize unnecessary tape movement.

  15. XenData SXL-5000 Archive System • Partial Restore Capable • Allows a clip to be restored from LTO without need to restore the whole file.

  16. XenData SXL-5000 Archive System • Built-in Data Protection   • The system will automatically create extra backup copies of LTO cartridges for offsite retention.

  17. XenData SXL-5000 Archive System • Industry Standard Security • The archive server integrates fully with the Microsoft security model based on Active Directory.

  18. XenData SXL-5000 Archive System • Prevents Vendor Lock-In • LTO cartridges are written in either the exchange LTFS format or the open standard TAR format. • The use of a standard format prevents vendor lock-in – proprietary formats make it very costly to ever switch to another vendor.

  19. XenData SXL-5000 Archive System • Manage Unlimited Externalized Cartridges • The system manages any number of externalized cartridges, providing an unlimited total capacity. There are no license fees for externalized capacity. • When offline files are accessed, the system prompts with email alerts and on-screen notifications, identifying the cartridge that should be imported back into the system. • A range of different reports helps manage the entire archive including all externalized cartridges.

  20. For more information, please visit www.xendata.com
