  1. EASE: An Effective 3-in-1 Keyword Search Method forUnstructured, Semi-structured and Structured Data Guoliang Li et al.

  2. The Problem • Keyword search introduces false positives i.e.: “Conference 2008 Canada Data Integration”

  3. The Problem • Websites are organized through content “Dr Pain, Math 343, Linear Algebra”

  4. The Solution Combine linked pages for search, ordered by ranking

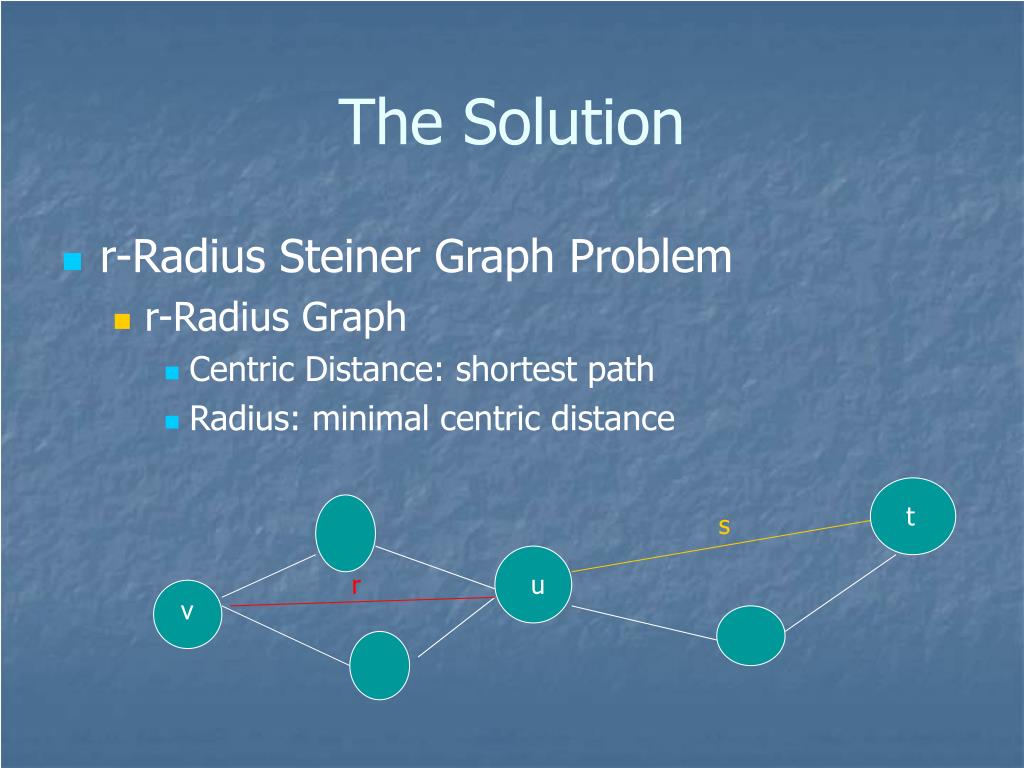

  5. t s r u v The Solution • r-Radius Steiner Graph Problem • r-Radius Graph • Centric Distance: shortest path • Radius: minimal centric distance

  6. t “Math 343” s “Dr Pain” r u v The Solution • r-Radius Steiner Graph Problem • Content node: Contains a keyword • Steiner node: Two content nodes

  7. r-Radius Steiner Graph on search • Example:

  8. r-Radius Steiner Graph on search

  9. r-Radius Steiner Graph on search The graph model for the publication database

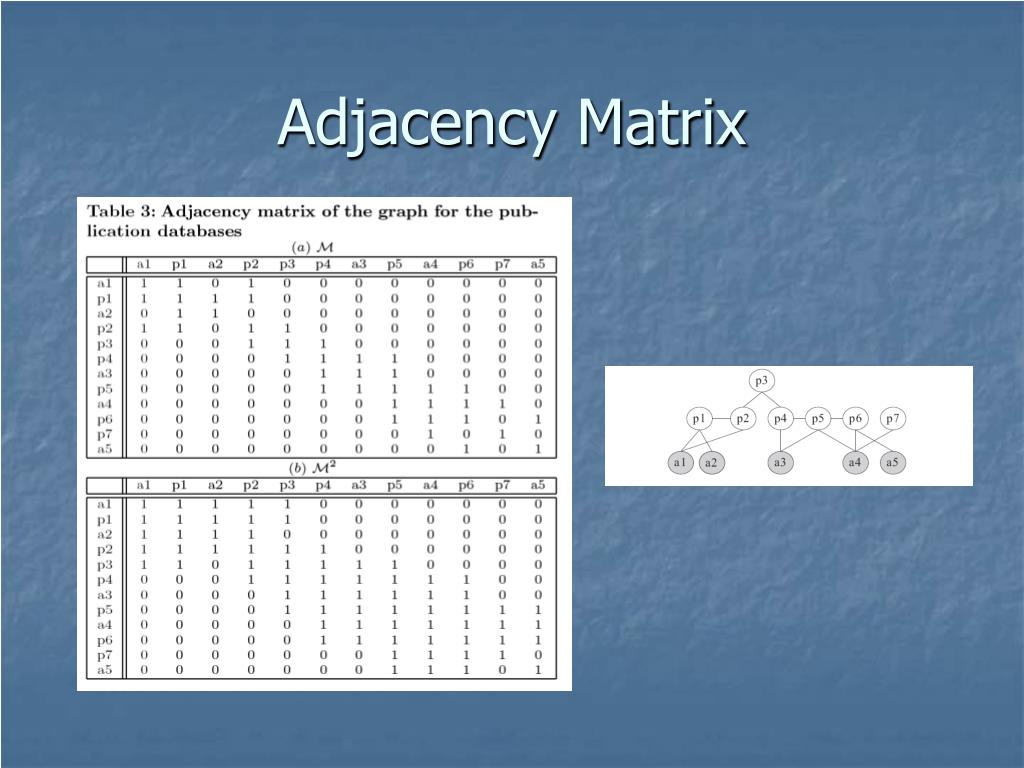

  10. Adjacency Matrix

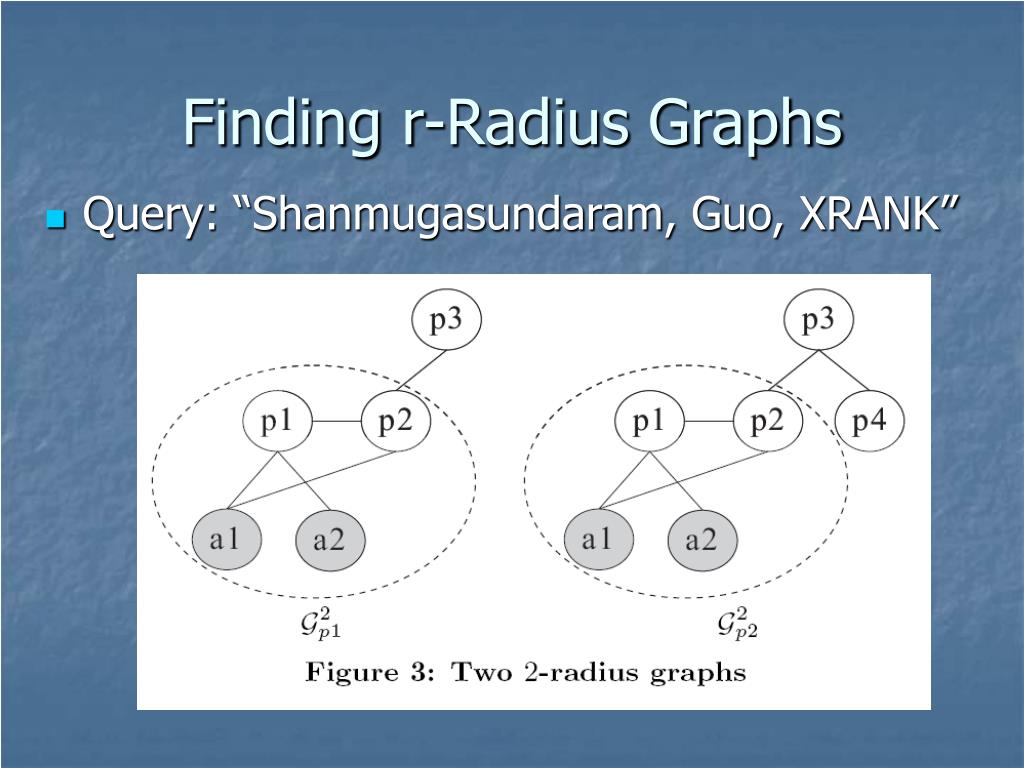

  11. Finding r-Radius Graphs • Query: “Shanmugasundaram, Guo, XRANK”

  12. Avoiding Overlapping • Maximal r-Radius Graph • It is not contained in another r-Radius subgraph • But wait! There is still overlap • No problem: • Graph Clustering • Graph Partitioning

  13. Graph Clustering

  14. Ranking • TF-IDF-based IR ranking (tf,idf,ndl) is ok • Better yet: structural compactness-based DB ranking (SIM) • More compact more relevant • Length of path inversely proportional to ranking

  15. Indexing • IR score and Sim score are combined • An inverted index (EI-Index) is created • The inverted index stores keyword pairs and scores

  16. Experiments

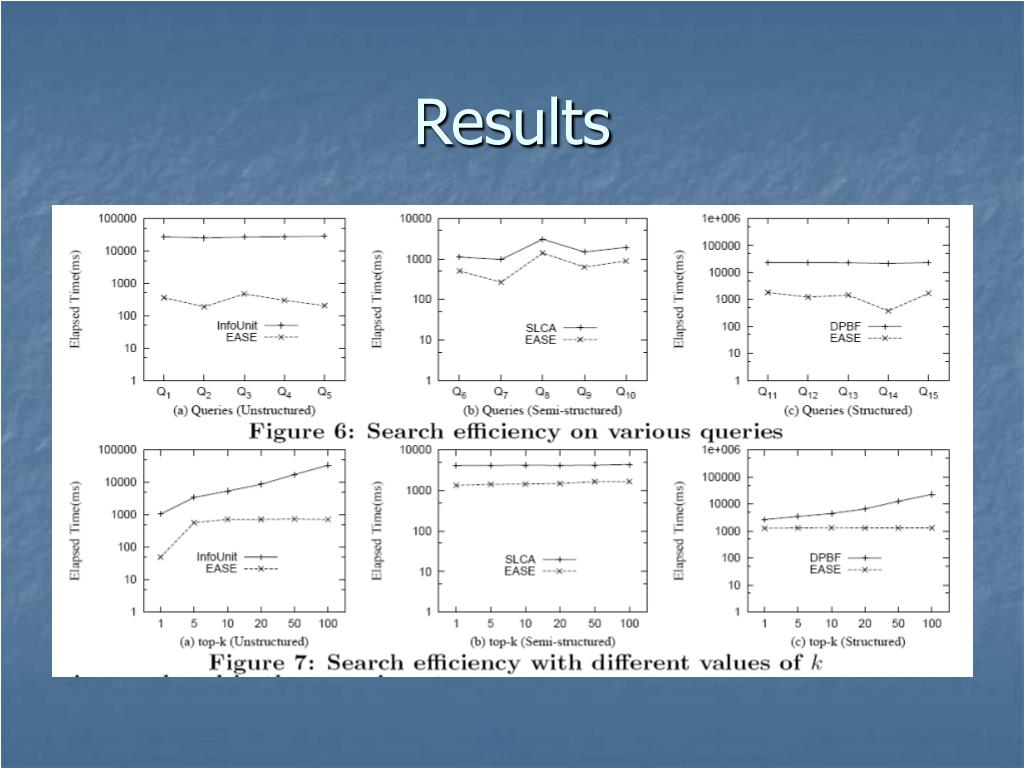

  17. Results

  18. Results

  19. Results

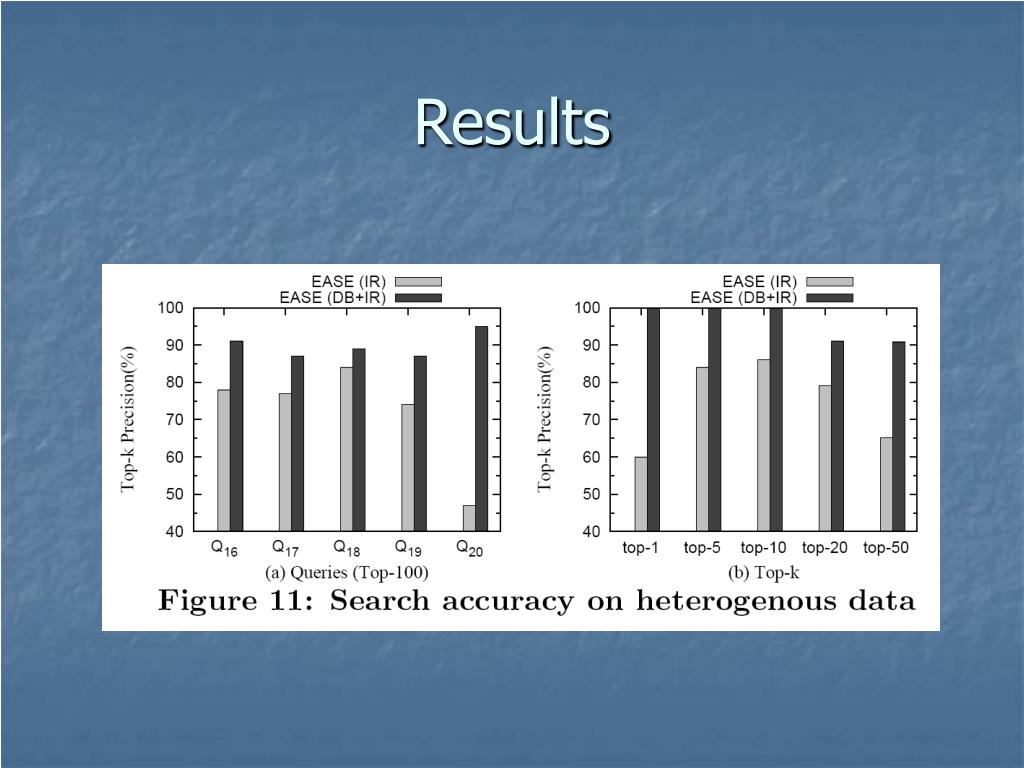

  20. Results

  21. Strengths of the Paper • Very well written paper • Deep research on the topic • Mathematical based and proved • Baseline with current methods • Good results

  22. Weakness and Future Work • It might be too complex • Could work on ways to find Steiner graphs faster • It doesn’t consider cases of farming sites or bogus sites

  23. Questions?
