  1. STT-RAM Test Chip #1 Weekly Status Report Date: Wed Nov-04-2009 Amr Amin Preeti Mulage UCLA CKY Group

  2. Remaining Tasks • SA offset and min “read” signal • Using VA model for the MTJ (Preeti) • Simulating the “write” circuit (Preeti) • Adjusting the Addressing Logic • Adding the dummy poly resistors and extra MUXs (Amr) • Adding logic for testing (Amr) • Adjusting timing and control • Using an un-clocked amp instead of the latch • Scan Chain synthesis (Yuta and Preeti) • Top cell integration (Amr) • Chip Sim with package model (Amr and Preeti) • Layout (Amr and Preeti) • Post layout sim (Amr and Preeti) • Tapeout !

  3. Memory Array Revisited • What should be…

  4. Memory Array Revisited • What we have…

  5. Memory Array Revisited • Adding dummy resistors: • The easy way • Each resistor can have a different value • Reference resistance will be constant

  6. Memory Array Revisited • Adding dummy resistors: • One variable conductance for each half-bank • Can help having a variable reference • Same Column-Select Signals can be used for both MUXs • Resistance programming bits should come from the scan-chain

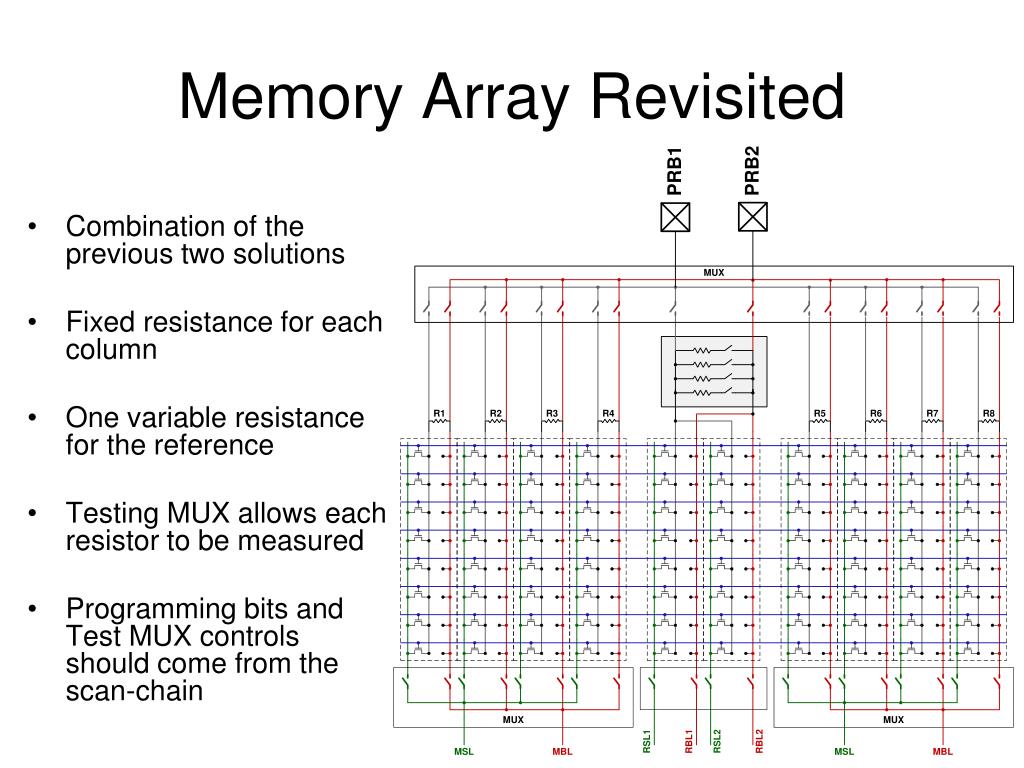

  7. Memory Array Revisited • Combination of the previous two solutions • Fixed resistance for each column • One variable resistance for the reference • Testing MUX allows each resistor to be measured • Programming bits and Test MUX controls should come from the scan-chain

  8. Operation Modes • Still working on defining the chip operation modes and writing a truth table for the allowed combinations of control bits

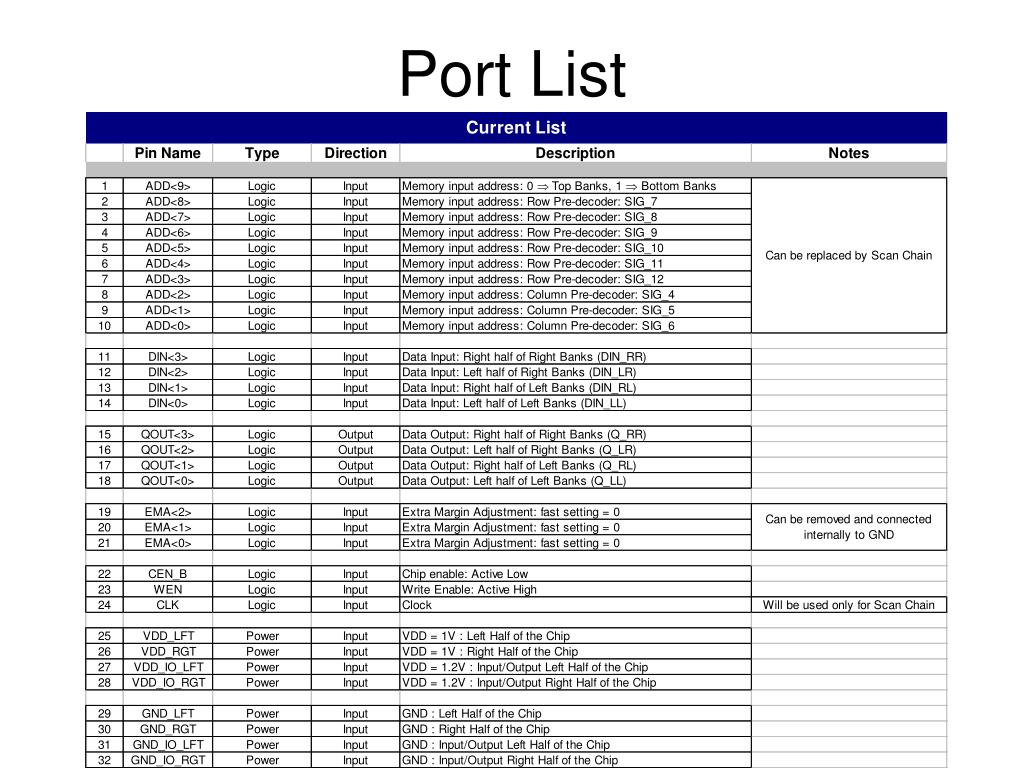

  9. Port List

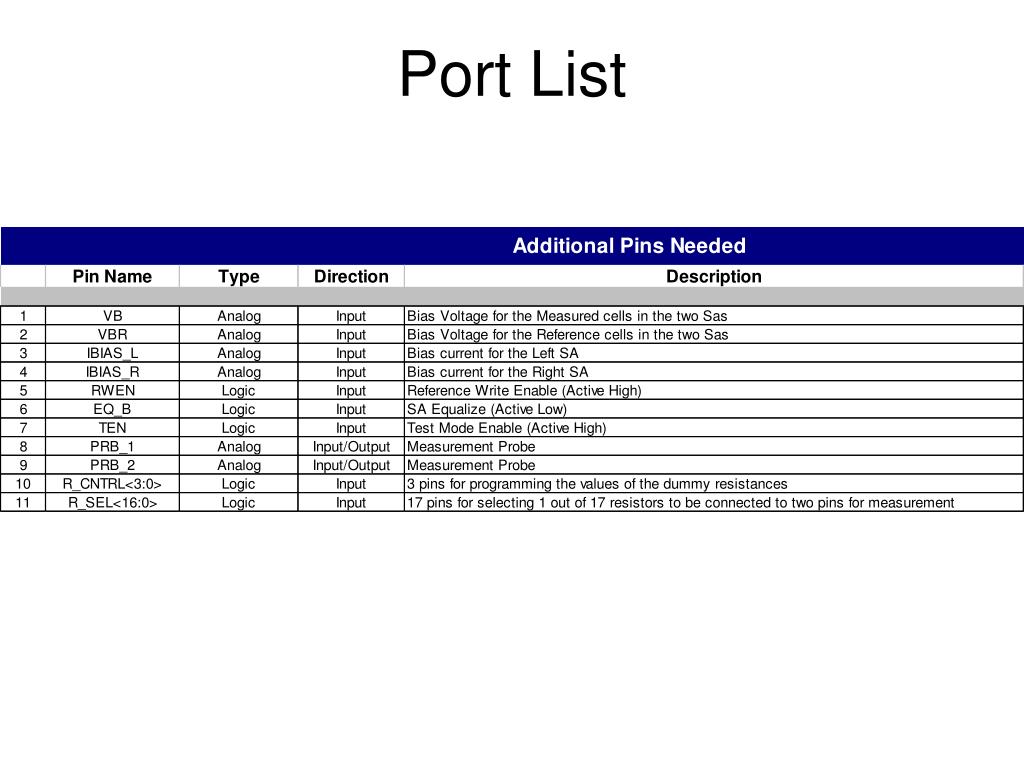

  10. Port List

  11. Port List

  12. Pad List
