Ohm’s Law

Ohm’s Law. German Physicist Georg Simon Ohm found that: For a fixed resistance, current is directly proportional to voltage a. if voltage increases, current increases b. if voltage decreases, current decreases

deliz
Download Presentation

Ohm’s Law

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

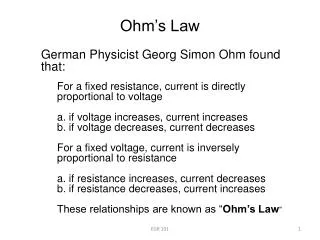

  1. Ohm’s Law • German Physicist Georg Simon Ohm found that: • For a fixed resistance, current is directly proportional to voltage • a. if voltage increases, current increasesb. if voltage decreases, current decreases • For a fixed voltage, current is inversely proportional to resistancea. if resistance increases, current decreasesb. if resistance decreases, current increases • These relationships are known as “Ohm’s Law” EGR 101

  2. As voltage increases, current increases EGR 101

  3. As resistance increases, current decreases EGR 101

  4. Ohm’s Law …. 3 Forms Calculate Current Calculate Voltage Calculate Resistance where I = the circuit current V = the applied voltage R = the circuit resistance EGR 101

  5. A Graphical Helper V = IR V R I R = V/I I = V/R EGR 101
