  1. Lecture 5: DC & Transient Response

  2. Outline • Pass Transistors • DC Response • Logic Levels and Noise Margins • Transient Response • RC Delay Models • Delay Estimation 5: DC and Transient Response

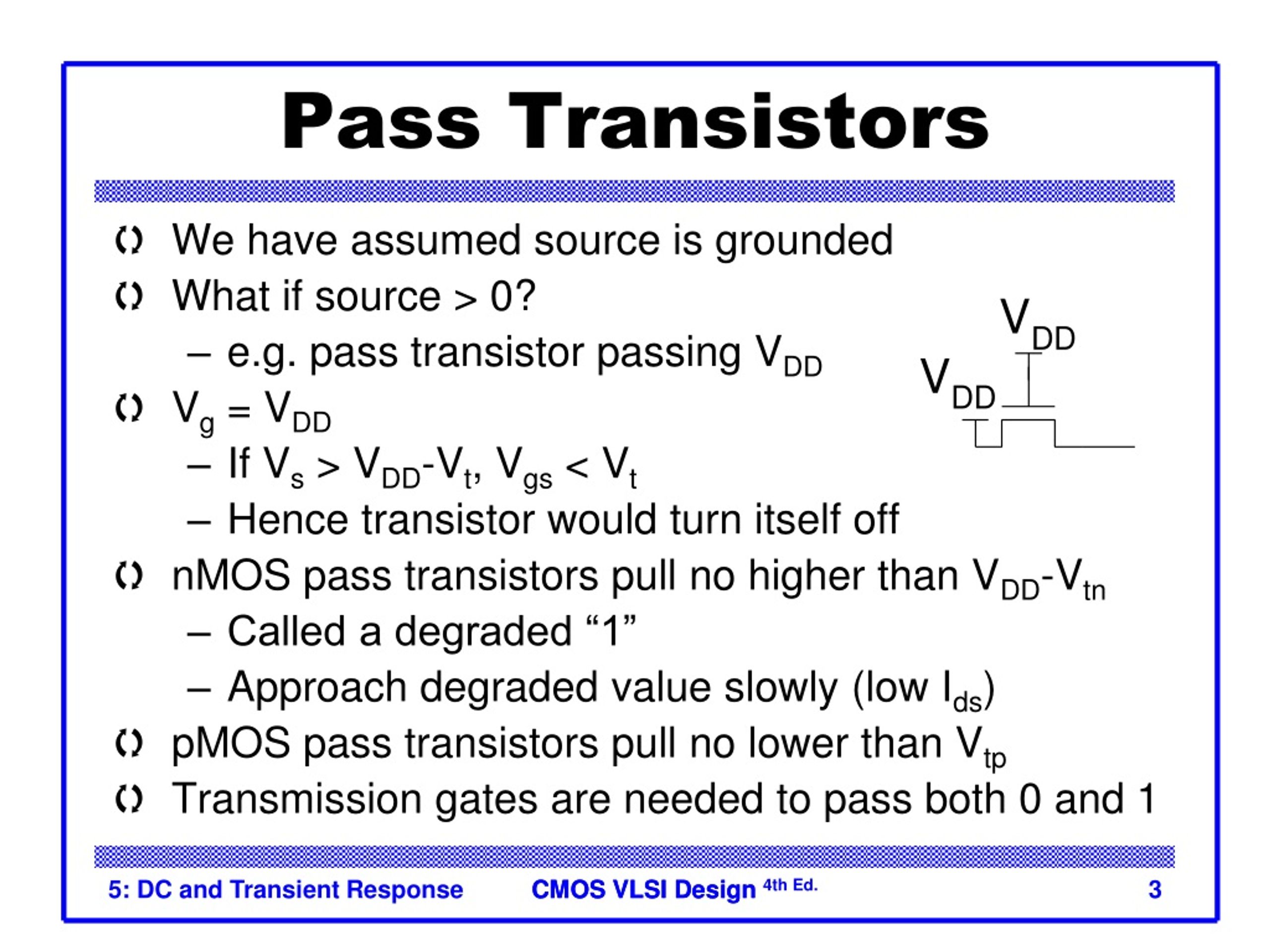

  3. Pass Transistors • We have assumed source is grounded • What if source > 0? • e.g. pass transistor passing VDD • Vg = VDD • If Vs > VDD-Vt, Vgs < Vt • Hence transistor would turn itself off • nMOS pass transistors pull no higher than VDD-Vtn • Called a degraded “1” • Approach degraded value slowly (low Ids) • pMOS pass transistors pull no lower than Vtp • Transmission gates are needed to pass both 0 and 1 5: DC and Transient Response

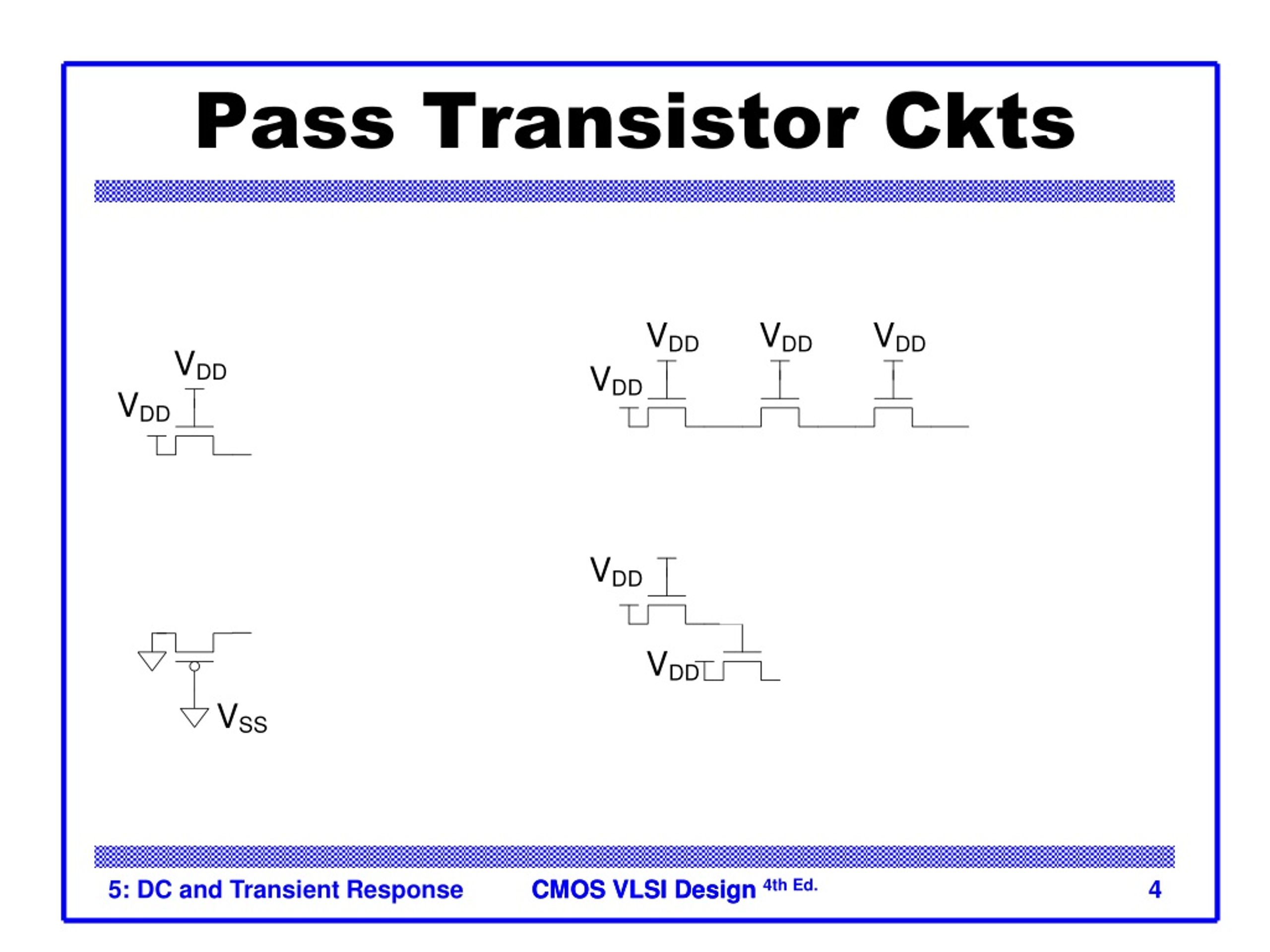

  4. Pass Transistor Ckts 5: DC and Transient Response

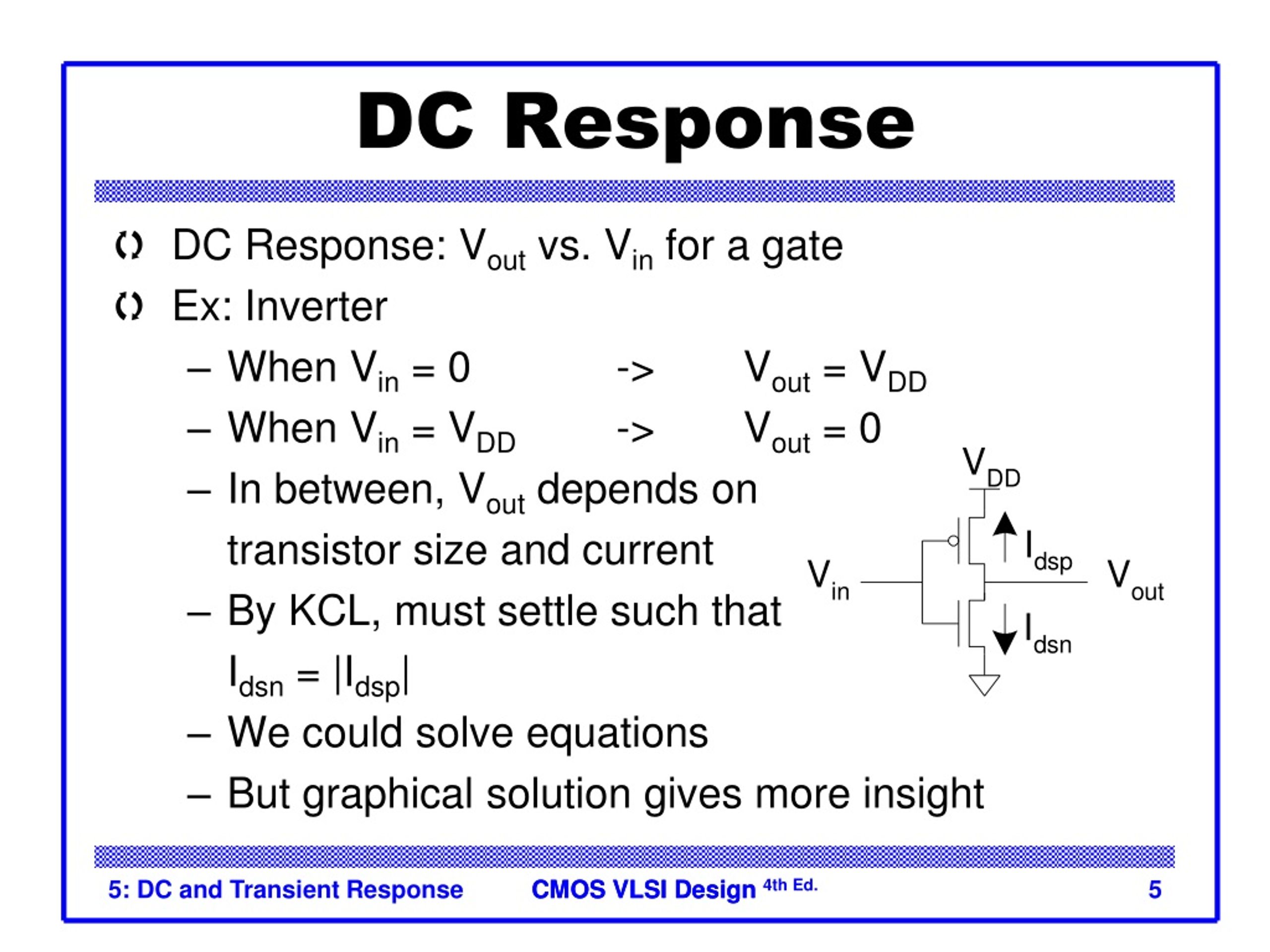

  5. DC Response • DC Response: Vout vs. Vin for a gate • Ex: Inverter • When Vin = 0 -> Vout = VDD • When Vin = VDD -> Vout = 0 • In between, Vout depends on transistor size and current • By KCL, must settle such that Idsn = |Idsp| • We could solve equations • But graphical solution gives more insight 5: DC and Transient Response

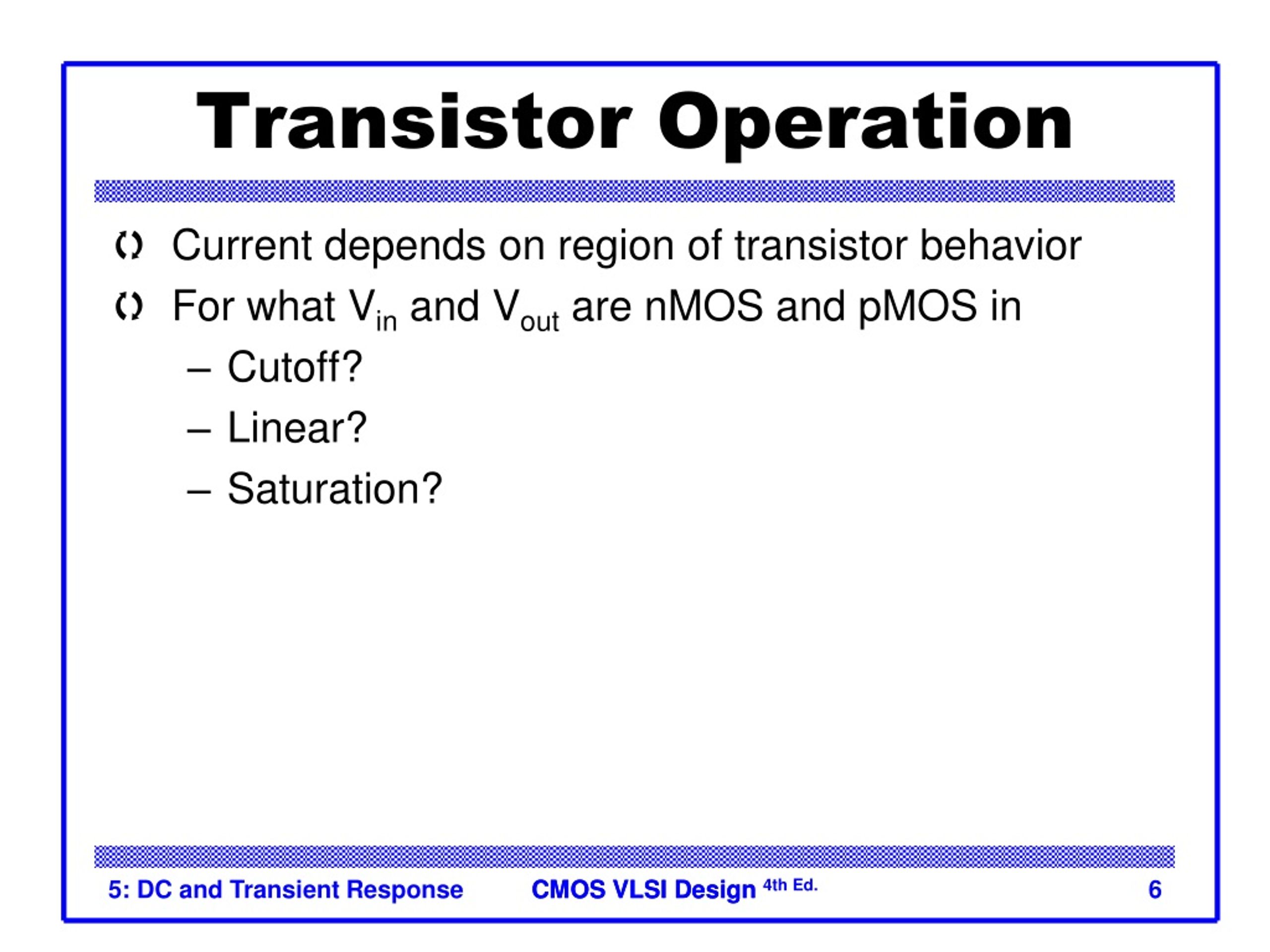

  6. Transistor Operation • Current depends on region of transistor behavior • For what Vin and Vout are nMOS and pMOS in • Cutoff? • Linear? • Saturation? 5: DC and Transient Response

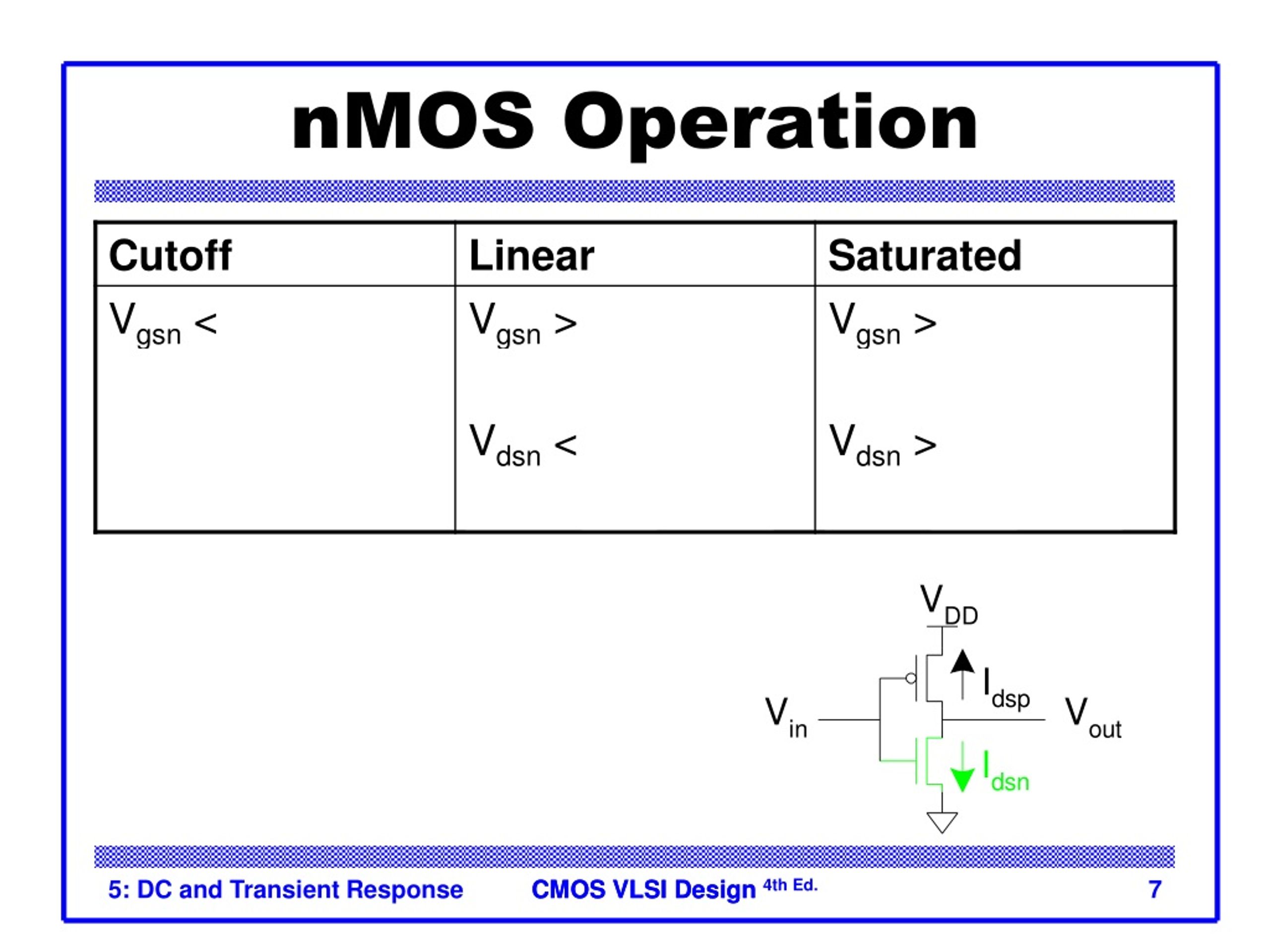

  7. nMOS Operation Vgsn = Vin Vdsn = Vout 5: DC and Transient Response

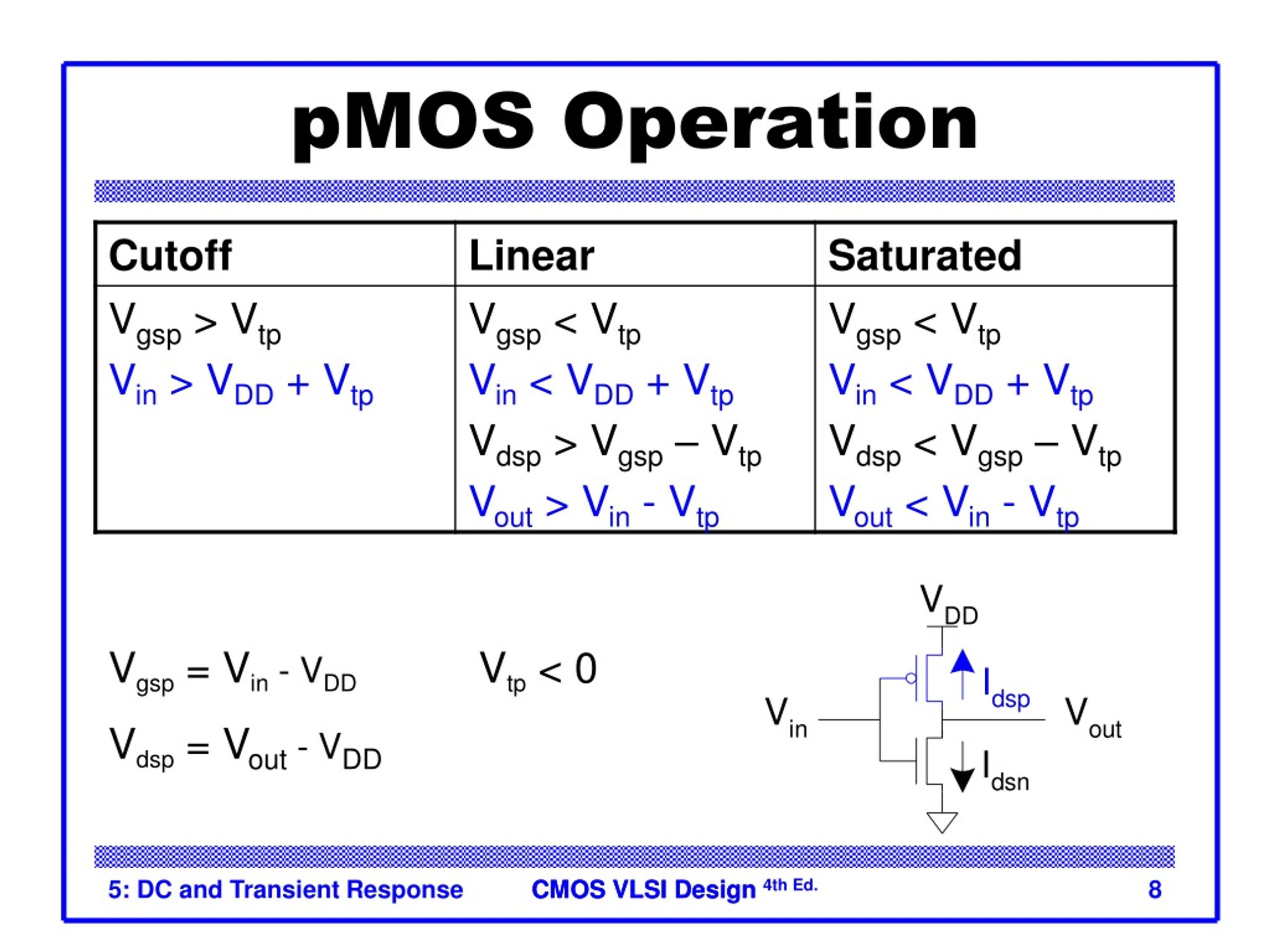

  8. pMOS Operation Vgsp = Vin - VDD Vdsp = Vout - VDD Vtp < 0 5: DC and Transient Response

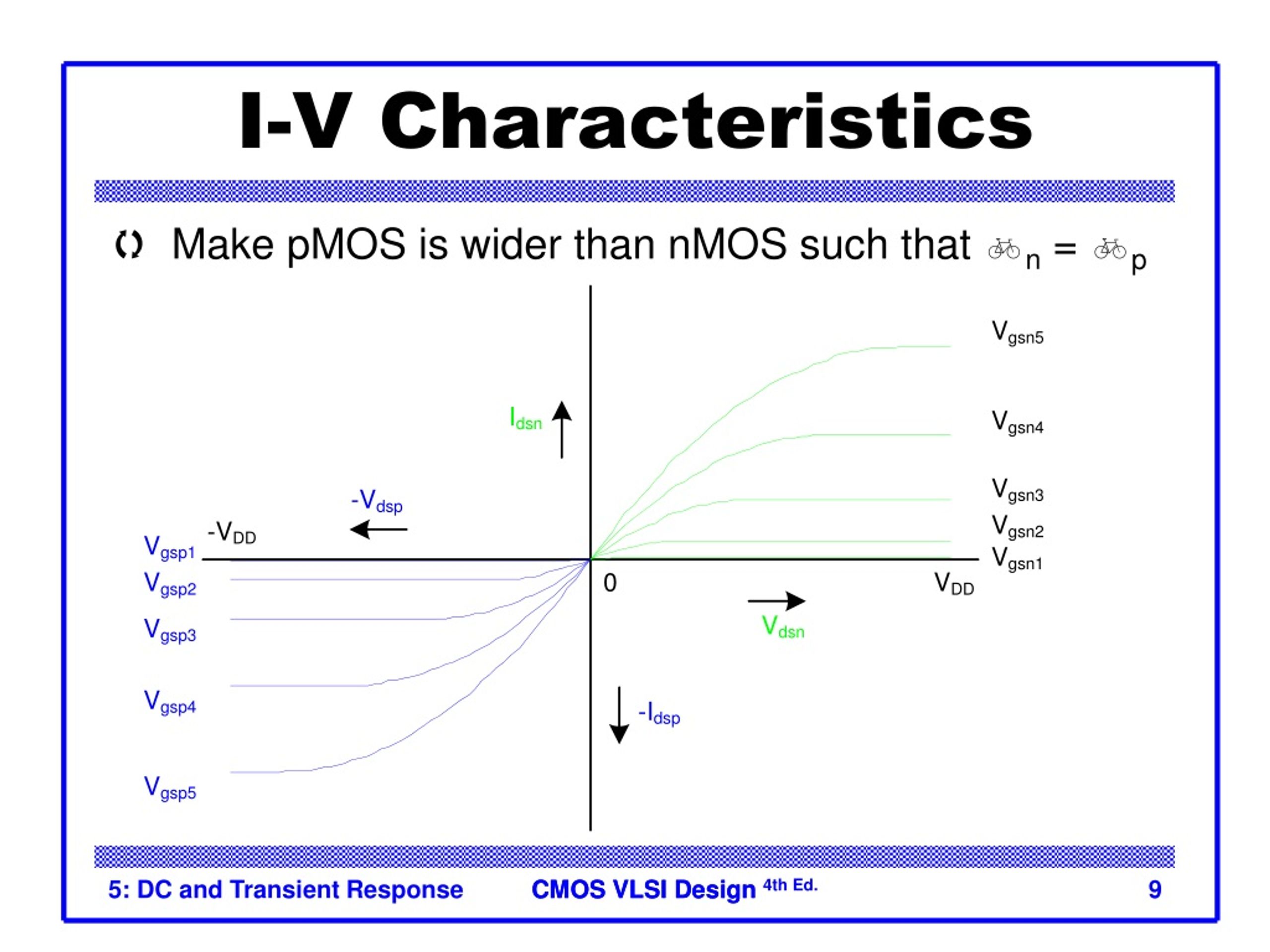

  9. I-V Characteristics • Make pMOS is wider than nMOS such that bn = bp 5: DC and Transient Response

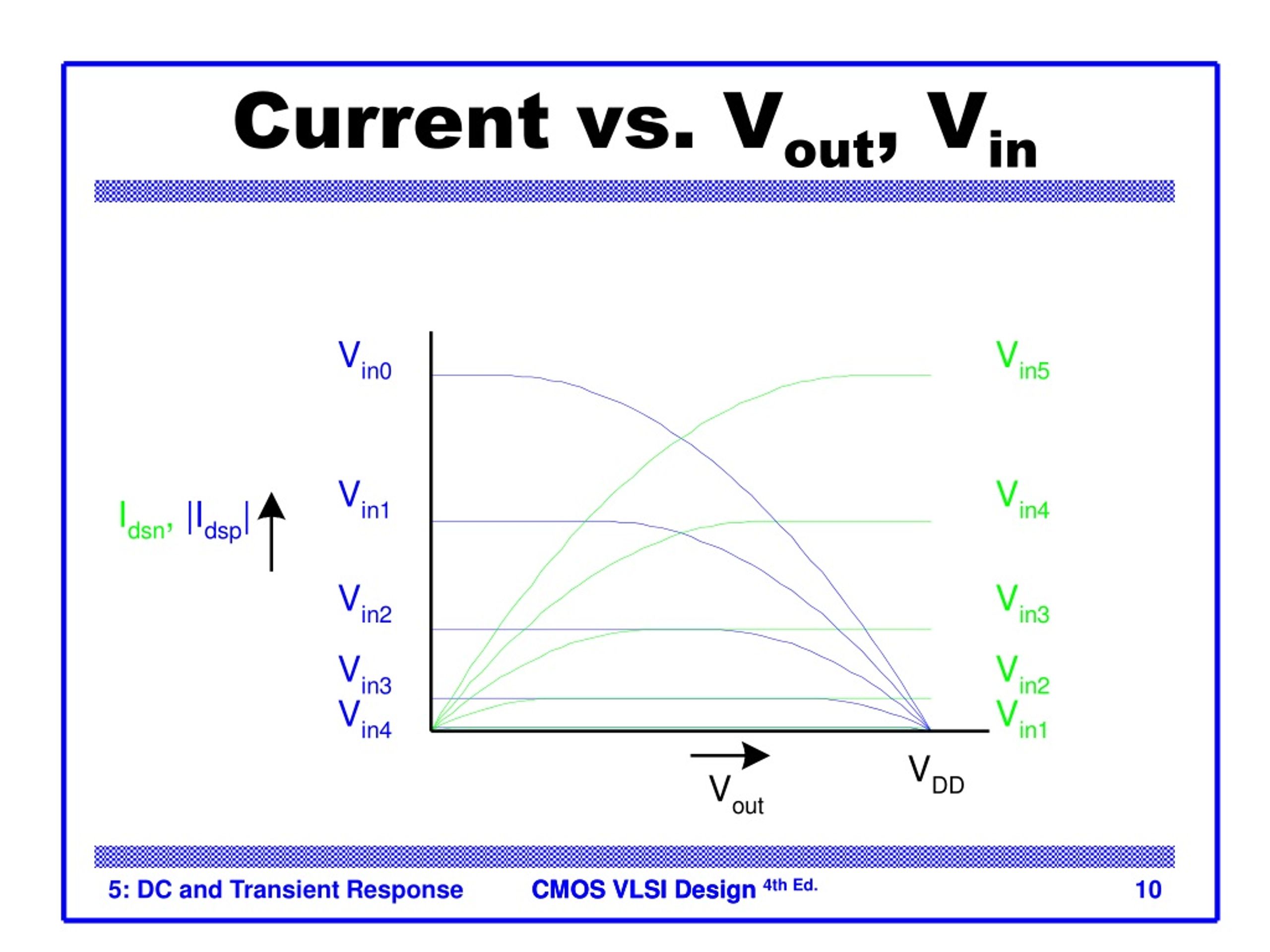

  10. Current vs. Vout, Vin 5: DC and Transient Response

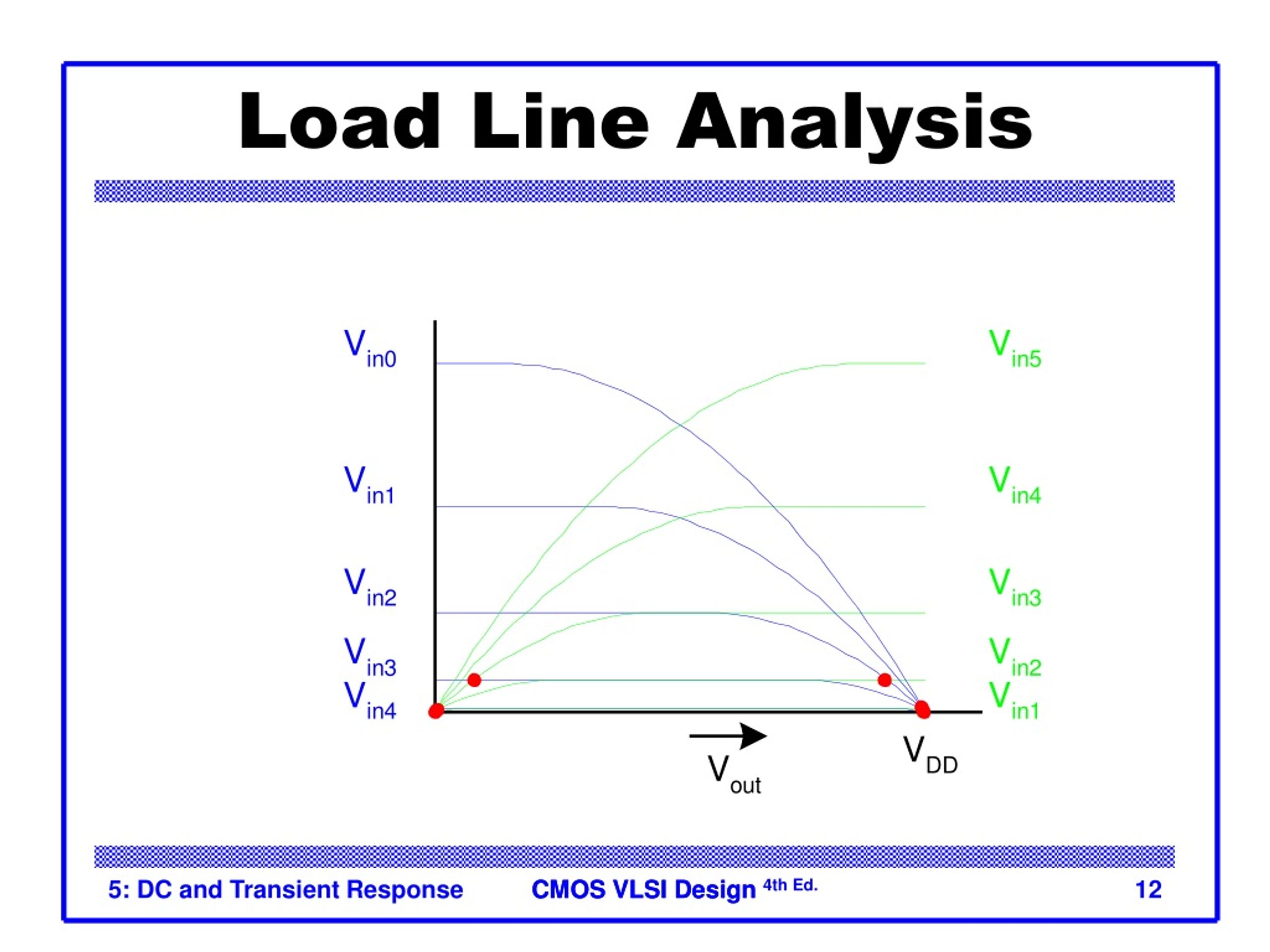

  11. Load Line Analysis • For a given Vin: • Plot Idsn, Idsp vs. Vout • Vout must be where |currents| are equal in 5: DC and Transient Response

  12. Load Line Analysis • Vin = 0 • Vin = 0 0.2VDD 0.4VDD 0.6VDD 0.8VDD VDD 5: DC and Transient Response

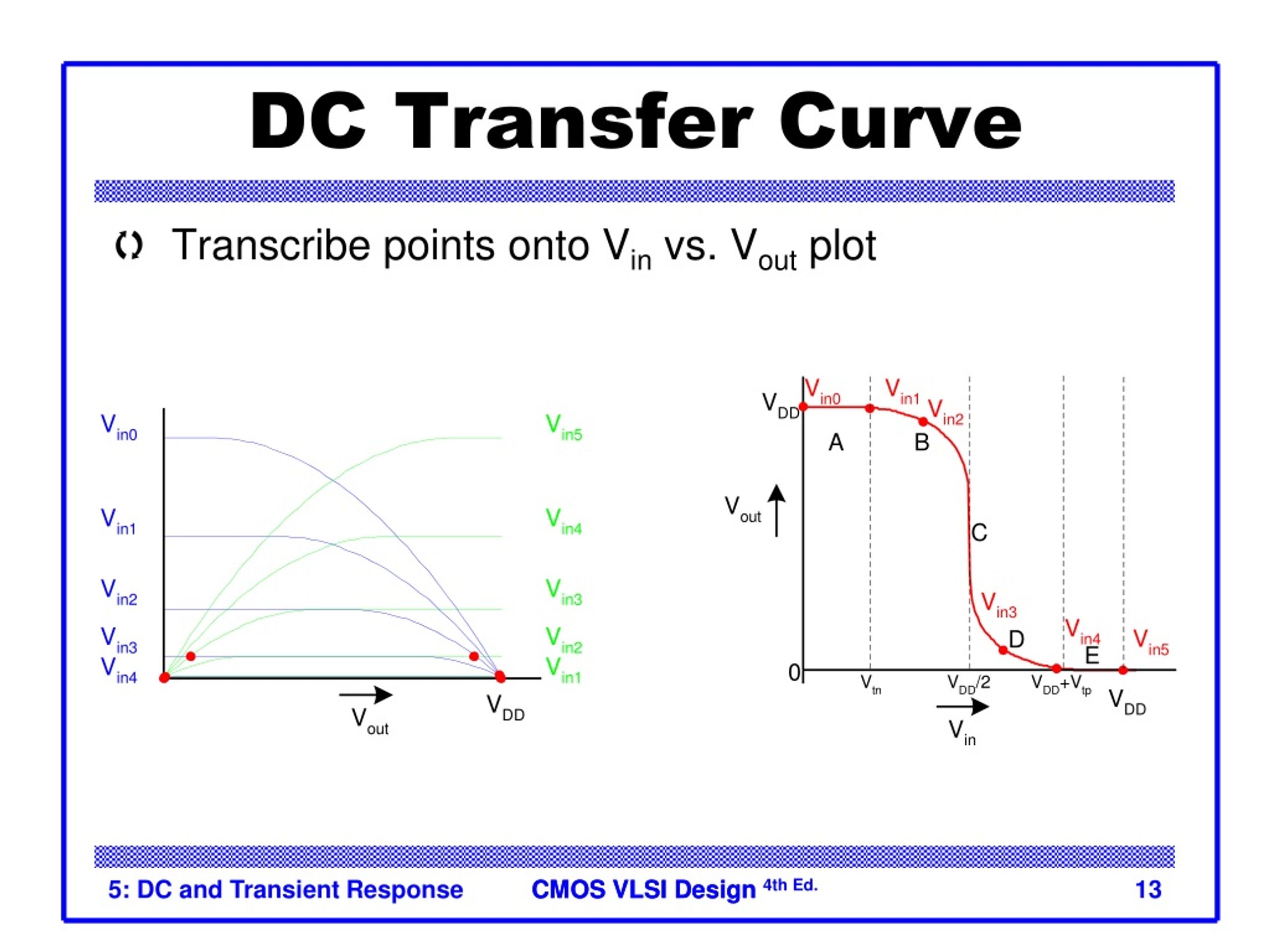

  13. DC Transfer Curve • Transcribe points onto Vin vs. Vout plot 5: DC and Transient Response

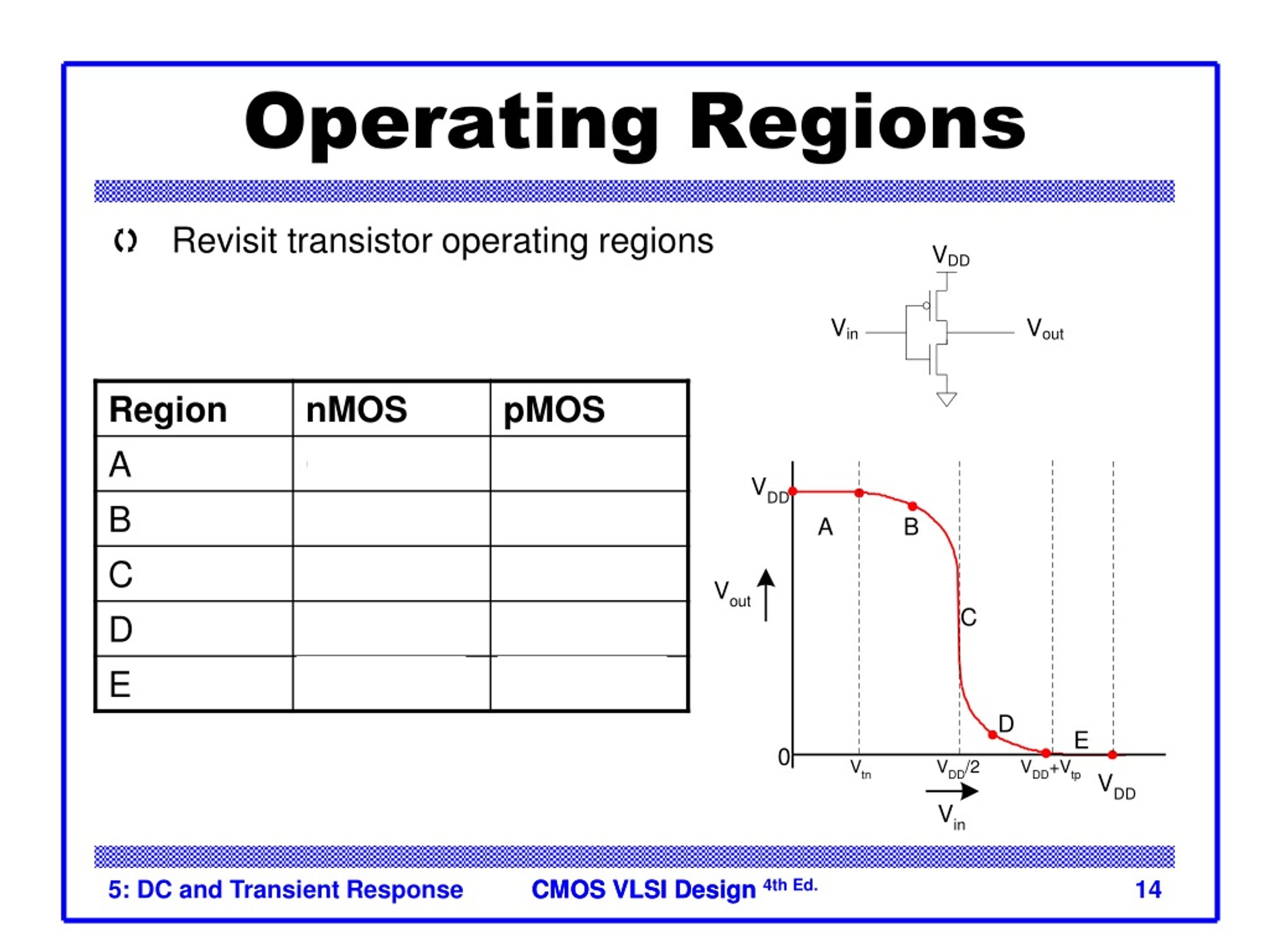

  14. Operating Regions • Revisit transistor operating regions 5: DC and Transient Response

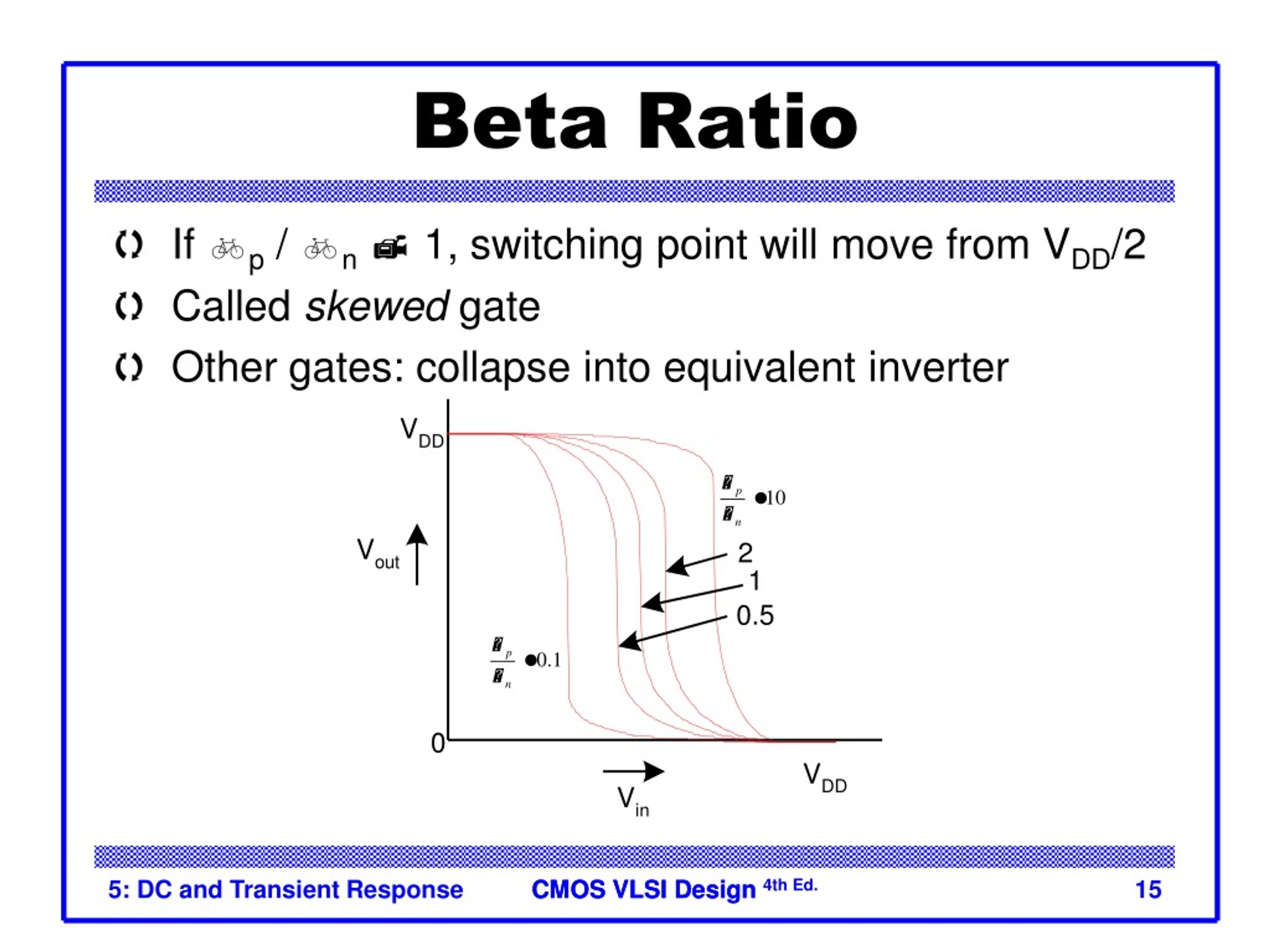

  15. Beta Ratio • If bp / bn 1, switching point will move from VDD/2 • Called skewed gate • Other gates: collapse into equivalent inverter 5: DC and Transient Response

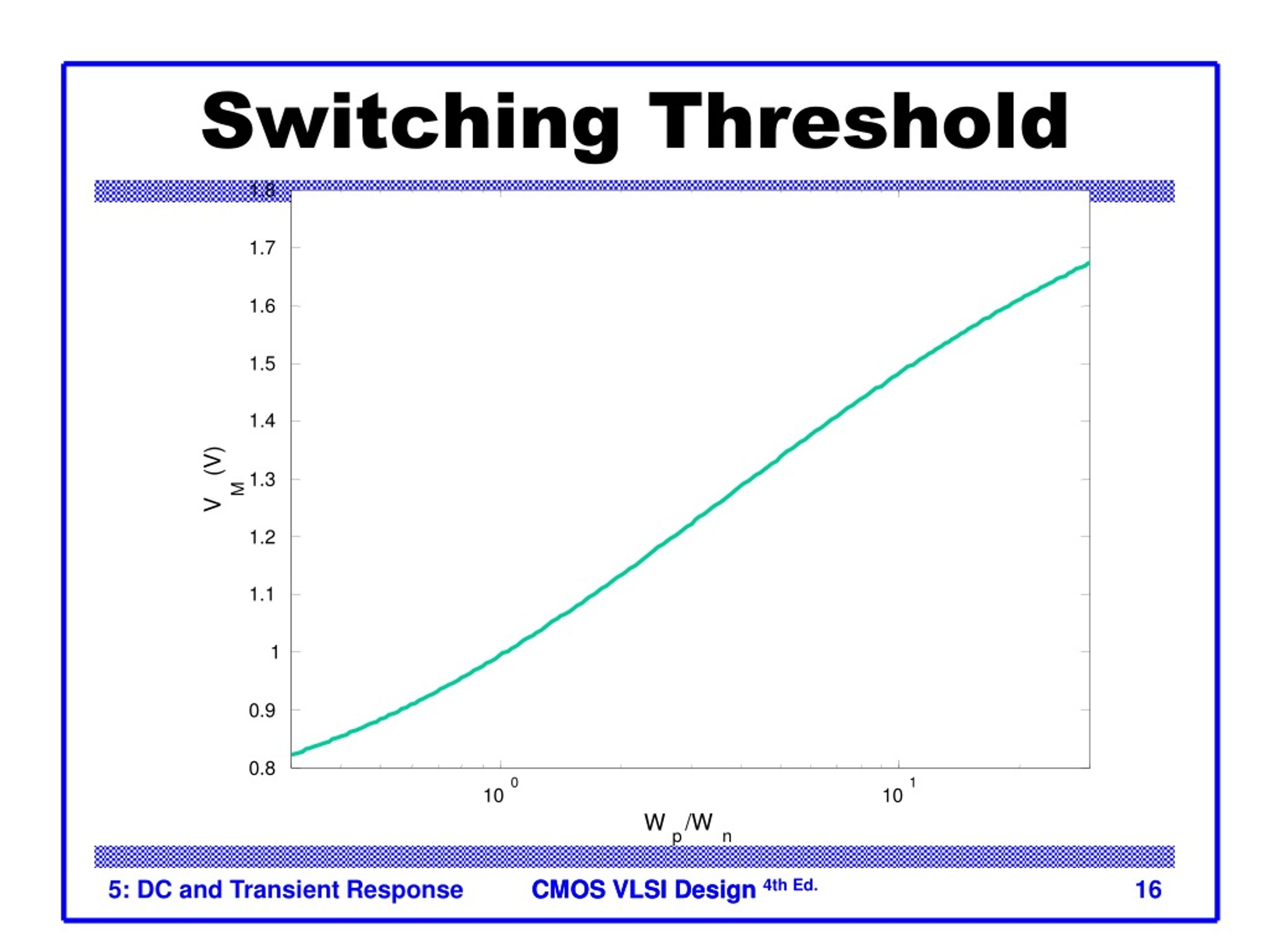

  16. 1.8 1.7 1.6 1.5 1.4 (V) 1.3 M V 1.2 1.1 1 0.9 0.8 0 1 10 10 /W W p n Switching Threshold 5: DC and Transient Response

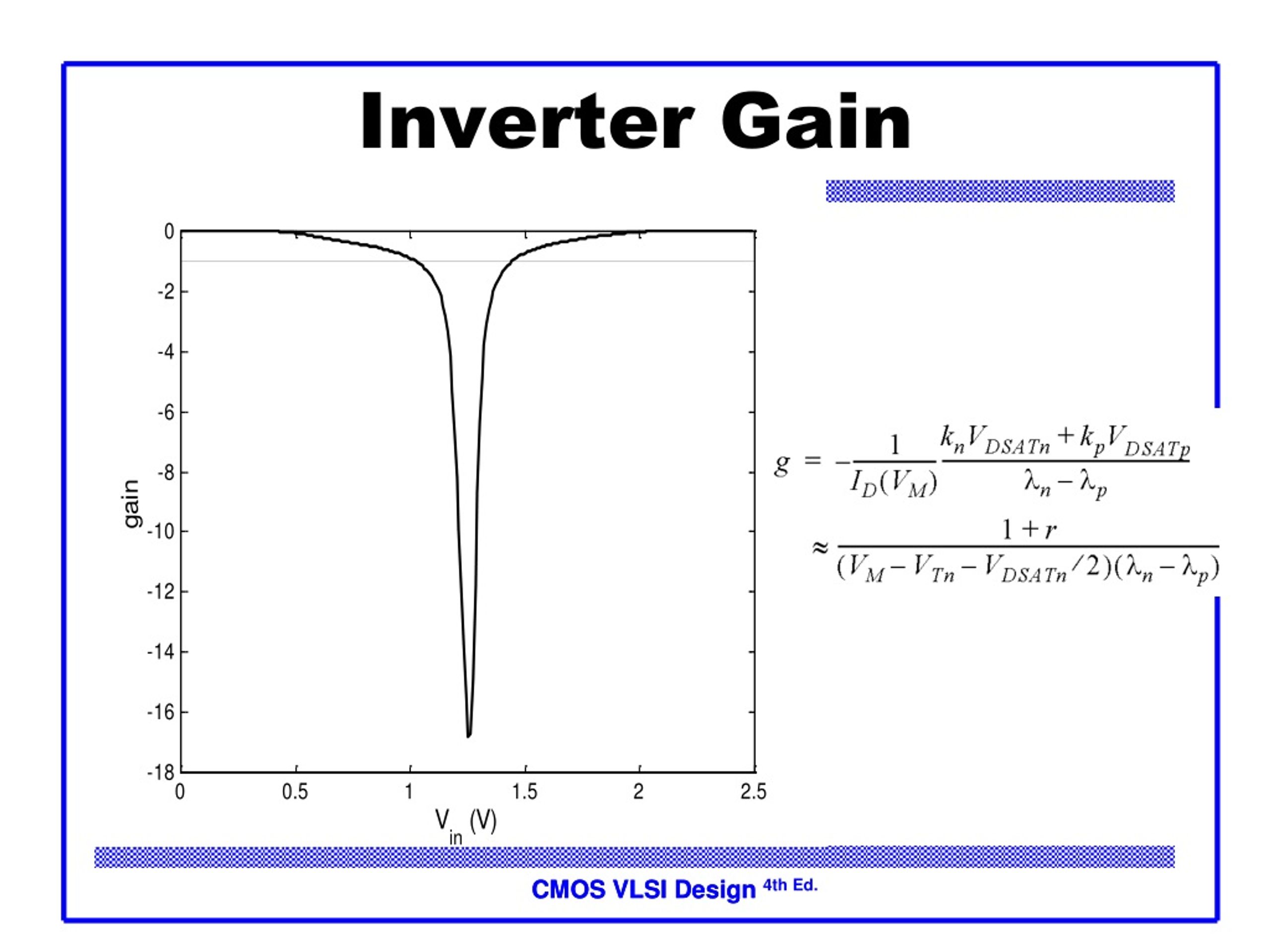

  17. Inverter Gain

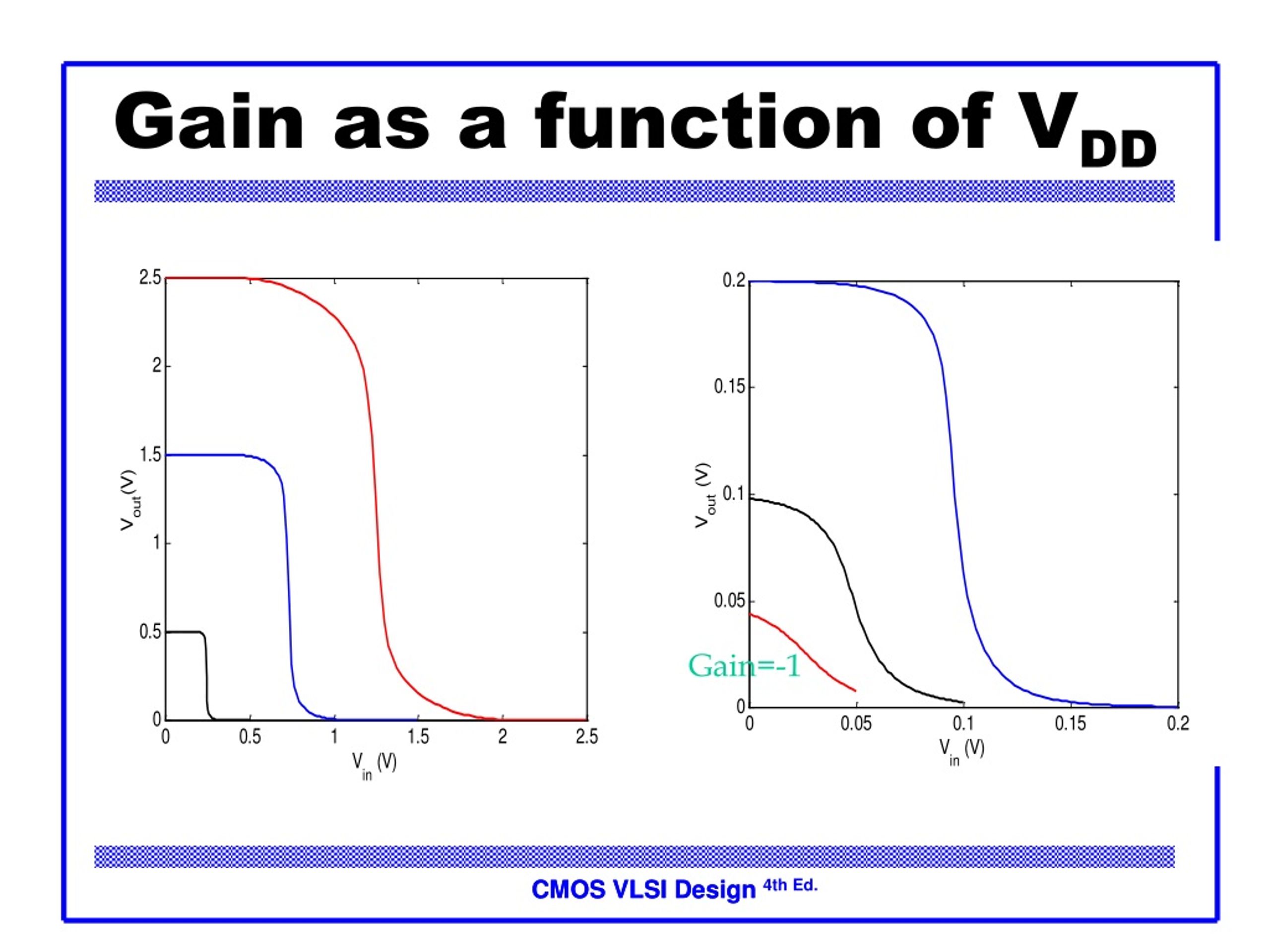

  18. Gain=-1 Gain as a function of VDD

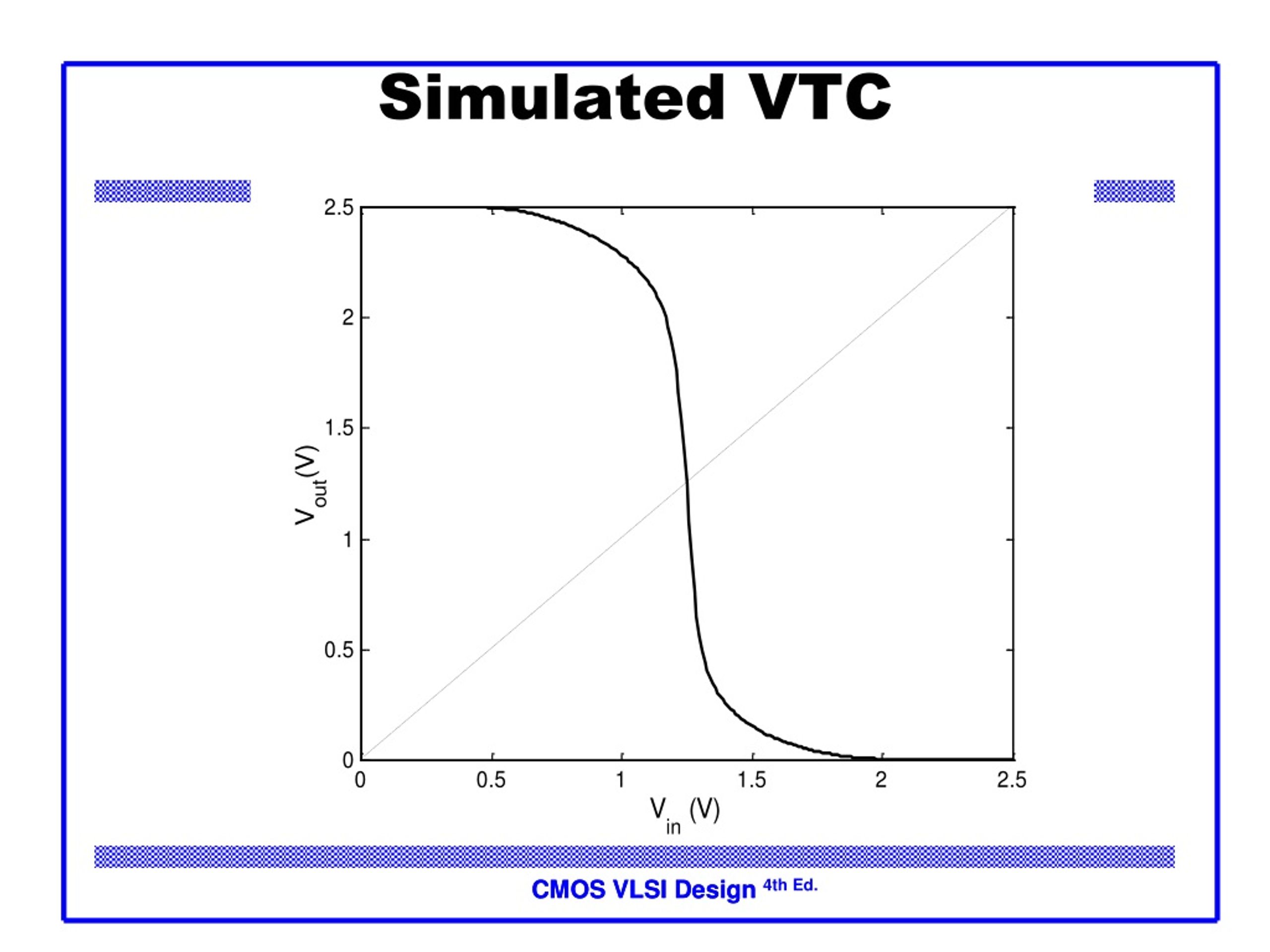

  19. Simulated VTC

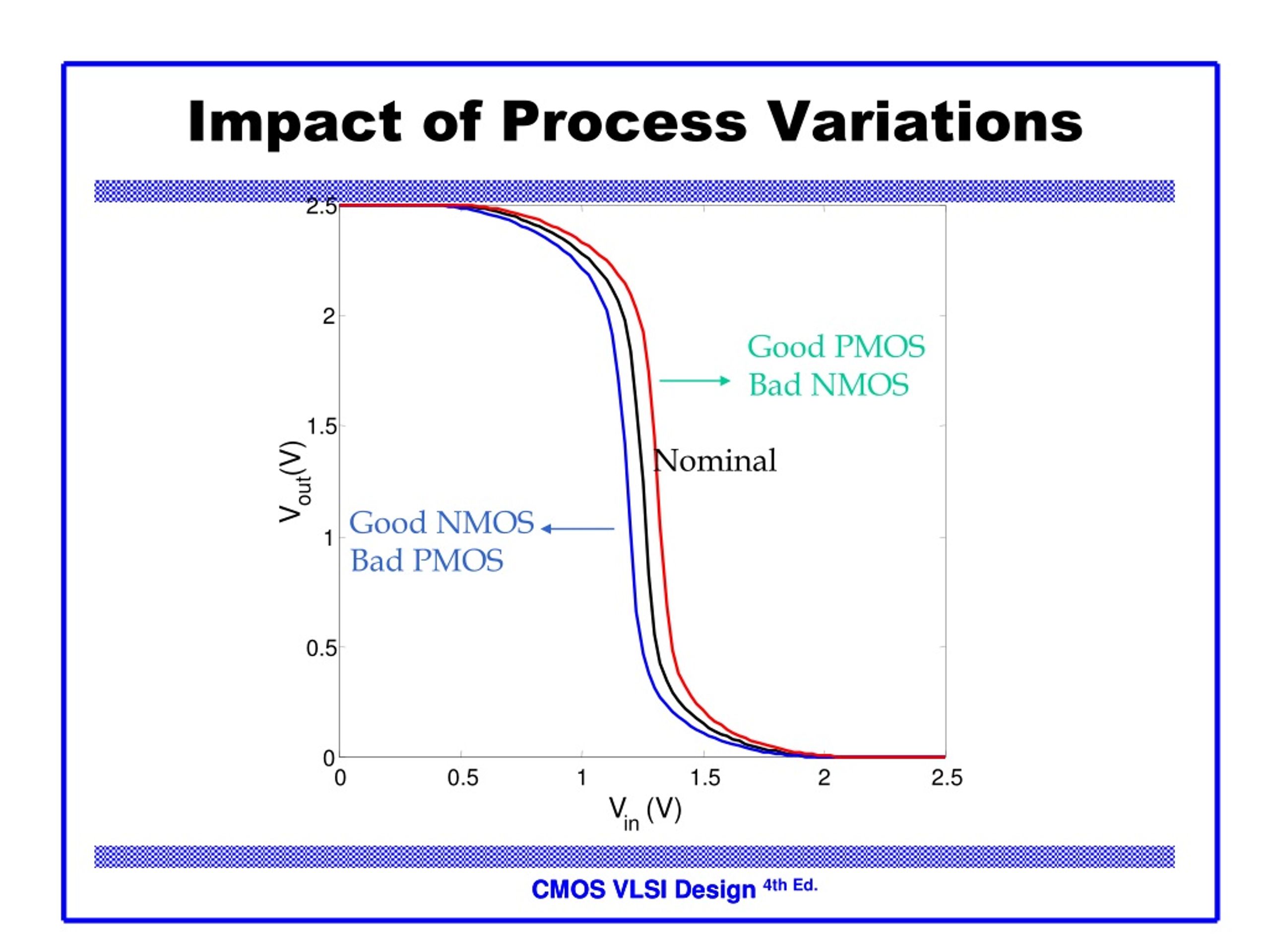

  20. 2.5 2 Good PMOS Bad NMOS 1.5 Nominal (V) out Good NMOS Bad PMOS V 1 0.5 0 0 0.5 1 1.5 2 2.5 V (V) in Impact of Process Variations

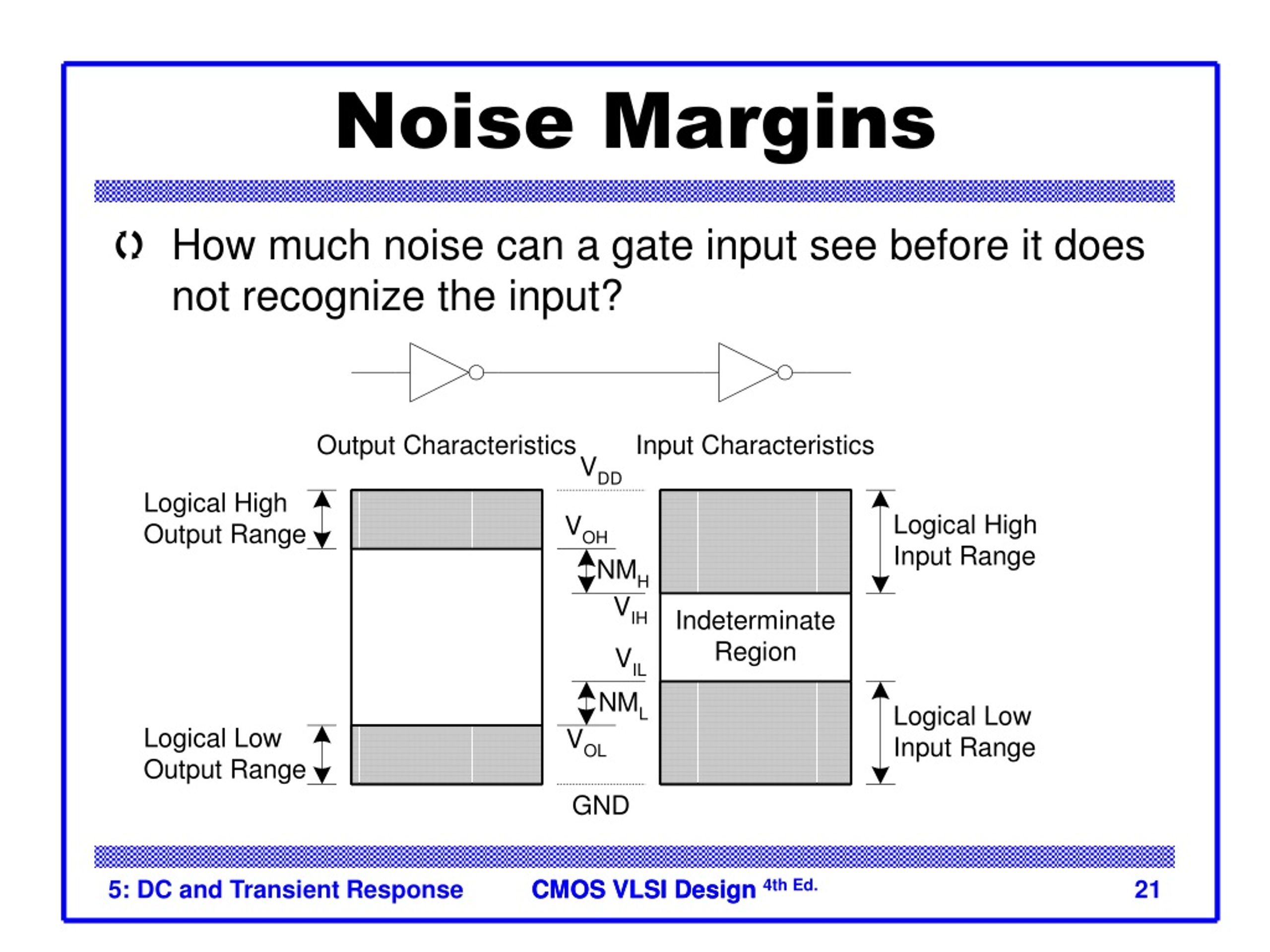

  21. Noise Margins • How much noise can a gate input see before it does not recognize the input? 5: DC and Transient Response

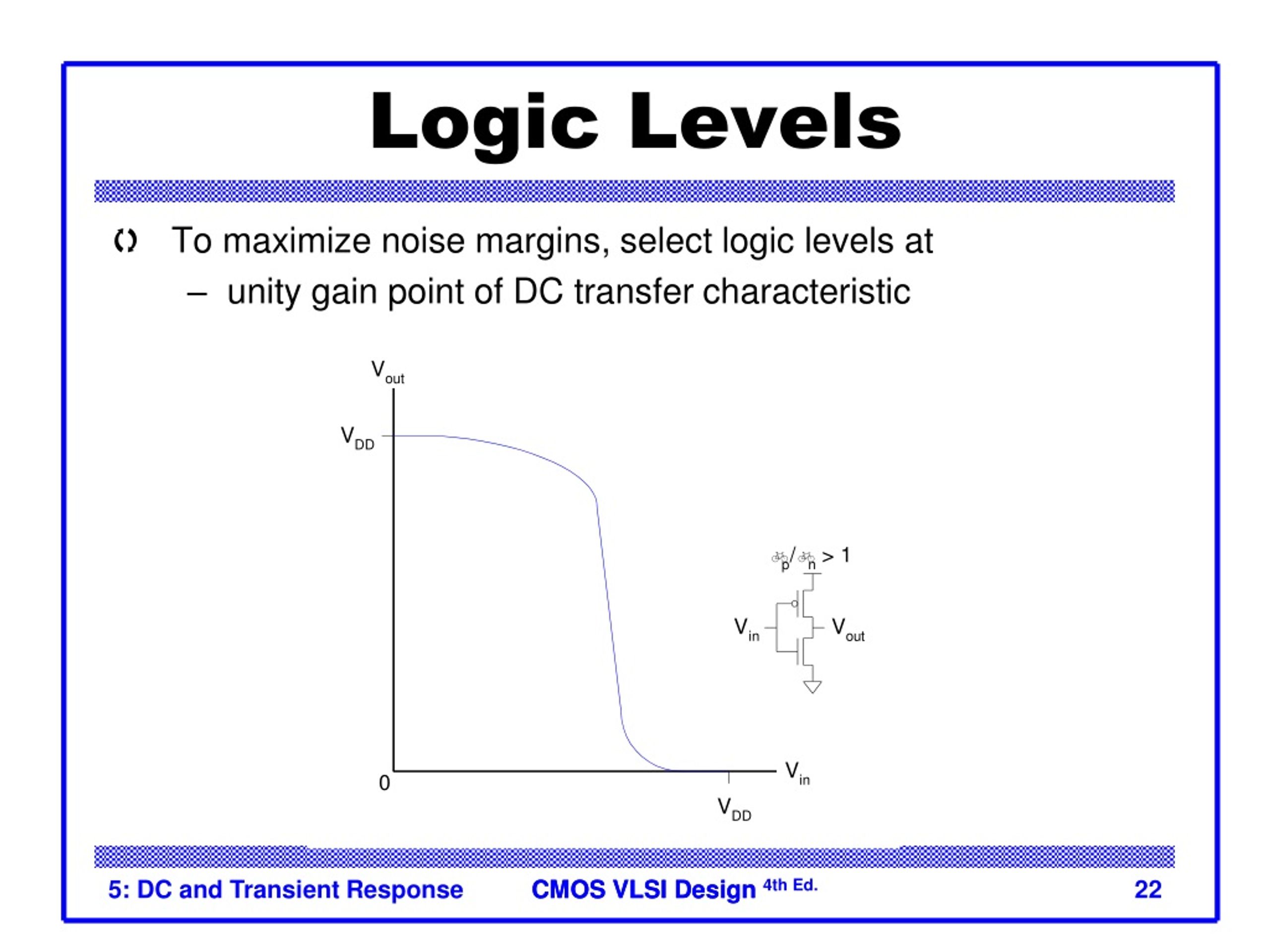

  22. Logic Levels • To maximize noise margins, select logic levels at • unity gain point of DC transfer characteristic 5: DC and Transient Response

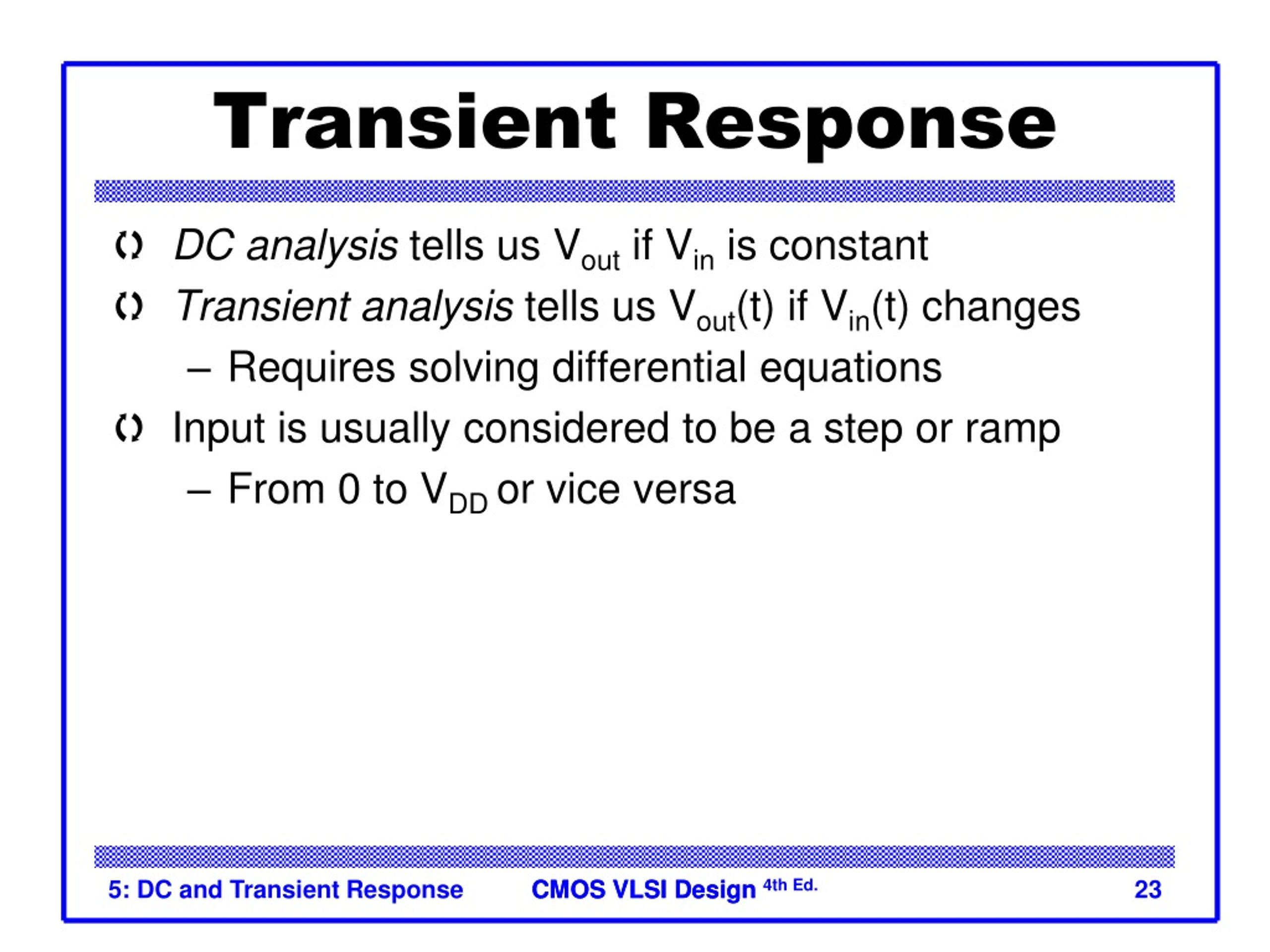

  23. Transient Response • DC analysis tells us Vout if Vin is constant • Transient analysis tells us Vout(t) if Vin(t) changes • Requires solving differential equations • Input is usually considered to be a step or ramp • From 0 to VDD or vice versa 5: DC and Transient Response

  24. Inverter Step Response • Ex: find step response of inverter driving load cap 5: DC and Transient Response

  25. Delay Definitions • tpdr: rising propagation delay • From input to rising output crossing VDD/2 • tpdf: falling propagation delay • From input to falling output crossing VDD/2 • tpd: average propagation delay • tpd = (tpdr + tpdf)/2 • tr: rise time • From output crossing 0.2 VDD to 0.8 VDD • tf: fall time • From output crossing 0.8 VDD to 0.2 VDD 5: DC and Transient Response

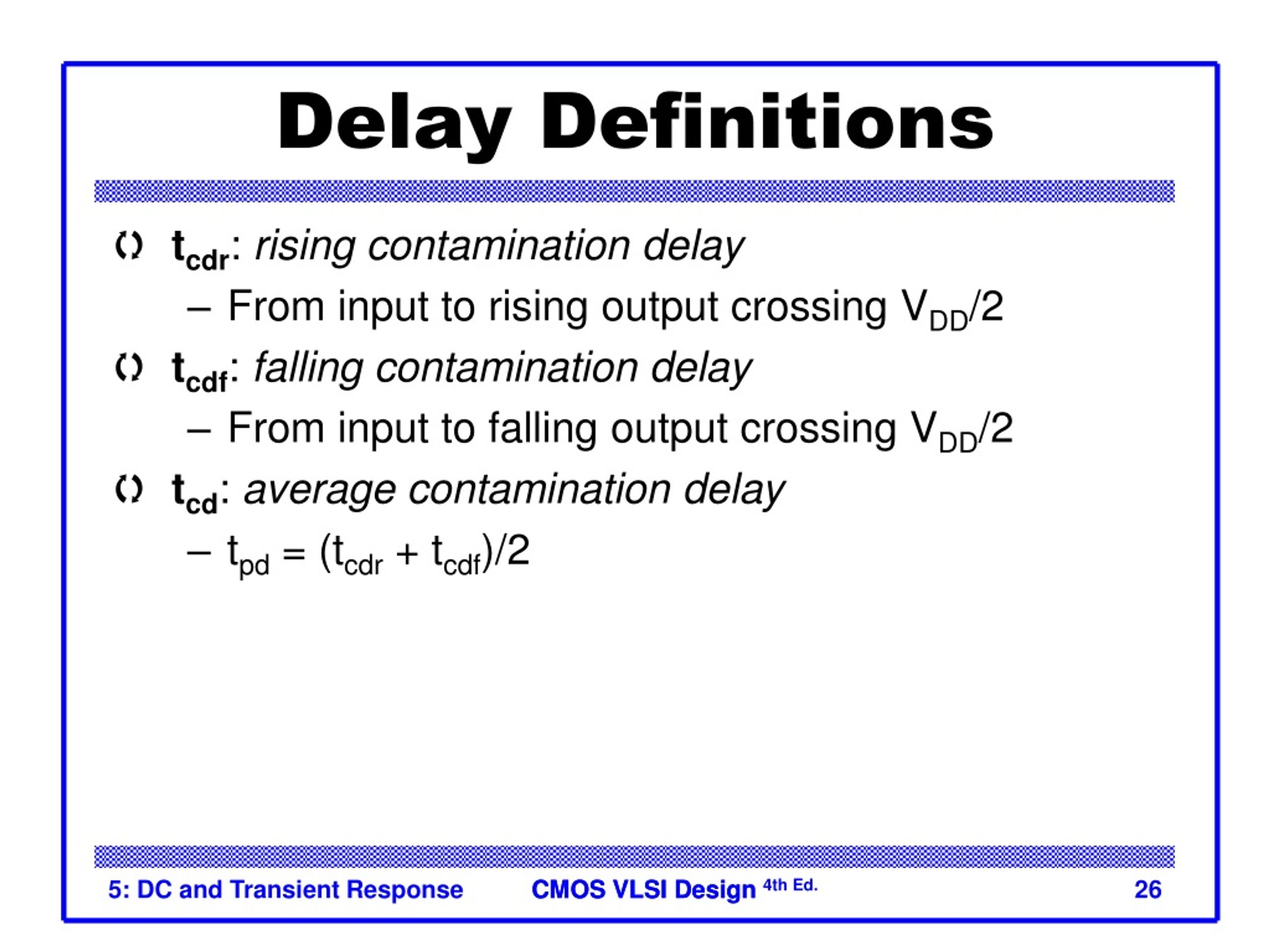

  26. Delay Definitions • tcdr: rising contamination delay • From input to rising output crossing VDD/2 • tcdf: falling contamination delay • From input to falling output crossing VDD/2 • tcd: average contamination delay • tpd = (tcdr + tcdf)/2 5: DC and Transient Response

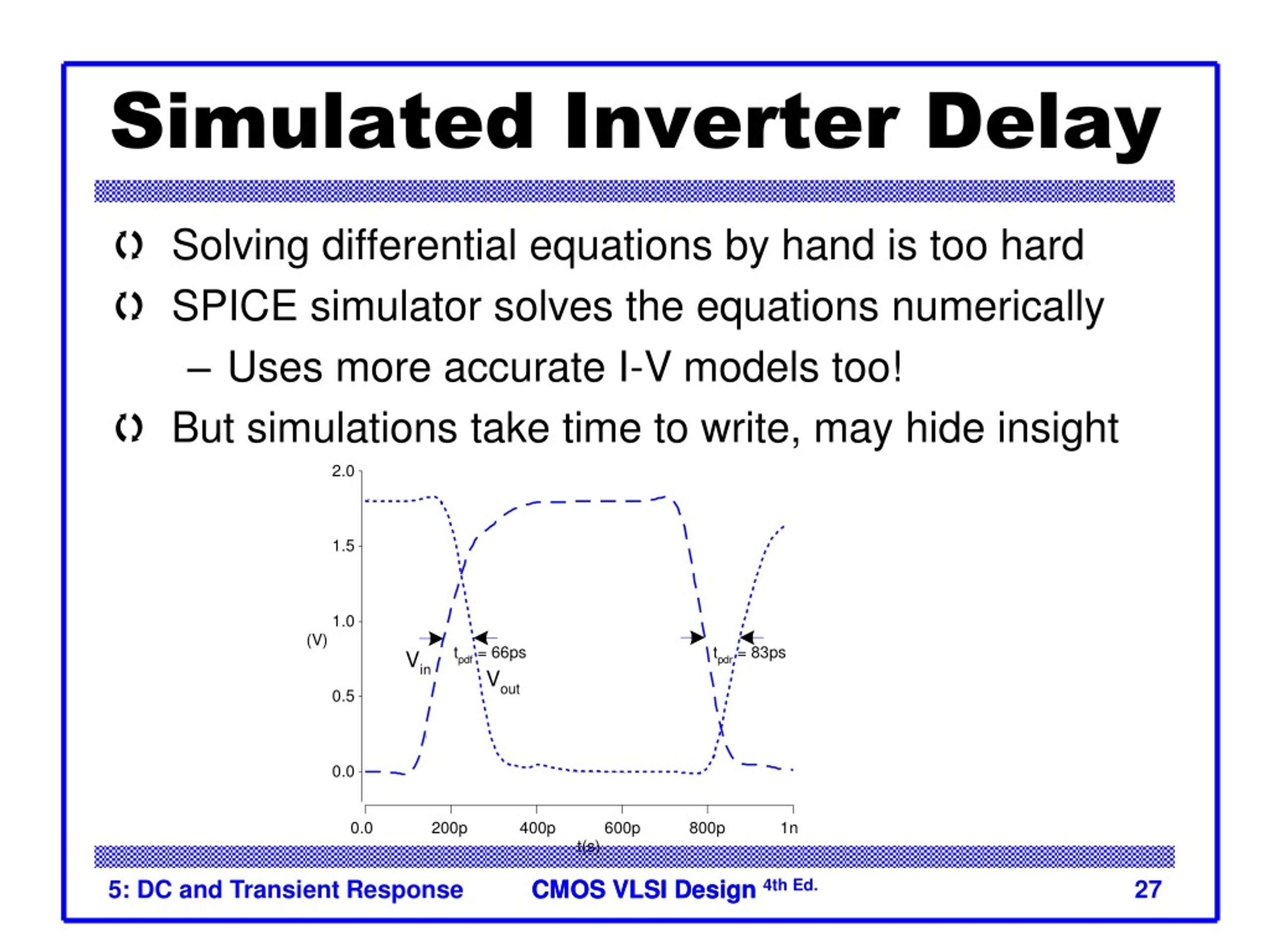

  27. Simulated Inverter Delay • Solving differential equations by hand is too hard • SPICE simulator solves the equations numerically • Uses more accurate I-V models too! • But simulations take time to write, may hide insight 5: DC and Transient Response

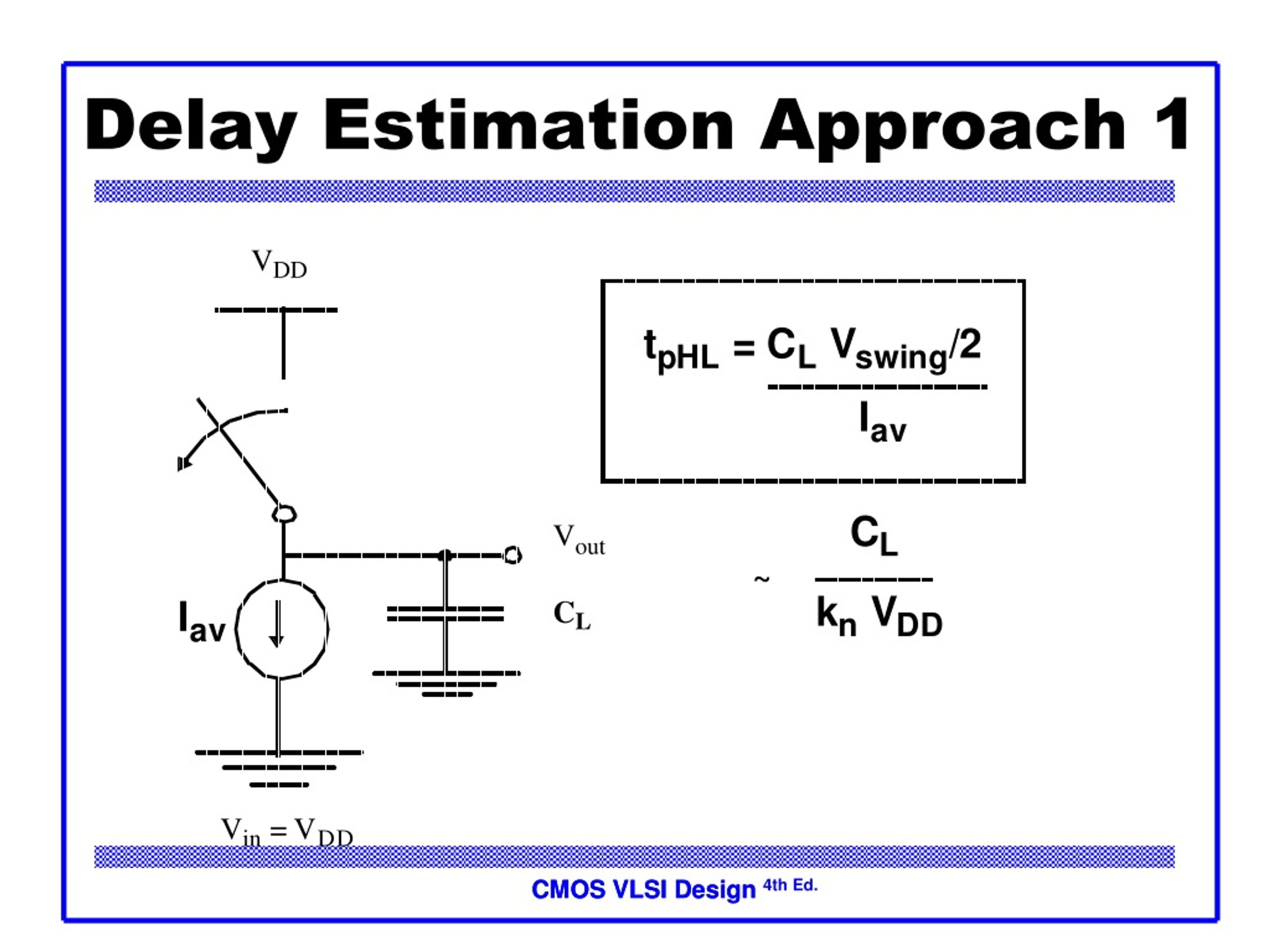

  28. Delay Estimation Approach 1

  29. Delay Estimation Approach 2 • We would like to be able to easily estimate delay • Not as accurate as simulation • But easier to ask “What if?” • The step response usually looks like a 1st order RC response with a decaying exponential. • Use RC delay models to estimate delay • C = total capacitance on output node • Use effective resistance R • So that tpd = RC • Characterize transistors by finding their effective R • Depends on average current as gate switches 5: DC and Transient Response

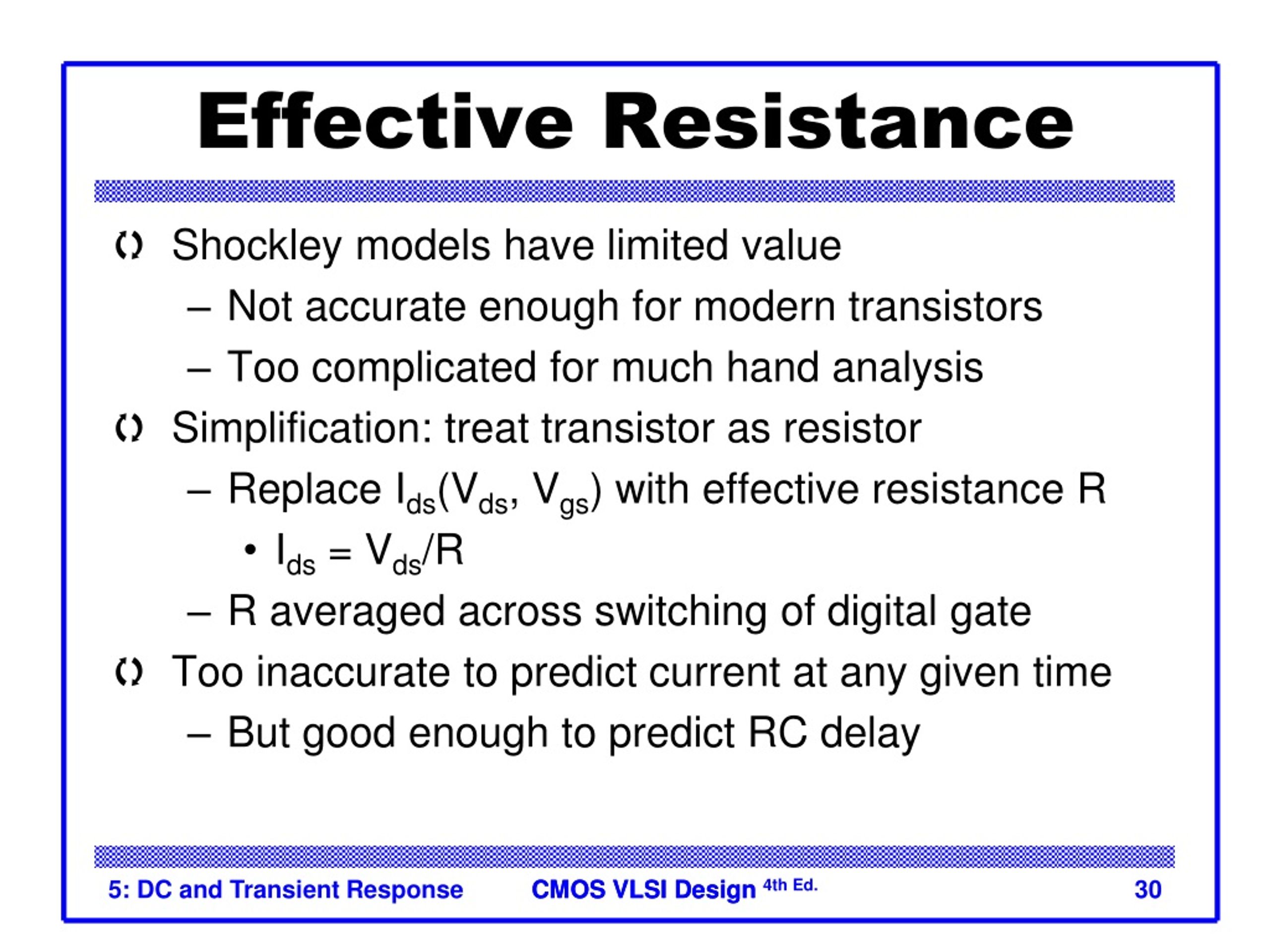

  30. Effective Resistance • Shockley models have limited value • Not accurate enough for modern transistors • Too complicated for much hand analysis • Simplification: treat transistor as resistor • Replace Ids(Vds, Vgs) with effective resistance R • Ids = Vds/R • R averaged across switching of digital gate • Too inaccurate to predict current at any given time • But good enough to predict RC delay 5: DC and Transient Response

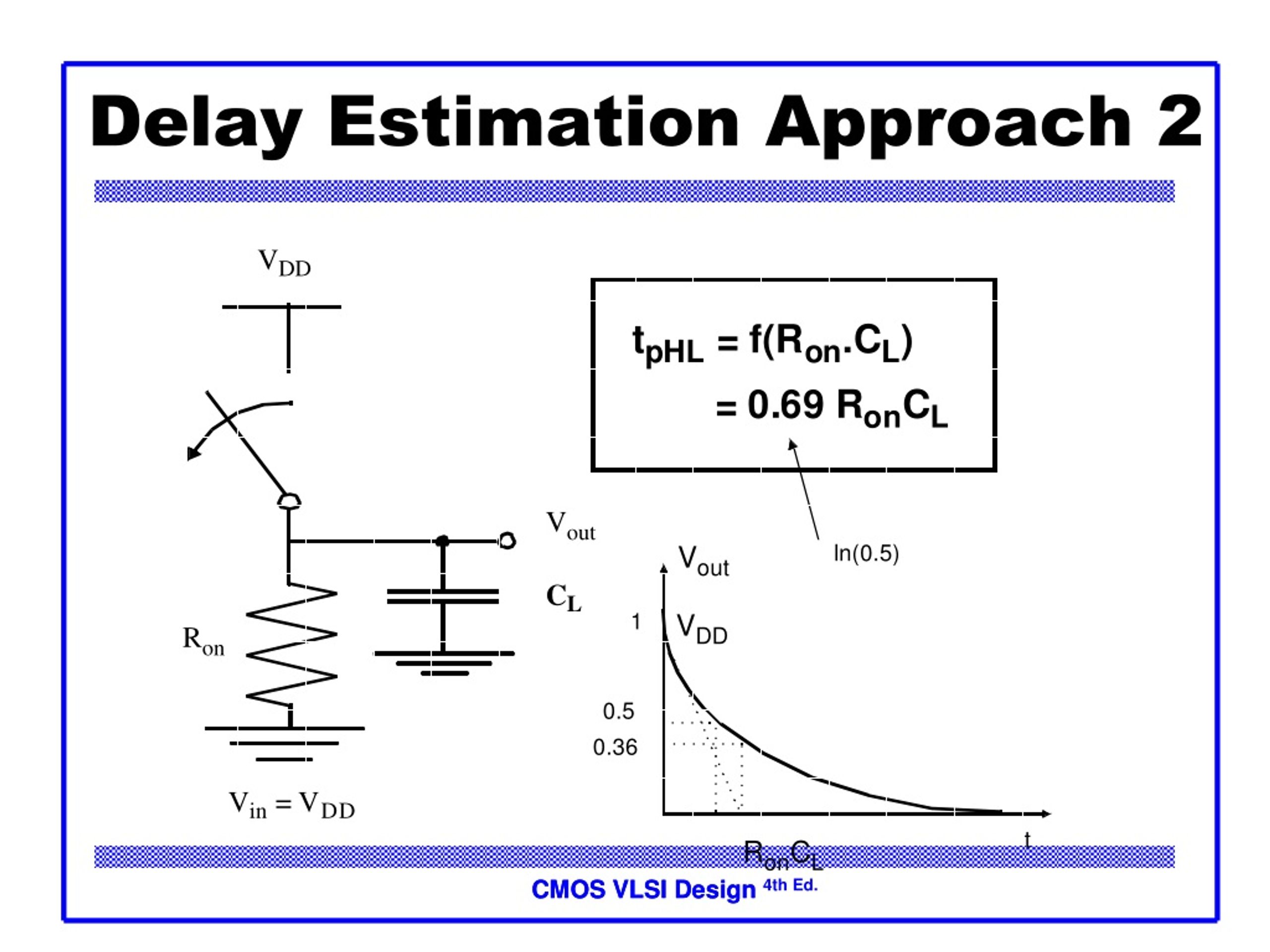

  31. Delay Estimation Approach 2

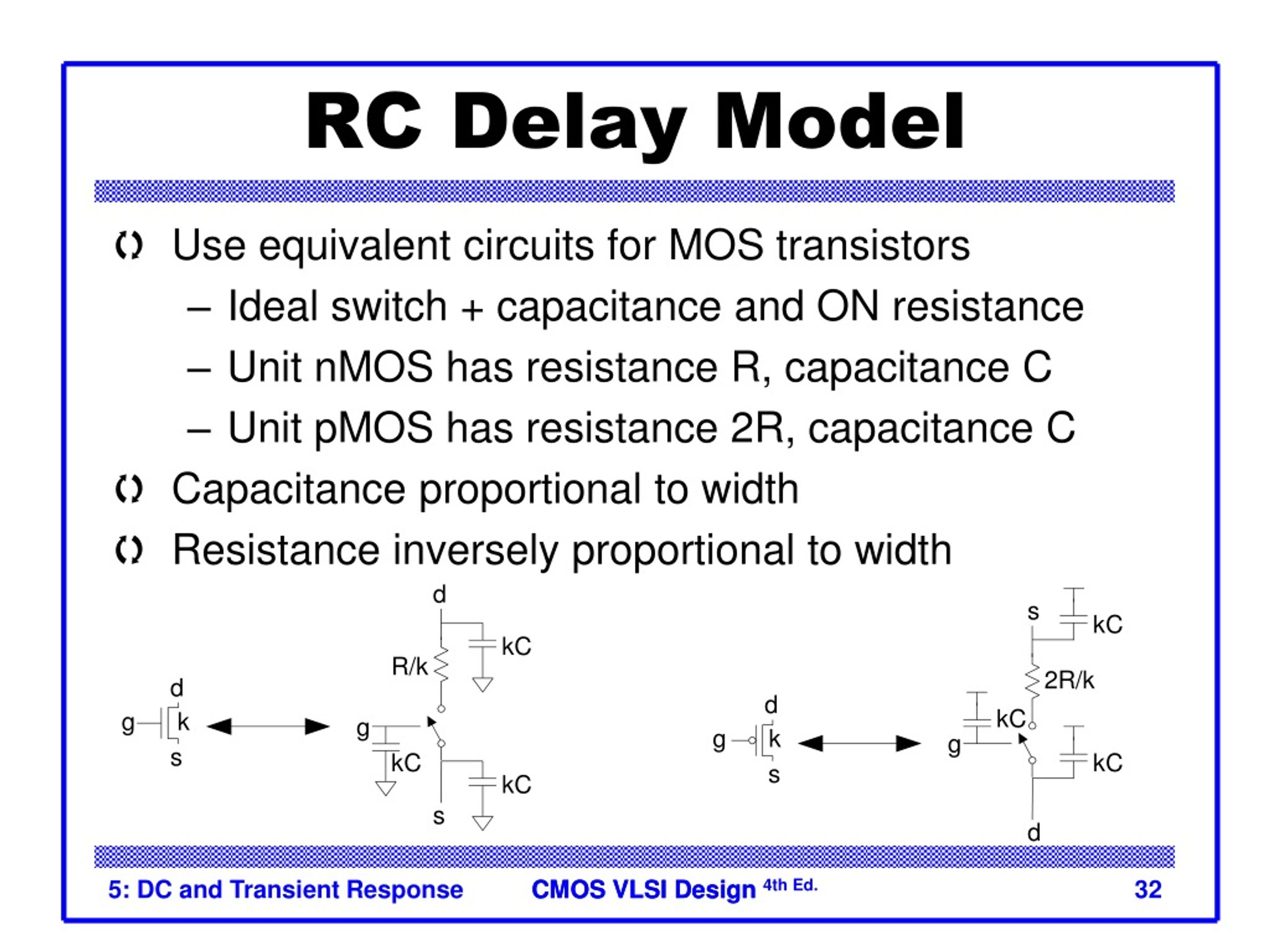

  32. RC Delay Model • Use equivalent circuits for MOS transistors • Ideal switch + capacitance and ON resistance • Unit nMOS has resistance R, capacitance C • Unit pMOS has resistance 2R, capacitance C • Capacitance proportional to width • Resistance inversely proportional to width 5: DC and Transient Response

  33. RC Values • Capacitance • C = Cg = Cs = Cd = 2 fF/mm of gate width in 0.6 mm • Gradually decline to 1 fF/mm in nanometer techs. • Resistance • R  6 KW*mm in 0.6 mm process • Improves with shorter channel lengths • Unit transistors • May refer to minimum contacted device (4/2 l) • Or maybe 1 mm wide device • Doesn’t matter as long as you are consistent 5: DC and Transient Response

  34. Computing Capacitance • For an inverter driving an identical inverter, the capacitances in the intermediate node are: • Cgd12: Since the circuit input is digital, M1 and M2 are either in cut-off or active. Hence, Cgd12 are only overlap capacitances. • Cdb1 and Cdb2: These are the diffusion capacitances. They are voltage variable. Hence use the approximation Ceq = KeqCj0. • Cw: Wiring capacitance. • Cg3 and Cg4: Fanout capacitances 5: DC and Transient Response

  35. Computing Capacitance • Cgd12 is connected between input and intermediate node. • Use Miller approximation. • Use a large signal gain of -1. • Therefore, the approximate capacitance is given by 2Cov. • The wiring capacitance will be studied later. • The gate capacitance is given by: 5: DC and Transient Response

  36. Computing Capacitance • Actually, there are a few errors in the Cfanout calculation. • Miller effect is ignored here. • Not too bad because Vout of second gate does not change too much while the calculation is being done. • Channel capacitance is assumed to be constant. • It varies between (2/3)WLCox and WLCox. • The total error observed is about 10%. 5: DC and Transient Response

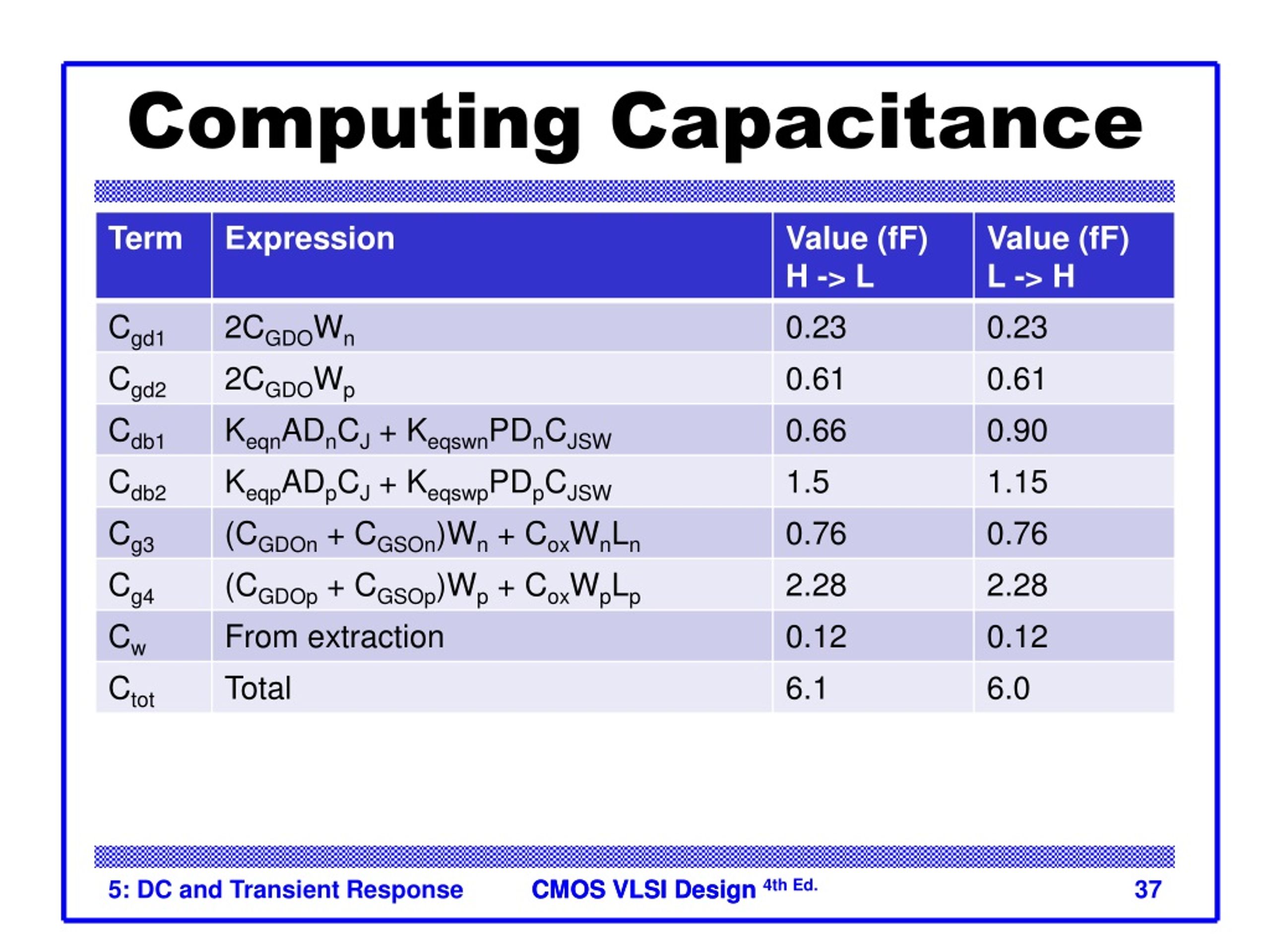

  37. Computing Capacitance 5: DC and Transient Response

  38. Delay Estimation • Let us use approach 1 first. • For approximate results, use the initial value of I 5: DC and Transient Response

  39. Delay Estimation • Then I is given by • Note that this is the long channel expression. You can use the velocity saturation or alpha power law expressions as well. 5: DC and Transient Response

  40. Delay Estimation • The propagation delay is then, 5: DC and Transient Response

  41. Delay Estimation • Let us use Approach 2. 5: DC and Transient Response

  42. Delay Estimation • Ignore l for simpler expressions 5: DC and Transient Response

  43. Delay Estimation • Keep C small • Increase transistor sizes • Is there a limit? • Increase supply voltage • Does this really work? 5: DC and Transient Response

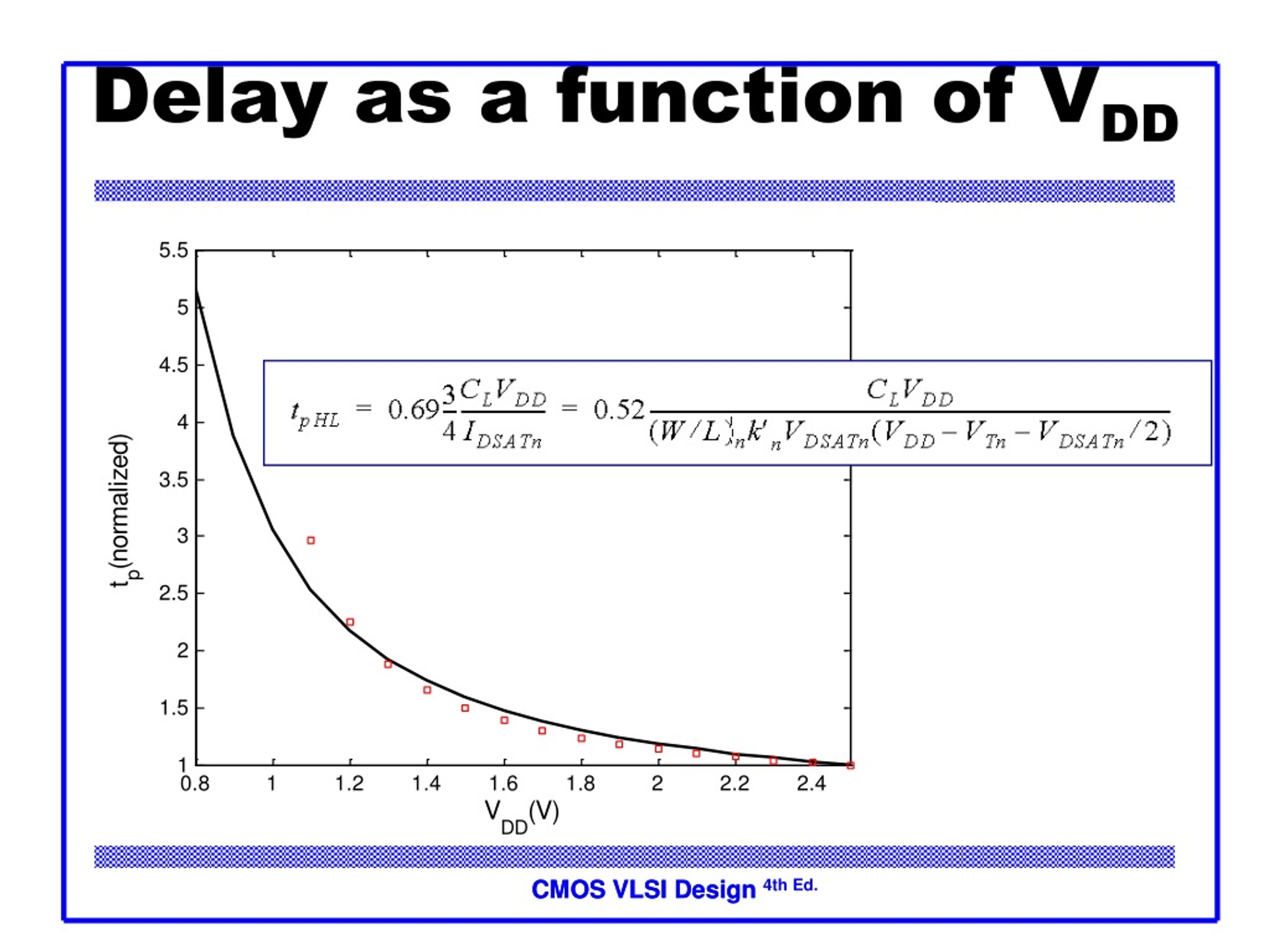

  44. Delay as a function of VDD

  45. Delay Estimation • Assume a symmetrical inverter (tpLH = tpHL). • Break up CL into Cint and Cext • CL = Cint + Cext • Cint due to driving inverter itself (Cdiff, Cgd) • Cext due to outside (CL, Cw) • Then, delay can be written as • tp0 is intrinsic delay, self delay, unloaded delay. 5: DC and Transient Response

  46. Delay Estimation • Let us make the W of the transistors in the driving gate S times bigger to decrease delay. • tp0 is independent of the sizing of the gate and determined purely by technology and inverter layout. • Making S infinity gives the minimum delay, but after a certain point, the improvement is marginal. 5: DC and Transient Response

  47. Device Sizing (for fixed load) Self-loading effect: Intrinsic capacitances dominate

  48. Device Sizing • So far, we have tried to make tpHL = tpLH. • Is this optimum? 5: DC and Transient Response

  49. Device Sizing • Let us define the ratio of the ‘strengths’ of the PMOS and the NMOS as • Then, b can be obtained by finding the derivative of delay with respect to b. 5: DC and Transient Response

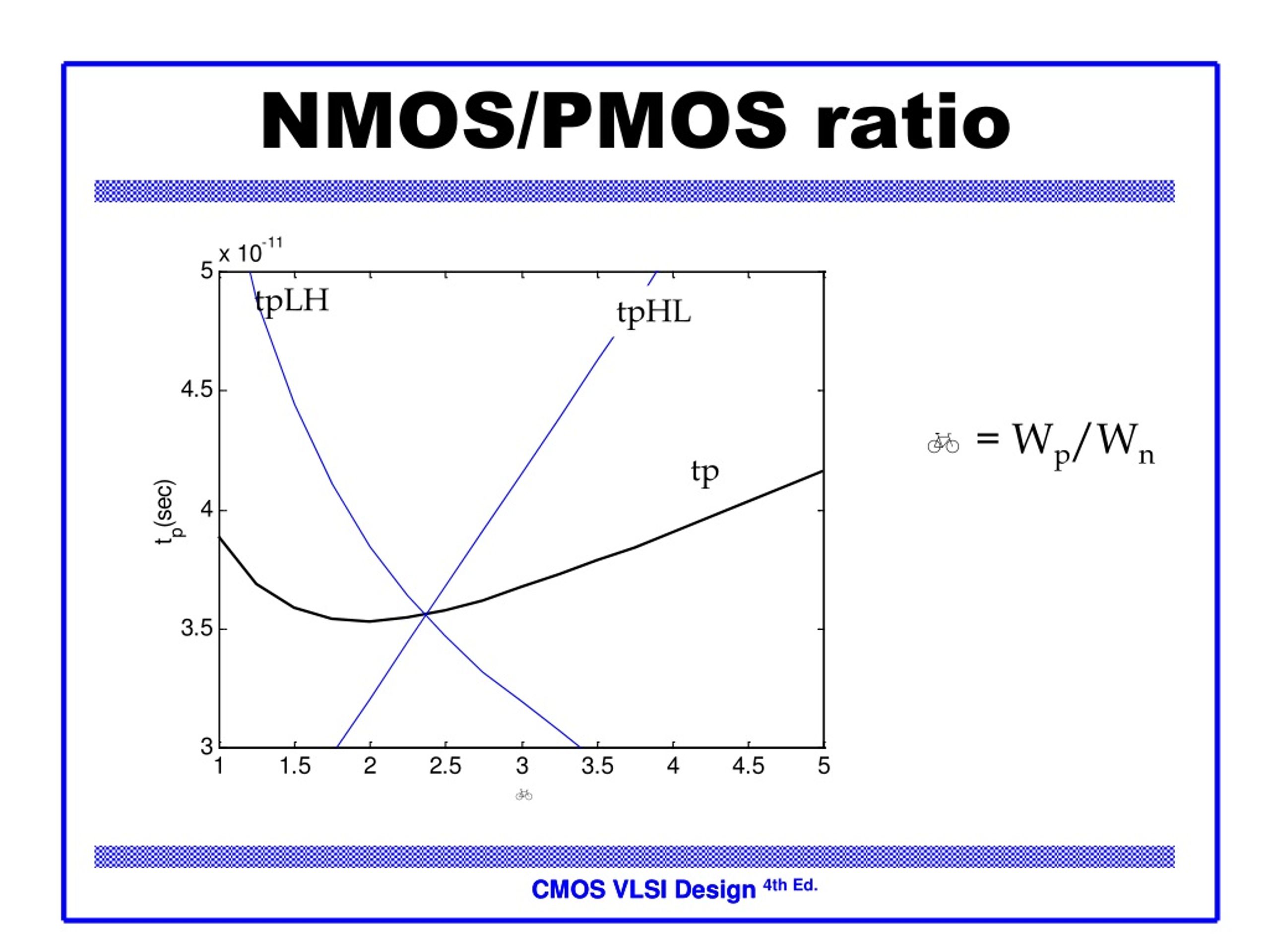

  50. NMOS/PMOS ratio tpLH tpHL b = Wp/Wn tp
