CHEP’06 Highlights

1. CHEP’06 Highlights Tony Chan

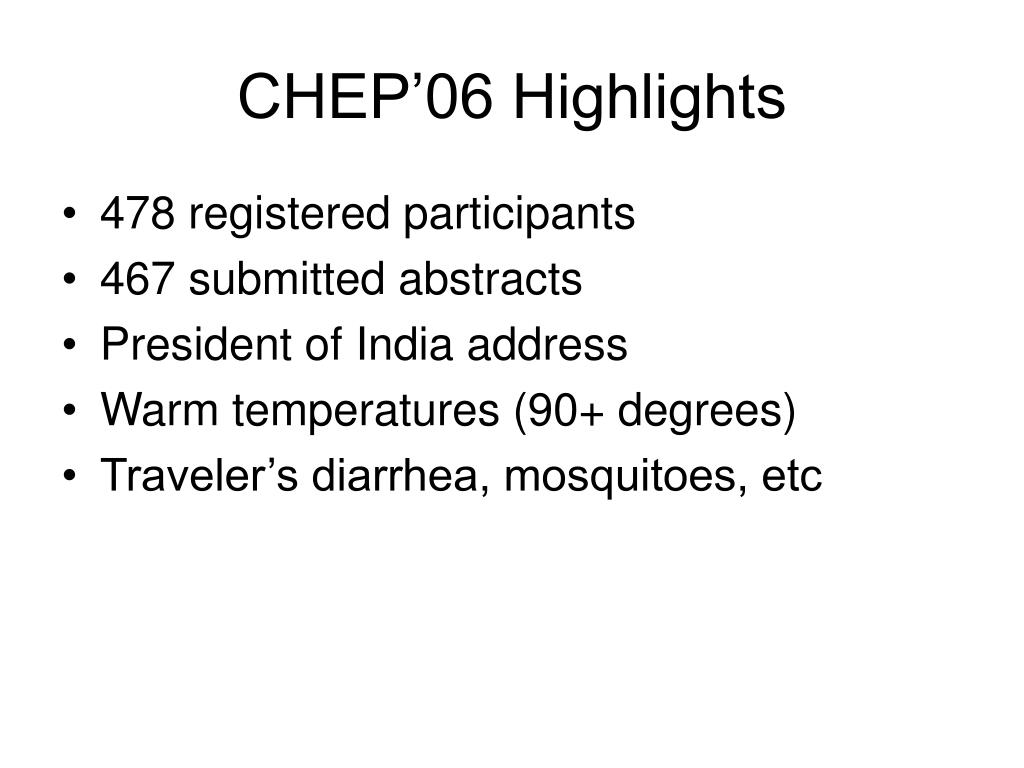

2. CHEP’06 Highlights • 478 registered participants • 467 submitted abstracts • President of India address • Warm temperatures (90+ degrees) • Traveler’s diarrhea, mosquitoes, etc

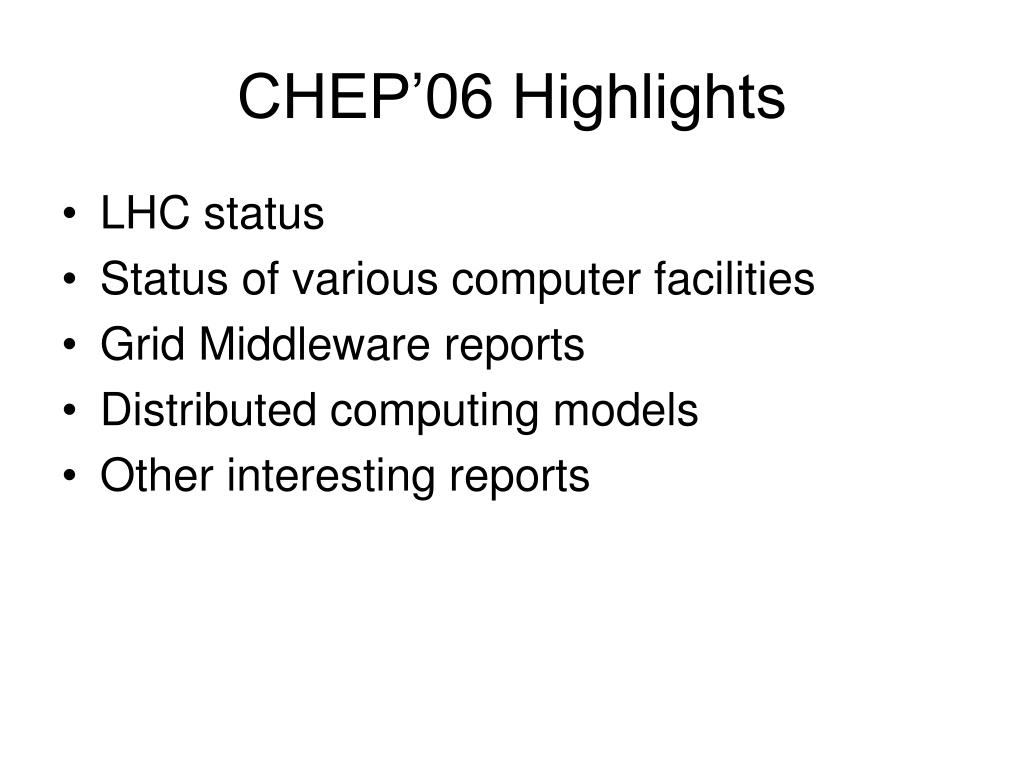

3. CHEP’06 Highlights • LHC status • Status of various computer facilities • Grid Middleware reports • Distributed computing models • Other interesting reports

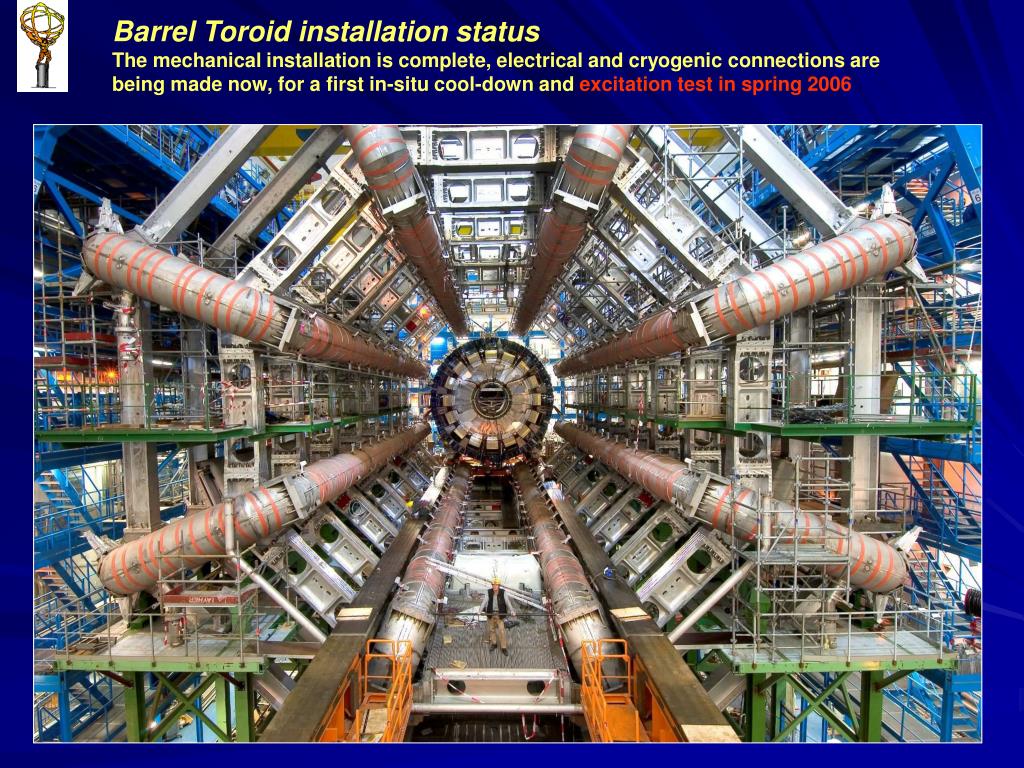

5. Barrel Toroid installation status The mechanical installation is complete, electrical and cryogenic connections are being made now, for a first in-situ cool-down and excitation test in spring 2006

6. LCG 2005 today 2006 cosmics 2007 First beams First physics 2008 Full physics run Building the Service SC1 -Nov04-Jan05 - data transfer between CERN and three Tier-1s (FNAL, NIKHEF, FZK) SC2 –Apr05 - data distribution from CERN to 7 Tier-1s – 600 MB/sec sustained for 10 days (one third of final nominal rate) SC3 –Sep-Dec05 - demonstrate reliable basic service – most Tier-1s, some Tier-2s; push up Tier-1 data rates to 150 MB/sec (60 MB/sec to tape) SC4 –May-Aug06 - demonstrate full service – all Tier-1s, major Tier-2s; full set of baseline services; data distribution and recording at nominal LHC rate (1.6 GB/sec) LHC Service in operation– Sep06 – over following six months ramp up to full operational capacity & performance LHC service commissioned – Apr07

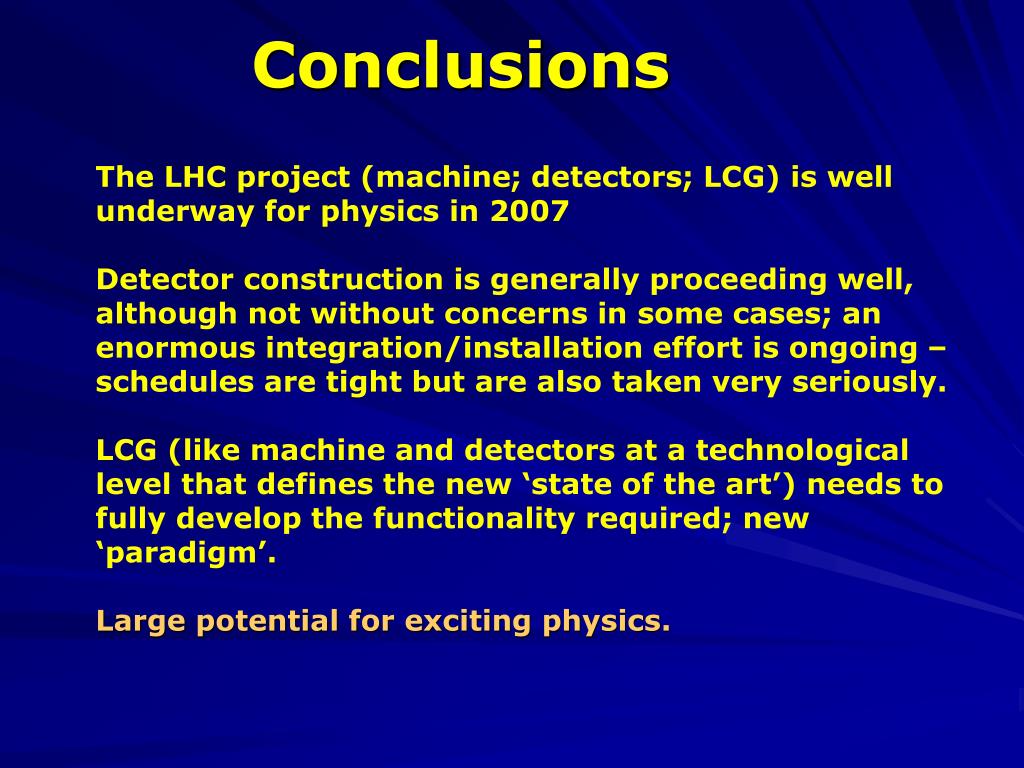

7. Conclusions The LHC project (machine; detectors; LCG) is well underway for physics in 2007 Detector construction is generally proceeding well, although not without concerns in some cases; an enormous integration/installation effort is ongoing – schedules are tight but are also taken very seriously. LCG (like machine and detectors at a technological level that defines the new ‘state of the art’) needs to fully develop the functionality required; new ‘paradigm’. Large potential for exciting physics.

8. Status of FNAL Tier 1 • Sole Tier 1 in the Americas for CSM • 2006 is first year of 3-year procurement ramp-up • Currently have 1MSI2K, 100 TB dCache storage, single 10 Gb link • Expect to have by 2008: • 4.3 MSI2K (2000 CPU’s) • 2 PB storage (200 servers, 1600 MB/s I/O) • 15 Gb/s between FNAL and CERN • 30 FTE

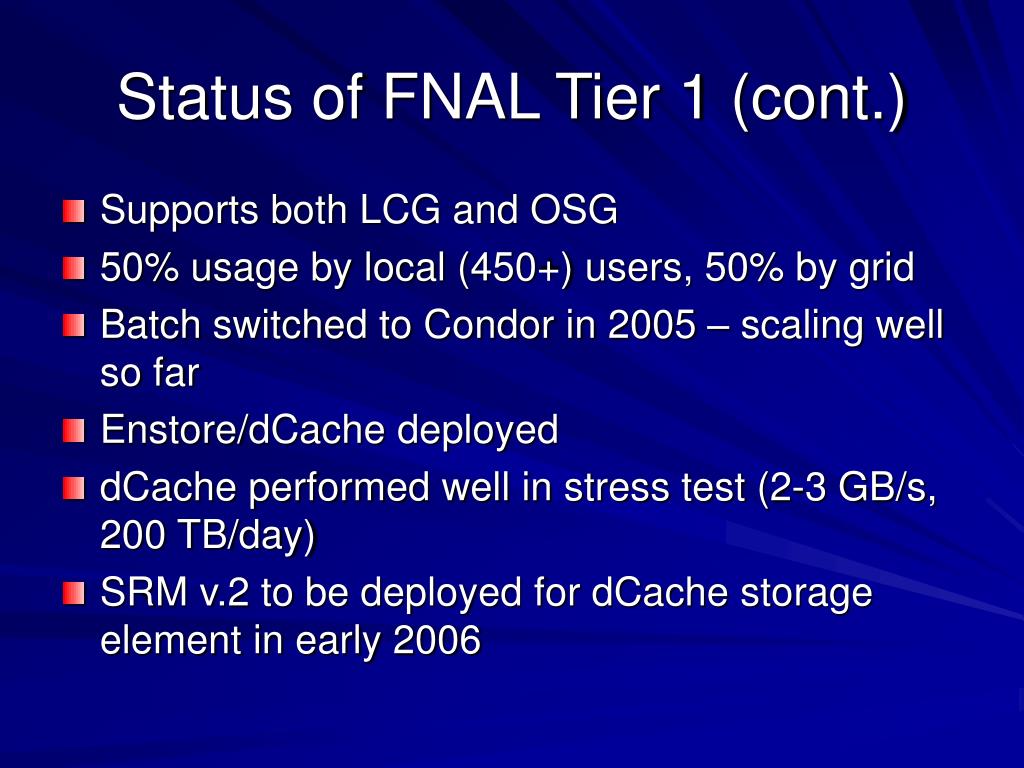

9. Status of FNAL Tier 1 (cont.) • Supports both LCG and OSG • 50% usage by local (450+) users, 50% by grid • Batch switched to Condor in 2005 – scaling well so far • Enstore/dCache deployed • dCache performed well in stress test (2-3 GB/s, 200 TB/day) • SRM v.2 to be deployed for dCache storage element in early 2006

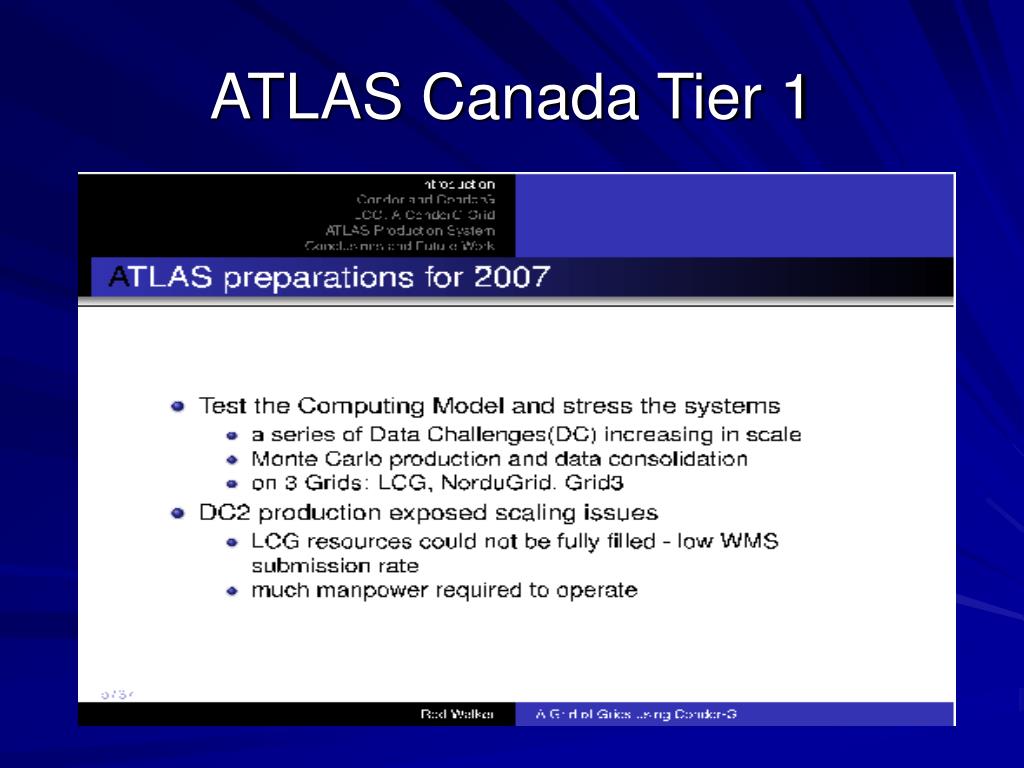

10. ATLAS Canada Tier 1

11. ATLAS Canada Tier 1 (cont.)

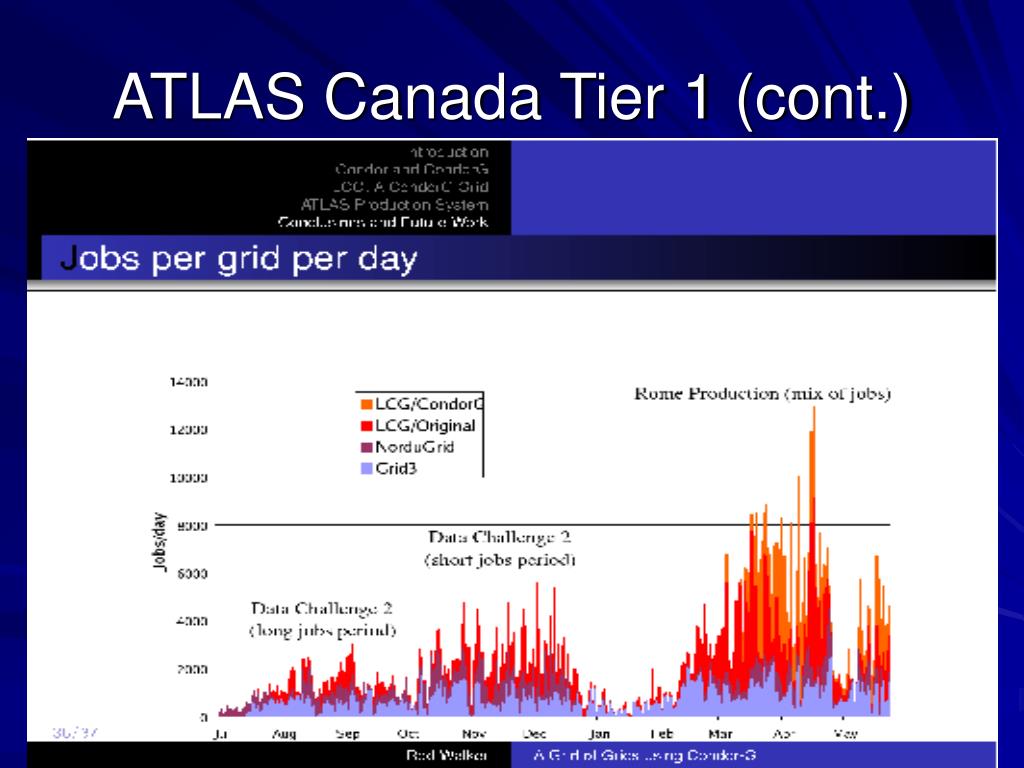

12. ATLAS Canada Tier 1 (cont.)

13. ATLAS Canada Tier 1 (cont.)

14. Other Facilities • Tier 2 center in Manchester  scalable remote cluster management & monitoring and provisioning software (nagios, cfengine, kickstart) • Indiana/Chicago USATLAS Tier 2 center • RAL Tier 1 center

15. Multi Core CPUs & ROOT http://www.intel.com/technology/computing/archinnov/platform2015/ This is going to affect the evolution of ROOT in many areas

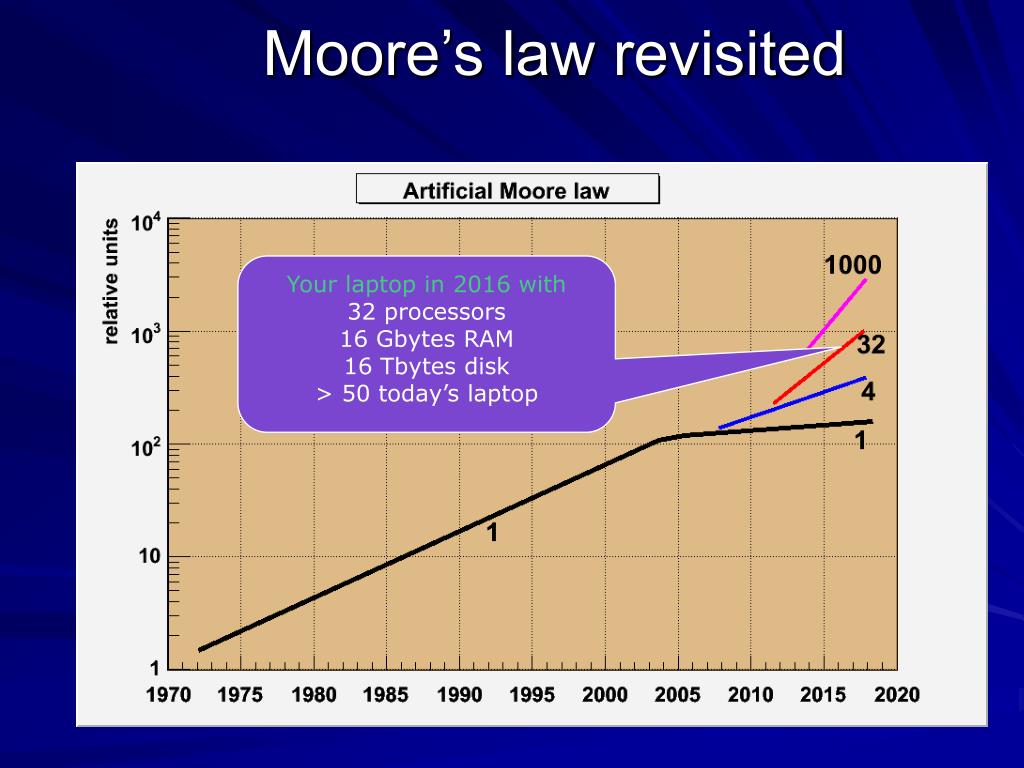

16. Moore’s law revisited Your laptop in 2016 with 32 processors 16 Gbytes RAM 16 Tbytes disk > 50 today’s laptop

17. Impact on ROOT • There are many areas in ROOT that can benefit from a multi core architecture. Because the hardware is becoming available on commodity laptops, it is urgent to implement the most obvious asap. • Multi-Core often implies multi-threading. There are several areas to be made not only thread-safe but also thread aware. • PROOF obvious candidate. By default a ROOT interactive session should run in PROOF mode. It would be nice if this could be made totally transparent to a user. • Speed-up I/O with multi-threaded I/O and read-ahead • Buffer compression in parallel • Minimization function in parallel • Interactive compilation with ACLIC in parallel • etc..

18. Gridview Project Goal • Provide a high level view of the various Grid resources and functional aspects of the LCG • Central Archival, Analysis, Summarization Graphical Presentation and Pictorial Visualization of Data from various LCG sites and monitoring tools • Useful in GOCs/ROCs and to site admins/VO admins

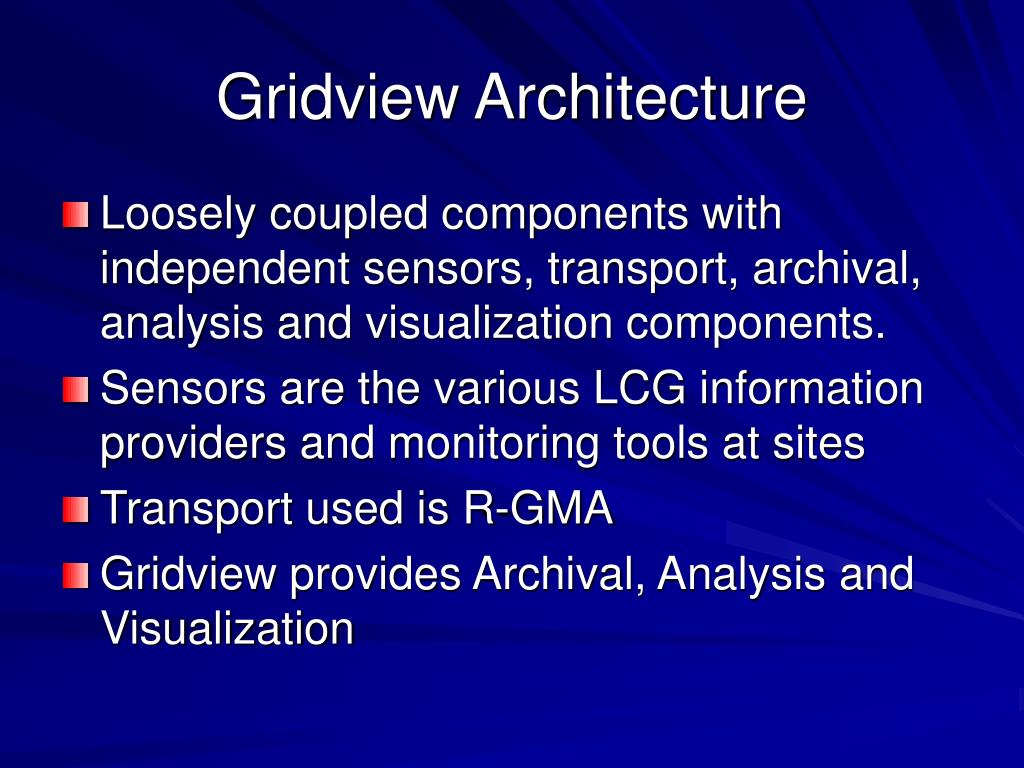

19. Gridview Architecture • Loosely coupled components with independent sensors, transport, archival, analysis and visualization components. • Sensors are the various LCG information providers and monitoring tools at sites • Transport used is R-GMA • Gridview provides Archival, Analysis and Visualization

21. On-Going work in Gridview • Service Availability Monitoring • Being interfaced with SFT (Site Functional Tests) for monitoring availability of various services such as CE, SE, RB, BDII etc. • Rating of sites according to average resource availability and acceptable thresholds • Service availability metrics such as MTTR, uptime, failure rate to be computed and visualised • gLite FTS • Gridview to be adapted to monitor file transfer statistics like successful transfers, failure rates etc for FTS channels across grid sites • Enhancement of GUI & Visualisation module to function as full-fledged dashboard for LCG

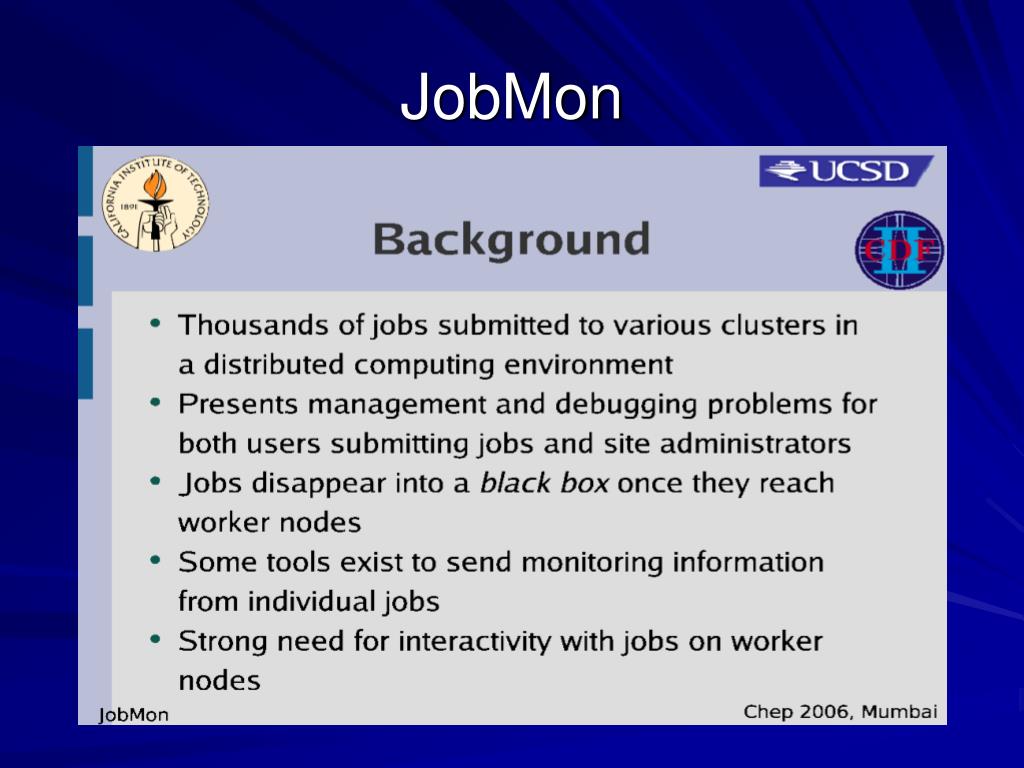

22. JobMon

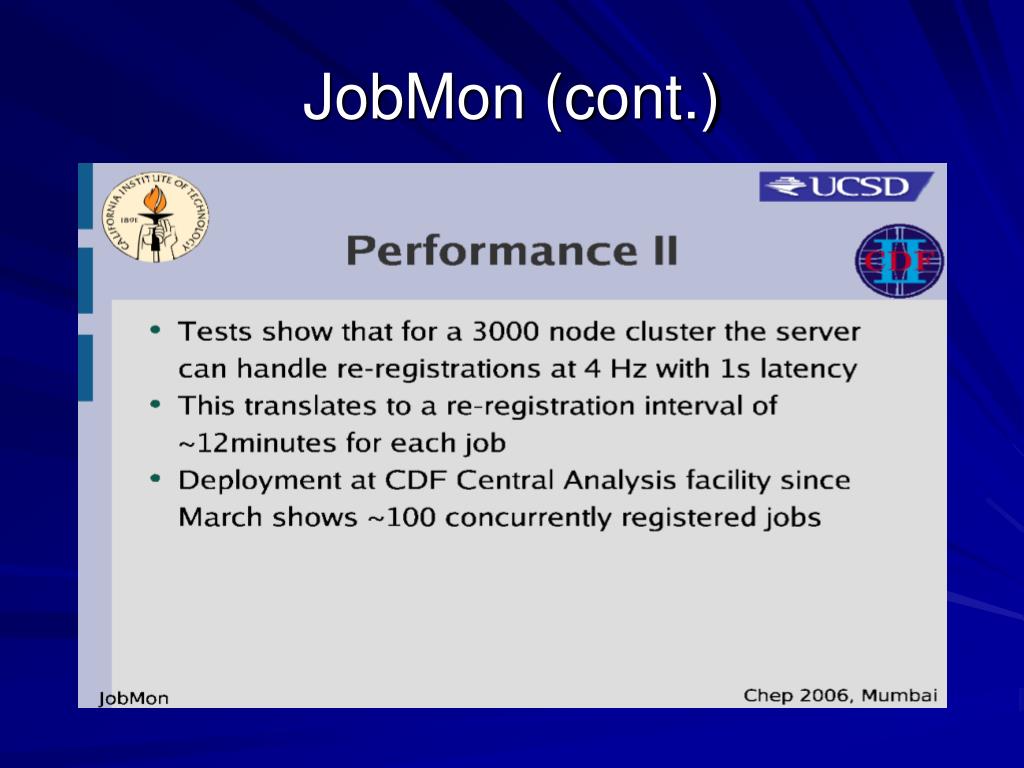

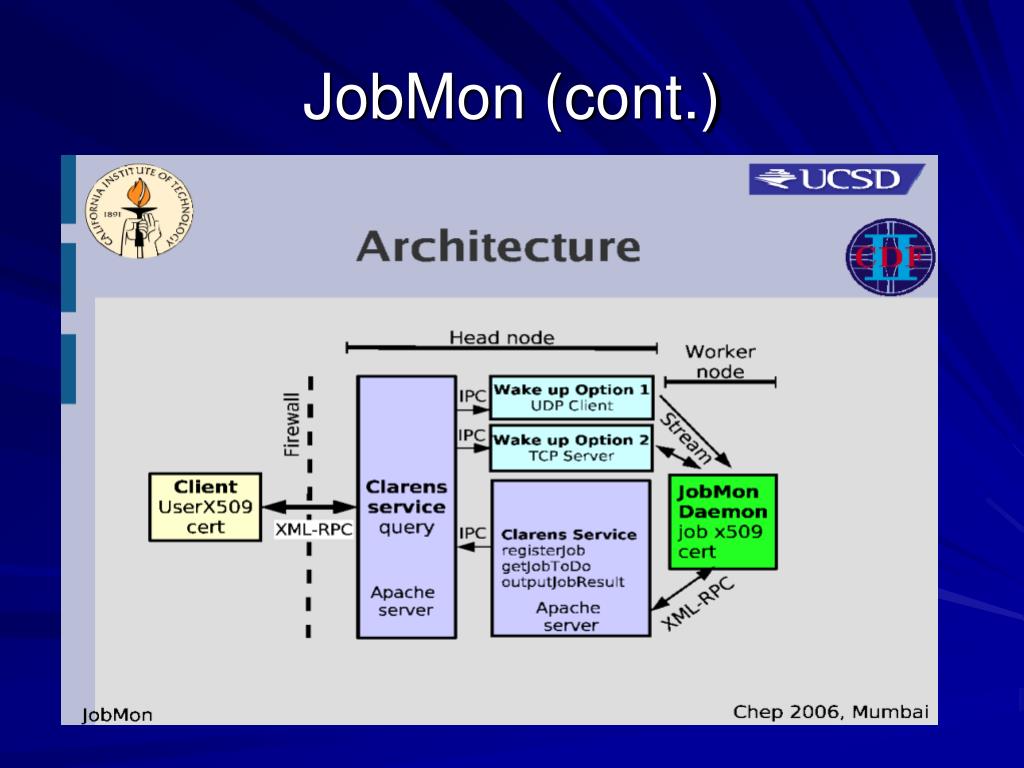

23. JobMon (cont.)

24. JobMon (cont.)

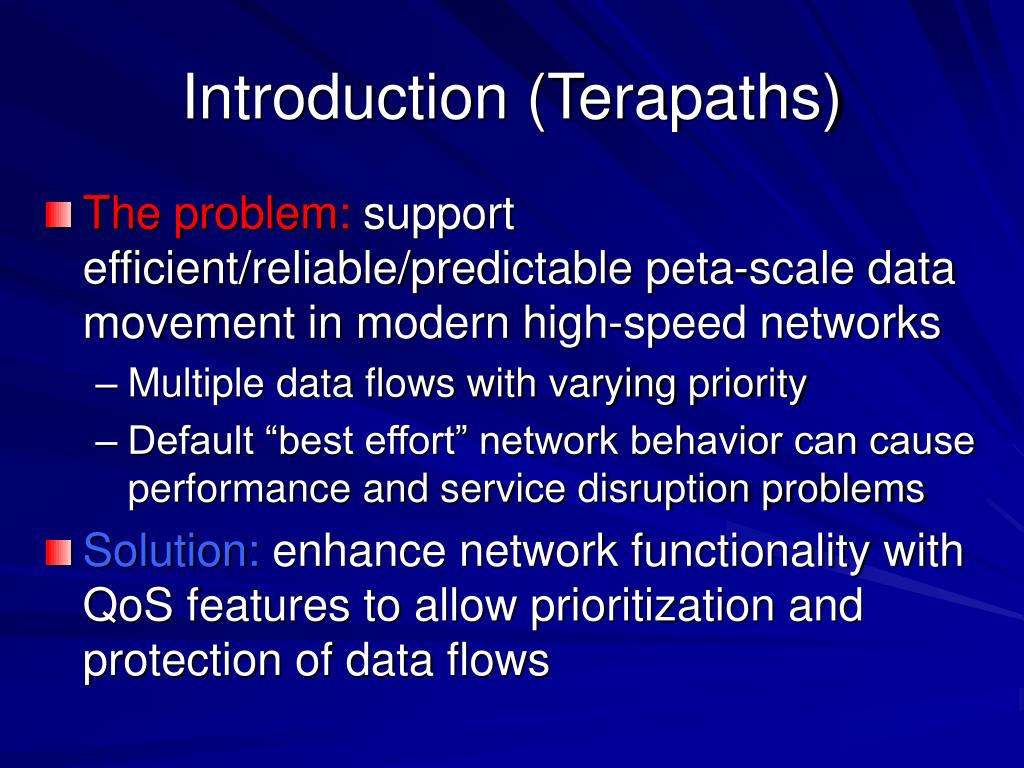

25. Introduction (Terapaths) • The problem: support efficient/reliable/predictable peta-scale data movement in modern high-speed networks • Multiple data flows with varying priority • Default “best effort” network behavior can cause performance and service disruption problems • Solution: enhance network functionality with QoS features to allow prioritization and protection of data flows

26. The TeraPaths Project • The TeraPaths project investigates the integration and use of LAN QoS and MPLS/GMPLS-based differentiated network services in the ATLAS data intensive distributed computing environment in order to manage the network as a critical resource • DOE: The collaboration includes BNL and the University of Michigan, as well as OSCARS (ESnet), LambdaStation (FNAL), and DWMI (SLAC) • NSF: BNL participates in UltraLight to provide the network advances required in enabling petabyte-scale analysis of globally distributed data • NSF: BNL participates in a new network initiative: PLaNetS (Physics Lambda Network System ), led by CalTech

27. dCache • New version (availability unknown?) • Features • Resilient dCache (n < copies < m) • SRM v2 • Partitioning (one instance, multiple pool configurations) • Support for xrootd protocol • Performance • multiple I/O queues • multiple file system servers

28. Computing Resources (ATLAS) • Computing Model fairly well evolved, documented in C-TDR • Externally reviewed • http://doc.cern.ch//archive/electronic/cern/preprints/lhcc/public/lhcc-2005-022.pdf • There are (and will remain for some time) many unknowns • Calibration and alignment strategy is still evolving • Physics data access patterns MAY be exercised from June • Unlikely to know the real patterns until 2007/2008! • Still uncertainties on the event sizes , reconstruction time • Lesson from the previous round of experiments at CERN (LEP, 1989-2000) • Reviews in 1988 underestimated the computing requirements by an order of magnitude!

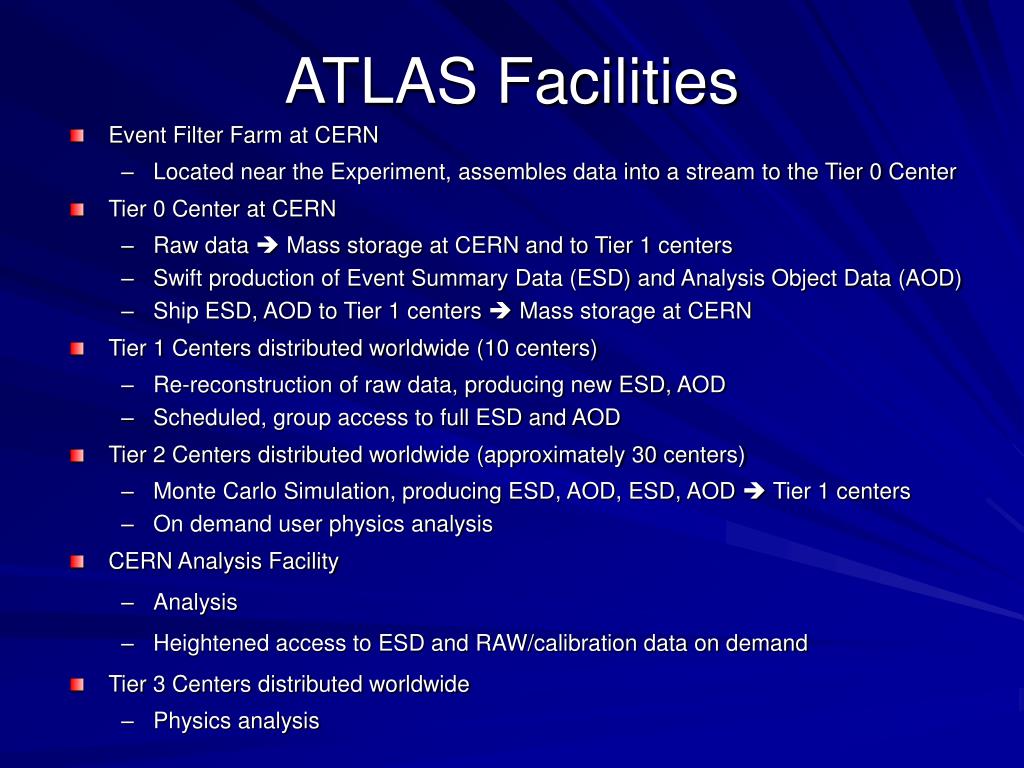

29. ATLAS Facilities • Event Filter Farm at CERN • Located near the Experiment, assembles data into a stream to the Tier 0 Center • Tier 0 Center at CERN • Raw data  Mass storage at CERN and to Tier 1 centers • Swift production of Event Summary Data (ESD) and Analysis Object Data (AOD) • Ship ESD, AOD to Tier 1 centers  Mass storage at CERN • Tier 1 Centers distributed worldwide (10 centers) • Re-reconstruction of raw data, producing new ESD, AOD • Scheduled, group access to full ESD and AOD • Tier 2 Centers distributed worldwide (approximately 30 centers) • Monte Carlo Simulation, producing ESD, AOD, ESD, AOD  Tier 1 centers • On demand user physics analysis • CERN Analysis Facility • Analysis • Heightened access to ESD and RAW/calibration data on demand • Tier 3 Centers distributed worldwide • Physics analysis

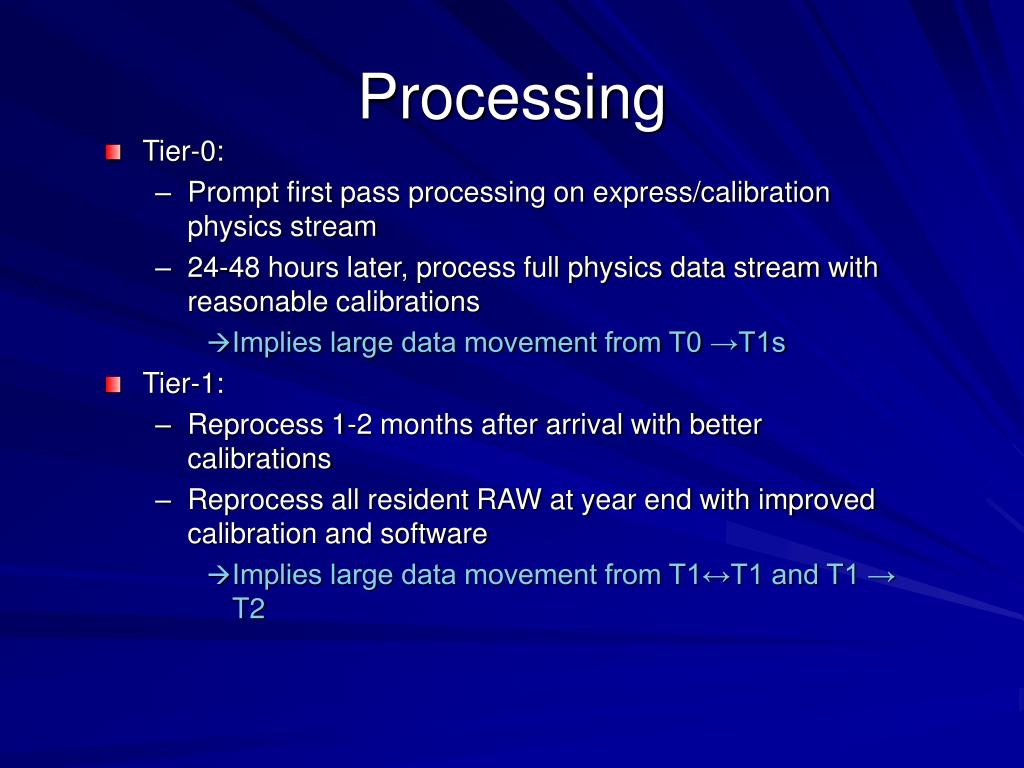

30. Processing • Tier-0: • Prompt first pass processing on express/calibration physics stream • 24-48 hours later, process full physics data stream with reasonable calibrations • Implies large data movement from T0 →T1s • Tier-1: • Reprocess 1-2 months after arrival with better calibrations • Reprocess all resident RAW at year end with improved calibration and software • Implies large data movement from T1↔T1 and T1 → T2

31. Dulcinea Dulcinea CE Dulcinea Dulcinea Lexor CondorG CE ProdDB ATLAS Prodsys Dulcinea PANDA Dulcinea Dulcinea RB CG RB RB CE

32. Analysis model Analysis model broken into two components • Scheduled central production of augmented AOD, tuples & TAG collections from ESD • Derived files moved to other T1s and to T2s • Chaotic user analysis of augmented AOD streams, tuples, new selections etc and individual user simulation and CPU-bound tasks matching the official MC production • Modest job traffic between T2s

33. Initial experiences • PANDA on OSG • Analysis with the Production System • GANGA

34. Summary • Systems have been exposed to selected users • Positive feedback • Direct contact to the experts still essential • For this year – power users and grid experts … • Main issues • Data distribution → New DDM • Scalability → New Prodsys/PANDA/gLite/CondorG • Analysis in parallel to Production → Job Priorities

35. ATLAS T0 Resources

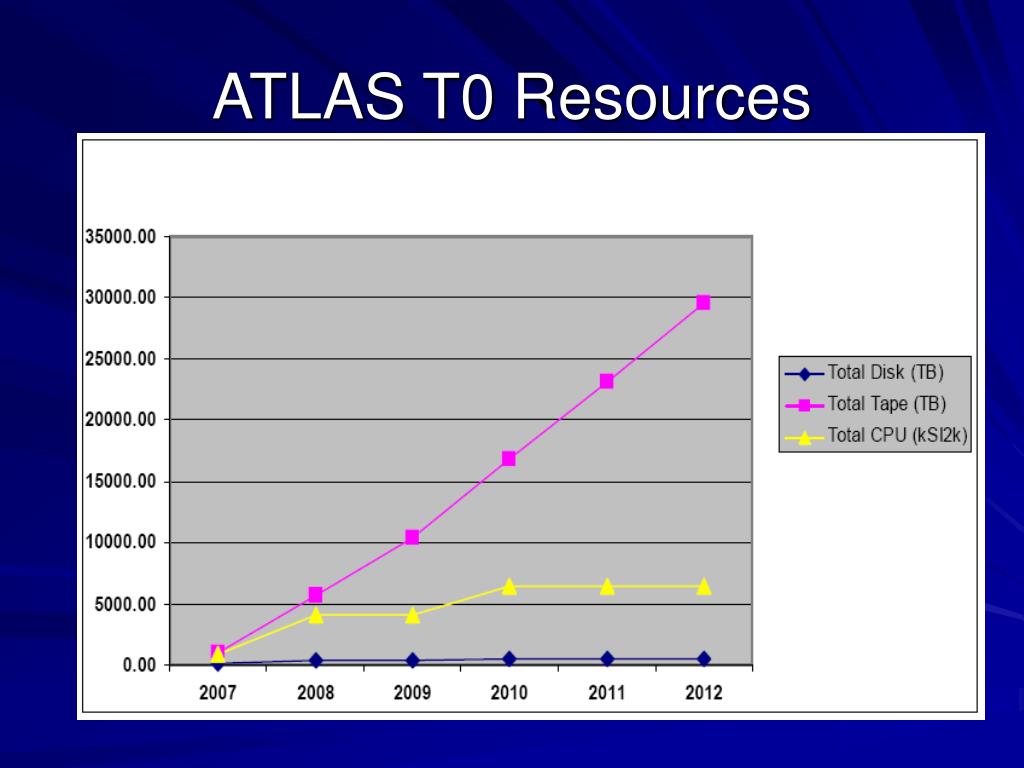

36. ATLAS T1 Resources

37. ATLAS T2 Resources

38. DIAL Performance • The reference dataset was run as a single job • Athena clock time was 70 minutes • I.e. 43 ms/event, 3.0 MB/s • Actual data transfer is about half that value • Some of the event data is not read • Following figure shows results • Local fast queue (LSF) • Green squares • Local short queue (Condor preemptive) • Blue triangles • Condor-G to local fast • Red diamonds • PANDA • Violet circles

40. CMS Distributed Computing • Distributed model for computing in CMS • Cope with computing requirements for storage, processing and analysis of data provided by the experiment • Computing resources are geographically distributed, interconnected via high throughput networks and operated by means of Grid software • Running expectations • Beam time: 2-3x106 secs in 2007, 107 secs in 2008, 2009 and 2010 • Detector output rate: ~250 MB/s  2.5 PetaBytes raw data in 2008 • Aggregate computing resources required • CMS computing model document (CERN-LHCC-2004-035) • CMS computing TDR released on June 2005 (CERN-LHCC-2005-023)

41. Resources and data flows in 2008 40 MB/s (RAW, RECO, AOD) Tier 1 2.5 MSI2K 0.8 PB disk 2.2 PB tape 10 Gbps WAN Tier-0 AOD Tier-1s tape AOD 48 MB/s (MC) 280 MB/s (RAW, RECO, AOD) Tier-2s 240 MB/s (skimmed AOD, Some RAW+RECO) 280 MB/s (RAW, RECO, AOD) 900 MB/s (AOD skimming, data reprocessing) Tier 0 4.6 MSI2K 0.4 PB disk 4.9 PB tape 5 Gbps WAN 225 MB/s (RAW) Tier-1s WNs 60 MB/s (skimmed AOD, Some RAW+RECO) Tier 2 0.9 MSI2K 0.2 PB disk 1Gbps WAN 225 MB/s (RAW) Tier-1 WNs 12 MB/s (MC) Up to 1 GB/s (AOD analysis, calibration) WNs

42. FNAL 64 bit Tests • Benchmark tests of single/dual cores (32 and 64 bit OS/applications) • Dual cores provide 2x improvement over single core (same as BNL tests) • Better performance with 64/64 (app dependent) • Dual cores provides 2x improvement in performance/watt compared to single core

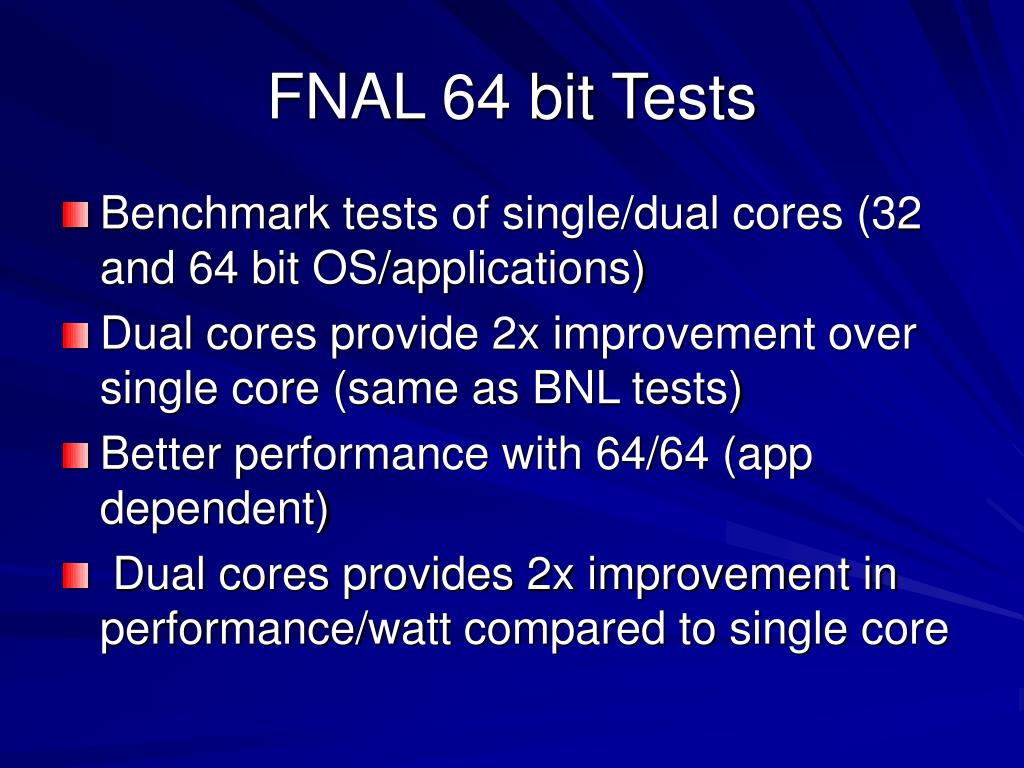

43. Network Infrastructure • Harvey Newmann’s talk • 10 Gbs backbone becoming widespread, move to 10’s (100’s?) Gbs in LHC era • PC’s moving in similar direction • Digital divide (Europe/US/Japan compared to rest of the world) • Next CHEP in Victoria, BC (Sep. 07)
