  1. GPS ProjectDr. Glen Lightsey Investigation of How Accuracy of GPS Measurements is Affected by Errors in the Navigation Data

  2. General Error Sources • Space Segment • Satellite clock stability • Predictability of satellite perturbations • Control Segment • Ephemeris prediction error • Thruster performance • User Segment • Atmospheric delay (ionospheric, tropospheric) • Multipath

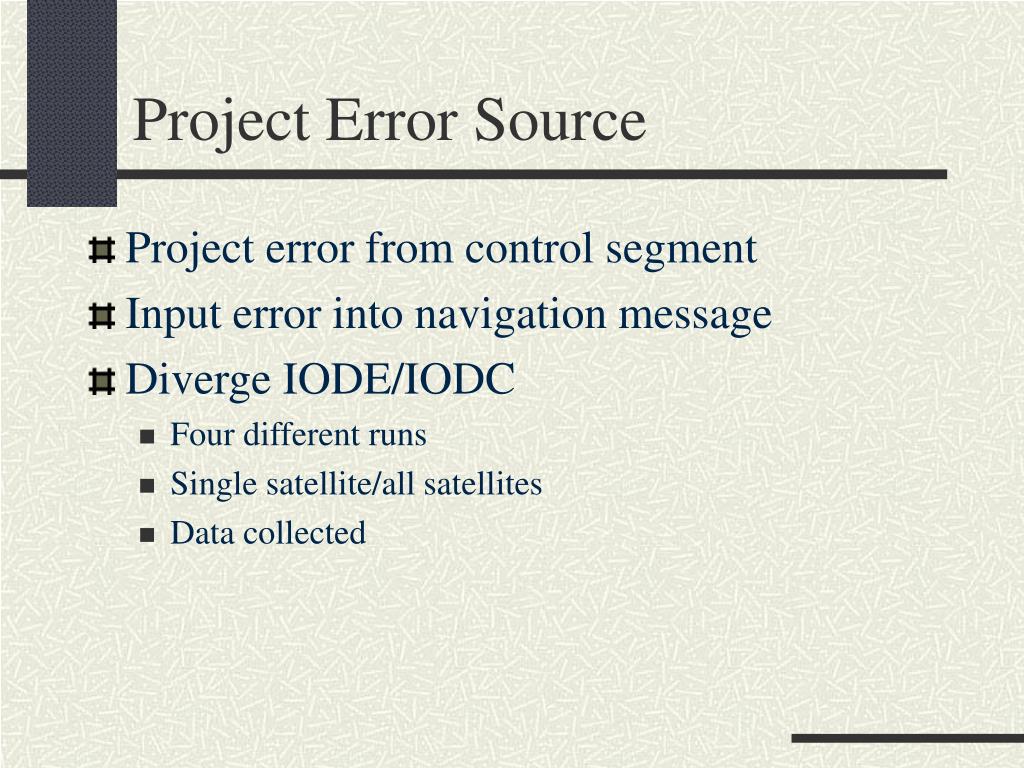

  3. Project Error Source • Project error from control segment • Input error into navigation message • Diverge IODE/IODC • Four different runs • Single satellite/all satellites • Data collected

  4. Analysis Performed • Used Matlab script to generate: • X, Y, Z residuals • X, Y, Z mean and standard deviations • PDOP • The following plots show the results

  5. Run 1

  6. Run 2

  7. Run 3

  8. Run 4

  9. Run 1 and Run 2

  10. Run 3 and Run 4

  11. Run 1 Run 2 Run 3 Run 4 XStandard Deviation 2.839260665295466 4.272239014080701 4.406938111010710 3.210611943544223 X Mean Deviation -1.810899195591854 2.238524831074054 1.452102527436283 2.196910571407352 YStandard Deviation 2.081125597206021 2.951748558515313 2.749183333205866 3.271725145171435 Y Mean Deviation 2.109895809803447 1.272517605795222 1.813049299283367 1.244333143827680 ZStandard Deviation 1.535638959253165 1.168424213523795 1.124988085860343 1.363715962099733 Z Mean Deviation -2.532220018706219 8.770300506681473 -4.110255008356439 6.321518295255373 Mean and Standard Deviations for all runs

  12. Conclusions • In general, run 2 was noisier than most • Run 4 was less noisy than either 2 or 3 • Runs 2,3,and 4 were noisier than 1 • Runs 2 and 3 were not very different • The accuracy was degraded by approximately 2 to 5 meters
