    1. Experience with XML Schema Ashok Malhotra

    2. Schema Usage • Mapping XML Schema and XML documents controlled by the Schema to object classes and instances. • Storing XML Schemas and documents in the database.

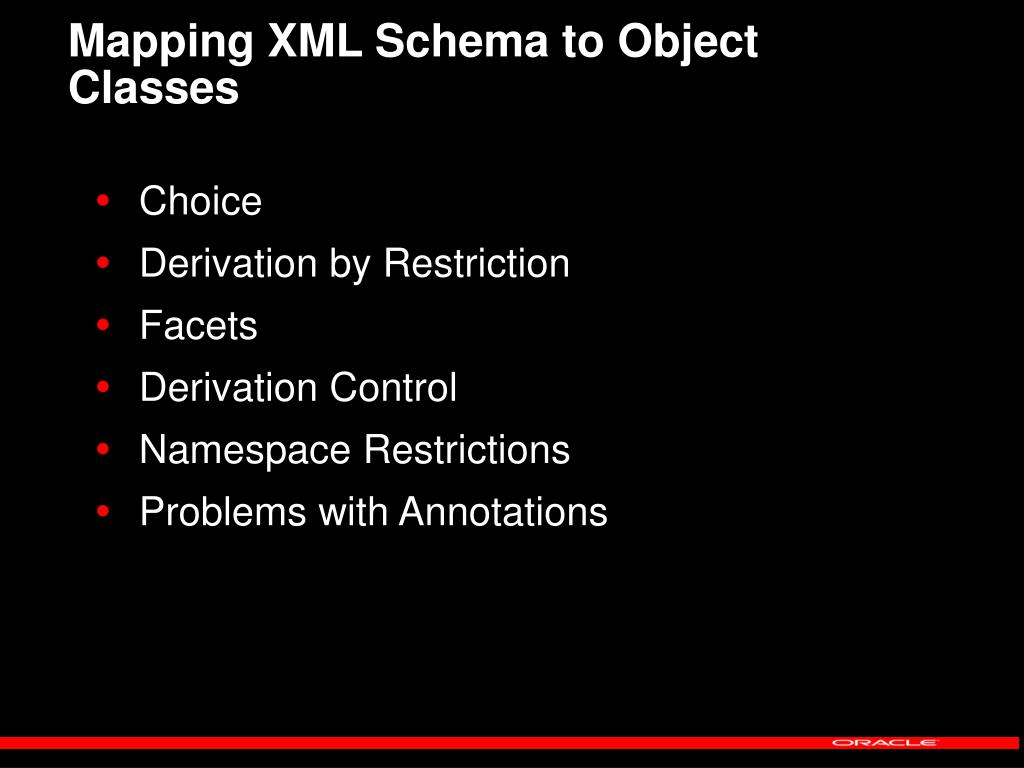

    3. Mapping XML Schema to Object Classes • Choice • Derivation by Restriction • Facets • Derivation Control • Namespace Restrictions • Problems with Annotations

    4. Mapping XML Schema to Object Classes - Choice • Choice allows variations in the content of an object. • No equivalent construct in Java. • Some languages support variant classes.

    5. Mapping XML Schema to Object Classes • Derivation by restriction has no object-oriented equivalent. • In the database, a restricted type is mapped to a dummy subtype with no additional fields. Restriction not enforced at SQL level. • Similarly, for datatypes, facets have no object-oriented equivalent. • Must be checked at runtime.

    6. Mapping XML Schema to Object Classes – fixed, final, block, etc. • Fixed and final restrict derivation from elements. • Block restricts use of derived types where the parent type is expected. • Only final #all has a Java equivalent.

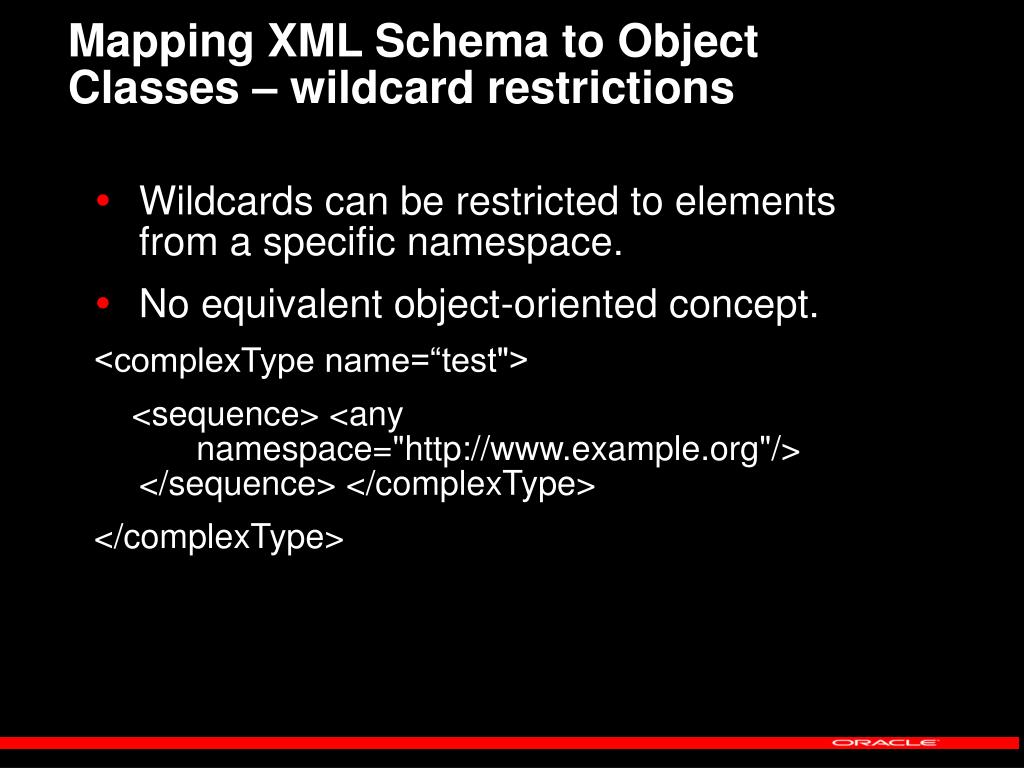

    7. Mapping XML Schema to Object Classes – wildcard restrictions • Wildcards can be restricted to elements from a specific namespace. • No equivalent object-oriented concept. <complexType name=“test"> <sequence> <any namespace="http://www.example.org"/> </sequence> </complexType> </complexType>

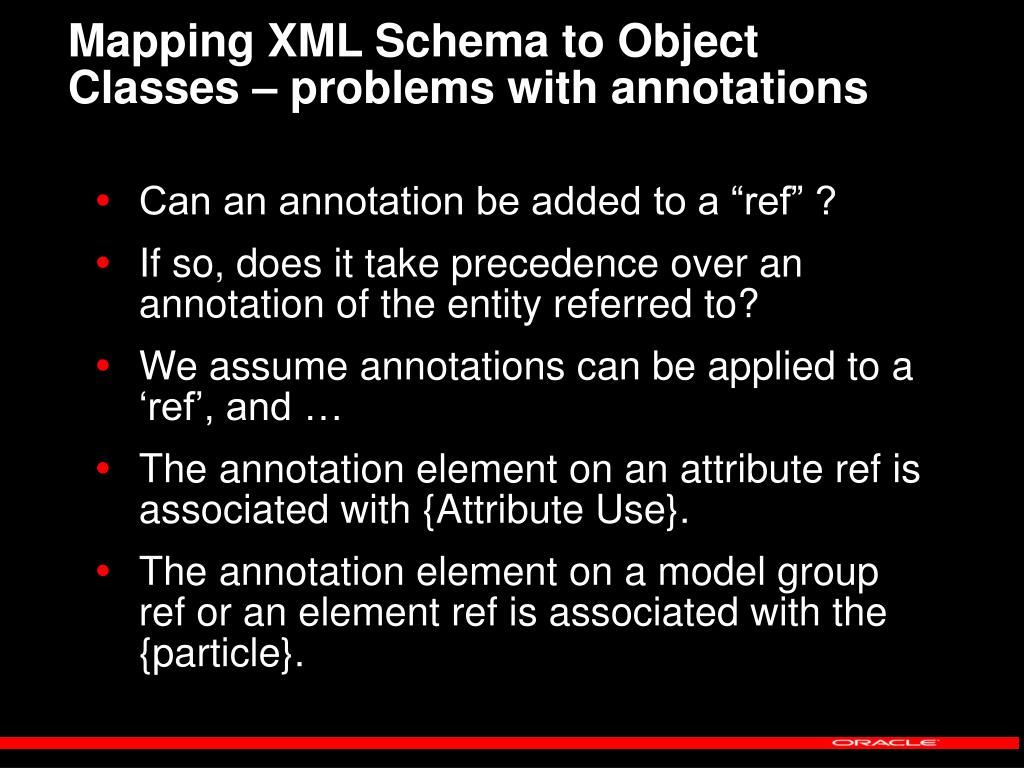

    8. Mapping XML Schema to Object Classes – problems with annotations • Can an annotation be added to a “ref” ? • If so, does it take precedence over an annotation of the entity referred to? • We assume annotations can be applied to a ‘ref’, and … • The annotation element on an attribute ref is associated with {Attribute Use}. • The annotation element on a model group ref or an element ref is associated with the {particle}.

    9. Managing XML Schemas and documents in the database • Support is provided for the following tasks: • Registering XML Schemas. • Validating XML documents against a registered XML Schema. • Generating XML Schema from object classes. • Generating a structured database mapping from XML Schemas during XML Schema registration. This includes generating SQL object types, collection types, and default tables, and capturing the mapping information using special attributes. • Performing manipulation (DML) and queries on XML Schema-based XMLType tables. • Automatically inserting data into default tables when schema-based XML instances are inserted into Oracle XML DB repository using FTP, HTTP/WebDAV protocols and other languages.

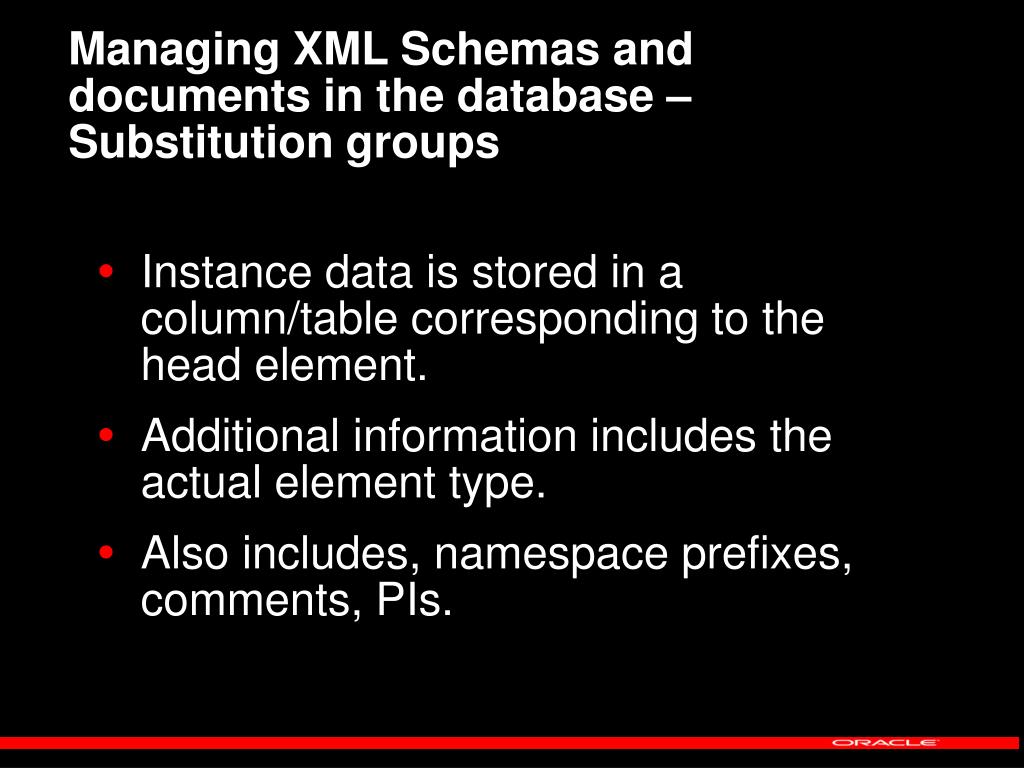

    10. Managing XML Schemas and documents in the database – Substitution groups • Instance data is stored in a column/table corresponding to the head element. • Additional information includes the actual element type. • Also includes, namespace prefixes, comments, PIs.

    11. Managing XML Schemas and documents in the database – non-SQL datatypes • Datatypes that cannot be represented in SQL are mapped to a VARCHAR2 column. • This is also on option for datatypes that do map cleanly to SQL types e.g. integer. • Schema annotation can be used to specify storage option.

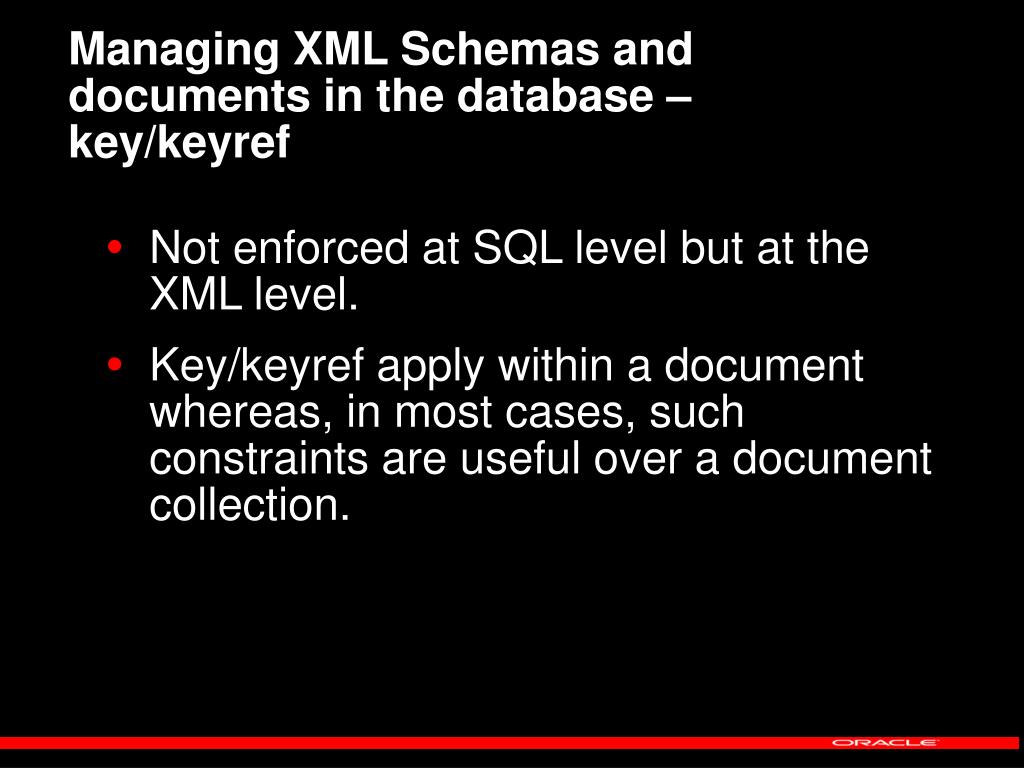

    12. Managing XML Schemas and documents in the database – key/keyref • Not enforced at SQL level but at the XML level. • Key/keyref apply within a document whereas, in most cases, such constraints are useful over a document collection.

    13. Managing XML Schemas and documents in the database – wildcard with namespace exclusion • Cannot define a wildcard that allows elements not in a specified namespace and also allows the null namespace. • Needed to add proprietary extensions to handle this case.

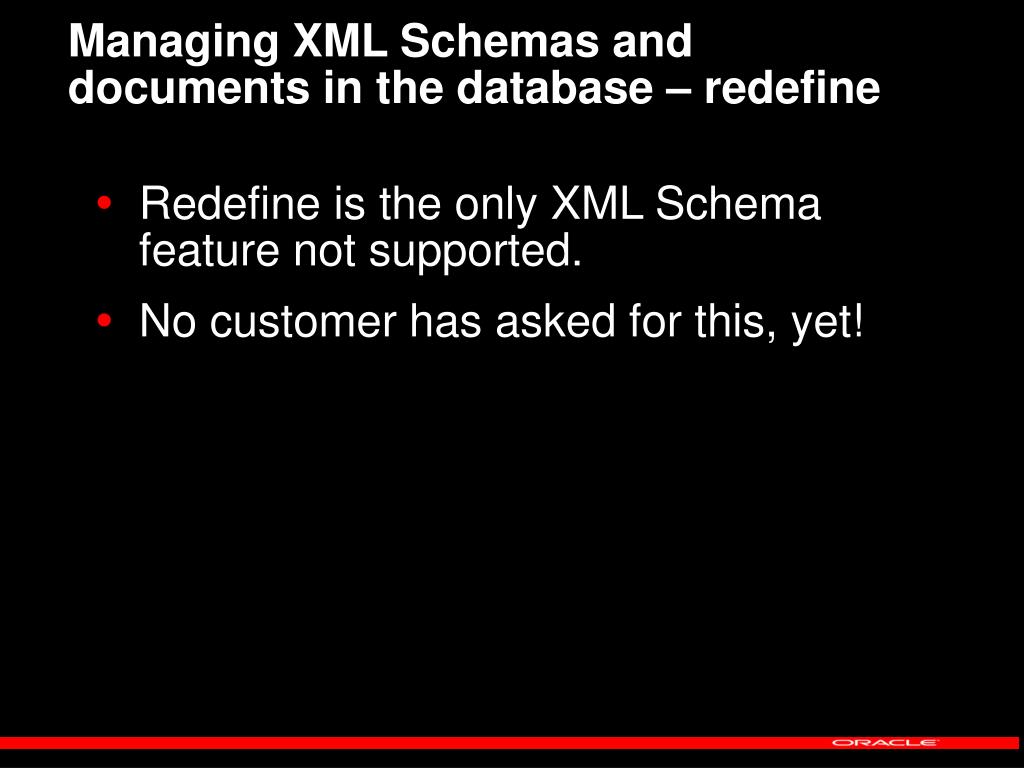

    14. Managing XML Schemas and documents in the database – redefine • Redefine is the only XML Schema feature not supported. • No customer has asked for this, yet!
