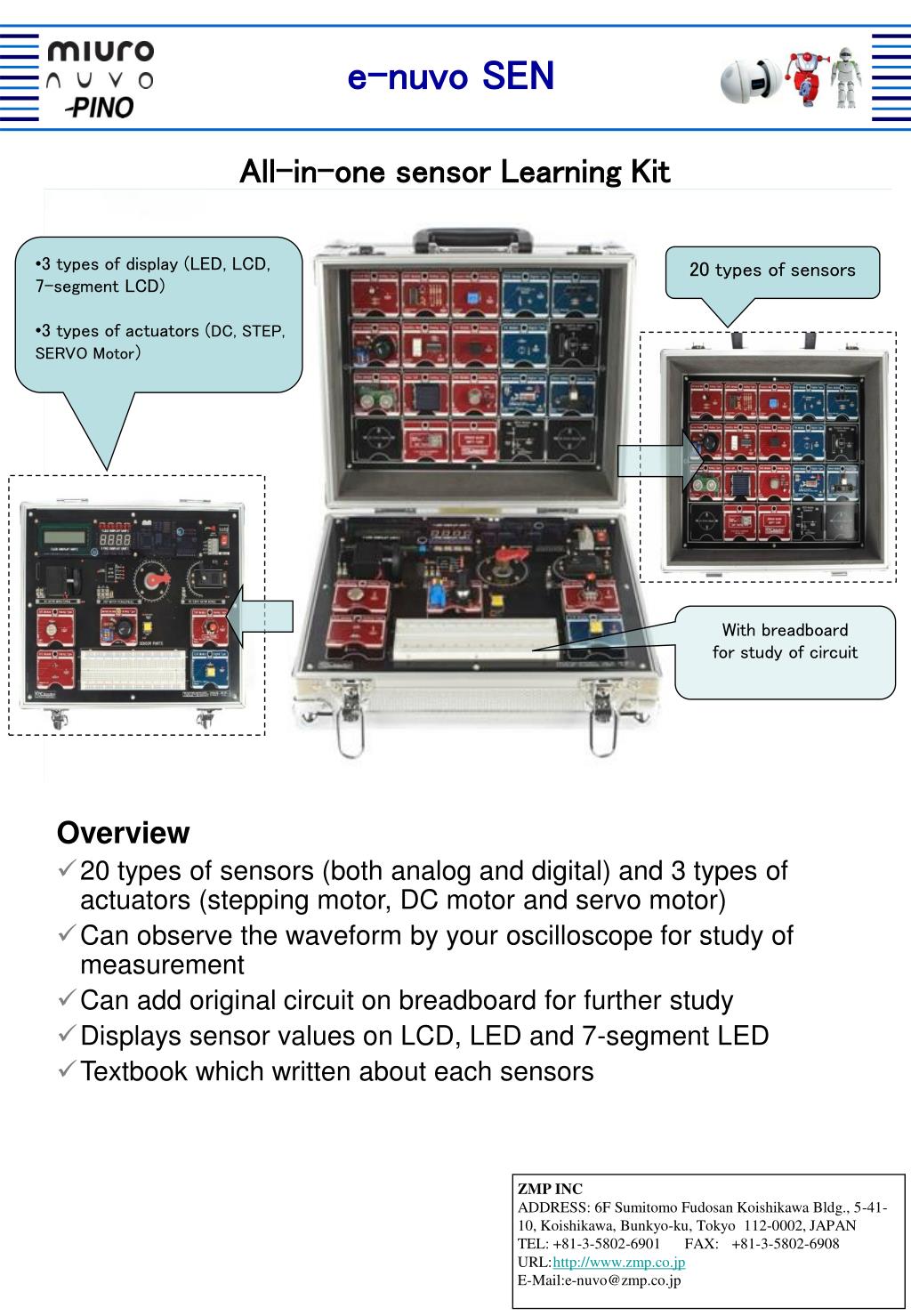

  1. e-nuvoSEN All-in-one sensor Learning Kit • 3 types of display (LED, LCD, 7-segment LCD) • 3 types of actuators (DC, STEP, SERVO Motor） 20 types of sensors KMC-SEN With breadboard for study of circuit Overview • 20 types of sensors (both analog and digital) and 3 types of actuators (stepping motor, DC motor and servo motor) • Can observe the waveform by your oscilloscope for study of measurement • Can add original circuit on breadboard for further study • Displays sensor values on LCD, LED and 7-segment LED • Textbook which written about each sensors ZMP INC ADDRESS: 6F Sumitomo Fudosan Koishikawa Bldg., 5-41-10, Koishikawa, Bunkyo-ku, Tokyo 112-0002, JAPAN TEL: +81-3-5802-6901 FAX: +81-3-5802-6908 URL: http://www.zmp.co.jp E-Mail:e-nuvo@zmp.co.jp

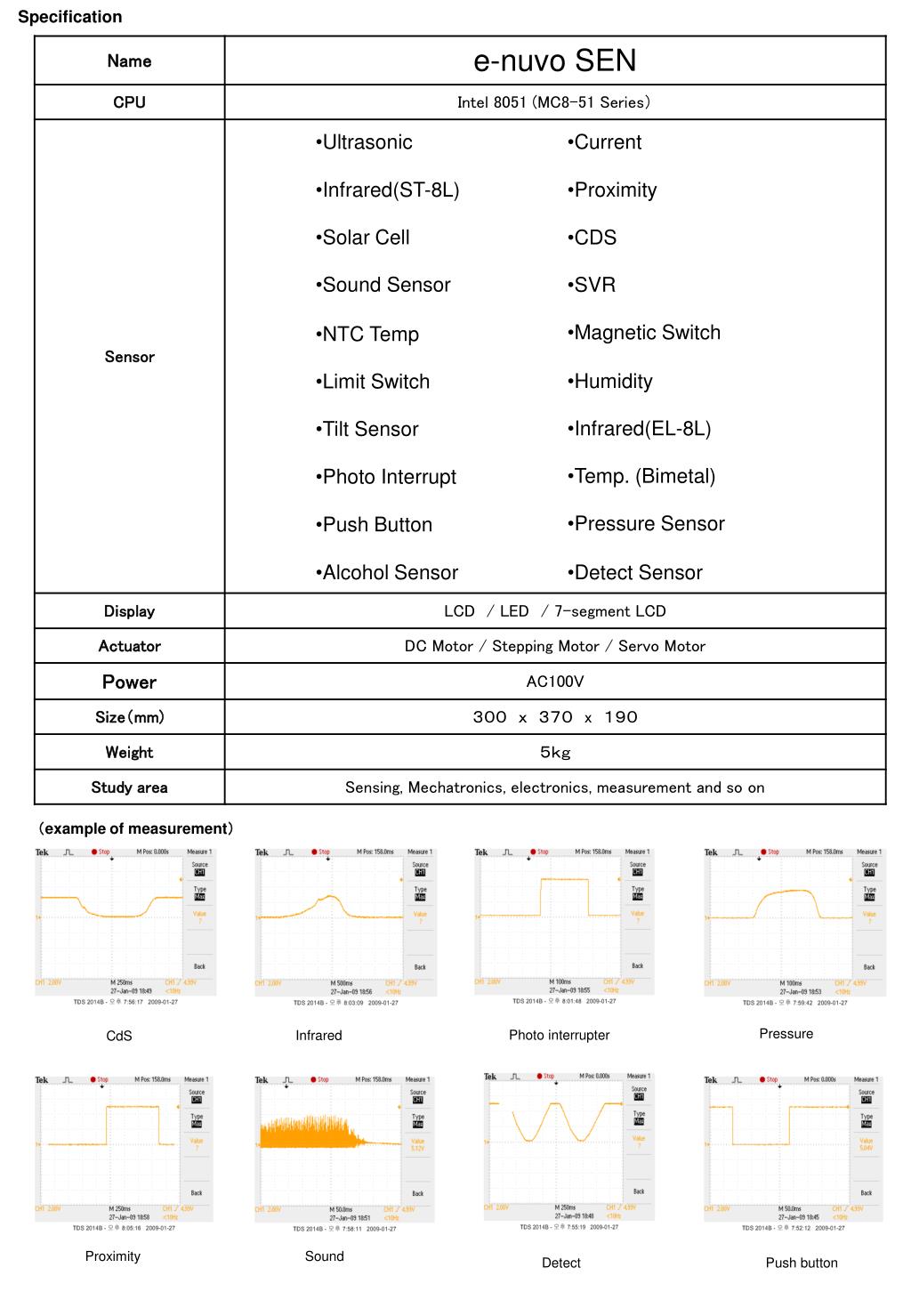

  2. Specification • Ultrasonic • Current • Infrared(ST-8L) • Proximity • Solar Cell • CDS • Sound Sensor • SVR • Magnetic Switch • NTC Temp • Humidity • Limit Switch • Infrared(EL-8L) • Tilt Sensor • Temp. (Bimetal) • Photo Interrupt • Pressure Sensor • Push Button • Alcohol Sensor • Detect Sensor （example of measurement） Pressure Infrared Photo interrupter CdS Proximity Sound Detect Push button
