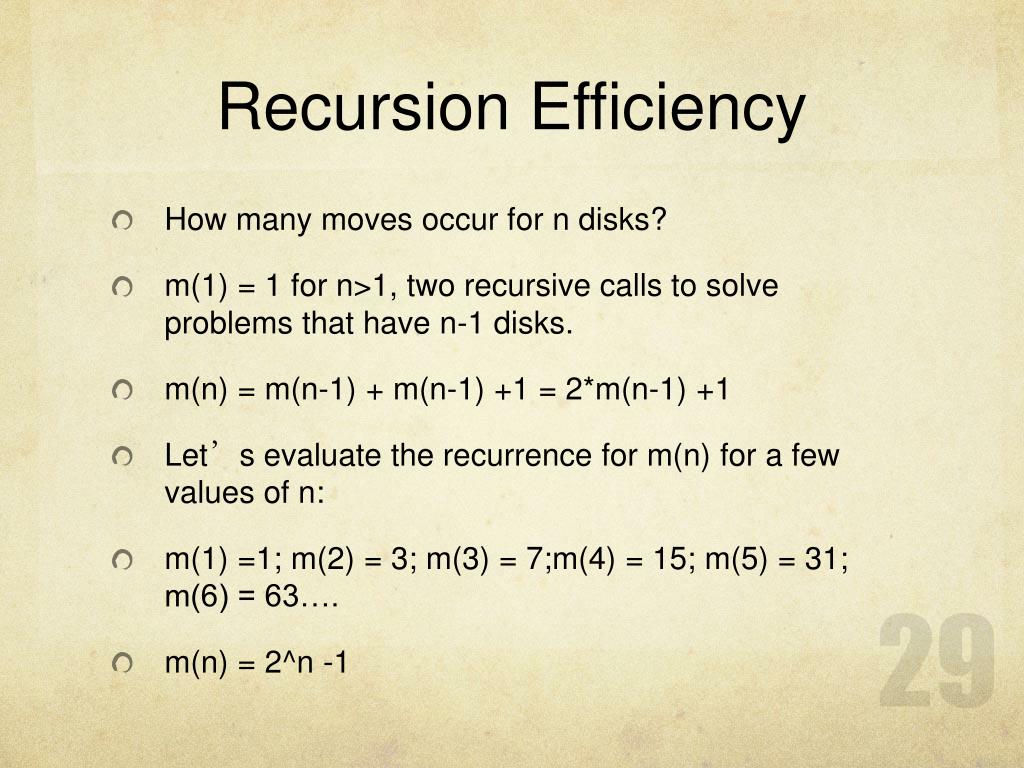

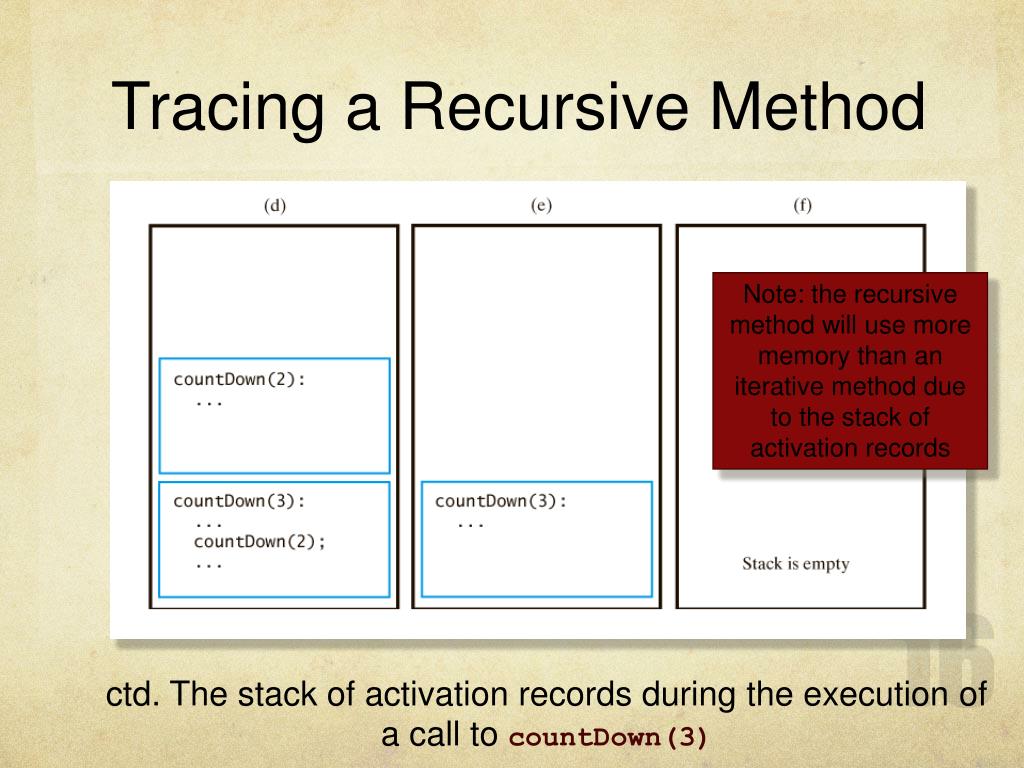

Recursion. Chapter 10. Chapter Contents. What Is Recursion? Tracing a Recursive Method Recursive Methods That Return a Value Recursively Processing an Array Recursively Processing a Linked Chain The Time Efficiency of Recursive Methods Time Efficiency of countDown

Download Presentation
## Recursion

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

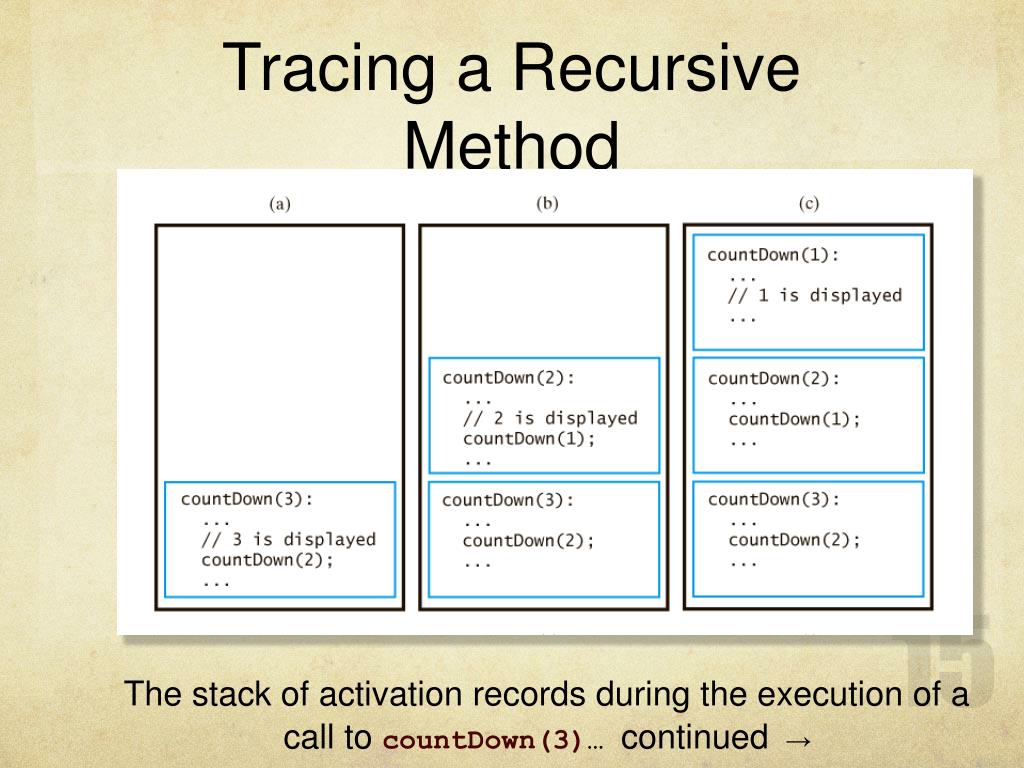

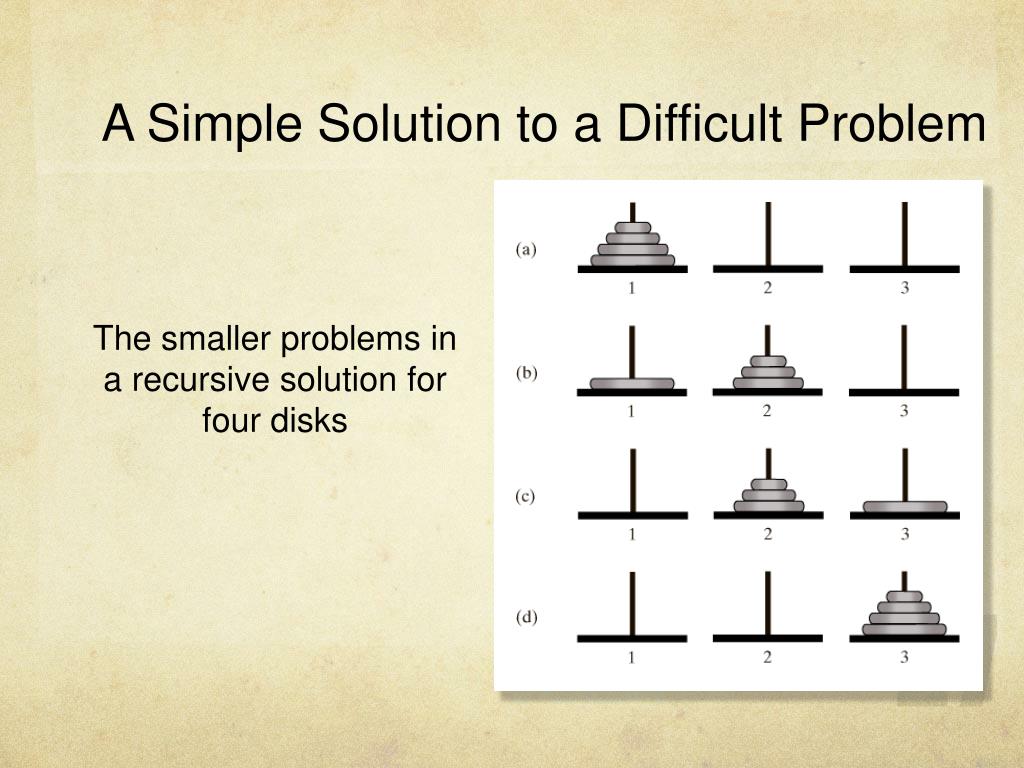

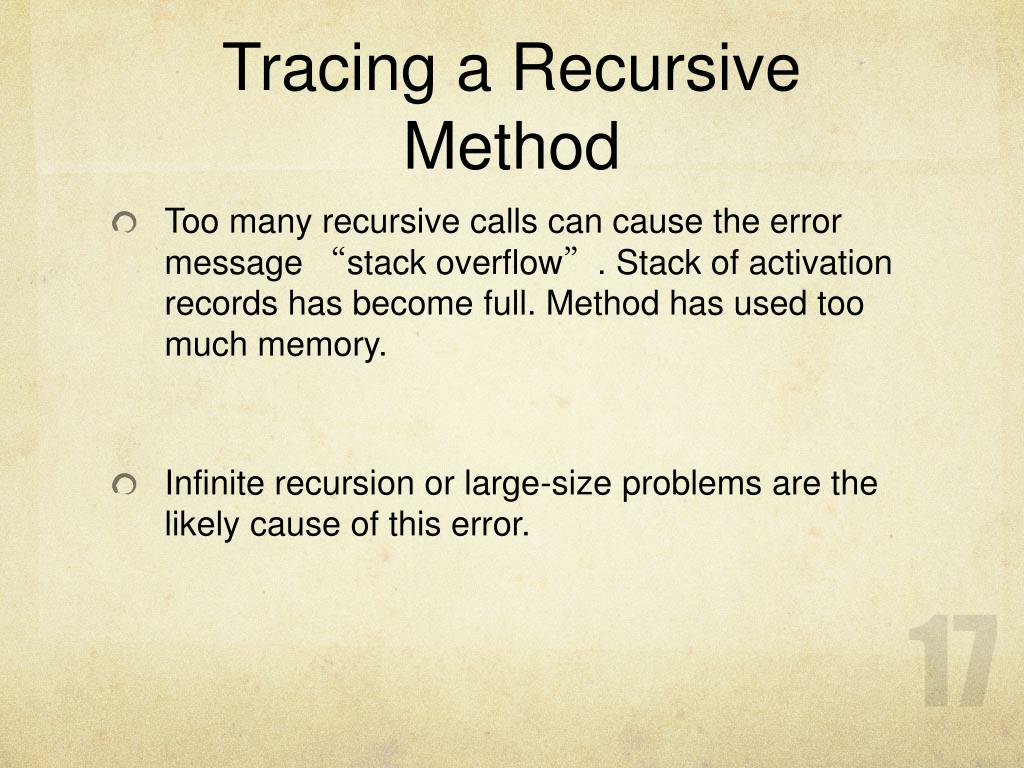

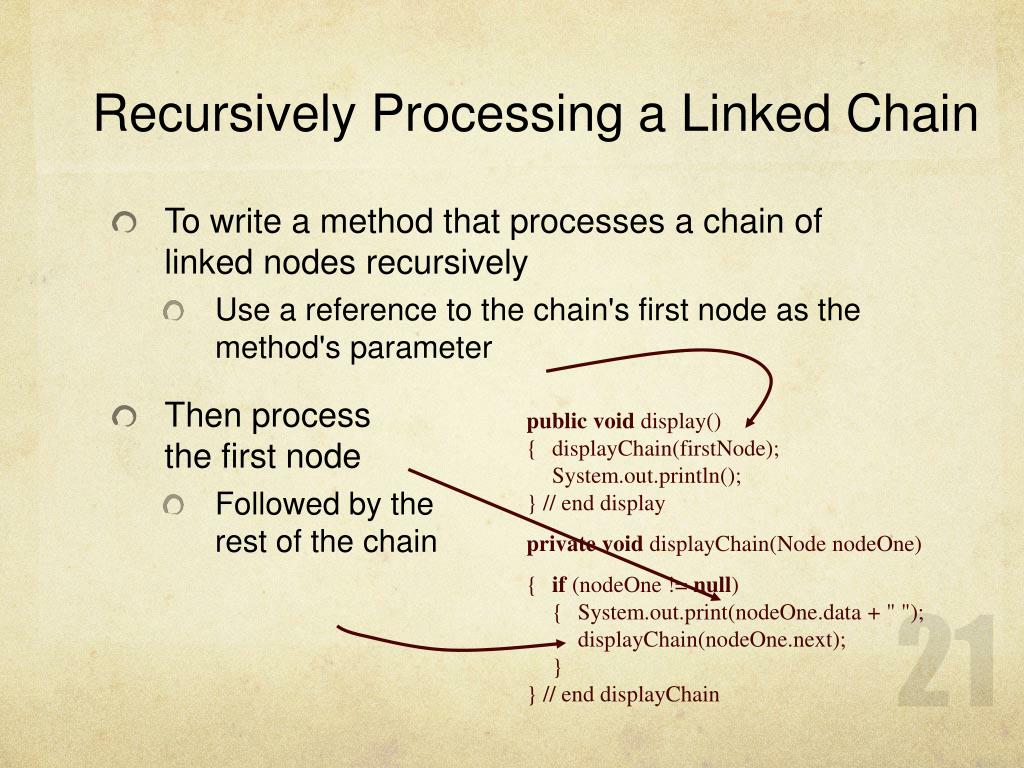

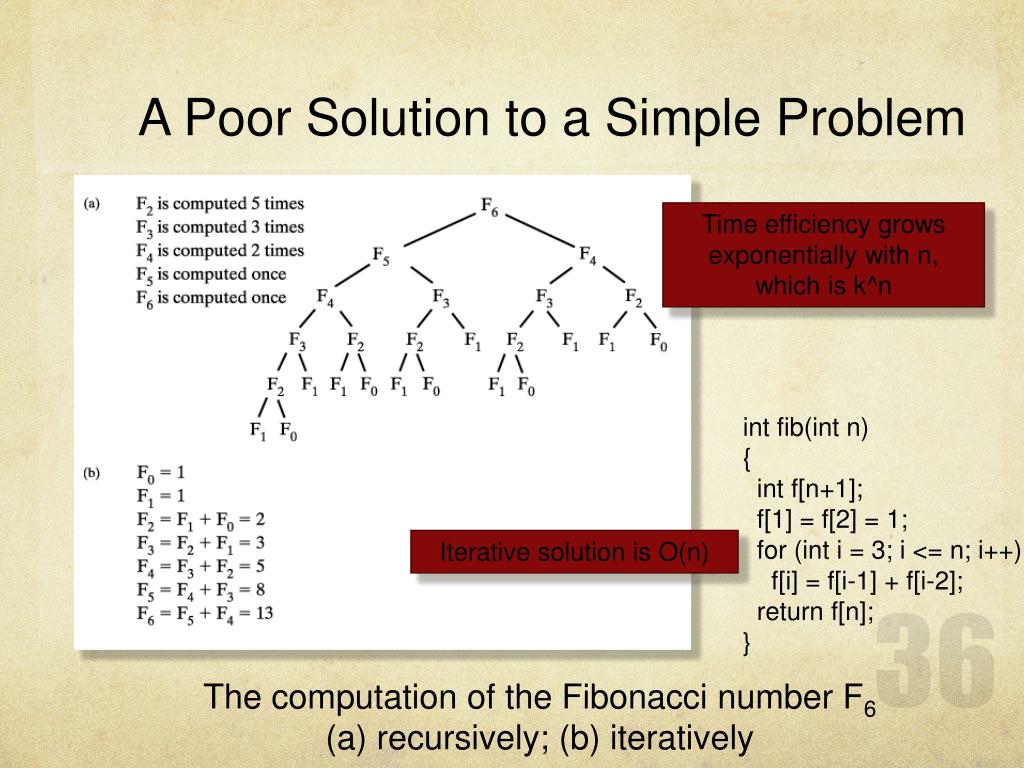

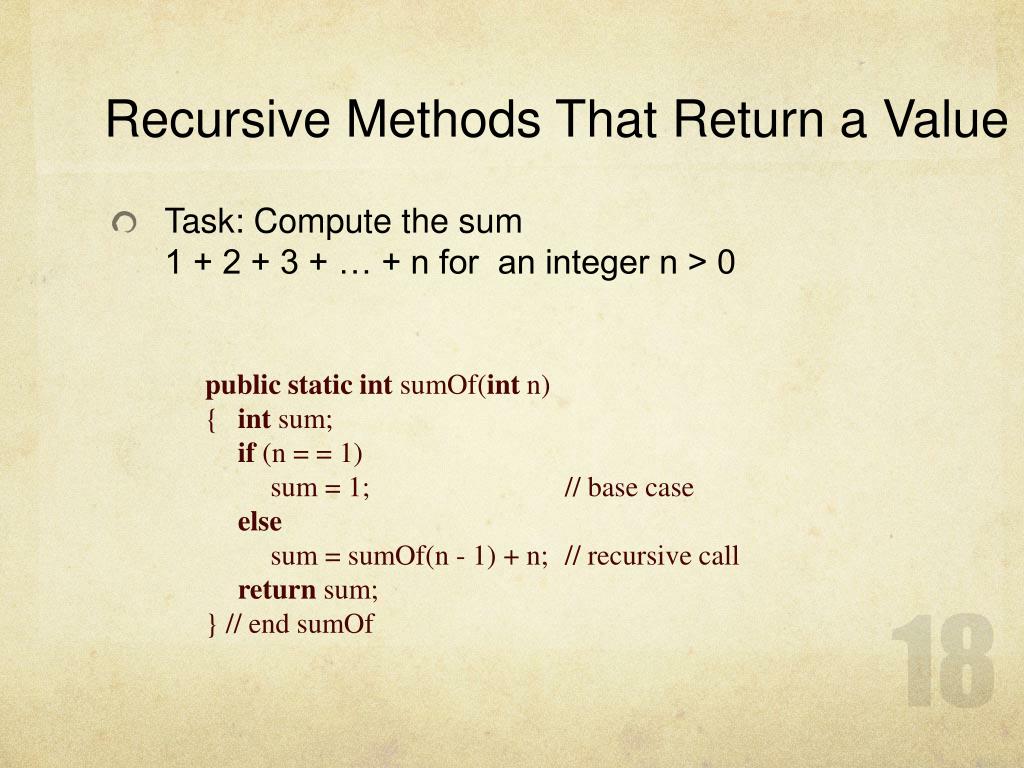

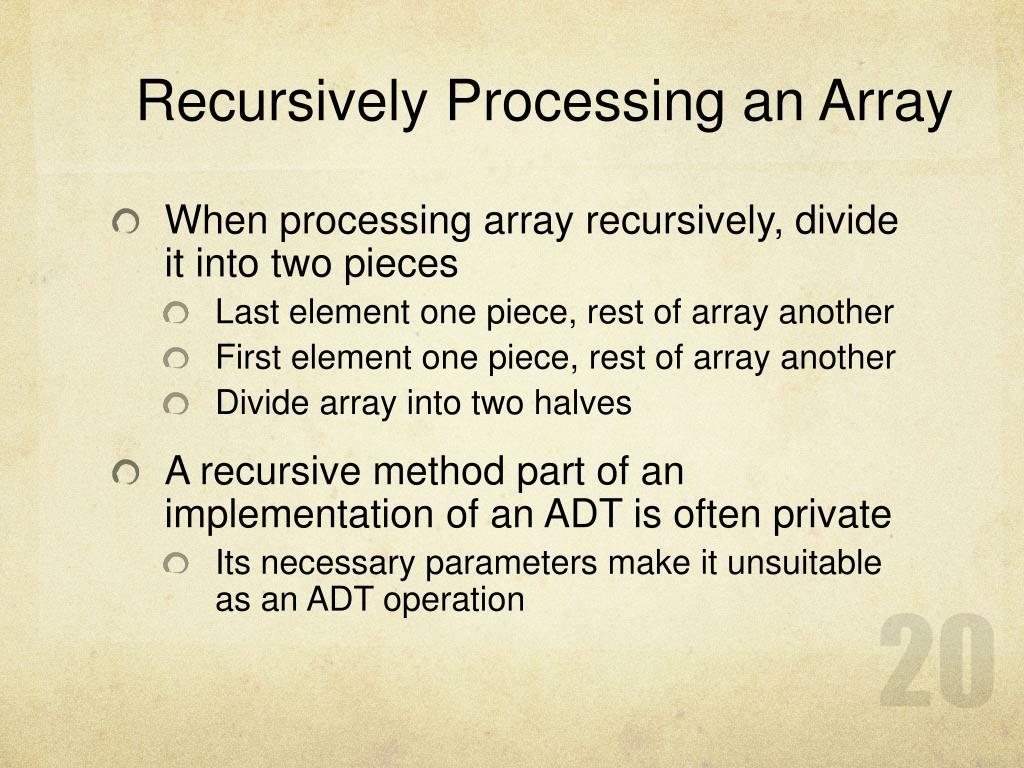

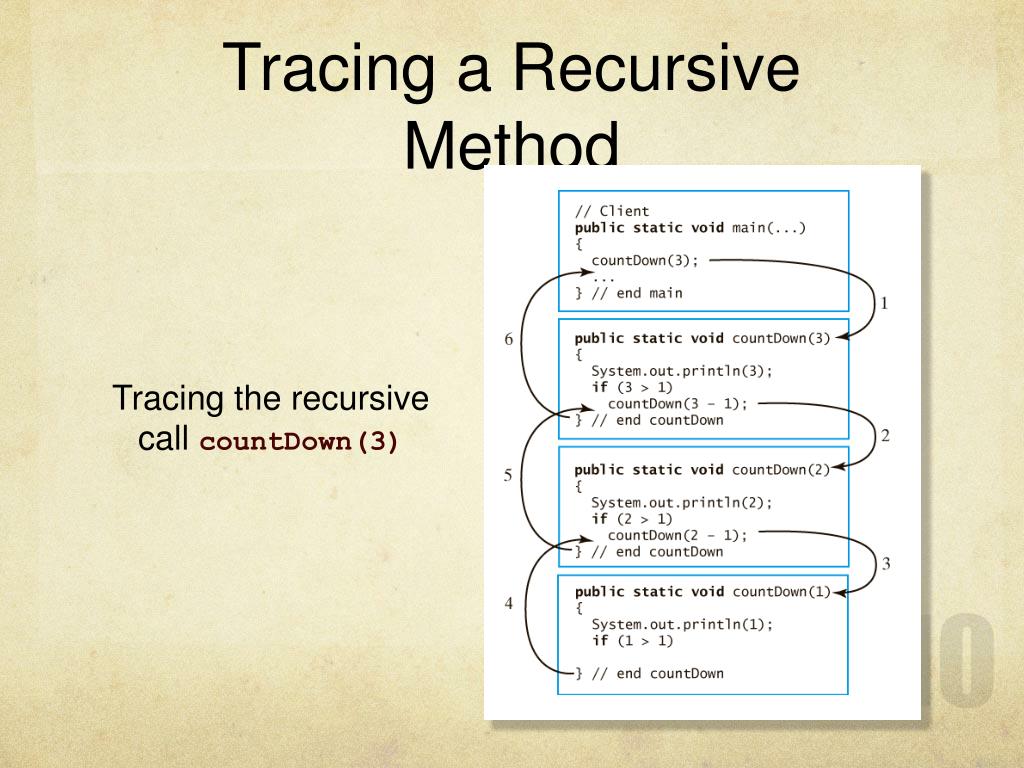

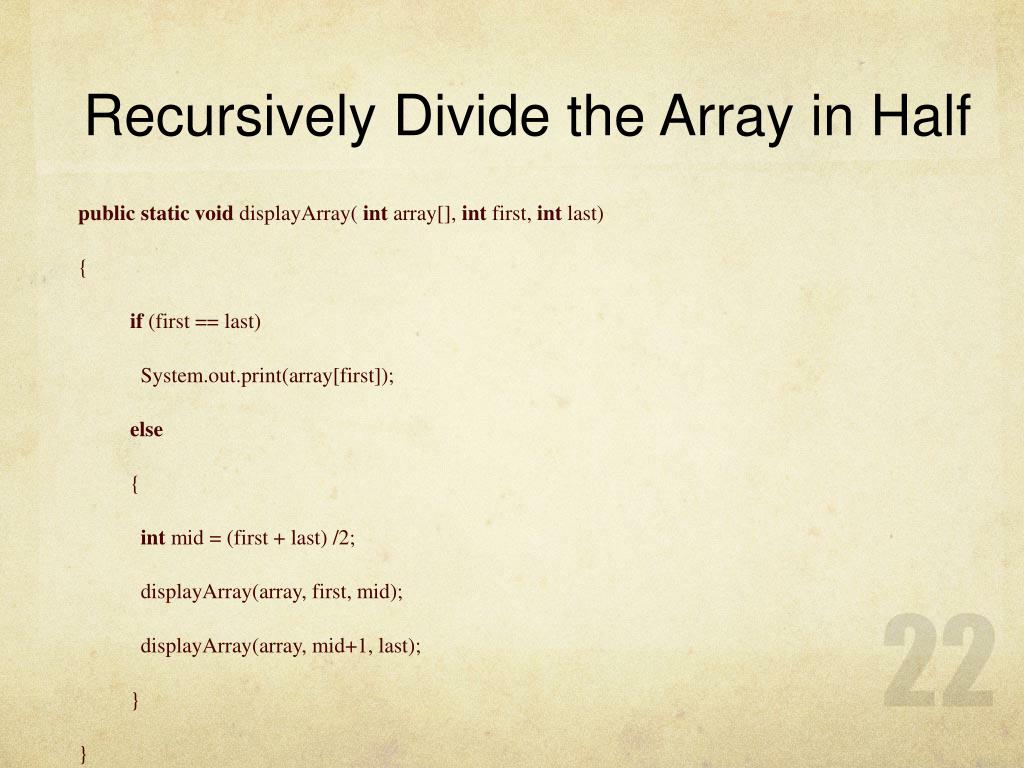

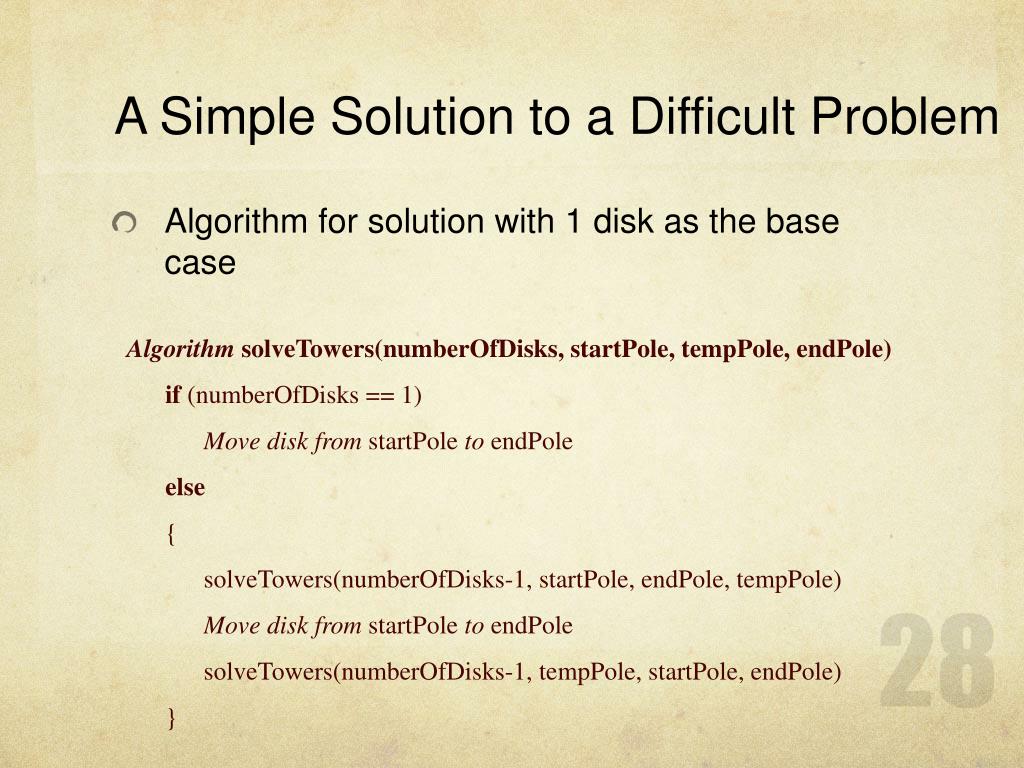

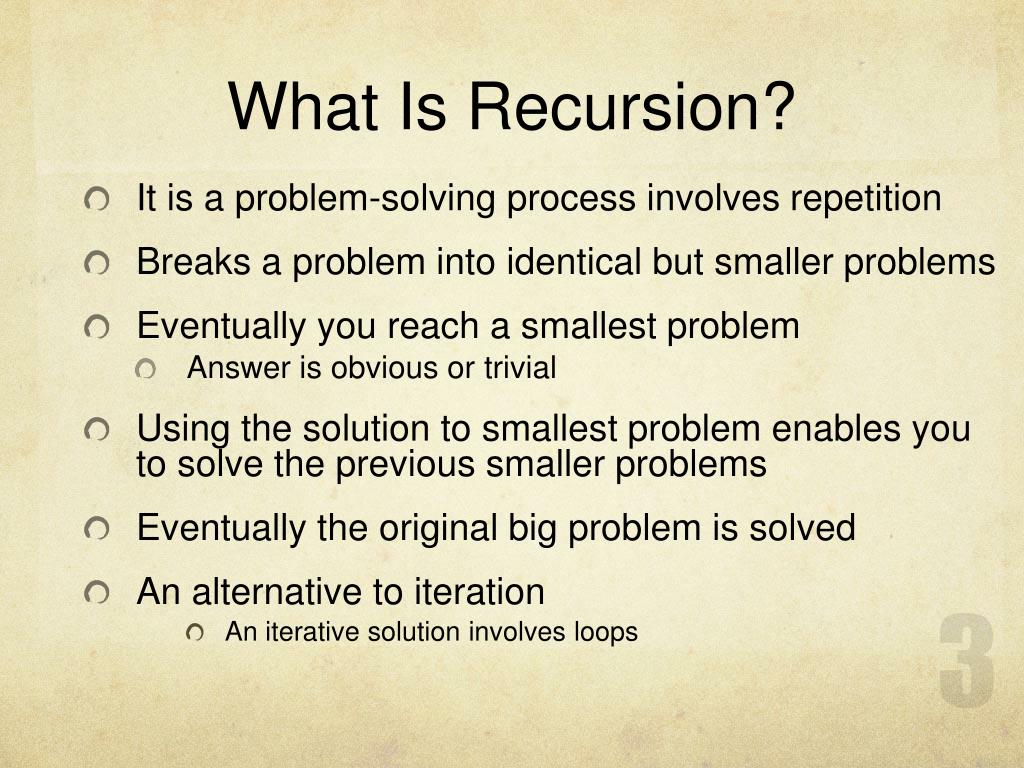

**Recursion**Chapter 10**Chapter Contents**• What Is Recursion? • Tracing a Recursive Method • Recursive Methods That Return a Value • Recursively Processing an Array • Recursively Processing a Linked Chain • The Time Efficiency of Recursive Methods • Time Efficiency of countDown • A Simple Solution to a Difficult Problem • A Poor Solution to a Simple Problem**What Is Recursion?**• It is a problem-solving process involves repetition • Breaks a problem into identical but smaller problems • Eventually you reach a smallest problem • Answer is obvious or trivial • Using the solution to smallest problem enables you to solve the previous smaller problems • Eventually the original big problem is solved • An alternative to iteration • An iterative solution involves loops**What Is Recursion?**New Year Eve: counting down from 10.**What Is Recursion?**• A method that calls itself is a recursive method • Base case: a known case in a recursive definition. The smallest problem • Eventually, one of the smaller problems must be the base case /** Task: Counts down from a given positive integer.* @param integer an integer > 0 */ public static void countDown(intinteger) { System.out.println(integer);if (integer > 1)countDown(integer - 1);} // end countDown**When Designing Recursive Solution**• Four questions to ask before construct recursive solutions. If you follow these guidelines, you can be assured that it will work. • How can you define the problem in terms of a smaller problem of the same type? • How does each recursive call diminish the size of the problem? • What instance of the problem can serve as the base case? • As the problem size diminishes, will you reach this base case?**When Designing Recursive Solution**• For the method countDown, we have the following answers. • countDown displays the given integer as the part of the solution that it contribute directly. Then call countDown with smaller size. • The smaller problem is counting down from integer -1. • The if statement asks if the process has reached the base case. Here, the base case occurs when integer is 1.**Recursive Solution Guidelines**• Method definition must provide parameter • Leads to different cases • Typically includes an if or a switch statement • One or more of these cases should provide a non recursive solution( infinite recursion if don’t) • The base or stopping case • One or more cases includes recursive invocation • Takes a step towards the base case**Tracing a Recursive Method**public static void countDown(int integer) { System.out.println(integer);if (integer > 1) countDown(integer - 1);} // end countDown • Given: The effect of method call countDown(3)**Tracing a Recursive Method**Tracing the recursive call countDown(3)**Compare Iterative and Recursive Programs**//Iterative version public static void countDown( int integer) { while ( integer >= 1) { System.out.println(integer); integer--; } } //Recursive version public static void countDown( int integer) { if ( integer >= 1) { System.out.println(integer); countDown(integer -1); } }**Question?**• Could you write an recursive method that skips n lines of output, where n is a positive integer. Use System.out.println() to skip one line. • Describe a recursive algorithm that draws a given number of concentric circles. The innermost or outmost circle should have a given diameter. The diameter of each of the other circles should be three-fourths the diameter of the circle just outside it.**Answer to skipLines**pubic static void skipLines ( int givenNumber) { if (givenNumber >=1) { System.out.println(); skipLines(givenNumber – 1); } } void drawConcentricCircle( givenNumber, givenDiameter) { // what should be put inside??……. }**Tracing a Recursive Method**• Each call to a method generate an activation record that captures the state of the method’s execution and that is placed into a ADT stack. • The activation-record stack remembers the history of incompleted method calls. A snapshot of a method’s state. • The topmost activation record holds the data values for the currently executing method. • When topmost method finishes, its activation record is popped • In this way, Java can suspend the execution of a recursive method and re-invoke it when it appears on the top.**Tracing a Recursive Method**The stack of activation records during the execution of a call to countDown(3)… continued→**Tracing a Recursive Method**Note: the recursive method will use more memory than an iterative method due to the stack of activation records ctd. The stack of activation records during the execution of a call to countDown(3)**Tracing a Recursive Method**• Too many recursive calls can cause the error message “stack overflow”. Stack of activation records has become full. Method has used too much memory. • Infinite recursion or large-size problems are the likely cause of this error.**Recursive Methods That Return a Value**• Task: Compute the sum1 + 2 + 3 + … + n for an integer n > 0 public static int sumOf(int n){ int sum;if (n = = 1) sum = 1; // base caseelsesum = sumOf(n - 1) + n; // recursive callreturn sum;} // end sumOf**Recursive Methods That Return a Value**The stack of activation records during the execution of a call to sumOf(3)**Recursively Processing an Array**• When processing array recursively, divide it into two pieces • Last element one piece, rest of array another • First element one piece, rest of array another • Divide array into two halves • A recursive method part of an implementation of an ADT is often private • Its necessary parameters make it unsuitable as an ADT operation**Recursively Processing a Linked Chain**• To write a method that processes a chain of linked nodes recursively • Use a reference to the chain's first node as the method's parameter • Then process the first node • Followed by the rest of the chain public void display(){ displayChain(firstNode); System.out.println();} // end display private void displayChain(Node nodeOne) { if (nodeOne != null) { System.out.print(nodeOne.data + " "); displayChain(nodeOne.next); }} // end displayChain**Recursively Divide the Array in Half**publicstatic voiddisplayArray( int array[], int first, int last) { if (first == last) System.out.print(array[first]); else { int mid = (first + last) /2; displayArray(array, first, mid); displayArray(array, mid+1, last); } }**A Simple Solution to a Difficult Problem**The initial configuration of the Towers of Hanoi for three disks**A Simple Solution to a Difficult Problem**Rules for the Towers of Hanoi game • Move one disk at a time. Each disk you move must be a topmost disk. • No disk may rest on top of a disk smaller than itself. • You can store disks on the second pole temporarily, as long as you observe the previous two rules.**A Simple Solution to a Difficult Problem**The sequence of moves for solving the Towers of Hanoi problem with three disks. Continued →**A Simple Solution to a Difficult Problem**(ctd) The sequence of moves for solving the Towers of Hanoi problem with three disks**A Simple Solution to a Difficult Problem**The smaller problems in a recursive solution for four disks**A Simple Solution to a Difficult Problem**• Algorithm for solution with 1 disk as the base case Algorithm solveTowers(numberOfDisks, startPole, tempPole, endPole) if (numberOfDisks == 1) Move disk from startPole to endPole else { solveTowers(numberOfDisks-1, startPole, endPole, tempPole) Move disk from startPole to endPole solveTowers(numberOfDisks-1, tempPole, startPole, endPole) }**Recursion Efficiency**• How many moves occur for n disks? • m(1) = 1 for n>1, two recursive calls to solve problems that have n-1 disks. • m(n) = m(n-1) + m(n-1) +1 = 2*m(n-1) +1 • Let’s evaluate the recurrence for m(n) for a few values of n: • m(1) =1; m(2) = 3; m(3) = 7;m(4) = 15; m(5) = 31; m(6) = 63…. • m(n) = 2^n -1**Mathematical Induction**• Prove this conjecture m(n) = 2^n -1 by using mathematical induction: • We know that m(1) =1, which equals to 2^1-1=1, so the conjecture is true for n =1. • Now assume that it is true for n=1,2,…,k, and consider m(k+1). • m(k+1) = 2*m(k) +1 (use the recurrence relation) • =2*(2^k-1) +1 = 2^(k+1) -1 ( we assume that m(k) = 2^k-1) • Since the conjecture is true for n=k+1, it is truefor all n>=1**Mathematical Induction**• Assume you want to prove some statement P, P(n) is true for all n starting with n = 1. The Principle of Math Induction states that, to this end, one should accomplish just two steps: • 1). Prove that P(1) is true. • 2). Assume that P(k) is true for some k. Derive from here that P(k+1) is also true. • look P(1) is true and implies P(2). Therefore P(2) is true. But P(2) implies P(3). Therefore P(3) is true which implies P(4) and so on.**Multiplying Rabbits (The Fibonacci Sequence)**• “Facts” about rabbits • Rabbits never die • A rabbit reaches sexual maturity exactly two months after birth, that is, at the beginning of its third month of life • Rabbits are always born in male-female pairs • At the beginning of every month, each sexually mature male-female pair gives birth to exactly one male-female pair**Multiplying Rabbits (The Fibonacci Sequence)**• Problem • How many pairs of rabbits are alive in month n? • Month Month No calculation rabbit couples • January 1 1 + 0 = 1 • February 2 1 + 0 = 1 • March 3 1 + 1 = 2 • April 4 2 + 1 = 3 • May 5 3 + 2 = 5 • June 6 5 + 3 = 8 • July 7 8 + 5 = 13 • August 8 13 + 8 = 21 • Recurrence relation rabbit(n) = rabbit(n-1) + rabbit(n-2)**A Poor Solution to a Simple Problem**• Fibonacci numbers • First two numbers of sequence are 1 and 1 • Successive numbers are the sum of the previous two • 1, 1, 2, 3, 5, 8, 13, … • This has a natural looking recursive solution • Turns out to be a poor (inefficient) solution**A Poor Solution to a Simple Problem**• The recursive algorithm Algorithm Fibonacci(n) if (n <= 1)return 1else return Fibonacci(n-1) + Fibonacci(n-2)**A Poor Solution to a Simple Problem**Time efficiency grows exponentially with n, which is k^n int fib(int n) { int f[n+1]; f[1] = f[2] = 1; for (int i = 3; i <= n; i++) f[i] = f[i-1] + f[i-2]; return f[n]; } Iterative solution is O(n) The computation of the Fibonacci number F6(a) recursively; (b) iteratively
